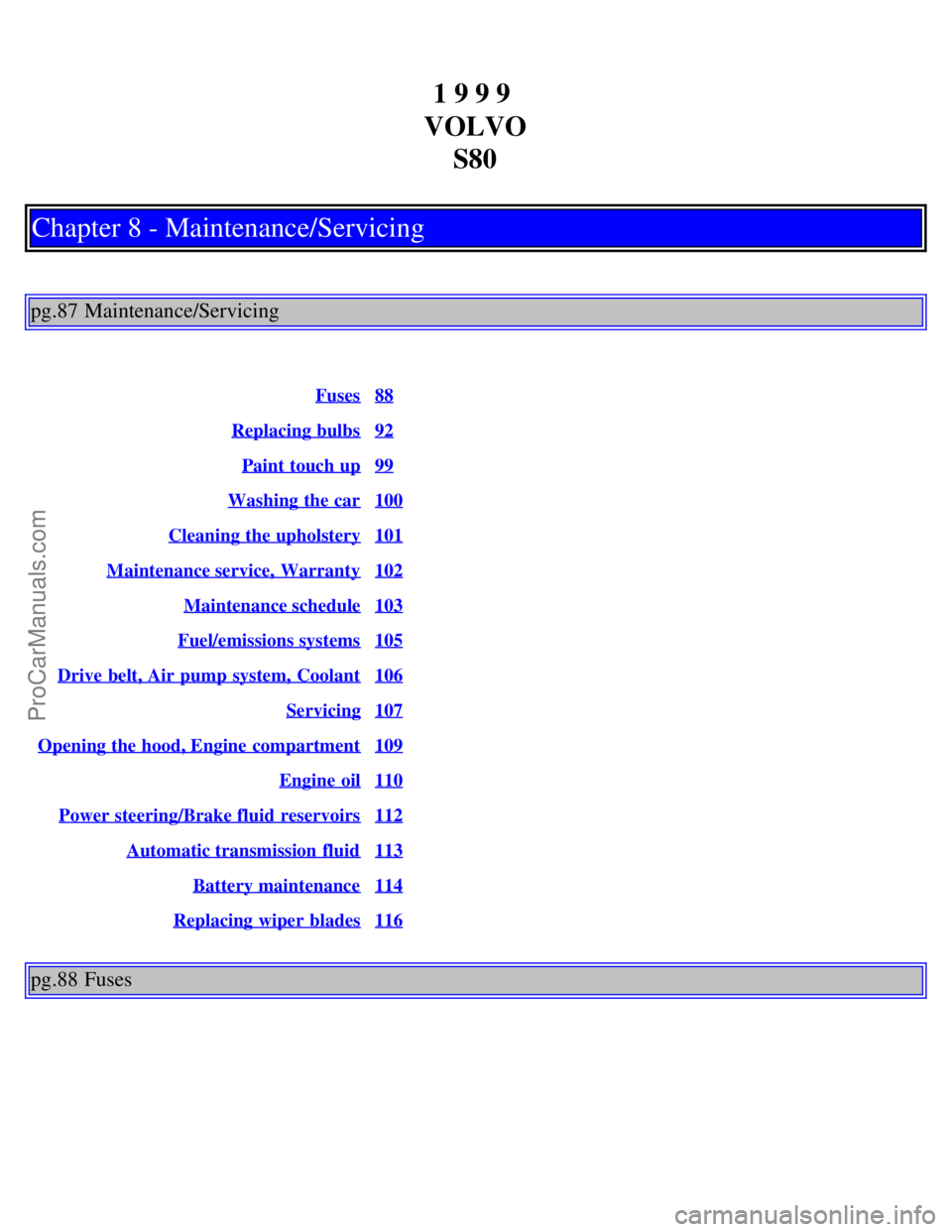

VOLVO S80 1999 Repair Manual

1 9 9 9
VOLVO S80
Chapter 8 - Maintenance/Servicing
pg.87 Maintenance/Servicing
Fuses88
Replacing bulbs92
Paint touch up99
Washing the car100
Cleaning the upholstery101
Maintenance service, Warranty102
Maintenance schedule103
Fuel/emissions systems105
Drive belt, Air pump system, Coolant106
Servicing107
Opening the hood, Engine compartment109
Engine oil110
Power steering/Brake fluid reservoirs112
Automatic transmission fluid113
Battery maintenance114
Replacing wiper blades116
pg.88 Fuses

ProCarManuals.com

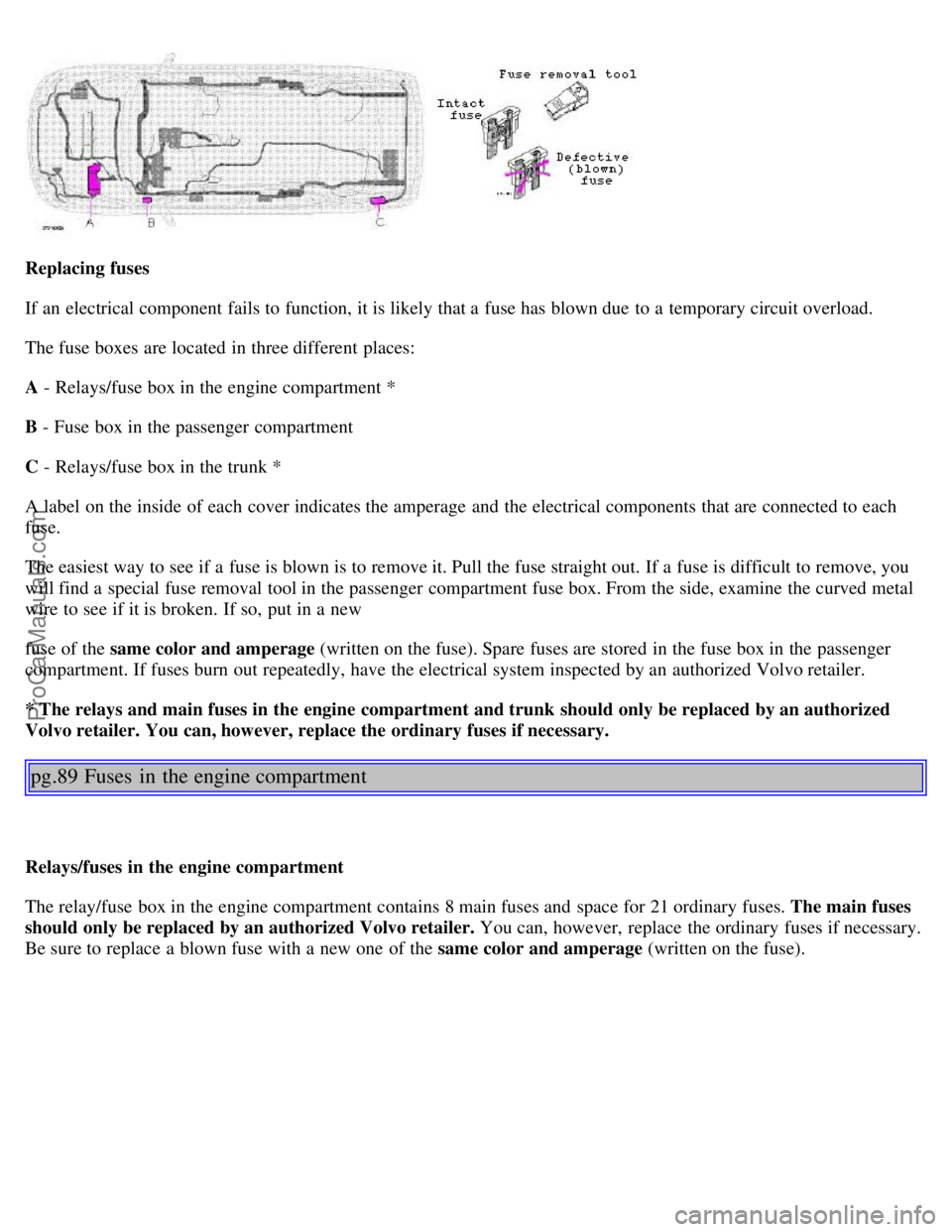

Replacing fuses
If an electrical component fails to function, it is likely that a fuse has blown due to a temporary circuit overload.
The fuse boxes are located in three different places:
A - Relays/fuse box in the engine compartment *
B - Fuse box in the passenger compartment
C - Relays/fuse box in the trunk *
A label on the inside of each cover indicates the amperage and the electrical components that are connected to each
fuse.
The easiest way to see if a fuse is blown is to remove it. Pull the fuse straight out. If a fuse is difficult to remove, you
will find a special fuse removal tool in the passenger compartment fuse box. From the side, examine the curved metal
wire to see if it is broken. If so, put in a new
fuse of the same color and amperage (written on the fuse). Spare fuses are stored in the fuse box in the passenger
compartment. If fuses burn out repeatedly, have the electrical system inspected by an authorized Volvo retailer.
* The relays and main fuses in the engine compartment and trunk should only be replaced by an authorized
Volvo retailer. You can, however, replace the ordinary fuses if necessary.
pg.89 Fuses in the engine compartment
Relays/fuses in the engine compartment
The relay/fuse box in the engine compartment contains 8 main fuses and space for 21 ordinary fuses. The main fuses
should only be replaced by an authorized Volvo retailer. You can, however, replace the ordinary fuses if necessary.
Be sure to replace a blown fuse with a new one of the same color and amperage (written on the fuse).
ProCarManuals.com

Main fuses
LocationAmperage
1 Air pump (certain models) 60A
2 Engine compartment/passenger compartment 60A
3 Engine compartment/passenger compartment 60A
4 Engine compartment/passenger compartment 60A
5 -
6 -
7 Electric cooling fan 60A
8 - 60A
Ordinary fuses
LocationAmperage
1 High beams 20A
2 Low beams 15A
3 Brake light connector 5A
4 Windshield wipers 25A
5 Windshield washers, headlight washers (certain models) 15A
6 -
7 -
8 Horn 15A
9 -
10 -
11 ABS 30A
12 ABS 30A
13 Starter motor 25A
14 Engine control systems 5A
15 -
16 A/C compressor, throttle sensor, automatic transmission 20A
17 Air pump, electric cooling fan, A/C compressor, ignition coil 20A
18 Mass air flow sensor, engine control module, fuel injectors 15A
19 Emission controls 20A
20 Crankcase ventilation heater, turbo control valve 15A
ProCarManuals.com

21Throttle control module 10A

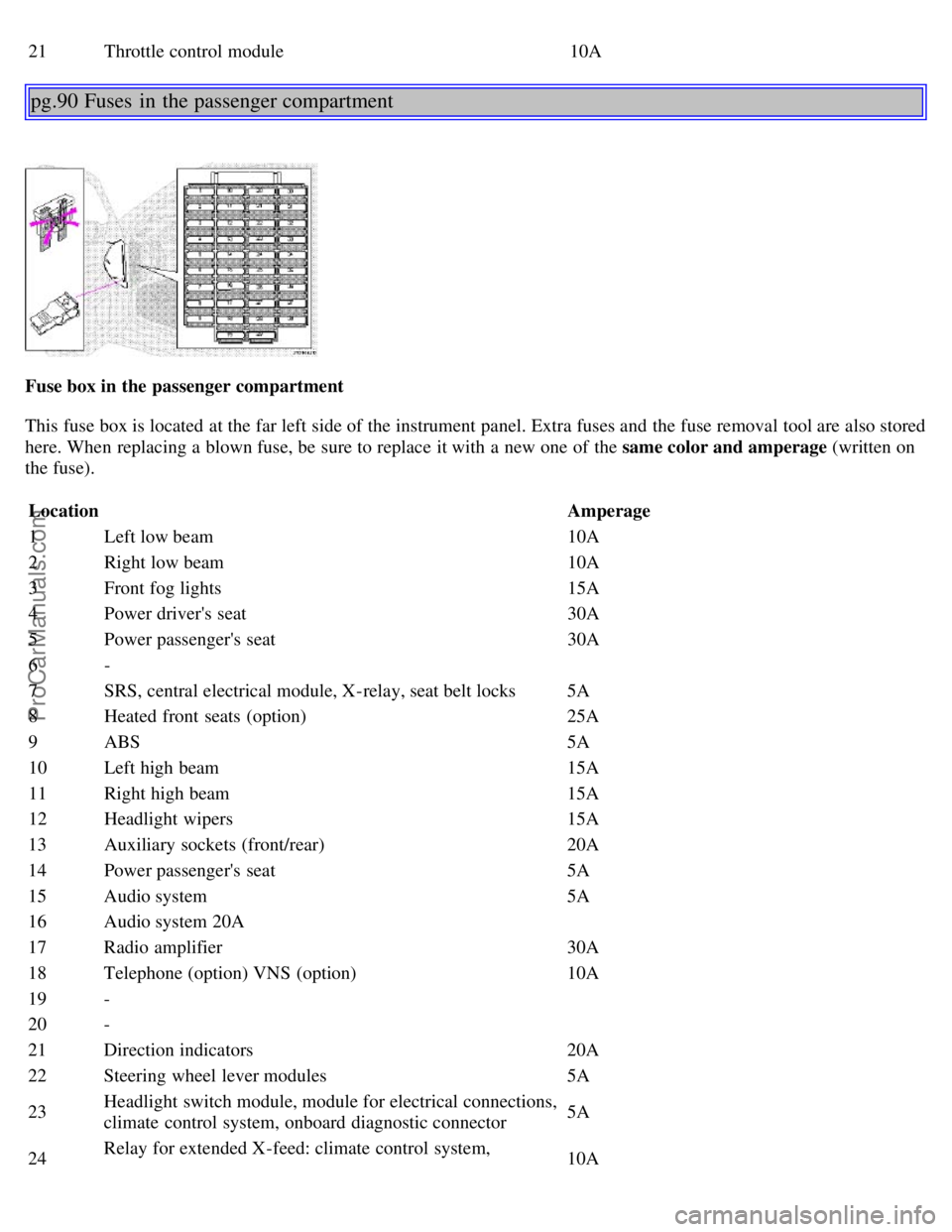

pg.90 Fuses in the passenger compartment
Fuse box in the passenger compartment
This fuse box is located at the far left side of the instrument panel. Extra fuses and the fuse removal tool are also stored
here. When replacing a blown fuse, be sure to replace it with a new one of the same color and amperage (written on
the fuse).
Location Amperage
1 Left low beam 10A
2 Right low beam 10A
3 Front fog lights 15A
4 Power driver's seat 30A
5 Power passenger's seat 30A
6 -
7 SRS, central electrical module, X-relay, seat belt locks 5A
8 Heated front seats (option) 25A
9 ABS 5A
10 Left high beam 15A
11 Right high beam 15A
12 Headlight wipers 15A
13 Auxiliary sockets (front/rear) 20A
14 Power passenger's seat 5A
15 Audio system 5A
16 Audio system 20A
17 Radio amplifier 30A
18 Telephone (option) VNS (option) 10A
19 -
20 -
21 Direction indicators 20A
22 Steering wheel lever modules 5A
23 Headlight switch module, module for electrical connections,
climate control system, onboard diagnostic connector 5A
24 Relay for extended X-feed: climate control system,
10A
ProCarManuals.com

power driver's seat, text window, shiftlock geartronic

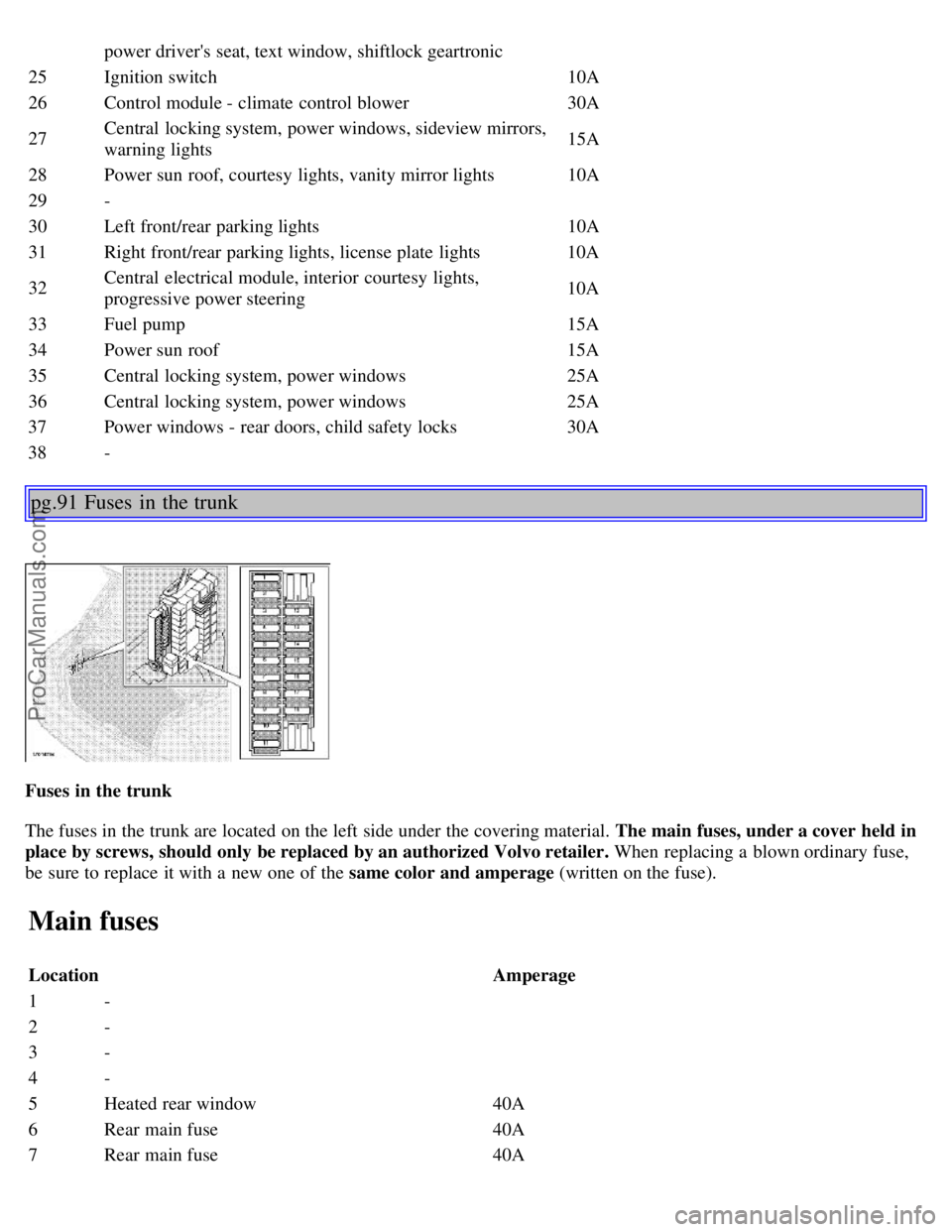

25Ignition switch 10A
26 Control module - climate control blower 30A
27 Central locking system, power windows, sideview mirrors,
warning lights 15A
28 Power sun roof, courtesy lights, vanity mirror lights 10A
29 -
30 Left front/rear parking lights 10A
31 Right front/rear parking lights, license plate lights 10A
32 Central electrical module, interior courtesy lights,
progressive power steering 10A
33 Fuel pump 15A
34 Power sun roof 15A
35 Central locking system, power windows 25A
36 Central locking system, power windows 25A
37 Power windows - rear doors, child safety locks 30A
38 -
pg.91 Fuses in the trunk
Fuses in the trunk
The fuses in the trunk are located on the left side under the covering material. The main fuses, under a cover held in
place by screws, should only be replaced by an authorized Volvo retailer. When replacing a blown ordinary fuse,
be sure to replace it with a new one of the same color and amperage (written on the fuse).
Main fuses
LocationAmperage
1 -
2 -
3 -
4 -
5 Heated rear window 40A
6 Rear main fuse 40A
7 Rear main fuse 40A
ProCarManuals.com

Ordinary fuses
LocationAmperage
1 Rear electrical module, trunk lights 10A
2 Rear fog light 10A
3 Brake lights 15A
4 Backup lights 10A
5 -
6 Trunk release 10A
7 Folding rear outboard head restraints 10A
8 Central locking system - rear doors/fuel tank cover 15A
9 Connector for trailer 20A
10 CD changer 10A
pg.92 Replacing bulbs
Replacing high/low beam headlight bulbs
The headlight bulbs must be replaced from the engine compartment.
CAUTION:
· Do not touch the glass on halogen bulbs with your fingers. Grease, oil or any other impurities can be carbonized onto
the bulb and cause damage to the reflector.
· Be sure to use bulbs of the correct type and voltage.
Removing a defective bulb
To remove a defective bulb:
ProCarManuals.com

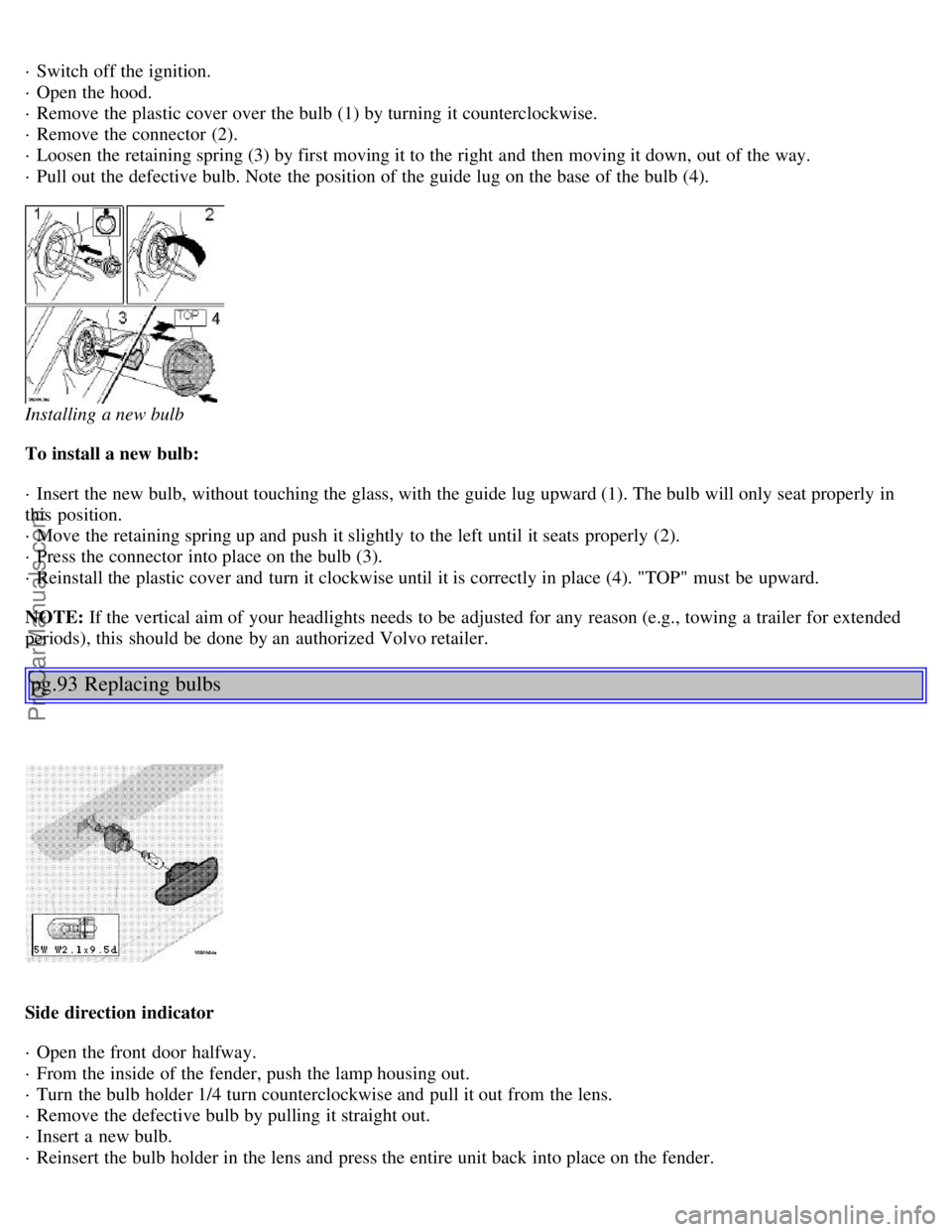

· Switch off the ignition.
· Open the hood.
· Remove the plastic cover over the bulb (1) by turning it counterclockwise.
· Remove the connector (2).
· Loosen the retaining spring (3) by first moving it to the right and then moving it down, out of the way.
· Pull out the defective bulb. Note the position of the guide lug on the base of the bulb (4).
Installing a new bulb
To install a new bulb:
· Insert the new bulb, without touching the glass, with the guide lug upward (1). The bulb will only seat properly in
this position.
· Move the retaining spring up and push it slightly to the left until it seats properly (2).
· Press the connector into place on the bulb (3).
· Reinstall the plastic cover and turn it clockwise until it is correctly in place (4). "TOP" must be upward.
NOTE: If the vertical aim of your headlights needs to be adjusted for any reason (e.g., towing a trailer for extended
periods), this should be done by an authorized Volvo retailer.
pg.93 Replacing bulbs
Side direction indicator
· Open the front door halfway.
· From the inside of the fender, push the lamp housing out.
· Turn the bulb holder 1/4 turn counterclockwise and pull it out from the lens.
· Remove the defective bulb by pulling it straight out.
· Insert a new bulb.
· Reinsert the bulb holder in the lens and press the entire unit back into place on the fender.
ProCarManuals.com

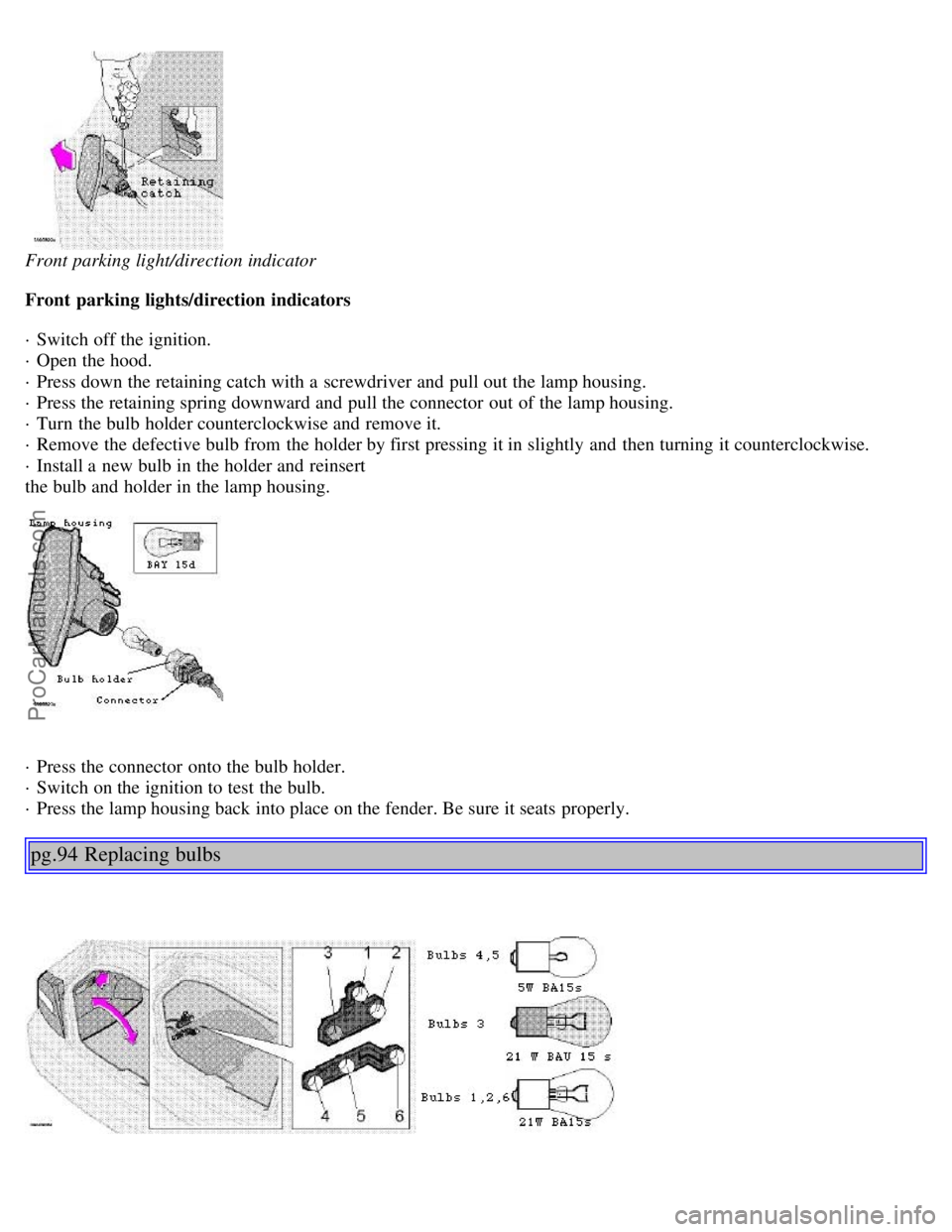

Front parking light/direction indicator
Front parking lights/direction indicators
· Switch off the ignition.
· Open the hood.
· Press down the retaining catch with a screwdriver and pull out the lamp housing.
· Press the retaining spring downward and pull the connector out of the lamp housing.
· Turn the bulb holder counterclockwise and remove it.
· Remove the defective bulb from the holder by first pressing it in slightly and then turning it counterclockwise.
· Install a new bulb in the holder and reinsert
the bulb and holder in the lamp housing.
· Press the connector onto the bulb holder.
· Switch on the ignition to test the bulb.
· Press the lamp housing back into place on the fender. Be sure it seats properly.
pg.94 Replacing bulbs

ProCarManuals.com

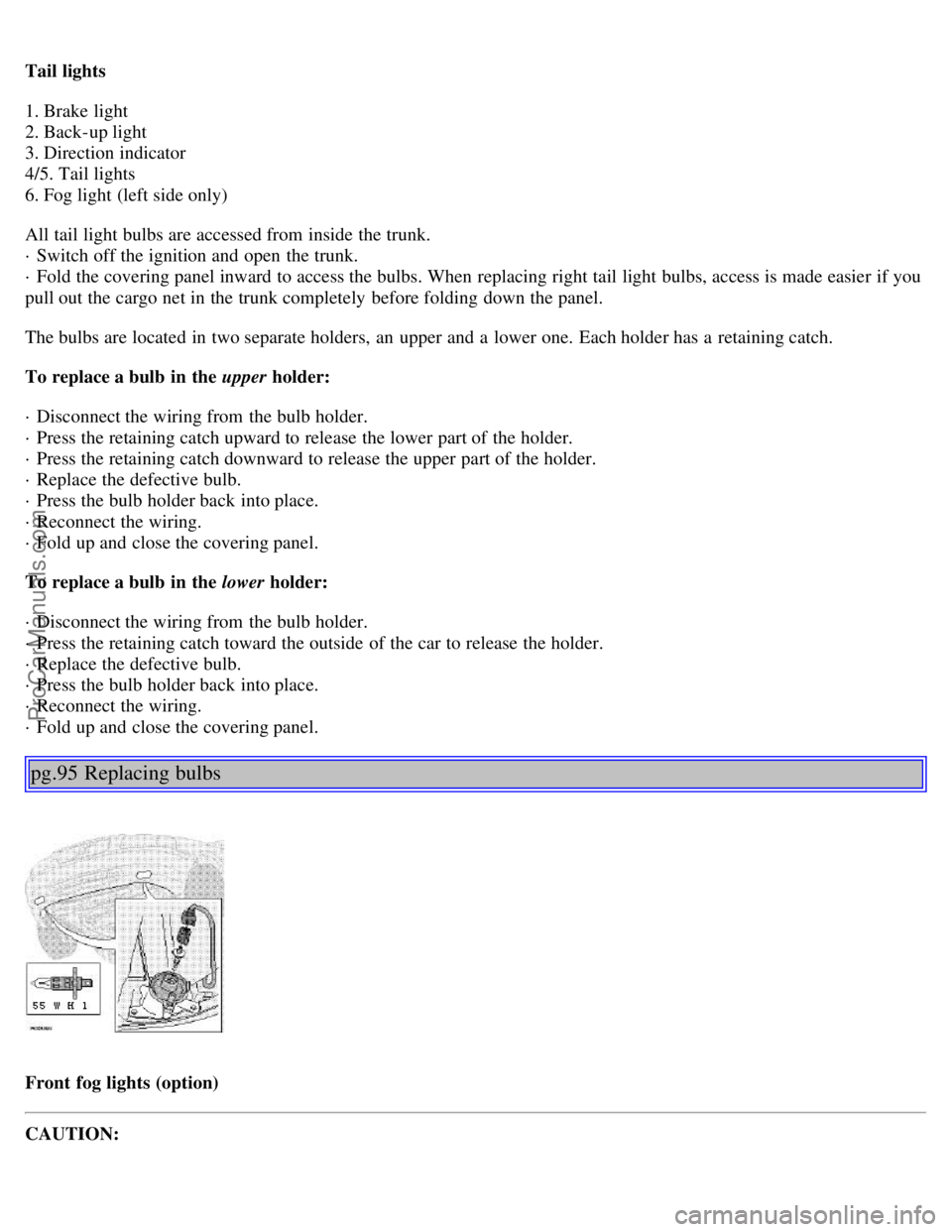

Tail lights
1. Brake light
2. Back-up light
3. Direction indicator
4/5. Tail lights
6. Fog light (left side only)
All tail light bulbs are accessed from inside the trunk.
· Switch off the ignition and open the trunk.
· Fold the covering panel inward to access the bulbs. When replacing right tail light bulbs, access is made easier if you
pull out the cargo net in the trunk completely before folding down the panel.
The bulbs are located in two separate holders, an upper and a lower one. Each holder has a retaining catch.
To replace a bulb in the upper holder:
· Disconnect the wiring from the bulb holder.
· Press the retaining catch upward to release the lower part of the holder.
· Press the retaining catch downward to release the upper part of the holder.
· Replace the defective bulb.
· Press the bulb holder back into place.
· Reconnect the wiring.
· Fold up and close the covering panel.
To replace a bulb in the lower holder:
· Disconnect the wiring from the bulb holder.
· Press the retaining catch toward the outside of the car to release the holder.
· Replace the defective bulb.
· Press the bulb holder back into place.
· Reconnect the wiring.
· Fold up and close the covering panel.
pg.95 Replacing bulbs
Front fog lights (option)
CAUTION:
ProCarManuals.com

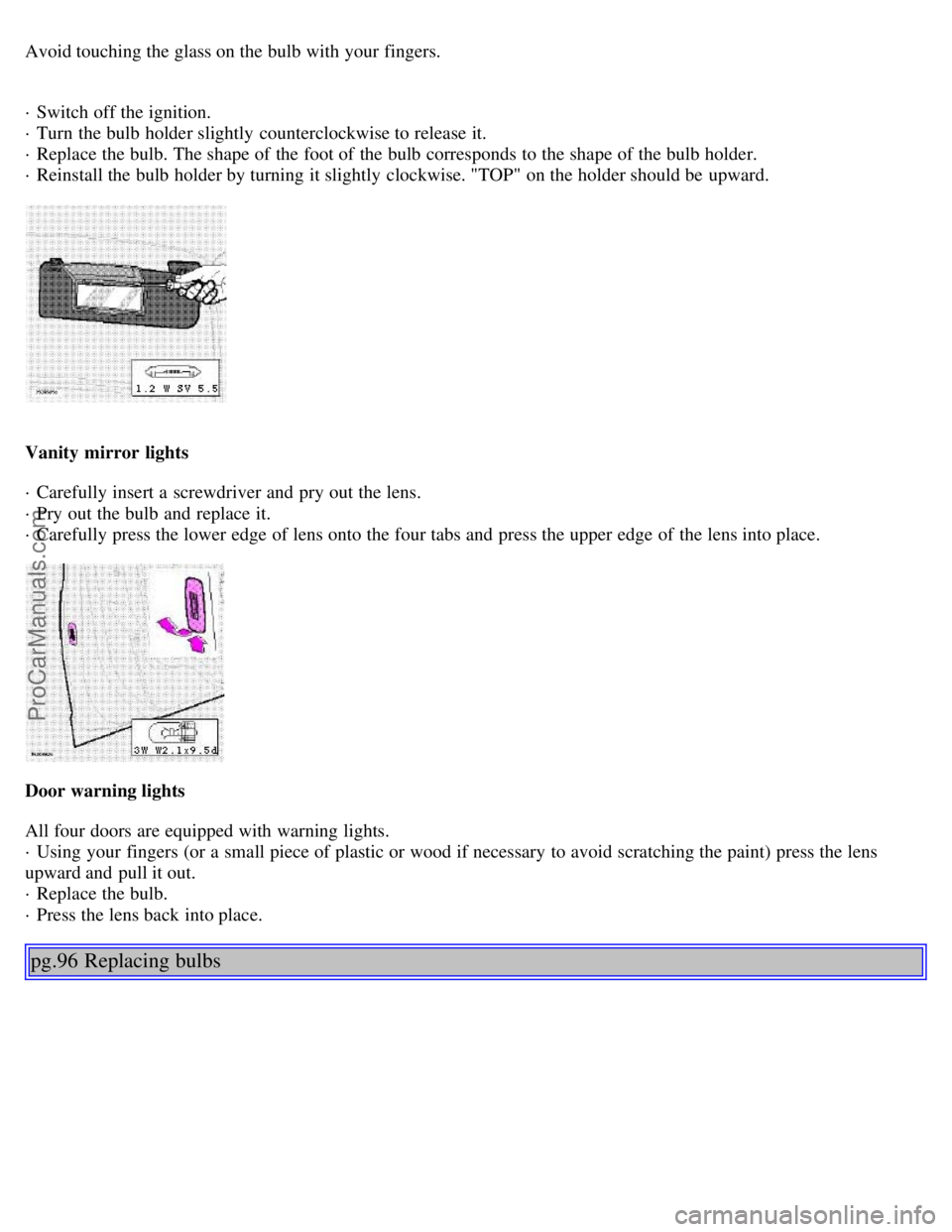

Avoid touching the glass on the bulb with your fingers.
· Switch off the ignition.
· Turn the bulb holder slightly counterclockwise to release it.
· Replace the bulb. The shape of the foot of the bulb corresponds to the shape of the bulb holder.
· Reinstall the bulb holder by turning it slightly clockwise. "TOP" on the holder should be upward.
Vanity mirror lights
· Carefully insert a screwdriver and pry out the lens.
· Pry out the bulb and replace it.
· Carefully press the lower edge of lens onto the four tabs and press the upper edge of the lens into place.
Door warning lights
All four doors are equipped with warning lights.
· Using your fingers (or a small piece of plastic or wood if necessary to avoid scratching the paint) press the lens
upward and pull it out.
· Replace the bulb.
· Press the lens back into place.
