Contents
6
06
06 Maintenance and
specificationsVolvo maintenance.................................. 212
Maintaining your car............................... 213
Hood and engine compartment.............. 215
Engine oil................................................ 216
Fluids....................................................... 218
Replacing bulbs...................................... 220
Wiper blades and washer fluid................ 228
Battery..................................................... 230
Fuses....................................................... 233
Wheels and tires..................................... 242
Vehicle care............................................. 264
Label information.................................... 269
Specifications.........................................271
Volvo programs....................................... 278
07
07 IndexIndex.......................................................279

05 During your tripDriving recommendations
05196
Before a long distance tripIt is always worthwhile to have your vehicle
checked by a trained and qualified Volvo serv-
ice technician before driving long distances.
Your retailer will also be able to supply you with
bulbs, fuses, spark plugs and wiper blades for
your use in the event that problems occur.
As a minimum, the following items should be
checked before any long trip:•
Check that engine runs smoothly and that
fuel consumption is normal.
•
Check for fuel, oil, and fluid leakage
•
Have the transmission oil level checked.
•
Check condition of drive belts.
•
Check state of the battery's charge.
•
Examine tires carefully (the spare tire as
well), and replace those that are worn.
Check tire pressures.
•
The brakes, front wheel alignment, and
steering gear should be checked by a
trained and qualified Volvo service techni-
cian only.
•
Check all lights, including high beams.
•
Reflective warning triangles are legally
required in some states/provinces.
•
Have a word with a trained and qualified
Volvo service technician if you intend to
drive in countries where it may be difficult
to obtain the correct fuel.
•
Consider your destination. If you will be
driving through an area where snow or ice
are likely to occur, consider snow tires.
Cold weather precautionsIf you wish to check your vehicle before the
approach of cold weather, the following advice
is worth noting:•
Make sure that the engine coolant contains
50 percent antifreeze. Any other mixture
will reduce freeze protection. This gives
protection against freezing down to
–31 °F (–35 °C). The use of "recycled" anti-
freeze is not approved by Volvo. Different
types of antifreeze must not be mixed.
•
Volvo recommends using only genuine
Volvo antifreeze in your vehicle's radiator.
•
Try to keep the fuel tank well filled – this
helps prevent the formation of condensa-
tion in the tank. In addition, in extremely
cold weather conditions it is worthwhile to
add fuel line de-icer before refueling.
•
The viscosity of the engine oil is important.
Oil with low viscosity (thinner oil) improves
cold-weather starting as well as decreas-
ing fuel consumption while the engine is
warming up. For winter use, 5W-30 oil, par-
ticularly the synthetic type, is recom-
mended. Be sure to use good quality oil but
do not use cold-weather oil for hard driving
or in warm weather, see page 274 for more
information on engine oil.
NOTE
Synthetic oil is not used when the oil is
changed at the normal maintenance inter-
vals except at owner request and at addi-
tional charge.•
The load placed on the battery is greater
during the winter since the windshield wip-
ers, lighting, etc. are used more often.
Moreover, the capacity of the battery
decreases as the temperature drops. In
very cold weather, a poorly charged bat-
tery can freeze and be damaged. It is there-
fore advisable to check the state of charge
more frequently and spray an anti-rust oil
on the battery posts.
•
Volvo recommends the use of snow tires
on all four wheels for winter driving, see
page 251.
•
To prevent the washer fluid reservoir from
freezing, add washer solvents containing
antifreeze. This is important since dirt is
often splashed on the windshield during
winter driving, requiring the frequent use of
the washers and wipers. Volvo Washer
Solvent should be diluted as follows: Down
to 14 °F (–10 °C): 1 part washer solvent and
4 parts water Down to 5 °F (–15 °C): 1 part
washer solvent and 3 parts water Down to
0 °F (–18 °C): 1 part washer solvent and

G020922
210
Volvo maintenance................................................................................ 212
Maintaining your car.............................................................................. 213
Hood and engine compartment............................................................ 215
Engine oil............................................................................................... 216
Fluids..................................................................................................... 218
Replacing bulbs.................................................................................... 220
Wiper blades and washer fluid.............................................................. 228
Battery................................................................................................... 230
Fuses..................................................................................................... 233
Wheels and tires.................................................................................... 242
Vehicle care........................................................................................... 264
Label information.................................................................................. 269
Specifications........................................................................................ 271
Volvo programs..................................................................................... 278

06 Maintenance and specifications

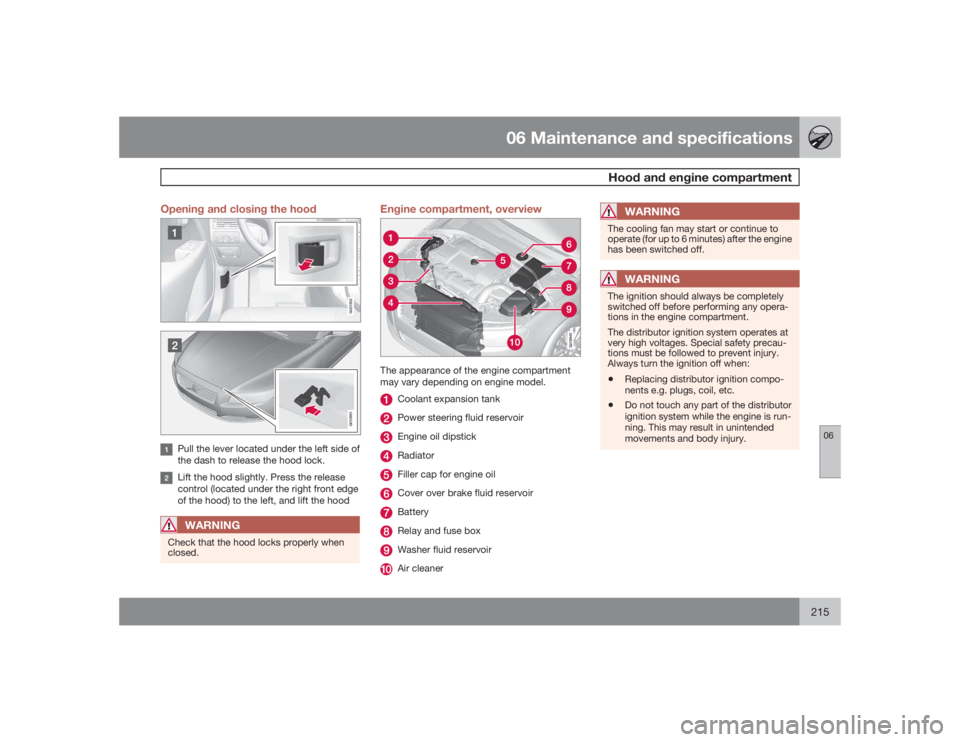

Hood and engine compartment
06
215 Opening and closing the hood
G021502G010951
Pull the lever located under the left side of
the dash to release the hood lock.Lift the hood slightly. Press the release
control (located under the right front edge
of the hood) to the left, and lift the hoodWARNING
Check that the hood locks properly when
closed.
Engine compartment, overview
G018945
The appearance of the engine compartment
may vary depending on engine model.
Coolant expansion tankPower steering fluid reservoirEngine oil dipstickRadiatorFiller cap for engine oilCover over brake fluid reservoirBatteryRelay and fuse boxWasher fluid reservoirAir cleaner
WARNING
The cooling fan may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.
WARNING
The ignition should always be completely
switched off before performing any opera-
tions in the engine compartment.
The distributor ignition system operates at
very high voltages. Special safety precau-
tions must be followed to prevent injury.
Always turn the ignition off when:•
Replacing distributor ignition compo-
nents e.g. plugs, coil, etc.
•
Do not touch any part of the distributor
ignition system while the engine is run-
ning. This may result in unintended
movements and body injury.

06 Maintenance and specifications

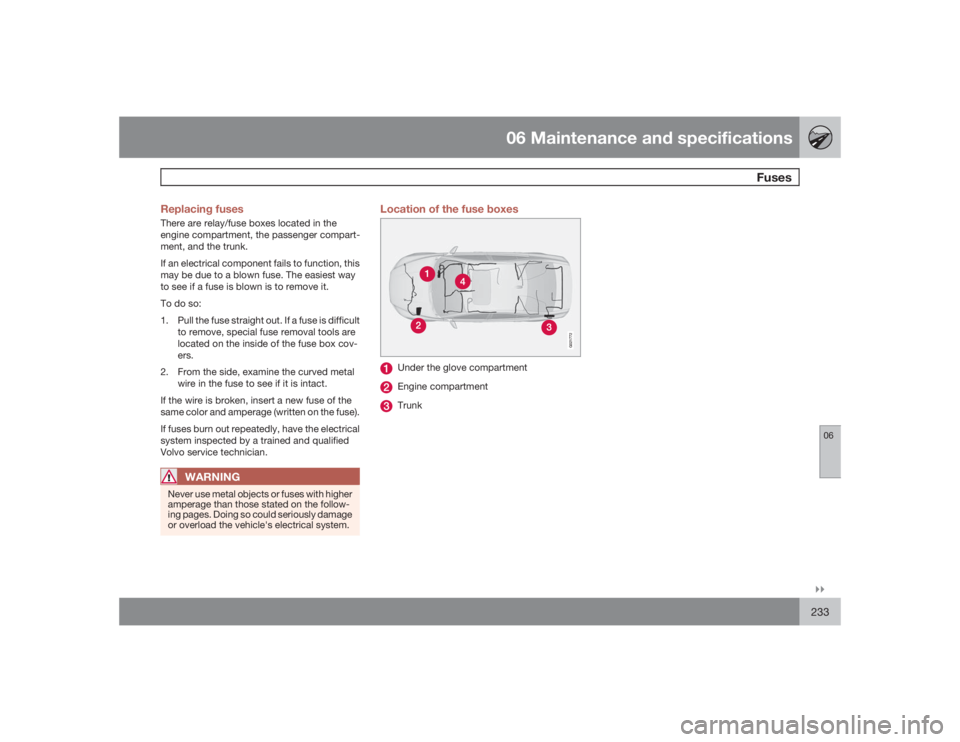

Fuses
06``233 Replacing fuses
There are relay/fuse boxes located in the
engine compartment, the passenger compart-
ment, and the trunk.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
If the wire is broken, insert a new fuse of the
same color and amperage (written on the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.
Location of the fuse boxes
G021772
Under the glove compartmentEngine compartmentTrunk

06 Maintenance and specificationsFuses
06234

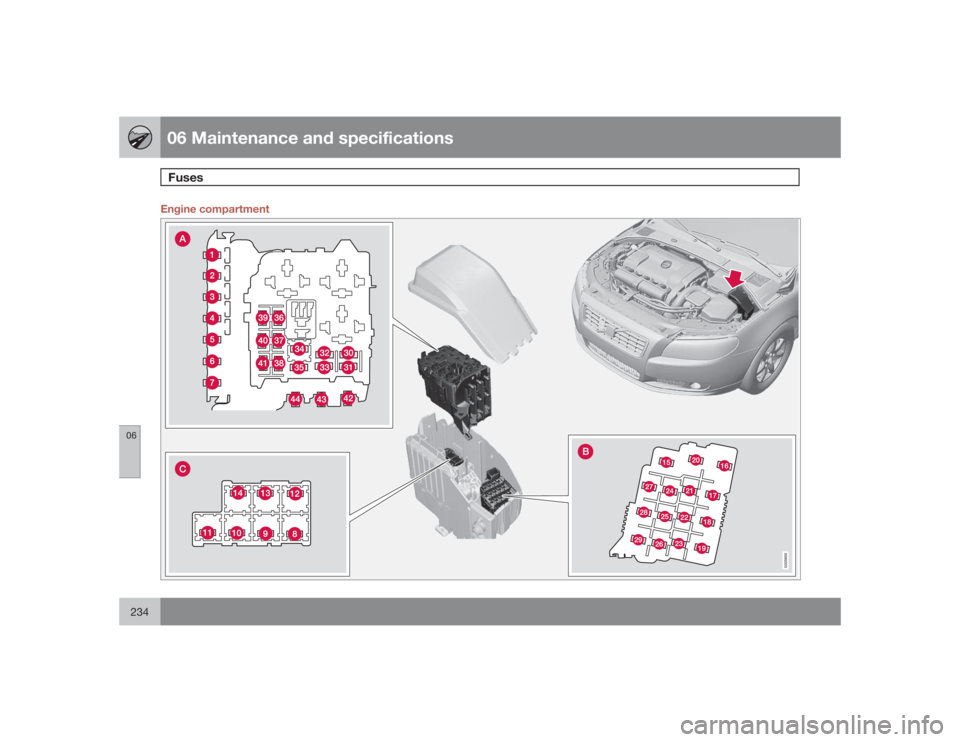

Engine compartment
G025600

06 Maintenance and specifications
Fuses
06``235

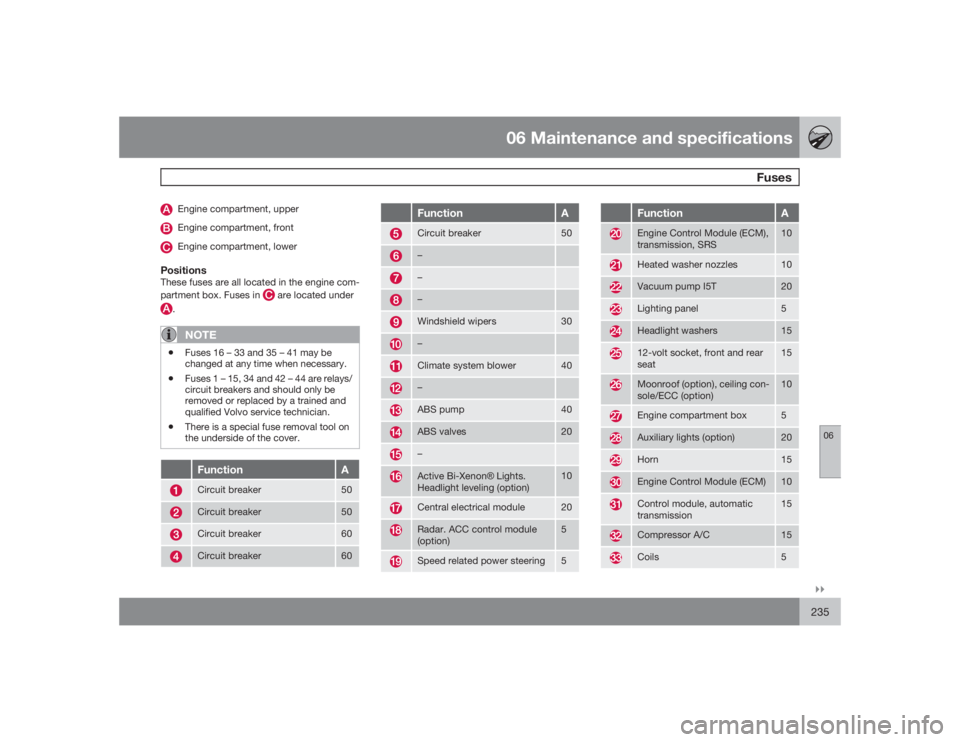

Engine compartment, upperEngine compartment, frontEngine compartment, lower
PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•
Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•
Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•
There is a special fuse removal tool on
the underside of the cover.
Function
A
Circuit breaker
50
Circuit breaker
50
Circuit breaker
60
Circuit breaker
60
Function
A
Circuit breaker
50
–––Windshield wipers
30
–Climate system blower
40
–ABS pump
40
ABS valves
20
–Active Bi-XenonŸ Lights.
Headlight leveling (option)
10
Central electrical module
20
Radar. ACC control module
(option)
5
Speed related power steering
5
Function
A
Engine Control Module (ECM),
transmission, SRS
10
Heated washer nozzles
10
Vacuum pump I5T
20
Lighting panel
5
Headlight washers
15
12-volt socket, front and rear
seat
15
Moonroof (option), ceiling con-
sole/ECC (option)
10
Engine compartment box
5
Auxiliary lights (option)
20
Horn
15
Engine Control Module (ECM)
10
Control module, automatic
transmission
15
Compressor A/C
15
Coils
5

06 Maintenance and specificationsFuses
06236
Function
A
Starter motor relay
30
Ignition coils
20
Engine Control Module (ECM),
throttle
10
Injection system
15
Engine valves
10
EVAP/heated oxygen sensor/
Injection
15
Water pump (V8)
Crank case ventilation heater
10
Fuel leakage detection
5
–-Cooling fan
80

06 Maintenance and specifications
Fuses

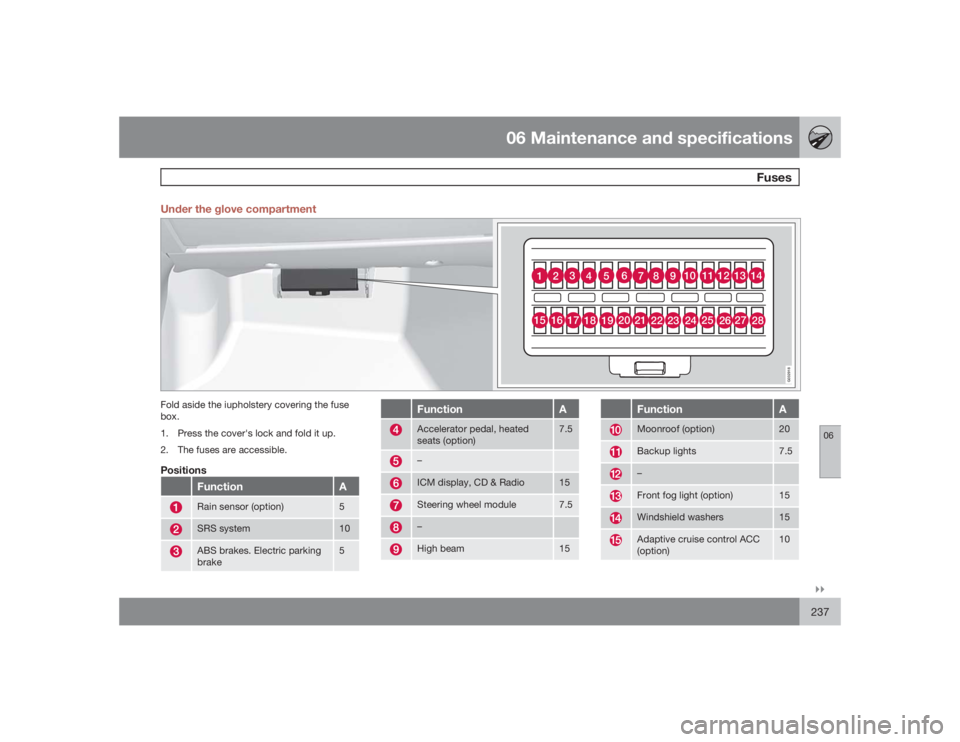

06``237 Under the glove compartment
10
11
12
13
14
1
2
3
4
56
7
8
923
22
21
20
19
18 17 16
15
24
25
26
27
28
G032918
Fold aside the iupholstery covering the fuse
box.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.Positions
Function
A
Rain sensor (option)
5
SRS system
10
ABS brakes. Electric parking
brake
5
Function
A
Accelerator pedal, heated
seats (option)
7.5
–ICM display, CD & Radio
15
Steering wheel module
7.5
–High beam
15
Function
A
Moonroof (option)
20
Backup lights
7.5
–Front fog light (option)
15
Windshield washers
15
Adaptive cruise control ACC
(option)
10

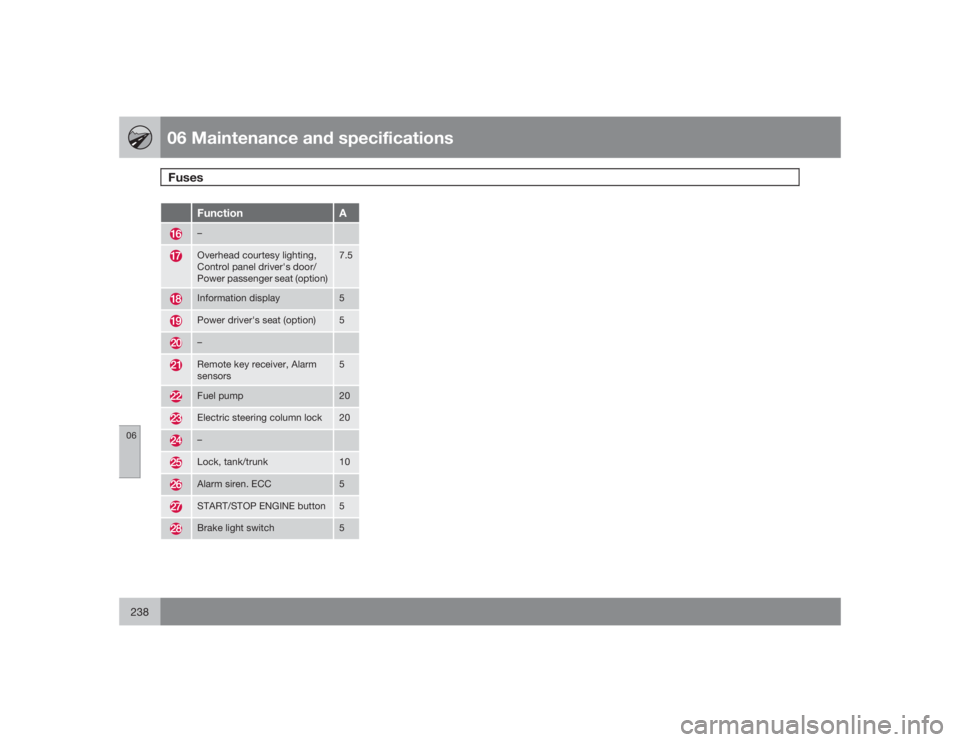

06 Maintenance and specificationsFuses
06238
Function
A
–Overhead courtesy lighting,
Control panel driver's door/
Power passenger seat (option)
7.5
Information display
5
Power driver's seat (option)
5
–Remote key receiver, Alarm
sensors
5
Fuel pump
20
Electric steering column lock
20
–Lock, tank/trunk
10
Alarm siren. ECC
5
START/STOP ENGINE button
5
Brake light switch
5
