KEY, LOCKS AND ALARM
}}
249
Locking and unlocking withdetachable key blade
The detachable key blade can be used to unlockthe vehicle from the outside, e.g. if the battery inthe remote key is discharged.
Unlocking
Pull the front left-hand door handle to its endposition to access the lock cylinder.
Put the key in the lock cylinder.
Turn the key clockwise 45 degrees so thatthe key blade is pointing straight rearward.
Turn the key blade back 45 degrees to itsoriginal position. Remove the key from thelock cylinder and release the handle so that itreturns to its original position against thevehicle.
5. Pull the door handle.
>The door will open.
Lock the door in the same way, but turn the key45 degrees counterclockwise in step (3).
Turning off the alarm
NOTE
When the door is unlocked using the detach-able key blade and then opened, the alarmwill be triggered.
Location of the backup key reader in the cup holder.
Turn off the alarm by:
1. Place the remote control key on the key sym-bol in the backup reader in the bottom of thecup holder in the tunnel console.
2.Turn the start knob clockwise and release it.
> The start knob will automatically return toits original position - the alarm signal willstop and the alarm will be turned off.
Locking
The vehicle can also be locked using the remotekey's detachable key blade, e.g. if either the vehi-cle's or remote key's batteries are discharged.
The left-hand front door can be locked by insert-ing the detachable key into the door's lock cylin-der.
This is the only door with a lock cylinder. Theother doors have lock mechanisms in the side ofthe door that must be pushed in using the keyblade. The door will then be locked mechanicallyand cannot be opened from the outside.
The doors can still be opened from inside.
Manual door lock. This is not the child lock.
Page 252 of 669
||
KEY, LOCKS AND ALARM
250
–Remove the detachable key blade from theremote key. Insert the key blade into theopening for the lock mechanism and pushthe key in as far as possible, about 12 mm(0.5 in).
The door can be opened from both the out-side and the inside.
The door cannot be opened from the outside.To return to position A, open the door usingthe inside door handle.
The doors can also be unlocked by pressing theunlock button on the remote key or the centrallock button in the driver's door.
NOTE
The door's lock controls only lock thatspecific door, not all doors simultane-ously.
A manually locked rear door with an acti-vated manual or electric child safety lockcannot be opened from either the outsideor inside of the vehicle. A rear doorlocked in this way can only be unlockedusing the remote key or the centralunlocking button.
Related information
Detachable key blade (p. 248)
Arming and disarming the alarm (p. 267)
Replacing the remote key's battery (p. 243)
Remote key (p. 237)Electronic immobilizer
The electronic immobilizer is a start inhibitor thathelps prevent the vehicle from being started byan unauthorized person.
The vehicle can only be started with the rightremote key.
The following instrument panel error messagesare related to the electronic immobilizer:
Symbol Message Meaning
Vehicle keynot found
SeeOwner'smanual
Remote key notrecognized duringstart. Place theremote key on thekey symbol in thecup holder and tryto start the vehicleagain.
Page 253 of 669
KEY, LOCKS AND ALARM
}}
* Option/accessory.251
Remote immobilizer with tracking
system 11
The vehicle is equipped with a system that makesit possible to track and locate the vehicle and toremotely activate the immobilizer to prevent thevehicle from being started. Contact your nearestVolvo retailer for more information and assistanceactivating the system.
The following instrument panel error messagesare related to the remote immobilizer with track-ing system:
Symbol Message Meaning
Remotelyimmobilised
Vehicle notpossible tostart
The remoteimmobilizer withtracking system isactivated. Thevehicle cannot bestarted. ContactVolvo On CallService Center.
Related information
Remote key (p. 237)
Ordering additional remote keys (p. 246)
Start and lock system typedesignations
The following information contains type designa-tions for the start and lock system.
Alarm system
USA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCCrules. Operation is subject to the following condi-tions: (1) This device may not cause harmfulinterference, and (2) this device must accept anyinterference received, including interference thatmay cause undesired operation.
Canada IC: 4405A-DA 5823(3)
This device is subject to the following conditions:(1) this device may not cause interference, and(2) this device must accept any interference,including interference that may cause undesiredoperation of the device.
Remote keys (Passive entry/Passive
start * )
USA
Volvo Standard Key FCC ID: YGOHUF8423
Volvo Tag ID FCC ID: YGOHUF8432
This device complies with part 15 of the FCCrules. Operation is subject to the following twoconditions:
(1) This device may not cause harmful interfer-ence, and
(2) this device must accept any interferencereceived, including interference that may causeundesired operation.
Any changes or modification not expresslyapproved by the party responsible for compliancecould void the user's authority to operate thisequipment.
Canada
Volvo Standard Key IC: 4008C-HUF8423
Volvo Tag ID IC: 4008C-HUF8432
This device complies with Industry Canadalicense-exempt RSS standards. Operation is sub-ject to the following two conditions:
(1) This device may not cause harmful interfer-ence, and (2) this device must accept any inter-ference received, including interference that maycause undesired operation.
Immobilizer and Passive entry/Passive
start * systems
USA-FCC ID: LTQVO3134
This device complies with part 15 of the FCCrules. Operation is subject to the following twoconditions:
11
Only certain markets and in combination with Volvo On Call * .

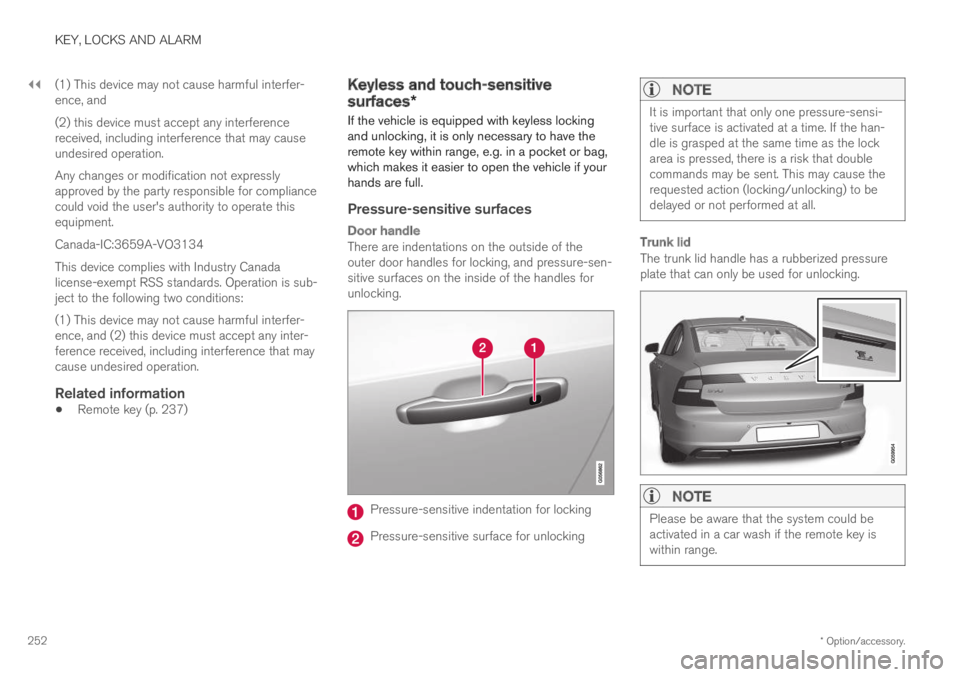

Page 254 of 669
||
KEY, LOCKS AND ALARM
* Option/accessory.252
(1) This device may not cause harmful interfer-ence, and
(2) this device must accept any interferencereceived, including interference that may causeundesired operation.
Any changes or modification not expresslyapproved by the party responsible for compliancecould void the user's authority to operate thisequipment.
Canada-IC:3659A-VO3134
This device complies with Industry Canadalicense-exempt RSS standards. Operation is sub-ject to the following two conditions:
(1) This device may not cause harmful interfer-ence, and (2) this device must accept any inter-ference received, including interference that maycause undesired operation.
Related information
Remote key (p. 237)
Keyless and touch-sensitive
surfaces*
If the vehicle is equipped with keyless lockingand unlocking, it is only necessary to have theremote key within range, e.g. in a pocket or bag,which makes it easier to open the vehicle if yourhands are full.
Pressure-sensitive surfaces
Door handle
There are indentations on the outside of theouter door handles for locking, and pressure-sen-sitive surfaces on the inside of the handles forunlocking.
Pressure-sensitive indentation for locking
Pressure-sensitive surface for unlocking
NOTE
It is important that only one pressure-sensi-tive surface is activated at a time. If the han-dle is grasped at the same time as the lockarea is pressed, there is a risk that doublecommands may be sent. This may cause therequested action (locking/unlocking) to bedelayed or not performed at all.
Trunk lid
The trunk lid handle has a rubberized pressureplate that can only be used for unlocking.
NOTE
Please be aware that the system could beactivated in a car wash if the remote key iswithin range.
Page 255 of 669
KEY, LOCKS AND ALARM
}}
* Option/accessory.253
Related information
Keyless locking and unlocking* (p. 253)
Keyless trunk lid unlock* (p. 255)
Keyless locking and unlocking*
The vehicle can be locked or unlocked from out-side using the door or trunk lid handles if thevehicle is equipped with keyless locking/unlock-ing (Passive Entry)*.
NOTE
One of the vehicle's remote keys must bewithin range for locking and unlocking to bepossible.
Pressure-sensitive indentation for locking
Pressure-sensitive surface for unlocking
Rubberized pressure plate on the trunk lid used only forunlocking.
NOTE
Please be aware that the system could beactivated in a car wash if the remote key iswithin range.
Page 256 of 669
||
KEY, LOCKS AND ALARM
* Option/accessory.254
Keyless locking
All of the doors have to be closed before thevehicle can be locked. However, the trunk lid canbe open when a door handle is used for locking.
–To lock, touch the marked area on the out-side of one of the door handles after thedoor is closed or press the button on the
lower edge of the trunk lid12 before it isclosed.
> The lock indicator light in the windshieldwill flash to confirm that the vehicle islocked.
To close all door windows at the same time -place your finger on the pressure-sensitiveindentation on the outside of the door handle andhold it there until the side windows have closed.
Locking when the trunk lid is open
NOTE
If the vehicle is locked and the trunk lid is stillopen, make sure that the remote key is notleft in the trunk when the trunk lid is closedand the entire vehicle is locked.
If the key is detected in the vehicle, the trunklid will not lock when it is closed.
Keyless unlocking
–To unlock, grasp a door handle or press therubberized pressure plate on the undersideof the trunk lid handle.
> The lock indicator light in the windshieldwill go out to confirm that the vehicle isunlocked. Open the doors or trunk lid asusual.
Automatic relocking
If none of the doors or trunk lid are opened withintwo minutes after being unlocked, they will auto-matically relock. This function reduces the risk ofinadvertently leaving the vehicle unlocked.
Related information
Keyless unlock settings* (p. 254)
Keyless trunk lid unlock* (p. 255)
Keyless and touch-sensitive surfaces*(p. 252)
Keyless unlock settings*
Several different sequences are available forkeyless unlocking.
1.Tap Settings in the center display's Topview.
2. Tap My CarLockingKeyless Unlock
3. Select alternative:
All Doors
- unlocks all doors at the same time.
Single Door
- unlocks the selected door.
Related information
Keyless locking and unlocking* (p. 253)
Keyless and touch-sensitive surfaces*(p. 252)
12Applies to vehicles with power trunk lid.
Page 257 of 669
KEY, LOCKS AND ALARM
}}
* Option/accessory.255
Keyless trunk lid unlock*
The trunk lid can be opened using the remotekey. The key only needs to be within range, e.g.in a pocket or bag.
The trunk lid is held closed by an electronic lock-ing mechanism.
To open the tailgate:
1. Lightly press the rubberized pressure plateon the underside of the trunk lid handle.
>The lock will disengage.
NOTE
One of the vehicle's remote keys must bewithin range behind the vehicle for unlockingto be possible.
2. Lift the outer handle to fully open the trunklid.
CAUTION
Only light pressure on the rubberized pres-sure plate is necessary to release thetrunk lid's locking mechanism.
Use the handle to lift the trunk lid and donot apply force to the rubberized pressureplate. Too much force can damage thepressure plate's electrical connections.
Hands-free opening of the trunk lid is also possi-ble using a foot movement under the rearbumper; see the separate section.
WARNING
Do not drive with the trunk lid open. Toxicexhaust fumes can be sucked into the vehiclethrough the trunk.
Related information
Opening and closing the trunk lid with footmovement* (p. 263)
Keyless and touch-sensitive surfaces*(p. 252)
Remote key range (p. 242)
Antenna locations for the start andlock system
The vehicle is equipped with a keyless start and
lock system13 that uses a number of integratedantennas positioned throughout the vehicle.
Location of the antennas.
Under the cup holder in the front section ofthe tunnel console
In the upper front section of the left-side rear
door14
In the upper front section of the right-side
rear door14
In the trunk14
Page 258 of 669
||
KEY, LOCKS AND ALARM
* Option/accessory.256
WARNING
Individuals with an implanted pacemakershould not allow the pacemaker to comecloser than 22 cm (9 in.) to the Keyless sys-tem antennas. The aim of this is to preventdisturbances between the pacemaker and theKeyless system.
Related information
Keyless and touch-sensitive surfaces*(p. 252)
Remote key range (p. 242)
Locking and unlocking from insidethe vehicle
The doors and trunk lid can be locked andunlocked from inside the vehicle using the cen-tral lock buttons in the front doors. The lock but-tons in the rear doors* can be used to lock/unlock that particular door.
Central locking
Button with indicator light for locking and unlocking infront door.
Unlocking using the front door buttons
–Press the button to unlock all side doorsand the trunk lid.
Alternative unlocking method
Alternative unlocking method using side door openinghandle15.
–Pull either of the side door inside openinghandles and release.
> Depending on the remote key settings,either all doors will be unlocked or just theselected door will be unlocked andopened.
To change this setting, tap Settings
My CarLockingRemote andInterior Unlock in the Top view of thecenter display.
13The keyless lock system only applies to vehicles equipped with keyless locking and unlocking (Passive Entry*).14Only in vehicles equipped with keyless locking and unlocking (Passive Entry*).15The illustration is generic - details may vary according to vehicle model.
Page 259 of 669
KEY, LOCKS AND ALARM
}}
* Option/accessory.257
Locking using the front door buttons
–Press the button (both front doors mustbe closed).
> All doors and the trunk lid will lock.
Locking using the rear door button *
Button with indicator light for locking/unlocking in reardoor.
The lock buttons in the rear doors only lock/unlock that particular door.
Unlocking the rear door
1. Pull the opening handle to unlock the reardoor.
2. Pull the opening handle again to open the
rear door16.
Related information
Settings for remote and inside door unlock(p. 241)
Unlocking the trunk lid from inside the vehi-cle (p. 257)
Activating and deactivating child safety locks(p. 259)
Opening the trunk lid from inside the trunk(p. 258)
Unlocking the trunk lid from insidethe vehicle
The trunk lid can be unlocked from the insideusing a button on the dashboard.
1.
Press the button on the dashboard.
> The trunk lid will unlock and can beopened from the outside by pressing therubberized pressure plate on the handle.
2.With the optional power trunk lid* -
Press and hold the button on the dash-board.
> The trunk lid will open.
16Provided the child safety lock is not activated.
Page 260 of 669
||
KEY, LOCKS AND ALARM
258
Related information
Locking and unlocking from inside the vehi-cle (p. 256)
Opening the trunk lid from inside
the trunk17
The vehicle is equipped with a fluorescent han-dle on the inside of the trunk lid that can beused in an emergency to open the trunk lid fromthe inside.
1. Pull the handle downward to release thetrunk lid.
> The trunk lid will open.
2.After use, the handle must be pushed backto its original position before the trunk lid canbe closed.
NOTE
The handle is not intended to be used tosecure the trunk lid, e.g. when transportinglong objects.
WARNING
Lock the doors and trunk lid when thevehicle is parked and keep the remotekeys out of reach of children. Unsuper-vised children could lock themselves inthe trunk and be injured.
On hot days, the temperature in the trunkand inside the vehicle could rise veryquickly. Exposure to these high tempera-tures, even for a short time, could lead toheat-related injury or fatality. Small chil-dren are particularly at risk.
Related information
Locking and unlocking from inside the vehi-cle (p. 256)
Unlocking the trunk lid from inside the vehi-cle (p. 257)
