VOLVO S90 TWIN ENGINE 2019 Owners Manual

MAINTENANCE AND SERVICE
}}
* Option/accessory.609
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe fusebox.

Positions
There is a decal with a diagram of the locationsof the fuses on the inside of the cover.
Fuses 1–13, 18–30, 35–37 and 46–70 are"Micro" fuses.
Fuses 14–17, 31–34, 38–45 and 71–78 are"MCase" fuses and should only be replaced
by a workshop16.
FunctionAmpere
––
––
––
Control module for actuatorfor engaging/changing gears,automatic transmission
5
High-voltage coolant heatercontrol module5
FunctionAmpere
Control module for A/C; heatexchanger cut-off valve; cut-off valve for coolant throughthe climate system
5
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
5
––
Converter for controlling feedto rear axle electric motor10
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
10
Charge module5
Cut-off valve for hybrid batterycoolant; coolant pump 1 forhybrid battery
10
Coolant pump for electric drivesystem10
FunctionAmpere
Hybrid component cooling fan 25
––
––
––
––
––
––
––
––
Front USB port in tunnel con-sole, front*5
12 V outlet in tunnel console,front15
12 V outlet in tunnel console
between second-row seatsA
12 V outlet in tunnel console,
between rear seatsB; USBports in tunnel console
between rear seatsB
15
16An authorized Volvo workshop is recommended.

||
MAINTENANCE AND SERVICE
* Option/accessory.610
FunctionAmpere
12 V outlet in trunk/cargocompartment*
USB ports for iPad holders
15
––
––
––
––
Heated windshield*, left sideShunt
Heated windshield*, left side40
Headlight washers*25
Windshield washer25
––
Horn20
Alarm siren*5
Brake system control module(valves, parking brake)40
Wipers30
––
FunctionAmpere
Heated windshield*, right side40
––
Brake system control module(ABS pump)40
––
Heated windshield*, right sideShunt
Fed when ignition is on:Engine control module; trans-mission components, electricalpower steering, central electri-cal module
5
Exterior vehicle sound (certainmarkets)5
Right-side headlight7.5
Right-side headlight, some
models with LEDC15
––
––
––
Airbags5
FunctionAmpere
Left-side headlight7.5
Left-side headlight, some
models with LEDC15
Accelerator pedal sensor 5
Transmission control module;gear selector control module15
Engine control module5
––
––
––
––
Engine control module; actua-tor; throttle unit; turbo-chargervalve
20
Solenoids; valve; engine cool-ing system thermostat10
Vacuum regulators; valve 7.5
Spoiler shutter control module;radiator shutter control mod-ule
5
––

MAINTENANCE AND SERVICE
611
FunctionAmpere
Heated oxygen sensor, front;heated oxygen sensor, rear15
Oil pump solenoid; A/C mag-netic coupling; heated oxygensensor (center)
15
––
Engine control module20
Ignition coils; spark plugs 15
––
––
Transmission oil pump controlmodule30
Vacuum pump control module 40
Transmission actuator25
––
––
––
ANot ExcellenceBExcellenceCLED (Light Emitting Diode)

Related information
Fuses and fuseboxes (p. 606)
Replacing fuses (p. 607)

MAINTENANCE AND SERVICE
612

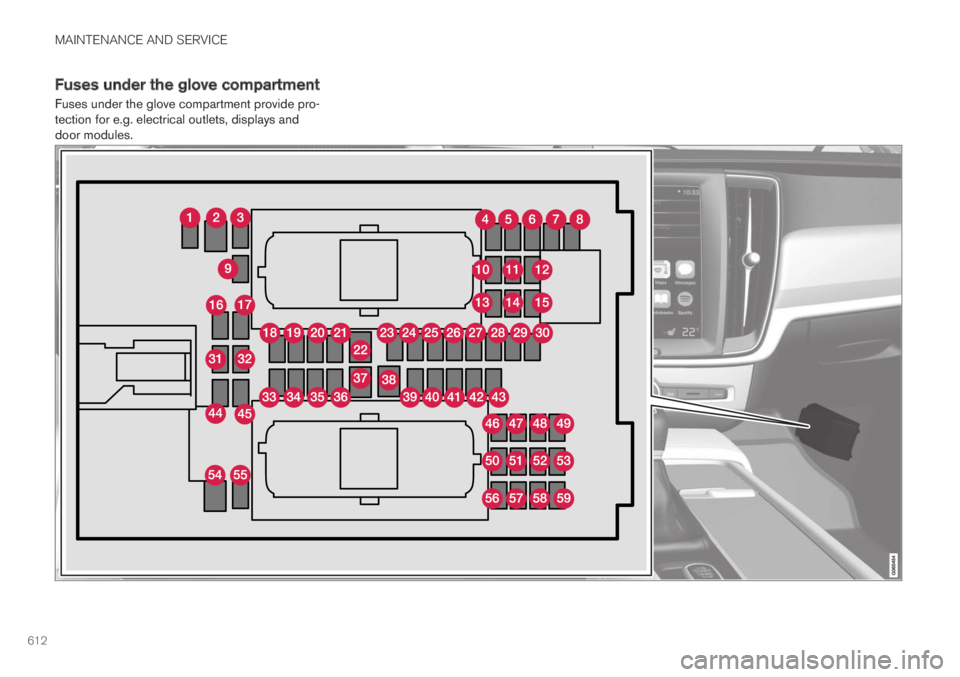

Fuses under the glove compartment
Fuses under the glove compartment provide pro-tection for e.g. electrical outlets, displays anddoor modules.

MAINTENANCE AND SERVICE
}}
* Option/accessory.613
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe distribution box in the engine compart-ment.

Positions
Fuses 1, 3-21, 23-36, 39-53 and 55-59 are"Micro" fuses.
Fuses 2-22, 37-38 and 54 are "MCase"fuses and should only be replaced by a work-
shop17.
FunctionAmpere
––
––
––
Movement sensor*5
Instrument panel5
Center console buttons5
Sun sensor5
FunctionAmpere
Sensus control module20
––
Steering wheel module5
Module for start knob andparking brake controls5
Heated steering wheel* mod-ule15
––
––
––
––
Climate system control mod-ule10
––
Data link connector OBD-II 10
Center display5
Climate system blower module(front)40
FunctionAmpere
USB HUB5
Instrument lighting; Interiorlighting; Rearview mirror auto-dim function*; Rain and lightsensors*; Rear tunnel consolekeypad, rear seat*; Power frontseats*; Rear door control pan-els; Climate system blowermodule left/right
7.5
Control module for driver sup-port functions5
Panoramic roof with sun cur-tain*20
Head-up display*5
Passenger compartment light-ing5
––
Ceiling console display (seatbelt reminder/front passengerside airbag indicator)
5
––
Humidity sensor5
17An authorized Volvo workshop is recommended.

||
MAINTENANCE AND SERVICE
* Option/accessory.614
FunctionAmpere
Door module in right-side reardoor
Power right rear seatA
20
Fuses in the trunk/cargo com-partment10
Control module for Internet-connected vehicle; Controlmodule for Volvo On Call
5
Door module in left-side reardoor
Power left rear seatB
20
Audio control module (ampli-fier) (certain models only)40
––
Multi-band antenna module 5
Front seat massage function*5
––
Rear door sun curtain modules 15
Fuel pump control module 15
FunctionAmpere
Relay windings for distributionbox in engine compartment;Relay windings for transmis-sion oil pump
5
––
Driver's seat heating15
Front passenger's seat heat-ing15
Coolant pump10
––
Power driver's seat*20
Active chassis control module*20
––
Sensus control module10
––
Climate system blower module(rear)10
Power front passenger seat*20
FunctionAmpere
Display for rear seat conven-
ience functionsA; On-boarddiagnostics (OBD II) in tunnel
console between rear seatsA;
Extra movement sensorA
5A
TV* (certain markets only)5
Primary fuse for fuses 9, 53and 5815
AExcellenceBExcellence

Related information
Fuses and fuseboxes (p. 606)
Replacing fuses (p. 607)

MAINTENANCE AND SERVICE
}}
* Option/accessory.615
Fuses in the trunk
The fuses in the trunk protect electrical compo-nents such as the power seats*, airbags andseat belt tensioners.

||
MAINTENANCE AND SERVICE
616
The fuse box is located on the right-hand side.
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe distribution box in the engine compart-ment.

MAINTENANCE AND SERVICE
}}
* Option/accessory.617

Positions
Fuses 13-17 and 21-36 are "Micro" fuses.
Fuses 1-12, 18-20 and 37 are "MCase"fuses and should only be replaced by a work-
shop18.
FunctionAmpere
Heated rear window30
Central electrical module 40
Pneumatic suspension* com-pressor40
Lock motor for rear seat back-rest, right side15
Electrical outlets in the tunnel
consoleA30A
Lock motor for rear seat back-rest, left side15
Door module right side, rear 20
––
Power trunk release*25
Door module right side, front20
Towbar* control module40
FunctionAmpere
Seat belt tensioner module(right side)40
Internal relay windings5
Door module left side, rear 20
Foot movement detectionmodule for opening the powertrunk release*
5
USB hub/accessory port –
––
Towbar* control module25
Accessory module40
Door module left side, front 20
Seat belt tensioner module(left side)40
Park Assist Camera*5
––
––
––
FunctionAmpere
Feed when ignition is on 10
Control module for airbagsand seat belt tensioners5
CoolerA; Heated/cooled cup
holder (rear)A10A
Heated rear seat (left side)*15
––
Blind Spot Information(BLIS)*; Exterior reverse signalcontrol module
5
––
Modules for seat belt tension-ers5
Emissions system actuator(gasoline, certain engine vari-ants)
5
––
––
18An authorized Volvo workshop is recommended.

||
MAINTENANCE AND SERVICE
* Option/accessory.618
FunctionAmpere
Heated rear seat (right side)*15
––
AExcellence
