01 Safety
Child safety01
41
Size
classDescription
FTransverse infant seat, left-
hand
GTransverse infant seat, right-
hand
WARNING
Never place a child in the passenger seat if
the car is equipped with an activated airbag.
NOTE
If an ISOFIX child seat has no size classifi-
cation then the car model must be included
on the child seat's vehicle list.
NOTE
Volvo recommends that you contact an
authorised Volvo dealer for recommenda-
tions about which ISOFIX child seats Volvo
recommends.
Types of ISOFIX child seat

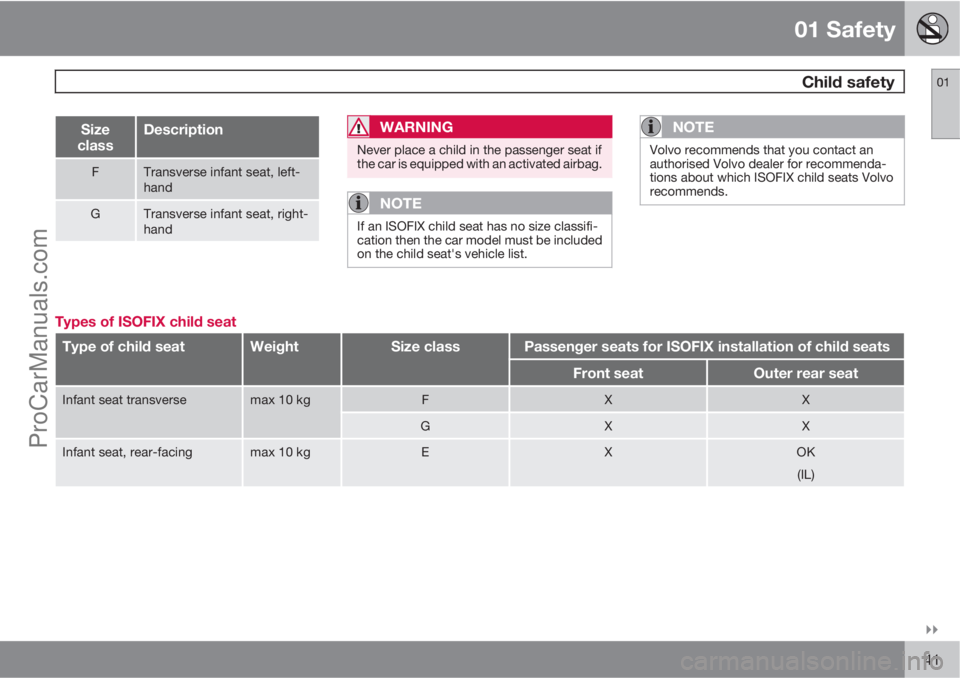

Type of child seatWeightSize classPassenger seats for ISOFIX installation of child seats
Front seatOuter rear seat
Infant seat transversemax 10 kgFXX
GXX
Infant seat, rear-facingmax 10 kgEXOK
(IL)
ProCarManuals.com
Page 42 of 388
01 Safety
Child safety 01
42

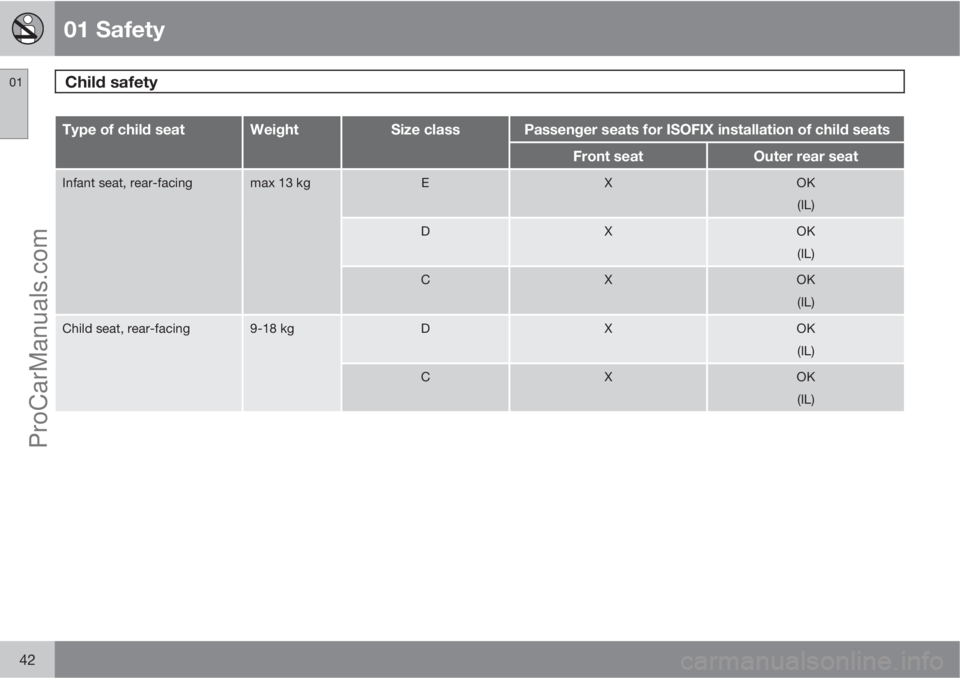

Type of child seatWeightSize classPassenger seats for ISOFIX installation of child seats
Front seatOuter rear seat
Infant seat, rear-facingmax 13 kgEXOK
(IL)
DXOK
(IL)
CXOK
(IL)
Child seat, rear-facing9-18 kgDXOK
(IL)
CXOK
(IL)
ProCarManuals.com
Page 43 of 388
01 Safety
Child safety01
43

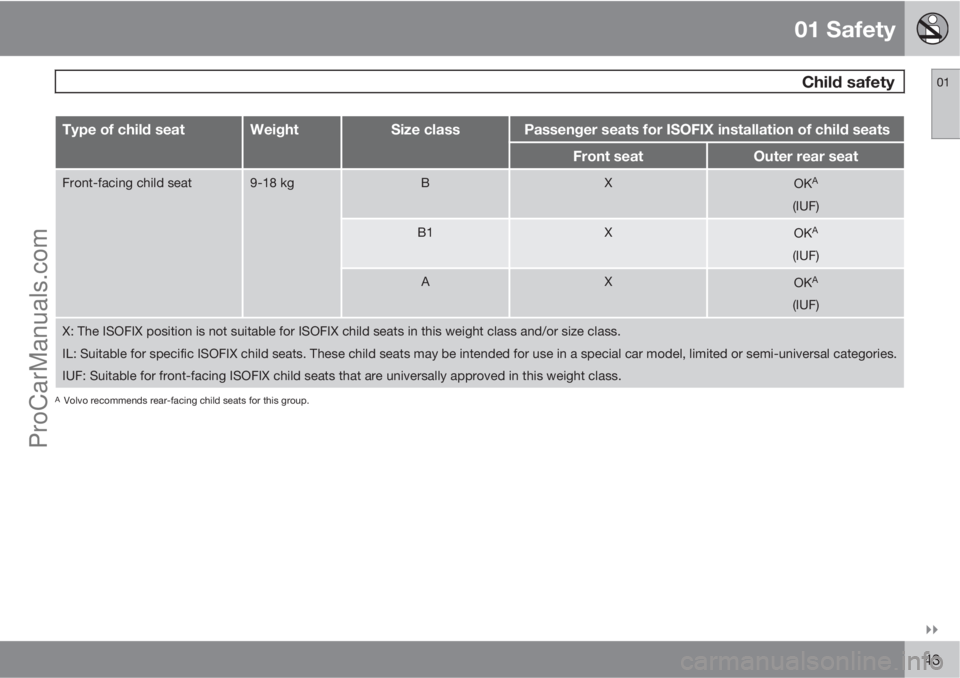

Type of child seatWeightSize classPassenger seats for ISOFIX installation of child seats
Front seatOuter rear seat
Front-facing child seat9-18 kgBXOKA
(IUF)
B1XOKA
(IUF)
AXOKA
(IUF)
X: The ISOFIX position is not suitable for ISOFIX child seats in this weight class and/or size class.
IL: Suitable for specific ISOFIX child seats. These child seats may be intended for use in a special car model, limited or semi-universal categories.
IUF: Suitable for front-facing ISOFIX child seats that are universally approved in this weight class.
AVolvo recommends rear-facing child seats for this group.
ProCarManuals.com
Page 44 of 388
01 Safety
Child safety 01
44

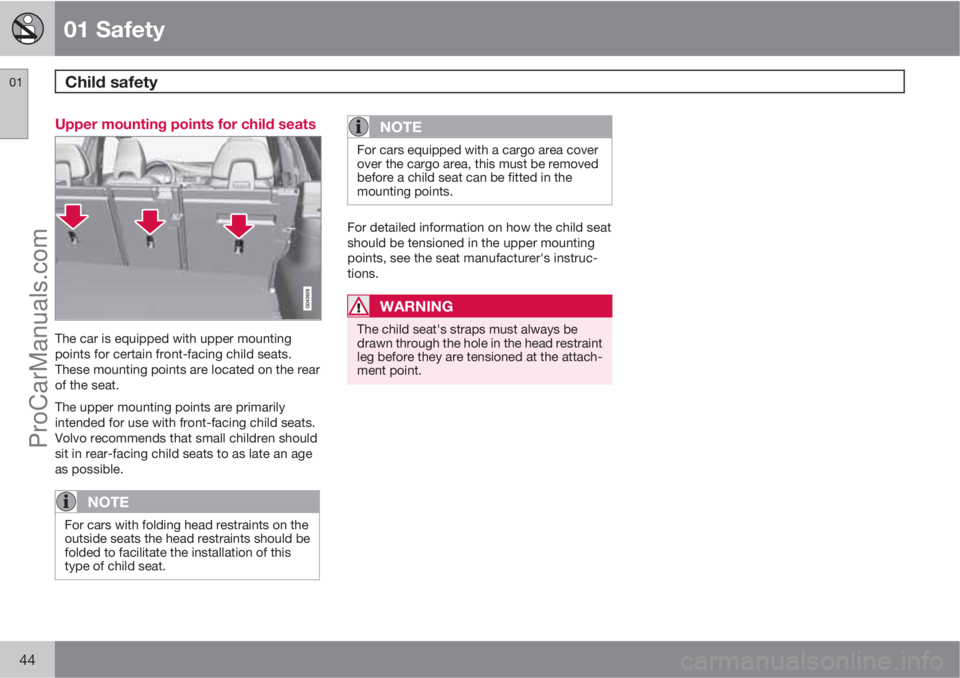

Upper mounting points for child seats
The car is equipped with upper mounting
points for certain front-facing child seats.
These mounting points are located on the rear
of the seat.
The upper mounting points are primarily
intended for use with front-facing child seats.
Volvo recommends that small children should
sit in rear-facing child seats to as late an age
as possible.
NOTE
For cars with folding head restraints on the
outside seats the head restraints should be
folded to facilitate the installation of this
type of child seat.
NOTE
For cars equipped with a cargo area cover
over the cargo area, this must be removed
before a child seat can be fitted in the
mounting points.
For detailed information on how the child seat
should be tensioned in the upper mounting
points, see the seat manufacturer's instruc-
tions.
WARNING
The child seat's straps must always be
drawn through the hole in the head restraint
leg before they are tensioned at the attach-
ment point.
ProCarManuals.com
Page 45 of 388
01 Safety
01
45ProCarManuals.com
Page 46 of 388
46* Option/accessory, for more information, see Introduction.
Remote control key/key blade................................................................ 48
Privacy locking*....................................................................................... 53
Battery replacement, remote control key/PCC*...................................... 55
Keyless drive*.......................................................................................... 57
Locking/unlocking................................................................................... 61
Child safety locks.................................................................................... 66
Alarm*...................................................................................................... 67
ProCarManuals.com
Page 47 of 388
LOCKS AND ALARM
ProCarManuals.com
Page 48 of 388
02 Locks and alarm
Remote control key/key blade
02
48
General
The car is supplied with 2 remote control keys
or PCCs (Personal Car Communicator). They
are used to start the car and for locking and
unlocking.
More remote control keys can be ordered – up
to 6 can be programmed and used for the same
car.
The PCC has increased functionality com-
pared with the remote control key. The contin-
uation of this chapter describes the functions
available in both the PCC and the remote con-
trol key.
WARNING
If there are children in the car:
Always remember to switch off the power
supply to power windows and sunroof by
removing the remote control key if the driver
leaves the car.
Loss of a remote control keyIf you lose a remote control key then new ones
can be ordered at a workshop - an authorised
Volvo workshop is recommended. The remain-
ing remote control keys must then be taken to
the workshop. The code of the missing remotecontrol key must be erased from the system as
a theft prevention measure.
The current number of keys registered to the
car can be checked in the menu system My
Car under Information
Number of keys .
For a description of the menu system, see
page 142.
Key memory1 – door mirrors and driver's
seat
The settings are automatically connected to
each respective remote control key, see pages
84 and 103.
The function can be activated/deactivated in
the menu system MY CAR under SETUP
Car settingsCar Key memory.
For a description of the menu system, see
page 142.
For cars with Keyless drive system, see
page 57.
Indicator for locking/unlockingWhen the car is locked or unlocked using the
remote control key, the direction indicators
confirm that locking/unlocking was correctly
performed.
•Locking - one flash and the door mirrors
are folded2 in.
•Unlocking - two flashes and the door mir-
rors are folded2 out.
After locking the indication is only given if all
locks have been activated once the doors have
been closed.
Selecting the functionDifferent options for indicating locking/unlock-
ing with light can be set in the car's menu sys-
tem, see page 142.
Search in the menu system MY CAR for
SETUP
Car settings Light settings and
select
Indicator light locking and/orIndicator light unlocking.
1Only in combination with power driver's seat and power mirrors.2Only for cars with retractable power door mirrors.
ProCarManuals.com
Page 49 of 388
02 Locks and alarm
Remote control key/key blade
02
49
Lock indicator
Same LED as alarm indicator, see page 67.
A flashing LED in the windscreen verifies that
the car is locked.
NOTE
Cars that are not equipped with alarm also
have this indicator.
ImmobiliserEach remote control key has a unique code.
The car can only be driven with the correct
remote control key with the correct code.
The following error messages in the combined
instrument panel's information display are rela-
ted to the electronic immobiliser:
MessageSpecification
Key error Try againError reading the
remote control key
during starting -
Remove the key, re-
insert it and try to
start again.
Car key not found
(Only applies to Key-
less drive with PCC.)
Error reading the
PCC during starting
- Try to start again.
If the error persists:
Insert the remote
key into the ignition
switch and try to
start again.
Immobiliser Try
start againError in immobiliser
system during star-
ting. If the fault per-
sists the recommen-
dation is to contact
an authorised Volvo
workshop.
For starting the car, see page 113.
Functions

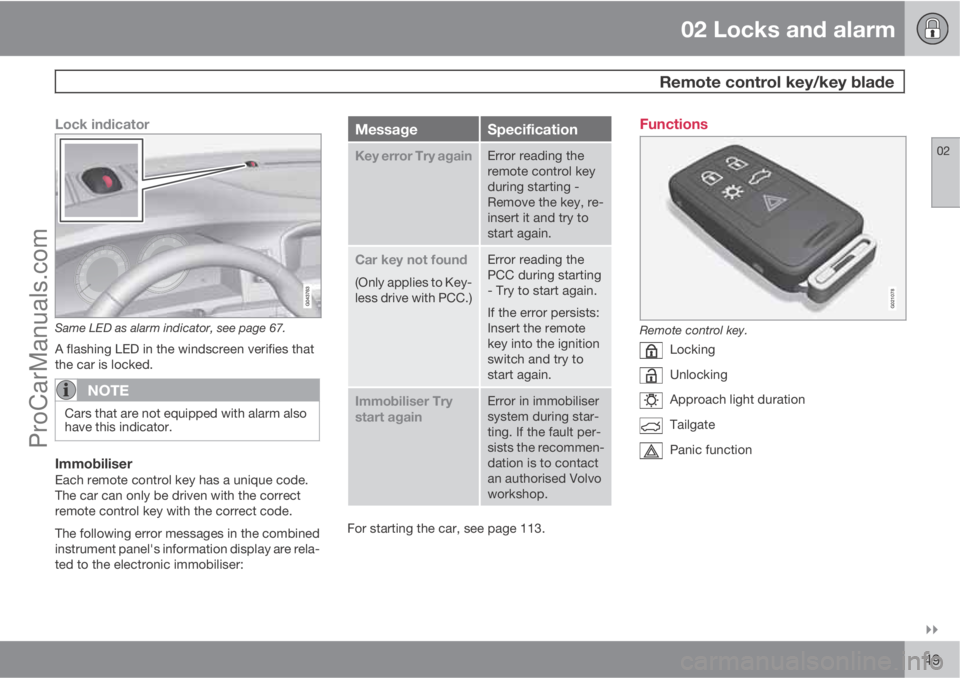

G021078
Remote control key.
Locking
Unlocking
Approach light duration
Tailgate
Panic function
ProCarManuals.com
Page 50 of 388
02 Locks and alarm
Remote control key/key blade
02
50* Option/accessory, for more information, see Introduction.
G021079
PCC* - Personal Car Communicator.
Information
Function buttons
Locking – Locks the doors and tailgate
while the alarm is activated.
Press and hold (at least 2 seconds) to close all
the windows and sunroof* simultaneously.
WARNING
If the sunroof and windows are closed using
the remote control key, check that no one is
in danger of getting hands caught.
Unlocking – Unlocks the doors and tail-
gate while the alarm is deactivated.Press and hold (at least 4 seconds) to open all
windows simultaneously.
The function can be changed from unlocking
all doors simultaneously, to unlocking the driv-
er's door only with one press of the button and,
after a further press of the button - within 10
seconds - unlocking the remaining doors.
The function can be changed in the menu sys-
tem MY CAR under SETUP
Car settings
Lock settings for doorsUnlocking
with both the alternatives
All doors and Driver
door, then all. For a description of the menu
system, see page 142.
Approach light duration – Used to switch
on the car's lighting at a distance. For more
information, see page 94.
Tailgate - Unlocks and disarms the alarm
for the tailgate only. For more information, see
page 63.
Panic function – Used to attract attention
in an emergency.
Press and hold the button for at least 3 sec-
onds or press it twice within 3 seconds to acti-
vate the direction indicators and the horn.
The function can be turned off with the same
button once it has been active for at least
5 seconds. Otherwise the function switches off
automatically after 2 minutes and 45 seconds.
RangeThe remote key's functions have a range of
about 20 m from the car.
If the car does not verify a button being pressed
- move closer and try again.
NOTE
The remote control key functions can be
disrupted by surrounding radio waves,
buildings, topographical conditions etc. The
car can always be locked/unlocked using
the key blade, see page 52.
Unique functions PCC*

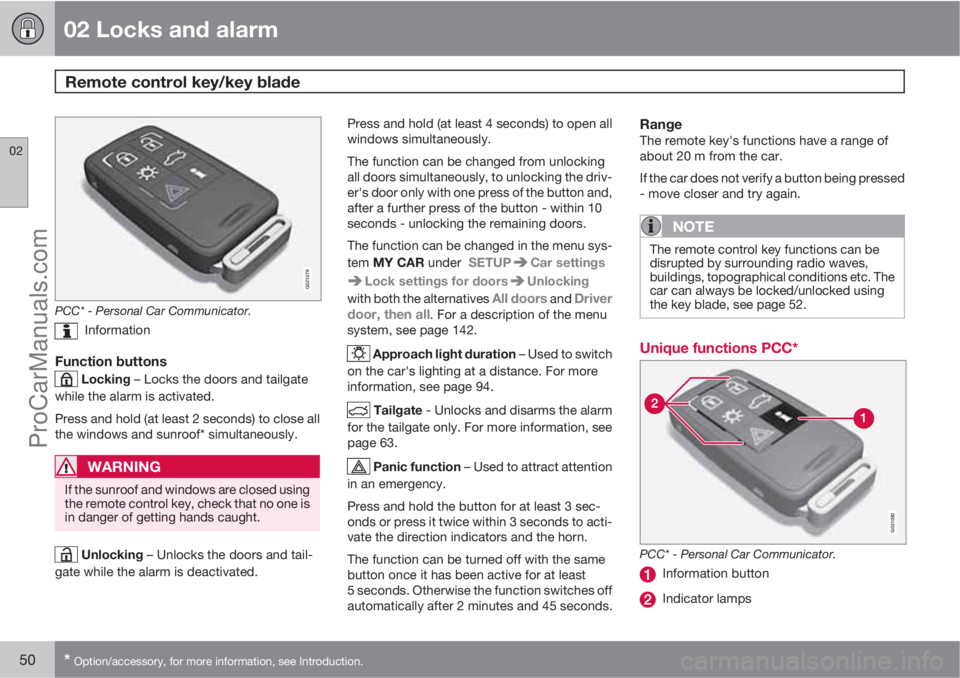

G021080
PCC* - Personal Car Communicator.
Information button
Indicator lamps
ProCarManuals.com
