YOUR DRIVING ENVIRONMENT
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
72

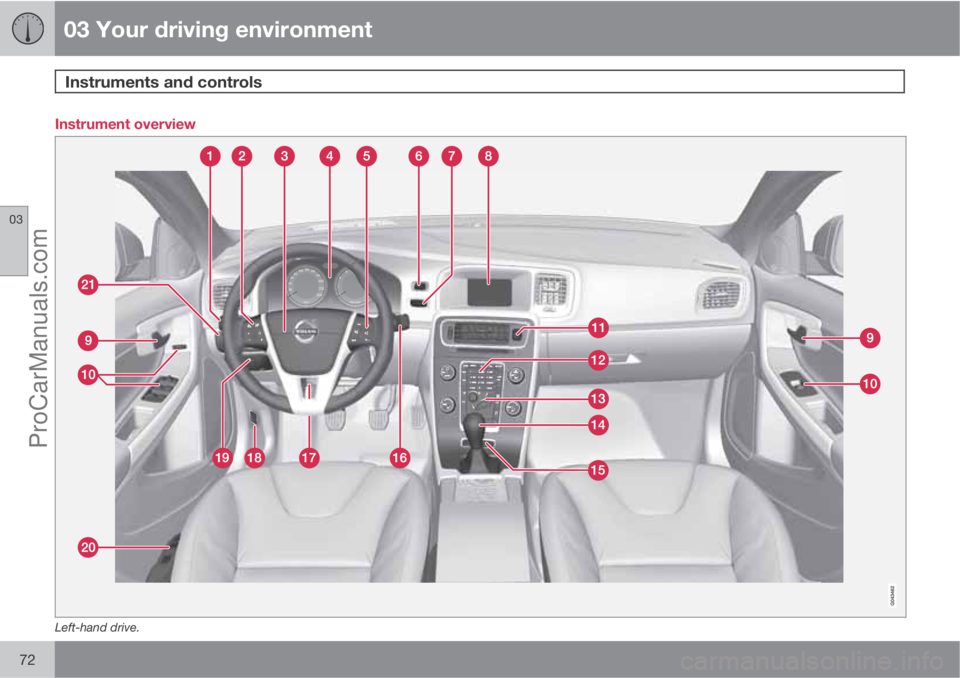

Instrument overview
Left-hand drive.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.73
FunctionPage
Menus and messages,
direction indicators,
main/dipped beam, trip
computer89,
92, 140,
162
Cruise control167, 171
Horn, airbags22, 88
Combined instrument
panel75, 79
Menu, audio and phone
control142,
220, 247,
259
Start/stop button113
Ignition switch81
Display for infotainment
and menus142,
218, 259
Door handle–
Control panel61, 66,
101, 103
Hazard warning flashers92
FunctionPage
Control for infotainment
and menu control142,
219, 259
Control panel for climate
control151
Gear selector116
Controls for active chas-
sis (Four-C)*166
Wipers and washing98, 99
Steering wheel adjust-
ment88
Bonnet opener306
Parking brake131
Seat adjustment*84
Headlamp control,
opener for fuel filler flap
and tailgate63, 89,
269
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
74

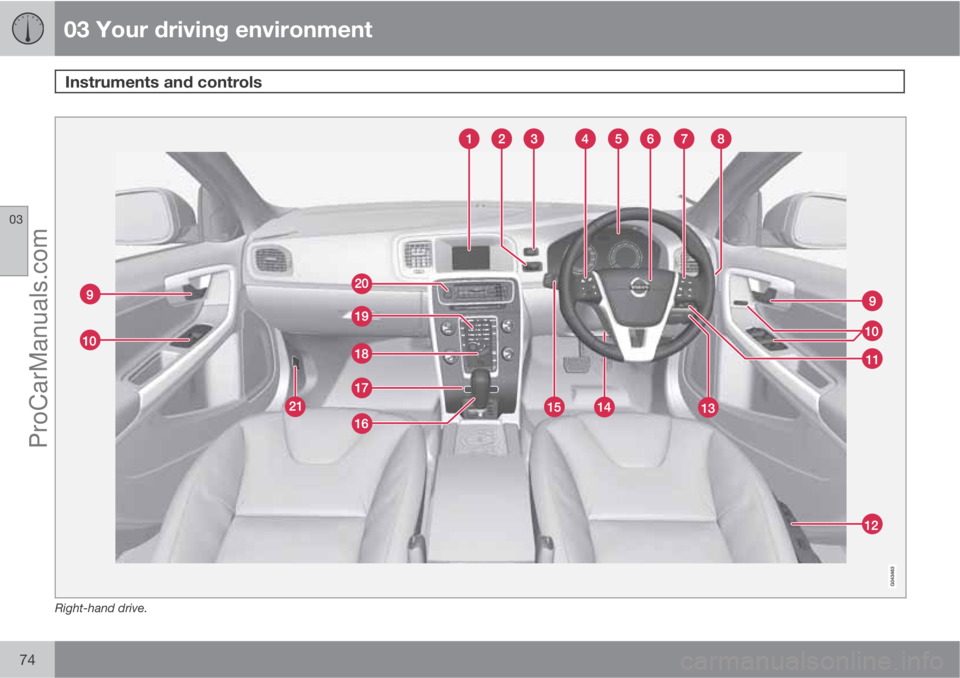

Right-hand drive.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.75

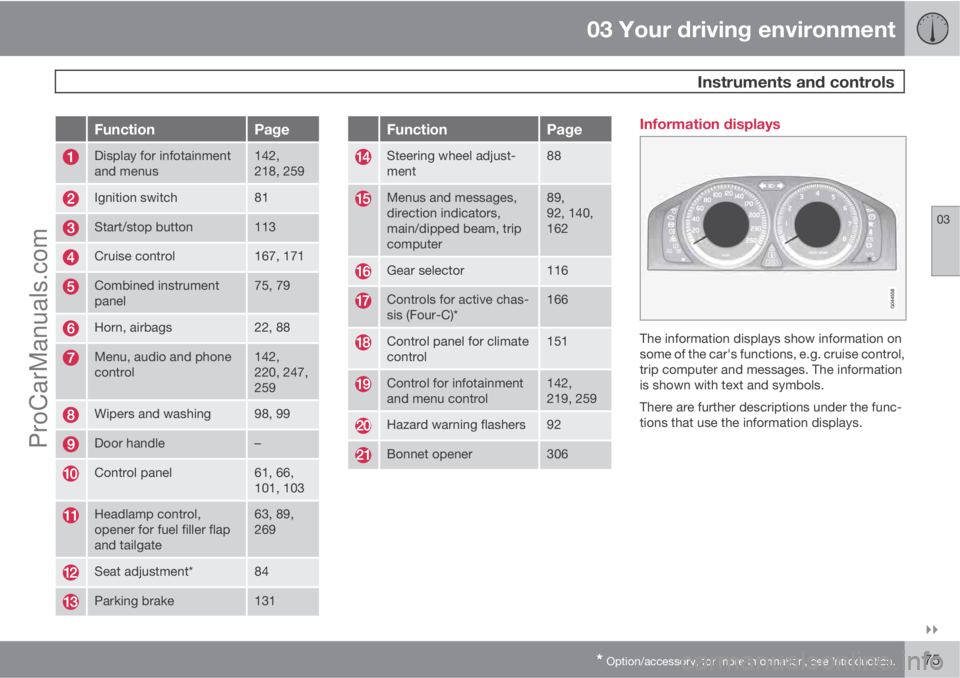

FunctionPage
Display for infotainment
and menus142,
218, 259
Ignition switch81
Start/stop button113
Cruise control167, 171
Combined instrument
panel75, 79
Horn, airbags22, 88
Menu, audio and phone
control142,
220, 247,
259
Wipers and washing98, 99
Door handle–
Control panel61, 66,
101, 103
Headlamp control,
opener for fuel filler flap
and tailgate63, 89,
269
Seat adjustment*84
Parking brake131
FunctionPage
Steering wheel adjust-
ment88
Menus and messages,
direction indicators,
main/dipped beam, trip
computer89,
92, 140,
162
Gear selector116
Controls for active chas-
sis (Four-C)*166
Control panel for climate
control151
Control for infotainment
and menu control142,
219, 259
Hazard warning flashers92
Bonnet opener306
Information displays
The information displays show information on
some of the car's functions, e.g. cruise control,
trip computer and messages. The information
is shown with text and symbols.
There are further descriptions under the func-
tions that use the information displays.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
76* Option/accessory, for more information, see Introduction.
Meters
Meters in the combined instrument panel.
Speedometer
Fuel gauge. See also Trip computer, page
162, and Refuelling, page 269.
Tachometer. The meter indicates engine
speed in thousands of revolutions per
minute (rpm).
Indicator, information and warning
symbols
Indicator and warning symbols.
Main beam and direction indicator symbol
Indicator and information symbols
Symbol for DRIVe - Start/Stop*, see
page 122
Indicator and warning symbols1
Functionality checkAll indicator and warning symbols illuminate in
key position II or when the engine is started.
When the engine has started, all the symbols
should go out except the parking brake sym-
bol, which only goes out when the brake is dis-
engaged.If the engine does not start or if the functionality
check is carried out in key position II then all
symbols go out after 5 seconds except the
symbol for faults in the car's emissions system
and the symbol for low oil pressure.
Indicator and information symbols
Sym-
bolSpecification
ABL fault
Emissions system
ABS fault
Rear fog lamp on
Stability system
Engine preheater (diesel)
Low level in fuel tank
Information, read display text
1For certain engine variants, the symbol for low oil pressure is not used. Warnings are made via display text. For information on checking the oil level, see page 307.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03

77

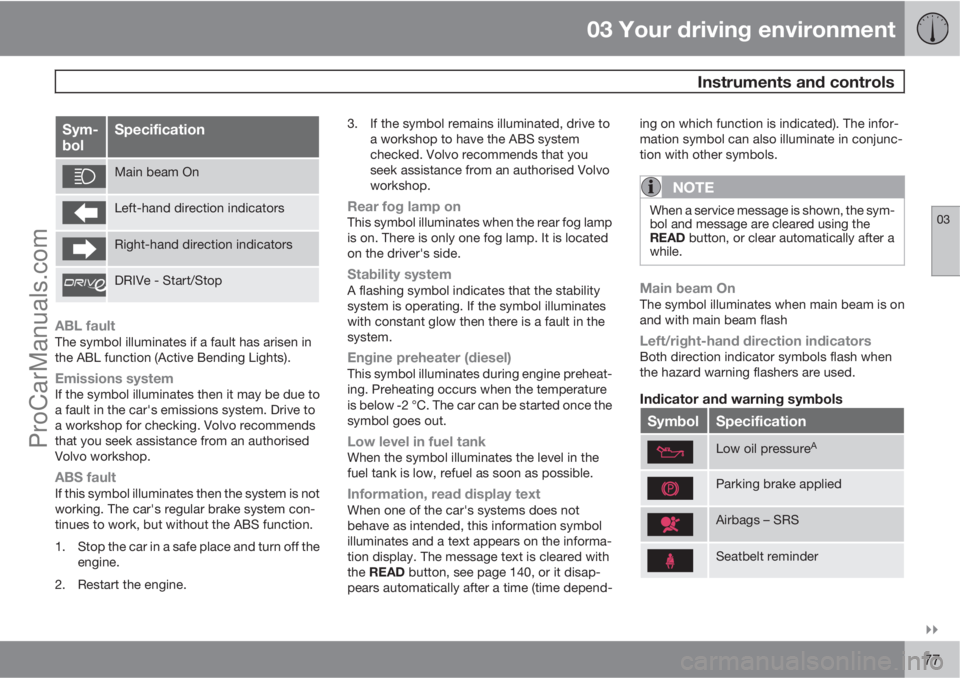

Sym-
bolSpecification
Main beam On
Left-hand direction indicators
Right-hand direction indicators
DRIVe - Start/Stop
ABL faultThe symbol illuminates if a fault has arisen in
the ABL function (Active Bending Lights).
Emissions systemIf the symbol illuminates then it may be due to
a fault in the car's emissions system. Drive to
a workshop for checking. Volvo recommends
that you seek assistance from an authorised
Volvo workshop.
ABS faultIf this symbol illuminates then the system is not
working. The car's regular brake system con-
tinues to work, but without the ABS function.
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.3. If the symbol remains illuminated, drive to
a workshop to have the ABS system
checked. Volvo recommends that you
seek assistance from an authorised Volvo
workshop.
Rear fog lamp onThis symbol illuminates when the rear fog lamp
is on. There is only one fog lamp. It is located
on the driver's side.
Stability systemA flashing symbol indicates that the stability
system is operating. If the symbol illuminates
with constant glow then there is a fault in the
system.
Engine preheater (diesel)This symbol illuminates during engine preheat-
ing. Preheating occurs when the temperature
is below 2 °C. The car can be started once the
symbol goes out.
Low level in fuel tankWhen the symbol illuminates the level in the
fuel tank is low, refuel as soon as possible.
Information, read display textWhen one of the car's systems does not
behave as intended, this information symbol
illuminates and a text appears on the informa-
tion display. The message text is cleared with
the READ button, see page 140, or it disap-
pears automatically after a time (time depend-ing on which function is indicated). The infor-
mation symbol can also illuminate in conjunc-
tion with other symbols.
NOTE
When a service message is shown, the sym-
bol and message are cleared using the
READ button, or clear automatically after a
while.
Main beam OnThe symbol illuminates when main beam is on
and with main beam flash
Left/right-hand direction indicatorsBoth direction indicator symbols flash when
the hazard warning flashers are used.
Indicator and warning symbols
SymbolSpecification
Low oil pressureA
Parking brake applied
Airbags – SRS
Seatbelt reminder
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
78

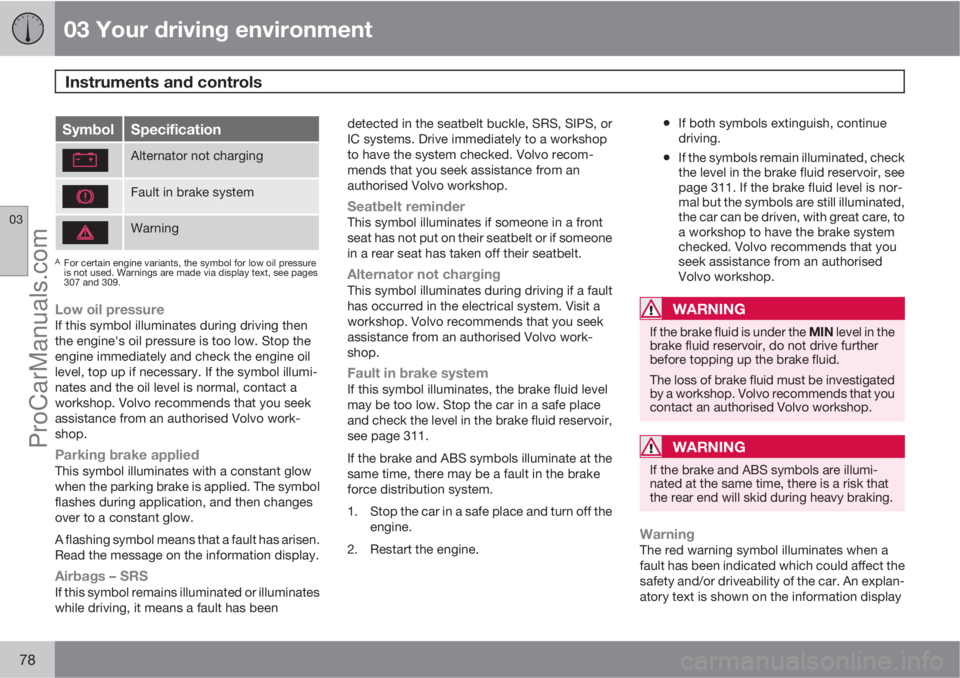

SymbolSpecification
Alternator not charging
Fault in brake system
Warning
AFor certain engine variants, the symbol for low oil pressure
is not used. Warnings are made via display text, see pages
307 and 309.
Low oil pressureIf this symbol illuminates during driving then
the engine's oil pressure is too low. Stop the
engine immediately and check the engine oil
level, top up if necessary. If the symbol illumi-
nates and the oil level is normal, contact a
workshop. Volvo recommends that you seek
assistance from an authorised Volvo work-
shop.
Parking brake appliedThis symbol illuminates with a constant glow
when the parking brake is applied. The symbol
flashes during application, and then changes
over to a constant glow.
A flashing symbol means that a fault has arisen.
Read the message on the information display.
Airbags – SRSIf this symbol remains illuminated or illuminates
while driving, it means a fault has beendetected in the seatbelt buckle, SRS, SIPS, or
IC systems. Drive immediately to a workshop
to have the system checked. Volvo recom-
mends that you seek assistance from an
authorised Volvo workshop.
Seatbelt reminderThis symbol illuminates if someone in a front
seat has not put on their seatbelt or if someone
in a rear seat has taken off their seatbelt.
Alternator not chargingThis symbol illuminates during driving if a fault
has occurred in the electrical system. Visit a
workshop. Volvo recommends that you seek
assistance from an authorised Volvo work-
shop.
Fault in brake systemIf this symbol illuminates, the brake fluid level
may be too low. Stop the car in a safe place
and check the level in the brake fluid reservoir,
see page 311.
If the brake and ABS symbols illuminate at the
same time, there may be a fault in the brake
force distribution system.
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.
•If both symbols extinguish, continue
driving.
•If the symbols remain illuminated, check
the level in the brake fluid reservoir, see
page 311. If the brake fluid level is nor-
mal but the symbols are still illuminated,
the car can be driven, with great care, to
a workshop to have the brake system
checked. Volvo recommends that you
seek assistance from an authorised
Volvo workshop.
WARNING
If the brake fluid is under the MIN level in the
brake fluid reservoir, do not drive further
before topping up the brake fluid.
The loss of brake fluid must be investigated
by a workshop. Volvo recommends that you
contact an authorised Volvo workshop.
WARNING
If the brake and ABS symbols are illumi-
nated at the same time, there is a risk that
the rear end will skid during heavy braking.
WarningThe red warning symbol illuminates when a
fault has been indicated which could affect the
safety and/or driveability of the car. An explan-
atory text is shown on the information display
ProCarManuals.com

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.79
at the same time. The symbol remains visible
until the fault has been rectified but the text
message can be cleared with the READ but-
ton, see page 140. The warning symbol can
also illuminate in conjunction with other sym-
bols.
Action:
1. Stop in a safe place. Do not drive the car
further.
2. Read the information on the information
display. Implement the action in accord-
ance with the message in the display. Clear
the message using the READ button.
Reminder – doors not closed
If one of the doors, the bonnet2 or tailgate is not
closed properly then the information or warn-
ing symbol illuminates together with an explan-
atory text message in the combined instrument
panel. Stop the car in a safe place as soon as
possible and close the door, bonnet or boot lid,
whichever is open.
If the car is driven at a speed lower than
approx. 7 km/h then the information
symbol illuminates.
If the car is driven at a speed higher
than approx. 7 km/h then the warning
symbol illuminates.

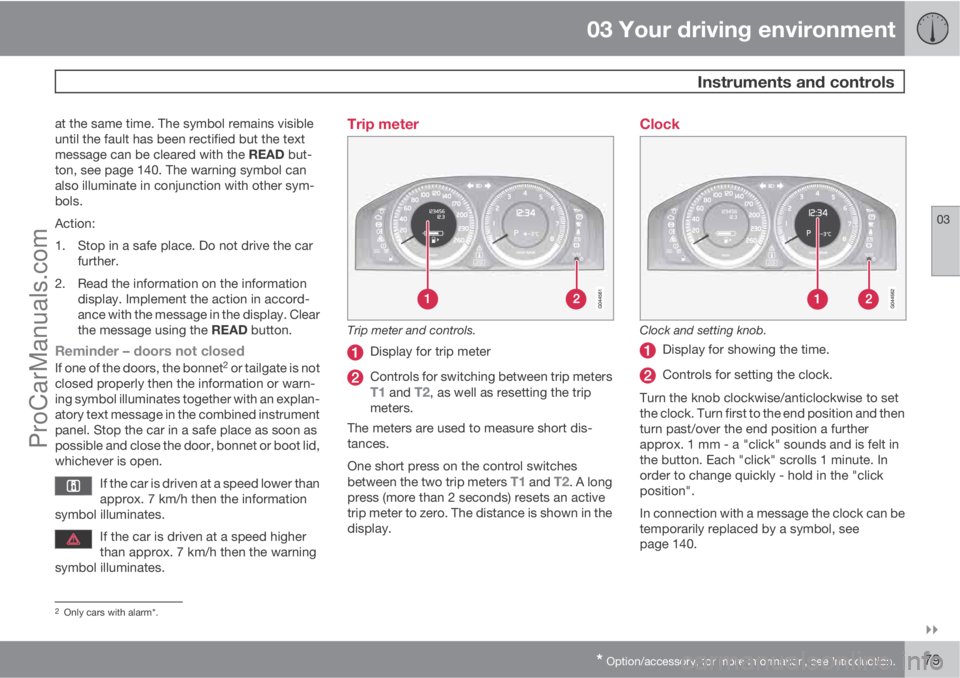

Trip meter
Trip meter and controls.
Display for trip meter
Controls for switching between trip metersT1 and T2, as well as resetting the trip
meters.
The meters are used to measure short dis-
tances.
One short press on the control switches
between the two trip meters
T1 and T2. A long
press (more than 2 seconds) resets an active
trip meter to zero. The distance is shown in the
display.
Clock
Clock and setting knob.
Display for showing the time.
Controls for setting the clock.
Turn the knob clockwise/anticlockwise to set
the clock. Turn first to the end position and then
turn past/over the end position a further
approx. 1 mm - a "click" sounds and is felt in
the button. Each "click" scrolls 1 minute. In
order to change quickly - hold in the "click
position".
In connection with a message the clock can be
temporarily replaced by a symbol, see
page 140.
2Only cars with alarm*.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
80
Setting the clock in MYCARIn addition to the previous manual/mechanical
method the clock can also be set in the menu
group MYCAR, for more information see
page 142.
1.
Locate SettingsSystem options
Time.
2. The cursor is located in the first box for
Hour: Press OK - the box is activated.
3.
Turn TUNE to set the correct hour and
press OK - the box is deactivated.
4.
Turn TUNE to select the box for Minute (A)
and press OK - the box is activated (B).
5.
Turn TUNE to set the correct minute and
press OK - the box is deactivated.
6.
Turn TUNE to select the box for
OK and
press OK - the setting is complete.The menu option Settings
System options
Time format selects the 24h or 12h system
(AM/PM).
ProCarManuals.com
