02 Locks and alarm
Locking/unlocking
02

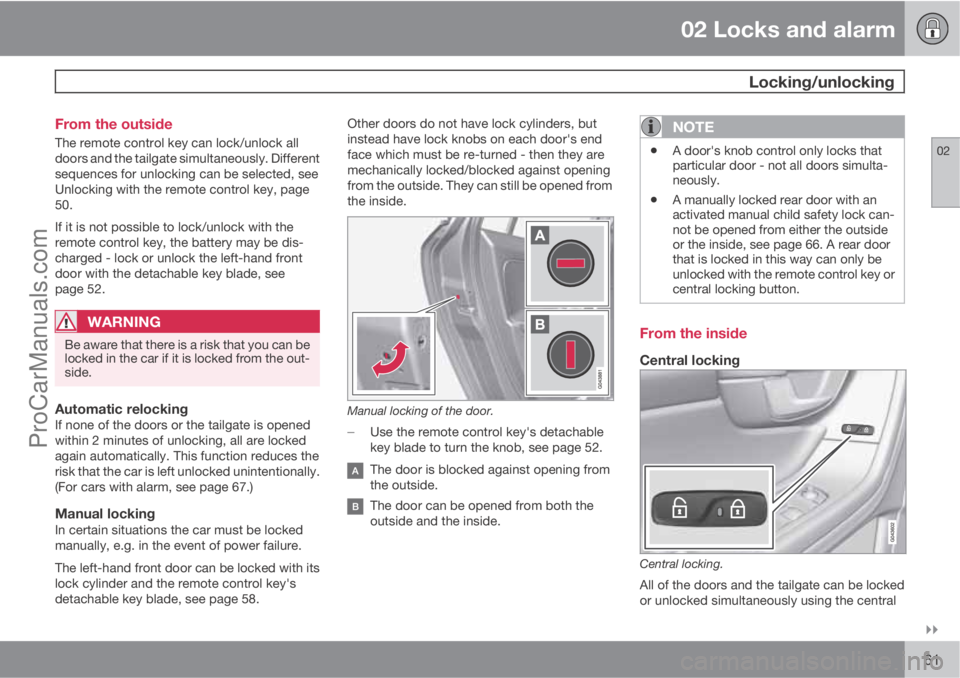

61 From the outside
The remote control key can lock/unlock all
doors and the tailgate simultaneously. Different
sequences for unlocking can be selected, see
Unlocking with the remote control key, page
50.
If it is not possible to lock/unlock with the
remote control key, the battery may be dis-
charged - lock or unlock the left-hand front
door with the detachable key blade, see
page 52.
WARNING
Be aware that there is a risk that you can be
locked in the car if it is locked from the out-
side.
Automatic relockingIf none of the doors or the tailgate is opened
within 2 minutes of unlocking, all are locked
again automatically. This function reduces the
risk that the car is left unlocked unintentionally.
(For cars with alarm, see page 67.)
Manual lockingIn certain situations the car must be locked
manually, e.g. in the event of power failure.
The left-hand front door can be locked with its
lock cylinder and the remote control key's
detachable key blade, see page 58.Other doors do not have lock cylinders, but
instead have lock knobs on each door's end
face which must be re-turned - then they are
mechanically locked/blocked against opening
from the outside. They can still be opened from
the inside.
Manual locking of the door.
Use the remote control key's detachable
key blade to turn the knob, see page 52.
The door is blocked against opening from
the outside.
The door can be opened from both the
outside and the inside.
NOTE
•A door's knob control only locks that
particular door - not all doors simulta-
neously.
•A manually locked rear door with an
activated manual child safety lock can-
not be opened from either the outside
or the inside, see page 66. A rear door
that is locked in this way can only be
unlocked with the remote control key or
central locking button.
From the inside
Central locking
Central locking.
All of the doors and the tailgate can be locked
or unlocked simultaneously using the central
ProCarManuals.com
Page 62 of 388
02 Locks and alarm
Locking/unlocking
02
62* Option/accessory, for more information, see Introduction.

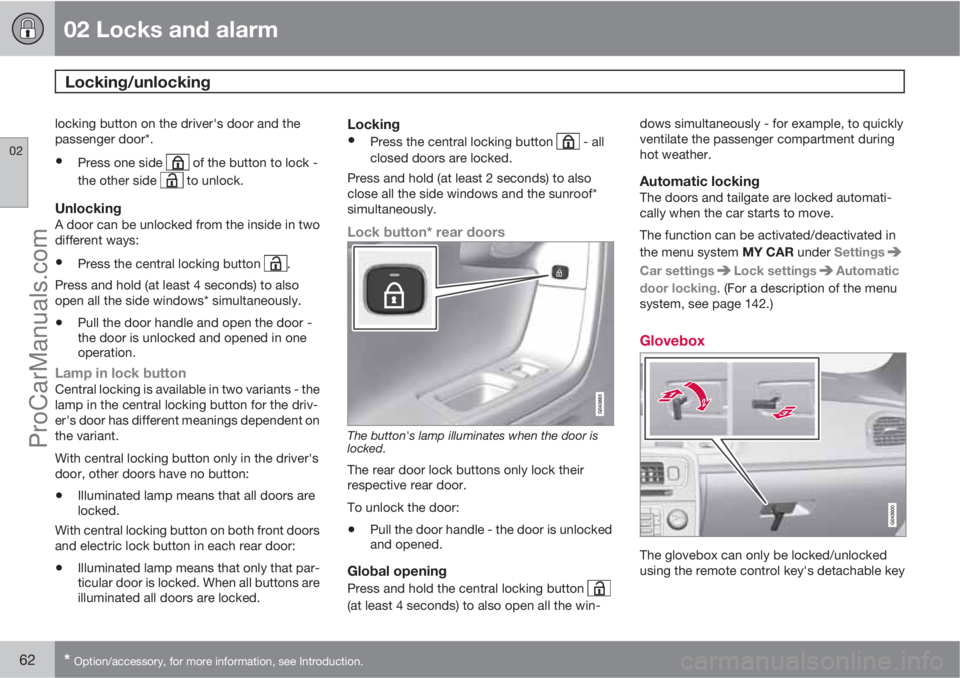

locking button on the driver's door and the
passenger door*.
•Press one side of the button to lock -
the other side
to unlock.
UnlockingA door can be unlocked from the inside in two
different ways:
•Press the central locking button .
Press and hold (at least 4 seconds) to also
open all the side windows* simultaneously.
•Pull the door handle and open the door -
the door is unlocked and opened in one
operation.
Lamp in lock buttonCentral locking is available in two variants - the
lamp in the central locking button for the driv-
er's door has different meanings dependent on
the variant.
With central locking button only in the driver's
door, other doors have no button:
•Illuminated lamp means that all doors are
locked.
With central locking button on both front doors
and electric lock button in each rear door:
•Illuminated lamp means that only that par-
ticular door is locked. When all buttons are
illuminated all doors are locked.
Locking
•Press the central locking button - all
closed doors are locked.
Press and hold (at least 2 seconds) to also
close all the side windows and the sunroof*
simultaneously.
Lock button* rear doors
The button's lamp illuminates when the door is
locked.
The rear door lock buttons only lock their
respective rear door.
To unlock the door:
•Pull the door handle - the door is unlocked
and opened.
Global opening
Press and hold the central locking button
(at least 4 seconds) to also open all the win-dows simultaneously - for example, to quickly
ventilate the passenger compartment during
hot weather.
Automatic lockingThe doors and tailgate are locked automati-
cally when the car starts to move.
The function can be activated/deactivated in
the menu system MY CAR under Settings
Car settingsLock settingsAutomatic
door locking. (For a description of the menu
system, see page 142.)
Glovebox
The glovebox can only be locked/unlocked
using the remote control key's detachable key
ProCarManuals.com
Page 63 of 388
02 Locks and alarm
Locking/unlocking
02
* Option/accessory, for more information, see Introduction.63

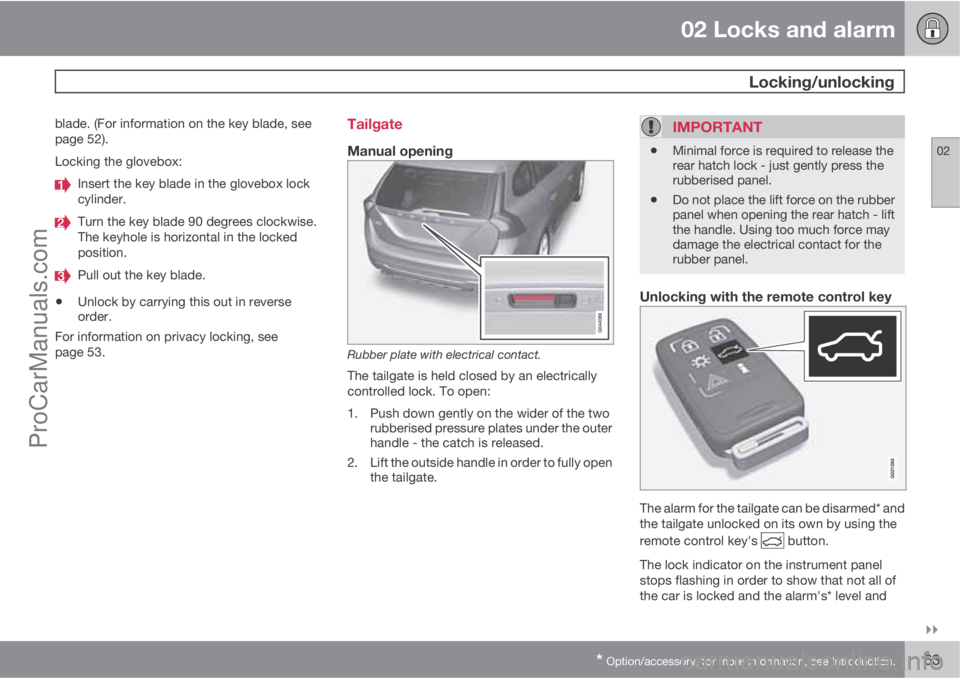

blade. (For information on the key blade, see
page 52).
Locking the glovebox:
Insert the key blade in the glovebox lock
cylinder.
Turn the key blade 90 degrees clockwise.
The keyhole is horizontal in the locked
position.
Pull out the key blade.
•Unlock by carrying this out in reverse
order.
For information on privacy locking, see
page 53.
Tailgate
Manual opening
Rubber plate with electrical contact.
The tailgate is held closed by an electrically
controlled lock. To open:
1. Push down gently on the wider of the two
rubberised pressure plates under the outer
handle - the catch is released.
2. Lift the outside handle in order to fully open
the tailgate.
IMPORTANT
•Minimal force is required to release the
rear hatch lock - just gently press the
rubberised panel.
•Do not place the lift force on the rubber
panel when opening the rear hatch - lift
the handle. Using too much force may
damage the electrical contact for the
rubber panel.
Unlocking with the remote control key
The alarm for the tailgate can be disarmed* and
the tailgate unlocked on its own by using the
remote control key's
button.
The lock indicator on the instrument panel
stops flashing in order to show that not all of
the car is locked and the alarm's* level and
ProCarManuals.com
Page 64 of 388
02 Locks and alarm
Locking/unlocking
02
64* Option/accessory, for more information, see Introduction.

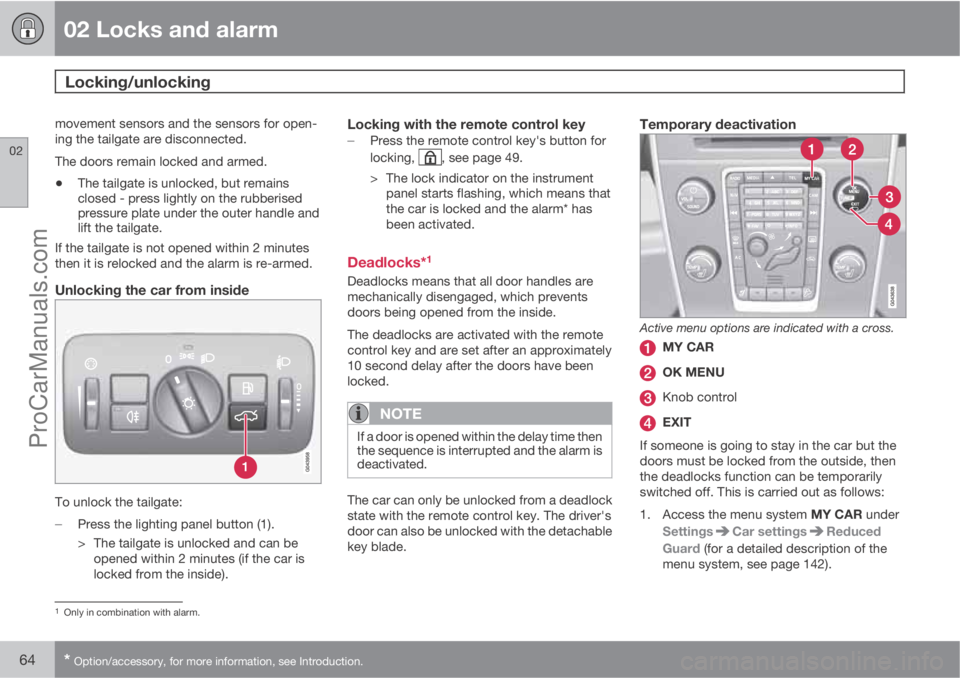

movement sensors and the sensors for open-
ing the tailgate are disconnected.
The doors remain locked and armed.
•The tailgate is unlocked, but remains
closed - press lightly on the rubberised
pressure plate under the outer handle and
lift the tailgate.
If the tailgate is not opened within 2 minutes
then it is relocked and the alarm is re-armed.
Unlocking the car from inside
To unlock the tailgate:
Press the lighting panel button (1).
> The tailgate is unlocked and can be
opened within 2 minutes (if the car is
locked from the inside).
Locking with the remote control key
Press the remote control key's button for
locking,
, see page 49.
> The lock indicator on the instrument
panel starts flashing, which means that
the car is locked and the alarm* has
been activated.
Deadlocks*1
Deadlocks means that all door handles are
mechanically disengaged, which prevents
doors being opened from the inside.
The deadlocks are activated with the remote
control key and are set after an approximately
10 second delay after the doors have been
locked.
NOTE
If a door is opened within the delay time then
the sequence is interrupted and the alarm is
deactivated.
The car can only be unlocked from a deadlock
state with the remote control key. The driver's
door can also be unlocked with the detachable
key blade.
Temporary deactivation
Active menu options are indicated with a cross.
MY CAR
OK MENU
Knob control
EXIT
If someone is going to stay in the car but the
doors must be locked from the outside, then
the deadlocks function can be temporarily
switched off. This is carried out as follows:
1.
Access the menu system MY CAR under
Settings
Car settingsReduced
Guard (for a detailed description of the
menu system, see page 142).
1Only in combination with alarm.
ProCarManuals.com
Page 65 of 388
02 Locks and alarm
Locking/unlocking
02
* Option/accessory, for more information, see Introduction.65

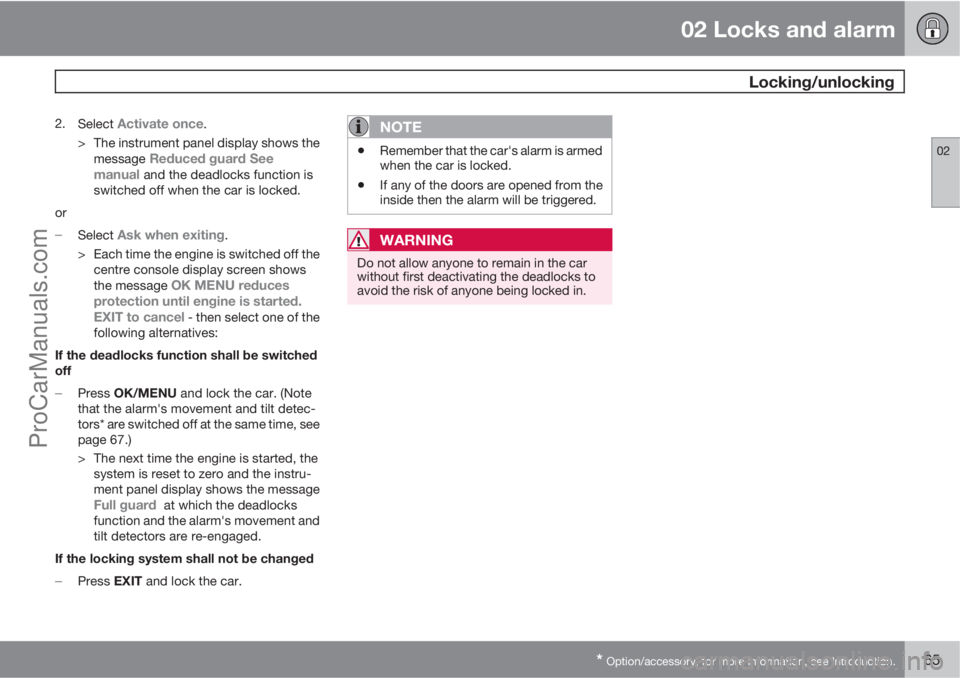

2.
Select Activate once.
> The instrument panel display shows the
message
Reduced guard See
manual and the deadlocks function is
switched off when the car is locked.
or
Select
Ask when exiting.
> Each time the engine is switched off the
centre console display screen shows
the message
OK MENU reduces
protection until engine is started.
EXIT to cancel
- then select one of the
following alternatives:
If the deadlocks function shall be switched
off
Press OK/MENU and lock the car. (Note
that the alarm's movement and tilt detec-
tors* are switched off at the same time, see
page 67.)
> The next time the engine is started, the
system is reset to zero and the instru-
ment panel display shows the message
Full guard at which the deadlocks
function and the alarm's movement and
tilt detectors are re-engaged.
If the locking system shall not be changed
Press EXIT and lock the car.
NOTE
•Remember that the car's alarm is armed
when the car is locked.
•If any of the doors are opened from the
inside then the alarm will be triggered.
WARNING
Do not allow anyone to remain in the car
without first deactivating the deadlocks to
avoid the risk of anyone being locked in.
ProCarManuals.com
Page 66 of 388
02 Locks and alarm
Child safety locks
02
66* Option/accessory, for more information, see Introduction.

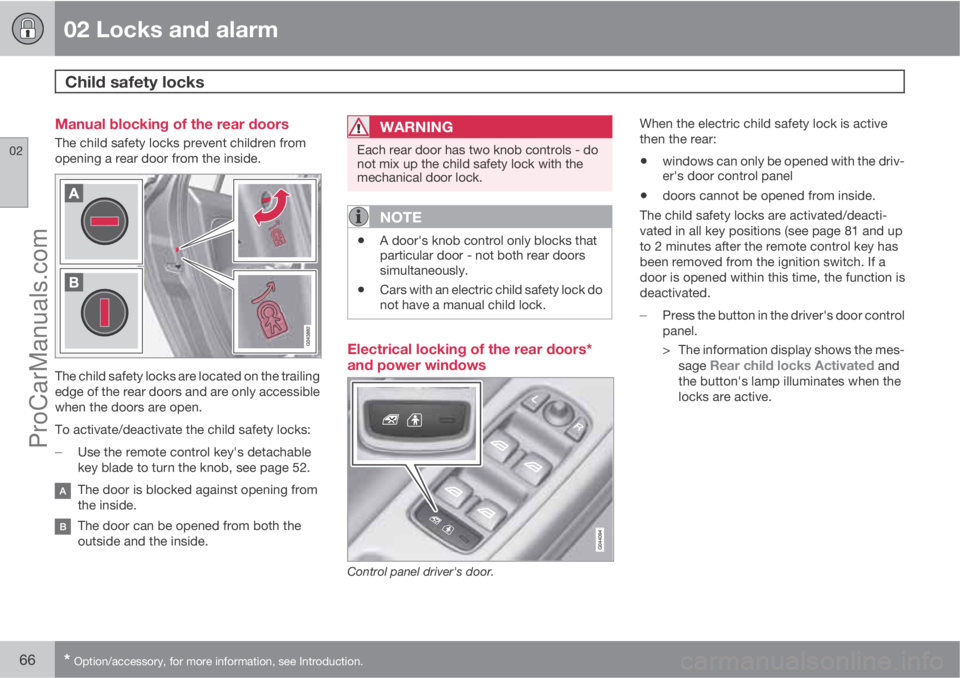

Manual blocking of the rear doors
The child safety locks prevent children from
opening a rear door from the inside.
The child safety locks are located on the trailing
edge of the rear doors and are only accessible
when the doors are open.
To activate/deactivate the child safety locks:
Use the remote control key's detachable
key blade to turn the knob, see page 52.
The door is blocked against opening from
the inside.
The door can be opened from both the
outside and the inside.
WARNING
Each rear door has two knob controls - do
not mix up the child safety lock with the
mechanical door lock.
NOTE
•A door's knob control only blocks that
particular door - not both rear doors
simultaneously.
•Cars with an electric child safety lock do
not have a manual child lock.
Electrical locking of the rear doors*
and power windows
Control panel driver's door.
When the electric child safety lock is active
then the rear:
•windows can only be opened with the driv-
er's door control panel
•doors cannot be opened from inside.
The child safety locks are activated/deacti-
vated in all key positions (see page 81 and up
to 2 minutes after the remote control key has
been removed from the ignition switch. If a
door is opened within this time, the function is
deactivated.
Press the button in the driver's door control
panel.
> The information display shows the mes-
sage
Rear child locks Activated and
the button's lamp illuminates when the
locks are active.
ProCarManuals.com
Page 67 of 388
02 Locks and alarm
Alarm*
02

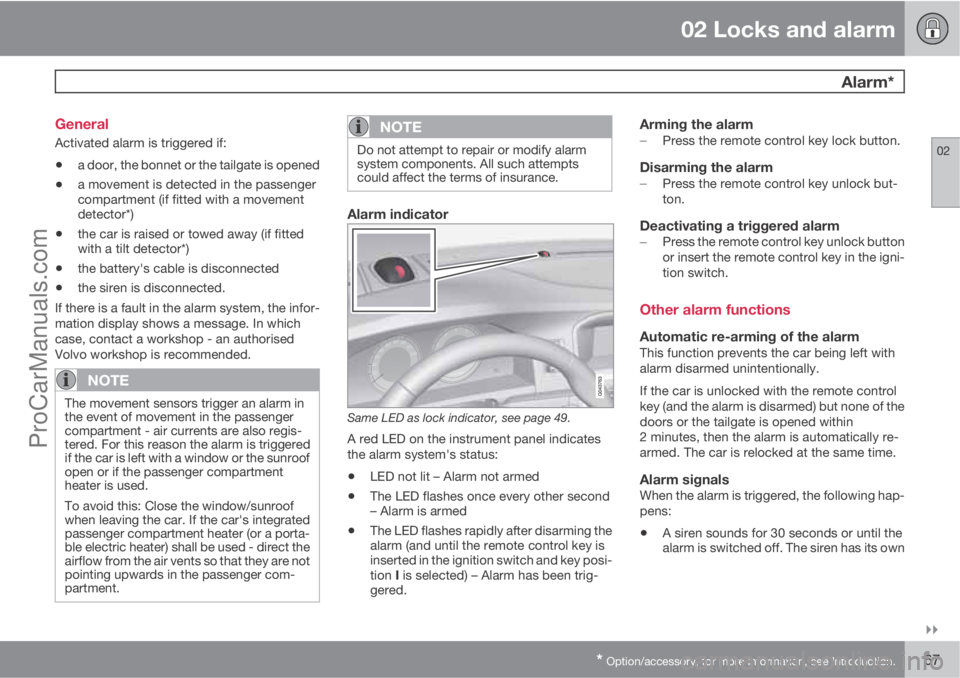

* Option/accessory, for more information, see Introduction.67 General
Activated alarm is triggered if:
•a door, the bonnet or the tailgate is opened
•a movement is detected in the passenger
compartment (if fitted with a movement
detector*)
•the car is raised or towed away (if fitted
with a tilt detector*)
•the battery's cable is disconnected
•the siren is disconnected.
If there is a fault in the alarm system, the infor-
mation display shows a message. In which
case, contact a workshop - an authorised
Volvo workshop is recommended.
NOTE
The movement sensors trigger an alarm in
the event of movement in the passenger
compartment - air currents are also regis-
tered. For this reason the alarm is triggered
if the car is left with a window or the sunroof
open or if the passenger compartment
heater is used.
To avoid this: Close the window/sunroof
when leaving the car. If the car's integrated
passenger compartment heater (or a porta-
ble electric heater) shall be used - direct the
airflow from the air vents so that they are not
pointing upwards in the passenger com-
partment.
NOTE
Do not attempt to repair or modify alarm
system components. All such attempts
could affect the terms of insurance.
Alarm indicator
Same LED as lock indicator, see page 49.
A red LED on the instrument panel indicates
the alarm system's status:
•LED not lit – Alarm not armed
•The LED flashes once every other second
– Alarm is armed
•The LED flashes rapidly after disarming the
alarm (and until the remote control key is
inserted in the ignition switch and key posi-
tion I is selected) – Alarm has been trig-
gered.
Arming the alarm
Press the remote control key lock button.
Disarming the alarm
Press the remote control key unlock but-
ton.
Deactivating a triggered alarm
Press the remote control key unlock button
or insert the remote control key in the igni-
tion switch.
Other alarm functions
Automatic re-arming of the alarmThis function prevents the car being left with
alarm disarmed unintentionally.
If the car is unlocked with the remote control
key (and the alarm is disarmed) but none of the
doors or the tailgate is opened within
2 minutes, then the alarm is automatically re-
armed. The car is relocked at the same time.
Alarm signalsWhen the alarm is triggered, the following hap-
pens:
•A siren sounds for 30 seconds or until the
alarm is switched off. The siren has its own
ProCarManuals.com
Page 68 of 388
02 Locks and alarm
Alarm*
02
68* Option/accessory, for more information, see Introduction.

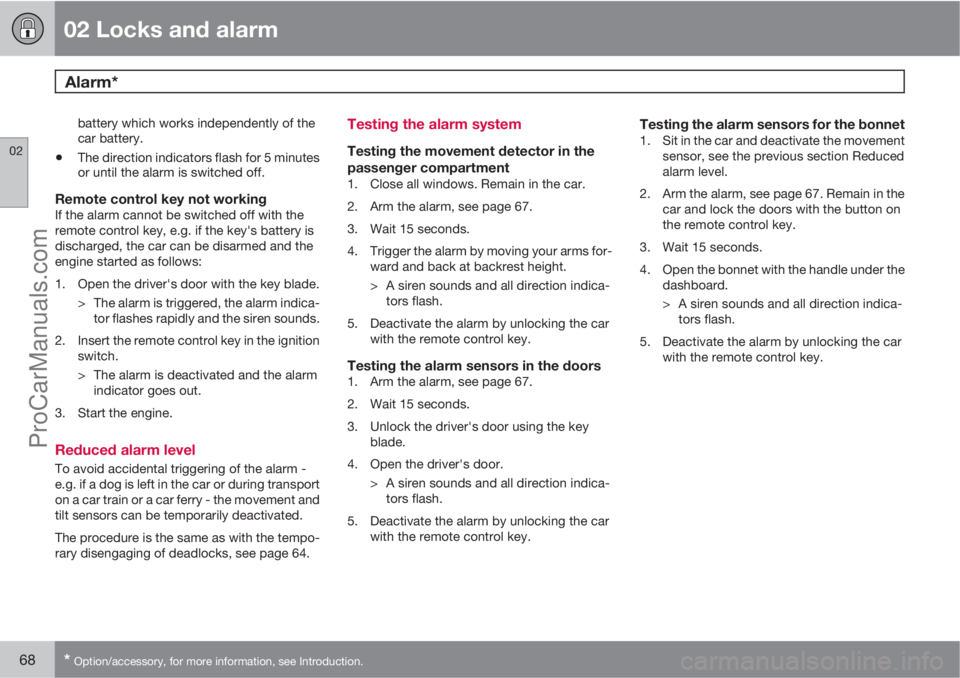

battery which works independently of the
car battery.
•The direction indicators flash for 5 minutes
or until the alarm is switched off.
Remote control key not workingIf the alarm cannot be switched off with the
remote control key, e.g. if the key's battery is
discharged, the car can be disarmed and the
engine started as follows:
1. Open the driver's door with the key blade.
> The alarm is triggered, the alarm indica-
tor flashes rapidly and the siren sounds.
2. Insert the remote control key in the ignition
switch.
> The alarm is deactivated and the alarm
indicator goes out.
3. Start the engine.
Reduced alarm level
To avoid accidental triggering of the alarm -
e.g. if a dog is left in the car or during transport
on a car train or a car ferry - the movement and
tilt sensors can be temporarily deactivated.
The procedure is the same as with the tempo-
rary disengaging of deadlocks, see page 64.
Testing the alarm system
Testing the movement detector in the
passenger compartment
1. Close all windows. Remain in the car.
2. Arm the alarm, see page 67.
3. Wait 15 seconds.
4. Trigger the alarm by moving your arms for-
ward and back at backrest height.
> A siren sounds and all direction indica-
tors flash.
5. Deactivate the alarm by unlocking the car
with the remote control key.
Testing the alarm sensors in the doors1. Arm the alarm, see page 67.
2. Wait 15 seconds.
3. Unlock the driver's door using the key
blade.
4. Open the driver's door.
> A siren sounds and all direction indica-
tors flash.
5. Deactivate the alarm by unlocking the car
with the remote control key.
Testing the alarm sensors for the bonnet1. Sit in the car and deactivate the movement
sensor, see the previous section Reduced
alarm level.
2. Arm the alarm, see page 67. Remain in the
car and lock the doors with the button on
the remote control key.
3. Wait 15 seconds.
4. Open the bonnet with the handle under the
dashboard.
> A siren sounds and all direction indica-
tors flash.
5. Deactivate the alarm by unlocking the car
with the remote control key.
ProCarManuals.com
Page 69 of 388
02 Locks and alarm
02
69ProCarManuals.com
Page 70 of 388
70* Option/accessory, for more information, see Introduction.
Instruments and controls........................................................................ 72
Key positions.......................................................................................... 81
Seats....................................................................................................... 83
Steering wheel........................................................................................ 88
Lighting................................................................................................... 89
Wipers and washing................................................................................ 98
Windows, rearview and door mirrors....................................................101
Compass*.............................................................................................. 106
Power sunroof*..................................................................................... 107
Alcoguard*............................................................................................ 109
Starting the engine................................................................................ 113
Starting the engine – external battery................................................... 115
Gearboxes............................................................................................. 116
Eco DRIVe or Eco Start/Stop DRIVe*.................................................... 122
All-wheel drive – AWD*.........................................................................128
Foot brake............................................................................................. 129
Parking brake........................................................................................ 131
HomeLink
Ÿ *.......................................................................................... 134
ProCarManuals.com
