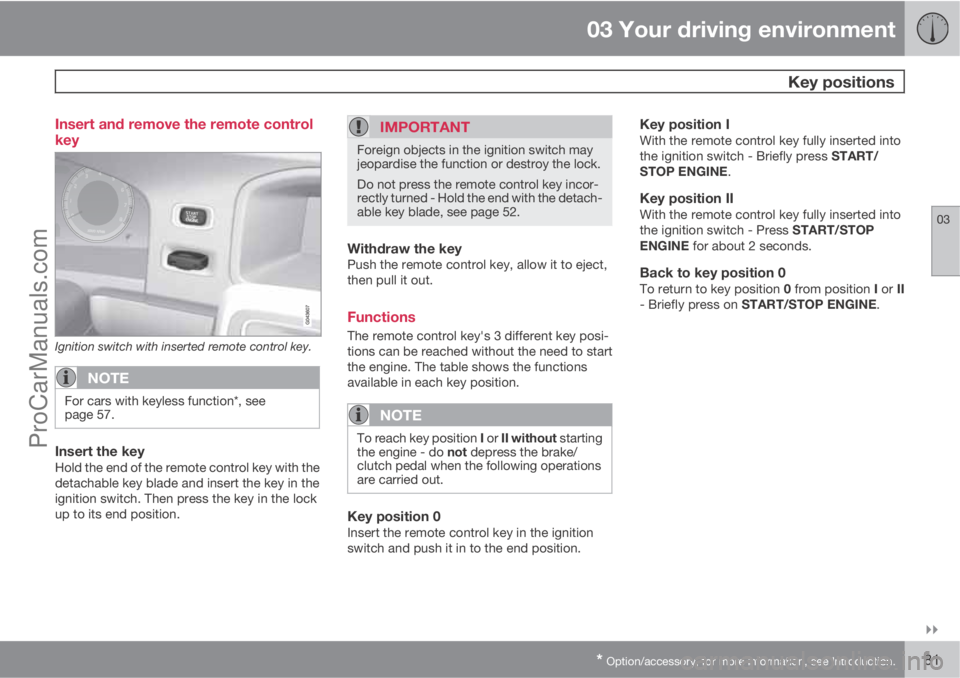

03 Your driving environment
Key positions
03
* Option/accessory, for more information, see Introduction.81 Insert and remove the remote control
key
Ignition switch with inserted remote control key.
NOTE
For cars with keyless function*, see
page 57.
Insert the keyHold the end of the remote control key with the
detachable key blade and insert the key in the
ignition switch. Then press the key in the lock
up to its end position.
IMPORTANT
Foreign objects in the ignition switch may
jeopardise the function or destroy the lock.
Do not press the remote control key incor-
rectly turned - Hold the end with the detach-
able key blade, see page 52.
Withdraw the keyPush the remote control key, allow it to eject,
then pull it out.
Functions
The remote control key's 3 different key posi-
tions can be reached without the need to start
the engine. The table shows the functions
available in each key position.
NOTE
To reach key position I or II without starting
the engine - do not depress the brake/
clutch pedal when the following operations
are carried out.
Key position 0Insert the remote control key in the ignition
switch and push it in to the end position.
Key position IWith the remote control key fully inserted into
the ignition switch - Briefly press START/
STOP ENGINE.
Key position IIWith the remote control key fully inserted into
the ignition switch - Press START/STOP
ENGINE for about 2 seconds.
Back to key position 0To return to key position 0 from position I or II
- Briefly press on START/STOP ENGINE.
ProCarManuals.com
Page 82 of 388
03 Your driving environment
Key positions
03
82* Option/accessory, for more information, see Introduction.
Posi-
tionFunction
0Odometer, clock and tempera-
ture gauge are illuminated. The
steering lock is deactivated. The
audio system can be used.
ISunroof*, power windows, 12 V
socket in the passenger compart-
ment, RTI*, phone*, ventilation
fan, ECC and windscreen wipers
can be used.
IIThe headlamps come on. Warn-
ing/indicator lamps illuminate for
5 seconds. All equipment oper-
ates apart from heated seats and
rear window defroster, which only
work when the engine is running.
For information on the audio system's func-
tions with remote control key removed, see
page 216.
Starting and stopping the engineFor information about starting/switching off the
engine, see page 113.
TowingFor important information about the remote
control key during towing, see page 284.
ProCarManuals.com
Page 83 of 388
03 Your driving environment
Seats
03
* Option/accessory, for more information, see Introduction.83 Front seats
Lumbar support adjustment, turn the
wheel1.
Forward/backward: lift the handle to adjust
the distance to the steering wheel and ped-
als. Check that the seat is locked after
changing position.
Raise/lower* front edge of seat cushion,
pump up/down.
Adjust backrest rake, turn the wheel.
Raise/lower the seat, pump up/down.
Control panel for power seat*.
WARNING
Adjust the position of the driver's seat
before setting off, never while driving. Make
sure that the seat is in locked position in
order to avoid personal injury in the event of
sudden braking or an accident.
Lowering the front seat backrest
The passenger seat backrest can be folded
forward to make room for long loads.
Move the seat as far back/down as possi-
ble.
Adjust the backrest to an upright position.
Lift the catches on the rear of the backrest
and fold it forward.
4. Push the seat forward so that the head
restraint "locks" in under the glovebox.
Raising takes place in reverse order.
WARNING
Grasp the backrest and make sure that it is
properly locked after being folded up in
order to avoid personal injury in the event of
sudden braking or an accident.
1Also applies to power seat.
ProCarManuals.com
Page 84 of 388
03 Your driving environment
Seats
03
84* Option/accessory, for more information, see Introduction.
Power seat*
Front edge of seat cushion up/down
Seat forward/backward and up/down
Backrest rake
The power front seats have overload protection
which is tripped if a seat is blocked by an
object. If this happens, go to key position I or
0 and wait a short time before adjusting the
seat again.
Only one movement (forward/back/up/down)
can be made at a time.
PreparationsThe seats can be adjusted for a certain time
after unlocking the door with the remote con-trol key without the key in the ignition switch.
Seat adjustment is normally made in key posi-
tion I and can always be made when the engine
is running.
Seat with memory function*
Store settingMemory button
Memory button
Memory button
Button for storing settings
1. Adjust the seat and the door mirrors.2. Hold the button depressed to store set-
tings while depressing one of the memory
buttons.
Using a stored settingHold one of the memory buttons depressed
until the seat and the door mirrors stop. If you
release the button then the movement of the
seat will stop.
Key memory* in remote control key2
The positions of the driver's seat and the door
mirrors3 are stored in the key memory when the
car is locked with the remote control key.
When the car is unlocked with the same remote
control key it was locked with and the driver's
2For key memory for keyless drive, see page 59.3Only if the car is equipped with power seat and retractable power door mirrors.
ProCarManuals.com
Page 85 of 388

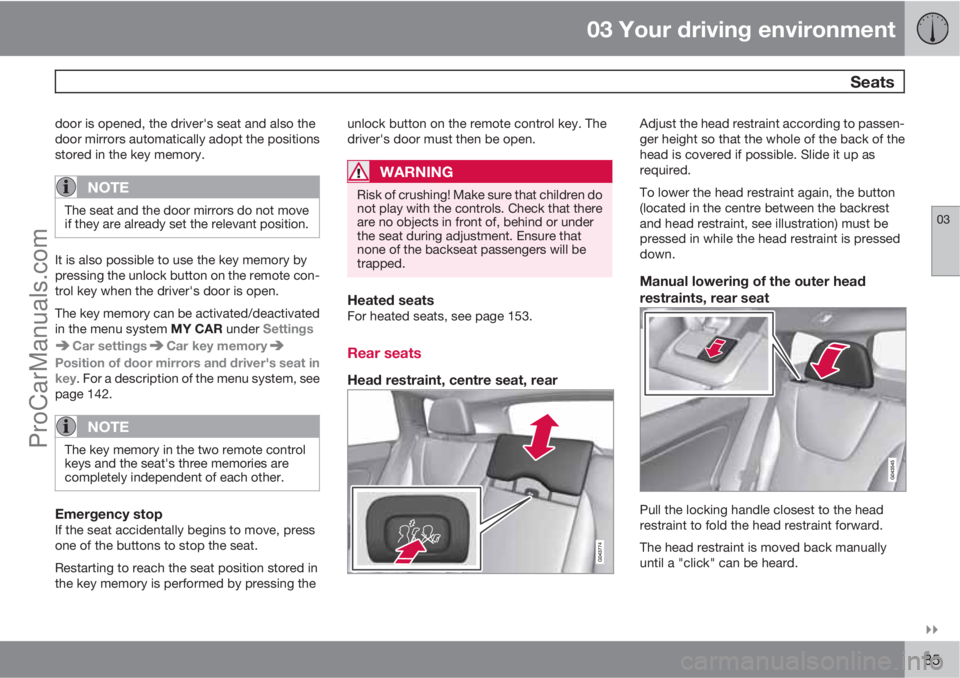

03 Your driving environment
Seats
03
85
door is opened, the driver's seat and also the
door mirrors automatically adopt the positions
stored in the key memory.
NOTE
The seat and the door mirrors do not move
if they are already set the relevant position.
It is also possible to use the key memory by
pressing the unlock button on the remote con-
trol key when the driver's door is open.
The key memory can be activated/deactivated
in the menu system MY CAR under Settings
Car settingsCar key memory
Position of door mirrors and driver's seat in
key. For a description of the menu system, see
page 142.
NOTE
The key memory in the two remote control
keys and the seat's three memories are
completely independent of each other.
Emergency stopIf the seat accidentally begins to move, press
one of the buttons to stop the seat.
Restarting to reach the seat position stored in
the key memory is performed by pressing theunlock button on the remote control key. The
driver's door must then be open.
WARNING
Risk of crushing! Make sure that children do
not play with the controls. Check that there
are no objects in front of, behind or under
the seat during adjustment. Ensure that
none of the backseat passengers will be
trapped.
Heated seatsFor heated seats, see page 153.
Rear seats
Head restraint, centre seat, rear
Adjust the head restraint according to passen-
ger height so that the whole of the back of the
head is covered if possible. Slide it up as
required.
To lower the head restraint again, the button
(located in the centre between the backrest
and head restraint, see illustration) must be
pressed in while the head restraint is pressed
down.
Manual lowering of the outer head
restraints, rear seat
Pull the locking handle closest to the head
restraint to fold the head restraint forward.
The head restraint is moved back manually
until a "click" can be heard.
ProCarManuals.com
Page 86 of 388
03 Your driving environment
Seats
03
86
Lowering the rear seat backrest
IMPORTANT
There must be no objects on the rear seat
when the backrest is to be folded down. The
seat belts must not be connected either.
Otherwise there is a risk of damaging the
rear seat upholstery.
The triple-section backrest can be folded in
different ways.
NOTE
The front seats may need to be pushed for-
wards, and/or the backrests adjusted
upwards, in order that the rear backrests
can be folded forward fully.
•The left-hand section can be folded sepa-
rately.
•The centre section can be folded sepa-
rately.
•The right-hand section can only be folded
together with the centre section.
•If the entire backrest is to be folded then
the different sections should be folded
separately.
If the centre backrest is being lowered -
fold and adjust the centre backrest's head
restraint downwards, see page 85.
The outer head restraints are lowered auto-
matically when the outer backrests are
lowered. Pull up the backrest's locking
handle
while folding the backrest for-
ward at the same time. A red indicator on
the lock catch
shows that the backrest
is no longer locked in place.
NOTE
When the backrests have been lowered the
head restraints must be moved forward
slightly so as not to make contact with the
seat cushion.
Raising takes place in reverse order.
NOTE
When the backrest has been raised, the red
indicator should no longer be showing. If it
is still showing then the backrest is not
locked in place.
WARNING
Check that the backrests and head
restraints in the rear seats are firmly locked
after raising.
ProCarManuals.com
Page 87 of 388
03 Your driving environment
Seats
03
* Option/accessory, for more information, see Introduction.87
Electrical lowering of the rear seat's
outer head restraints*
1. The remote control key must be in position
I or II.
2. Press the button to lower the rear outer
head restraints to improve rearward visi-
bility.
WARNING
Do not lower the outer head restraints if
there are any passengers using of the outer
seats.
Move the head restraint back manually until a
click is heard.
WARNING
The head restraints must be in locked posi-
tion after being raised.
ProCarManuals.com
Page 88 of 388
03 Your driving environment
Steering wheel
03
88* Option/accessory, for more information, see Introduction.
Adjusting
G021138
Adjusting the steering wheel.
Lever - releasing the steering wheel
Possible steering wheel positions
The steering wheel can be adjusted for both
height and depth:
1. Pull the lever towards you to release the
steering wheel.
2. Adjust the steering wheel to the position
that suits you.
3. Push back the lever to fix the steering
wheel in place. If the lever is stiff, press the
steering wheel lightly at the same time as
you push the lever back.
WARNING
Adjust and secure the steering wheel before
driving.
With speed related power steering* the level of
steering force can be adjusted, see
page 166.
Keypads*
Keypads in the steering wheel.
Cruise control, see page 167
Adaptive cruise control, see page 171
Audio and phone control, see page 220.
Horn
Horn.
Press the centre of the steering wheel to signal.
ProCarManuals.com
Page 89 of 388
03 Your driving environment
Lighting
03
* Option/accessory, for more information, see Introduction.89 Light switches
Overview, light switches.
Thumbwheel for adjusting display and
instrument lighting
Rear fog lamp
Light switches
Thumbwheel1 for headlamp levelling
Instrument lightingDifferent display and instrument lighting is
switched on depending on key position, see
page 81.
The display lighting is automatically subdued
in darkness - the sensitivity is set with the
thumbwheel.The intensity of the instrument lighting is
adjusted with the thumbwheel.
Headlamp levellingThe load in the car changes the vertical align-
ment of the headlamp beam, which could daz-
zle oncoming motorists. Avoid this by adjusting
the height of the beam. Lower the beam if the
car is heavily laden.
1. Allow the engine to run or have the remote
control key in position I.
2. Roll the thumbwheel up/down to raise/
lower beam alignment.
Cars with Xenon headlamps* have automatic
headlamp levelling and therefore do not have
the thumbwheel.
Main/dipped beam
Headlamp control and stalk switch.
Position for main beam flash
Position for main beam
1Not available for cars equipped with Xenon headlamps*.
ProCarManuals.com
Page 90 of 388

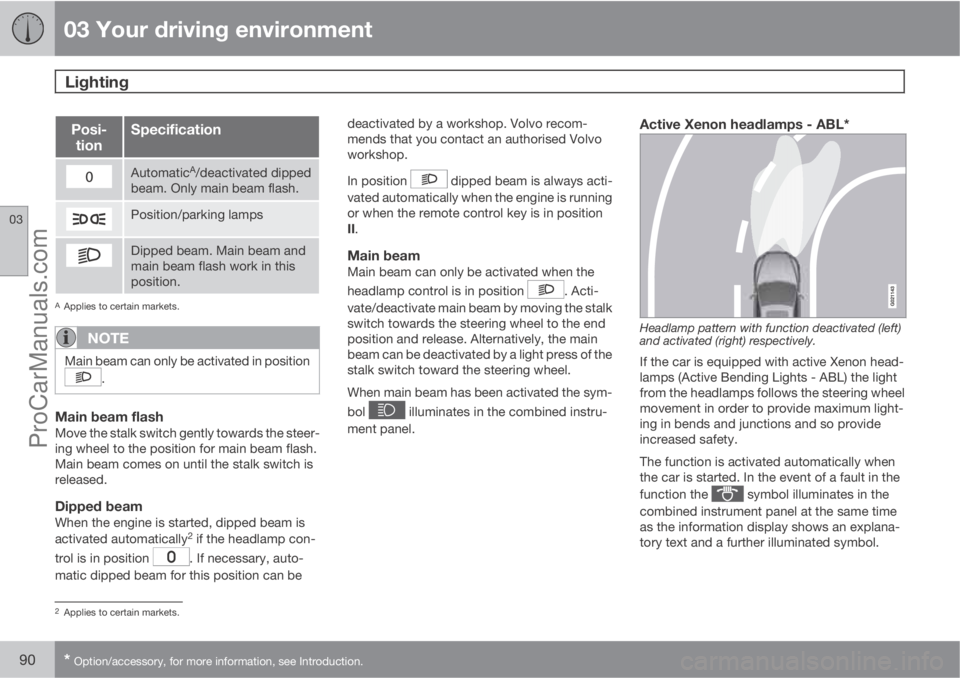

03 Your driving environment
Lighting
03
90* Option/accessory, for more information, see Introduction.
Posi-
tionSpecification
AutomaticA/deactivated dipped
beam. Only main beam flash.
Position/parking lamps
Dipped beam. Main beam and
main beam flash work in this
position.
AApplies to certain markets.
NOTE
Main beam can only be activated in position
.
Main beam flashMove the stalk switch gently towards the steer-
ing wheel to the position for main beam flash.
Main beam comes on until the stalk switch is
released.
Dipped beamWhen the engine is started, dipped beam is
activated automatically2 if the headlamp con-
trol is in position
. If necessary, auto-
matic dipped beam for this position can bedeactivated by a workshop. Volvo recom-
mends that you contact an authorised Volvo
workshop.
In position
dipped beam is always acti-
vated automatically when the engine is running
or when the remote control key is in position
II.
Main beamMain beam can only be activated when the
headlamp control is in position
. Acti-
vate/deactivate main beam by moving the stalk
switch towards the steering wheel to the end
position and release. Alternatively, the main
beam can be deactivated by a light press of the
stalk switch toward the steering wheel.
When main beam has been activated the sym-
bol
illuminates in the combined instru-
ment panel.
Active Xenon headlamps - ABL*
Headlamp pattern with function deactivated (left)
and activated (right) respectively.
If the car is equipped with active Xenon head-
lamps (Active Bending Lights - ABL) the light
from the headlamps follows the steering wheel
movement in order to provide maximum light-
ing in bends and junctions and so provide
increased safety.
The function is activated automatically when
the car is started. In the event of a fault in the
function the
symbol illuminates in the
combined instrument panel at the same time
as the information display shows an explana-
tory text and a further illuminated symbol.
2Applies to certain markets.
ProCarManuals.com
