03 Your driving environment
Volvo Sensus
03
* Option/accessory, for more information, see Introduction.79 General
Control panel in centre console
Navigation* - NAV, see separate owner's
manual (Road and Traffic Information Sys-
tem - RTI).
Infotainment (RADIO, MEDIA, TEL*), see
page 222.
Car settings - MY CAR, see page 144.
Park assist camera - CAM*, see
page 208.
Climate control, see page 152.
Volvo Sensus is the car's operating system, the
heart of your personal Volvo experience. Volvo
Sensus combines and presents many func-
tions in several of the car's systems on the
centre console TV screen. With Volvo Sensusthe car can be personalised by means of an
intuitive user interface. Settings can be made
in Car settings, Infotainment, Climate, etc.
With the centre console buttons and controls
or the steering wheel's right-hand keypad*
functions can be activated or deactivated and
many different settings can be made.
With a press on MY CAR all settings related to
the driving and control of the car are presented,
such as City Safety, Locks and alarm, setting
the clock, etc.
With a press on the respective function:
RADIO, MEDIA, TEL*, NAV* and CAM* other
sources, systems and functions can be acti-
vated, e.g. AM, FM1, CD, DVD*, TV*, Blue-
tooth*, navigation* and park assist camera*.
For more information on all functions/systems,
see the respective section in the owner's man-
ual.
ProCarManuals.com
Page 82 of 400
03 Your driving environment
Key positions
03
80* Option/accessory, for more information, see Introduction.
Insert and remove the remote control
key
Ignition switch with remote control key extracted/
inserted.
NOTE
For cars with the Keyless* function the key
does not need to be inserted into the ignition
switch but can be stored in e.g. a pocket.
For more information on Keyless functions -
see page 55.
Insert the key1. Hold the end of the remote control key with
the detachable key blade and insert the key
in the ignition switch.
2. Then press the key in the lock up to its end
position.
IMPORTANT
Foreign objects in the ignition switch may
jeopardise the function or destroy the lock.
Do not press the remote control key incor-
rectly turned - Hold the end with the detach-
able key blade, see page 50.
Withdraw the key
•Push in the remote control key, allow it to
eject, then pull it out from the ignition
switch.
Functions at different levels
To enable the use of a limited number of func-
tions with the engine switched off, the car's
electrical system can be set in 3 different levels
(key positions) - 0, I and II - with the remote
control key. This owner's manual describes
these levels throughout using the denomina-
tion "key positions".
The following table shows the functions avail-
able in each key position/level.
LevelFunctions
0Odometer, clock and tempera-
ture gauge are illuminated.
Electrically operated seats can be
adjusted.
The audio system can be used for
a limited time - see page 220.
ISunroof, power windows, 12 V
socket in the passenger compart-
ment, RTI, phone, ventilation fan
and windscreen wipers can be
used.
IIThe headlamps come on.
Warning/indicator lamps illumi-
nate for 5 seconds.
Several other systems are acti-
vated. However, electric heating
in seat cushions and the rear win-
dow can only be activated after
starting the engine.
This key position consumes a
lot of current from the battery
and should therefore be avoi-
ded!
ProCarManuals.com
Page 83 of 400
03 Your driving environment
Key positions
03
81
Selecting key position/level
Key position 0
•Unlock the car - at which point the car's
electrical system is at level 0.
Key position I
•With the remote control key fully inserted
into the ignition switch - Briefly press
START/STOP ENGINE.
NOTE
To reach level I or II without starting the
engine - do not depress the brake/clutch
pedal when these key positions are due to
be selected.
Key position II
•With the remote control key fully inserted
into the ignition switch - Give one long1
press on START/STOP ENGINE.
Back to key position 0
•To return to key position 0 from position II
and I - Briefly press on START/STOP
ENGINE.
Audio systemFor information on the audio system's func-
tions with remote control key removed - see
page 220.
Starting and stopping the engineFor information about starting/switching off the
engine - see page 112.
TowingFor important information about the remote
control key during towing - see page 289.
1Approx. 2 seconds.
ProCarManuals.com
Page 84 of 400
03 Your driving environment
Seats
03
82* Option/accessory, for more information, see Introduction.
Front seats
Lumbar support adjustment, turn the
wheel1.
Forward/backward: lift the handle to adjust
the distance to the steering wheel and ped-
als. Check that the seat is locked after
changing position.
Raise/lower* front edge of seat cushion,
pump up/down.
Adjust backrest rake, turn the wheel.
Raise/lower the seat, pump up/down.
Control panel for power seat*.
WARNING
Adjust the position of the driver's seat
before setting off, never while driving. Make
sure that the seat is in locked position in
order to avoid personal injury in the event of
sudden braking or an accident.
Lowering the front seat backrest
The passenger seat backrest can be folded
forward to make room for long loads.
Move the seat as far back/down as possi-
ble.
Adjust the backrest to an upright position.
Lift the catches on the rear of the backrest
and fold it forward.
4. Push the seat forward so that the head
restraint "locks" in under the glovebox.
Raising takes place in reverse order.
WARNING
Grasp the backrest and make sure that it is
properly locked after being folded up in
order to avoid personal injury in the event of
sudden braking or an accident.
1Also applies to power seat.
ProCarManuals.com
Page 85 of 400
03 Your driving environment
Seats
03
* Option/accessory, for more information, see Introduction.83
Power seat*
Front edge of seat cushion up/down
Seat forward/backward and up/down
Backrest rake
The power front seats have overload protection
which is tripped if a seat is blocked by an
object. If this happens, go to key position I or
0 and wait a short time before adjusting the
seat again.
Only one movement (forward/back/up/down)
can be made at a time.
PreparationsThe seats can be adjusted for a certain time
after unlocking the door with the remote con-trol key without the key in the ignition switch.
Seat adjustment is normally made in key posi-
tion I and can always be made when the engine
is running.
Seat with memory function*
Store settingMemory button
Memory button
Memory button
Button for storing settings
1. Adjust the seat and the door mirrors.2. Hold the button depressed to store set-
tings while depressing one of the memory
buttons.
Using a stored settingHold one of the memory buttons depressed
until the seat and the door mirrors stop. If you
release the button then the movement of the
seat will stop.
Key memory* in remote control key2
The positions of the driver's seat and the door
mirrors3 are stored in the key memory when the
car is locked with the remote control key.
When the car is unlocked with the same remote
control key it was locked with and the driver's
2For key memory for keyless drive, see page 57.3Only if the car is equipped with power seat with memory and retractable power door mirrors.
ProCarManuals.com
Page 86 of 400
03 Your driving environment
Seats
03
84
door is opened, the driver's seat and also the
door mirrors automatically adopt the positions
stored in the key memory.
NOTE
The seat and the door mirrors do not move
if they are already set the relevant position.
It is also possible to use the key memory by
pressing the unlock button on the remote con-
trol key when the driver's door is open.
The key memory can be activated/deactivated
in the menu system MY CAR under Settings
Car settingsCar key memory. For a
description of the menu system, see
page 144.
NOTE
In order that the key memory for the driver's
seat, and rearview and door mirrors, should
work with several remote control keys, the
key memory must be activated for each one
of the remote control keys.
Each one of the remote control keys must
be inserted into the ignition switch when the
key memory is activated for each respective
remote control key.
NOTE
The key memory in the remote control keys
and the seat's three memories are com-
pletely independent of each other.
Emergency stopIf the seat accidentally begins to move, press
one of the setting buttons for the seat or mem-
ory buttons in order to stop the seat.
Restarting to reach the seat position stored in
the key memory is performed by pressing the
unlock button on the remote control key. The
driver's door must then be open.
WARNING
Risk of crushing! Make sure that children do
not play with the controls. Check that there
are no objects in front of, behind or under
the seat during adjustment. Ensure that
none of the backseat passengers will be
trapped.
Heated seatsFor heated seats, see page 157.
Rear seats
Head restraint, centre seat, rear
Adjust the head restraint according to passen-
ger height so that the whole of the back of the
head is covered if possible. Slide it up as
required.
To lower the head restraint again, the button
(located in the centre between the backrest
and head restraint, see illustration) must be
pressed in while the head restraint is pressed
down.
ProCarManuals.com
Page 87 of 400
03 Your driving environment
Seats
03
85
Manual lowering of the outer head
restraints, rear seat
Pull the locking handle closest to the head
restraint to fold the head restraint forward.
The head restraint is moved back manually
until a "click" can be heard.
Lowering the rear seat backrest
IMPORTANT
There must be no objects on the rear seat
when the backrest is to be folded down. The
seat belts must not be connected either.
Otherwise there is a risk of damaging the
rear seat upholstery.
The triple-section backrest can be folded in
different ways.
NOTE
The front seats may need to be pushed for-
wards, and/or the backrests adjusted
upwards, in order that the rear backrests
can be folded forward fully.
•The left-hand section can be folded sepa-
rately.
•The centre section can be folded sepa-
rately.
•The right-hand section can only be folded
together with the centre section.
•If the entire backrest is to be folded then
the different sections should be folded
separately.
If the centre backrest is being lowered -
fold and adjust the centre backrest's head
restraint downwards, see page 84.
The outer head restraints are lowered auto-
matically when the outer backrests are
lowered. Pull up the backrest's locking
handle
while folding the backrest for-
ward at the same time. A red indicator on
the lock catch
shows that the backrest
is no longer locked in place.
NOTE
When the backrests have been lowered the
head restraints must be moved forward
slightly so as not to make contact with the
seat cushion.
Raising takes place in reverse order.
ProCarManuals.com
Page 88 of 400

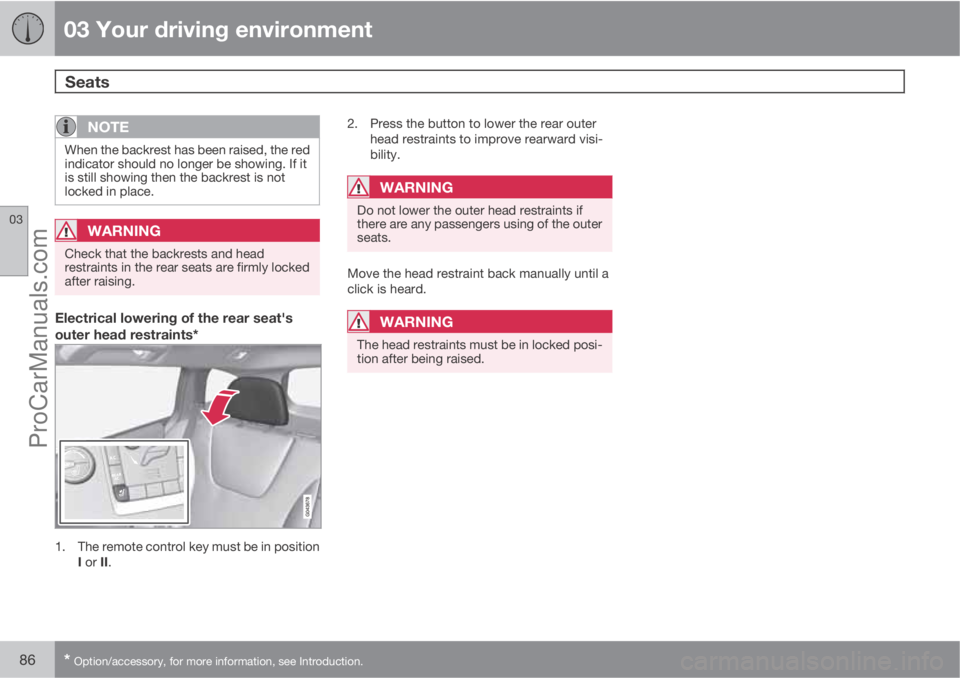

03 Your driving environment
Seats
03
86* Option/accessory, for more information, see Introduction.
NOTE
When the backrest has been raised, the red
indicator should no longer be showing. If it
is still showing then the backrest is not
locked in place.
WARNING
Check that the backrests and head
restraints in the rear seats are firmly locked
after raising.
Electrical lowering of the rear seat's
outer head restraints*
1. The remote control key must be in position
I or II.2. Press the button to lower the rear outer
head restraints to improve rearward visi-
bility.
WARNING
Do not lower the outer head restraints if
there are any passengers using of the outer
seats.
Move the head restraint back manually until a
click is heard.
WARNING
The head restraints must be in locked posi-
tion after being raised.
ProCarManuals.com
Page 89 of 400

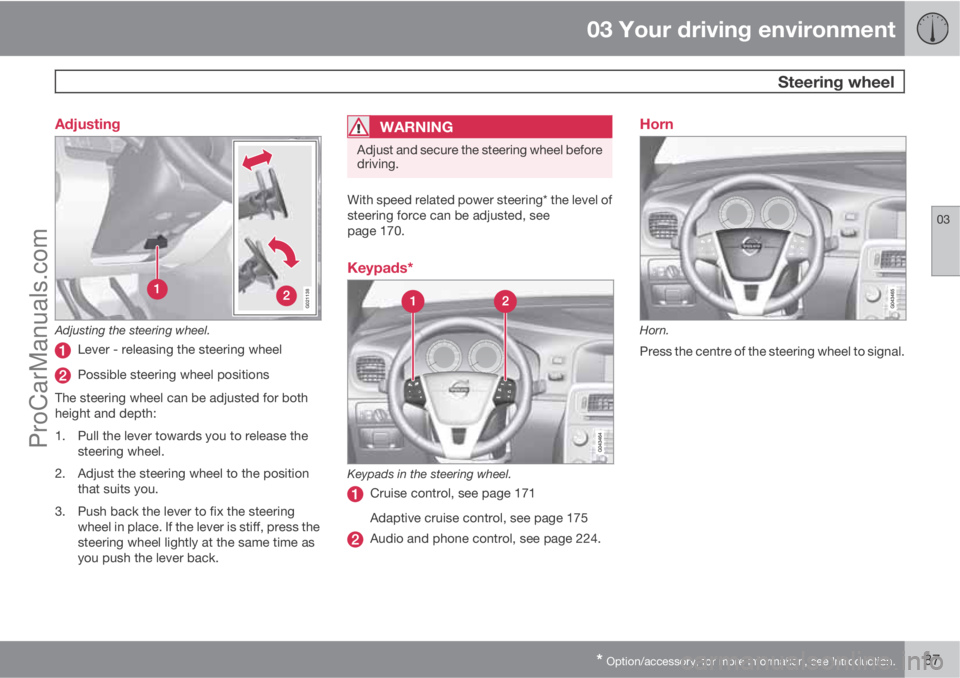

03 Your driving environment
Steering wheel
03
* Option/accessory, for more information, see Introduction.87 Adjusting
G021138
Adjusting the steering wheel.
Lever - releasing the steering wheel
Possible steering wheel positions
The steering wheel can be adjusted for both
height and depth:
1. Pull the lever towards you to release the
steering wheel.
2. Adjust the steering wheel to the position
that suits you.
3. Push back the lever to fix the steering
wheel in place. If the lever is stiff, press the
steering wheel lightly at the same time as
you push the lever back.
WARNING
Adjust and secure the steering wheel before
driving.
With speed related power steering* the level of
steering force can be adjusted, see
page 170.
Keypads*
Keypads in the steering wheel.
Cruise control, see page 171
Adaptive cruise control, see page 175
Audio and phone control, see page 224.
Horn
Horn.
Press the centre of the steering wheel to signal.
ProCarManuals.com
Page 90 of 400

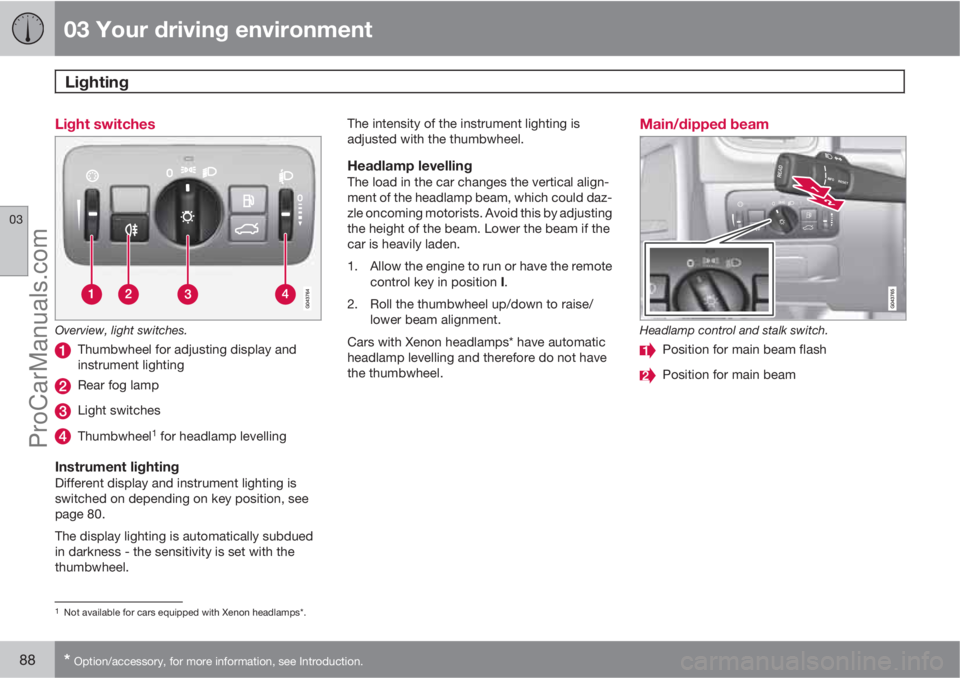

03 Your driving environment
Lighting
03
88* Option/accessory, for more information, see Introduction.
Light switches
Overview, light switches.
Thumbwheel for adjusting display and
instrument lighting
Rear fog lamp
Light switches
Thumbwheel1 for headlamp levelling
Instrument lightingDifferent display and instrument lighting is
switched on depending on key position, see
page 80.
The display lighting is automatically subdued
in darkness - the sensitivity is set with the
thumbwheel.The intensity of the instrument lighting is
adjusted with the thumbwheel.
Headlamp levellingThe load in the car changes the vertical align-
ment of the headlamp beam, which could daz-
zle oncoming motorists. Avoid this by adjusting
the height of the beam. Lower the beam if the
car is heavily laden.
1. Allow the engine to run or have the remote
control key in position I.
2. Roll the thumbwheel up/down to raise/
lower beam alignment.
Cars with Xenon headlamps* have automatic
headlamp levelling and therefore do not have
the thumbwheel.
Main/dipped beam
Headlamp control and stalk switch.
Position for main beam flash
Position for main beam
1Not available for cars equipped with Xenon headlamps*.
ProCarManuals.com
