YOUR DRIVING ENVIRONMENT
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
70

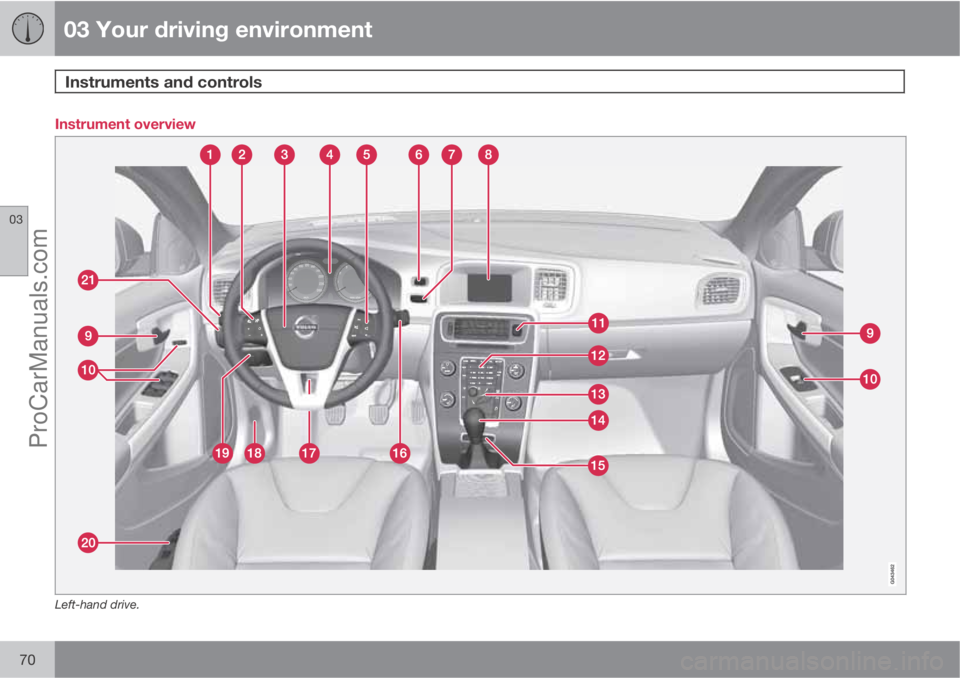

Instrument overview
Left-hand drive.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.71
FunctionPage
Menus and messages,
direction indicators,
main/dipped beam, trip
computer88,
91, 142,
166
Cruise control171, 175
Horn, airbags20, 87
Combined instrument
panel73, 77
Menu, audio and phone
control144,
224, 251,
263
START/STOP ENGINE
key112
Ignition switch80
Display for infotainment
and menus144,
222, 263
Door handle–
Control panel60, 64,
100, 102
Hazard warning flashers91
FunctionPage
Control for infotainment
and menu control144,
223, 263
Control panel for climate
control155
Gear selector117
Controls for active chas-
sis (Four-C)*170
Wipers and washing97, 98
Steering wheel adjust-
ment87
Bonnet opener312
Parking brake133
Seat adjustment*83
Headlamp control,
opener for fuel filler flap
and tailgate61, 88,
273
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
72

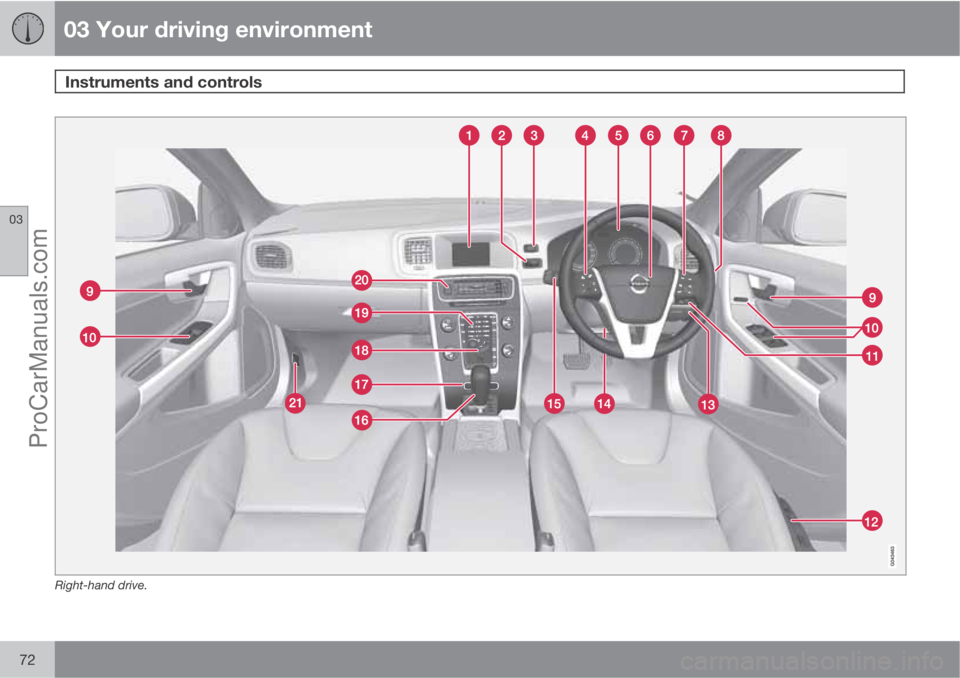

Right-hand drive.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.73

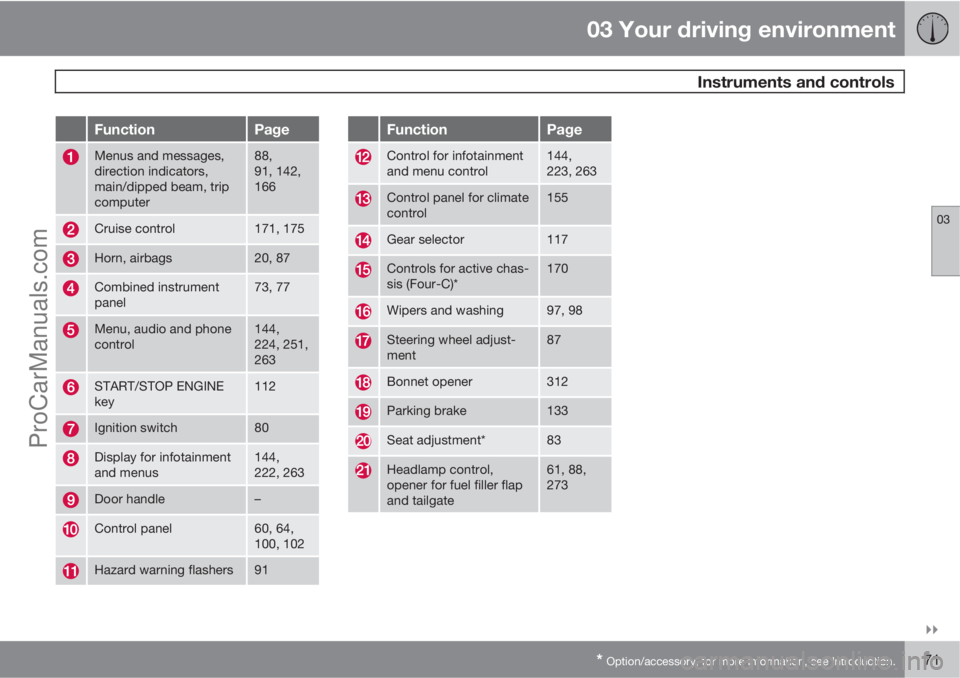

FunctionPage
Display for infotainment
and menus144,
222, 263
Ignition switch80
START/STOP ENGINE
key112
Cruise control171, 175
Combined instrument
panel73, 77
Horn, airbags20, 87
Menu, audio and phone
control144,
224, 251,
263
Wipers and washing97, 98
Door handle–
Control panel60, 64,
100, 102
Headlamp control,
opener for fuel filler flap
and tailgate61, 88,
273
Seat adjustment*83
FunctionPage
Parking brake133
Steering wheel adjust-
ment87
Menus and messages,
direction indicators,
main/dipped beam, trip
computer88,
91, 142,
166
Gear selector117
Controls for active chas-
sis (Four-C)*170
Control panel for climate
control155
Control for infotainment
and menu control144,
223, 263
Hazard warning flashers91
Bonnet opener312

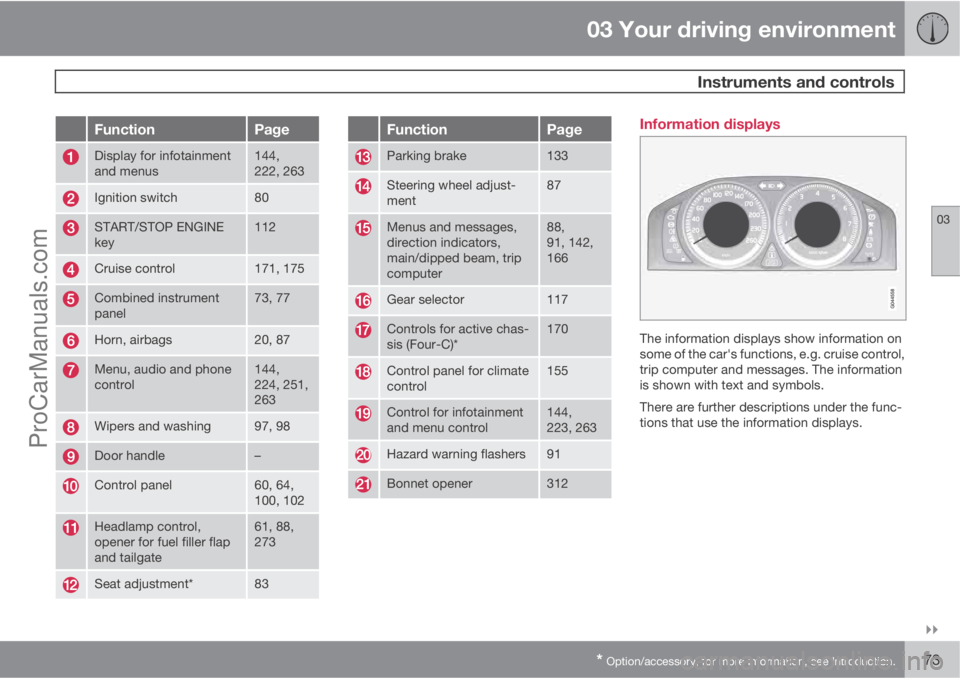

Information displays
The information displays show information on
some of the car's functions, e.g. cruise control,
trip computer and messages. The information
is shown with text and symbols.
There are further descriptions under the func-
tions that use the information displays.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
74* Option/accessory, for more information, see Introduction.

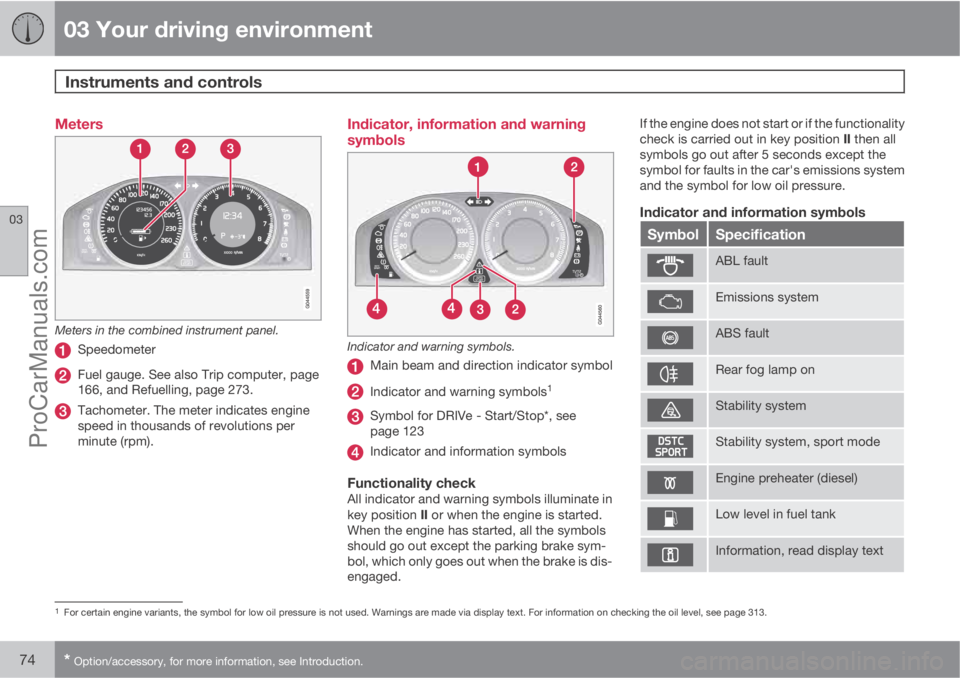

Meters
Meters in the combined instrument panel.
Speedometer
Fuel gauge. See also Trip computer, page
166, and Refuelling, page 273.
Tachometer. The meter indicates engine
speed in thousands of revolutions per
minute (rpm).
Indicator, information and warning
symbols
Indicator and warning symbols.
Main beam and direction indicator symbol
Indicator and warning symbols1
Symbol for DRIVe - Start/Stop*, see
page 123
Indicator and information symbols
Functionality checkAll indicator and warning symbols illuminate in
key position II or when the engine is started.
When the engine has started, all the symbols
should go out except the parking brake sym-
bol, which only goes out when the brake is dis-
engaged.If the engine does not start or if the functionality
check is carried out in key position II then all
symbols go out after 5 seconds except the
symbol for faults in the car's emissions system
and the symbol for low oil pressure.
Indicator and information symbols
SymbolSpecification
ABL fault
Emissions system
ABS fault
Rear fog lamp on
Stability system
Stability system, sport mode
Engine preheater (diesel)
Low level in fuel tank
Information, read display text
1For certain engine variants, the symbol for low oil pressure is not used. Warnings are made via display text. For information on checking the oil level, see page 313.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
* Option/accessory, for more information, see Introduction.75

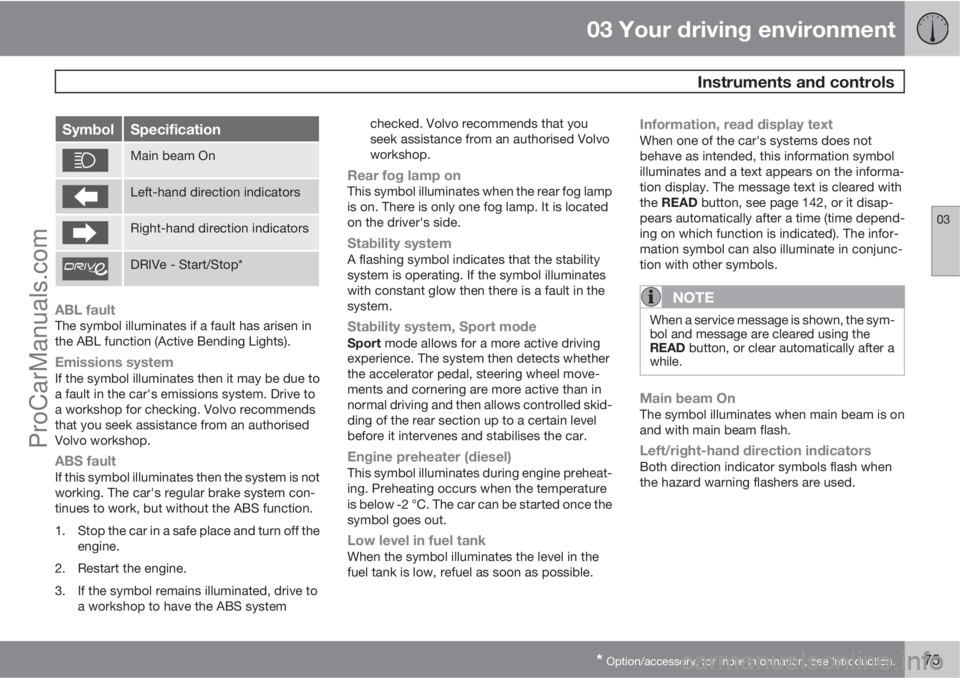

SymbolSpecification
Main beam On
Left-hand direction indicators
Right-hand direction indicators
DRIVe - Start/Stop*
ABL faultThe symbol illuminates if a fault has arisen in
the ABL function (Active Bending Lights).
Emissions systemIf the symbol illuminates then it may be due to
a fault in the car's emissions system. Drive to
a workshop for checking. Volvo recommends
that you seek assistance from an authorised
Volvo workshop.
ABS faultIf this symbol illuminates then the system is not
working. The car's regular brake system con-
tinues to work, but without the ABS function.
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.
3. If the symbol remains illuminated, drive to
a workshop to have the ABS systemchecked. Volvo recommends that you
seek assistance from an authorised Volvo
workshop.
Rear fog lamp onThis symbol illuminates when the rear fog lamp
is on. There is only one fog lamp. It is located
on the driver's side.
Stability systemA flashing symbol indicates that the stability
system is operating. If the symbol illuminates
with constant glow then there is a fault in the
system.
Stability system, Sport modeSport mode allows for a more active driving
experience. The system then detects whether
the accelerator pedal, steering wheel move-
ments and cornering are more active than in
normal driving and then allows controlled skid-
ding of the rear section up to a certain level
before it intervenes and stabilises the car.
Engine preheater (diesel)This symbol illuminates during engine preheat-
ing. Preheating occurs when the temperature
is below 2 °C. The car can be started once the
symbol goes out.
Low level in fuel tankWhen the symbol illuminates the level in the
fuel tank is low, refuel as soon as possible.
Information, read display textWhen one of the car's systems does not
behave as intended, this information symbol
illuminates and a text appears on the informa-
tion display. The message text is cleared with
the READ button, see page 142, or it disap-
pears automatically after a time (time depend-
ing on which function is indicated). The infor-
mation symbol can also illuminate in conjunc-
tion with other symbols.
NOTE
When a service message is shown, the sym-
bol and message are cleared using the
READ button, or clear automatically after a
while.
Main beam OnThe symbol illuminates when main beam is on
and with main beam flash.
Left/right-hand direction indicatorsBoth direction indicator symbols flash when
the hazard warning flashers are used.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
76

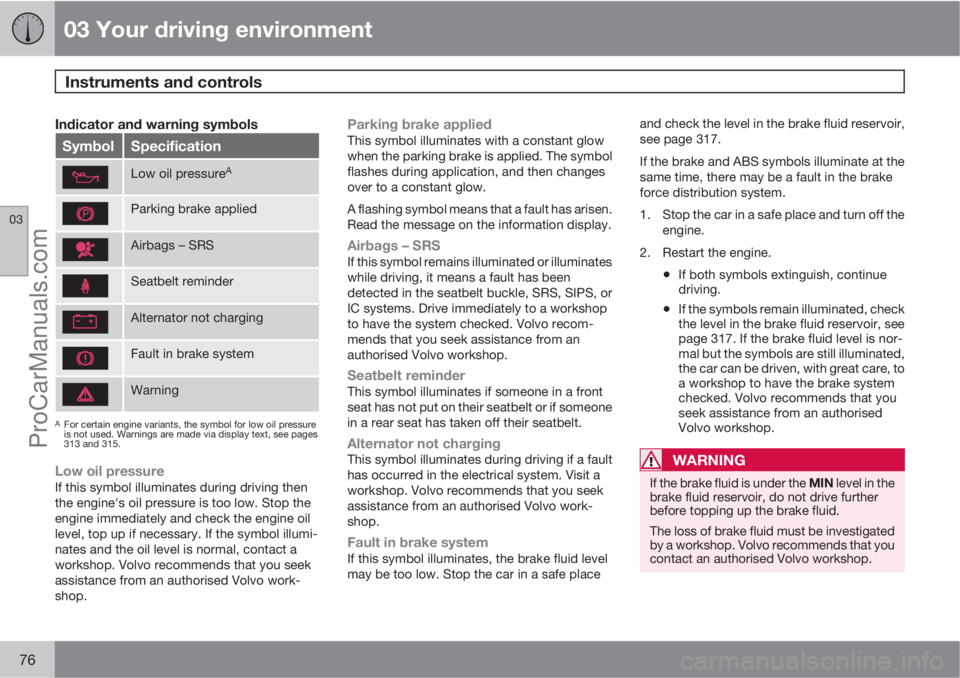

Indicator and warning symbols
SymbolSpecification
Low oil pressureA
Parking brake applied
Airbags – SRS
Seatbelt reminder
Alternator not charging
Fault in brake system
Warning
AFor certain engine variants, the symbol for low oil pressure
is not used. Warnings are made via display text, see pages
313 and 315.
Low oil pressureIf this symbol illuminates during driving then
the engine's oil pressure is too low. Stop the
engine immediately and check the engine oil
level, top up if necessary. If the symbol illumi-
nates and the oil level is normal, contact a
workshop. Volvo recommends that you seek
assistance from an authorised Volvo work-
shop.
Parking brake appliedThis symbol illuminates with a constant glow
when the parking brake is applied. The symbol
flashes during application, and then changes
over to a constant glow.
A flashing symbol means that a fault has arisen.
Read the message on the information display.
Airbags – SRSIf this symbol remains illuminated or illuminates
while driving, it means a fault has been
detected in the seatbelt buckle, SRS, SIPS, or
IC systems. Drive immediately to a workshop
to have the system checked. Volvo recom-
mends that you seek assistance from an
authorised Volvo workshop.
Seatbelt reminderThis symbol illuminates if someone in a front
seat has not put on their seatbelt or if someone
in a rear seat has taken off their seatbelt.
Alternator not chargingThis symbol illuminates during driving if a fault
has occurred in the electrical system. Visit a
workshop. Volvo recommends that you seek
assistance from an authorised Volvo work-
shop.
Fault in brake systemIf this symbol illuminates, the brake fluid level
may be too low. Stop the car in a safe placeand check the level in the brake fluid reservoir,
see page 317.
If the brake and ABS symbols illuminate at the
same time, there may be a fault in the brake
force distribution system.
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.
•If both symbols extinguish, continue
driving.
•If the symbols remain illuminated, check
the level in the brake fluid reservoir, see
page 317. If the brake fluid level is nor-
mal but the symbols are still illuminated,
the car can be driven, with great care, to
a workshop to have the brake system
checked. Volvo recommends that you
seek assistance from an authorised
Volvo workshop.
WARNING
If the brake fluid is under the MIN level in the
brake fluid reservoir, do not drive further
before topping up the brake fluid.
The loss of brake fluid must be investigated
by a workshop. Volvo recommends that you
contact an authorised Volvo workshop.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
* Option/accessory, for more information, see Introduction.77
WARNING
If the brake and ABS symbols are illumi-
nated at the same time, there is a risk that
the rear end will skid during heavy braking.
WarningThe red warning symbol illuminates when a
fault has been indicated which could affect the
safety and/or driveability of the car. An explan-
atory text is shown on the information display
at the same time. The symbol remains visible
until the fault has been rectified but the text
message can be cleared with the READ but-
ton, see page 142. The warning symbol can
also illuminate in conjunction with other sym-
bols.
Action:
1. Stop in a safe place. Do not drive the car
further.
2. Read the information on the information
display. Implement the action in accord-
ance with the message in the display. Clear
the message using the READ button.
Reminder – doors not closed
If one of the doors, the bonnet2 or tailgate is not
closed properly then the information or warn-
ing symbol illuminates together with an explan-atory text message in the combined instrument
panel. Stop the car in a safe place as soon as
possible and close the door, bonnet or boot lid,
whichever is open.
If the car is driven at a speed lower than
approx. 7 km/h then the information
symbol illuminates.
If the car is driven at a speed higher
than approx. 7 km/h then the warning
symbol illuminates.

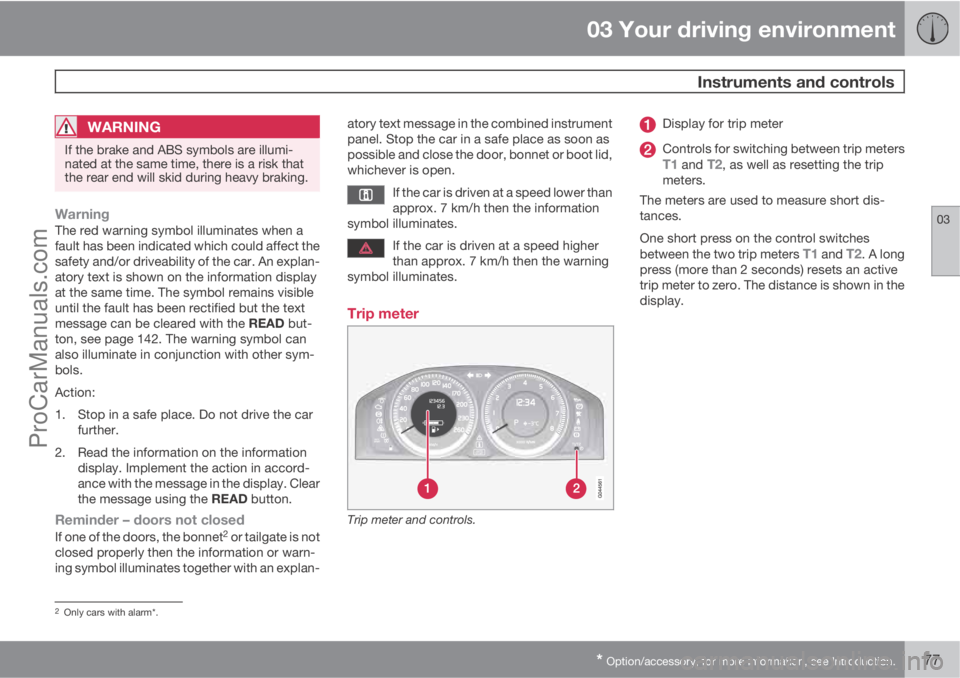

Trip meter
Trip meter and controls.
Display for trip meter
Controls for switching between trip metersT1 and T2, as well as resetting the trip
meters.
The meters are used to measure short dis-
tances.
One short press on the control switches
between the two trip meters
T1 and T2. A long
press (more than 2 seconds) resets an active
trip meter to zero. The distance is shown in the
display.
2Only cars with alarm*.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03
78

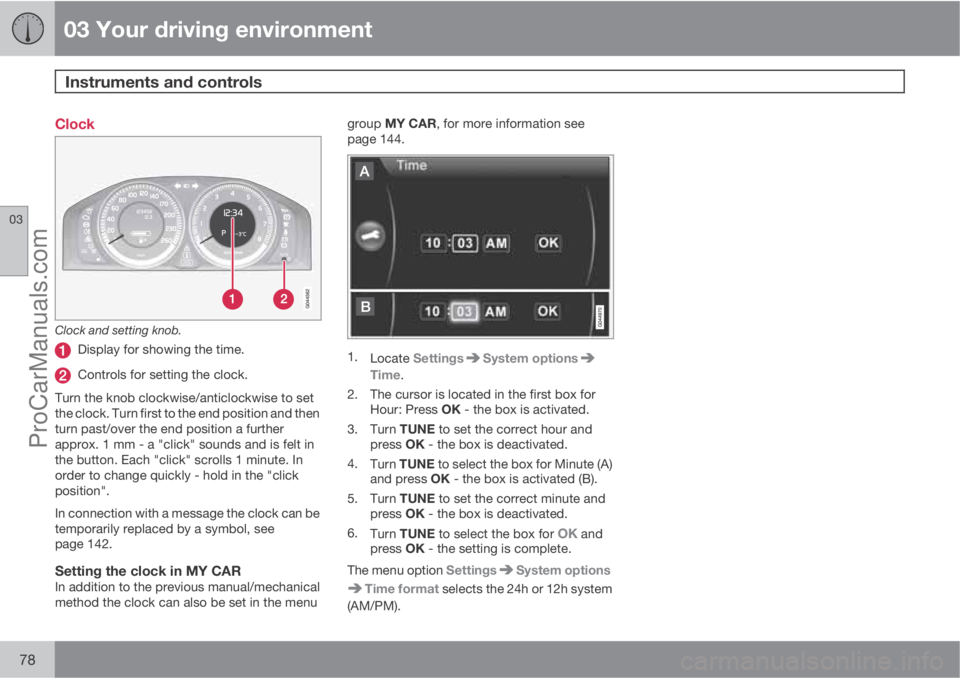

Clock
Clock and setting knob.
Display for showing the time.
Controls for setting the clock.
Turn the knob clockwise/anticlockwise to set
the clock. Turn first to the end position and then
turn past/over the end position a further
approx. 1 mm - a "click" sounds and is felt in
the button. Each "click" scrolls 1 minute. In
order to change quickly - hold in the "click
position".
In connection with a message the clock can be
temporarily replaced by a symbol, see
page 142.
Setting the clock in MY CARIn addition to the previous manual/mechanical
method the clock can also be set in the menugroup MY CAR, for more information see
page 144.
1.
Locate SettingsSystem options
Time.
2. The cursor is located in the first box for
Hour: Press OK - the box is activated.
3.
Turn TUNE to set the correct hour and
press OK - the box is deactivated.
4.
Turn TUNE to select the box for Minute (A)
and press OK - the box is activated (B).
5.
Turn TUNE to set the correct minute and
press OK - the box is deactivated.
6.
Turn TUNE to select the box for
OK and
press OK - the setting is complete.
The menu option Settings
System options
Time format selects the 24h or 12h system
(AM/PM).
ProCarManuals.com
