VOLVO V60 2013 Owners Manual
Manufacturer: VOLVO, Model Year: 2013, Model line: V60, Model: VOLVO V60 2013Pages: 422, PDF Size: 9.59 MB
Page 201 of 422
COMFORT AND DRIVING PLEASURE
ProCarManuals.com

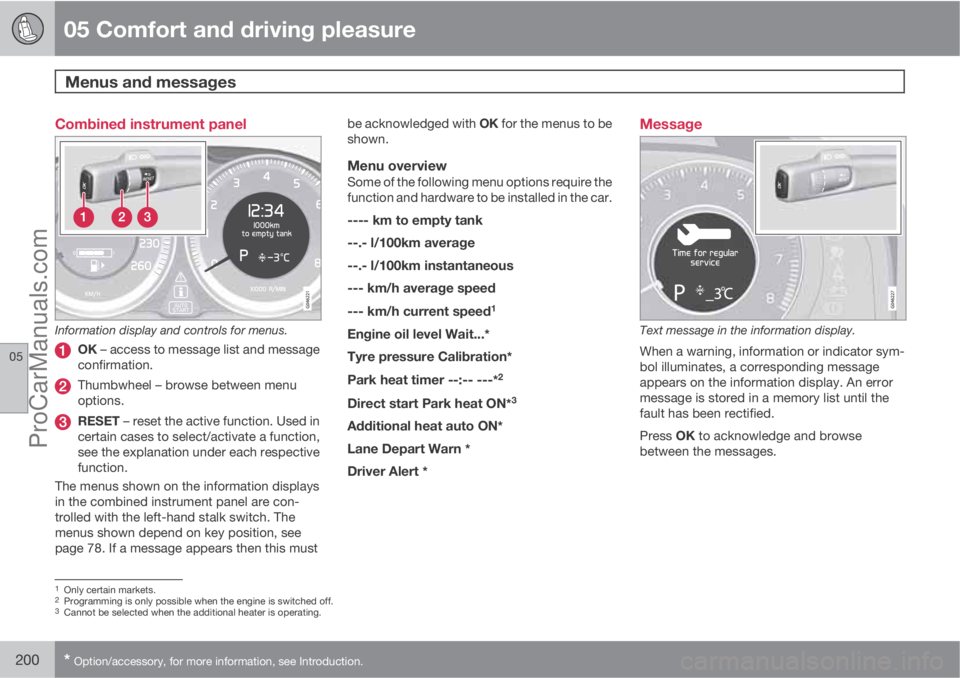

Page 202 of 422
05 Comfort and driving pleasure
Menus and messages
05
200* Option/accessory, for more information, see Introduction.
Combined instrument panel
Information display and controls for menus.
OK – access to message list and message
confirmation.
Thumbwheel – browse between menu
options.
RESET – reset the active function. Used in
certain cases to select/activate a function,
see the explanation under each respective
function.
The menus shown on the information displays
in the combined instrument panel are con-
trolled with the left-hand stalk switch. The
menus shown depend on key position, see
page 78. If a message appears then this mustbe acknowledged with OK for the menus to be
shown.
Menu overviewSome of the following menu options require the
function and hardware to be installed in the car.
---- km to empty tank
--.- l/100km average
--.- l/100km instantaneous
--- km/h average speed
--- km/h current speed
1
Engine oil level Wait...*
Tyre pressure Calibration*
Park heat timer --:-- ---*2
Direct start Park heat ON*3
Additional heat auto ON*
Lane Depart Warn *
Driver Alert *
Message
Text message in the information display.
When a warning, information or indicator sym-
bol illuminates, a corresponding message
appears on the information display. An error
message is stored in a memory list until the
fault has been rectified.
Press OK to acknowledge and browse
between the messages.
1Only certain markets.2Programming is only possible when the engine is switched off.3Cannot be selected when the additional heater is operating.
ProCarManuals.com

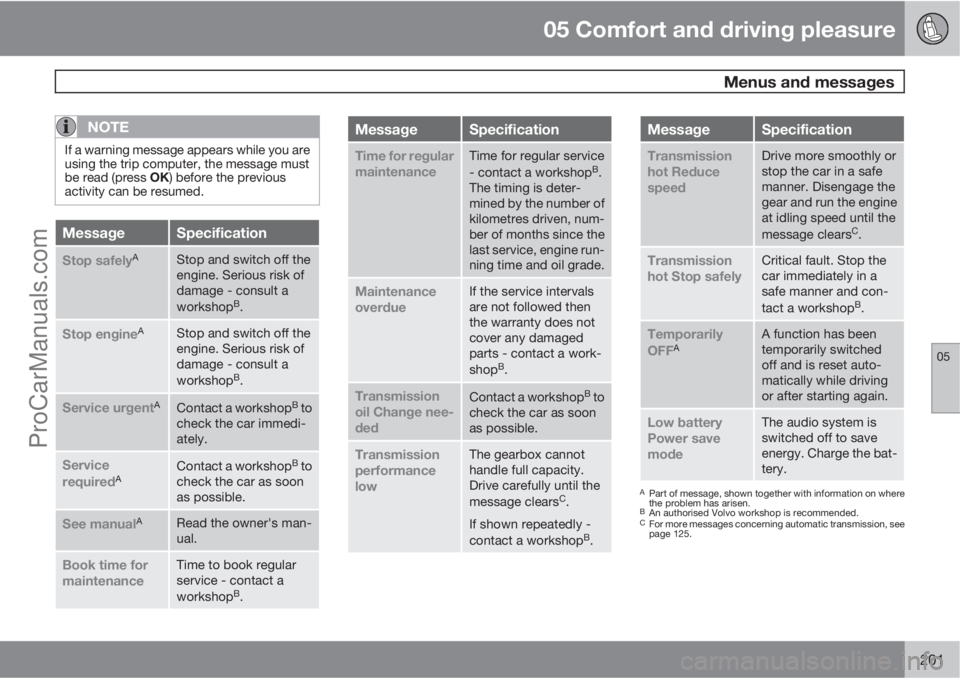

Page 203 of 422
05 Comfort and driving pleasure
Menus and messages
05
201
NOTE
If a warning message appears while you are
using the trip computer, the message must
be read (press OK) before the previous
activity can be resumed.
MessageSpecification
Stop safelyAStop and switch off the
engine. Serious risk of
damage - consult a
workshop
B.
Stop engineAStop and switch off the
engine. Serious risk of
damage - consult a
workshop
B.
Service urgentAContact a workshopB to
check the car immedi-
ately.
Service
requiredAContact a workshopB to
check the car as soon
as possible.
See manualARead the owner's man-
ual.
Book time for
maintenanceTime to book regular
service - contact a
workshop
B.
MessageSpecification
Time for regular
maintenanceTime for regular service
- contact a workshopB.
The timing is deter-
mined by the number of
kilometres driven, num-
ber of months since the
last service, engine run-
ning time and oil grade.
Maintenance
overdueIf the service intervals
are not followed then
the warranty does not
cover any damaged
parts - contact a work-
shop
B.
Transmission
oil Change nee-
dedContact a workshopB to
check the car as soon
as possible.
Transmission
performance
lowThe gearbox cannot
handle full capacity.
Drive carefully until the
message clears
C.
If shown repeatedly -
contact a workshop
B.
MessageSpecification
Transmission
hot Reduce
speedDrive more smoothly or
stop the car in a safe
manner. Disengage the
gear and run the engine
at idling speed until the
message clears
C.
Transmission
hot Stop safelyCritical fault. Stop the
car immediately in a
safe manner and con-
tact a workshop
B.
Temporarily
OFFAA function has been
temporarily switched
off and is reset auto-
matically while driving
or after starting again.
Low battery
Power save
modeThe audio system is
switched off to save
energy. Charge the bat-
tery.
APart of message, shown together with information on where
the problem has arisen.
BAn authorised Volvo workshop is recommended.CFor more messages concerning automatic transmission, see
page 125.
ProCarManuals.com

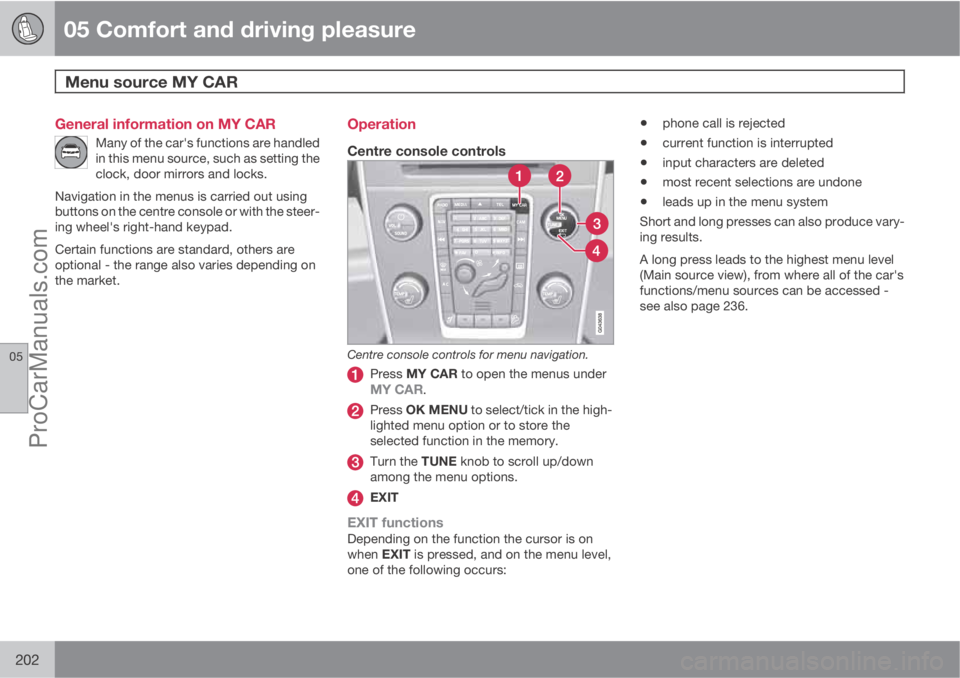

Page 204 of 422
05 Comfort and driving pleasure
Menu source MY CAR
05
202
General information on MY CAR
Many of the car's functions are handled
in this menu source, such as setting the
clock, door mirrors and locks.
Navigation in the menus is carried out using
buttons on the centre console or with the steer-
ing wheel's right-hand keypad.
Certain functions are standard, others are
optional - the range also varies depending on
the market.
Operation
Centre console controls
Centre console controls for menu navigation.
Press MY CAR to open the menus underMY CAR.
Press OK MENU to select/tick in the high-
lighted menu option or to store the
selected function in the memory.
Turn the TUNE knob to scroll up/down
among the menu options.
EXIT
EXIT functionsDepending on the function the cursor is on
when EXIT is pressed, and on the menu level,
one of the following occurs:
•phone call is rejected
•current function is interrupted
•input characters are deleted
•most recent selections are undone
•leads up in the menu system
Short and long presses can also produce vary-
ing results.
A long press leads to the highest menu level
(Main source view), from where all of the car's
functions/menu sources can be accessed -
see also page 236.
ProCarManuals.com

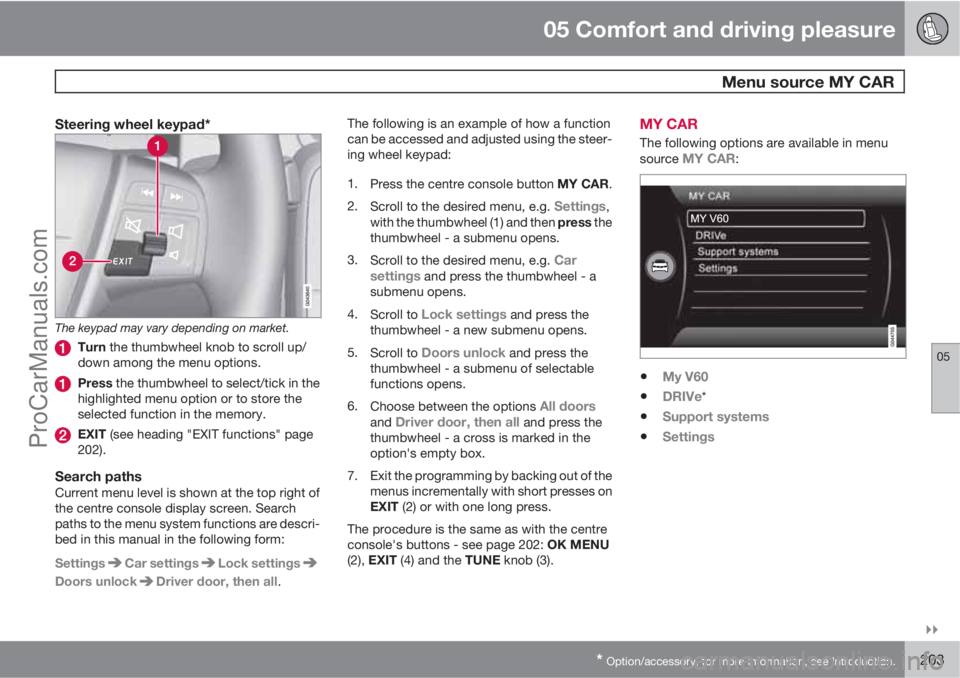

Page 205 of 422
05 Comfort and driving pleasure
Menu source MY CAR
05
* Option/accessory, for more information, see Introduction.203
Steering wheel keypad*
The keypad may vary depending on market.
Turn the thumbwheel knob to scroll up/
down among the menu options.
Press the thumbwheel to select/tick in the
highlighted menu option or to store the
selected function in the memory.
EXIT (see heading "EXIT functions" page
202).
Search pathsCurrent menu level is shown at the top right of
the centre console display screen. Search
paths to the menu system functions are descri-
bed in this manual in the following form:
Settings
Car settingsLock settings
Doors unlockDriver door, then all.The following is an example of how a function
can be accessed and adjusted using the steer-
ing wheel keypad:
1.
Press the centre console button MY CAR.
2.
Scroll to the desired menu, e.g.
Settings,
with the thumbwheel (1) and then press the
thumbwheel - a submenu opens.
3.
Scroll to the desired menu, e.g.
Car
settings and press the thumbwheel - a
submenu opens.
4.
Scroll to
Lock settings and press the
thumbwheel - a new submenu opens.
5.
Scroll to
Doors unlock and press the
thumbwheel - a submenu of selectable
functions opens.
6.
Choose between the options
All doorsand Driver door, then all and press the
thumbwheel - a cross is marked in the
option's empty box.
7. Exit the programming by backing out of the
menus incrementally with short presses on
EXIT (2) or with one long press.
The procedure is the same as with the centre
console's buttons - see page 202: OK MENU
(2), EXIT (4) and the TUNE knob (3).
MY CAR
The following options are available in menu
source MY CAR:
•My V60
•DRIVe*
•Support systems
•Settings
ProCarManuals.com

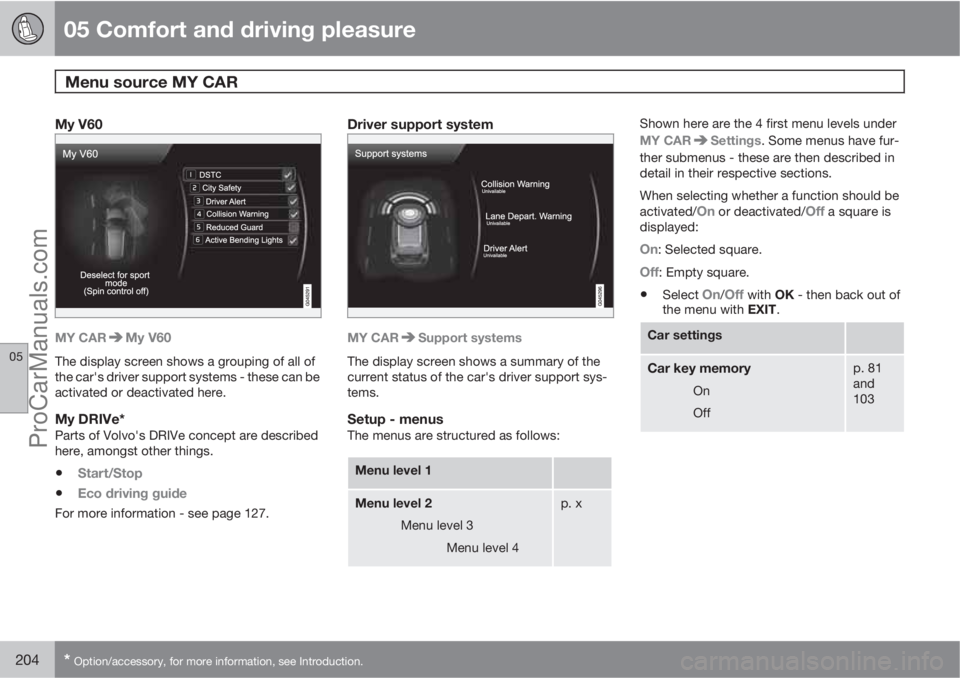

Page 206 of 422
05 Comfort and driving pleasure
Menu source MY CAR
05
204* Option/accessory, for more information, see Introduction.
My V60
MY CARMy V60
The display screen shows a grouping of all of
the car's driver support systems - these can be
activated or deactivated here.
My DRIVe*Parts of Volvo's DRIVe concept are described
here, amongst other things.
•Start/Stop
•Eco driving guide
For more information - see page 127.
Driver support system
MY CARSupport systems
The display screen shows a summary of the
current status of the car's driver support sys-
tems.
Setup - menusThe menus are structured as follows:
Menu level 1
Menu level 2
Menu level 3
Menu level 4p. x
Shown here are the 4 first menu levels under
MY CAR
Settings. Some menus have fur-
ther submenus - these are then described in
detail in their respective sections.
When selecting whether a function should be
activated/
On or deactivated/Off a square is
displayed:
On: Selected square.
Off: Empty square.
•Select On/Off with OK - then back out of
the menu with EXIT.
Car settings
Car key memory
On
Off
p. 81
and
103
ProCarManuals.com

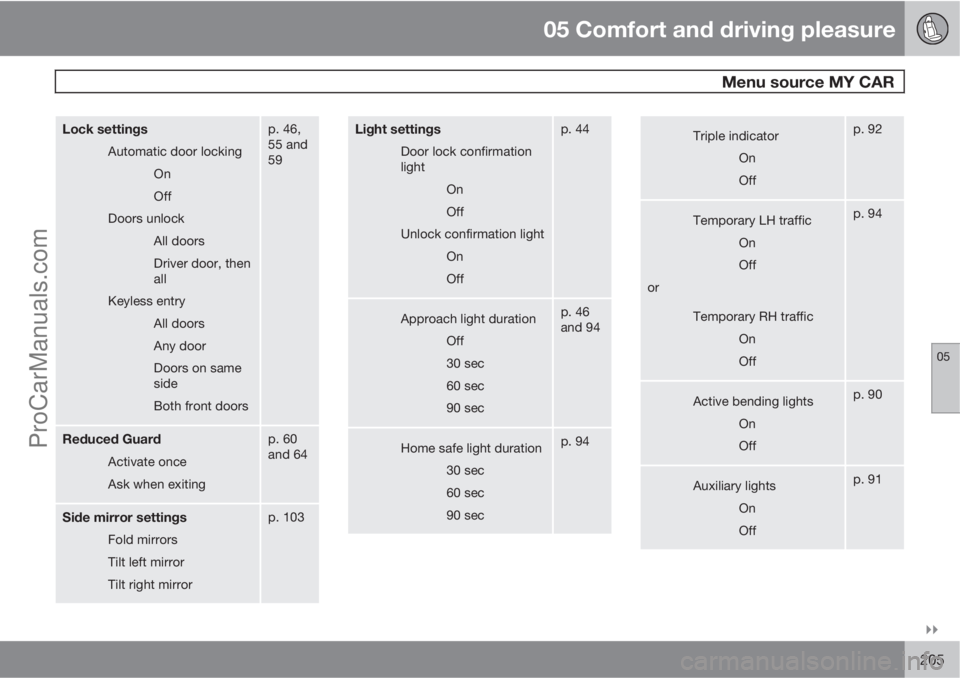

Page 207 of 422
05 Comfort and driving pleasure
Menu source MY CAR
05
205
Lock settings
Automatic door locking
On
Off
Doors unlock
All doors
Driver door, then
all
Keyless entry
All doors
Any door
Doors on same
side
Both front doors
p. 46,
55 and
59
Reduced Guard
Activate once
Ask when exiting
p. 60
and 64
Side mirror settings
Fold mirrors
Tilt left mirror
Tilt right mirror
p. 103
Light settings
Door lock confirmation
light
On
Off
Unlock confirmation light
On
Off
p. 44
Approach light duration
Off
30 sec
60 sec
90 secp. 46
and 94
Home safe light duration
30 sec
60 sec
90 secp. 94
Triple indicator
On
Offp. 92
Temporary LH traffic
On
Off
or
Temporary RH traffic
On
Offp. 94
Active bending lights
On
Offp. 90
Auxiliary lights
On
Offp. 91
ProCarManuals.com

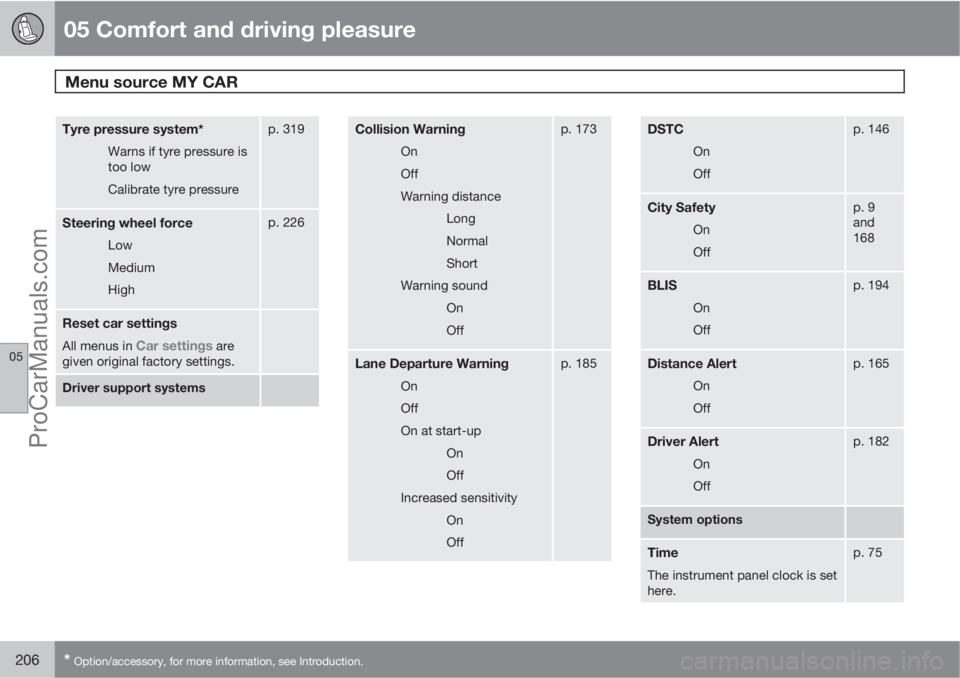

Page 208 of 422
05 Comfort and driving pleasure
Menu source MY CAR
05
206* Option/accessory, for more information, see Introduction.
Tyre pressure system*
Warns if tyre pressure is
too low
Calibrate tyre pressurep. 319
Steering wheel force
Low
Medium
High
p. 226
Reset car settings
All menus in Car settings are
given original factory settings.
Driver support systems
Collision Warning
On
Off
Warning distance
Long
Normal
Short
Warning sound
On
Off
p. 173
Lane Departure Warning
On
Off
On at start-up
On
Off
Increased sensitivity
On
Off
p. 185
DSTC
On
Off
p. 146
City Safety
On
Off
p. 9
and
168
BLIS
On
Off
p. 194
Distance Alert
On
Off
p. 165
Driver Alert
On
Off
p. 182
System options
Time
The instrument panel clock is set
here.
p. 75
ProCarManuals.com

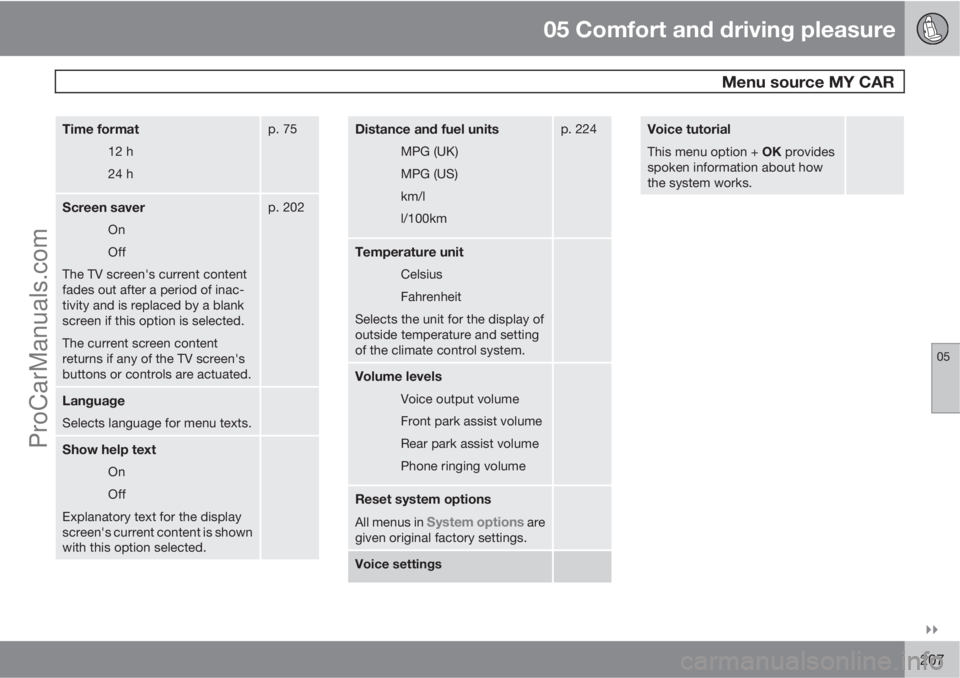

Page 209 of 422
05 Comfort and driving pleasure
Menu source MY CAR
05
207
Time format
12 h
24 h
p. 75
Screen saver
On
Off
The TV screen's current content
fades out after a period of inac-
tivity and is replaced by a blank
screen if this option is selected.
The current screen content
returns if any of the TV screen's
buttons or controls are actuated.
p. 202
Language
Selects language for menu texts.
Show help text
On
Off
Explanatory text for the display
screen's current content is shown
with this option selected.
Distance and fuel units
MPG (UK)
MPG (US)
km/l
l/100km
p. 224
Temperature unit
Celsius
Fahrenheit
Selects the unit for the display of
outside temperature and setting
of the climate control system.
Volume levels
Voice output volume
Front park assist volume
Rear park assist volume
Phone ringing volume
Reset system options
All menus in System options are
given original factory settings.
Voice settings
Voice tutorial
This menu option + OK provides
spoken information about how
the system works.
ProCarManuals.com

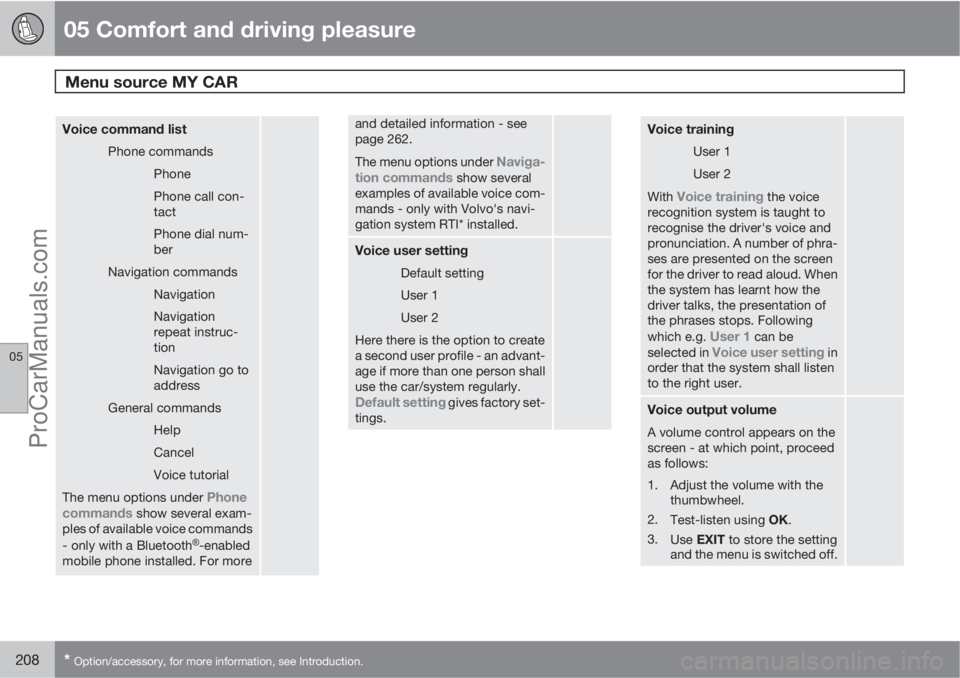

Page 210 of 422
05 Comfort and driving pleasure
Menu source MY CAR
05
208* Option/accessory, for more information, see Introduction.
Voice command list
Phone commands
Phone
Phone call con-
tact
Phone dial num-
ber
Navigation commands
Navigation
Navigation
repeat instruc-
tion
Navigation go to
address
General commands
Help
Cancel
Voice tutorial
The menu options under
Phone
commands show several exam-
ples of available voice commands
- only with a Bluetooth
Ÿ-enabled
mobile phone installed. For more
and detailed information - see
page 262.
The menu options under
Naviga-
tion commands show several
examples of available voice com-
mands - only with Volvo's navi-
gation system RTI* installed.
Voice user setting
Default setting
User 1
User 2
Here there is the option to create
a second user profile - an advant-
age if more than one person shall
use the car/system regularly.
Default setting gives factory set-
tings.
Voice training
User 1
User 2
With
Voice training the voice
recognition system is taught to
recognise the driver's voice and
pronunciation. A number of phra-
ses are presented on the screen
for the driver to read aloud. When
the system has learnt how the
driver talks, the presentation of
the phrases stops. Following
which e.g.
User 1 can be
selected in Voice user setting in
order that the system shall listen
to the right user.
Voice output volume
A volume control appears on the
screen - at which point, proceed
as follows:
1. Adjust the volume with the
thumbwheel.
2.
Test-listen using OK.
3.
Use EXIT to store the setting
and the menu is switched off.
ProCarManuals.com
