VOLVO V60 2013 Owners Manual

06 Infotainment system
General information on infotainment
06
* Option/accessory, for more information, see Introduction.239
Select main source by pressing a main source
button (1) (RADIO, MEDIA, TEL). To navigate
in the source's menus, use the controls for
TUNE, OK/MENU or EXIT.
Use TUNE to scroll in the menu, select the
highlighted menu bar with OK/MENU or go
back with EXIT. In some cases it is possible to
access a shortcut menu by pressing the active
source's main source button (1).
For Menu overview, see page 241.
NOTE
If the car is equipped with a steering wheel
keypad with a thumbwheel*, these can be
used instead of the controls in the centre
console (TUNE, OK/MENU, EXIT), see
page 236.
Views in the TV screenFor each main source there are four basic
types of views:
•Normal view (2) - normal mode for the
source
•Shortcut menu (3) - shows commonly
used menu options in the main sources
TEL and MEDIA (accessed by pressing the
active source's main source button (1)).
•Quick view (4) - fast mode when TUNE is
turned, e.g. for changing disc tracks, radio
station, etc.
•Menu view (5) - for menu navigation
(accessed by pressing OK/MENU).
The views have different appearances depend-
ing on the source, in-car equipment, settings,
etc.
Pop-up menu8 video and TV*Press OK/MENU when a video file is being
played back or TV* is being shown in order to
access the pop-up menu.
FAV - store a preset
The FAV button can be used to store functions
that are used frequently so that the functioncan be started simply by pressing FAV. You
can select a favourite (e.g.
Equalizer) for each
function as follows:
In RADIO mode:
•AM
•FM1/FM2
•DAB1*/DAB2*
In MEDIA mode:
•DISC
•USB*
•iPod*
•Bluetooth*
•AUX
•TV*
It is also possible to select and store a favourite
for MY CAR, CAM* and NAV*. Favourites can
also be selected and stored under MY CAR.
For more information on the menu system MY
CAR, see page 202.
To store a function in the FAV button:
1.
Select a main source (e.g. RADIO,
MEDIA).
2.
Select a wavelength or source (
AM, Disc,
etc.).
8Only applies when playing back videos or displaying TV*.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
240* Option/accessory, for more information, see Introduction.
3.
Press and hold the FAV button until the
"favourites menu" is shown.
4.
Turn TUNE to select an option from the list
and press OK/MENU to save.
>
When the main source (e.g. RADIO,
MEDIA) is active the stored function is
available via a short press on FAV.
General audio settings
Press SOUND to access the audio settings
menu (Bass, Treble, etc.). Scroll forward with
SOUND or OK/MENU to your selection (e.g.
Treble).
Adjust the setting by turning TUNE and save
the setting with OK/MENU.
Continue pressing SOUND or OK/MENU to
access other options:
•Surround9 - Can be set to the On/Off posi-
tion. When On is selected, the system
selects the setting for optimal sound repro-
duction. Normally DPLII and
then
appear in the TV screen. If the recording is
made with Dolby Digital technology then
playback will take place with this setting,
then appears in the TV screen.When Off is selected, 3-channel stereo is
available.
•Bass - Bass level.
•Treble - Treble level.
•Fader – Balance between the front and
rear speakers.
•Balance – Balance between the left and
right-hand speakers.
•Subwoofer*9 - Bass speaker level.
•DPL II centre level3 channel centre
level9 - Volume for centre speaker.
•DPL II surround level9, 10 – Level for sur-
round.
Advanced audio settings
Equalizer11
The volume level can be adjusted separately
for different wavelengths.
1.
Press OK/MENU to access
Audio
settings and select Equalizer.
2.
Select wavelength by turning TUNE and
confirm with OK/MENU.3. Adjust the audio settings by turning
TUNE and confirm with OK/MENU. Con-
tinue in the same way with other wave-
lengths you want to change.
4. When you have finished with audio set-
tings, press EXIT to confirm and return to
normal view.
For general information on menu navigation,
see page 238 and menu overview, see
page 241.
Sound stage9
The sound experience can be optimised for the
driver's seat, both front seats or the rear seat.
If there are passengers in both the front and
rear seats then the option recommended is;
both front seats. The options can be selected
under Audio settings
Sound stage.
For general information on menu navigation,
see page 238 and menu overview, see
page 241.
Audio volume and automatic volume
control
The audio system compensates for disrupting
noises in the passenger compartment by
increasing the volume in relation to the speed
9Only Premium Sound Multimedia.10Only when Surround is activated.11Not Performance.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
241
of the car. The compensation level can be set
to low, medium, high or off. Select the level
under Audio settings
Volume
compensation.
For general information on menu navigation,
see page 238 and menu overview, see
page 241.
External audio source audio volumeIf an external audio source (e.g. an MP3 player
or iPodŸ) is connected to the AUX input then
the audio source that is connected can have a
different volume than the audio system's inter-
nal volume (e.g. radio). Correct this by adjust-
ing the volume of the input:
1.
Press the MEDIA button and turn TUNE to
AUX and wait a few seconds or press OK/
MENU.
2.
Press OK/MENU and then turn TUNE to
AUX input volume. Confirm with OK/
MENU.
3.
Turn TUNE to adjust the volume for the
AUX input.
NOTE
If the external audio source's volume is too
high or too low, the quality of the sound may
deteriorate. The audio quality may also be
impaired if the player is charged while the
infotainment system is in AUX mode. In
which case, avoid charging the player via
the 12 V socket.
Optimum sound reproductionThe audio system is pre-calibrated for opti-
mum sound reproduction by means of digital
signal processing.
This calibration takes into account loudspeak-
ers, amplifiers, passenger compartment
acoustics, listener position etc. for each com-
bination of car model and audio system.
There is a also a dynamic calibration that takes
into account the position of the volume control,
radio reception and vehicle speed.
The controls explained in these operating
instructions, e.g.
Bass, Treble and Equalizer,
are only intended for the user to be able to
adapt the sound reproduction according to
personal taste.
Menu overview
Menus RADIO
Main menu AM
AM menu
Show presets12
Scan
Audio settings13
Sound stage14
Equalizer15
Volume compensation
Reset all audio settings
Main menu FM1/FM2FM menu
TP
Show radio text
Show presets12
Scan
News settings
12Only applies to High Performance Multimedia and Premium Sound Multimedia.13The menu options for audio settings are the same for all audio sources.14Only applies to Premium Sound Multimedia.15Does not apply to Performance.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
242* Option/accessory, for more information, see Introduction.
Advanced settings
REG
Alternative frequency
EON
Set TP favourite
PTY settings
Reset all FM settings
Audio settings16
Main menu DAB1*/DAB2*DAB menu
Ensemble learn
PTY filtering
Turn off PTY filtering
Show radio text
Show presets12
Scan
Advanced settings
DAB linking
DAB band
Sub channelsShow PTY text
Reset all DAB settings
Audio settings16
Menus MEDIA
Main menu CD Audio
Disc menu
Random
Scan
Audio settings16
Main menu CD/DVD12 DataDisc menu
Play/Pause
Stop
Random
Repeat folder
Change subtitles
Change audio track
Scan
Audio settings16
Main menu DVD12 VideoDVD Video Menu
DVD disc menu
Play/Pause/Continue
Stop
Subtitles
Audio tracks
Advanced settings
Angle
DivX® VOD code
Audio settings16
Main menu iPod15
iPod menu
Random
Scan
Audio settings16
Main menu USB15
USB menu
Play/Pause
16For submenus, see "Main menu AM".12Only applies to High Performance Multimedia and Premium Sound Multimedia.15Does not apply to Performance.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06

* Option/accessory, for more information, see Introduction.243
Stop
Random
Repeat folder
Select USB device
Change subtitles
Change audio track
Scan
Audio settings16
Main menu Media Bluetooth15
Bluetooth menu
Random
Change device
Remove Bluetooth device
Scan
Bluetooth software version in car
Audio settings16
Main menu AUXAUX menu
AUX input volume
Audio settings16
Main menu TV*TV menu
Select country
Reorganise presets
Autostore
Scan
Audio settings16
Pop-up menu17 video and TV*Press OK/MENU when a video file is being
played back or TV* is being shown in order to
access the pop-up menu.
Image settings
Source menu
18
DVD disc menu19
DVD disc TOP menu19
Menus TEL
Main menu Bluetooth
ŸŸ handsfree15
Phone menu
All calls
All calls
Missed calls
Answered calls
Dialled calls
Call duration
Phone book
Search
New contact
Speed dials
Receive vCard
Memory status
Clear phone book
Change phone
Remove Bluetooth device
16For submenus, see "Main menu AM".15Does not apply to Performance.17Only applies when playing back videos or displaying TV*.18What is shown in the pop-up menu for the source menu depends on what is being played back or displayed, it can be e.g. CD/DVD data menu or USB menu.19Only applies to DVD video discs.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
244
Phone settings
Discoverable
Sounds and volume
Download phone book
Bluetooth software version in
car
Call options
Auto answer
Voicemail number
Disconnect phone
ProCarManuals.com

06 Infotainment system
Radio
06
* Option/accessory, for more information, see Introduction.245 General
Centre console, controls for radio functions.
RADIO button for selecting the wavelength
(AM, FM1, FM2, DAB1*, DAB2*).
Station presets (0-9)
Select the desired frequency/station or
navigate in the radio menu by turning
TUNE.
Confirm your selection or go to the radio
menu by pressing OK/MENU.
Hold in the button for next/previous avail-
able station. Short press for preset.
NOTE
If the car is equipped with a steering wheel
keypad* and/or remote control* then in
many cases these can be used instead of
the buttons in the centre console. For a
description of the steering wheel keypad,
see page 236. For a description of the
remote control, see page 279.
MenusThe menus inRADIO are controlled from the
centre console and the steering wheel key-
pad*. For general information on menu naviga-
tion, see page 238 and menu overview, see
page 241.
Radio AM/FM
Tuning
NOTE
The reception is dependent both on how
good the signal strength and signal quality
are. The transmission may be disturbed by
various factors such as tall buildings or the
transmitter being far away. Coverage level
can also vary depending on where in the
country you are located.
Automatic tuning1.
Press RADIO, turn TUNE until the desired
wavelength (AM, FM1 etc.) is shown, press
OK/MENU.
2.
Hold in
/ in the centre console (or
in the steering wheel keypad*). The radio
searches for the next/previous available
station.
Station list1
The radio automatically compiles a list of the
strongest FM stations whose signals it is cur-
rently receiving. This enables you to find a sta-
tion when you drive into an area where you do
not know the radio stations and their frequen-
cies.
To go to the list and select a station:
1.
Select the desired wavelength (
FM1 orFM2).
2.
Turn TUNE one step in either direction.
This displays the list of all stations in the
area. The currently tuned station is indi-
cated with enlarged text in the list.
3.
Turn TUNE again in either direction to
select a station from the list.
4.
Confirm your selection with OK/MENU.
1Does not apply to Performance.
ProCarManuals.com

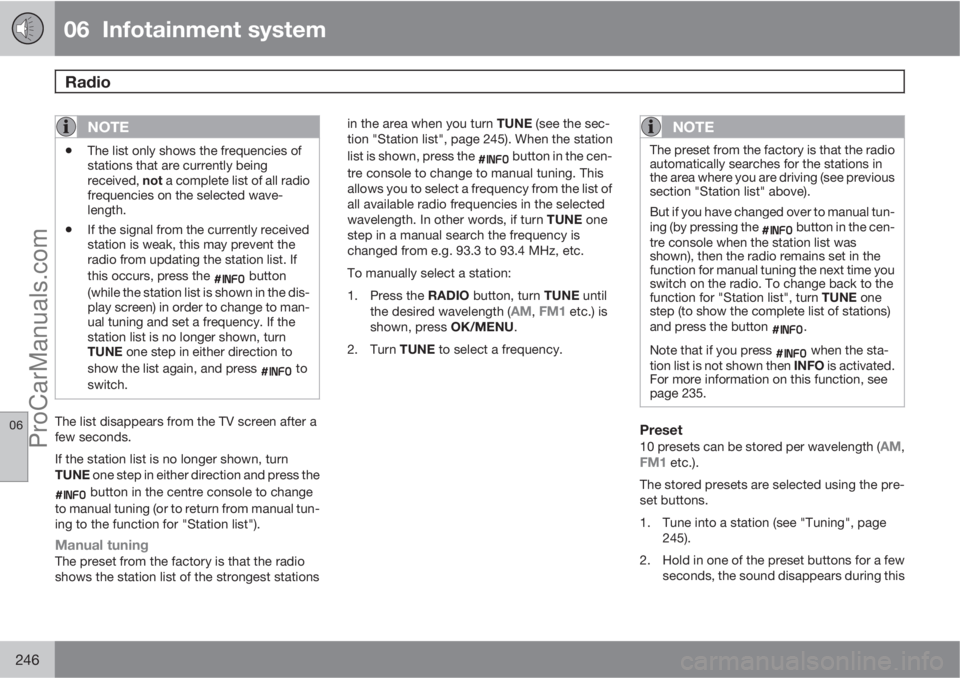

06 Infotainment system
Radio
06
246
NOTE
•The list only shows the frequencies of
stations that are currently being
received, not a complete list of all radio
frequencies on the selected wave-
length.
•If the signal from the currently received
station is weak, this may prevent the
radio from updating the station list. If
this occurs, press the
button
(while the station list is shown in the dis-
play screen) in order to change to man-
ual tuning and set a frequency. If the
station list is no longer shown, turn
TUNE one step in either direction to
show the list again, and press
to
switch.
The list disappears from the TV screen after a
few seconds.
If the station list is no longer shown, turn
TUNE one step in either direction and press the
button in the centre console to change
to manual tuning (or to return from manual tun-
ing to the function for "Station list").
Manual tuningThe preset from the factory is that the radio
shows the station list of the strongest stationsin the area when you turn TUNE (see the sec-
tion "Station list", page 245). When the station
list is shown, press the
button in the cen-
tre console to change to manual tuning. This
allows you to select a frequency from the list of
all available radio frequencies in the selected
wavelength. In other words, if turn TUNE one
step in a manual search the frequency is
changed from e.g. 93.3 to 93.4 MHz, etc.
To manually select a station:
1.
Press the RADIO button, turn TUNE until
the desired wavelength (
AM, FM1 etc.) is
shown, press OK/MENU.
2.
Turn TUNE to select a frequency.
NOTE
The preset from the factory is that the radio
automatically searches for the stations in
the area where you are driving (see previous
section "Station list" above).
But if you have changed over to manual tun-
ing (by pressing the
button in the cen-
tre console when the station list was
shown), then the radio remains set in the
function for manual tuning the next time you
switch on the radio. To change back to the
function for "Station list", turn TUNE one
step (to show the complete list of stations)
and press the button
.
Note that if you press
when the sta-
tion list is not shown then INFO is activated.
For more information on this function, see
page 235.
Preset
10 presets can be stored per wavelength (AM,FM1 etc.).
The stored presets are selected using the pre-
set buttons.
1. Tune into a station (see "Tuning", page
245).
2. Hold in one of the preset buttons for a few
seconds, the sound disappears during this
ProCarManuals.com

06 Infotainment system
Radio
06
247
time and returns when the station is stored.
The preset button can now be used.
A list of pre-selected channels can be shown
2
in the TV screen. The function is activated/
deactivated in FM/AM mode under FM menu
Show presets or AM menuShow
presets.
RDS functionsRDS (Radio Data System) links FM transmitters
into a network. An FM transmitter in such a
network sends information that gives an RDS
radio the following functions:
•Automatically switches to a stronger trans-
mitter if reception in the area is poor.
•Searches for programme type, such as
traffic information or news.
•Receives text information on current radio
programme.
NOTE
Some radio stations do not use RDS or only
some if its functionality.
If a required programme type is located the
radio can switch stations interrupting the audio
source currently in use. For example, if the CDplayer is in use, it is paused. The interrupting
transmission is played at a preset volume, see
page 249. The radio returns to the previous
audio source and volume when the set pro-
gramme type is no longer broadcast.
The programme functions alarm (
ALARM!),
traffic information (TP), news (NEWS), and pro-
gramme types (PTY) interrupt one another in
order of priority, where alarm has the highest
priority and programme types has the lowest.
For additional settings of programming inter-
ruptions (
EON Distant and EON Local), see
the section "Enhanced Other Networks –
EON" below. Press EXIT to return to the inter-
rupted audio source, press the OK/MENU to
clear the message.
AlarmThis function is used to warn of serious acci-
dents and catastrophes. The alarm cannot be
temporarily interrupted or deactivated. The
message
ALARM! appears on the TV screen
when an alarm message is transmitted.
Traffic information – TPThis function allows traffic information sent
within a set station's RDS network to break
through. The
TP symbol indicates that the
function is activated. If the preset station cansend traffic information then this is shown by
TP glowing brightly in the TV screen, otherwiseTP will be grey.
–
Activate/deactivate in FM mode under FM
menu
TP.
Enhanced Other Networks – EONThis function is useful in urban areas with many
regional radio stations. It allows the distance
between the car and the radio station trans-
mitter to determine when programme functions
should interrupt the current audio source.
–Activate/deactivate in FM mode by select-
ing one of the options under FM menu
Advanced settingsEON:
•Local – interrupts only if the radio station
transmitter is close.
•Distant3 – interrupts if the station trans-
mitter is far away, even if there is a lot of
static.
TP from selected station/all stationsThe radio can only interrupt for traffic informa-
tion from the selected station or all stations
within the RDS network.
–
Go in FM mode to FM menu
Advanced
settings
Set TP favourite to change.
2Only applies to High Performance Multimedia and Premium Sound Multimedia.3Factory settings.
ProCarManuals.com

06 Infotainment system
Radio
06
248
NewsThis function allows news broadcasts sent
within a set station's RDS network to break
through. The
NEWS symbol indicates that the
function is active.
–
Activate/deactivate in FM mode under FM
menu
News settingsNews.
News from selected station/all stationsThe radio can only interrupt for news from the
selected station or all stations in the RDS net-
work.
–
Go in FM mode to FM menu
News
settings
Set news favourite to change.
Programme types – PTYThe PTY function can be used to select one or
more programme types, such as pop music
and serious classic. The PTY symbol indicates
that the function is active. This function allows
programme types broadcast within a set sta-
tion's RDS network to break through.
1. Activate in FM mode by first selecting the
programme types under FM menu
Advanced settingsPTY settings
Select PTY.2. Then the PTY function must be activated
under FM menu
Advanced settings
PTY settingsReceive traffic
bulletins from other networks.
An indicator is shown in the TV screen when
PTY is activated.
Deactivation of the PTY function is performed
in FM mode under FM menu
Advanced
settings
PTY settingsReceive traffic
bulletins from other networks. Selected pro-
gramme types (PTY) are not reset.
Resetting and removing PTY are performed
under FM menu
Advanced settings
PTY settingsSelect PTYClear all.
PTY searchThis function searches the entire wavelength
for the selected programme type.
1. In FM mode select one or more PTY under
FM menu
Advanced settingsPTY
settings
Select PTY.
2.
Go to FM menu
Advanced settings
PTY settingsSeek PTY.
To finish searching, press EXIT.–To continue searching for another broad-
cast of the selected programme types,
press on
or .
Display of programme typeThe programme type of the current station can
be shown on the TV screen.
–
Activate/deactivate in FM mode under FM
menu
Advanced settingsPTY
settings
Show PTY text.
Radio text4
Some RDS stations transmit information on
programme content, artists, etc. This informa-
tion can be shown on the TV screen.
–
Activate/deactivate in FM mode under FM
menu
Show radio text.
Automatic frequency update – AFThe function selects the strongest transmitter
for the set station. In order to find a strong
transmitter the function may, in exceptional
cases, need to search the entire FM wave-
length.
–
Activate/deactivate in FM mode under FM
menu
Advanced settings
Alternative frequency.
4Only cars with 7-inch screen
ProCarManuals.com
