VOLVO V60 2013 Owners Manual

05 Comfort and driving pleasure
Comfort inside the passenger compartment
05

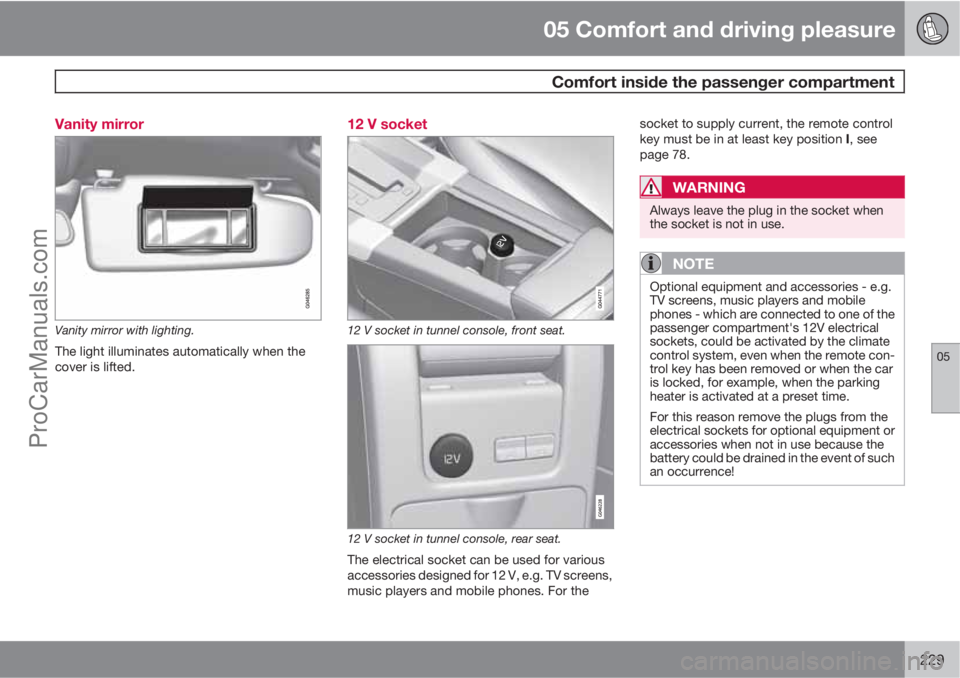

229 Vanity mirror
Vanity mirror with lighting.
The light illuminates automatically when the
cover is lifted.
12 V socket
12 V socket in tunnel console, front seat.
12 V socket in tunnel console, rear seat.
The electrical socket can be used for various
accessories designed for 12 V, e.g. TV screens,
music players and mobile phones. For thesocket to supply current, the remote control
key must be in at least key position I, see
page 78.
WARNING
Always leave the plug in the socket when
the socket is not in use.
NOTE
Optional equipment and accessories - e.g.
TV screens, music players and mobile
phones - which are connected to one of the
passenger compartment's 12V electrical
sockets, could be activated by the climate
control system, even when the remote con-
trol key has been removed or when the car
is locked, for example, when the parking
heater is activated at a preset time.
For this reason remove the plugs from the
electrical sockets for optional equipment or
accessories when not in use because the
battery could be drained in the event of such
an occurrence!
ProCarManuals.com

05 Comfort and driving pleasure
Comfort inside the passenger compartment
05
230* Option/accessory, for more information, see Introduction.

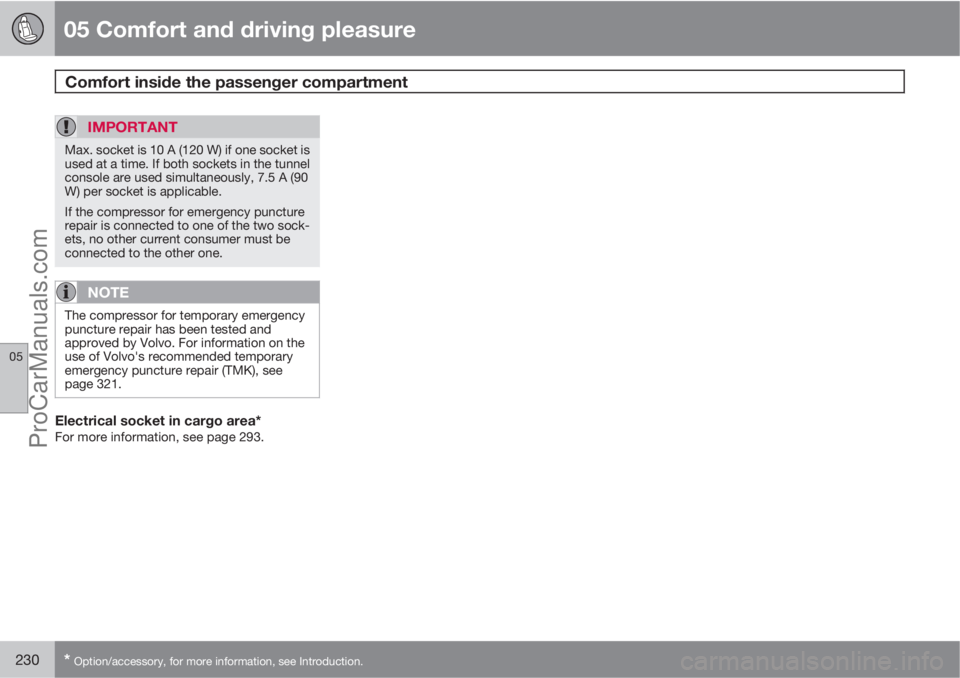

IMPORTANT
Max. socket is 10 A (120 W) if one socket is
used at a time. If both sockets in the tunnel
console are used simultaneously, 7.5 A (90
W) per socket is applicable.
If the compressor for emergency puncture
repair is connected to one of the two sock-
ets, no other current consumer must be
connected to the other one.
NOTE
The compressor for temporary emergency
puncture repair has been tested and
approved by Volvo. For information on the
use of Volvo's recommended temporary
emergency puncture repair (TMK), see
page 321.
Electrical socket in cargo area*For more information, see page 293.
ProCarManuals.com

05 Comfort and driving pleasure

05
231ProCarManuals.com

232* Option/accessory, for more information, see Introduction.
General information on infotainment..................................................... 234
Radio..................................................................................................... 245
Media player......................................................................................... 252
External audio source via AUX/USB* input........................................... 256
Media Bluetooth
Ÿ* ................................................................................ 259
Bluetooth
Ÿ handsfree*.......................................................................... 262
Voice recognition* mobile phone..........................................................271
TV*......................................................................................................... 275
Remote control* ................................................................................... 279
ProCarManuals.com

INFOTAINMENT SYSTEM
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
234* Option/accessory, for more information, see Introduction.

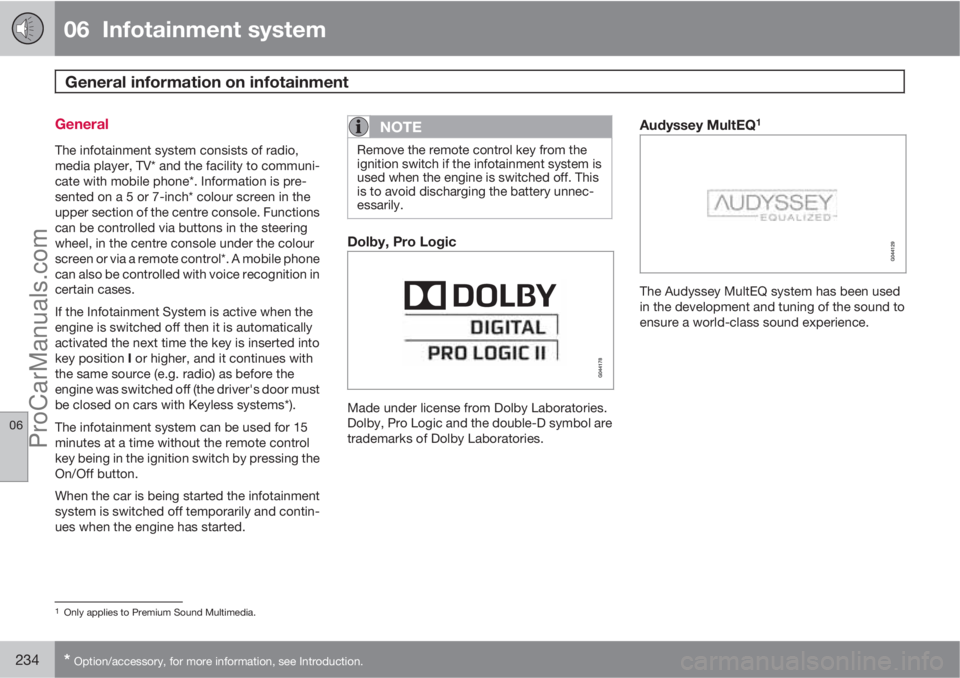

General
The infotainment system consists of radio,
media player, TV* and the facility to communi-
cate with mobile phone*. Information is pre-
sented on a 5 or 7-inch* colour screen in the
upper section of the centre console. Functions
can be controlled via buttons in the steering
wheel, in the centre console under the colour
screen or via a remote control*. A mobile phone
can also be controlled with voice recognition in
certain cases.
If the Infotainment System is active when the
engine is switched off then it is automatically
activated the next time the key is inserted into
key position I or higher, and it continues with
the same source (e.g. radio) as before the
engine was switched off (the driver's door must
be closed on cars with Keyless systems*).
The infotainment system can be used for 15
minutes at a time without the remote control
key being in the ignition switch by pressing the
On/Off button.
When the car is being started the infotainment
system is switched off temporarily and contin-
ues when the engine has started.
NOTE
Remove the remote control key from the
ignition switch if the infotainment system is
used when the engine is switched off. This
is to avoid discharging the battery unnec-
essarily.
Dolby, Pro Logic
Made under license from Dolby Laboratories.
Dolby, Pro Logic and the double-D symbol are
trademarks of Dolby Laboratories.
Audyssey MultEQ1
The Audyssey MultEQ system has been used
in the development and tuning of the sound to
ensure a world-class sound experience.
1Only applies to Premium Sound Multimedia.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06

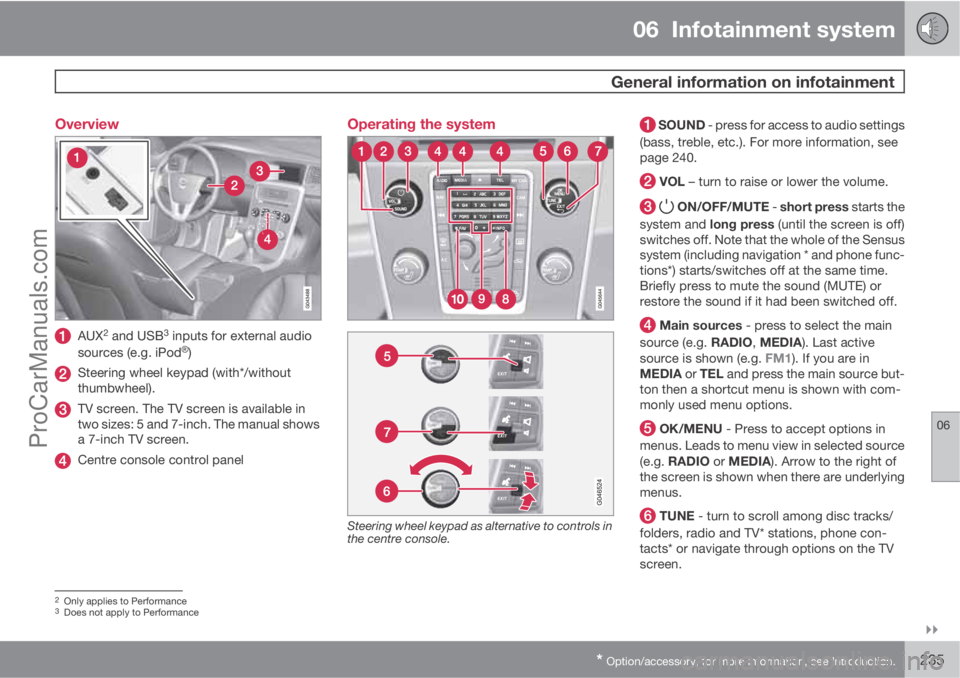

* Option/accessory, for more information, see Introduction.235 Overview
AUX2 and USB3 inputs for external audio
sources (e.g. iPodŸ)
Steering wheel keypad (with*/without
thumbwheel).
TV screen. The TV screen is available in
two sizes: 5 and 7-inch. The manual shows
a 7-inch TV screen.
Centre console control panel
Operating the system
Steering wheel keypad as alternative to controls in
the centre console.
SOUND - press for access to audio settings
(bass, treble, etc.). For more information, see
page 240.
VOL – turn to raise or lower the volume.
ON/OFF/MUTE - short press starts the
system and long press (until the screen is off)
switches off. Note that the whole of the Sensus
system (including navigation * and phone func-
tions*) starts/switches off at the same time.
Briefly press to mute the sound (MUTE) or
restore the sound if it had been switched off.
Main sources - press to select the main
source (e.g. RADIO, MEDIA). Last active
source is shown (e.g. FM1). If you are in
MEDIA or TEL and press the main source but-
ton then a shortcut menu is shown with com-
monly used menu options.
OK/MENU - Press to accept options in
menus. Leads to menu view in selected source
(e.g. RADIO or MEDIA). Arrow to the right of
the screen is shown when there are underlying
menus.
TUNE - turn to scroll among disc tracks/
folders, radio and TV* stations, phone con-
tacts* or navigate through options on the TV
screen.
2Only applies to Performance3Does not apply to Performance
ProCarManuals.com

06 Infotainment system
General information on infotainment
06

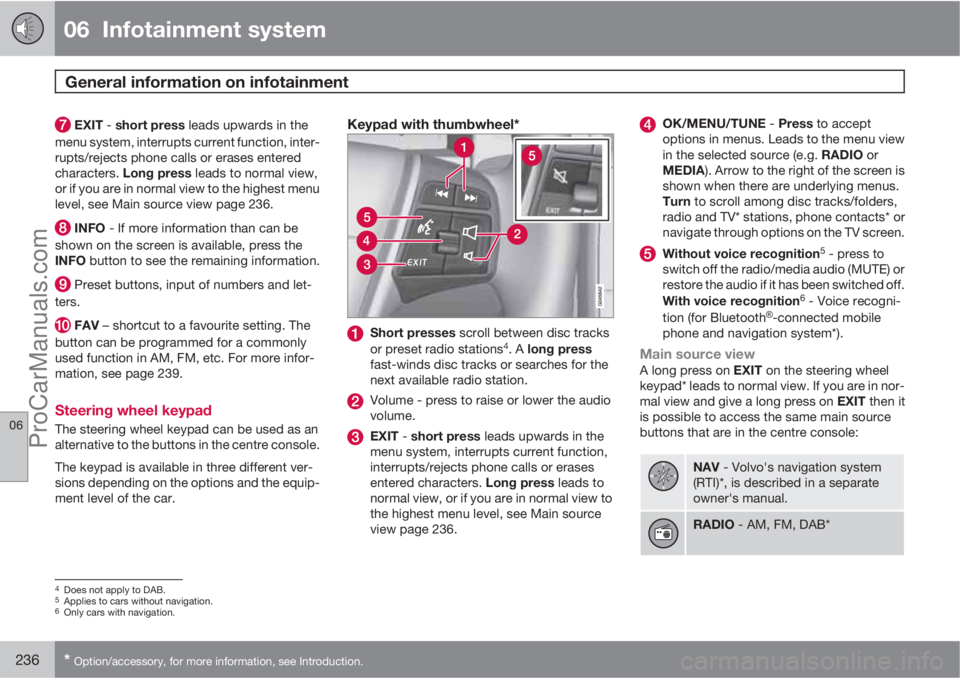

236* Option/accessory, for more information, see Introduction.
EXIT - short press leads upwards in the
menu system, interrupts current function, inter-
rupts/rejects phone calls or erases entered
characters. Long press leads to normal view,
or if you are in normal view to the highest menu
level, see Main source view page 236.
INFO - If more information than can be
shown on the screen is available, press the
INFO button to see the remaining information.
Preset buttons, input of numbers and let-
ters.
FAV – shortcut to a favourite setting. The
button can be programmed for a commonly
used function in AM, FM, etc. For more infor-
mation, see page 239.
Steering wheel keypad
The steering wheel keypad can be used as an
alternative to the buttons in the centre console.
The keypad is available in three different ver-
sions depending on the options and the equip-
ment level of the car.
Keypad with thumbwheel*
Short presses scroll between disc tracks
or preset radio stations4. A long press
fast-winds disc tracks or searches for the
next available radio station.
Volume - press to raise or lower the audio
volume.
EXIT - short press leads upwards in the
menu system, interrupts current function,
interrupts/rejects phone calls or erases
entered characters. Long press leads to
normal view, or if you are in normal view to
the highest menu level, see Main source
view page 236.
OK/MENU/TUNE - Press to accept
options in menus. Leads to the menu view
in the selected source (e.g. RADIO or
MEDIA). Arrow to the right of the screen is
shown when there are underlying menus.
Turn to scroll among disc tracks/folders,
radio and TV* stations, phone contacts* or
navigate through options on the TV screen.
Without voice recognition5 - press to
switch off the radio/media audio (MUTE) or
restore the audio if it has been switched off.
With voice recognition
6 - Voice recogni-
tion (for BluetoothŸ-connected mobile
phone and navigation system*).
Main source viewA long press on EXIT on the steering wheel
keypad* leads to normal view. If you are in nor-
mal view and give a long press on EXIT then it
is possible to access the same main source
buttons that are in the centre console:
NAV - Volvo's navigation system
(RTI)*, is described in a separate
owner's manual.
RADIO - AM, FM, DAB*
4Does not apply to DAB.5Applies to cars without navigation.6Only cars with navigation.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06

* Option/accessory, for more information, see Introduction.237

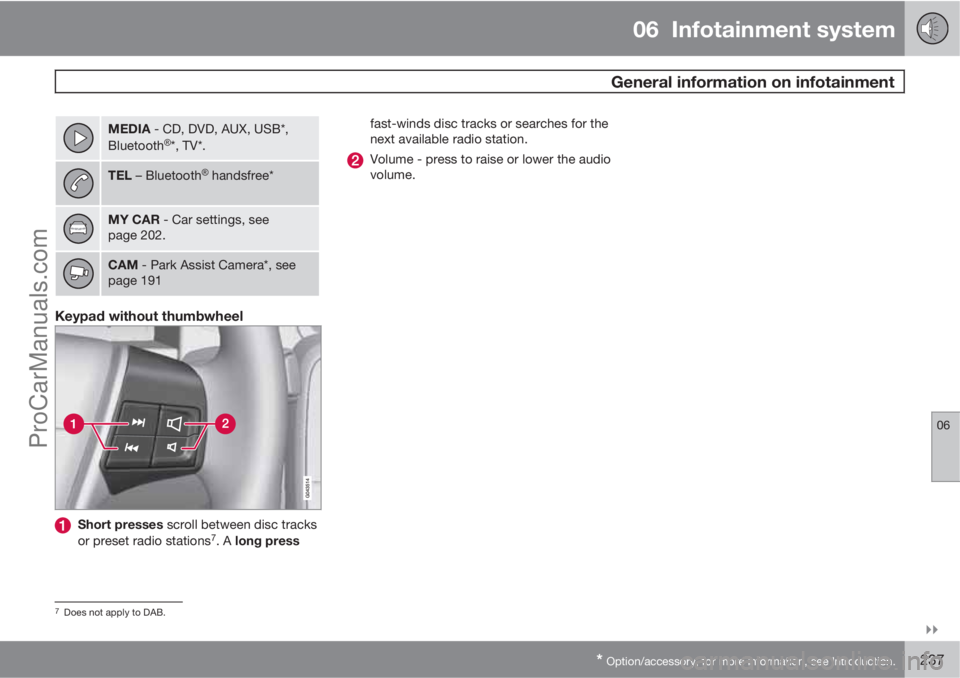

MEDIA - CD, DVD, AUX, USB*,
BluetoothŸ*, TV*.
TEL – BluetoothŸ handsfree*
MY CAR - Car settings, see
page 202.
CAM - Park Assist Camera*, see
page 191
Keypad without thumbwheel
Short presses scroll between disc tracks
or preset radio stations7. A long pressfast-winds disc tracks or searches for the
next available radio station.
Volume - press to raise or lower the audio
volume.
7Does not apply to DAB.
ProCarManuals.com

06 Infotainment system
General information on infotainment
06
238

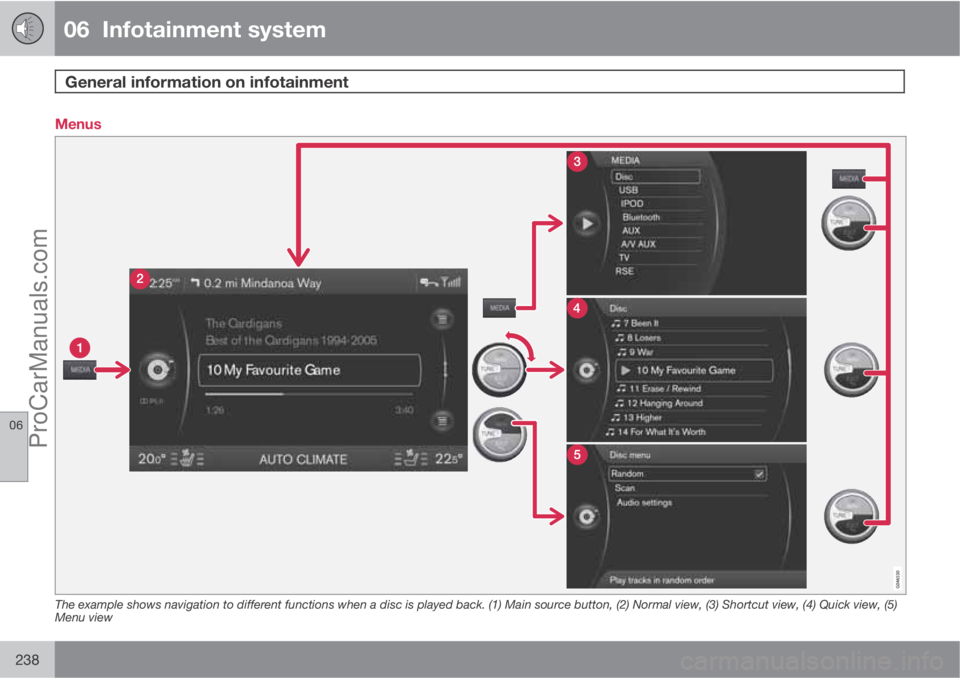

Menus
The example shows navigation to different functions when a disc is played back. (1) Main source button, (2) Normal view, (3) Shortcut view, (4) Quick view, (5)
Menu view
