VOLVO V60 2013 Owners Manual

06 Infotainment system
Media BluetoothŸŸ*
06

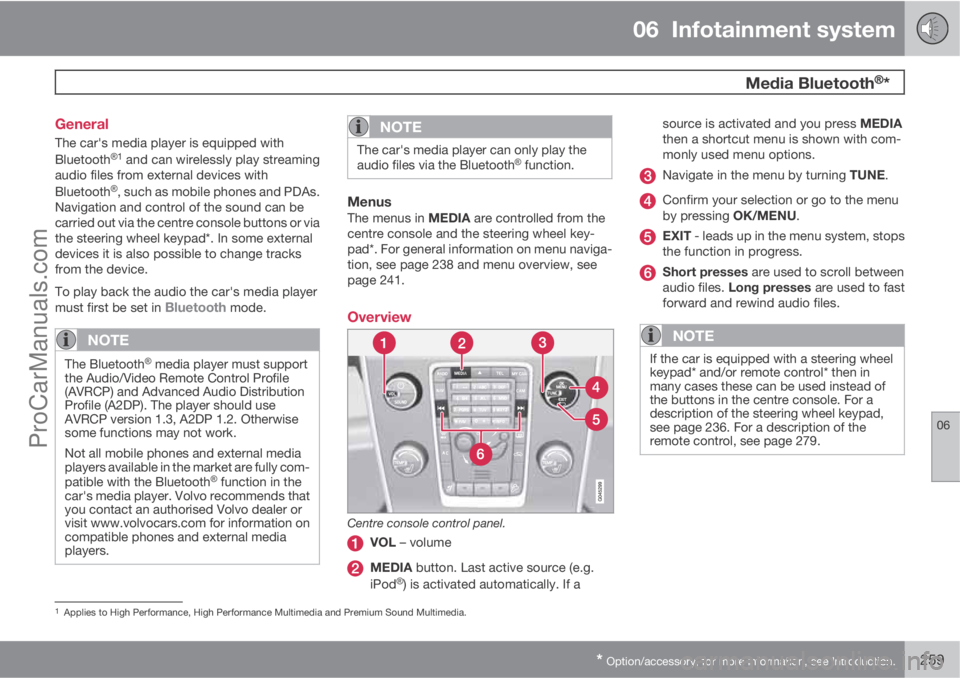

* Option/accessory, for more information, see Introduction.259 General
The car's media player is equipped with
BluetoothŸ1 and can wirelessly play streaming
audio files from external devices with
Bluetooth
Ÿ, such as mobile phones and PDAs.
Navigation and control of the sound can be
carried out via the centre console buttons or via
the steering wheel keypad*. In some external
devices it is also possible to change tracks
from the device.
To play back the audio the car's media player
must first be set in
Bluetooth mode.
NOTE
The BluetoothŸ media player must support
the Audio/Video Remote Control Profile
(AVRCP) and Advanced Audio Distribution
Profile (A2DP). The player should use
AVRCP version 1.3, A2DP 1.2. Otherwise
some functions may not work.
Not all mobile phones and external media
players available in the market are fully com-
patible with the Bluetooth
Ÿ function in the
car's media player. Volvo recommends that
you contact an authorised Volvo dealer or
visit www.volvocars.com for information on
compatible phones and external media
players.
NOTE
The car's media player can only play the
audio files via the BluetoothŸ function.
MenusThe menus in MEDIA are controlled from the
centre console and the steering wheel key-
pad*. For general information on menu naviga-
tion, see page 238 and menu overview, see
page 241.
Overview
Centre console control panel.
VOL – volume
MEDIA button. Last active source (e.g.
iPodŸ) is activated automatically. If asource is activated and you press MEDIA
then a shortcut menu is shown with com-
monly used menu options.
Navigate in the menu by turning TUNE.
Confirm your selection or go to the menu
by pressing OK/MENU.
EXIT - leads up in the menu system, stops
the function in progress.
Short presses are used to scroll between
audio files. Long presses are used to fast
forward and rewind audio files.
NOTE
If the car is equipped with a steering wheel
keypad* and/or remote control* then in
many cases these can be used instead of
the buttons in the centre console. For a
description of the steering wheel keypad,
see page 236. For a description of the
remote control, see page 279.
1Applies to High Performance, High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com

06 Infotainment system
Media BluetoothŸŸ*
06
260* Option/accessory, for more information, see Introduction.

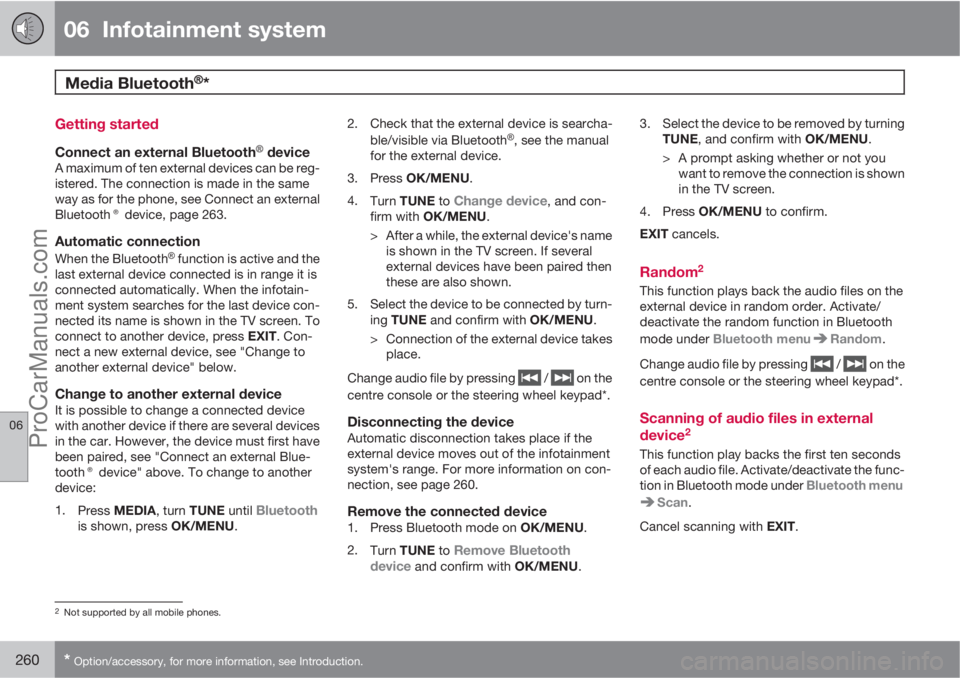

Getting started
Connect an external BluetoothŸ deviceA maximum of ten external devices can be reg-
istered. The connection is made in the same
way as for the phone, see Connect an external
Bluetooth® device, page 263.
Automatic connection
When the BluetoothŸ function is active and the
last external device connected is in range it is
connected automatically. When the infotain-
ment system searches for the last device con-
nected its name is shown in the TV screen. To
connect to another device, press EXIT. Con-
nect a new external device, see "Change to
another external device" below.
Change to another external deviceIt is possible to change a connected device
with another device if there are several devices
in the car. However, the device must first have
been paired, see "Connect an external Blue-
tooth® device" above. To change to another
device:
1.
Press MEDIA, turn TUNE until
Bluetoothis shown, press OK/MENU.2. Check that the external device is searcha-
ble/visible via Bluetooth
Ÿ, see the manual
for the external device.
3.
Press OK/MENU.
4.
Turn TUNE to
Change device, and con-
firm with OK/MENU.
> After a while, the external device's name
is shown in the TV screen. If several
external devices have been paired then
these are also shown.
5. Select the device to be connected by turn-
ing TUNE and confirm with OK/MENU.
> Connection of the external device takes
place.
Change audio file by pressing
/ on the
centre console or the steering wheel keypad*.
Disconnecting the deviceAutomatic disconnection takes place if the
external device moves out of the infotainment
system's range. For more information on con-
nection, see page 260.
Remove the connected device1.
Press Bluetooth mode on OK/MENU.
2.
Turn TUNE to
Remove Bluetooth
device and confirm with OK/MENU.3. Select the device to be removed by turning
TUNE, and confirm with OK/MENU.
> A prompt asking whether or not you
want to remove the connection is shown
in the TV screen.
4.
Press OK/MENU to confirm.
EXIT cancels.
Random2
This function plays back the audio files on the
external device in random order. Activate/
deactivate the random function in Bluetooth
mode under Bluetooth menu
Random.
Change audio file by pressing
/ on the
centre console or the steering wheel keypad*.
Scanning of audio files in external
device2
This function play backs the first ten seconds
of each audio file. Activate/deactivate the func-
tion in Bluetooth mode under Bluetooth menu
Scan.
Cancel scanning with EXIT.
2Not supported by all mobile phones.
ProCarManuals.com

06 Infotainment system
Media BluetoothŸŸ*
06

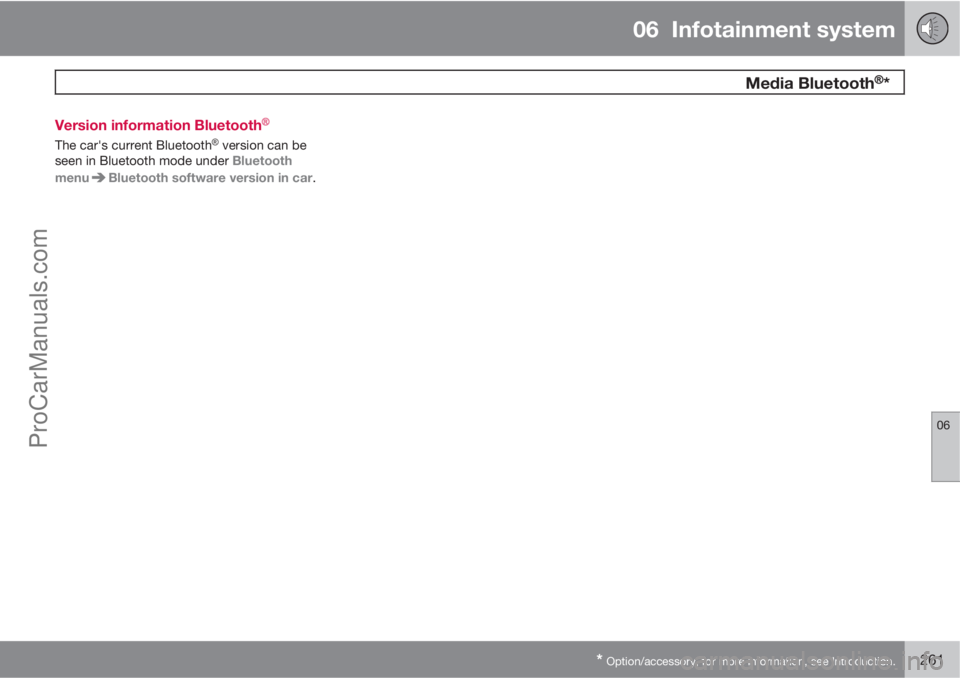

* Option/accessory, for more information, see Introduction.261 Version information Bluetooth
Ÿ
The car's current BluetoothŸ version can be
seen in Bluetooth mode under Bluetooth
menu
Bluetooth software version in car.
ProCarManuals.com

06 Infotainment system
BluetoothŸŸ handsfree*
06
262* Option/accessory, for more information, see Introduction.

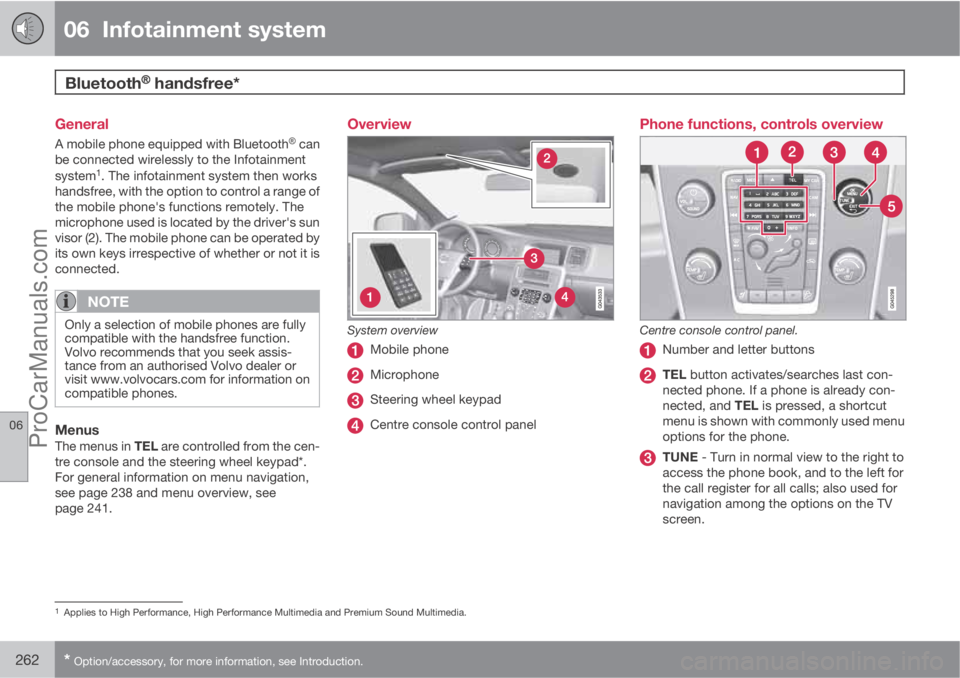

General
A mobile phone equipped with BluetoothŸ can
be connected wirelessly to the Infotainment
system
1. The infotainment system then works
handsfree, with the option to control a range of
the mobile phone's functions remotely. The
microphone used is located by the driver's sun
visor (2). The mobile phone can be operated by
its own keys irrespective of whether or not it is
connected.
NOTE
Only a selection of mobile phones are fully
compatible with the handsfree function.
Volvo recommends that you seek assis-
tance from an authorised Volvo dealer or
visit www.volvocars.com for information on
compatible phones.
MenusThe menus in TEL are controlled from the cen-
tre console and the steering wheel keypad*.
For general information on menu navigation,
see page 238 and menu overview, see
page 241.
Overview
System overview
Mobile phone
Microphone
Steering wheel keypad
Centre console control panel
Phone functions, controls overview
Centre console control panel.
Number and letter buttons
TEL button activates/searches last con-
nected phone. If a phone is already con-
nected, and TEL is pressed, a shortcut
menu is shown with commonly used menu
options for the phone.
TUNE - Turn in normal view to the right to
access the phone book, and to the left for
the call register for all calls; also used for
navigation among the options on the TV
screen.
1Applies to High Performance, High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com

06 Infotainment system
BluetoothŸŸ handsfree*
06
* Option/accessory, for more information, see Introduction.263

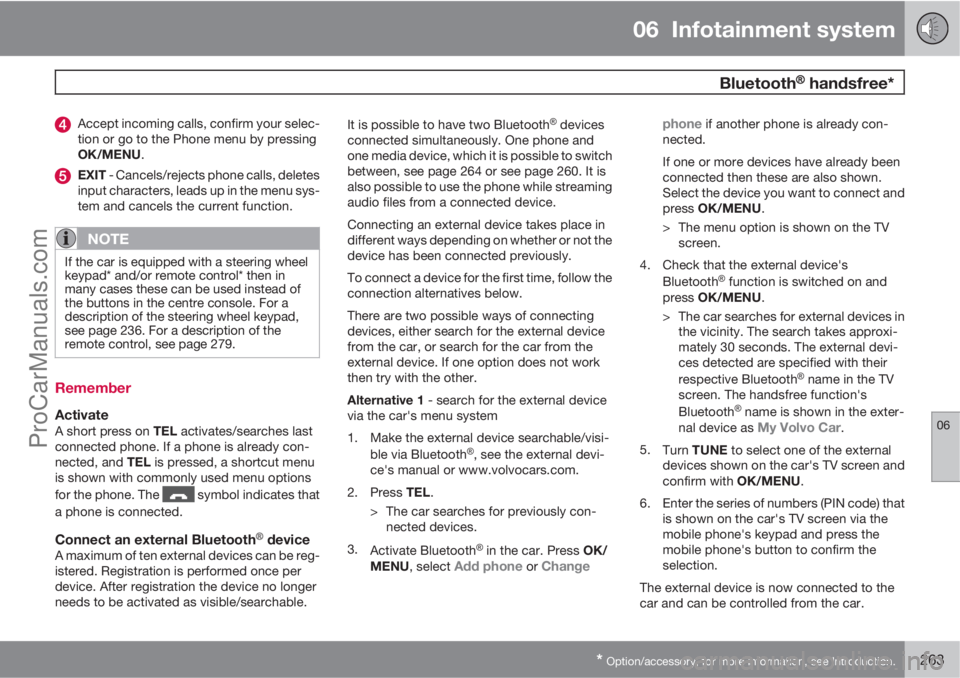

Accept incoming calls, confirm your selec-
tion or go to the Phone menu by pressing
OK/MENU.
EXIT - Cancels/rejects phone calls, deletes
input characters, leads up in the menu sys-
tem and cancels the current function.
NOTE
If the car is equipped with a steering wheel
keypad* and/or remote control* then in
many cases these can be used instead of
the buttons in the centre console. For a
description of the steering wheel keypad,
see page 236. For a description of the
remote control, see page 279.
Remember
ActivateA short press on TEL activates/searches last
connected phone. If a phone is already con-
nected, and TEL is pressed, a shortcut menu
is shown with commonly used menu options
for the phone. The
symbol indicates that
a phone is connected.
Connect an external BluetoothŸ deviceA maximum of ten external devices can be reg-
istered. Registration is performed once per
device. After registration the device no longer
needs to be activated as visible/searchable.It is possible to have two Bluetooth
Ÿ devices
connected simultaneously. One phone and
one media device, which it is possible to switch
between, see page 264 or see page 260. It is
also possible to use the phone while streaming
audio files from a connected device.
Connecting an external device takes place in
different ways depending on whether or not the
device has been connected previously.
To connect a device for the first time, follow the
connection alternatives below.
There are two possible ways of connecting
devices, either search for the external device
from the car, or search for the car from the
external device. If one option does not work
then try with the other.
Alternative 1 - search for the external device
via the car's menu system
1. Make the external device searchable/visi-
ble via Bluetooth
Ÿ, see the external devi-
ce's manual or www.volvocars.com.
2.
Press TEL.
> The car searches for previously con-
nected devices.
3.
Activate Bluetooth
Ÿ in the car. Press OK/
MENU, select Add phone or Changephone
if another phone is already con-
nected.
If one or more devices have already been
connected then these are also shown.
Select the device you want to connect and
press OK/MENU.
> The menu option is shown on the TV
screen.
4. Check that the external device's
Bluetooth
Ÿ function is switched on and
press OK/MENU.
> The car searches for external devices in
the vicinity. The search takes approxi-
mately 30 seconds. The external devi-
ces detected are specified with their
respective Bluetooth
Ÿ name in the TV
screen. The handsfree function's
Bluetooth
Ÿ name is shown in the exter-
nal device as My Volvo Car.
5.
Turn TUNE to select one of the external
devices shown on the car's TV screen and
confirm with OK/MENU.
6. Enter the series of numbers (PIN code) that
is shown on the car's TV screen via the
mobile phone's keypad and press the
mobile phone's button to confirm the
selection.
The external device is now connected to the
car and can be controlled from the car.
ProCarManuals.com

06 Infotainment system
BluetoothŸŸ handsfree*
06
264* Option/accessory, for more information, see Introduction.

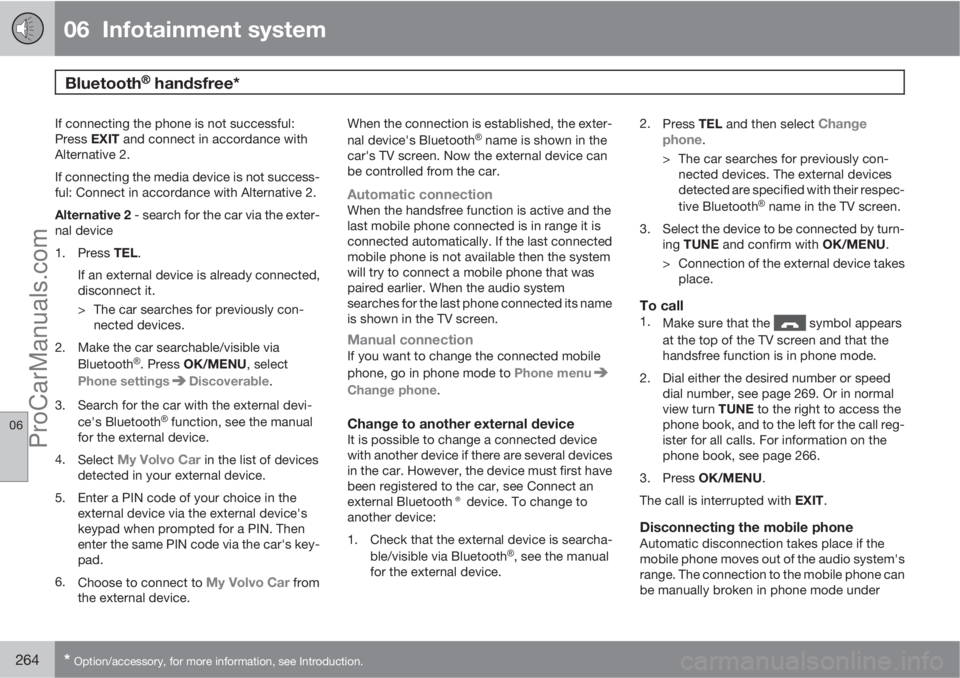

If connecting the phone is not successful:
Press EXIT and connect in accordance with
Alternative 2.
If connecting the media device is not success-
ful: Connect in accordance with Alternative 2.
Alternative 2 - search for the car via the exter-
nal device
1.
Press TEL.
If an external device is already connected,
disconnect it.
> The car searches for previously con-
nected devices.
2. Make the car searchable/visible via
Bluetooth
Ÿ. Press OK/MENU, select
Phone settings
Discoverable.
3. Search for the car with the external devi-
ce's Bluetooth
Ÿ function, see the manual
for the external device.
4.
Select
My Volvo Car in the list of devices
detected in your external device.
5. Enter a PIN code of your choice in the
external device via the external device's
keypad when prompted for a PIN. Then
enter the same PIN code via the car's key-
pad.
6.
Choose to connect to
My Volvo Car from
the external device.When the connection is established, the exter-
nal device's Bluetooth
Ÿ name is shown in the
car's TV screen. Now the external device can
be controlled from the car.
Automatic connectionWhen the handsfree function is active and the
last mobile phone connected is in range it is
connected automatically. If the last connected
mobile phone is not available then the system
will try to connect a mobile phone that was
paired earlier. When the audio system
searches for the last phone connected its name
is shown in the TV screen.
Manual connectionIf you want to change the connected mobile
phone, go in phone mode to Phone menu
Change phone.
Change to another external deviceIt is possible to change a connected device
with another device if there are several devices
in the car. However, the device must first have
been registered to the car, see Connect an
external Bluetooth® device. To change to
another device:
1. Check that the external device is searcha-
ble/visible via Bluetooth
Ÿ, see the manual
for the external device.2.
Press TEL and then select
Change
phone.
> The car searches for previously con-
nected devices. The external devices
detected are specified with their respec-
tive Bluetooth
Ÿ name in the TV screen.
3. Select the device to be connected by turn-
ing TUNE and confirm with OK/MENU.
> Connection of the external device takes
place.
To call1.
Make sure that the symbol appears
at the top of the TV screen and that the
handsfree function is in phone mode.
2. Dial either the desired number or speed
dial number, see page 269. Or in normal
view turn TUNE to the right to access the
phone book, and to the left for the call reg-
ister for all calls. For information on the
phone book, see page 266.
3.
Press OK/MENU.
The call is interrupted with EXIT.
Disconnecting the mobile phoneAutomatic disconnection takes place if the
mobile phone moves out of the audio system's
range. The connection to the mobile phone can
be manually broken in phone mode under
ProCarManuals.com

06 Infotainment system
BluetoothŸŸ handsfree*
06
* Option/accessory, for more information, see Introduction.265

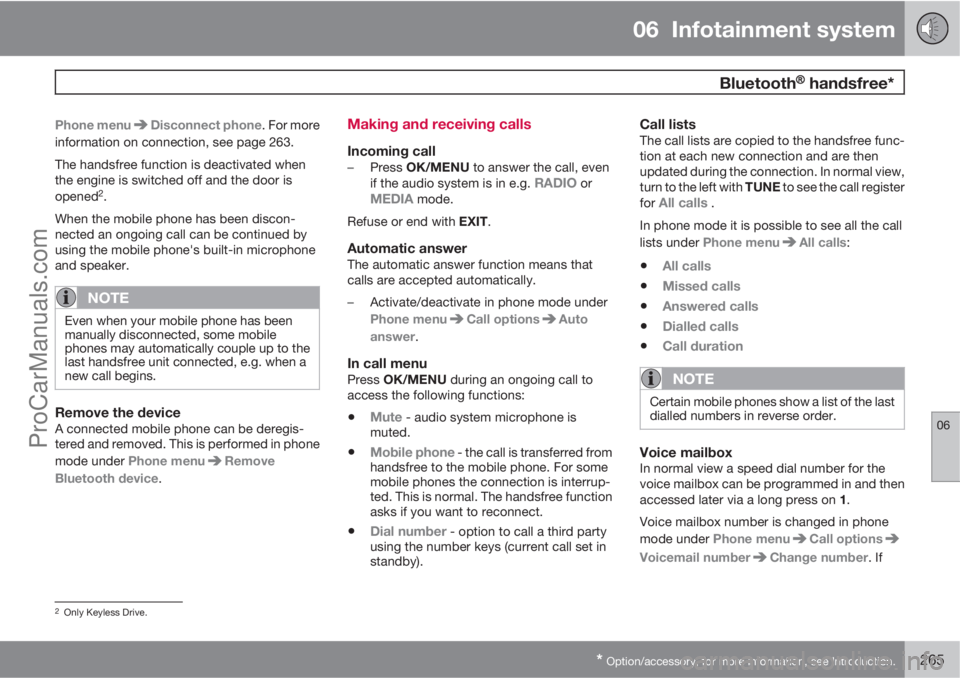

Phone menuDisconnect phone. For more
information on connection, see page 263.
The handsfree function is deactivated when
the engine is switched off and the door is
opened
2.
When the mobile phone has been discon-
nected an ongoing call can be continued by
using the mobile phone's built-in microphone
and speaker.
NOTE
Even when your mobile phone has been
manually disconnected, some mobile
phones may automatically couple up to the
last handsfree unit connected, e.g. when a
new call begins.
Remove the deviceA connected mobile phone can be deregis-
tered and removed. This is performed in phone
mode under Phone menu
Remove
Bluetooth device.
Making and receiving calls
Incoming call–
Press OK/MENU to answer the call, even
if the audio system is in e.g. RADIO orMEDIA mode.
Refuse or end with EXIT.
Automatic answerThe automatic answer function means that
calls are accepted automatically.
–Activate/deactivate in phone mode under
Phone menu
Call optionsAuto
answer.
In call menuPress OK/MENU during an ongoing call to
access the following functions:
•Mute - audio system microphone is
muted.
•Mobile phone - the call is transferred from
handsfree to the mobile phone. For some
mobile phones the connection is interrup-
ted. This is normal. The handsfree function
asks if you want to reconnect.
•Dial number - option to call a third party
using the number keys (current call set in
standby).
Call listsThe call lists are copied to the handsfree func-
tion at each new connection and are then
updated during the connection. In normal view,
turn to the left with TUNE to see the call register
for
All calls .
In phone mode it is possible to see all the call
lists under Phone menu
All calls:
•All calls
•Missed calls
•Answered calls
•Dialled calls
•Call duration
NOTE
Certain mobile phones show a list of the last
dialled numbers in reverse order.
Voice mailboxIn normal view a speed dial number for the
voice mailbox can be programmed in and then
accessed later via a long press on 1.
Voice mailbox number is changed in phone
mode under
Phone menu
Call options
Voicemail numberChange number. If
2Only Keyless Drive.
ProCarManuals.com

06 Infotainment system
BluetoothŸŸ handsfree*
06
266* Option/accessory, for more information, see Introduction.

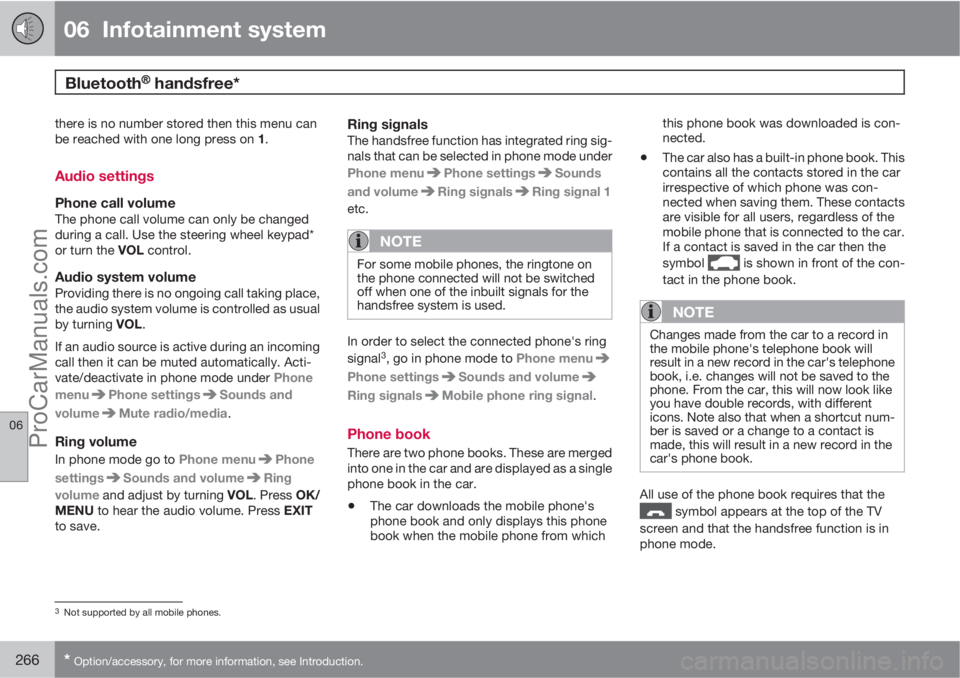

there is no number stored then this menu can
be reached with one long press on 1.
Audio settings
Phone call volumeThe phone call volume can only be changed
during a call. Use the steering wheel keypad*
or turn the VOL control.
Audio system volumeProviding there is no ongoing call taking place,
the audio system volume is controlled as usual
by turning VOL.
If an audio source is active during an incoming
call then it can be muted automatically. Acti-
vate/deactivate in phone mode under Phone
menu
Phone settingsSounds and
volume
Mute radio/media.
Ring volume
In phone mode go to Phone menuPhone
settings
Sounds and volumeRing
volume and adjust by turning VOL. Press OK/
MENU to hear the audio volume. Press EXIT
to save.
Ring signalsThe handsfree function has integrated ring sig-
nals that can be selected in phone mode under
Phone menu
Phone settingsSounds
and volume
Ring signalsRing signal 1
etc.
NOTE
For some mobile phones, the ringtone on
the phone connected will not be switched
off when one of the inbuilt signals for the
handsfree system is used.
In order to select the connected phone's ring
signal3, go in phone mode to Phone menu
Phone settingsSounds and volume
Ring signalsMobile phone ring signal.
Phone book
There are two phone books. These are merged
into one in the car and are displayed as a single
phone book in the car.
•The car downloads the mobile phone's
phone book and only displays this phone
book when the mobile phone from whichthis phone book was downloaded is con-
nected.
•The car also has a built-in phone book. This
contains all the contacts stored in the car
irrespective of which phone was con-
nected when saving them. These contacts
are visible for all users, regardless of the
mobile phone that is connected to the car.
If a contact is saved in the car then the
symbol
is shown in front of the con-
tact in the phone book.
NOTE
Changes made from the car to a record in
the mobile phone's telephone book will
result in a new record in the car's telephone
book, i.e. changes will not be saved to the
phone. From the car, this will now look like
you have double records, with different
icons. Note also that when a shortcut num-
ber is saved or a change to a contact is
made, this will result in a new record in the
car's phone book.
All use of the phone book requires that the
symbol appears at the top of the TV
screen and that the handsfree function is in
phone mode.
3Not supported by all mobile phones.
ProCarManuals.com

06 Infotainment system
BluetoothŸŸ handsfree*
06

* Option/accessory, for more information, see Introduction.267

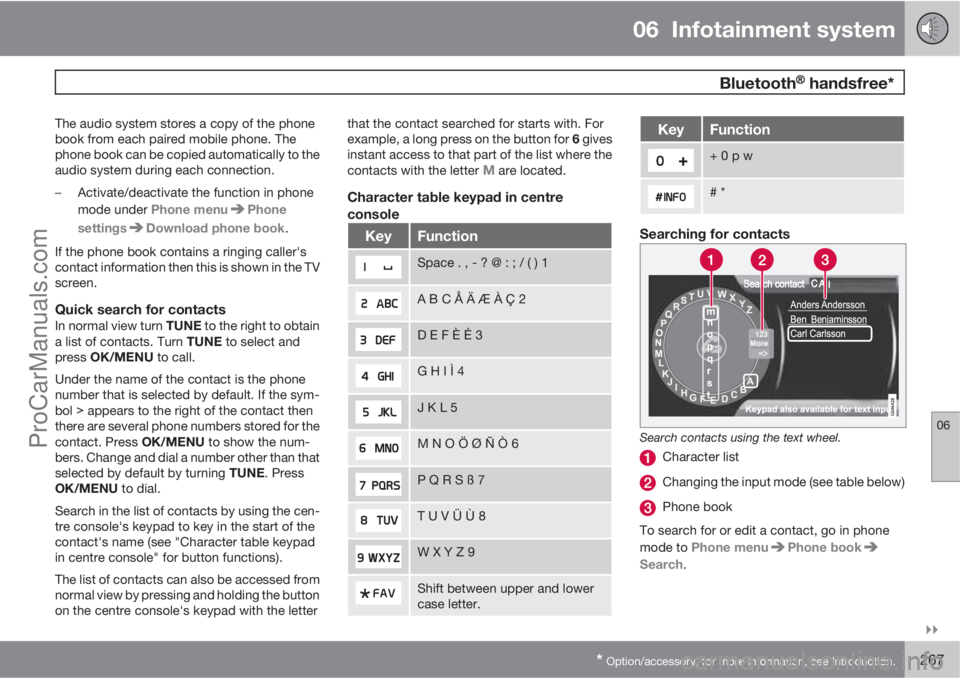

The audio system stores a copy of the phone
book from each paired mobile phone. The
phone book can be copied automatically to the
audio system during each connection.
–Activate/deactivate the function in phone
mode under Phone menu
Phone
settings
Download phone book.
If the phone book contains a ringing caller's
contact information then this is shown in the TV
screen.
Quick search for contactsIn normal view turn TUNE to the right to obtain
a list of contacts. Turn TUNE to select and
press OK/MENU to call.
Under the name of the contact is the phone
number that is selected by default. If the sym-
bol ! appears to the right of the contact then
there are several phone numbers stored for the
contact. Press OK/MENU to show the num-
bers. Change and dial a number other than that
selected by default by turning TUNE. Press
OK/MENU to dial.
Search in the list of contacts by using the cen-
tre console's keypad to key in the start of the
contact's name (see "Character table keypad
in centre console" for button functions).
The list of contacts can also be accessed from
normal view by pressing and holding the button
on the centre console's keypad with the letterthat the contact searched for starts with. For
example, a long press on the button for 6 gives
instant access to that part of the list where the
contacts with the letter
M are located.
Character table keypad in centre
console
KeyFunction
Space . , - ? @ : ; / ( ) 1
A B C Å Ä Æ À Ç 2
D E F È É 3
G H I Ì 4
J K L 5
M N O Ö Ø Ñ Ò 6
P Q R S ß 7
T U V Ü Ù 8
W X Y Z 9
Shift between upper and lower
case letter.
KeyFunction
+ 0 p w
# *
Searching for contacts
Search contacts using the text wheel.
Character list
Changing the input mode (see table below)
Phone book
To search for or edit a contact, go in phone
mode to Phone menu
Phone book
Search.
ProCarManuals.com

06 Infotainment system
BluetoothŸŸ handsfree*
06
268* Option/accessory, for more information, see Introduction.

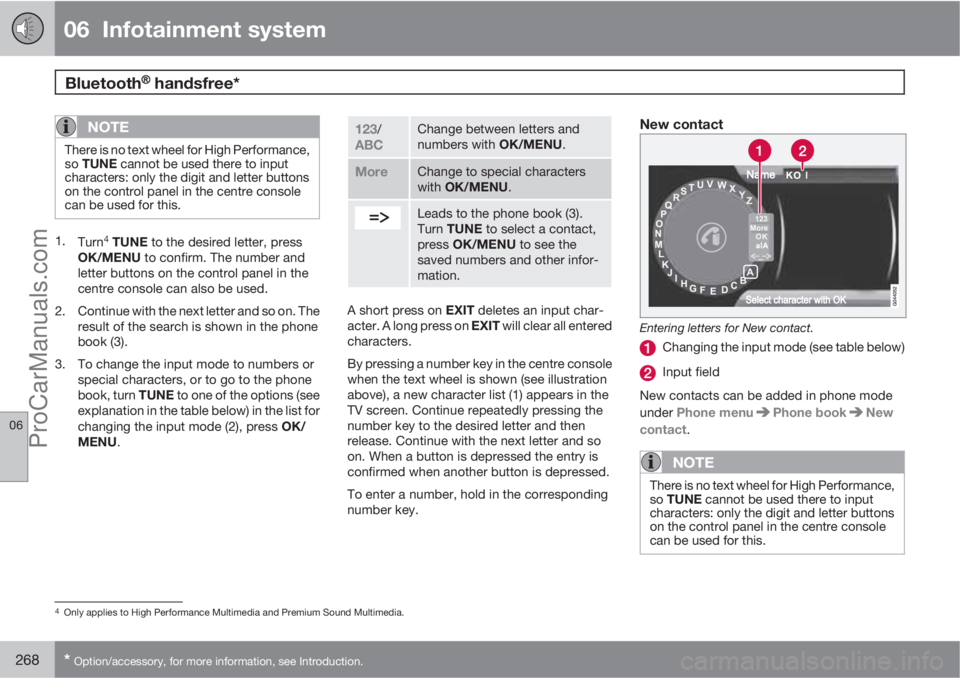

NOTE
There is no text wheel for High Performance,
so TUNE cannot be used there to input
characters: only the digit and letter buttons
on the control panel in the centre console
can be used for this.
1.
Turn4 TUNE to the desired letter, press
OK/MENU to confirm. The number and
letter buttons on the control panel in the
centre console can also be used.
2. Continue with the next letter and so on. The
result of the search is shown in the phone
book (3).
3. To change the input mode to numbers or
special characters, or to go to the phone
book, turn TUNE to one of the options (see
explanation in the table below) in the list for
changing the input mode (2), press OK/
MENU.
123/ABC
Change between letters and
numbers with OK/MENU.
MoreChange to special characters
with OK/MENU.
Leads to the phone book (3).
Turn TUNE to select a contact,
press OK/MENU to see the
saved numbers and other infor-
mation.
A short press on EXIT deletes an input char-
acter. A long press on EXIT will clear all entered
characters.
By pressing a number key in the centre console
when the text wheel is shown (see illustration
above), a new character list (1) appears in the
TV screen. Continue repeatedly pressing the
number key to the desired letter and then
release. Continue with the next letter and so
on. When a button is depressed the entry is
confirmed when another button is depressed.
To enter a number, hold in the corresponding
number key.
New contact
Entering letters for New contact.
Changing the input mode (see table below)
Input field
New contacts can be added in phone mode
under Phone menu
Phone bookNew
contact.
NOTE
There is no text wheel for High Performance,
so TUNE cannot be used there to input
characters: only the digit and letter buttons
on the control panel in the centre console
can be used for this.
4Only applies to High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com
