VOLVO V60 2014 Owners Manual

07 Driver support
07
* Option/accessory, for more information, see Introduction.229

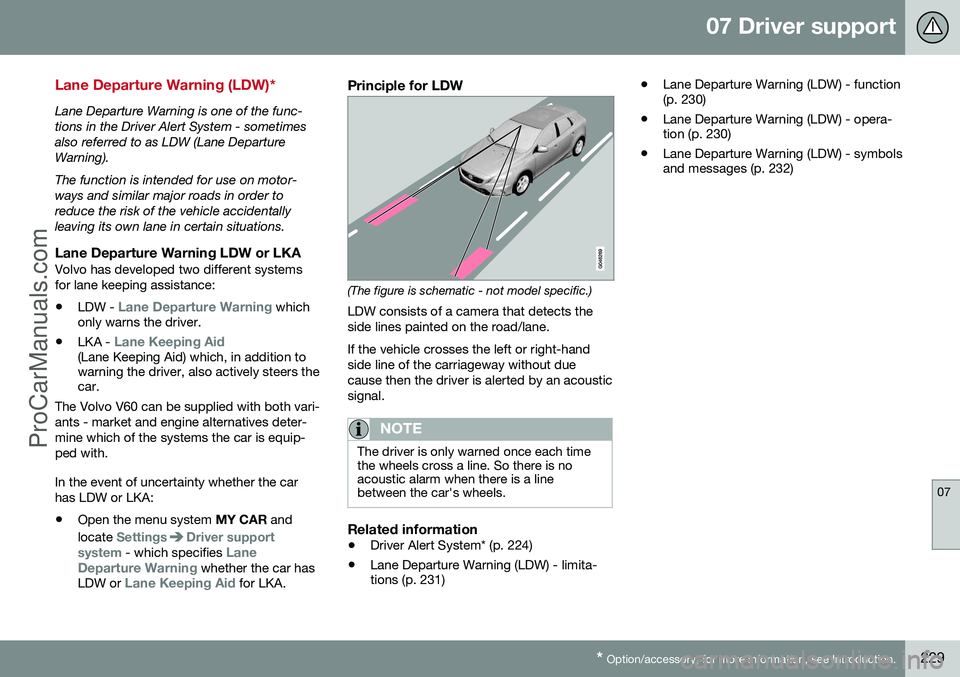

Lane Departure Warning (LDW)*
Lane Departure Warning is one of the func-
tions in the Driver Alert System - sometimesalso referred to as LDW (Lane DepartureWarning). The function is intended for use on motor- ways and similar major roads in order toreduce the risk of the vehicle accidentallyleaving its own lane in certain situations.
Lane Departure Warning LDW or LKAVolvo has developed two different systemsfor lane keeping assistance:
• LDW -
Lane Departure Warning which
only warns the driver.
• LKA -
Lane Keeping Aid(Lane Keeping Aid) which, in addition to warning the driver, also actively steers thecar.
The Volvo V60 can be supplied with both vari- ants - market and engine alternatives deter-mine which of the systems the car is equip-ped with. In the event of uncertainty whether the car has LDW or LKA:
• Open the menu system
MY CAR and
locate
SettingsDriver support
system - which specifies Lane
Departure Warning whether the car has
LDW or Lane Keeping Aid for LKA.
Principle for LDW
(The figure is schematic - not model specific.) LDW consists of a camera that detects the side lines painted on the road/lane. If the vehicle crosses the left or right-hand side line of the carriageway without duecause then the driver is alerted by an acousticsignal.
NOTE
The driver is only warned once each time the wheels cross a line. So there is noacoustic alarm when there is a linebetween the car's wheels.
Related information
• Driver Alert System* (p. 224)
• Lane Departure Warning (LDW) - limita- tions (p. 231) •
Lane Departure Warning (LDW) - function(p. 230)
• Lane Departure Warning (LDW) - opera-tion (p. 230)
• Lane Departure Warning (LDW) - symbolsand messages (p. 232)
ProCarManuals.co’

07 Driver support
07
230* Option/accessory, for more information, see Introduction.

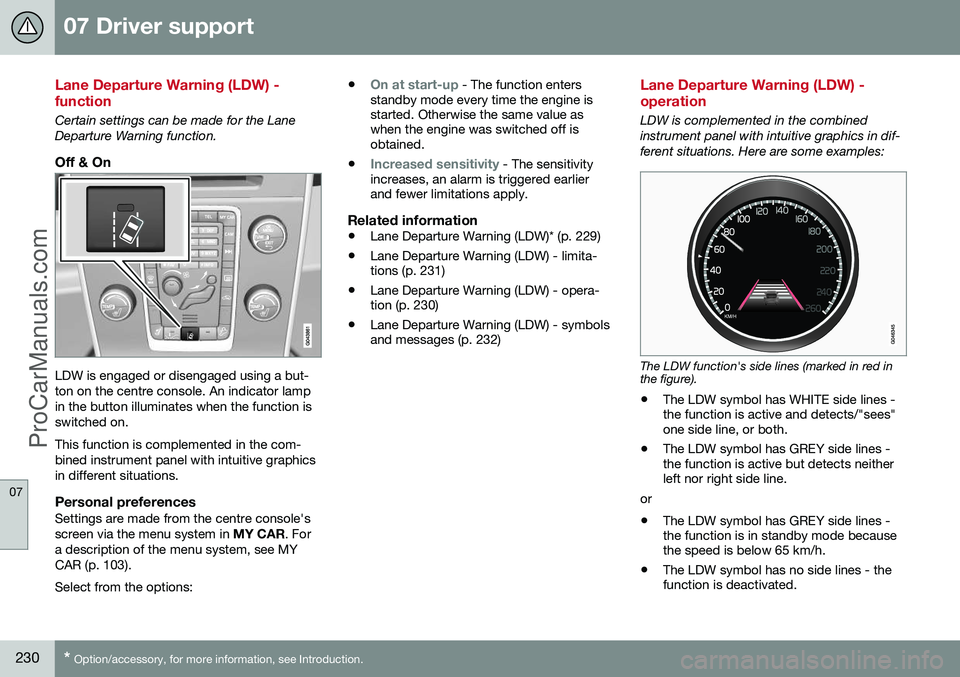

Lane Departure Warning (LDW) - function
Certain settings can be made for the Lane Departure Warning function.
Off & On
LDW is engaged or disengaged using a but- ton on the centre console. An indicator lampin the button illuminates when the function isswitched on. This function is complemented in the com- bined instrument panel with intuitive graphicsin different situations.
Personal preferencesSettings are made from the centre console'sscreen via the menu system in MY CAR. For
a description of the menu system, see MYCAR (p. 103). Select from the options: •
On at start-up - The function enters
standby mode every time the engine is started. Otherwise the same value aswhen the engine was switched off isobtained.
•
Increased sensitivity - The sensitivity
increases, an alarm is triggered earlier and fewer limitations apply.
Related information
• Lane Departure Warning (LDW)* (p. 229)
• Lane Departure Warning (LDW) - limita-tions (p. 231)
• Lane Departure Warning (LDW) - opera-tion (p. 230)
• Lane Departure Warning (LDW) - symbolsand messages (p. 232)
Lane Departure Warning (LDW) - operation
LDW is complemented in the combined instrument panel with intuitive graphics in dif-ferent situations. Here are some examples:
The LDW function's side lines (marked in red in the figure).
• The LDW symbol has WHITE side lines - the function is active and detects/"sees"one side line, or both.
• The LDW symbol has GREY side lines -the function is active but detects neitherleft nor right side line.
or
• The LDW symbol has GREY side lines -the function is in standby mode becausethe speed is below 65 km/h.
• The LDW symbol has no side lines - thefunction is deactivated.
ProCarManuals.co’

07 Driver support
07
* Option/accessory, for more information, see Introduction.231
Related information
• Lane Departure Warning (LDW)* (p. 229)
• Lane Departure Warning (LDW) - limita- tions (p. 231)
• Lane Departure Warning (LDW) - function(p. 230)
• Lane Departure Warning (LDW) - symbolsand messages (p. 232)
Lane Departure Warning (LDW) - limitations
The Lane Keeping Aid camera sensor is restricted in a similar way to the human eye. For more information, read about camera sensor limitations (p. 220).
NOTE
There are some situations where LDW does not give any warning, such as:
• Direction indicators are switched on
• The driver has his/her foot on the brake pedal 20
• In the event of rapid depression of theaccelerator pedal 20
• In the event of rapid steering wheelmovements 20
• If turning is so sharp that the car rolls.
Related information
•
Lane Departure Warning (LDW)* (p. 229)
• Lane Departure Warning (LDW) - function (p. 230)
• Lane Departure Warning (LDW) - opera-tion (p. 230)
• Lane Departure Warning (LDW) - symbolsand messages (p. 232)
20
When "Increased sensitivity" is selected a warning is still given, see Lane Departure Warning (LDW) - function (p. 230).
ProCarManuals.co’

07 Driver support
07
232
Lane Departure Warning (LDW) - symbols and messages
In situations where there is no LDW function a symbol may be shown in the combinedinstrument panel in combination with anexplanatory message - follow the recommen-dation given if appropriate.
Message examples:
Symbol
AMessageSpecification
Lane departure warning ON/Lane departure warning OFFThe function is switched on/off. Shown at switch-on/off.The text disappears after 5 seconds.
Lane Depart. Warning Unavail-
able at this speedThe function is set in standby mode due to speed being lower than 65 km/h.
Lane Depart. Warning Unavail-
ableThe lane does not have clear side markings or the camera sensor is temporarily disengaged. Read about camera sensor limitations (p. 220).
Lane Depart. Warning Availa-
bleThe function scans the lane's side markings.
Windscreen Sensors blockedThe camera sensor is temporarily disengaged. Shown in the event of snow, ice or dirt on the windscreen for example.
• Clean the windscreen surface in front of the camera sensor.
Read about camera sensor limitations (p. 220).
Driver Alert Sys Service requiredThe system is disengaged.
• Visit a workshop if the message remains - an authorised Volvo workshop is recommended.
A
Symbols are schematic - may vary by market and car model.
ProCarManuals.co’

07 Driver support
07
* Option/accessory, for more information, see Introduction.233

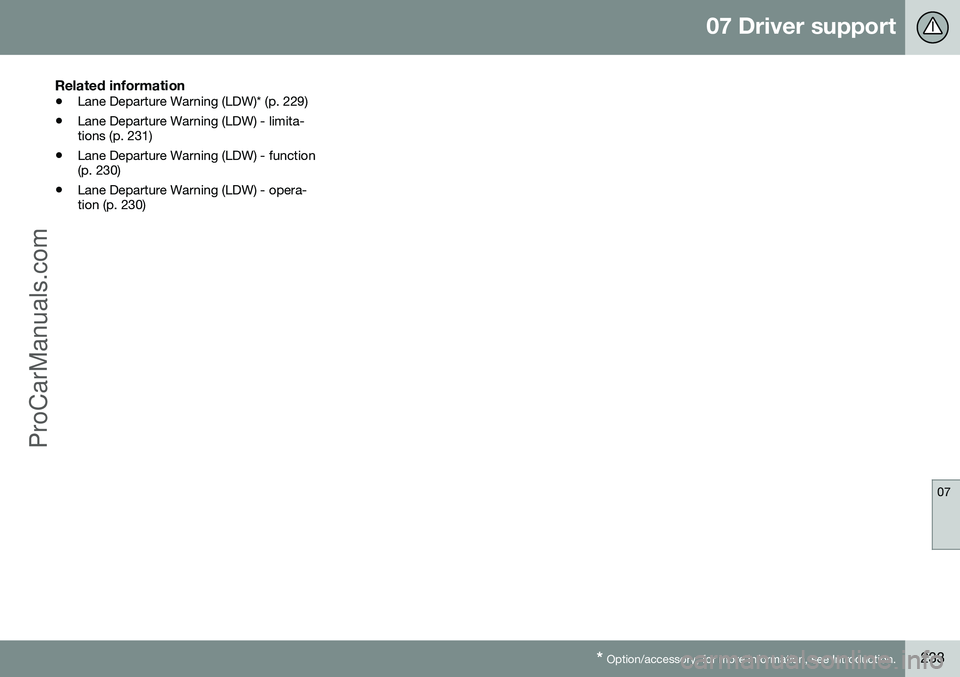

Related information
• Lane Departure Warning (LDW)* (p. 229)
• Lane Departure Warning (LDW) - limita- tions (p. 231)
• Lane Departure Warning (LDW) - function(p. 230)
• Lane Departure Warning (LDW) - opera-tion (p. 230)
ProCarManuals.co’

07 Driver support
07
234* Option/accessory, for more information, see Introduction.

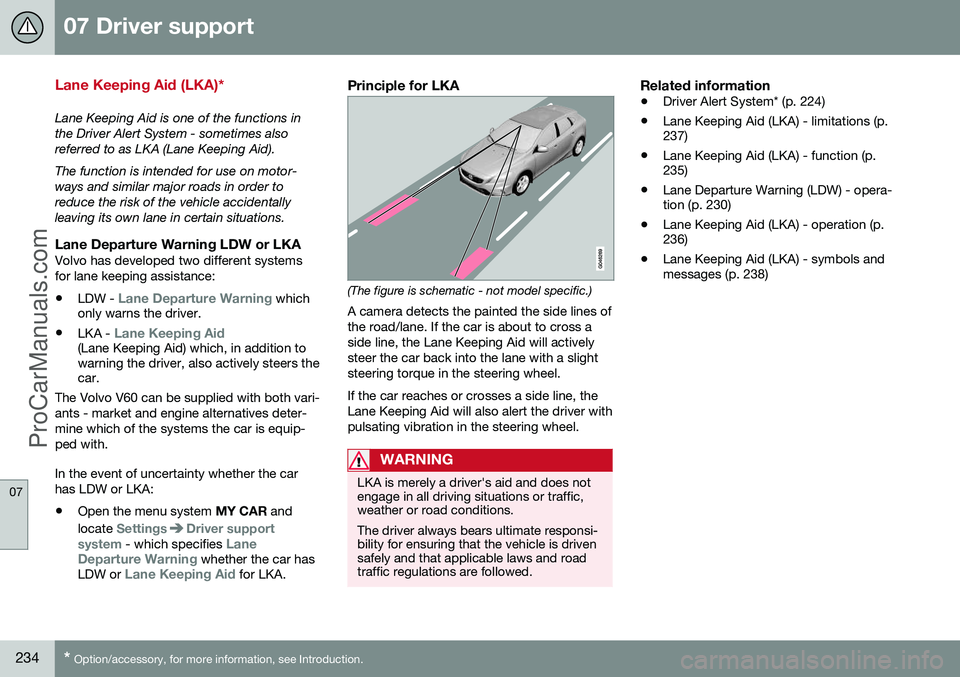

Lane Keeping Aid (LKA)*
Lane Keeping Aid is one of the functions in the Driver Alert System - sometimes alsoreferred to as LKA (Lane Keeping Aid). The function is intended for use on motor- ways and similar major roads in order toreduce the risk of the vehicle accidentallyleaving its own lane in certain situations.
Lane Departure Warning LDW or LKAVolvo has developed two different systemsfor lane keeping assistance:
• LDW -
Lane Departure Warning which
only warns the driver.
• LKA -
Lane Keeping Aid(Lane Keeping Aid) which, in addition to warning the driver, also actively steers thecar.
The Volvo V60 can be supplied with both vari- ants - market and engine alternatives deter-mine which of the systems the car is equip-ped with. In the event of uncertainty whether the car has LDW or LKA:
• Open the menu system
MY CAR and
locate
SettingsDriver support
system - which specifies Lane
Departure Warning whether the car has
LDW or Lane Keeping Aid for LKA.
Principle for LKA
(The figure is schematic - not model specific.) A camera detects the painted the side lines of the road/lane. If the car is about to cross aside line, the Lane Keeping Aid will activelysteer the car back into the lane with a slightsteering torque in the steering wheel. If the car reaches or crosses a side line, the Lane Keeping Aid will also alert the driver withpulsating vibration in the steering wheel.
WARNING
LKA is merely a driver's aid and does not engage in all driving situations or traffic,weather or road conditions. The driver always bears ultimate responsi- bility for ensuring that the vehicle is drivensafely and that applicable laws and roadtraffic regulations are followed.
Related information
• Driver Alert System* (p. 224)
• Lane Keeping Aid (LKA) - limitations (p. 237)
• Lane Keeping Aid (LKA) - function (p.235)
• Lane Departure Warning (LDW) - opera-tion (p. 230)
• Lane Keeping Aid (LKA) - operation (p.236)
• Lane Keeping Aid (LKA) - symbols andmessages (p. 238)
ProCarManuals.co’

07 Driver support
07
}}
235

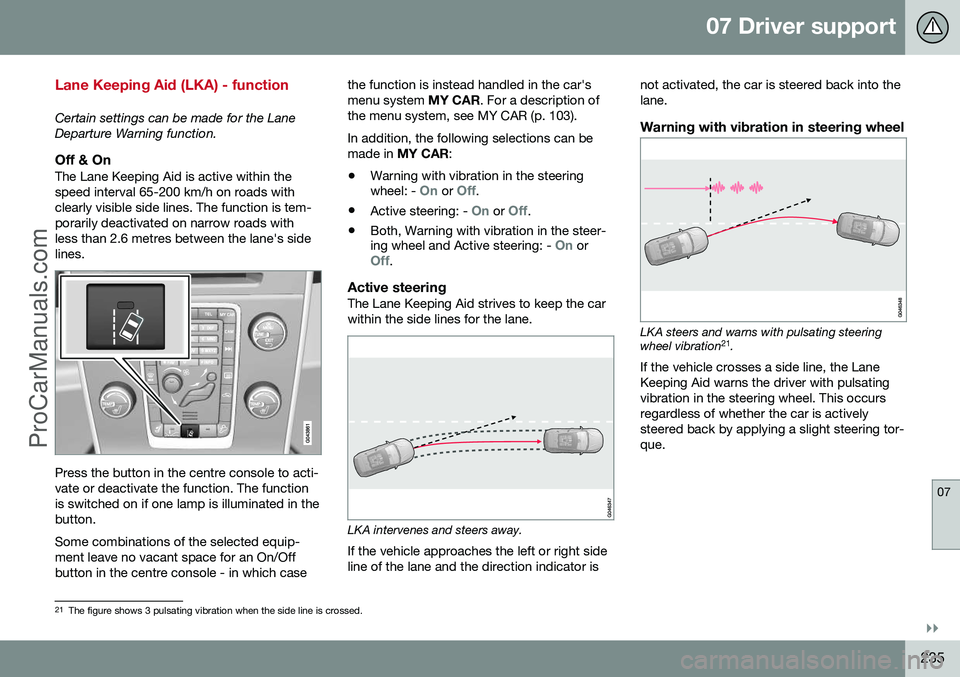

Lane Keeping Aid (LKA) - function
Certain settings can be made for the Lane Departure Warning function.
Off & OnThe Lane Keeping Aid is active within thespeed interval 65-200 km/h on roads withclearly visible side lines. The function is tem-porarily deactivated on narrow roads withless than 2.6 metres between the lane's sidelines.
Press the button in the centre console to acti- vate or deactivate the function. The functionis switched on if one lamp is illuminated in thebutton. Some combinations of the selected equip- ment leave no vacant space for an On/Offbutton in the centre console - in which casethe function is instead handled in the car'smenu system
MY CAR. For a description of
the menu system, see MY CAR (p. 103). In addition, the following selections can be made in MY CAR :
• Warning with vibration in the steering wheel: -
On or Off.
• Active steering: -
On or Off.
• Both, Warning with vibration in the steer- ing wheel and Active steering: -
On orOff.
Active steeringThe Lane Keeping Aid strives to keep the car within the side lines for the lane.
LKA intervenes and steers away.
If the vehicle approaches the left or right side line of the lane and the direction indicator is not activated, the car is steered back into thelane.
Warning with vibration in steering wheel
LKA steers and warns with pulsating steering wheel vibration
21
.
If the vehicle crosses a side line, the Lane Keeping Aid warns the driver with pulsatingvibration in the steering wheel. This occursregardless of whether the car is activelysteered back by applying a slight steering tor-que.
21 The figure shows 3 pulsating vibration when the side line is crossed.
ProCarManuals.co’

||
07 Driver support
07
236* Option/accessory, for more information, see Introduction.

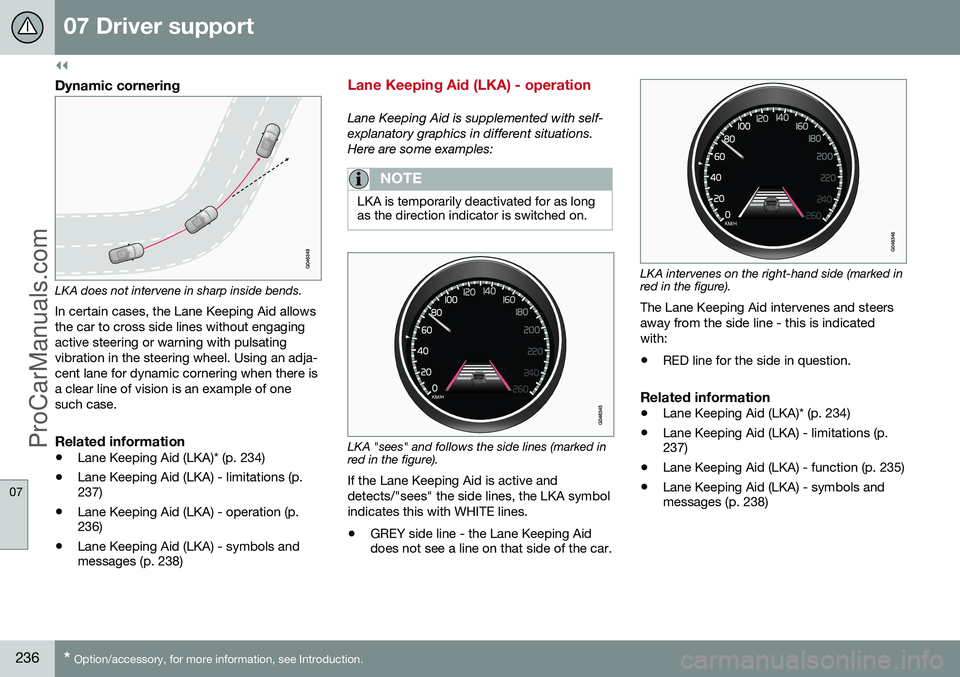

Dynamic cornering
LKA does not intervene in sharp inside bends. In certain cases, the Lane Keeping Aid allows the car to cross side lines without engagingactive steering or warning with pulsatingvibration in the steering wheel. Using an adja-cent lane for dynamic cornering when there isa clear line of vision is an example of onesuch case.
Related information
• Lane Keeping Aid (LKA)* (p. 234)
• Lane Keeping Aid (LKA) - limitations (p. 237)
• Lane Keeping Aid (LKA) - operation (p.236)
• Lane Keeping Aid (LKA) - symbols andmessages (p. 238)
Lane Keeping Aid (LKA) - operation
Lane Keeping Aid is supplemented with self- explanatory graphics in different situations.Here are some examples:
NOTE
LKA is temporarily deactivated for as long as the direction indicator is switched on.
LKA "sees" and follows the side lines (marked in red in the figure).
If the Lane Keeping Aid is active and detects/"sees" the side lines, the LKA symbolindicates this with WHITE lines.
• GREY side line - the Lane Keeping Aid does not see a line on that side of the car.
LKA intervenes on the right-hand side (marked in red in the figure).
The Lane Keeping Aid intervenes and steers away from the side line - this is indicatedwith:
• RED line for the side in question.
Related information
• Lane Keeping Aid (LKA)* (p. 234)
• Lane Keeping Aid (LKA) - limitations (p. 237)
• Lane Keeping Aid (LKA) - function (p. 235)
• Lane Keeping Aid (LKA) - symbols andmessages (p. 238)
ProCarManuals.co’

07 Driver support
07
* Option/accessory, for more information, see Introduction.237
Lane Keeping Aid (LKA) - limitations
The Lane Keeping Aid camera sensor is restricted in a similar way to the human eye.
• For more information, read about camera sensor limitations (p. 220) and seeColli-sion warning system* - operation (p. 217).
NOTE
In certain demanding situations LKA may find it difficult to assist the driver correctly- in which case it is recommended thatLKA is switched off. Examples of such a situation could be:
• roadworks
• winter road conditions
• poor road surface
• very sporty driving style
• poor weather with reduced visibility.
Hands on the steering wheelIn order for Lane Keeping Aid to operate, the driver must have his/her hands on the steer-ing wheel. LKA continually monitors this. Ifhands are not detected on the steering wheelthen a text message is shown, prompting thedriver to actively steer the car. If the driver does not follow the request to begin steering, Lane Keeping Aid goes intostandby mode and will remain in this modeuntil the driver begins to steer the car again.
Related information
•
Lane Keeping Aid (LKA)* (p. 234)
• Lane Keeping Aid (LKA) - function (p. 235)
• Lane Keeping Aid (LKA) - operation (p. 236)
• Lane Keeping Aid (LKA) - symbols andmessages (p. 238)
ProCarManuals.co’

07 Driver support
07
238* Option/accessory, for more information, see Introduction.
Lane Keeping Aid (LKA) - symbols and messagesIn situations where there is no LKA function or it is interrupted, a symbol may be shown inthe combined instrument panel in combina- tion with an explanatory message - follow therecommendation given if appropriate. Message examples:
Symbol
AMessageSpecification
Lane Keeping Aid Unavail-
able at this speedThe Lane Keeping Aid is set in standby mode due to speed being lower than 65 km/h.
Lane Keeping Aid Unavail-
able for current markingsThe lane does not have clear side lines or the camera sensor is temporarily disengaged. Read about the limitations of the camera sensor, see Collision warning system* - camera sensor limitations (p.220) and Collision warning system* - operation (p. 217).
Lane Keeping Aid Availa-
bleThe function scans the lane's side lines.
Windscreen sensors blocked See manualThe camera sensor is temporarily disengaged. Shown in the event of snow, ice or dirt on the windscreen for example.
• Clean the windscreen surface in front of the camera sensor.
Read about the limitations of the camera sensor, see Collision warning system* - camera sensor limitations (p. 220) and Collision warning system* - operation (p. 217).
Lane Keeping Aid Service requiredThe system is disengaged.
• Visit a workshop if the message remains - an authorised Volvo workshop is recommended.
Lane Keeping Aid Inter- ruptedLKA has been set to standby mode. The lines of the LKA symbol indicate when the function is active again.
A
The table's symbols are schematic. The symbols shown in the combined instrument panel may have a slightly different appearance.
