SPECIFICATIONS
569

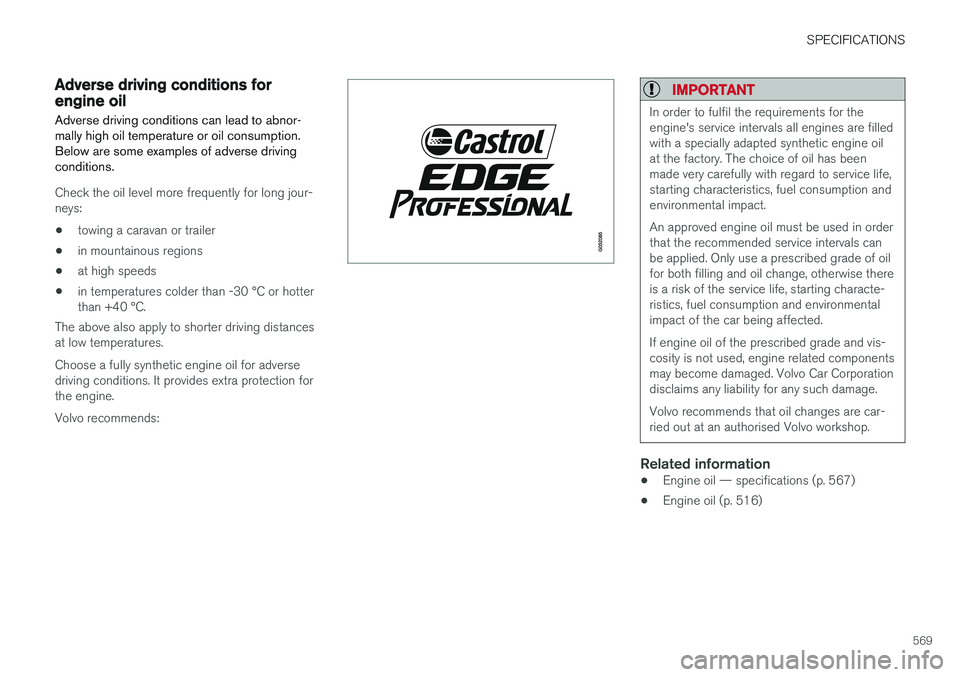

Adverse driving conditions for engine oil Adverse driving conditions can lead to abnor- mally high oil temperature or oil consumption.Below are some examples of adverse drivingconditions.
Check the oil level more frequently for long jour- neys:• towing a caravan or trailer
• in mountainous regions
• at high speeds
• in temperatures colder than -30 °C or hotterthan +40 °C.
The above also apply to shorter driving distancesat low temperatures. Choose a fully synthetic engine oil for adverse driving conditions. It provides extra protection forthe engine.
Volvo recommends:
IMPORTANT
In order to fulfil the requirements for the engine's service intervals all engines are filledwith a specially adapted synthetic engine oilat the factory. The choice of oil has beenmade very carefully with regard to service life,starting characteristics, fuel consumption andenvironmental impact. An approved engine oil must be used in order that the recommended service intervals canbe applied. Only use a prescribed grade of oilfor both filling and oil change, otherwise thereis a risk of the service life, starting characte-ristics, fuel consumption and environmentalimpact of the car being affected. If engine oil of the prescribed grade and vis- cosity is not used, engine related componentsmay become damaged. Volvo Car Corporationdisclaims any liability for any such damage. Volvo recommends that oil changes are car- ried out at an authorised Volvo workshop.
Related information
• Engine oil — specifications (p. 567)
• Engine oil (p. 516)

SPECIFICATIONS
570

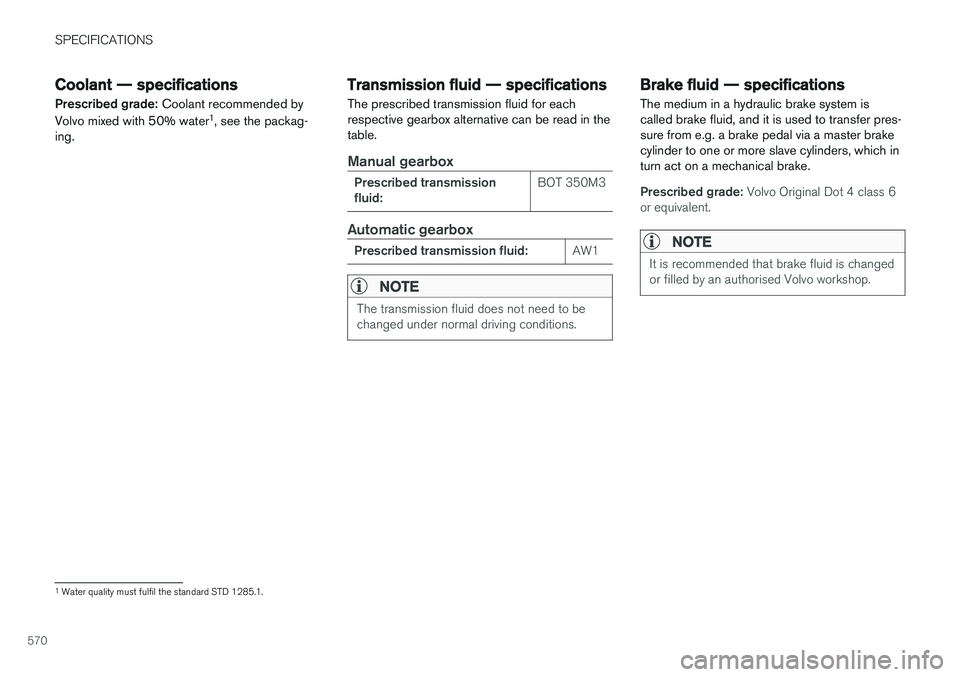

Coolant — specifications
Prescribed grade: Coolant recommended by
Volvo mixed with 50% water 1
, see the packag-
ing. Transmission fluid — specifications The prescribed transmission fluid for each respective gearbox alternative can be read in thetable.
Manual gearbox
Prescribed transmission fluid:
BOT 350M3
Automatic gearbox
Prescribed transmission fluid:
AW1
NOTE
The transmission fluid does not need to be changed under normal driving conditions.
Brake fluid — specifications
The medium in a hydraulic brake system is called brake fluid, and it is used to transfer pres-sure from e.g. a brake pedal via a master brakecylinder to one or more slave cylinders, which inturn act on a mechanical brake.
Prescribed grade: Volvo Original Dot 4 class 6
or equivalent.
NOTE
It is recommended that brake fluid is changed or filled by an authorised Volvo workshop.
1 Water quality must fulfil the standard STD 1285.1.

SPECIFICATIONS
}}
571

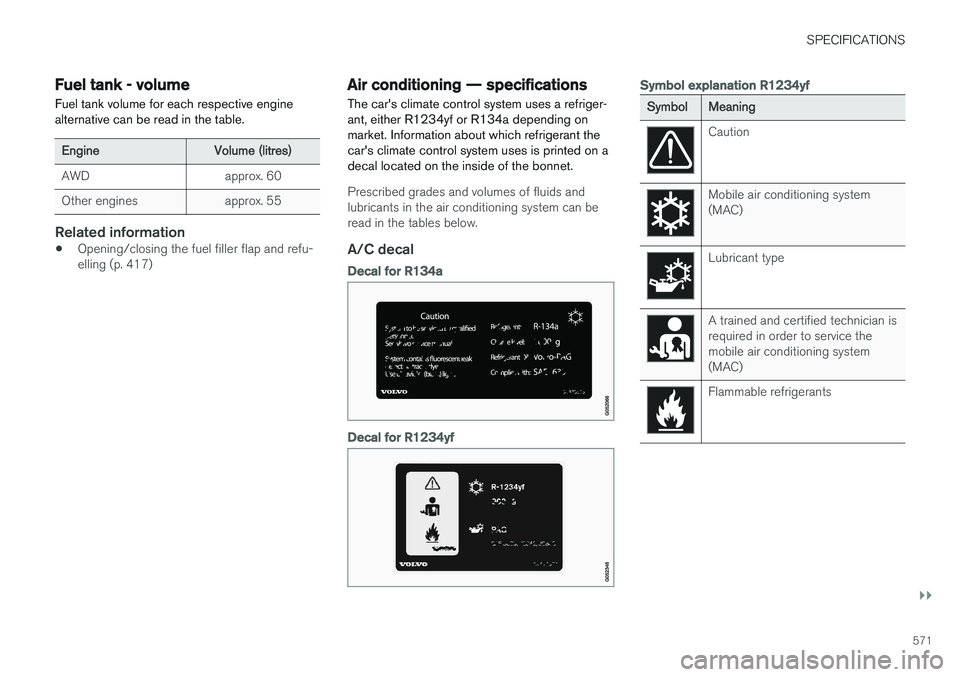

Fuel tank - volume
Fuel tank volume for each respective engine alternative can be read in the table.
Engine Volume (litres)
AWD approx. 60
Other engines approx. 55
Related information
• Opening/closing the fuel filler flap and refu- elling (p. 417)
Air conditioning — specifications
The car's climate control system uses a refriger- ant, either R1234yf or R134a depending onmarket. Information about which refrigerant thecar's climate control system uses is printed on adecal located on the inside of the bonnet.
Prescribed grades and volumes of fluids and lubricants in the air conditioning system can beread in the tables below.
A/C decal
Decal for R134a
Decal for R1234yf
Symbol explanation R1234yf
Symbol Meaning
Caution
Mobile air conditioning system (MAC)
Lubricant type
A trained and certified technician is required in order to service themobile air conditioning system(MAC)
Flammable refrigerants

||
SPECIFICATIONS
572

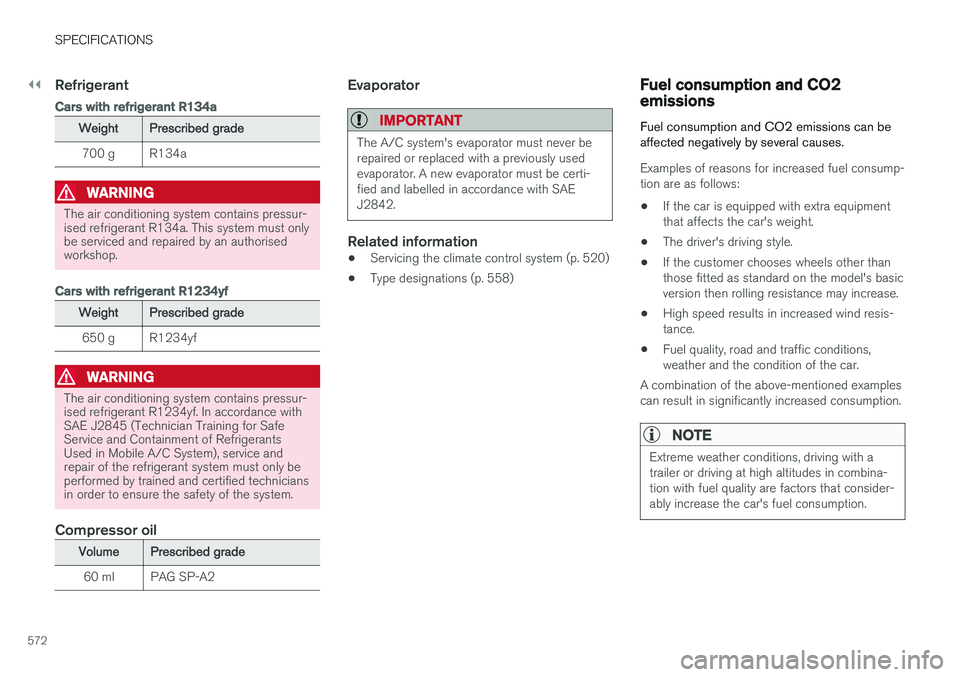

Refrigerant
Cars with refrigerant R134a
WeightPrescribed grade
700 g R134a
WARNING
The air conditioning system contains pressur- ised refrigerant R134a. This system must onlybe serviced and repaired by an authorisedworkshop.
Cars with refrigerant R1234yf
Weight Prescribed grade
650 g R1234yf
WARNING
The air conditioning system contains pressur- ised refrigerant R1234yf. In accordance withSAE J2845 (Technician Training for SafeService and Containment of RefrigerantsUsed in Mobile A/C System), service andrepair of the refrigerant system must only beperformed by trained and certified techniciansin order to ensure the safety of the system.
Compressor oil
Volume Prescribed grade
60 ml PAG SP-A2
Evaporator
IMPORTANT
The A/C system's evaporator must never be repaired or replaced with a previously usedevaporator. A new evaporator must be certi-fied and labelled in accordance with SAEJ2842.
Related information
• Servicing the climate control system (p. 520)
• Type designations (p. 558)
Fuel consumption and CO2 emissions
Fuel consumption and CO2 emissions can be affected negatively by several causes.
Examples of reasons for increased fuel consump- tion are as follows:• If the car is equipped with extra equipmentthat affects the car's weight.
• The driver's driving style.
• If the customer chooses wheels other thanthose fitted as standard on the model's basicversion then rolling resistance may increase.
• High speed results in increased wind resis-tance.
• Fuel quality, road and traffic conditions,weather and the condition of the car.
A combination of the above-mentioned examplescan result in significantly increased consumption.
NOTE
Extreme weather conditions, driving with a trailer or driving at high altitudes in combina-tion with fuel quality are factors that consider-ably increase the car's fuel consumption.

SPECIFICATIONS
573

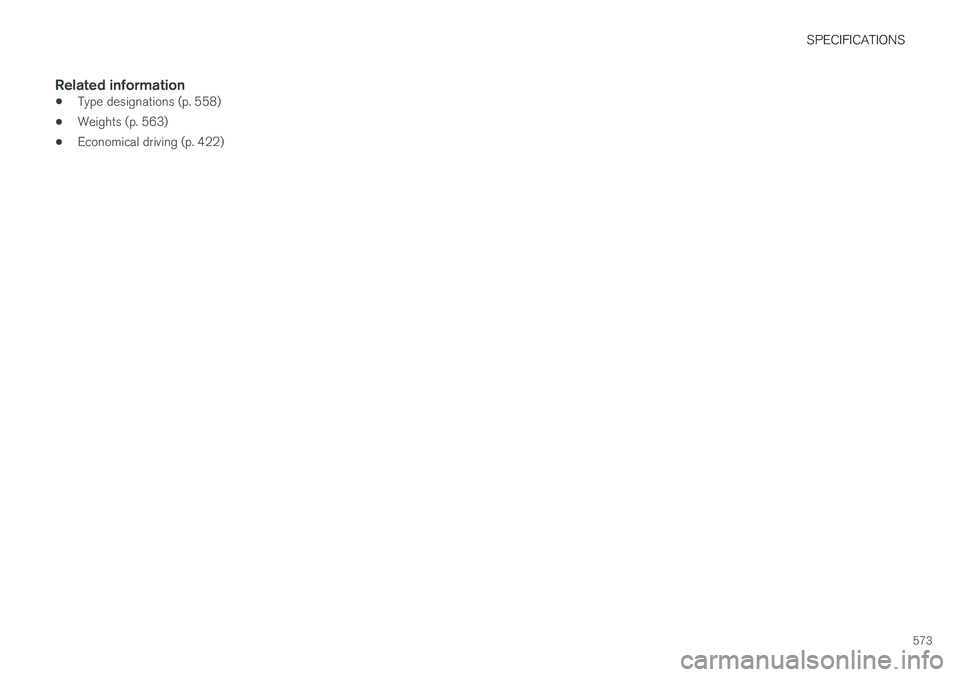

Related information
•Type designations (p. 558)
• Weights (p. 563)
• Economical driving (p. 422)

SPECIFICATIONS
574

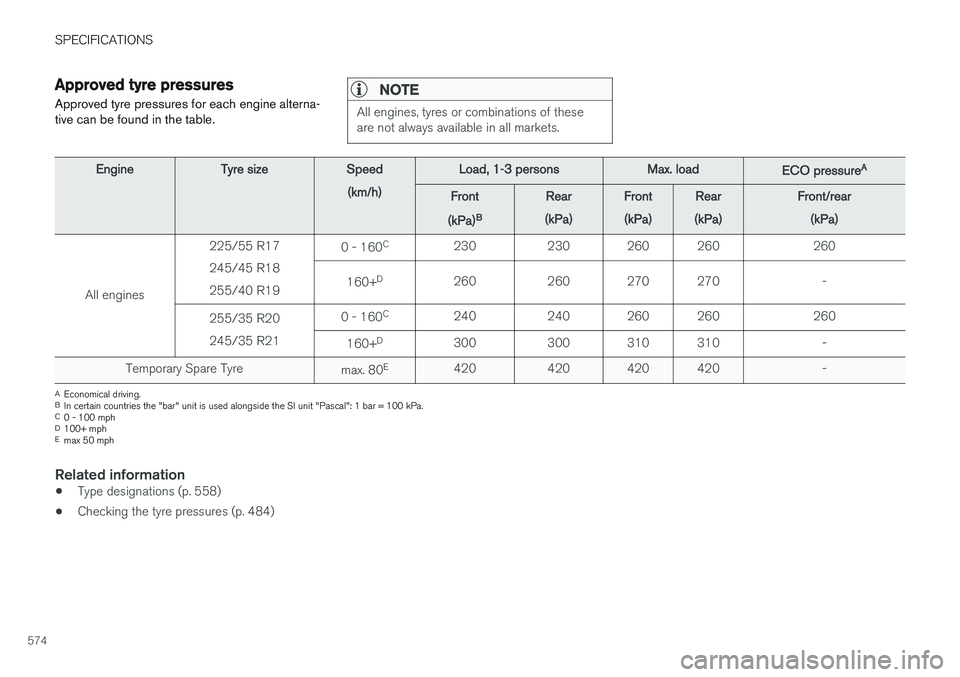

Approved tyre pressuresApproved tyre pressures for each engine alterna- tive can be found in the table.NOTE
All engines, tyres or combinations of these are not always available in all markets.
Engine Tyre size Speed
(km/h) Load, 1-3 persons
Max. load
ECO pressureA
Front
(kPa) B Rear
(kPa) Front
(kPa) Rear
(kPa) Front/rear
(kPa)
All engines 225/55 R17 245/45 R18255/40 R19
0 - 160
C
230 230 260 260 260
160+ D
260 260 270 270 -
255/35 R20245/35 R21 0 - 160
C
240 240 260 260 260
160+ D
300 300 310 310 -
Temporary Spare Tyre max. 80E
420 420 420 420 -
AEconomical driving.
B In certain countries the "bar" unit is used alongside the SI unit "Pascal": 1 bar = 100 kPa.
C 0 - 100 mph
D 100+ mph
E max 50 mph
Related information
• Type designations (p. 558)
• Checking the tyre pressures (p. 484)

SPECIFICATIONS
575

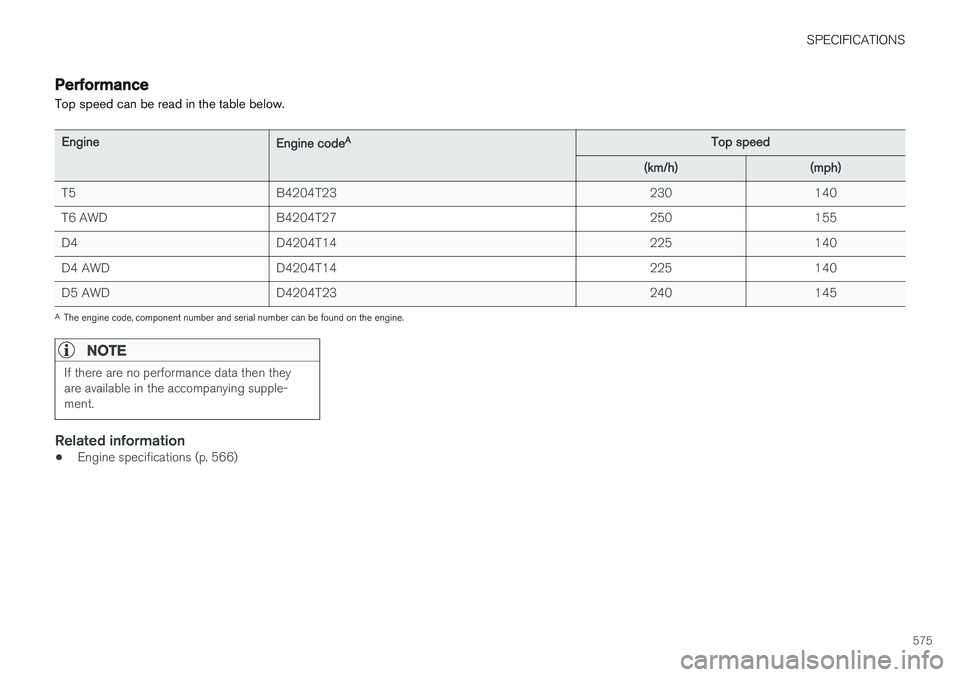

Performance Top speed can be read in the table below.
EngineEngine codeA
Top speed
(km/h) (mph)
T5 B4204T23 230 140
T6 AWD B4204T27 250 155
D4 D4204T14 225 140
D4 AWD D4204T14 225 140
D5 AWD D4204T23 240 145
A
The engine code, component number and serial number can be found on the engine.
NOTE
If there are no performance data then they are available in the accompanying supple-ment.
Related information
• Engine specifications (p. 566)

ALPHABETICAL INDEX
577
1, 2, 3 ...
4WD 405
A
A/C (Air conditioning) 190 ABSanti-lock brakes 406
ACC – Adaptive cruise control 290, 299
Accessories and extra equipment 23
Active bending lights 141
Active main beam 138
Active Park Assist 374 function 374
Limitations 379
operation 376
Symbols and messages 381
Active Yaw Control 273
Adaptation of headlamp beam 141
Adapting driving characteristics 272, 400
Adaptive Cruise Control 290, 299 change cruise control functionality 301
fault tracing 300
function 290
managing speed 294, 295
overtaking 298
radar sensor 318
setting the time interval 296
standby mode 297
temporary deactivation 297
Additional heater (Auxiliary heater) 215
Adjusting the steering wheel 132Aerial location 240
Airbag 63 Activating/deactivating 66
driver's side 64
passenger side 64, 66
Airbag, see Airbag 63
Air conditioning 190Air conditioning, fluid volume and grade 571
Air conditioning system 182, 186 repair 520
Air distribution 197 Air vents 197, 199
change 198
defrosting 194
Recirculation 196
table of options 201
Air quality 184, 185 allergies and asthma 185
passenger compartment filter 185Air recirculation 196
Alarm 262automatic re-arming 264
deactivation 264
reduced alarm level 262
Alcohol lock 384
Allergy and asthma inducing substances. 185
All Wheel Drive, (AWD) 405
All Wheel Drive (AWD) 405
Android Auto 453
Apple CarPlay 450, 451Applications settings 178
Approach lighting 148
Apps 434 download, update and uninstall 468
Ashtray 224
Audio and media 434
Audio settings 435, 463 media 448
phone 462
play media 443
Text message 461
Auto climate control 189
Automatic brake 412 after collision 408
ALPHABETICAL INDEX

ALPHABETICAL INDEX

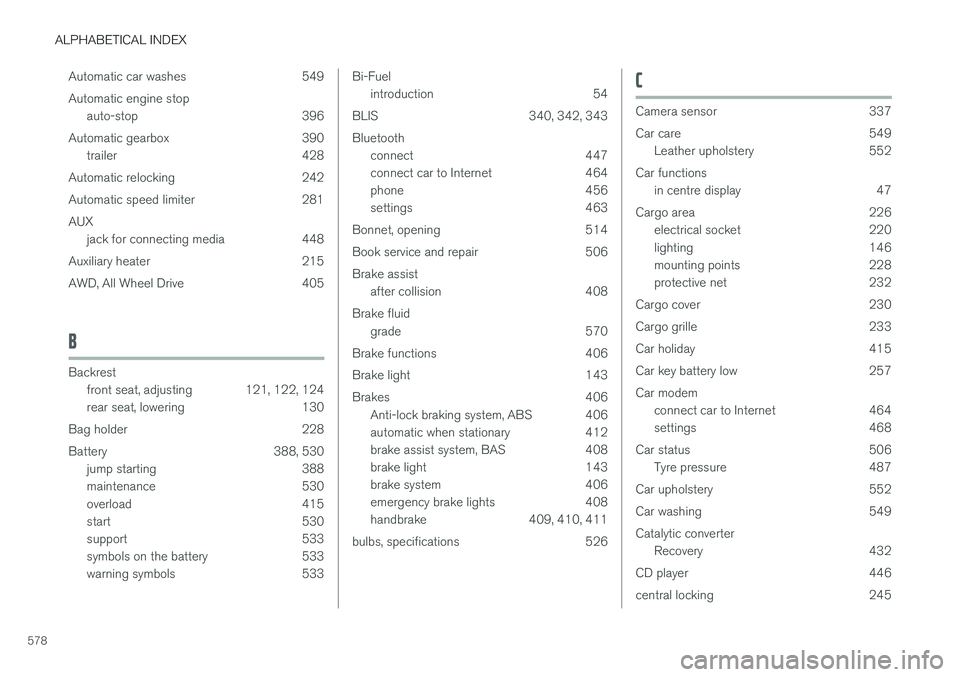

578Automatic car washes 549 Automatic engine stop
auto-stop 396
Automatic gearbox 390 trailer 428
Automatic relocking 242
Automatic speed limiter 281AUX jack for connecting media 448
Auxiliary heater 215
AWD, All Wheel Drive 405
B
Backrest front seat, adjusting 121, 122, 124
rear seat, lowering 130
Bag holder 228
Battery 388, 530 jump starting 388
maintenance 530
overload 415
start 530
support 533
symbols on the battery 533
warning symbols 533
Bi-Fuel introduction 54
BLIS 340, 342, 343 Bluetooth connect 447
connect car to Internet 464
phone 456
settings 463
Bonnet, opening 514
Book service and repair 506Brake assist after collision 408
Brake fluid grade 570
Brake functions 406
Brake light 143
Brakes 406 Anti-lock braking system, ABS 406
automatic when stationary 412
brake assist system, BAS 408
brake light 143
brake system 406
emergency brake lights 408
handbrake 409, 410, 411
bulbs, specifications 526C
Camera sensor 337
Car care 549 Leather upholstery 552
Car functions in centre display 47
Cargo area 226 electrical socket 220
lighting 146
mounting points 228
protective net 232
Cargo cover 230
Cargo grille 233
Car holiday 415
Car key battery low 257Car modem connect car to Internet 464
settings 468
Car status 506 Tyre pressure 487
Car upholstery 552
Car washing 549Catalytic converter Recovery 432
CD player 446
central locking 245
