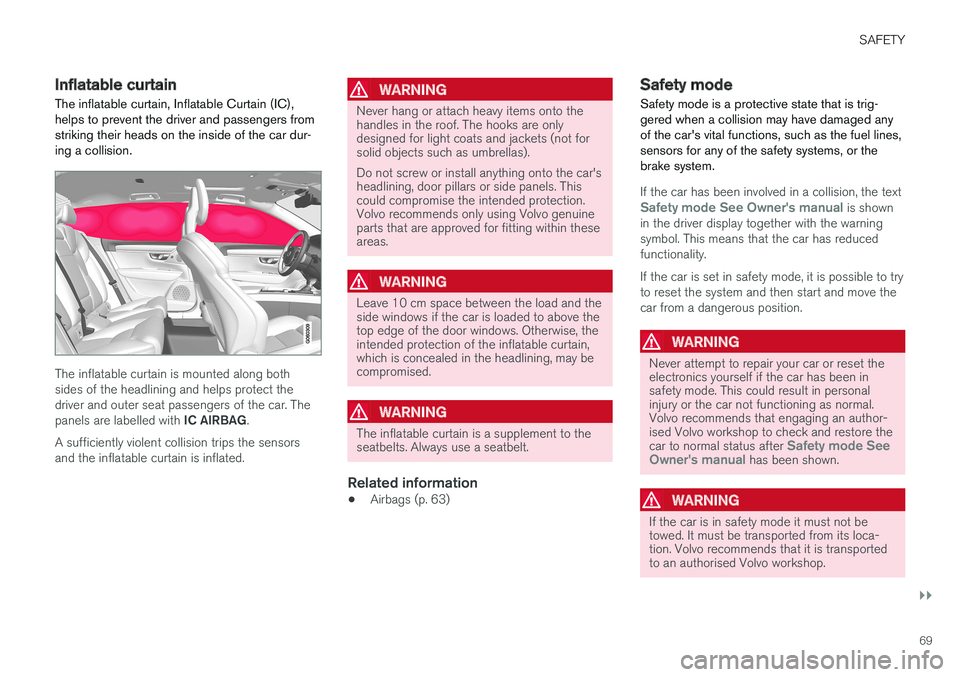

Inflatable curtain The inflatable curtain, Inflatable Curtain (IC), helps to prevent the driver and passengers fromstriking their heads on the inside of the car dur-ing a collision.
The inflatable curtain is mounted along both sides of the headlining and helps protect thedriver and outer seat passengers of the car. The panels are labelled with IC AIRBAG.
A sufficiently violent collision trips the sensors and the inflatable curtain is inflated.
WARNING
Never hang or attach heavy items onto the handles in the roof. The hooks are onlydesigned for light coats and jackets (not forsolid objects such as umbrellas). Do not screw or install anything onto the car's headlining, door pillars or side panels. Thiscould compromise the intended protection.Volvo recommends only using Volvo genuineparts that are approved for fitting within theseareas.
WARNING
Leave 10 cm space between the load and the side windows if the car is loaded to above thetop edge of the door windows. Otherwise, theintended protection of the inflatable curtain,which is concealed in the headlining, may becompromised.
WARNING
The inflatable curtain is a supplement to the seatbelts. Always use a seatbelt.
Related information
• Airbags (p. 63)
Safety mode Safety mode is a protective state that is trig- gered when a collision may have damaged anyof the car's vital functions, such as the fuel lines,sensors for any of the safety systems, or thebrake system.
If the car has been involved in a collision, the textSafety mode See Owner's manual is shown
in the driver display together with the warning symbol. This means that the car has reducedfunctionality. If the car is set in safety mode, it is possible to try to reset the system and then start and move thecar from a dangerous position.
WARNING
Never attempt to repair your car or reset the electronics yourself if the car has been insafety mode. This could result in personalinjury or the car not functioning as normal.Volvo recommends that engaging an author-ised Volvo workshop to check and restore the car to normal status after
Safety mode See
Owner's manual has been shown.
WARNING
If the car is in safety mode it must not be towed. It must be transported from its loca-tion. Volvo recommends that it is transportedto an authorised Volvo workshop.

||
SAFETY
70
Related information
•Safety (p. 56)
• Starting/moving the car after safety mode (p. 70)

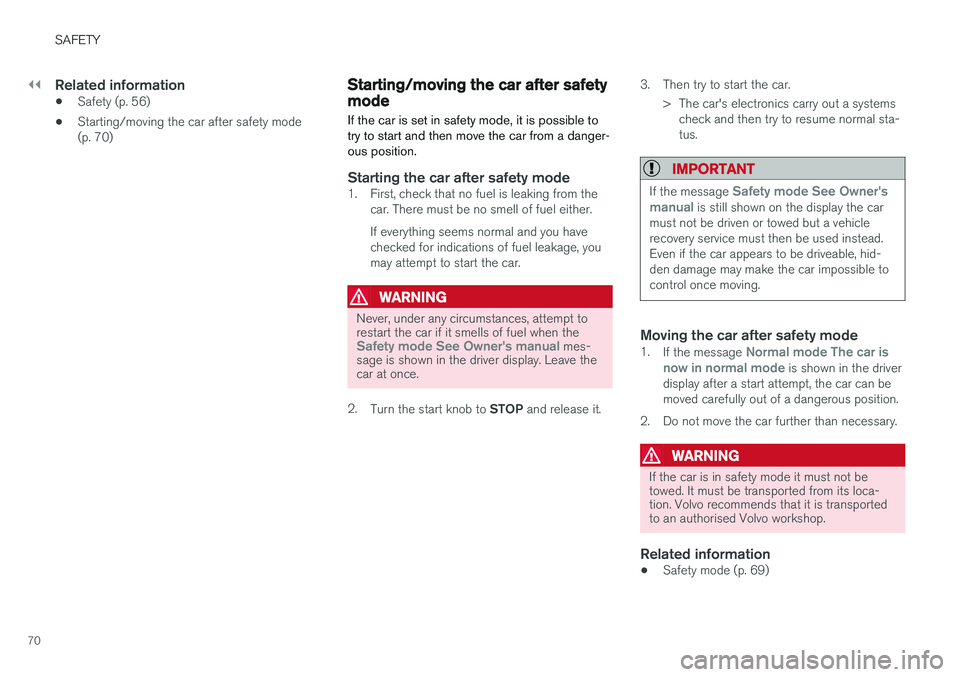

Starting/moving the car after safety mode
If the car is set in safety mode, it is possible to try to start and then move the car from a danger-ous position.
Starting the car after safety mode1. First, check that no fuel is leaking from the car. There must be no smell of fuel either. If everything seems normal and you have checked for indications of fuel leakage, youmay attempt to start the car.
WARNING
Never, under any circumstances, attempt to restart the car if it smells of fuel when the
Safety mode See Owner's manual mes-
sage is shown in the driver display. Leave the car at once.
2. Turn the start knob to STOP and release it. 3. Then try to start the car.
> The car's electronics carry out a systemscheck and then try to resume normal sta- tus.
IMPORTANT
If the message Safety mode See Owner's
manual is still shown on the display the car
must not be driven or towed but a vehicle recovery service must then be used instead.Even if the car appears to be driveable, hid-den damage may make the car impossible tocontrol once moving.
Moving the car after safety mode1. If the message Normal mode The car is
now in normal mode is shown in the driver
display after a start attempt, the car can be moved carefully out of a dangerous position.
2. Do not move the car further than necessary.
WARNING
If the car is in safety mode it must not be towed. It must be transported from its loca-tion. Volvo recommends that it is transportedto an authorised Volvo workshop.
Related information
• Safety mode (p. 69)

SAFETY
}}
* Option/accessory.71

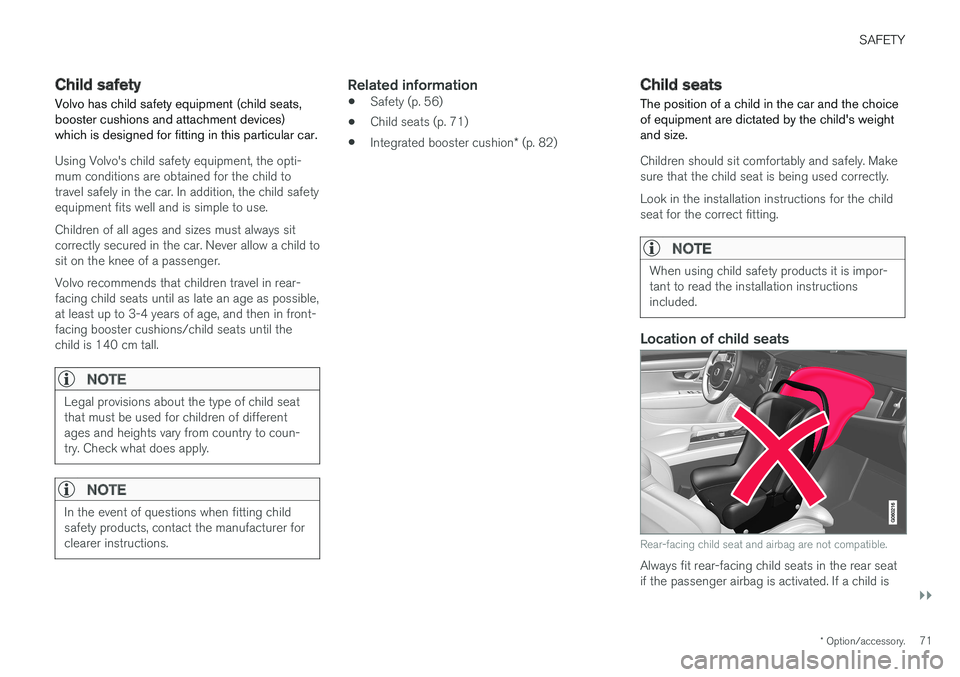

Child safety
Volvo has child safety equipment (child seats, booster cushions and attachment devices)which is designed for fitting in this particular car.
Using Volvo's child safety equipment, the opti- mum conditions are obtained for the child totravel safely in the car. In addition, the child safetyequipment fits well and is simple to use. Children of all ages and sizes must always sit correctly secured in the car. Never allow a child tosit on the knee of a passenger. Volvo recommends that children travel in rear- facing child seats until as late an age as possible,at least up to 3-4 years of age, and then in front-facing booster cushions/child seats until thechild is 140 cm tall.
NOTE
Legal provisions about the type of child seat that must be used for children of differentages and heights vary from country to coun-try. Check what does apply.
NOTE
In the event of questions when fitting child safety products, contact the manufacturer forclearer instructions.
Related information
• Safety (p. 56)
• Child seats (p. 71)
• Integrated booster cushion
* (p. 82)
Child seats
The position of a child in the car and the choice of equipment are dictated by the child's weightand size.
Children should sit comfortably and safely. Make sure that the child seat is being used correctly. Look in the installation instructions for the child seat for the correct fitting.
NOTE
When using child safety products it is impor- tant to read the installation instructionsincluded.
Location of child seats
Rear-facing child seat and airbag are not compatible.
Always fit rear-facing child seats in the rear seat if the passenger airbag is activated. If a child is

||
SAFETY
72sitting on the front passenger seat then he/she could suffer serious injury if the airbag deploys. If the passenger airbag is deactivated then rear- facing child seats can be fitted on the front pas-senger seat.
NOTE
Regulations regarding the placement of chil- dren in cars vary from country to country.Check what does apply.
WARNING
Never allow anybody to stand or sit in front of the front passenger seat. Never use a rear-facing child seat on the front passenger seat if the airbag is activated. Front-facing passengers (children and adults) must never sit on the front passenger seat ifthe passenger airbag is deactivated. Failure to follow the advice given above can endanger life or lead to serious personalinjury.

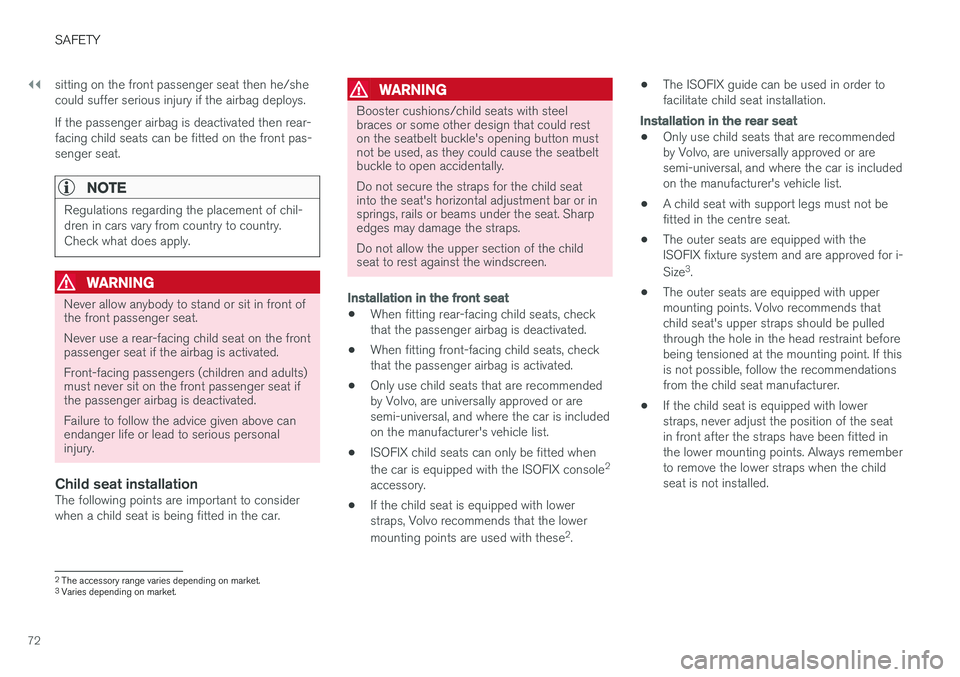

Child seat installationThe following points are important to consider when a child seat is being fitted in the car.
WARNING
Booster cushions/child seats with steel braces or some other design that could reston the seatbelt buckle's opening button mustnot be used, as they could cause the seatbeltbuckle to open accidentally. Do not secure the straps for the child seat into the seat's horizontal adjustment bar or insprings, rails or beams under the seat. Sharpedges may damage the straps. Do not allow the upper section of the child seat to rest against the windscreen.
Installation in the front seat
•
When fitting rear-facing child seats, check that the passenger airbag is deactivated.
• When fitting front-facing child seats, checkthat the passenger airbag is activated.
• Only use child seats that are recommendedby Volvo, are universally approved or aresemi-universal, and where the car is includedon the manufacturer's vehicle list.
• ISOFIX child seats can only be fitted when the car is equipped with the ISOFIX console 2
accessory.
• If the child seat is equipped with lower straps, Volvo recommends that the lower mounting points are used with these 2
. •
The ISOFIX guide can be used in order to facilitate child seat installation.
Installation in the rear seat
•Only use child seats that are recommended by Volvo, are universally approved or aresemi-universal, and where the car is includedon the manufacturer's vehicle list.
• A child seat with support legs must not befitted in the centre seat.
• The outer seats are equipped with theISOFIX fixture system and are approved for i- Size3
.
• The outer seats are equipped with upper mounting points. Volvo recommends thatchild seat's upper straps should be pulledthrough the hole in the head restraint beforebeing tensioned at the mounting point. If thisis not possible, follow the recommendationsfrom the child seat manufacturer.
• If the child seat is equipped with lowerstraps, never adjust the position of the seatin front after the straps have been fitted inthe lower mounting points. Always rememberto remove the lower straps when the childseat is not installed.
2
The accessory range varies depending on market.
3 Varies depending on market.

SAFETY
}}
* Option/accessory.73

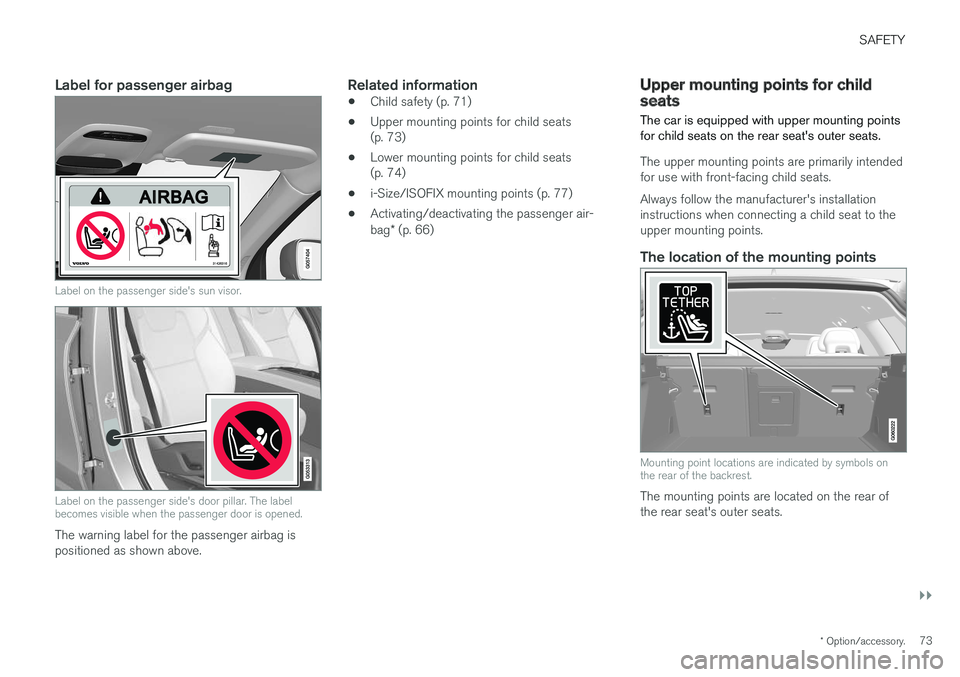

Label for passenger airbag
Label on the passenger side's sun visor.
Label on the passenger side's door pillar. The label becomes visible when the passenger door is opened.
The warning label for the passenger airbag is positioned as shown above.
Related information
•Child safety (p. 71)
• Upper mounting points for child seats(p. 73)
• Lower mounting points for child seats(p. 74)
• i-Size/ISOFIX mounting points (p. 77)
• Activating/deactivating the passenger air- bag
* (p. 66)
Upper mounting points for child seats
The car is equipped with upper mounting points for child seats on the rear seat's outer seats.
The upper mounting points are primarily intended for use with front-facing child seats. Always follow the manufacturer's installation instructions when connecting a child seat to theupper mounting points.
The location of the mounting points
Mounting point locations are indicated by symbols on the rear of the backrest.
The mounting points are located on the rear of the rear seat's outer seats.

||
SAFETY
* Option/accessory.
74
WARNING
The child seat's upper straps must be routed through the hole in the head restraint legbefore they are tensioned at the mountingpoint. If this is not possible, follow the recom-mendations from the child seat manufacturer.
NOTE
Fold the head restraints in order to facilitate fitting this type of child seat in cars with fold-ing head restraints on the outer seats.
NOTE
In cars with a cargo cover over the luggage compartment, this must be removed beforechild seats can be attached to the securingpoints.
Related information
• Child seats (p. 71)
• Lower mounting points for child seats (p. 74)
• i-Size/ISOFIX mounting points (p. 77)
• Table for location of child seats using thecar's seatbelts (p. 75)

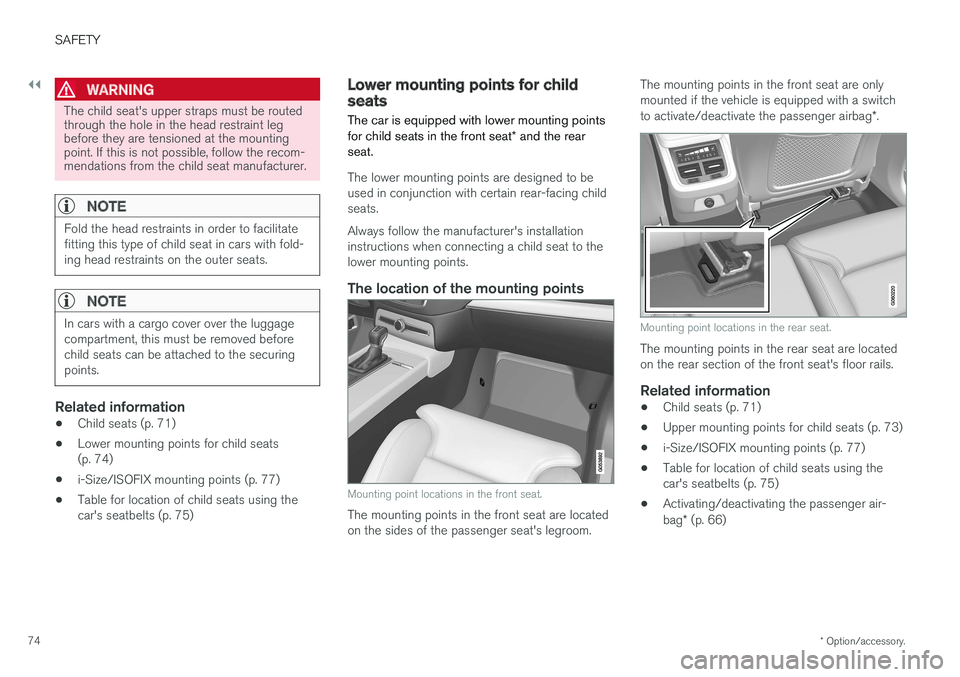

Lower mounting points for child seats
The car is equipped with lower mounting points for child seats in the front seat * and the rear
seat.
The lower mounting points are designed to be used in conjunction with certain rear-facing childseats. Always follow the manufacturer's installation instructions when connecting a child seat to thelower mounting points.
The location of the mounting points
Mounting point locations in the front seat.
The mounting points in the front seat are located on the sides of the passenger seat's legroom. The mounting points in the front seat are onlymounted if the vehicle is equipped with a switch to activate/deactivate the passenger airbag
*.
Mounting point locations in the rear seat.
The mounting points in the rear seat are located on the rear section of the front seat's floor rails.
Related information
• Child seats (p. 71)
• Upper mounting points for child seats (p. 73)
• i-Size/ISOFIX mounting points (p. 77)
• Table for location of child seats using thecar's seatbelts (p. 75)
• Activating/deactivating the passenger air- bag
* (p. 66)

SAFETY
}}
* Option/accessory.75

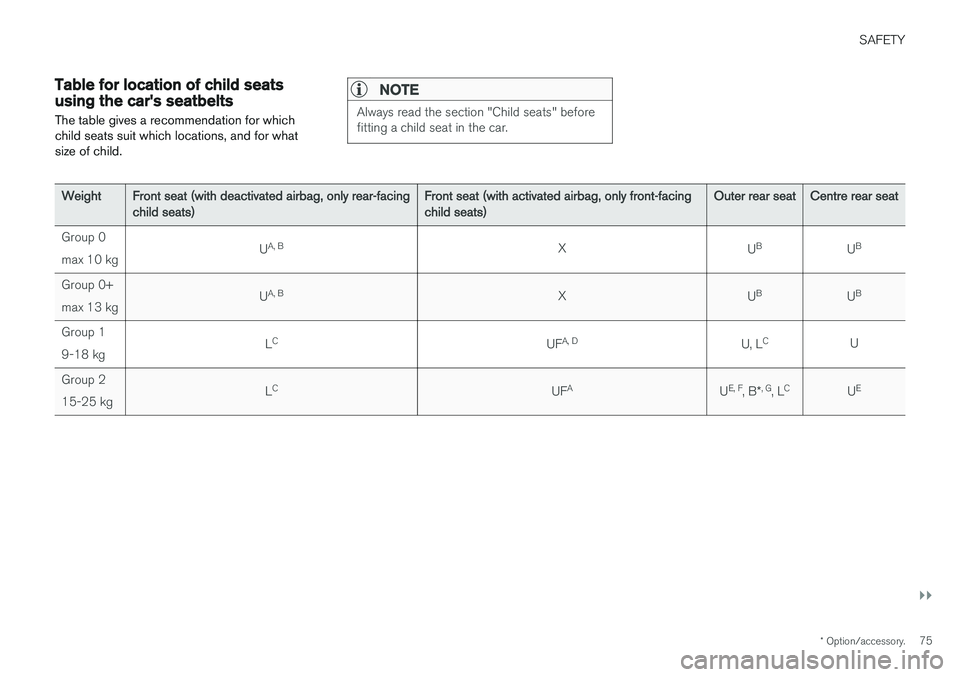

Table for location of child seats using the car's seatbelts
The table gives a recommendation for which
child seats suit which locations, and for what size of child.NOTE
Always read the section "Child seats" before fitting a child seat in the car.
Weight Front seat (with deactivated airbag, only rear-facing child seats) Front seat (with activated airbag, only front-facingchild seats)Outer rear seat
Centre rear seat
Group 0 max 10 kg U
A, B
XUB
UB
Group 0+max 13 kg U
A, B
XUB
UB
Group 19-18 kg L
C
UFA, D
U, LC
U
Group 215-25 kg L
C
UFA
UE, F
, B *, G
, L C
UE

||
SAFETY
* Option/accessory.
76

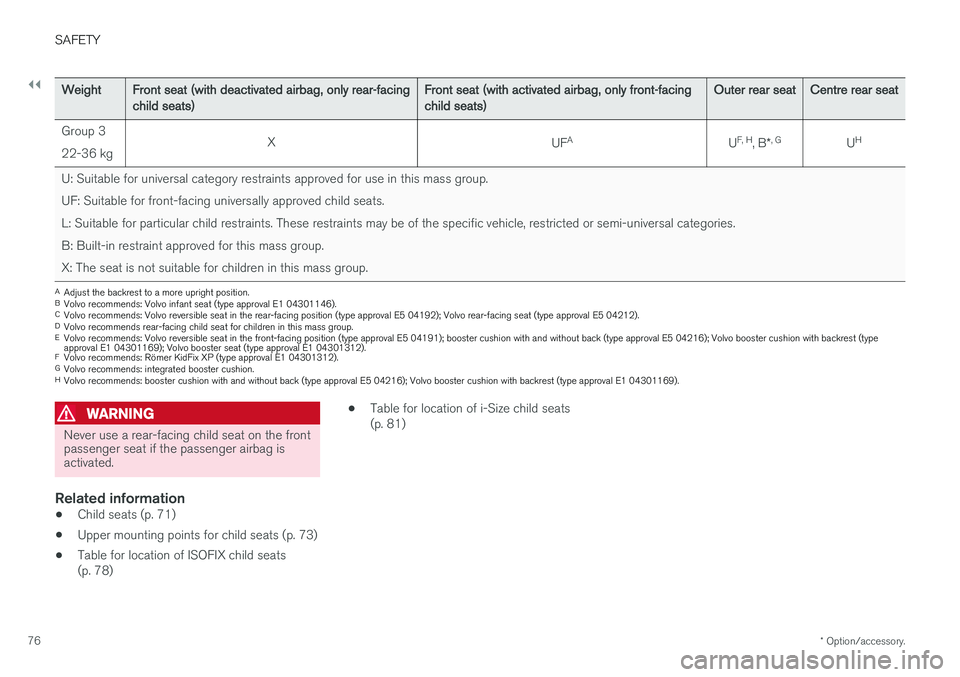

Weight Front seat (with deactivated airbag, only rear-facing child seats) Front seat (with activated airbag, only front-facingchild seats)Outer rear seat
Centre rear seat
Group 3 22-36 kg X
UFA
UF, H
, B*, G
UH
U: Suitable for universal category restraints approved for use in this mass group.UF: Suitable for front-facing universally approved child seats.L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.B: Built-in restraint approved for this mass group.X: The seat is not suitable for children in this mass group.
A Adjust the backrest to a more upright position.
B Volvo recommends: Volvo infant seat (type approval E1 04301146).
C Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192); Volvo rear-facing seat (type approval E5 04212).
D Volvo recommends rear-facing child seat for children in this mass group.
E Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04191); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169); Volvo booster seat (type approval E1 04301312).
F Volvo recommends: Römer KidFix XP (type approval E1 04301312).
G Volvo recommends: integrated booster cushion.
H Volvo recommends: booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169).
WARNING
Never use a rear-facing child seat on the front passenger seat if the passenger airbag isactivated.
Related information
• Child seats (p. 71)
• Upper mounting points for child seats (p. 73)
• Table for location of ISOFIX child seats (p. 78) •
Table for location of i-Size child seats(p. 81)

SAFETY
77

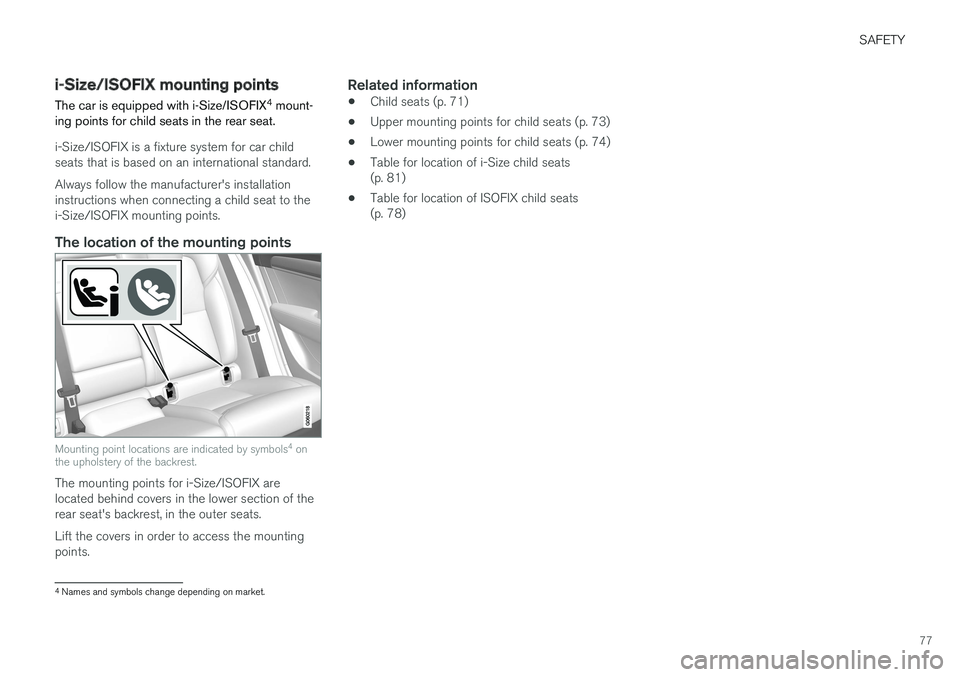

i-Size/ISOFIX mounting points The car is equipped with i-Size/ISOFIX4
mount-
ing points for child seats in the rear seat.
i-Size/ISOFIX is a fixture system for car child seats that is based on an international standard. Always follow the manufacturer's installation instructions when connecting a child seat to thei-Size/ISOFIX mounting points.
The location of the mounting points
Mounting point locations are indicated by symbols 4
on
the upholstery of the backrest.
The mounting points for i-Size/ISOFIX are located behind covers in the lower section of therear seat's backrest, in the outer seats. Lift the covers in order to access the mounting points.
Related information
• Child seats (p. 71)
• Upper mounting points for child seats (p. 73)
• Lower mounting points for child seats (p. 74)
• Table for location of i-Size child seats(p. 81)
• Table for location of ISOFIX child seats(p. 78)
4
Names and symbols change depending on market.

SAFETY
78

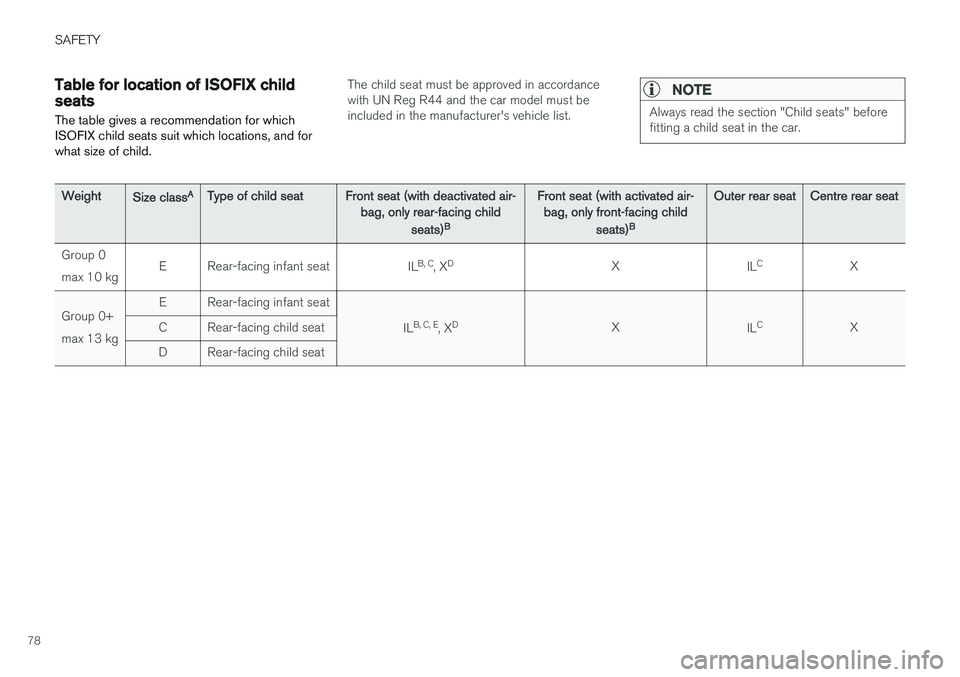

Table for location of ISOFIX child seats
The table gives a recommendation for which ISOFIX child seats suit which locations, and forwhat size of child.The child seat must be approved in accordance with UN Reg R44 and the car model must beincluded in the manufacturer's vehicle list.NOTE
Always read the section "Child seats" before fitting a child seat in the car.
Weight Size classA
Type of child seat Front seat (with deactivated air-
bag, only rear-facing child
seats)B Front seat (with activated air-
bag, only front-facing child
seats)B Outer rear seat
Centre rear seat
Group 0 max 10 kg E Rear-facing infant seat
ILB, C
, XD
XILC
X
Group 0+max 13 kg E Rear-facing infant seat
ILB, C, E
, XD
XILC
X
C Rear-facing child seat
D Rear-facing child seat
