VOLVO V90 2017 Workshop Manual

INTRODUCTION
}}
49

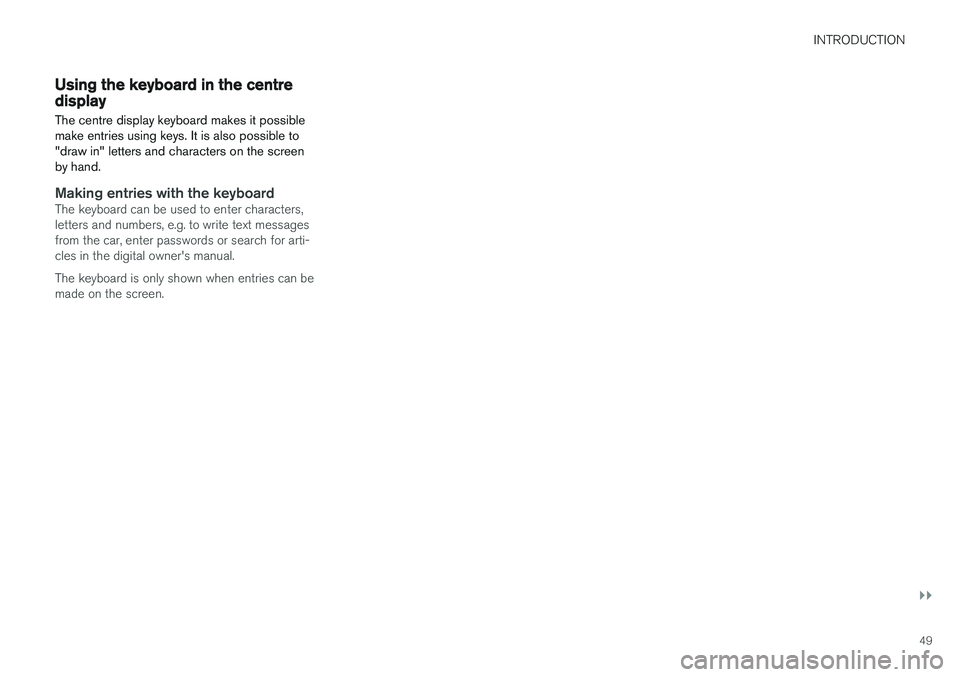

Using the keyboard in the centre display The centre display keyboard makes it possible make entries using keys. It is also possible to"draw in" letters and characters on the screenby hand.
Making entries with the keyboardThe keyboard can be used to enter characters, letters and numbers, e.g. to write text messagesfrom the car, enter passwords or search for arti-cles in the digital owner's manual. The keyboard is only shown when entries can be made on the screen.

||
INTRODUCTION
50

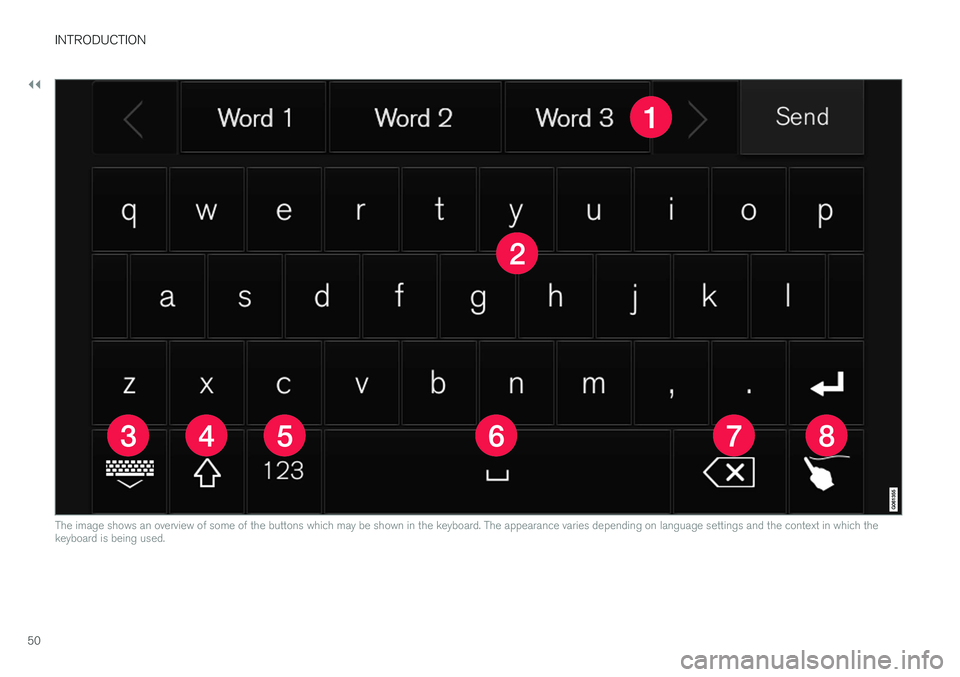

The image shows an overview of some of the buttons which may be shown in the keyboard. The appearance varies depending on language settings and the context in which the keyboard is being used.

INTRODUCTION
}}
51

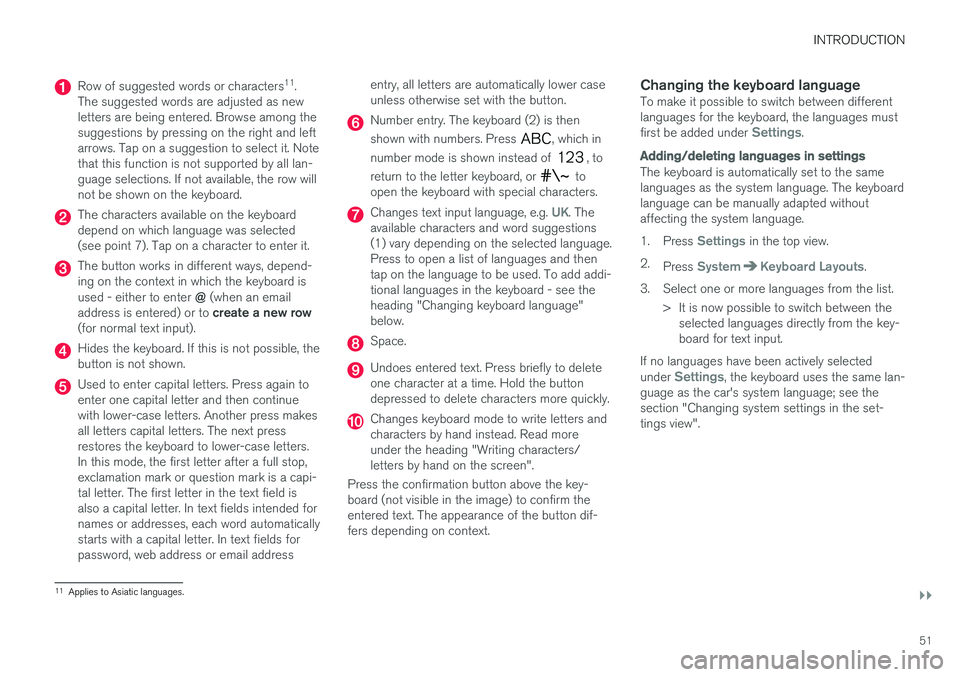

Row of suggested words or characters11
.
The suggested words are adjusted as new letters are being entered. Browse among thesuggestions by pressing on the right and leftarrows. Tap on a suggestion to select it. Notethat this function is not supported by all lan-guage selections. If not available, the row willnot be shown on the keyboard.
The characters available on the keyboard depend on which language was selected(see point 7). Tap on a character to enter it.
The button works in different ways, depend- ing on the context in which the keyboard is used - either to enter @ (when an email
address is entered) or to create a new row
(for normal text input).
Hides the keyboard. If this is not possible, the button is not shown.
Used to enter capital letters. Press again to enter one capital letter and then continuewith lower-case letters. Another press makesall letters capital letters. The next pressrestores the keyboard to lower-case letters.In this mode, the first letter after a full stop,exclamation mark or question mark is a capi-tal letter. The first letter in the text field isalso a capital letter. In text fields intended fornames or addresses, each word automaticallystarts with a capital letter. In text fields forpassword, web address or email address entry, all letters are automatically lower caseunless otherwise set with the button.
Number entry. The keyboard (2) is then shown with numbers. Press
, which in
number mode is shown instead of
, to
return to the letter keyboard, or
to
open the keyboard with special characters.
Changes text input language, e.g. UK. The
available characters and word suggestions (1) vary depending on the selected language.Press to open a list of languages and thentap on the language to be used. To add addi-tional languages in the keyboard - see theheading "Changing keyboard language"below.
Space.
Undoes entered text. Press briefly to delete one character at a time. Hold the buttondepressed to delete characters more quickly.
Changes keyboard mode to write letters and characters by hand instead. Read moreunder the heading "Writing characters/letters by hand on the screen".
Press the confirmation button above the key-board (not visible in the image) to confirm theentered text. The appearance of the button dif-fers depending on context.
Changing the keyboard languageTo make it possible to switch between differentlanguages for the keyboard, the languages must first be added under
Settings.
Adding/deleting languages in settings
The keyboard is automatically set to the same languages as the system language. The keyboardlanguage can be manually adapted withoutaffecting the system language. 1. Press
Settings in the top view.
2. Press
SystemKeyboard Layouts.
3. Select one or more languages from the list. > It is now possible to switch between theselected languages directly from the key- board for text input.
If no languages have been actively selected under
Settings, the keyboard uses the same lan-
guage as the car's system language; see the section "Changing system settings in the set-tings view".
11 Applies to Asiatic languages.

||
INTRODUCTION
52

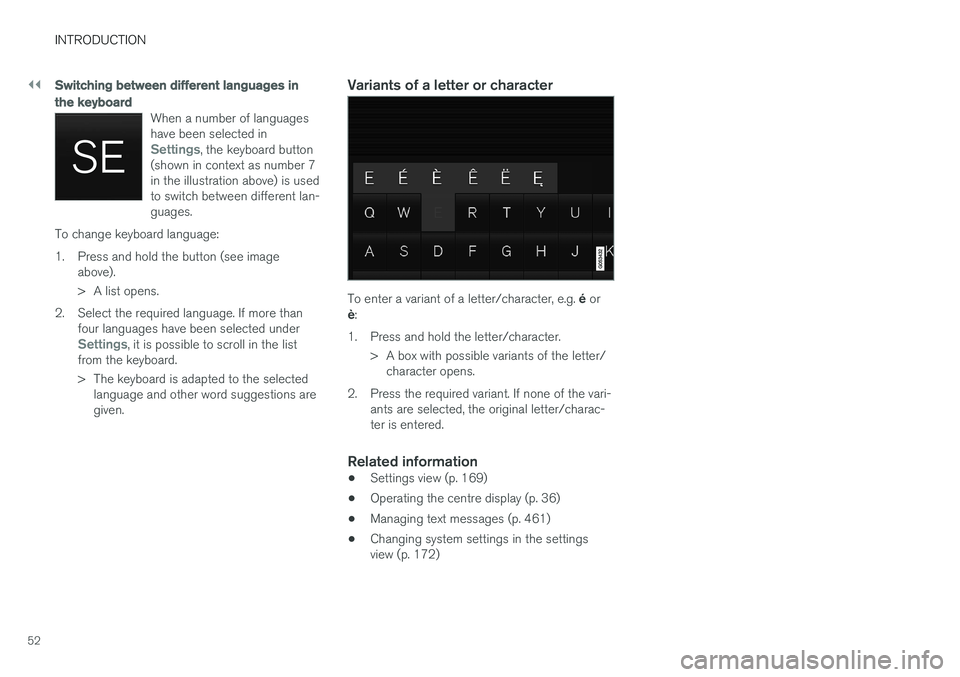

Switching between different languages in the keyboard
When a number of languages have been selected in
Settings, the keyboard button
(shown in context as number 7 in the illustration above) is usedto switch between different lan-guages.
To change keyboard language:
1. Press and hold the button (see image above).
> A list opens.
2. Select the required language. If more than four languages have been selected under
Settings, it is possible to scroll in the list
from the keyboard.
> The keyboard is adapted to the selected language and other word suggestions are given.
Variants of a letter or character
To enter a variant of a letter/character, e.g. é or
è :
1. Press and hold the letter/character. > A box with possible variants of the letter/character opens.
2. Press the required variant. If none of the vari- ants are selected, the original letter/charac- ter is entered.
Related information
• Settings view (p. 169)
• Operating the centre display (p. 36)
• Managing text messages (p. 461)
• Changing system settings in the settingsview (p. 172)

INTRODUCTION
53

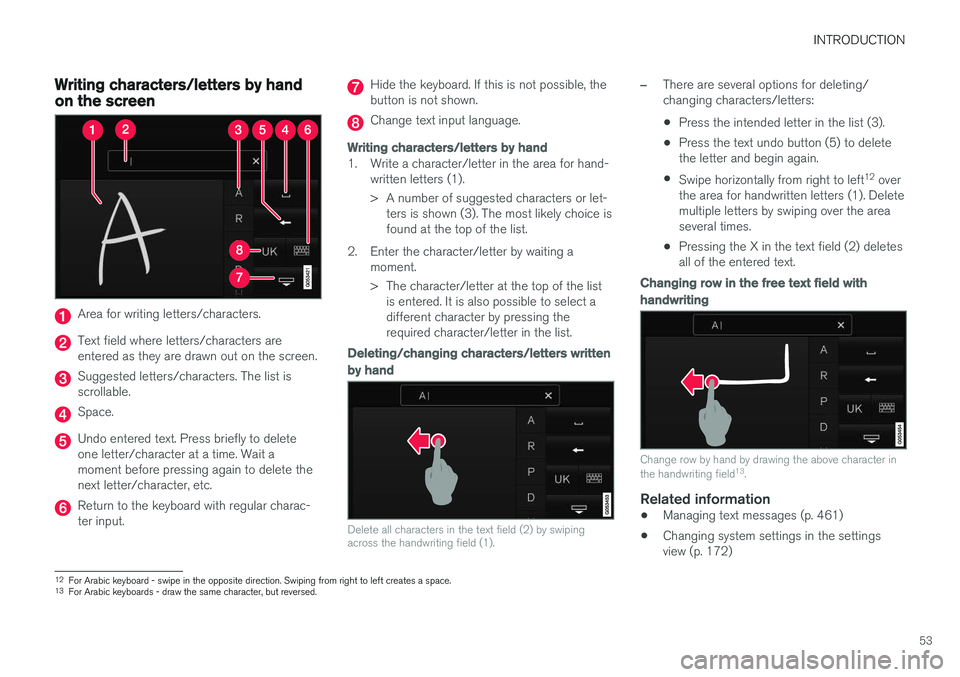

Writing characters/letters by hand on the screen
Area for writing letters/characters.
Text field where letters/characters are entered as they are drawn out on the screen.
Suggested letters/characters. The list is scrollable.
Space.
Undo entered text. Press briefly to delete one letter/character at a time. Wait amoment before pressing again to delete thenext letter/character, etc.
Return to the keyboard with regular charac- ter input.
Hide the keyboard. If this is not possible, the button is not shown.
Change text input language.
Writing characters/letters by hand
1. Write a character/letter in the area for hand-written letters (1).
> A number of suggested characters or let-ters is shown (3). The most likely choice is found at the top of the list.
2. Enter the character/letter by waiting a moment.
> The character/letter at the top of the listis entered. It is also possible to select a different character by pressing therequired character/letter in the list.
Deleting/changing characters/letters written by hand
Delete all characters in the text field (2) by swiping across the handwriting field (1).
–There are several options for deleting/ changing characters/letters: •Press the intended letter in the list (3).
• Press the text undo button (5) to delete the letter and begin again.
• Swipe horizontally from right to left 12
over
the area for handwritten letters (1). Deletemultiple letters by swiping over the areaseveral times.
• Pressing the X in the text field (2) deletesall of the entered text.
Changing row in the free text field with handwriting
Change row by hand by drawing the above character in the handwriting field 13
.
Related information
• Managing text messages (p. 461)
• Changing system settings in the settings view (p. 172)
12
For Arabic keyboard - swipe in the opposite direction. Swiping from right to left creates a space.
13 For Arabic keyboards - draw the same character, but reversed.

INTRODUCTION
* Option/accessory.
54

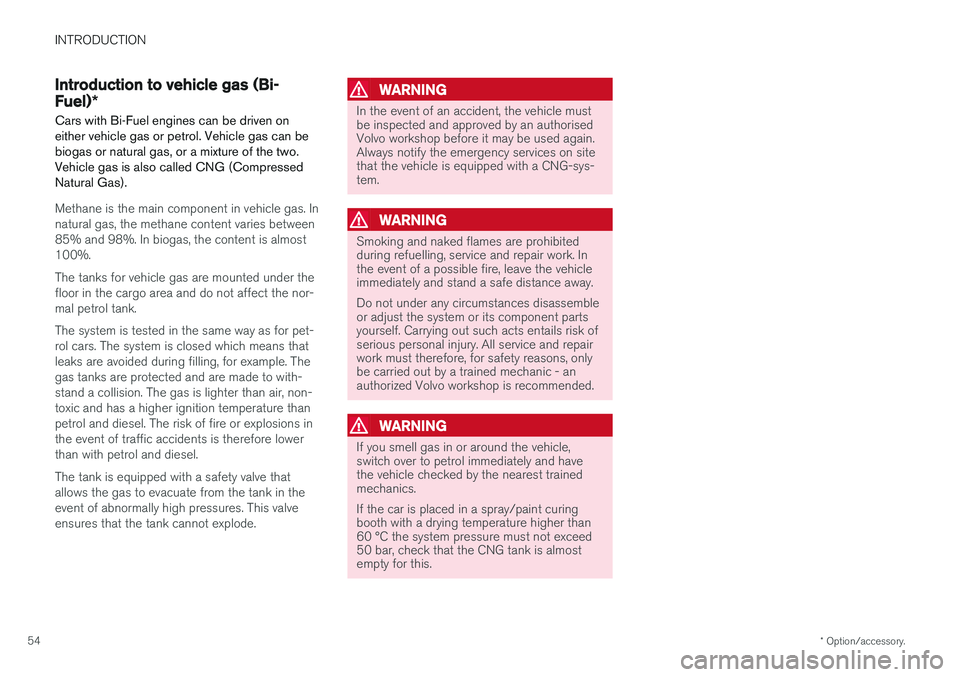

Introduction to vehicle gas (Bi- Fuel) *
Cars with Bi-Fuel engines can be driven on either vehicle gas or petrol. Vehicle gas can bebiogas or natural gas, or a mixture of the two.Vehicle gas is also called CNG (CompressedNatural Gas).
Methane is the main component in vehicle gas. In natural gas, the methane content varies between85% and 98%. In biogas, the content is almost100%. The tanks for vehicle gas are mounted under the floor in the cargo area and do not affect the nor-mal petrol tank. The system is tested in the same way as for pet- rol cars. The system is closed which means thatleaks are avoided during filling, for example. Thegas tanks are protected and are made to with-stand a collision. The gas is lighter than air, non-toxic and has a higher ignition temperature thanpetrol and diesel. The risk of fire or explosions inthe event of traffic accidents is therefore lowerthan with petrol and diesel. The tank is equipped with a safety valve that allows the gas to evacuate from the tank in theevent of abnormally high pressures. This valveensures that the tank cannot explode.
WARNING
In the event of an accident, the vehicle must be inspected and approved by an authorisedVolvo workshop before it may be used again.Always notify the emergency services on sitethat the vehicle is equipped with a CNG-sys-tem.
WARNING
Smoking and naked flames are prohibited during refuelling, service and repair work. Inthe event of a possible fire, leave the vehicleimmediately and stand a safe distance away. Do not under any circumstances disassemble or adjust the system or its component partsyourself. Carrying out such acts entails risk ofserious personal injury. All service and repairwork must therefore, for safety reasons, onlybe carried out by a trained mechanic - anauthorized Volvo workshop is recommended.
WARNING
If you smell gas in or around the vehicle, switch over to petrol immediately and havethe vehicle checked by the nearest trainedmechanics. If the car is placed in a spray/paint curing booth with a drying temperature higher than60 °C the system pressure must not exceed50 bar, check that the CNG tank is almostempty for this.

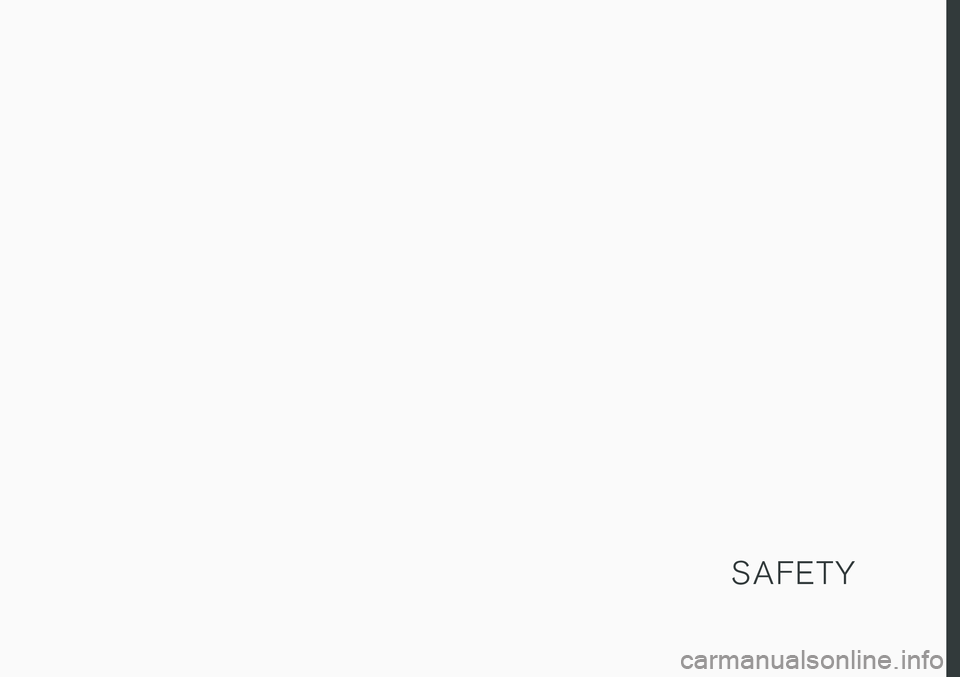

S A F E T Y

SAFETY
56

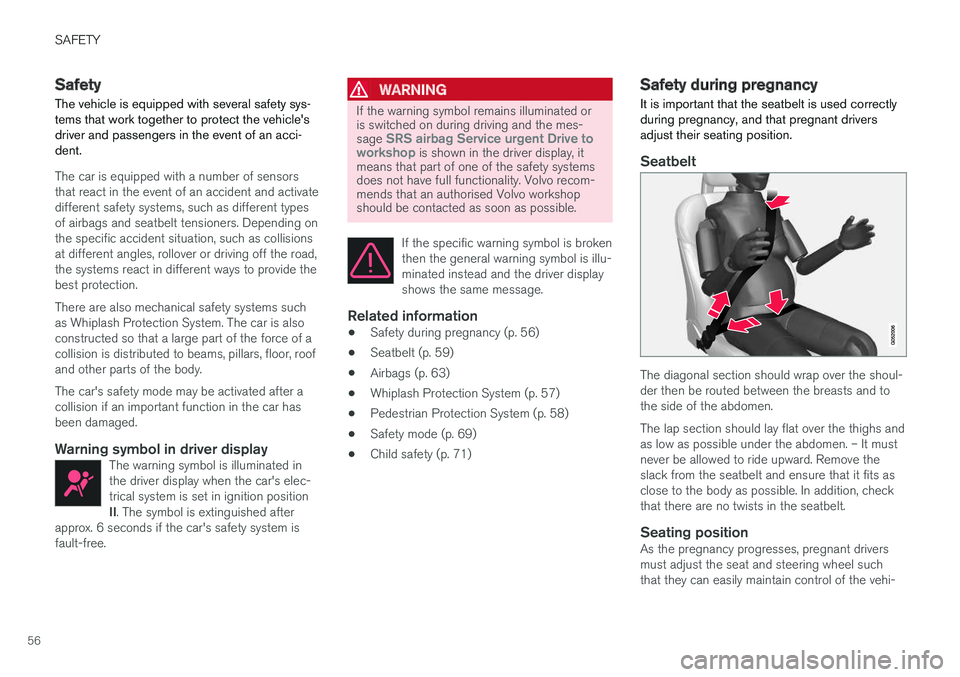

Safety
The vehicle is equipped with several safety sys- tems that work together to protect the vehicle'sdriver and passengers in the event of an acci-dent.
The car is equipped with a number of sensors that react in the event of an accident and activatedifferent safety systems, such as different typesof airbags and seatbelt tensioners. Depending onthe specific accident situation, such as collisionsat different angles, rollover or driving off the road,the systems react in different ways to provide thebest protection. There are also mechanical safety systems such as Whiplash Protection System. The car is alsoconstructed so that a large part of the force of acollision is distributed to beams, pillars, floor, roofand other parts of the body. The car's safety mode may be activated after a collision if an important function in the car hasbeen damaged.
Warning symbol in driver displayThe warning symbol is illuminated inthe driver display when the car's elec-trical system is set in ignition position II . The symbol is extinguished after
approx. 6 seconds if the car's safety system is fault-free.
WARNING
If the warning symbol remains illuminated or is switched on during driving and the mes- sage
SRS airbag Service urgent Drive to
workshop is shown in the driver display, it
means that part of one of the safety systems does not have full functionality. Volvo recom-mends that an authorised Volvo workshopshould be contacted as soon as possible.
If the specific warning symbol is broken then the general warning symbol is illu-minated instead and the driver displayshows the same message.
Related information
•Safety during pregnancy (p. 56)
• Seatbelt (p. 59)
• Airbags (p. 63)
• Whiplash Protection System (p. 57)
• Pedestrian Protection System (p. 58)
• Safety mode (p. 69)
• Child safety (p. 71)
Safety during pregnancy It is important that the seatbelt is used correctly during pregnancy, and that pregnant driversadjust their seating position.
Seatbelt
The diagonal section should wrap over the shoul- der then be routed between the breasts and tothe side of the abdomen. The lap section should lay flat over the thighs and as low as possible under the abdomen. – It mustnever be allowed to ride upward. Remove theslack from the seatbelt and ensure that it fits asclose to the body as possible. In addition, checkthat there are no twists in the seatbelt.
Seating positionAs the pregnancy progresses, pregnant driversmust adjust the seat and steering wheel suchthat they can easily maintain control of the vehi-

SAFETY
}}
* Option/accessory.57
cle as they drive (which means that they must be able to easily operate the foot pedals and steer-ing wheel). The aim should be to position theseat with as large a distance as possible betweenabdomen and steering wheel.
Related information
•
Safety (p. 56)
• Seatbelt (p. 59)
• Manual front seat (p. 121)
• Power front seat
* (p. 121)

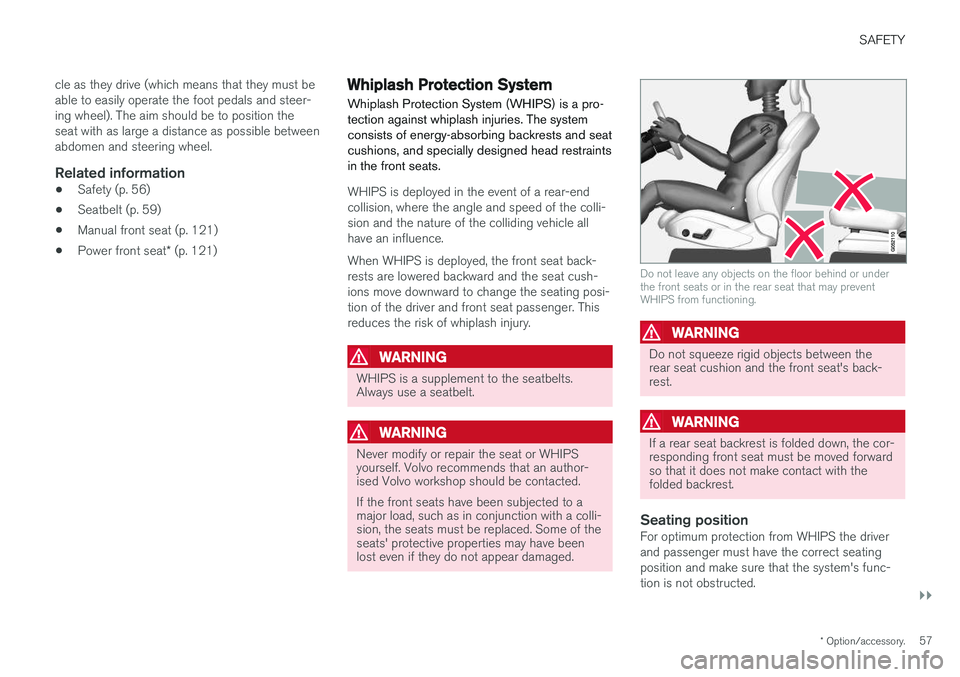

Whiplash Protection System Whiplash Protection System (WHIPS) is a pro- tection against whiplash injuries. The systemconsists of energy-absorbing backrests and seatcushions, and specially designed head restraintsin the front seats.
WHIPS is deployed in the event of a rear-end collision, where the angle and speed of the colli-sion and the nature of the colliding vehicle allhave an influence. When WHIPS is deployed, the front seat back- rests are lowered backward and the seat cush-ions move downward to change the seating posi-tion of the driver and front seat passenger. Thisreduces the risk of whiplash injury.
WARNING
WHIPS is a supplement to the seatbelts. Always use a seatbelt.
WARNING
Never modify or repair the seat or WHIPS yourself. Volvo recommends that an author-ised Volvo workshop should be contacted. If the front seats have been subjected to a major load, such as in conjunction with a colli-sion, the seats must be replaced. Some of theseats' protective properties may have beenlost even if they do not appear damaged.
Do not leave any objects on the floor behind or under the front seats or in the rear seat that may preventWHIPS from functioning.
WARNING
Do not squeeze rigid objects between the rear seat cushion and the front seat's back-rest.
WARNING
If a rear seat backrest is folded down, the cor- responding front seat must be moved forwardso that it does not make contact with thefolded backrest.
Seating positionFor optimum protection from WHIPS the driver and passenger must have the correct seatingposition and make sure that the system's func-tion is not obstructed.

||
SAFETY
* Option/accessory.
58 Set the correct seating position in the front seat before driving starts. Driver and front seat passenger should sit in the centre of the seat with as little space as possiblebetween the head and the head restraint.
WHIPS and child seatsThe protection provided by the car to childrenseated in a child seat or on a booster cushion isnot diminished by WHIPS.
Related information
•
Safety (p. 56)
• Manual front seat (p. 121)
• Power front seat
* (p. 121)
• Rear Collision Warning (p. 340)
• Child seats (p. 71)

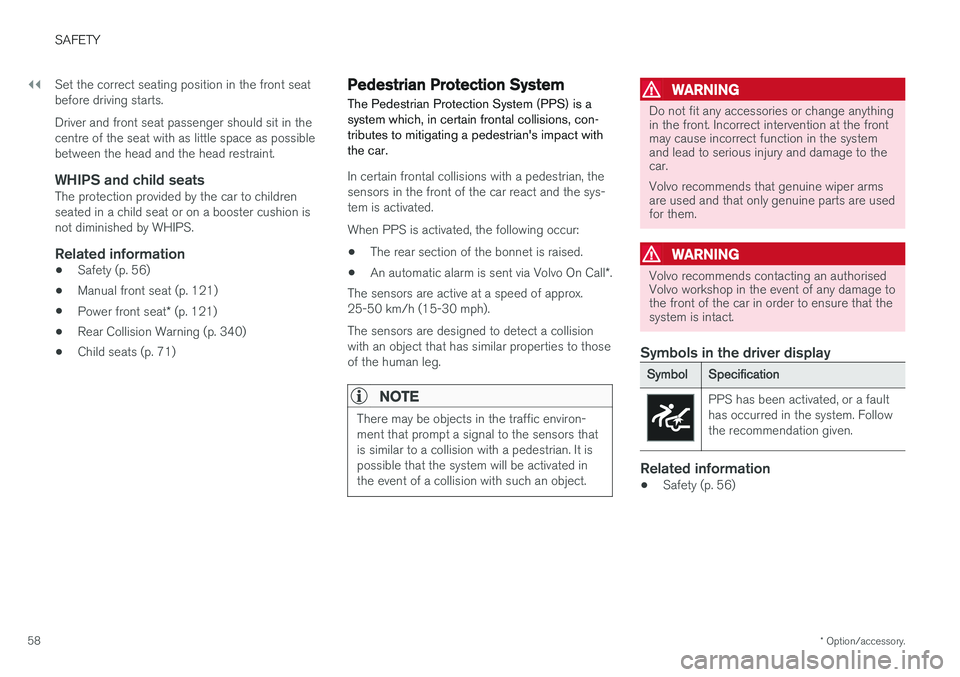

Pedestrian Protection System
The Pedestrian Protection System (PPS) is a system which, in certain frontal collisions, con-tributes to mitigating a pedestrian's impact withthe car.
In certain frontal collisions with a pedestrian, the sensors in the front of the car react and the sys-tem is activated. When PPS is activated, the following occur:
• The rear section of the bonnet is raised.
• An automatic alarm is sent via Volvo On Call
*.
The sensors are active at a speed of approx. 25-50 km/h (15-30 mph). The sensors are designed to detect a collision with an object that has similar properties to thoseof the human leg.
NOTE
There may be objects in the traffic environ- ment that prompt a signal to the sensors thatis similar to a collision with a pedestrian. It ispossible that the system will be activated inthe event of a collision with such an object.
WARNING
Do not fit any accessories or change anything in the front. Incorrect intervention at the frontmay cause incorrect function in the systemand lead to serious injury and damage to thecar. Volvo recommends that genuine wiper arms are used and that only genuine parts are usedfor them.
WARNING
Volvo recommends contacting an authorised Volvo workshop in the event of any damage tothe front of the car in order to ensure that thesystem is intact.
Symbols in the driver display
Symbol Specification
PPS has been activated, or a fault has occurred in the system. Followthe recommendation given.
Related information
•Safety (p. 56)
