Page 531 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual SPECIFICATIONS
}}
529

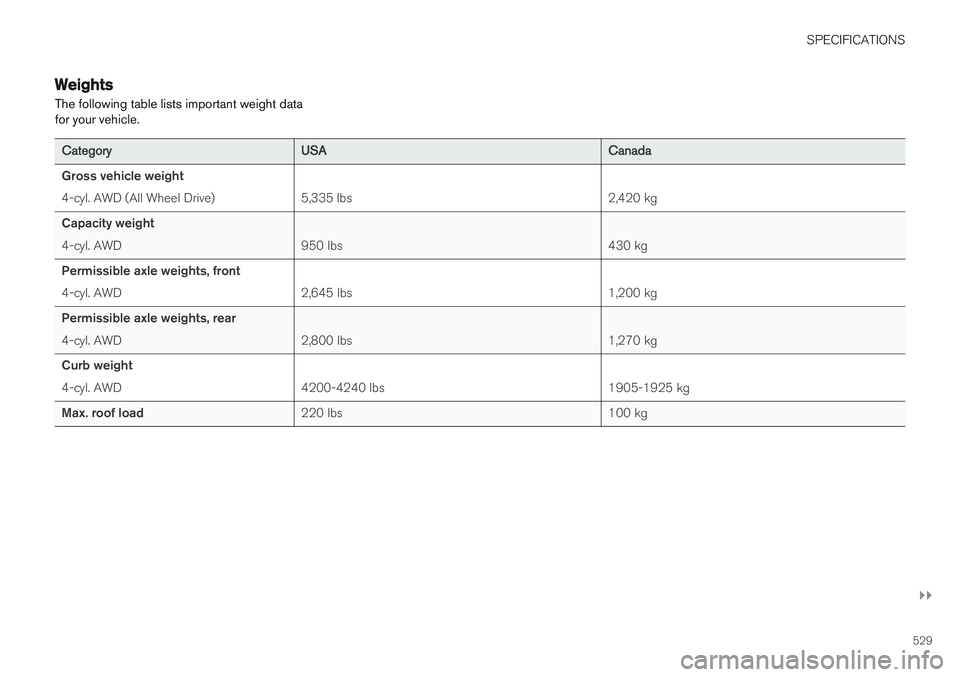

Weights The following table lists important weight data for your vehicle.
CategoryUSA Canada
Gross vehicle weight
4-cyl. AWD (All Wheel Drive) 5,335 lbs 2,420 kg
Capacity weight

Page 532 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual ||
SPECIFICATIONS
530

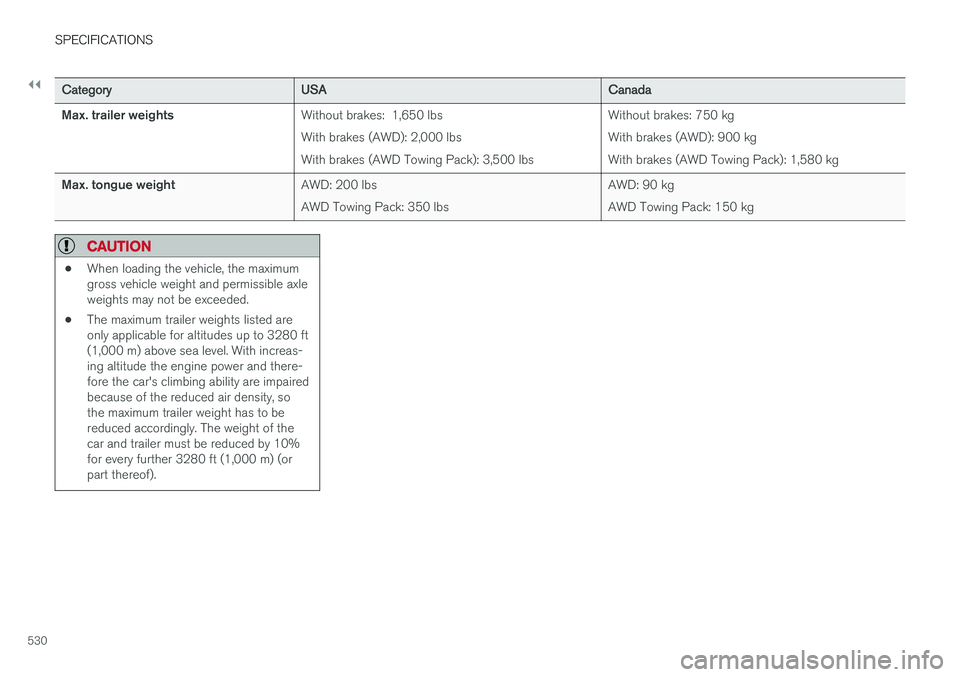

CategoryUSA Canada
Max. trailer weights Without brakes:  1,650 lbs With brakes (AWD): 2,000 lbsWith brakes (AWD Towing Pack): 3,500 lbs Without brakes: 750 kgWith brakes (AWD): 9

Page 533 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual SPECIFICATIONS
531

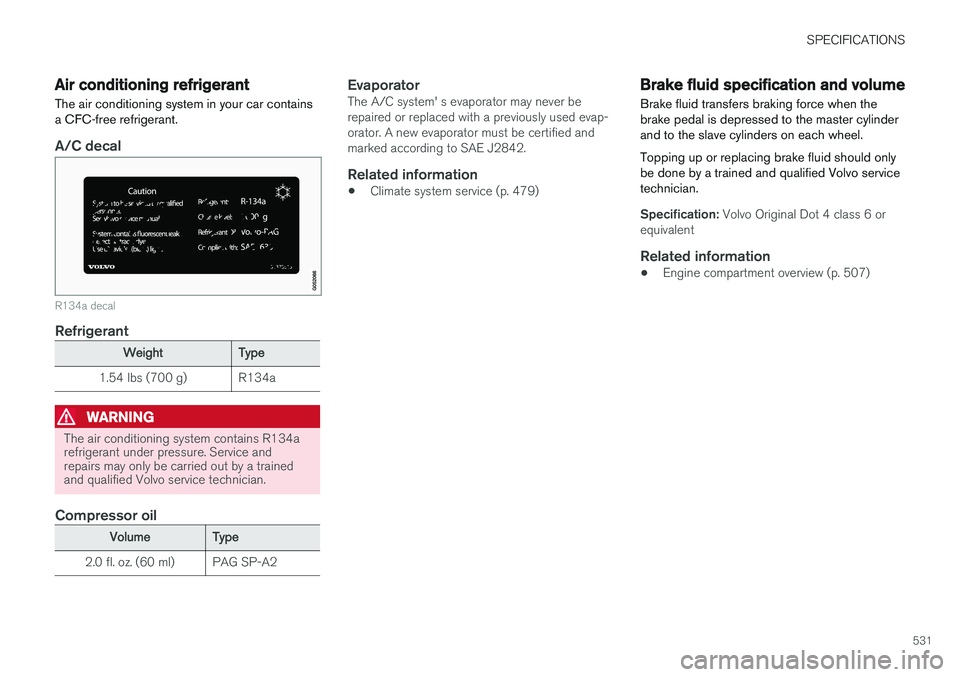

Air conditioning refrigerant
The air conditioning system in your car contains a CFC-free refrigerant.
A/C decal
R134a decal
Refrigerant
Weight Type
1.54 lbs (700 g) R134a
WARNING
Th

Page 534 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual SPECIFICATIONS
532

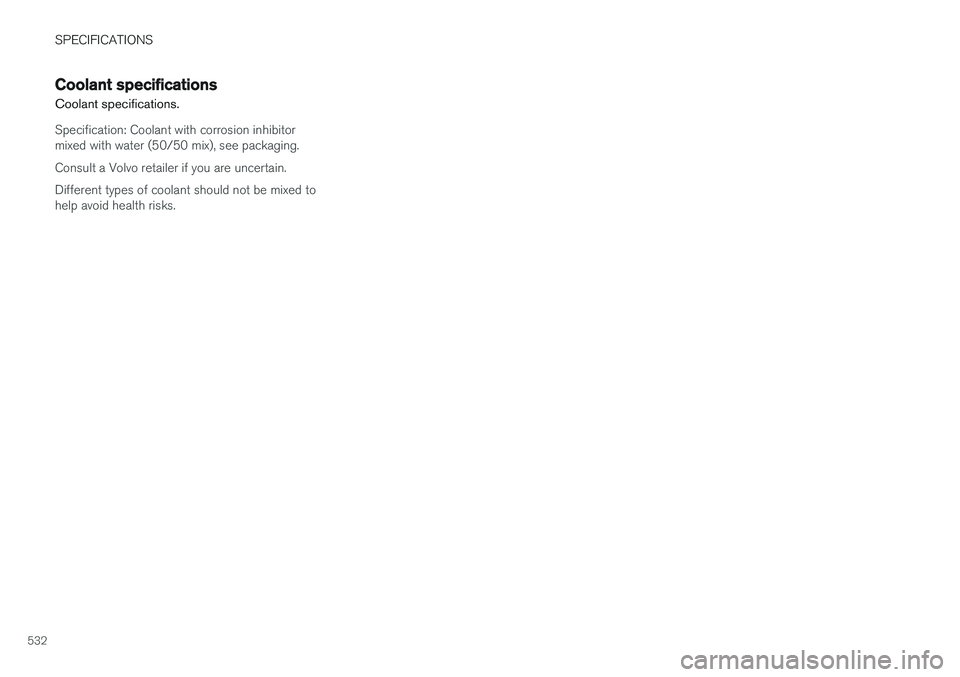

Coolant specifications
Coolant specifications.
Specification: Coolant with corrosion inhibitor mixed with water (50/50 mix), see packaging. Consult a Volvo retailer if you are uncer

Page 535 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual SPECIFICATIONS
}}
533
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Not all engines listed he

Page 536 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual ||
SPECIFICATIONS
534

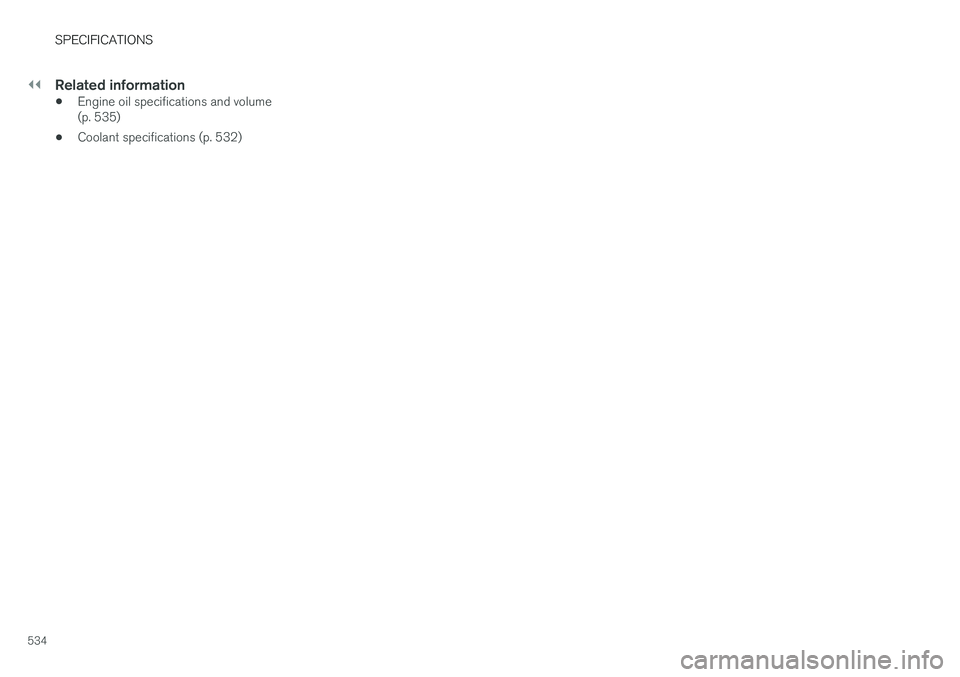

Related information
•Engine oil specifications and volume (p. 535)
• Coolant specifications (p. 532)

Page 537 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual SPECIFICATIONS
535

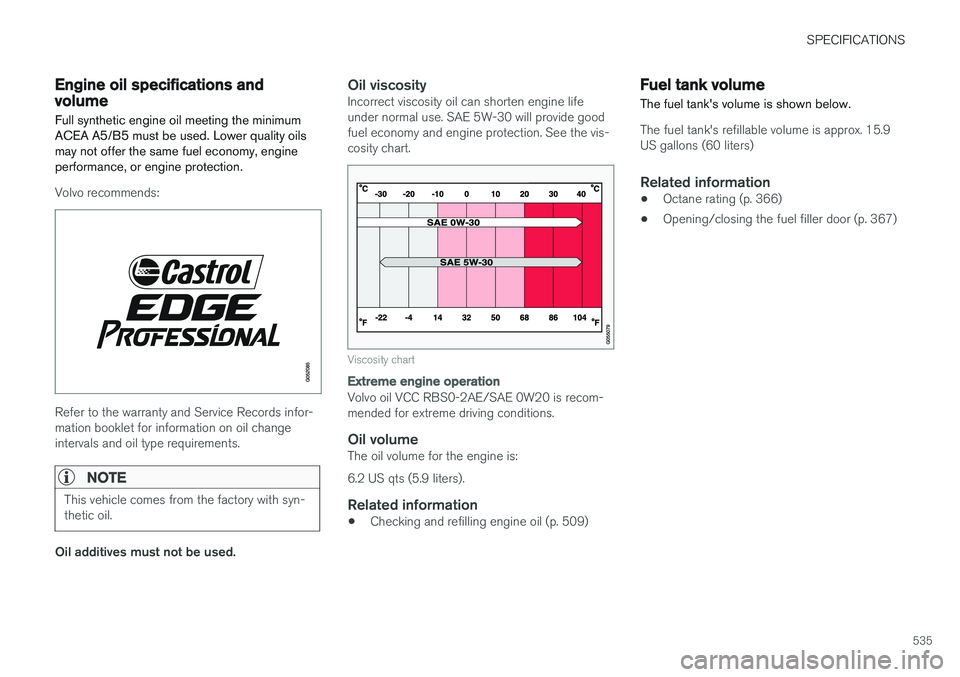

Engine oil specifications and volume
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance,

Page 538 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual SPECIFICATIONS
536

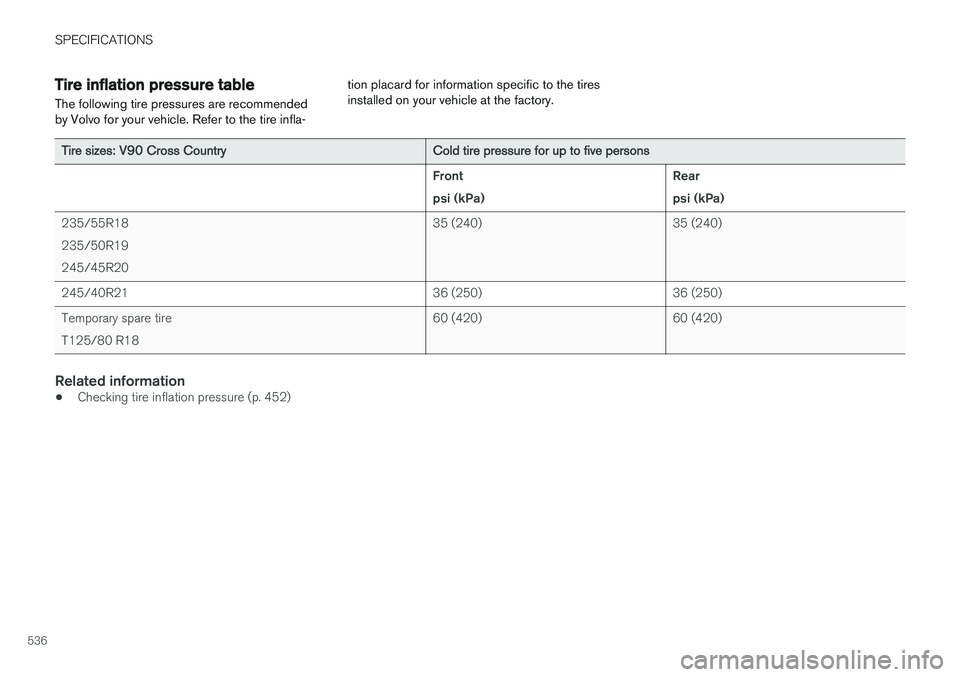

Tire inflation pressure table The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla-tion placard for information specific to the tiresinsta

Page 539 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual SPECIFICATIONS
537

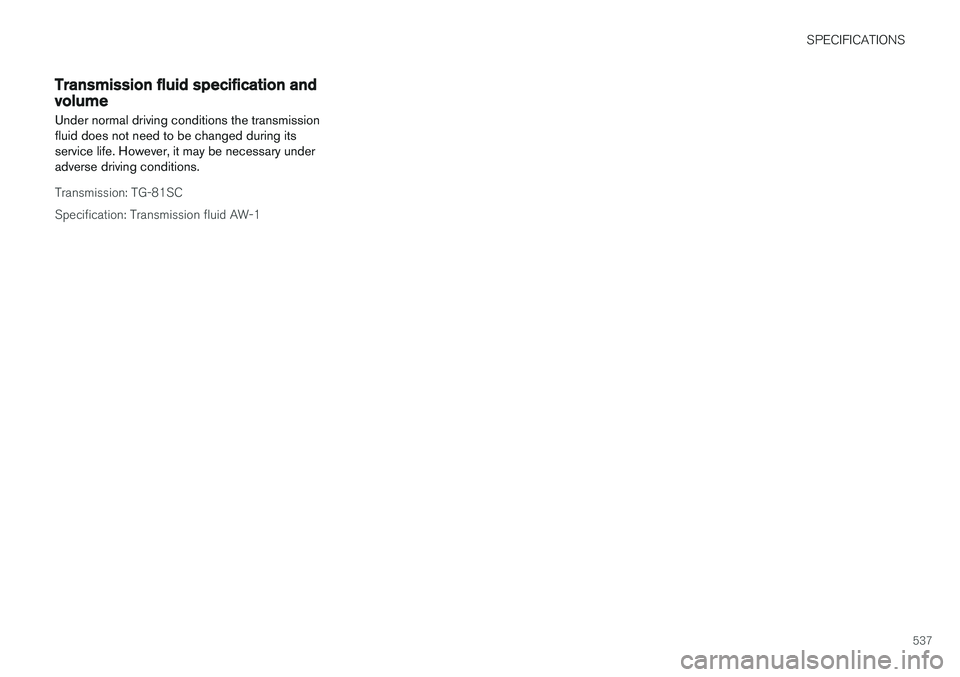

Transmission fluid specification and volume
Under normal driving conditions the transmission fluid does not need to be changed during itsservice life. However, it may be necessary u

Page 540 of 552

VOLVO V90 CROSS COUNTRY 2017  Owner´s Manual
