VOLVO XC60 2009 Owner´s Manual

04 Comfort and driving pleasure
City Safety™ 04
}}
169

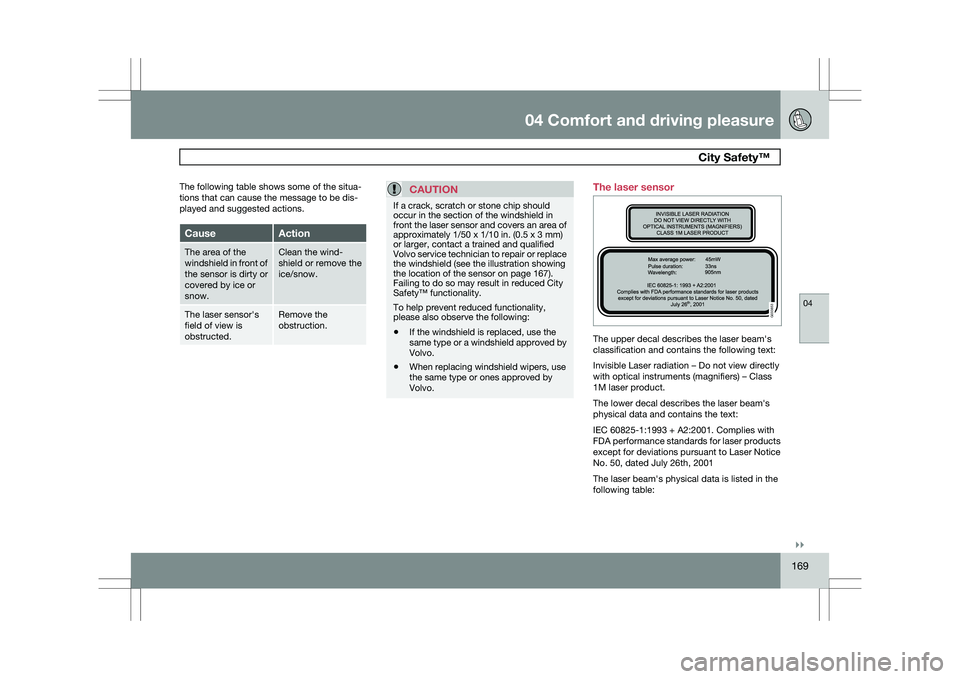

The following table shows some of the situa-
tions that can cause the message to be dis-
played and suggested actions.
Cause Action
The area of the
windshield in front of
the sensor is dirty or
covered by ice or
snow. Clean the wind-
shield or remove the
ice/snow.
The laser sensor\fs
field of view is
obstructed. Remove the
obstruction.
CAUTION If a crack, scratch or stone chip should
occur in the section of the windshield in
front the laser sensor and covers an area of
approximately 1/50 x 1/10 in. (0.5 x 3 mm)
or larger, contact a trained and qualified
Volvo service technician to repair or replace
the windshield (see the illustration showing
the location of the sensor on page

167).
Failing to do so may result in reduced City
Safety™ functionality.
To help prevent reduced functionality,
please also observe the following:
\b If the windshield is replaced, use the
same type or a windshield approved by
Volvo.
\b When replacing windshield wipers, use
the same type or ones approved by
Volvo. The laser sensor
The upper decal describes the laser beam\fs
classification and contains the following text:
Invisible Laser radiation – Do not view directly
with optical instruments (magnifiers) – Class
1M laser product.
The lower decal describes the laser beam\fs
physical data and contains the text:
IEC 60825-1:1993 + A2:2001

. Complies with
FDA performance standards for laser products
except for deviations pursuant to Laser Notice
No. 50, dated July 26th, 2001
The laser beam\fs physical data is listed in the
following table:
G033853

04 Comfort and driving pleasureCity Safety™ 04

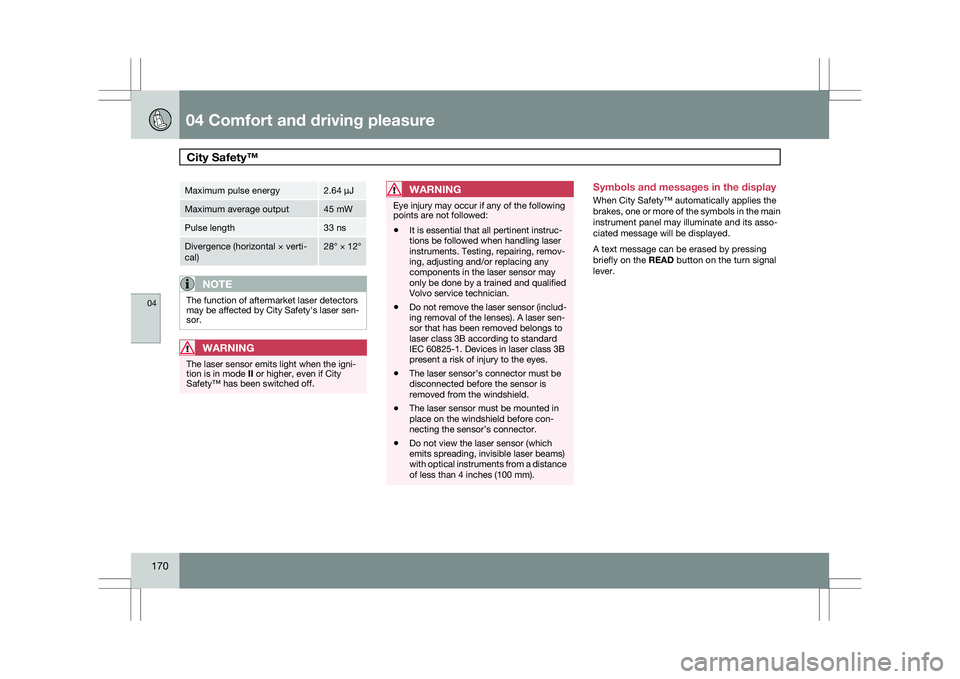

170 Maximum pulse energy 2.64 μJ
Maximum average output 45 mW
Pulse length 33 ns
Divergence (horizontal × verti-
cal) 28° × 12°
NOTE
The function of aftermarket laser detectors
may be affected by City Safety\fs laser sen-
sor.
WARNING
The laser sensor emits light when the igni-
tion is in mode II or higher, even if City
Safety™ has been switched off.
WARNING Eye injury may occur if any of the following
points are not followed:
\b
It is essential that all pertinent instruc-
tions be followed when handling laser
instruments. Testing, repairing, remov-
ing, adjusting and/or replacing any
components in the laser sensor may
only be done by a trained and qualified
Volvo service technician.
\b Do not remove the laser sensor (includ-
ing removal of the lenses). A laser sen-
sor that has been removed belongs to
laser class 3B according to standard
IEC 60825-1. Devices in laser class 3B
present a risk of injury to the eyes.
\b The laser sensor’s connector must be
disconnected before the sensor is
removed from the windshield.
\b The laser sensor must be mounted in
place on the windshield before con-
necting the sensor’s connector.
\b Do not view the laser sensor (which
emits spreading, invisible laser beams)
with optical instruments from a distance
of less than 4 inches (100 mm). Symbols and messages in the display
When City Safety™ automatically applies the
brakes, one or more of the symbols in the main
instrument panel may illuminate and its asso-
ciated message will be displayed.
A text message can be erased by pressing
briefly on the READ button on the turn signal
lever.

04 Comfort and driving pleasure
City Safety™ 04

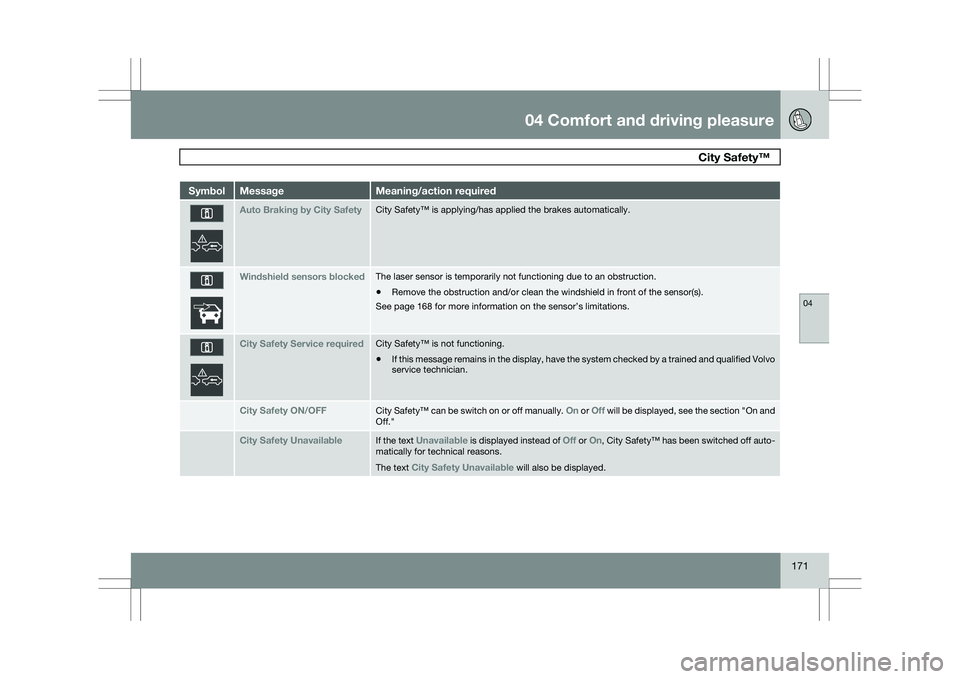

171Symbol Message Meaning/action required
Auto Braking by City Safety City Safety™ is applying/has applied the brakes automatically.
Windshield sensors blocked The laser sensor is temporarily not functioning due to an obstruction.
\b
Remove the obstruction and/or clean the windshield in front of the senso\
r(s).
See page 168 for more information on the sensor’s limitations. City Safety Service required City Safety™ is not functioning.
\b
If this message remains in the display, have the system checked by a tra\
ined and qualified Volvo
service technician. City Safety ON/OFF City Safety™ can be switch on or off manually.
On or Off will be displayed, see the section "On and
Off." City Safety Unavailable If the text
Unavailable is displayed instead of Off or On,
City Safety™ has been switched off auto-
matically for technical reasons.
The text City Safety Unavailable will also be displayed.

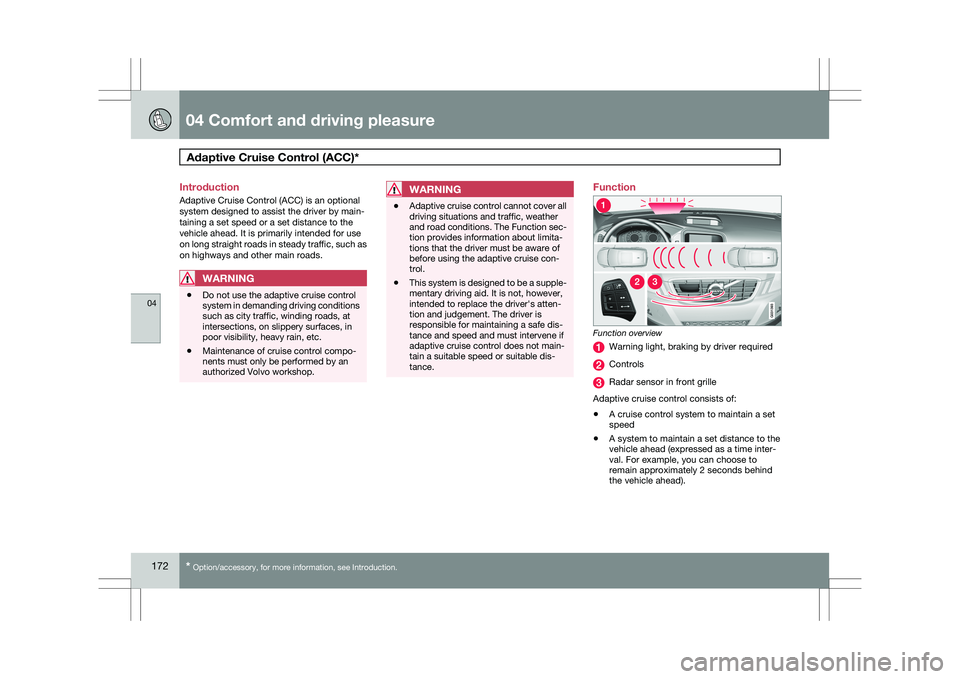

04 Comfort and driving pleasureAdaptive Cruise Control (ACC)* 04
172
* Option/accessory, for more information, see Introduction.
Introduction
Adaptive Cruise Control (ACC) is an optional
system designed to assist the driver by main-
taining a set speed or a set distance to the
vehicle ahead. It is primarily intended for use
on long straight roads in steady traffic, such as
on highways and other main roads.
WARNING
\b
Do not use the adaptive cruise control
system in demanding driving conditions
such as city traffic, winding roads, at
intersections, on slippery surfaces, in
poor visibility, heavy rain, etc.
\b Maintenance of cruise control compo-
nents must only be performed by an
authorized Volvo workshop.
WARNING \b
Adaptive cruise control cannot cover all
driving situations and traffic, weather
and road conditions. The Function sec-
tion provides information about limita-
tions that the driver must be aware of
before using the adaptive cruise con-
trol.
\b This system is designed to be a supple-
mentary driving aid. It is not, however,
intended to replace the driver\fs atten-
tion and judgement. The driver is
responsible for maintaining a safe dis-
tance and speed and must intervene if
adaptive cruise control does not main-
tain a suitable speed or suitable dis-
tance. Function
Function overview
Warning light, braking by driver required
Controls
Radar sensor in front grille
Adaptive cruise control consists of:
\b A cruise control system to maintain a set
speed
\b A system to maintain a set distance to the
vehicle ahead (expressed as a time inter-
val. For example, you can choose to
remain approximately 2 seconds behind
the vehicle ahead).

04 Comfort and driving pleasure
Adaptive Cruise Control (ACC)*04
}}
* Option/accessory, for more information, see Introduction. 173
WARNING\b
Adaptive cruise control is not a collision
avoidance system. The driver is always
responsible for applying the brakes if
the system does not detect another
vehicle.
\b Adaptive cruise control does not react
to slow moving or stationary vehicles. The distance to the vehicle ahead (in the same
lane) is measured by a radar sensor. Your vehi-
cle\fs speed is regulated by acceleration and
braking. The brakes may emit a sound when
they are being modulated by the adaptive
cruise control system. This is normal.
WARNING
The brake pedal moves when the adaptive
cruise control system modulates the
brakes. Do not rest your foot under the
brake pedal.
The adaptive cruise control system is designed
to follow the vehicle ahead of you in the same
lane, at a set time interval.
If the radar sensor has not detected a vehicle
ahead, the system will then attempt to maintain
the set speed. This is also the case if the speed of the vehicle ahead exceeds the speed that
you have set.
The adaptive cruise control system is designed
to smoothly regulate speed. However, the
driver must apply the brakes in situations that
require immediate braking. This applies when
there are great differences in speed between
vehicles, or if the vehicle ahead brakes sud-
denly.
WARNING
Due to limitations in the radar sensor, brak-
ing may occur unexpectedly or not at all,
see page 175.
Adaptive cruise control can only be activated
at speeds above 20mph (30 km/h). If speed
falls below 20 mph (30 km/h) or if engine speed
(rpm) becomes too low, adaptive cruise control
disengages and will no longer modulate the
brakes. In situations when adaptive cruise con-
trol cannot be activated Cruise Control
Unavailable is shown in the display.
WARNING
When adaptive cruise control disengages,
the brakes will not be modulated automati-
cally. The driver must assume full control
over the vehicle.
Warning light-driver braking requiredAdaptive cruise control has a braking capacity
that is equivalent to approximately 30% of the
vehicle\fs total braking capacity. In situations
requiring more brake force than ACC can pro-
vide, if the driver does not apply the brakes, an
audible signal will sound and a red warning
light will illuminate in the windshield to alert the
driver to react.
NOTE Strong sunlight, reflections, extreme light
contrasts, the use of sunglasses, or if the
driver is not looking straight ahead may
make the visual warning signal in the wind-
shield difficult to see.
WARNING
Cruise control only warns of vehicles
detected by the radar sensor, see
page 172. In some cases there may be no
warning or the warning may be delayed. The
driver should always apply the brakes when
necessary.

04 Comfort and driving pleasureAdaptive Cruise Control (ACC)* 04
174
* Option/accessory, for more information, see Introduction.

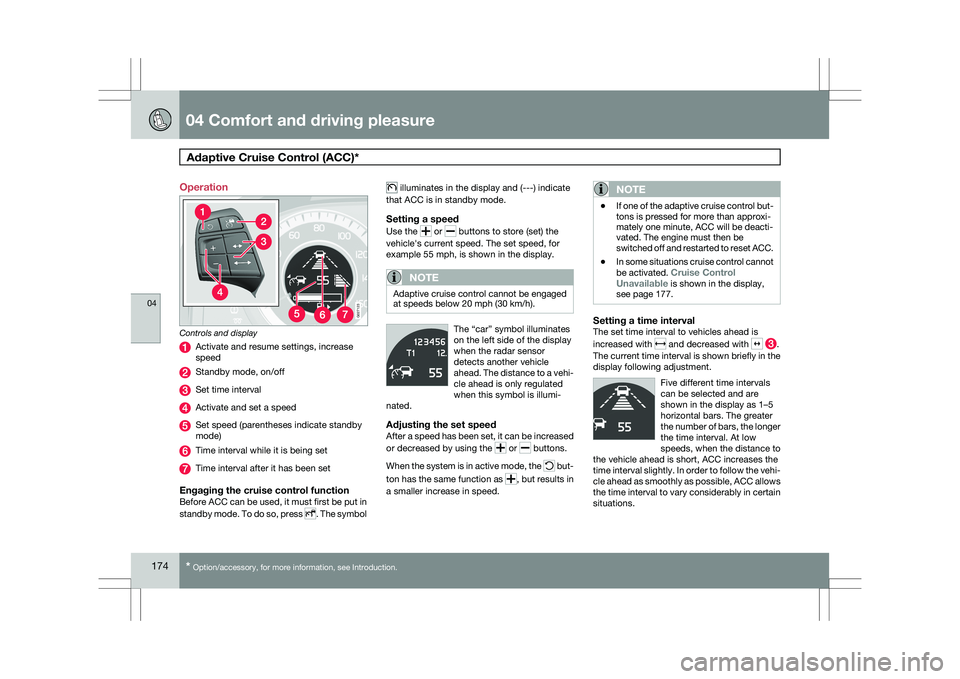

Operation
Controls and display
Activate and resume settings, increase
speed
Standby mode, on/off
Set time interval
Activate and set a speed
Set speed (parentheses indicate standby
mode)
Time interval while it is being set
Time interval after it has been set
Engaging the cruise control functionBefore ACC can be used, it must first be put in
standby mode. To do so, press
. The symbol illuminates in the display and (---) indicate
that ACC is in standby mode.
Setting a speed
Use the or buttons to store (set) the
vehicle\fs current speed. The set speed, for
example 55 mph, is shown in the display.
NOTE Adaptive cruise control cannot be engaged
at speeds below 20 mph (30 km/h).
The “car” symbol illuminates
on the left side of the display
when the radar sensor
detects another vehicle
ahead. The distance to a vehi-
cle ahead is only regulated
when this symbol is illumi-
nated.
Adjusting the set speedAfter a speed has been set, it can be increased
or decreased by using the or buttons.
When the system is in active mode, the but-
ton has the same function as , but results in
a smaller increase in speed.
NOTE \b
If one of the adaptive cruise control but-
tons is pressed for more than approxi-
mately one minute, ACC will be deacti-
vated. The engine must then be
switched off and restarted to reset ACC.
\b In some situations cruise control cannot
be activated. Cruise Control
Unavailable is shown in the display,
see page 177.
Setting a time intervalThe set time interval to vehicles ahead is
increased with and decreased with .
The current time interval is shown briefly in the
display following adjustment.
Five different time intervals
can be selected and are
shown in the display as 1–5
horizontal bars. The greater
the number of bars, the longer
the time interval. At low
speeds, when the distance to
the vehicle ahead is short, ACC increases the
time interval slightly. In order to follow the vehi-
cle ahead as smoothly as possible, ACC allows
the time interval to vary considerably in certain
situations. G027123

04 Comfort and driving pleasure
Adaptive Cruise Control (ACC)*04
}}
* Option/accessory, for more information, see Introduction. 175

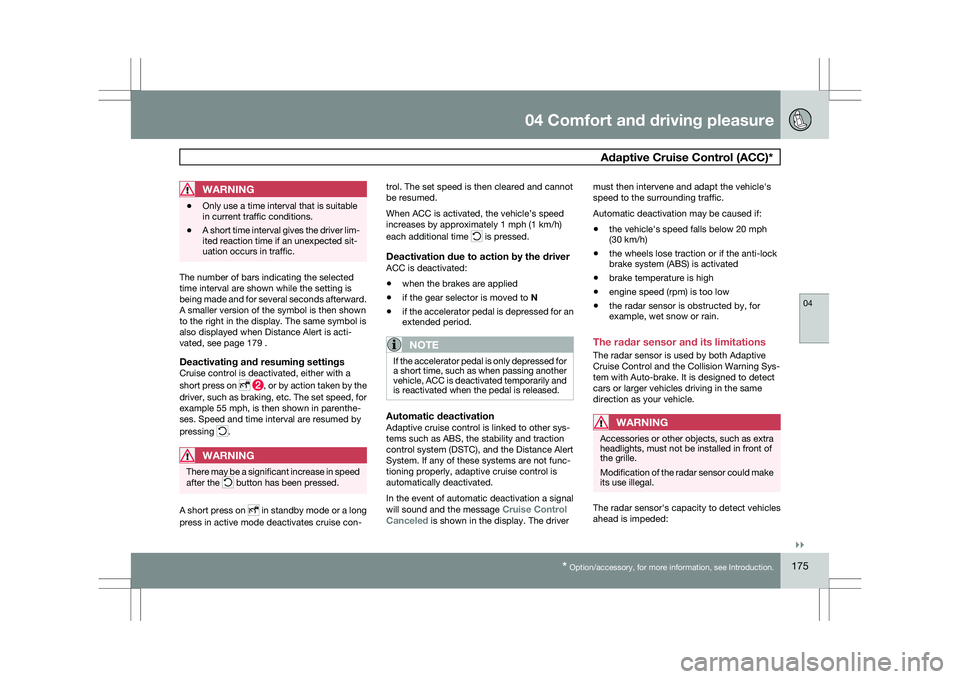

WARNING\b
Only use a time interval that is suitable
in current traffic conditions.
\b A short time interval gives the driver lim-
ited reaction time if an unexpected sit-
uation occurs in traffic. The number of bars indicating the selected
time interval are shown while the setting is
being made and for several seconds afterward.
A smaller version of the symbol is then shown
to the right in the display. The same symbol is
also displayed when Distance Alert is acti-
vated, see page 179 .
Deactivating and resuming settingsCruise control is deactivated, either with a
short press on
, or by action taken by the
driver, such as braking, etc. The set speed, for
example 55 mph, is then shown in parenthe-
ses. Speed and time interval are resumed by
pressing .
WARNING
There may be a significant increase in speed
after the
button has been pressed.
A short press on in standby mode or a long
press in active mode deactivates cruise con- trol. The set speed is then cleared and cannot
be resumed.
When ACC is activated, the vehicle’s speed
increases by approximately 1 mph (1 km/h)
each additional time is pressed.
Deactivation due to action by the driverACC is deactivated:
\b
when the brakes are applied
\b if the gear selector is moved to
N
\b if the accelerator pedal is depressed for an
extended period.
NOTE If the accelerator pedal is only depressed for
a short time, such as when passing another
vehicle, ACC is deactivated temporarily and
is reactivated when the pedal is released.
Automatic deactivationAdaptive cruise control is linked to other sys-
tems such as ABS, the stability and traction
control system (DSTC), and the Distance Alert
System. If any of these systems are not func-
tioning properly, adaptive cruise control is
automatically deactivated.
In the event of automatic deactivation a signal
will sound and the message
Cruise Control
Canceled is shown in the display. The driver must then intervene and adapt the vehicle\fs
speed to the surrounding traffic.
Automatic deactivation may be caused if:
\b
the vehicle\fs speed falls below 20 mph
(30 km/h)
\b the wheels lose traction or if the anti-lock
brake system (ABS) is activated
\b brake temperature is high
\b engine speed (rpm) is too low
\b the radar sensor is obstructed by, for
example, wet snow or rain.
The radar sensor and its limitations
The radar sensor is used by both Adaptive
Cruise Control and the Collision Warning Sys-
tem with Auto-brake. It is designed to detect
cars or larger vehicles driving in the same
direction as your vehicle.WARNING Accessories or other objects, such as extra
headlights, must not be installed in front of
the grille.
Modification of the radar sensor could make
its use illegal.
The radar sensor\fs capacity to detect vehicles
ahead is impeded:

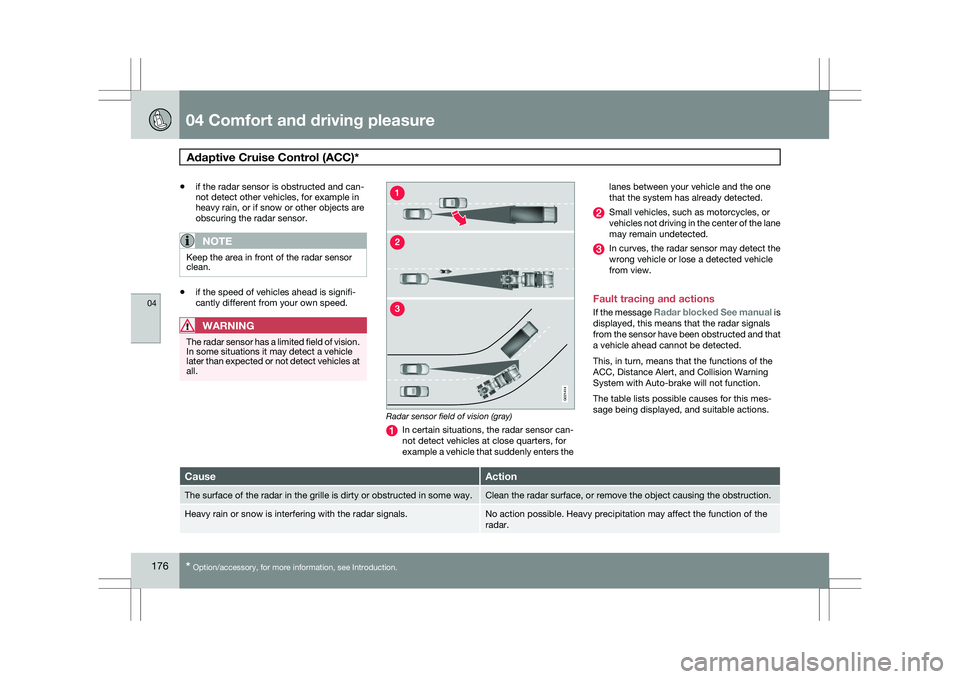

04 Comfort and driving pleasureAdaptive Cruise Control (ACC)* 04
176
* Option/accessory, for more information, see Introduction.
\b
if the radar sensor is obstructed and can-
not detect other vehicles, for example in
heavy rain, or if snow or other objects are
obscuring the radar sensor.
NOTE Keep the area in front of the radar sensor
clean.
\b
if the speed of vehicles ahead is signifi-
cantly different from your own speed.
WARNING The radar sensor has a limited field of vision.
In some situations it may detect a vehicle
later than expected or not detect vehicles at
all.
Radar sensor field of vision (gray)
In certain situations, the radar sensor can-
not detect vehicles at close quarters, for
example a vehicle that suddenly enters thelanes between your vehicle and the one
that the system has already detected. Small vehicles, such as motorcycles, or
vehicles not driving in the center of the lane
may remain undetected.
In curves, the radar sensor may detect the
wrong vehicle or lose a detected vehicle
from view.
Fault tracing and actions
If the message Radar blocked See manual is
displayed, this means that the radar signals
from the sensor have been obstructed and that
a vehicle ahead cannot be detected.
This, in turn, means that the functions of the
ACC, Distance Alert, and Collision Warning
System with Auto-brake will not function.
The table lists possible causes for this mes-
sage being displayed, and suitable actions. Cause Action
The surface of the radar in the grille is dirty or obstructed in some wa\
y. Clean the radar surface, or remove the object causing the obstruction.
Heavy rain or snow is interfering with the radar signals. No action possible. Heavy precipitation may affect the function of the
radar. G02141
4

04 Comfort and driving pleasure
Adaptive Cruise Control (ACC)*04
}}

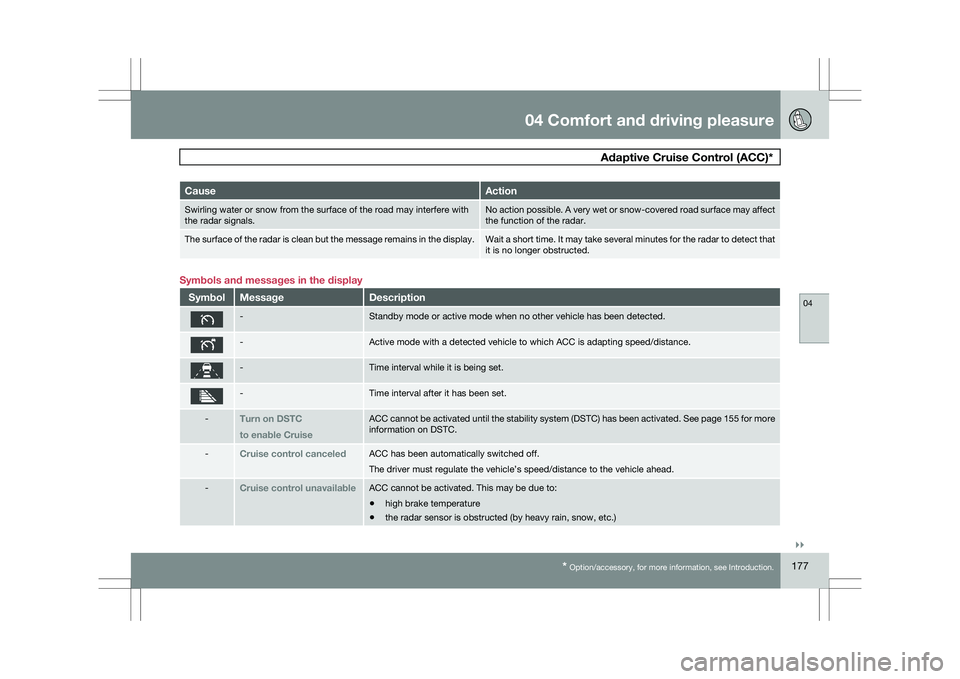

* Option/accessory, for more information, see Introduction. 177Cause Action
Swirling water or snow from the surface of the road may interfere with
the radar signals. No action possible. A very wet or snow-covered road surface may affect
the function of the radar.
The surface of the radar is clean but the message remains in the display\
. Wait a short time. It may take several minutes for the radar to detect t\
hat
it is no longer obstructed.
Symbols and messages in the display
Symbol Message Description
- Standby mode or active mode when no other vehicle has been detected.
- Active mode with a detected vehicle to which ACC is adapting speed/dista\
nce.
- Time interval while it is being set.
- Time interval after it has been set.
-
Turn on DSTC
to enable Cruise ACC cannot be activated until the stability system (DSTC) has been act\
ivated. See page
155 for more
information on DSTC. -
Cruise control canceled ACC has been automatically switched off.
The driver must regulate the vehicle’s speed/distance to the vehicle \
ahead.
-
Cruise control unavailable ACC cannot be activated. This may be due to:
\b
high brake temperature
\b the radar sensor is obstructed (by heavy rain, snow, etc.)

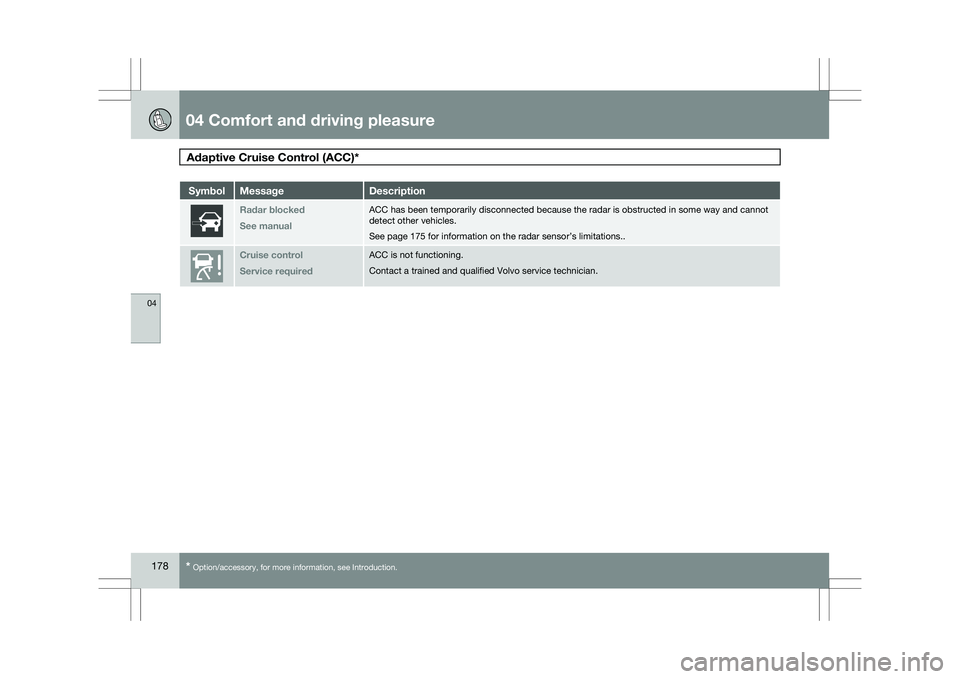

04 Comfort and driving pleasureAdaptive Cruise Control (ACC)* 04
178
* Option/accessory, for more information, see Introduction. Symbol Message Description
Radar blocked
See manual ACC has been temporarily disconnected because the radar is obstructed in\
some way and cannot
detect other vehicles.
See page 175 for information on the radar sensor’s limitations..
Cruise control
Service required ACC is not functioning.
Contact a trained and qualified Volvo service technician.
