VOLVO XC60 2015 Owner´s Manual

S P E C I F I C A T I O N S

10 Specifications
Label information
10
380
Location of labels

10 Specifications
Label information
10
381

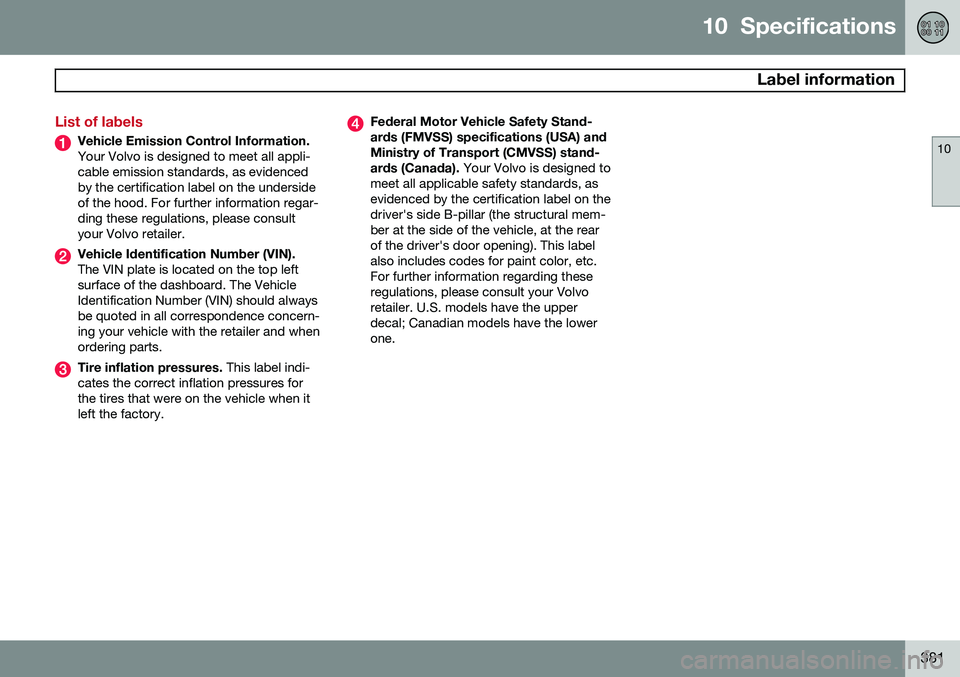

List of labels
Vehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.
Vehicle Identification Number (VIN). The VIN plate is located on the top left surface of the dashboard. The VehicleIdentification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). This labelalso includes codes for paint color, etc.For further information regarding theseregulations, please consult your Volvoretailer. U.S. models have the upperdecal; Canadian models have the lowerone.

10 Specifications
Specifications
10
382
Dimensions
DimensionIn (mm)
AWheelbase109.2 (2774)
BLength182.8 (4644)
CLoad length, floor, seatback down70.4 (1789)
DLoad length, floor38.3 (972)
EHeight67.4 (1713)
FLoad height31.6 (802)
GTrack, front64.3 (1632)

10 Specifications
Specifications
10
}}
383
DimensionIn (mm)
HTrack, rear62.4 (1586)
ILoad width, floor42.9 (1090)
JWidth74.4 (1891)
KWidth incl. door mirrors (folded out)83.5 (2120)
LWidth incl. door mirrors (folded in)74.4 (1891)
Weights
CategoryUSACanada
Gross vehicle weight4-cyl. FWDA
: 5140 lbs
6-cyl. AWD B
: 5355 lbs
6-cyl. turbo AWD: 5380 lbs4-cyl. FWD: 2330 kg 6-cyl. AWD:2430 kg6-cyl. turbo AWD:2440 kg
Capacity weight950 lbs (all models)430 kg (all models)
Permissible axle weights, front4-cyl. FWD: 2720 lbs 6-cyl. AWD: 2800 lbs6-cyl. turbo AWD: 2840 lbs4-cyl. FWD: 1230 kg 6-cyl. AWD:1270 kg6-cyl. turbo AWD:1290 kg
Permissible axle weights, rear4-cyl. FWD: 2560 lbs 6-cyl. AWD: 2640 lbs6-cyl. turbo AWD: 2645 lbs4-cyl. FWD: 1160 kg 6-cyl. AWD:1200 kg6-cyl. turbo AWD:1200 kg
Curb weight3850 - 4210 lbs1750 - 1910 kg

10 Specifications
Specifications
10
384

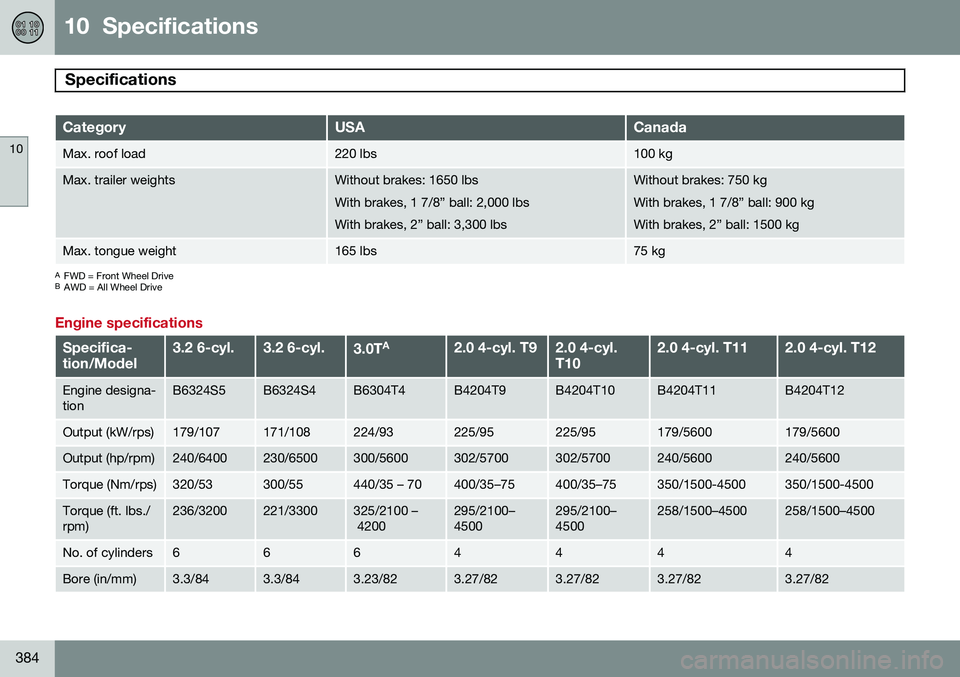

CategoryUSACanada
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel Drive
B AWD = All Wheel Drive
Engine specifications
Specifica- tion/Model3.2 6-cyl.3.2 6-cyl.3.0T A2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12
Engine designa- tionB6324S5B6324S4B6304T4B4204T9B4204T10B4204T11B4204T12
Output (kW/rps)179/107171/108224/93225/95225/95179/5600179/5600
Output (hp/rpm)240/6400230/6500300/5600302/5700302/5700240/5600240/5600
Torque (Nm/rps)320/53300/55440/35 – 70400/35–75400/35–75350/1500-4500350/1500-4500
Torque (ft. lbs./ rpm)236/3200221/3300325/2100 – 4200295/2100– 4500295/2100– 4500258/1500–4500258/1500–4500
No. of cylinders6664444
Bore (in/mm)3.3/843.3/843.23/823.27/823.27/823.27/823.27/82

10 Specifications
Specifications
10
}}
385

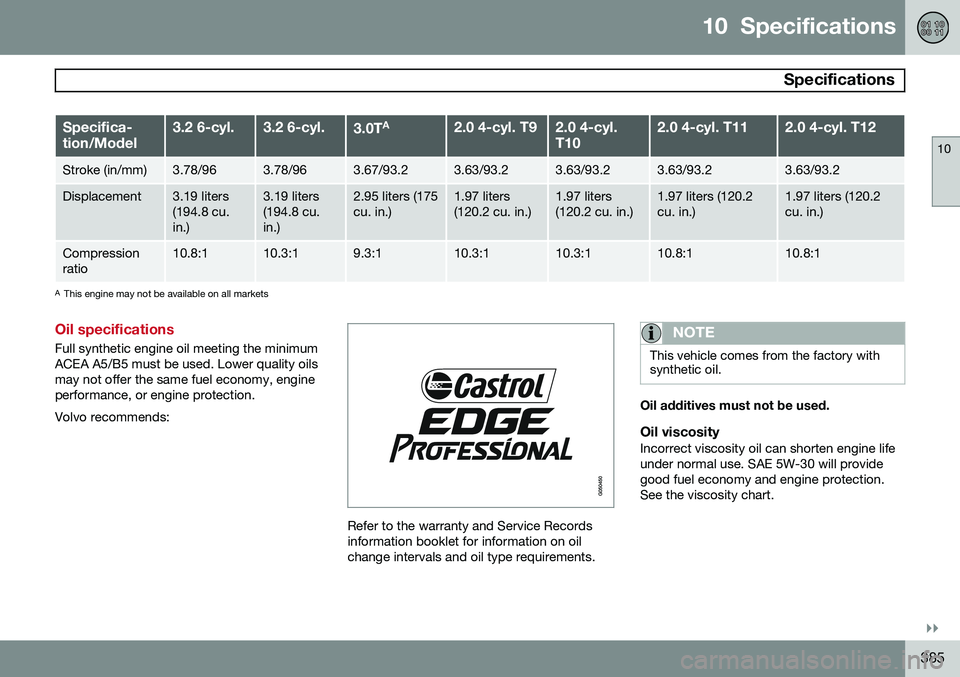

Specifica- tion/Model3.2 6-cyl.3.2 6-cyl.3.0TA2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12
Stroke (in/mm)3.78/963.78/963.67/93.23.63/93.23.63/93.23.63/93.23.63/93.2
Displacement3.19 liters (194.8 cu.in.)3.19 liters (194.8 cu.in.)2.95 liters (175 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)
Compression ratio10.8:110.3:19.3:110.3:110.3:110.8:110.8:1
A
This engine may not be available on all markets
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.

10 Specifications
Specifications
10
386

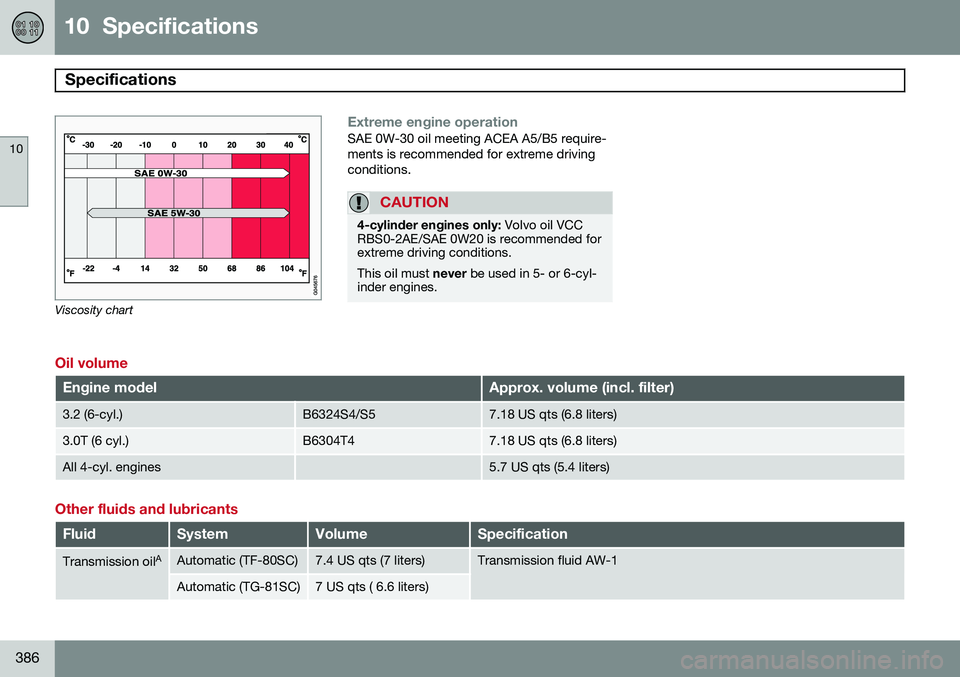

Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cyl-
inder engines.
Oil volume
Engine modelApprox. volume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
All 4-cyl. engines5.7 US qts (5.4 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oil AAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Automatic (TG-81SC)7 US qts ( 6.6 liters)

10 Specifications
Specifications
10
}}
387

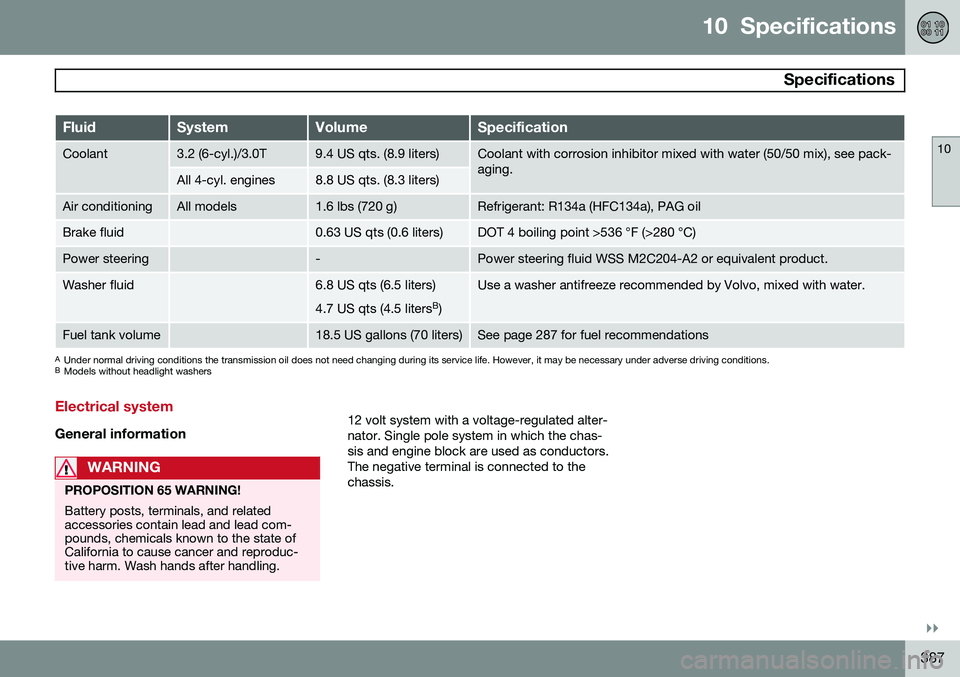

FluidSystemVolumeSpecification
Coolant3.2 (6-cyl.)/3.0T9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor mixed with water (50/50 mix), see pack- aging.
All 4-cyl. engines8.8 US qts. (8.3 liters)
Air conditioningAll models1.6 lbs (720 g)Refrigerant: R134a (HFC134a), PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4 boiling point >536 °F (>280 °C)
Power steering-Power steering fluid WSS M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters) 4.7 US qts (4.5 litersB
)Use a washer antifreeze recommended by Volvo, mixed with water.
Fuel tank volume18.5 US gallons (70 liters)See page 287 for fuel recommendations
A Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
B Models without headlight washers
Electrical system
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.
12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.

10 Specifications
Specifications
10
388* Option/accessory, for more information, see Introduction.

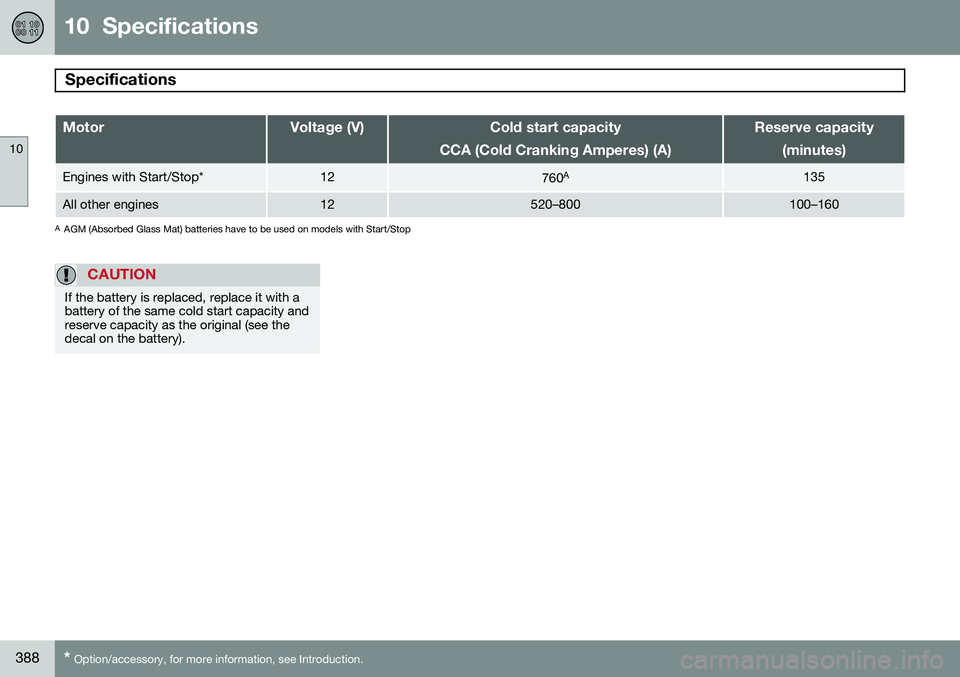

MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)Reserve capacity (minutes)
Engines with Start/Stop*12760A135
All other engines12520–800100–160
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop
CAUTION
If the battery is replaced, replace it with a battery of the same cold start capacity andreserve capacity as the original (see thedecal on the battery).
