2004 VOLVO XC70
Designation: Volvo B 5244 T3
Output 197 hp at 6000 rpm (147 kW/100 rps)
Max. torque 210 ft. lbs. at 1800-5000 rpm (285 Nm/30-83
rps)
Number of
cylinders 5
Bore 3.27" (83 mm)
Stroke 3.54" (90 mm)
Displacement 2.4 liters
Compression ratio 9.0:1
Number of valves 20
Designation: Volvo B 5244 S
Output 168 hp at 6000 rpm (125 kW/100 rps)
Max. torque 166 ft. lbs. at 4500 rpm (225 Nm/75
rps)
Number of
cylinders 5
Bore 3.27" (83 mm)
Stroke 3.54" (90 mm)
Displacement 2.4 liters
Compression ratio 10.3:1
Number of valves 20
Designation: Volvo B 5254 T4
Output 300 hp at 5500 rpm* (220 kW/92 rps)*
Max. torque 295 ft. lbs. at 1950-5250 rpm** (400 Nm/31-95 rps)
**
Number of
cylinders 5
Bore 3.27" (83 mm)
Stroke 3.67" (93.2 mm)
Displacement 2.5 liters
file:///K|/ownersdocs/2004/2004_XC70/04xc70_09.htm (6 of 12)12/30/2006\
4:33:07 PM

2004 VOLVO XC70
Compression ratio 8.5:1
Number of valves 20
* Automatic transmission: 300 hp at 6000 rpm, 220 kW at 100 rps
** Automatic transmission: 258 ft. lbs at 1850-6000 rpm, 350Nm at 32-100\
rps
Charge air cooler (Intercooler)
Turbocharged engines employ a turbo-compressor to force air into the eng\
ine inlet manifold and a
charge air cooler to cool the compressed inlet air. The resulting increa\
se in air flow raises pressure in the
intake manifold and increases engine power over that developed by A norm\
ally-aspirated engine. The
charge air cooler (which resembles a radiator) is located between the \
turbo-compressor and inlet
manifold.

pg. 148 Oil/fluid specifications and volumes
Engine Oil
Meeting or exceeding ILSAC specification GF-2, including ACEA A1, API SJ\
, SJ/CF, and SJ/Energy
Conserving.
Oil additives must not be used.
Volume:
Capacity (including oil filter):
Non-turbo models: 5.8 US qts. (5.5 liters)
Turbo models (not V70R) 6.1 US qts. (5.8 liters)
V70R: 5.5 US qts (5.2 liters)
Manual transmission oil
M56 (five speed): 2.2 US qts. (2.1 liters)
M66 (6 speed): 2.1 US qts. (2.0 liters)
Automatic Transmission Fluid
AW5: Only Volvo transmission oil (1161540-8). Do not mix with other oi\
ls.
Volume: 7.9 US qts (7.5 liters)
Cooling system
file:///K|/ownersdocs/2004/2004_XC70/04xc70_09.htm (7 of 12)12/30/2006\
4:33:07 PM

2004 VOLVO XC70
Type: Positive pressure, closed system. The thermostat begins to open at 194 \
°F (90 °C)
Coolant: Volvo original coolant/antifreeze
Power steering fluid
ATF fluid
Volume: 0.95 US qts (0.9 liters)
Brake fluid
DOT 4+ boiling point >536°F(280°C), P/N 9437433
Volume: 0.64 US qts (0.6 liters)
Climate control system - refrigerant (R 134a)
Oil: PAG
Volume: 2.2 lbs (1,000 g) R134a
Fuel
Minimum octane requirement - AKI 87 (RON 91)
Fuel tank volume:
Front wheel drive models:18.5 US gal. (70 liters)
All Wheel Drive models: 19 US gal. (72 liters)
V70R: 18 US gal. (68 liters)
Washer fluid reservoir
Volume: 4.7 US qts (4.5 liters)
All specifications are subject to change without prior notice.

pg. 149 Fuel system, Distributor ignition system, Suspension
Fuel system
file:///K|/ownersdocs/2004/2004_XC70/04xc70_09.htm (8 of 12)12/30/2006\
4:33:07 PM

2004 VOLVO XC70
The engine is equipped with a multiport fuel injection system.
Distributor ignition system
Firing order: 1-2-4-5-3
Electronic ignition setting: Not adjustable
Spark plugs: Champion RC8PYP 8 (or equivalent)
Spark plug gap: 0.028-0.032" (0.7-0.8 mm)
Tightening torque: 18.4 ft. lbs. (25 Nm) WARNING!

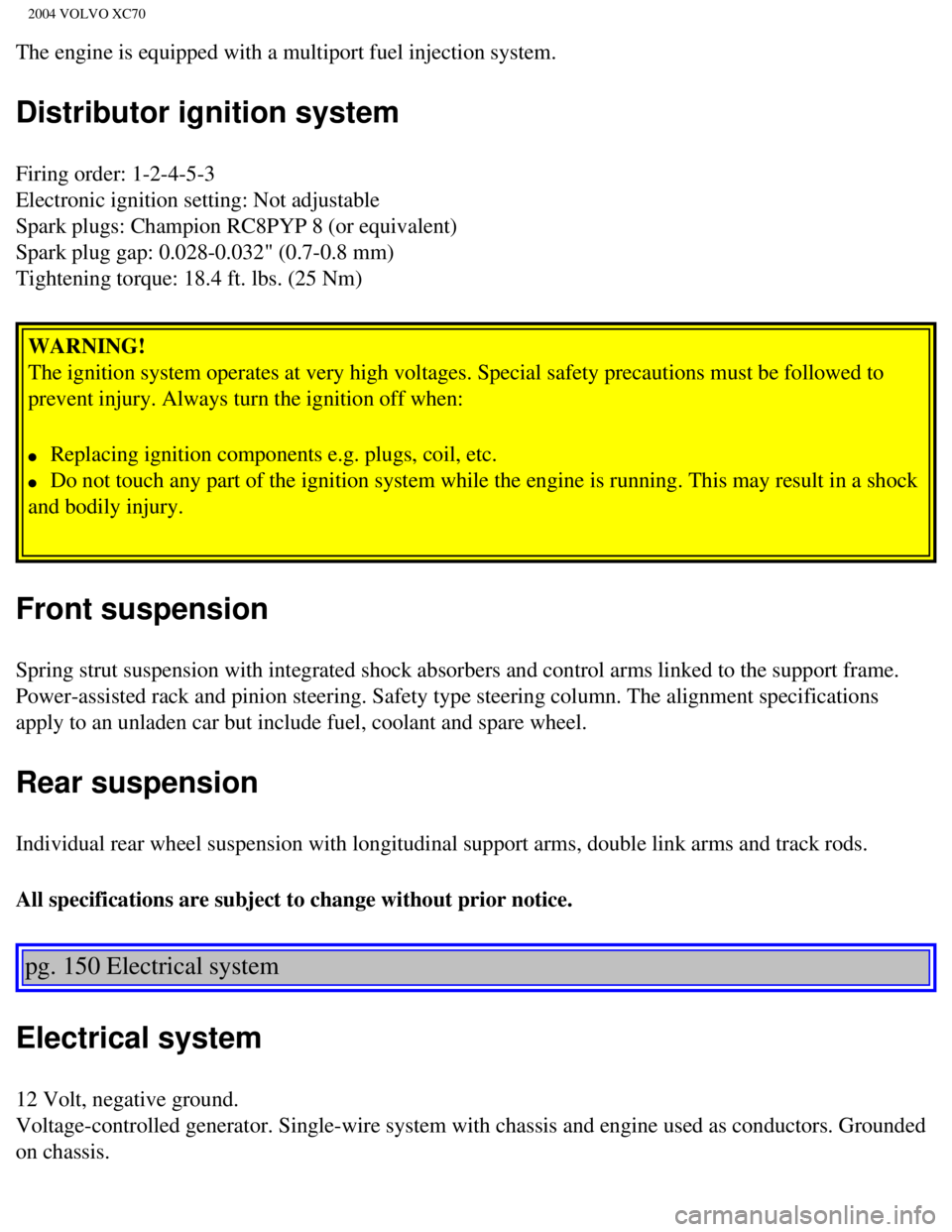

The ignition system operates at very high voltages. Special safety preca\
utions must be followed to
prevent injury. Always turn the ignition off when:
l Replacing ignition components e.g. plugs, coil, etc.
l Do not touch any part of the ignition system while the engine is running\
. This may result in a shock
and bodily injury.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms\
linked to the support frame.
Power-assisted rack and pinion steering. Safety type steering column. Th\
e alignment specifications
apply to an unladen car but include fuel, coolant and spare wheel.
Rear suspension
Individual rear wheel suspension with longitudinal support arms, double \
link arms and track rods.
All specifications are subject to change without prior notice.

pg. 150 Electrical system
Electrical system
12 Volt, negative ground.
Voltage-controlled generator. Single-wire system with chassis and engine\
used as conductors. Grounded
on chassis.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_09.htm (9 of 12)12/30/2006\
4:33:07 PM

2004 VOLVO XC70
Battery
Voltage: 12 Volt, capacity: 600 A/115 min reserve capacity.
The battery contains corrosive and poisonous acids. It is of the utmost \
importance that old batteries are
disposed of correctly. Your Volvo retailer can assist you in this matter\
.
Generator
Rated output: max. current: 140 A
Starter motor:
Output: 1.7 kW
Bulbs
Bulb US no. Power Socket
Headlights
- High beam HB360W -
- Low beam H7 55W -
Bi-Xenon headlights*
(option) 35W
D2R
Front parking lights 5W W2.1x9.5d
Front direction indicators (yellow) 21 W BAU 15d
Front fog lights H1 55 W -
- V70R H3 55 W -
Rear direction indicators (yellow) 21W BAU 15 s
Tail lights 67 5W BA 15 s
Brake lights 115621W BA 15 s
Backup lights 115621W BA 15 s
Rear fog light/rear parking lights 21/4W BA 15 s
License plate light - 5 W W 2.1x9.5d
Door step courtesy lights
Front -5W SV 8.5
Cargo area lights - 5 W SV 8.5
Glove compartment light -2 W BA 9s
Vanity mirror light(s) - 12V
1.2W -
file:///K|/ownersdocs/2004/2004_XC70/04xc70_09.htm (10 of 12)12/30/200\
6 4:33:07 PM

2004 VOLVO XC70
Instrument lighting- 3 W W
2.1x9.5d
* Bi-Xenon headlight bulbs (option) contain trace amounts of mercury. \
These bulbs should always be
disposed of by an authorized Volvo retailer.

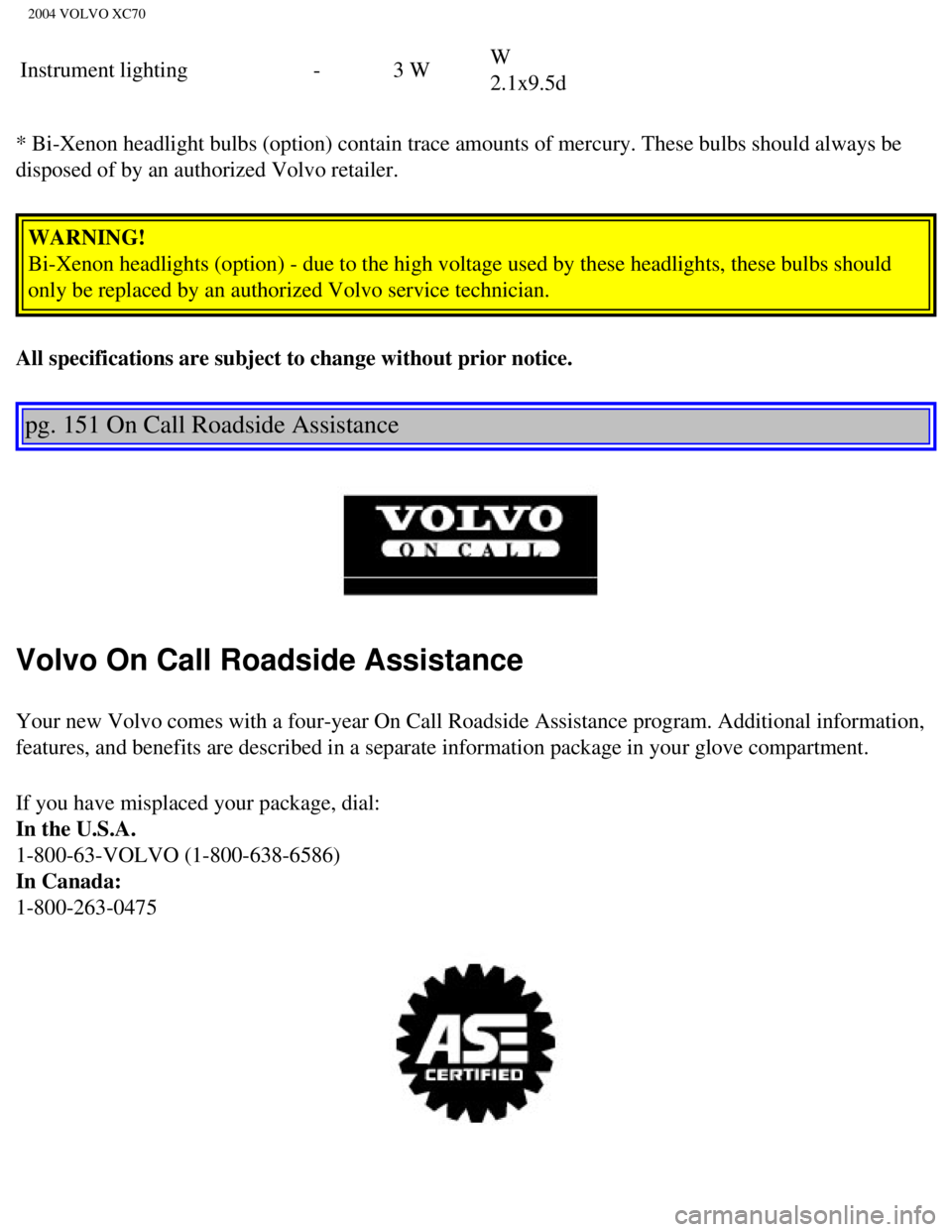

WARNING!
Bi-Xenon headlights (option) - due to the high voltage used by these h\
eadlights, these bulbs should
only be replaced by an authorized Volvo service technician.
All specifications are subject to change without prior notice.

pg. 151 On Call Roadside Assistance

Volvo On Call Roadside Assistance
Your new Volvo comes with a four-year On Call Roadside Assistance progra\
m. Additional information,
features, and benefits are described in a separate information package i\
n your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.
1-800-63-VOLVO (1-800-638-6586)
In Canada:
1-800-263-0475
file:///K|/ownersdocs/2004/2004_XC70/04xc70_09.htm (11 of 12)12/30/200\
6 4:33:07 PM

2004 VOLVO XC70
Technician certification
In addition to Volvo factory training, Volvo supports certification by t\
he National Institute for
Automotive Excellence (A.S.E.). Certified technicians have demonstrate\
d a high degree of competence
in specific areas. Besides passing exams, each technician must also have\
worked in the field for two or
more years before a certificate is issued. These professional technician\
s are best able to analyze vehicle
problems and perform the necessary service procedures to keep your Volvo\
at peak operating condition.



Contents | Top of Page
file:///K|/ownersdocs/2004/2004_XC70/04xc70_09.htm (12 of 12)12/30/200\
6 4:33:07 PM

2004 VOLVO XC70
2 0 0 4
VOLVO XC70
Chapter 10 - Audio systems


pg. 153 Audio systems

HU-613 overview 154
HU-803 overview 155
Audio system
functions 156
Specifications 167
General information 168
NOTE: The text on the face of the radio, describing the button functions, may\
vary slightly depending
on which audio system you have in your car.

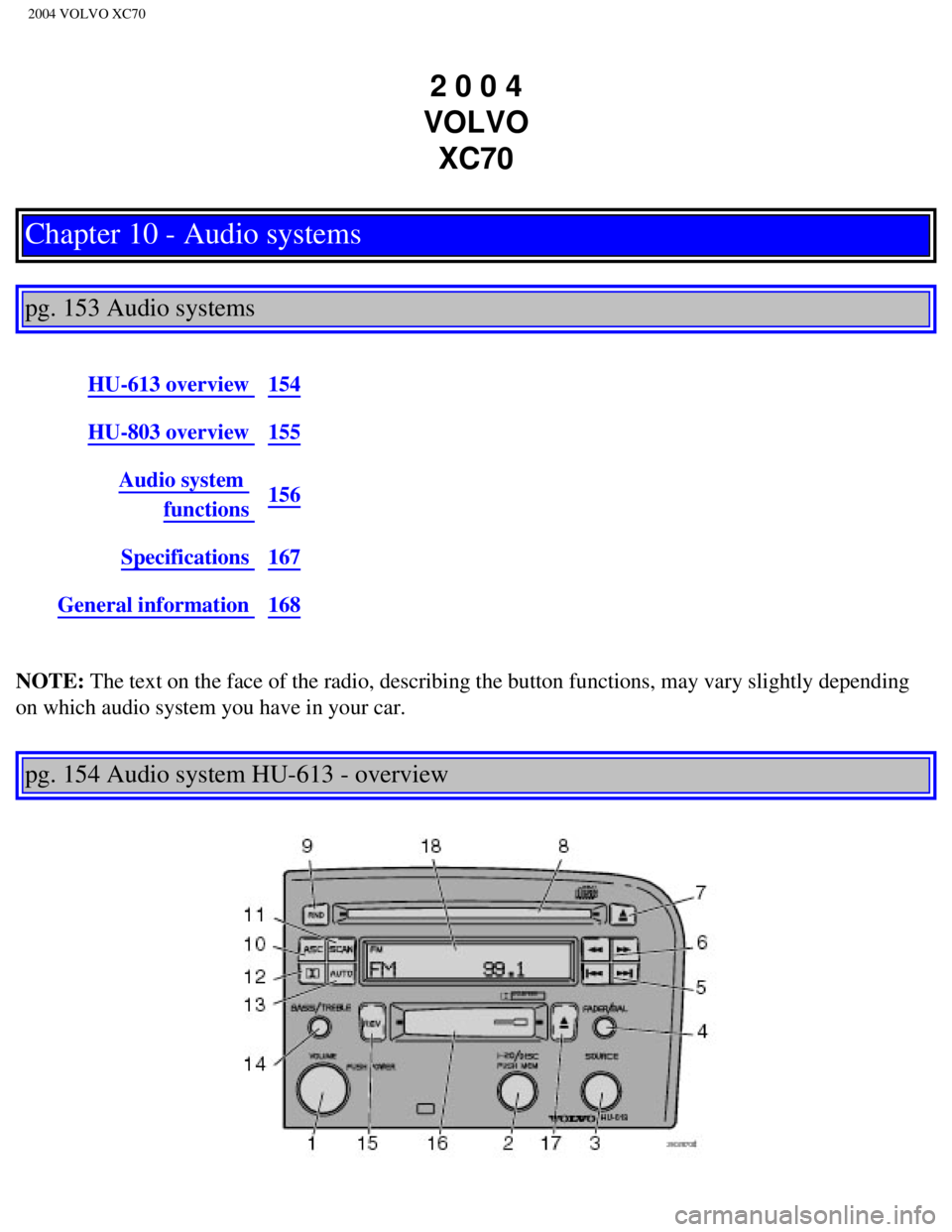

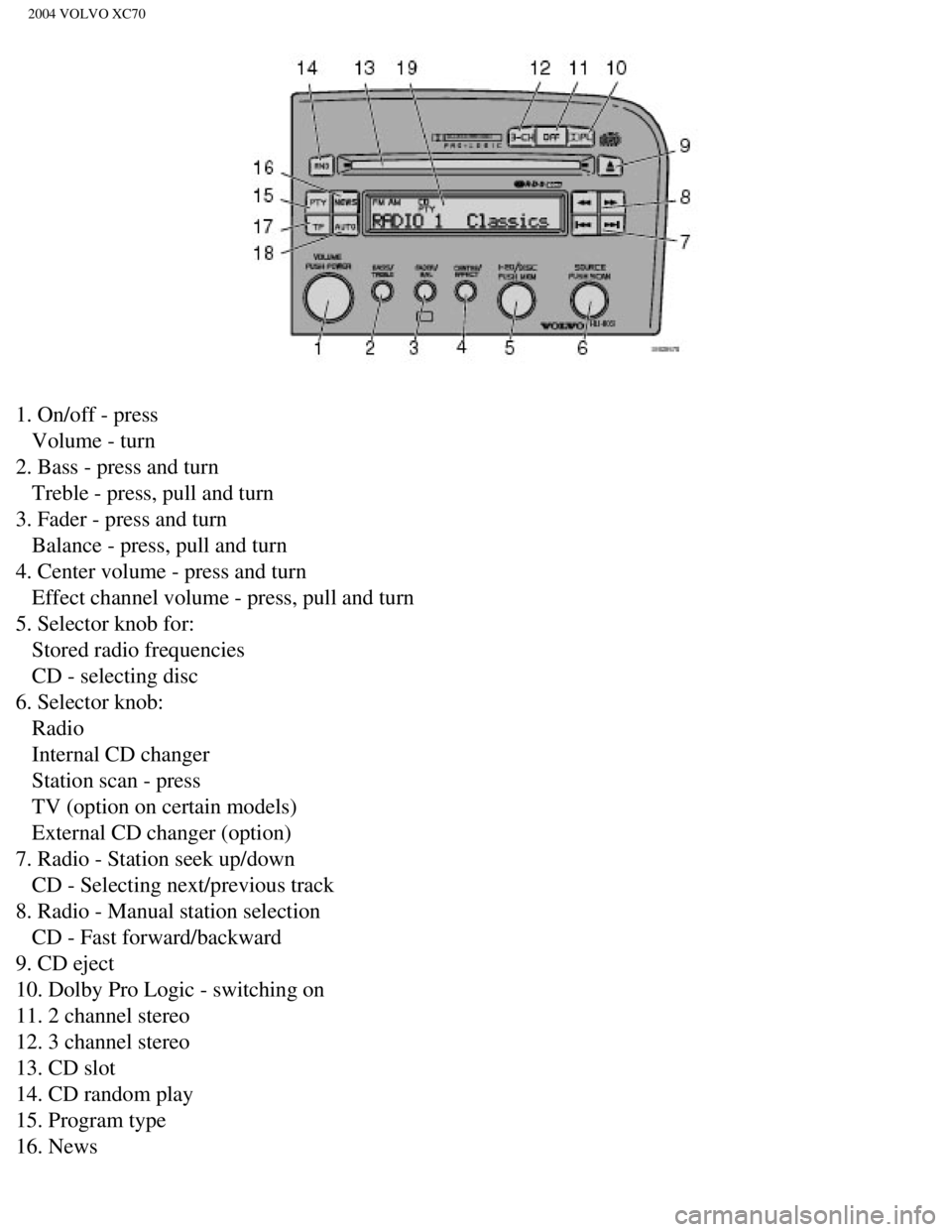

pg. 154 Audio system HU-613 - overview
