VOLVO XC70 2007 Owners Manual

2007 Volvo XC70
The spare tire, jack and tool bag are located under the floor of the car\
go space. To access the spare tire:
- Remove the rear hinged floor panel by raising it approx. 6 inches (15\
cm) and then pulling it
backwards out of the cargo area.
- Unscrew and remove the accessory plastic floor tray (if fitted).
- Unstrap and lift out the jack and tool bag.
- Unscrew the securing bracket and remove the spare tire from the storag\
e well.
- When putting the tire back into the well, perform these steps in rever\
se order. Make sure the spare tire,
jack and tool bag are properly secured.
WARNING!
Make sure that the spare tire, jack and tool bag are properly secured wi\
th the securing bracket and
strap to help keep these components in place in the event of a sudden st\
op.
pg. 173 Wheels and tires
Temporary spare
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (19 of 24)12/30/200\
6 5:51:40 PM

2007 Volvo XC70
Spare tire, tool bag, jack - vehicles with subwoofer (option)
The spare tire, jack and tool bag are located under the floor of the car\
go space in a compartment in front
of the spare tire. To access the spare tire:
- Remove the rear hinged floor panel by raising it approx. 6 inches (15\
cm) and then pulling it rearward
out of the cargo area.
- Raise the other floor panel to upright position and lock it there.
- Remove the mat.
- Loosen the wheel and turn the clip 90°.
- Lift the subwoofer inward-upward with both hands and tilt it leftward.\

- Unstrap and lift out the jack and tool bag.
- Unscrew the securing bracket and remove the spare tire from the storag\
e well.
- When putting the tire and subwoofer back into place, perform these ste\
ps in reverse order. Make sure
the spare tire, jack, tool bag and subwoofer are properly secured.
WARNING!
Make sure that the spare tire, jack and tool bag are properly secured wi\
th the securing bracket and
strap to help keep these components in place in the event of a sudden st\
op.
pg. 174 Wheels and tires
Changing wheels
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (20 of 24)12/30/200\
6 5:51:40 PM

2007 Volvo XC70
Changing wheels
The spare wheel is located under the rear hatch in the cargo area floor.\
The jack and crank are secured in
the wheel recess (see
pages 171 and 173).
There are two jack attachment points on each side of the vehicle (see i\
llustration on next page).
To change a wheel:
- Engage the parking brake.
- Put the gear selector in (P)ark (automatic transmission) or revers\
e (manual transmission).
- Remove the wheel cap (where applicable) using the lug wrench in the \
tool bag.
- With the vehicle still on the ground, use the lug wrench to loosen the\
wheel bolts 1/2 - 1 turn by
exerting downward pressure. Turn the bolts counterclockwise to loosen.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (21 of 24)12/30/200\
6 5:51:40 PM

2007 Volvo XC70
CAUTION!
- The vehicle must not be driven with wheels of different dimensions or \
with a spare tire other than
the one that came with the vehicle. The use of different size wheels can\
seriously damage your
vehicle's transmission.
- Correct tightening torque on wheel bolts must be observed. The wheel b\
olts should never be greased
or lubricated. The extended, chromed wheel bolts must not be used with s\
teel rims, as they make it
impossible to fit the hub caps.
- Locking wheel bolts can be used on both aluminum and steel wheels. If \
hub caps are used on steel
wheels, the locking wheel bolt should be mounted in the hole as far from\
the tire's inflation valve as
possible. It would otherwise not be possible to mount the hub cap on the\
wheel.
pg. 175 Wheels and tires
Changing wheels
- Position the jack correctly on the bar in the attachment (see illustr\
ation above) and crank while
simultaneously guiding the base of the jack to the ground. The base of t\
he jack must be flat on a level,
firm, non-slippery surface. Before raising the vehicle, check that the j\
ack is still correctly positioned in
the attachment.
- Raise the vehicle until the wheel to be changed is lifted off the grou\
nd.
- Unscrew the wheel bolts completely and carefully remove the wheel so a\
s not to damage the threads on
the studs.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (22 of 24)12/30/200\
6 5:51:40 PM

2007 Volvo XC70
NOTE: To avoid excessive wear and the necessity of rebalancing, mark and rein\
stall wheels in the same
location and position as before removal. To lessen the chance of imbalan\
ce, each wheel hub is equipped
with a guide stud to ensure that a removed wheel can be reinstalled in i\
ts original position (as when
changing over to winter tires/wheels).
Installing the wheel
- Clean the contact surfaces on the wheel and hub.
- Lift the wheel and place it on the hub.
- Install the wheel bolts and tighten hand-tight. Using the lug wrench, \
tighten crosswise until all bolts are
snug.
- Lower the vehicle to the ground and alternately tighten the bolts cros\
swise to 102 ft. lbs. (140 Nm).
- Install the wheel cap (where applicable).
pg. 176 Wheels and tires
Changing wheels
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (23 of 24)12/30/200\
6 5:51:40 PM

2007 Volvo XC70

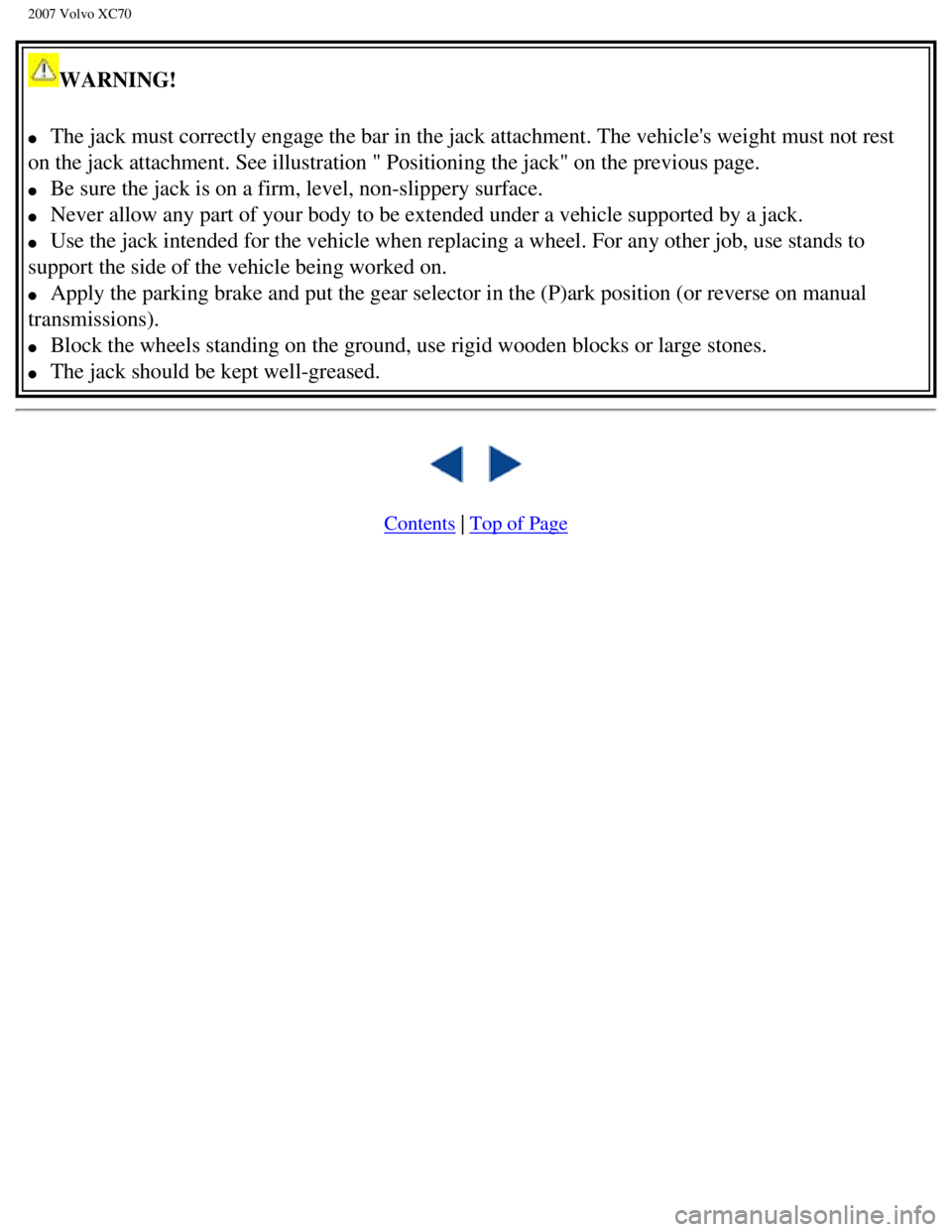

WARNING!
l The jack must correctly engage the bar in the jack attachment. The vehic\
le's weight must not rest
on the jack attachment. See illustration " Positioning the jack" on the \
previous page.
l Be sure the jack is on a firm, level, non-slippery surface.
l Never allow any part of your body to be extended under a vehicle support\
ed by a jack.
l Use the jack intended for the vehicle when replacing a wheel. For any ot\
her job, use stands to
support the side of the vehicle being worked on.
l Apply the parking brake and put the gear selector in the (P)ark positi\
on (or reverse on manual
transmissions).
l Block the wheels standing on the ground, use rigid wooden blocks or larg\
e stones.
l The jack should be kept well-greased.



Contents | Top of Page
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (24 of 24)12/30/200\
6 5:51:40 PM

2007 Volvo XC70
2 0 0 7
VOLVO XC70
Vehicle care

pg. 177 Vehicle care
Washing and cleaning the
car
178
Paint touch up
182
pg. 178 Vehicle care
Washing and cleaning the car
Washing the vehicle
l The vehicle should be washed at regular intervals since dirt, dust, inse\
cts and tar spots adhere to the
paint and may cause damage. It is particularly important to wash the veh\
icle frequently in the wintertime
to prevent corrosion, when salt has been used on the roads.
l When washing the vehicle, do not expose it to direct sunlight. Use lukew\
arm water to soften the dirt
before you wash with a sponge, and plenty of water, to avoid scratching.\

l Bird droppings: Remove from paintwork as soon as possible. Otherwise the\
finish may be
permanently damaged.
l A detergent can be used to facilitate the softening of dirt and oil.
l A water-soluble grease solvent may be used in cases of sticky dirt. Howe\
ver, use a wash place
equipped with a drainage separator.
l Dry the vehicle with a clean chamois and remember to clean the drain hol\
es in the doors and rocker
panels.
l Tar spots can be removed with kerosene or tar remover after the vehicle \
has been washed.
l A stiff-bristle brush and lukewarm soapy water can be used to clean the \
wiper blades. Frequent
cleaning improves visibility considerably.
l Wash off the dirt from the underside (wheel housings, fenders, etc.). \
l In areas of high industrial fallout, more frequent washing is recommende\
d.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_08.htm (1 of 7)12/30/2006 \
5:51:41 PM

2007 Volvo XC70

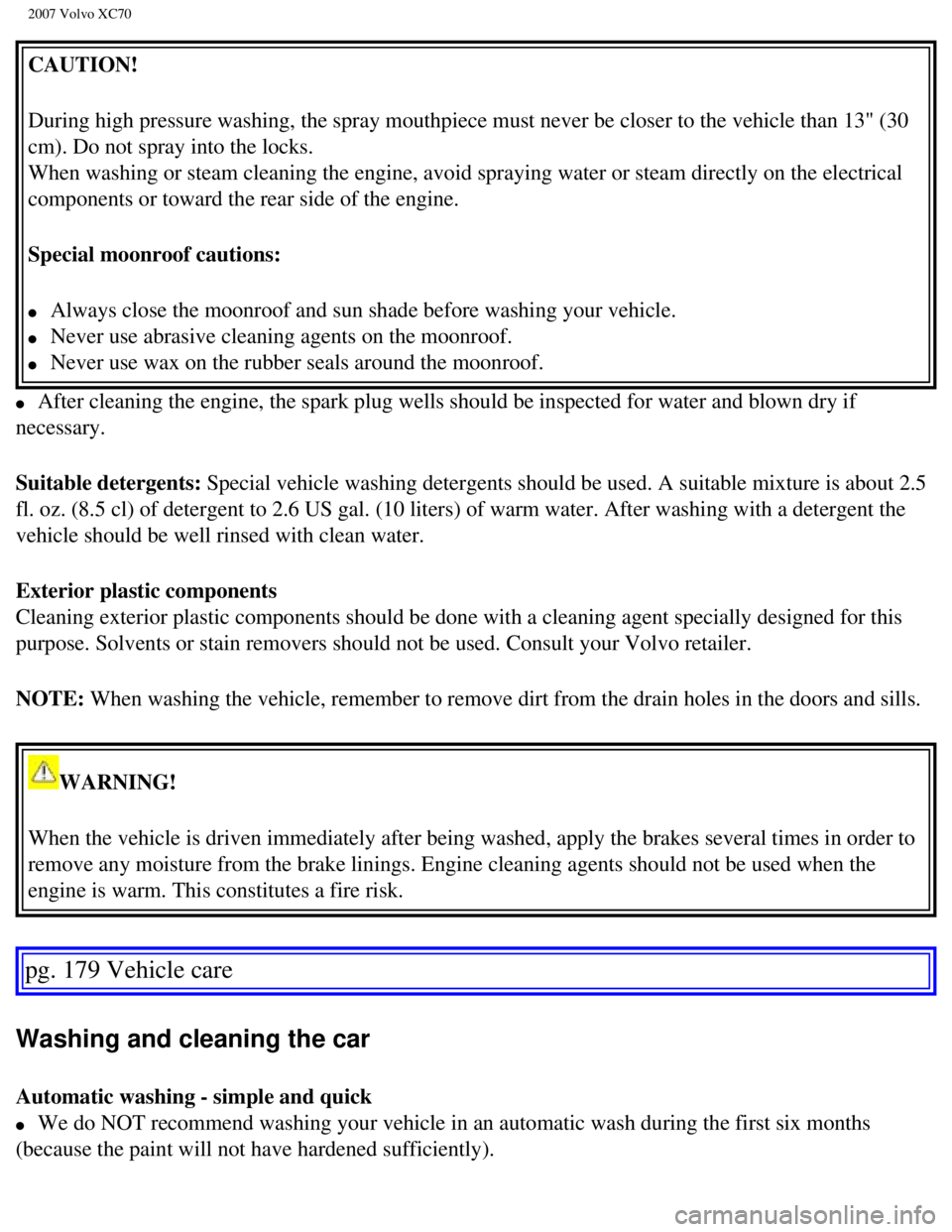

CAUTION!
During high pressure washing, the spray mouthpiece must never be closer \
to the vehicle than 13" (30
cm). Do not spray into the locks.
When washing or steam cleaning the engine, avoid spraying water or steam\
directly on the electrical
components or toward the rear side of the engine.
Special moonroof cautions:
l Always close the moonroof and sun shade before washing your vehicle.
l Never use abrasive cleaning agents on the moonroof.
l Never use wax on the rubber seals around the moonroof.
l After cleaning the engine, the spark plug wells should be inspected for \
water and blown dry if
necessary.
Suitable detergents: Special vehicle washing detergents should be used. A suitable mixture i\
s about 2.5
fl. oz. (8.5 cl) of detergent to 2.6 US gal. (10 liters) of warm wat\
er. After washing with a detergent the
vehicle should be well rinsed with clean water.
Exterior plastic components
Cleaning exterior plastic components should be done with a cleaning agen\
t specially designed for this
purpose. Solvents or stain removers should not be used. Consult your Vol\
vo retailer.
NOTE: When washing the vehicle, remember to remove dirt from the drain holes \
in the doors and sills.
WARNING!
When the vehicle is driven immediately after being washed, apply the bra\
kes several times in order to
remove any moisture from the brake linings. Engine cleaning agents shoul\
d not be used when the
engine is warm. This constitutes a fire risk.
pg. 179 Vehicle care
Washing and cleaning the car
Automatic washing - simple and quick
l We do NOT recommend washing your vehicle in an automatic wash during the\
first six months
(because the paint will not have hardened sufficiently).
file:///K|/ownersdocs/2007/2007_XC70/07xc70_08.htm (2 of 7)12/30/2006 \
5:51:41 PM

2007 Volvo XC70
l An automatic wash is a simple and quick way to clean your vehicle, but i\
t is worth remembering that
it may not be as thorough as when you yourself go over the vehicle with \
sponge and water. Keeping the
underbody clean is most important, especially in the winter. Some automa\
tic washers do not have
facilities for washing the underbody.
l Before driving into an automatic car wash, make sure that side view mirr\
ors, auxiliary lamps, etc, are
secure, and that any antenna(s) are retracted or removed. Otherwise th\
ere is risk of the machine
dislodging them.
Exterior lighting
Condensation may form temporarily on the inside of the lenses of exterio\
r lights such as headlights, fog
lights, or tail lights. This is normal and the lights are designed to wi\
thstand moisture. Normally,
condensation will dissipate after the lights have been on for a short ti\
me.
Polishing and waxing
l Normally, polishing is not required during the first year after delivery\
, however, waxing may be
beneficial.
l Before applying polish or wax the vehicle must be washed and dried. Tar \
spots can be removed with
kerosene or tar remover. Difficult spots may require a fine rubbing comp\
ound.
l After polishing use liquid or paste wax.
l Several commercially available products contain both polish and wax.
l Waxing alone does not substitute for polishing a dull surface.
l A wide range of polymer-based waxes can be purchased today. These waxes \
are easy to use and
produce a long-lasting, high-gloss finish that protects the bodywork aga\
inst oxidation, road dirt and
fading.
l Do not polish or wax your vehicle in direct sunlight (the surface of th\
e vehicle should not be warmer
than 113° F (45° C).
CAUTION!
Volvo does not recommend the use of long-life or durable paint protectio\
n coatings, some of which
may claim to prevent pitting, fading, oxidation, etc. These coatings hav\
e not been tested by Volvo for
compatibility with your vehicle's clear coat. Some of them may cause the\
clear coat to soften, crack,
or cloud. Damage caused by application of paint protection coatings may \
not be covered under your
vehicle's paint warranty.
Side windows with the water repellent glass coating-option
l Do not apply wax, degreasing agents, etc to this glass. This could damag\
e the coating.
l Clean the glass surface with care to avoid scratching.
l Use only suitable plastic scrapers to remove ice or snow from the window\
s.
NOTE: The water repellent coating is subject to natural wear.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_08.htm (3 of 7)12/30/2006 \
5:51:41 PM

2007 Volvo XC70
pg. 180 Vehicle care
Washing and cleaning the car
In order to maintain the coating's water repellent characteristics, it s\
hould be treated with a special
compound that is available at your Volvo retailer.
This treatment should be carried out for the first time after three year\
s, and thereafter once a year.
pg. 181 Vehicle care
Washing and cleaning the car
Cleaning the upholstery
Fabric
Clean with soapy water or a detergent. For more difficult spots caused b\
y oil, ice cream, shoe polish,
grease, etc., use a clothing/ fabric stain remover. Consult your Volvo r\
etailer.
Interior plastic components
Cleaning interior plastic components should be done with a cleaning agen\
t specially designed for this
purpose. Consult your Volvo retailer.
Alcantera™ suede-like material
Suede-like upholstery can be cleaned with a soft cloth and mild soap sol\
ution.
Leather care
Volvo's leather upholstery is manufactured with a protectant to repel so\
iling. Over time, sunlight, grease
and dirt can break down the protection. Staining, cracking, scuffing, an\
d fading can result.
Volvo offers an easy-to-use, non-greasy leather care kit formulated to c\
lean and beautify your vehicle's
leather, and to renew the protective qualities of its finish. The cleane\
r removes dirt and oil buildup. The
light cream protectant restores a barrier against soil and sunlight.
Volvo also offers a special leather softener that should be applied afte\
r the cleaner and protectant. It
leaves leather soft and smooth, and reduces friction between leather and\
other finishes in the vehicle.
Volvo recommends cleaning, protecting and conditioning your vehicle's le\
ather two to four times a year.
Ask your Volvo retailer about Leather Care Kit 951 0251 and Leather Soft\
ener 943 7429.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_08.htm (4 of 7)12/30/2006 \
5:51:41 PM
