VOLVO XC70 2007 Owner's Guide

2007 Volvo XC70
WARNING!
Always refer to the child restraint manufacturer's instructions for deta\
iled information on securing the
restraint.
pg. 32 Safety
Child safety
WARNING!
l When not in use, keep the child restraint system secured or remove it fr\
om the passenger
compartment to help prevent it from injuring passengers in the event of \
a sudden stop or collision.
l A small child's head represents a considerable part of its total weight \
and its neck is still very weak.
Volvo recommends that children up to age 4 travel, properly restrained, \
facing rearward. In addition,
Volvo recommends that children should ride rearward facing, properly res\
trained, as long as possible.
pg. 33 Safety
Infant seats
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (25 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
Securing an infant seat with a seat belt
NOTE: Refer to
pages 38-39 for information on securing a child restraint using ISOFIX lower anchor\
s
and/or top tether anchorages.
1. Place the infant seat in the rear seat of the vehicle.
2. Attach the seat belt to the infant seat according to the manufacturer\
's instructions.
3. Fasten the seat belt by inserting the latch plate into the buckle (l\
ock) until a distinct click is audible.
WARNING!
l An infant seat must be in the rear-facing position only.
l The infant seat should not be positioned behind the driver's seat unless\
there is adequate space for
safe installation.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (26 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70

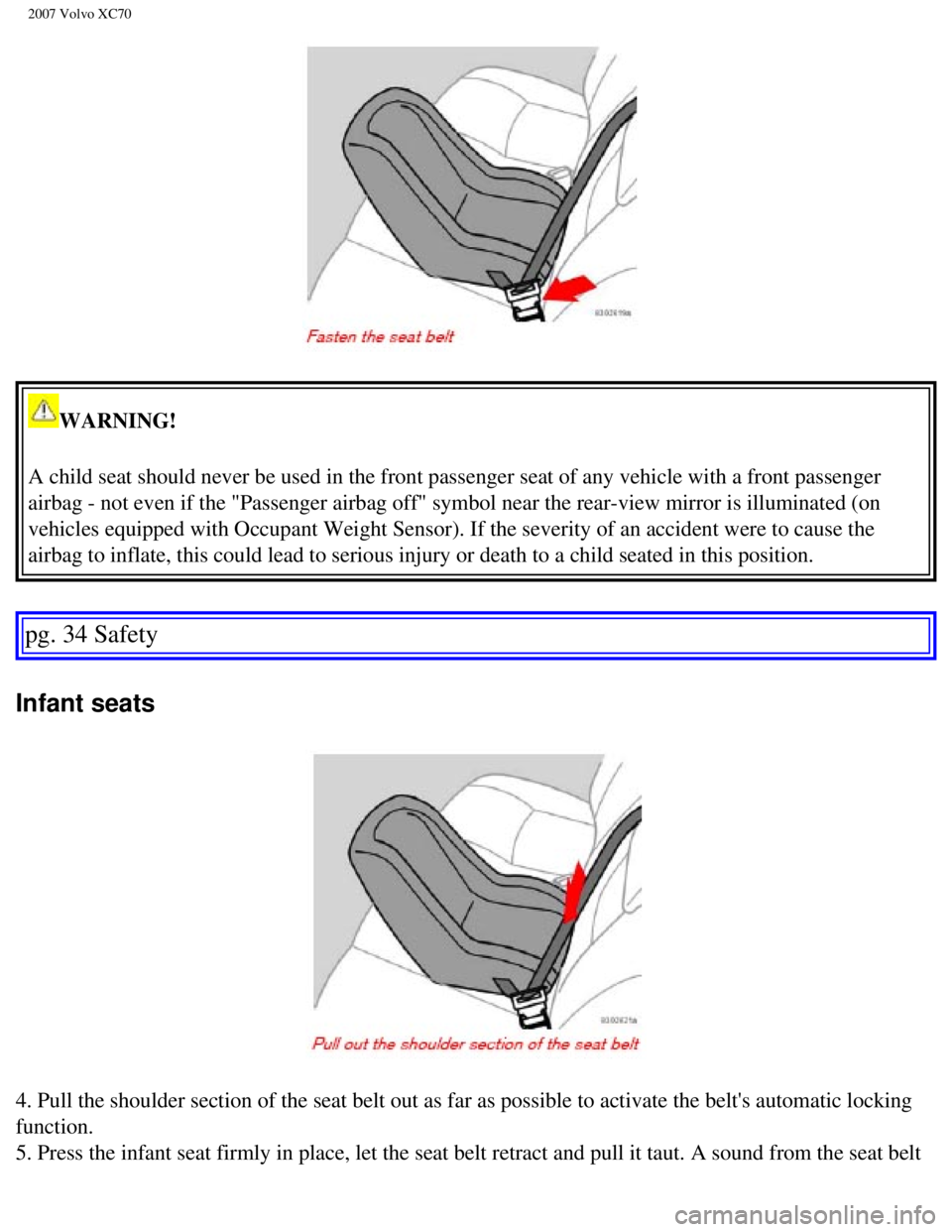

WARNING!
A child seat should never be used in the front passenger seat of any veh\
icle with a front passenger
airbag - not even if the "Passenger airbag off" symbol near the rear-vie\
w mirror is illuminated (on
vehicles equipped with Occupant Weight Sensor). If the severity of an a\
ccident were to cause the
airbag to inflate, this could lead to serious injury or death to a child\
seated in this position.
pg. 34 Safety
Infant seats
4. Pull the shoulder section of the seat belt out as far as possible to \
activate the belt's automatic locking
function.
5. Press the infant seat firmly in place, let the seat belt retract and \
pull it taut. A sound from the seat belt
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (27 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
retractor's automatic locking function will be audible at this time and \
is normal. The seat belt should
now be locked in place.
NOTE: The locking retractor will automatically release when the seat belt is \
unbuckled and allowed to
retract fully.
6. Push and pull the infant seat to ensure that it is held securely in p\
lace by the seat belt.
WARNING!
It should not be possible to move the child restraint more than 1 in. (\
2.5 cm) in any
direction.
The infant seat can be removed by unbuckling the seat belt and letting i\
t retract completely.
pg. 35 Safety
Convertible seats
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (28 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
Securing a convertible seat with a seat belt
NOTE: Refer to
pages 38-39 for information on securing a child restraint using ISOFIX lower anchor\
s
and/or top tether anchorages.
Convertible seats can be used in either a forward or rearward-facing pos\
ition, depending on the age and
size of the child.
WARNING!
Always use a convertible seat that is suitable for the child's age and s\
ize. See the convertible seat
manufacturer's recommendations.
1. Place the convertible seat in the rear seat of the vehicle.
2. Attach the seat belt to the convertible seat according to the manufac\
turer's instructions.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (29 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
WARNING!
l A small child's head represents a considerable part of its total weight \
and its neck is still very weak.
Volvo recommends that children up to age 4 travel, properly restrained, \
facing rearward. In addition,
Volvo recommends that children should ride rearward facing, properly res\
trained, as long as possible.
l Convertible child seats should be installed in the rear seat only.
l A rear-facing convertible seat should not be positioned behind the drive\
r's seat unless there is
adequate space for safe installation.
pg. 36 Safety
Convertible seats
3. Fasten the seat belt by inserting the latch plate into the buckle (l\
ock) until a distinct click is audible.
4. Pull the shoulder section of the seat belt out as far as possible to \
activate the belt's automatic locking
function.
5. Press the convertible seat firmly in place, let the seat belt retract\
and pull it taut. A sound from the seat
belt retractor's automatic locking function will be audible at this time\
and is normal. The seat belt should
now be locked in place.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (30 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
NOTE: The locking retractor will automatically release when the seat belt is \
unbuckled and allowed to
retract fully.
6. Push and pull the convertible seat to ensure that it is held securely\
in place by the seat belt.
WARNING!
It should not be possible to move the child restraint more than 1 in. (\
2.5 cm) in any
direction.
The convertible seat can be removed by unbuckling the seat belt and lett\
ing it retract completely.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (31 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
WARNING!
A child seat should never be used in the front passenger seat of any veh\
icle with a front passenger
airbag - not even if the "Passenger airbag off" symbol near the rear-vie\
w mirror is illuminated (on
vehicles equipped with Occupant Weight Sensor). If the severity of an a\
ccident were to cause the
airbag to inflate, this could lead to serious injury or death to a child\
seated in this position.
pg. 37 Safety
Booster cushions
Securing a booster cushion
1. Booster cushions are recommended for children who have outgrown conve\
rtible seats.
2. Place the booster cushion in the rear seat of the vehicle.
3. With the child properly seated on the booster cushion, attach the sea\
t belt to or around the cushion
according to the manufacturer's instructions.
Fasten the seat belt by inserting the latch plate into the buckle (lock\
) until a distinct click is audible.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (32 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
4. Ensure that the seat belt is pulled taut and fits snugly around the c\
hild.
WARNING!
l The hip section of the three-point seat belt must fit snugly across the \
child's hips, not across the
stomach.
l The shoulder section of the three-point seat belt should be positioned a\
cross the chest and shoulder.
l The shoulder belt must never be placed behind the child's back or under \
the arm.
pg. 38 Safety
ISOFIX lower anchors
Using the ISOFIX lower child seat anchors
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (33 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
Lower anchors for ISOFIX-equipped child seats are located in the rear, o\
utboard seats, hidden below the
backrest cushions. Symbols on the seat back upholstery mark the anchor p\
ositions (see the illustration
above).
To access the anchors:
1. Put the child restraint in position.
2. Kneel on the child restraint to press down the seat cushion and locat\
e the anchors by feel.
3. Fasten the attachment on the child restraint's lower straps to the IS\
OFIX lower anchors.
4. Firmly tension the lower child seat straps according to the manufactu\
rer's instructions.
NOTE:
l The rear seat's center position is not equipped with ISOFIX lower anchor\
s. When installing a child
restraint in this position, attach the restraint's top tether strap (if\
it is so equipped) to the top tether
anchorage point (see the information on
page 39) and secure the restraint with the vehicle's center seat
belt (see the information beginning on
page 31).
l Always follow your child seat manufacturer's installation instructions, \
and use both ISOFIX lower
anchors and top tethers whenever possible.
WARNING!
Be sure to fasten the attachment correctly to the anchor (see the illus\
tration above). If the attachment
is not correctly fastened, the child restraint may not be properly secur\
ed in the event of a collision.
pg. 39 Safety
Top tether anchors
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (34 of 38)12/30/200\
6 5:51:26 PM
