2007 Volvo XC70
Top tether anchors
Volvo vehicles are equipped with child restraint top tether anchorages i\
n all rear seat positions.
Using the top tether anchorages
1. Place the child restraint on the rear seat.
2. Route the top tether strap under the head restraint and fasten its at\
tachment to the anchorage.
WARNING!
Be sure to fasten the child tether attachment correctly to the anchor. I\
f it is not correctly fastened, the
child seat may not be properly restrained in the event of a collision.
3. Firmly tension the top tether strap according to the child restraint \
manufacturer's instructions. Tension
the top tether strap only after the lower anchor straps or the seat belt\
have been firmly tensioned.
See
page 38 for on securing the child restraint to ISOFIX lower anchors.
NOTE:
l Child restraints could be recalled for safety reasons. You must register\
your child restraint to be
reached in a recall. To stay informed about child safety seat recalls, b\
e sure to fill out and return the
registration card that comes with new child restraints.
Child restraint recall information is readily available in both the U.S.\
and Canada. For recall information
in the U.S., call the U.S. Government's Auto Safety Hotline at 1-800- 42\
4-9393. In Canada, visit
Transport Canada's Child Safety website at
http://www.tc.gc.ca/roadsafety/childsafety/menu.htm.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (35 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70

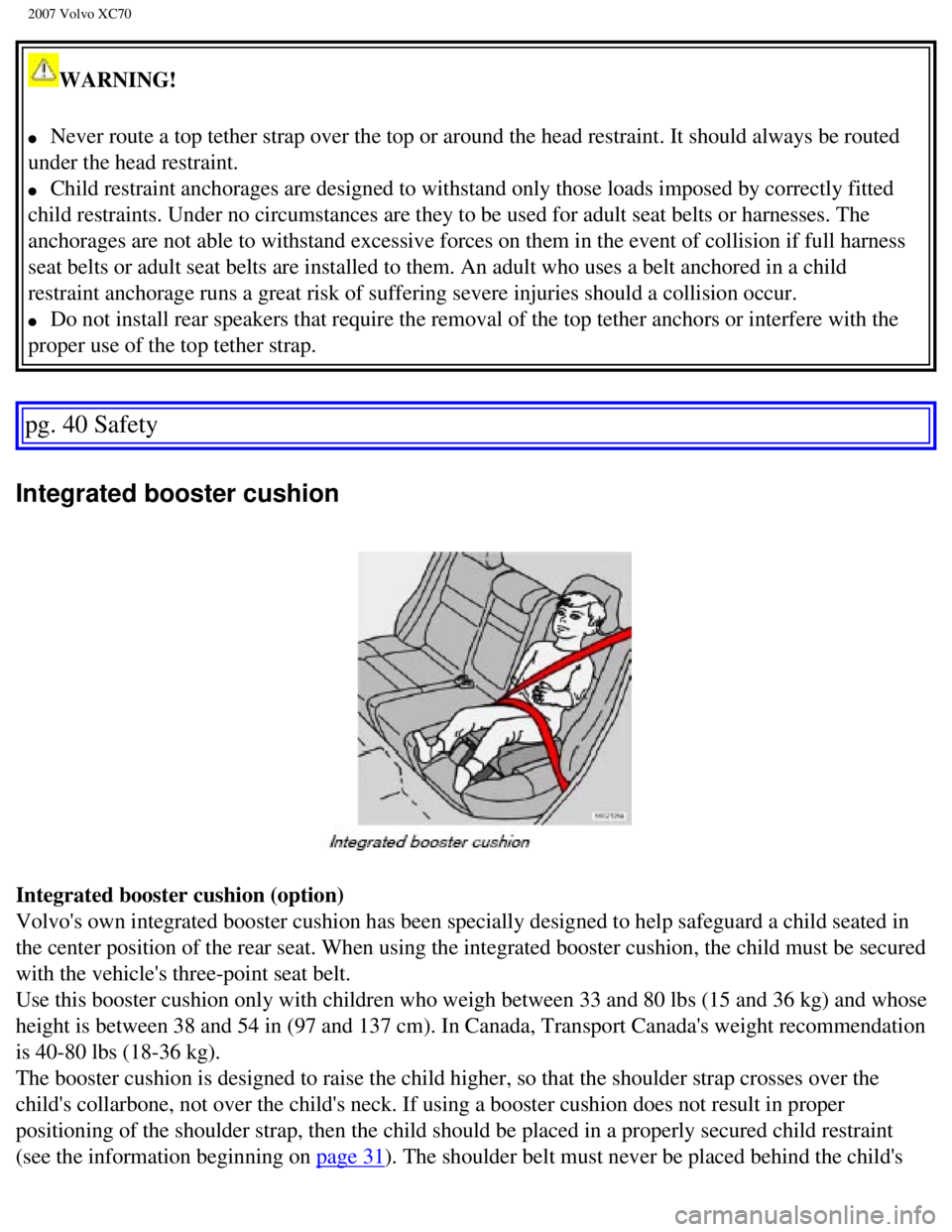

WARNING!
l Never route a top tether strap over the top or around the head restraint\
. It should always be routed
under the head restraint.
l Child restraint anchorages are designed to withstand only those loads im\
posed by correctly fitted
child restraints. Under no circumstances are they to be used for adult s\
eat belts or harnesses. The
anchorages are not able to withstand excessive forces on them in the eve\
nt of collision if full harness
seat belts or adult seat belts are installed to them. An adult who uses \
a belt anchored in a child
restraint anchorage runs a great risk of suffering severe injuries shoul\
d a collision occur.
l Do not install rear speakers that require the removal of the top tether \
anchors or interfere with the
proper use of the top tether strap.
pg. 40 Safety
Integrated booster cushion
Integrated booster cushion (option)
Volvo's own integrated booster cushion has been specially designed to he\
lp safeguard a child seated in
the center position of the rear seat. When using the integrated booster \
cushion, the child must be secured
with the vehicle's three-point seat belt.
Use this booster cushion only with children who weigh between 33 and 80 \
lbs (15 and 36 kg) and whose
height is between 38 and 54 in (97 and 137 cm). In Canada, Transport C\
anada's weight recommendation
is 40-80 lbs (18-36 kg).
The booster cushion is designed to raise the child higher, so that the s\
houlder strap crosses over the
child's collarbone, not over the child's neck. If using a booster cushio\
n does not result in proper
positioning of the shoulder strap, then the child should be placed in a \
properly secured child restraint
(see the information beginning on
page 31). The shoulder belt must never be placed behind the child's
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (36 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
back or under the arm.

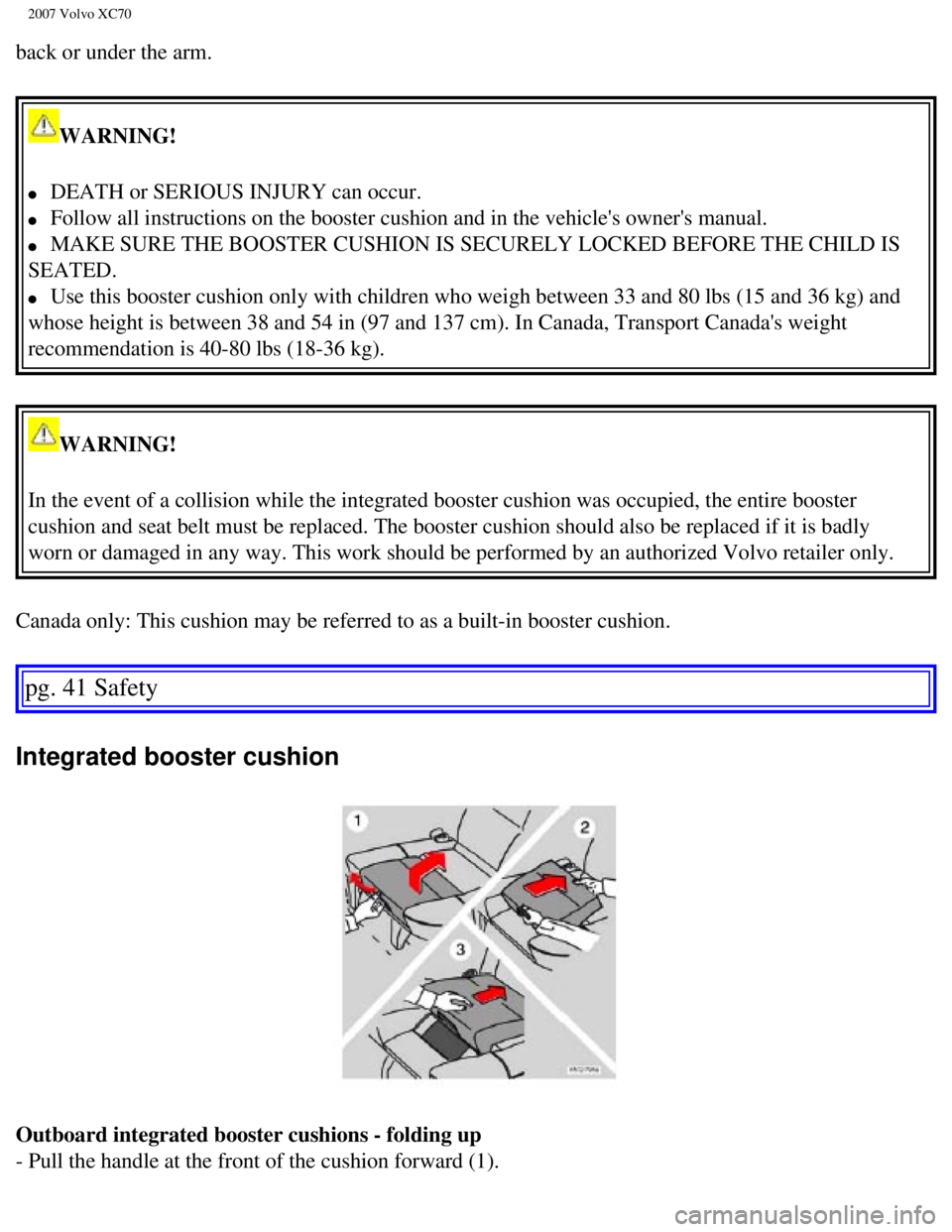

WARNING!
l DEATH or SERIOUS INJURY can occur.
l Follow all instructions on the booster cushion and in the vehicle's owne\
r's manual.
l MAKE SURE THE BOOSTER CUSHION IS SECURELY LOCKED BEFORE THE CHILD IS
SEATED.
l Use this booster cushion only with children who weigh between 33 and 80 \
lbs (15 and 36 kg) and
whose height is between 38 and 54 in (97 and 137 cm). In Canada, Trans\
port Canada's weight
recommendation is 40-80 lbs (18-36 kg).
WARNING!
In the event of a collision while the integrated booster cushion was occ\
upied, the entire booster
cushion and seat belt must be replaced. The booster cushion should also \
be replaced if it is badly
worn or damaged in any way. This work should be performed by an authoriz\
ed Volvo retailer only.
Canada only: This cushion may be referred to as a built-in booster cushi\
on.
pg. 41 Safety
Integrated booster cushion

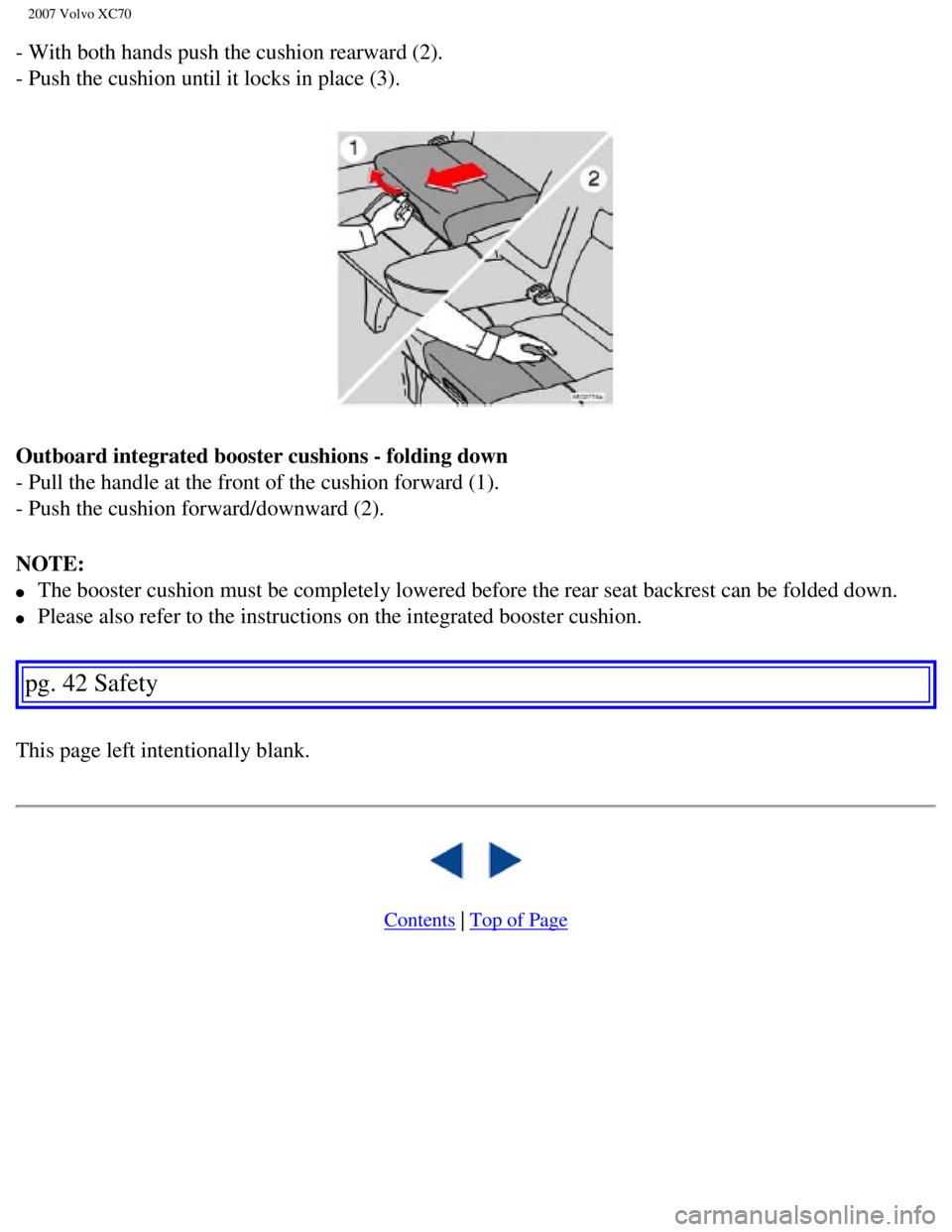

Outboard integrated booster cushions - folding up
- Pull the handle at the front of the cushion forward (1).
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (37 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
- With both hands push the cushion rearward (2).
- Push the cushion until it locks in place (3).
Outboard integrated booster cushions - folding down
- Pull the handle at the front of the cushion forward (1).
- Push the cushion forward/downward (2).
NOTE:
l The booster cushion must be completely lowered before the rear seat back\
rest can be folded down.
l Please also refer to the instructions on the integrated booster cushion.\

pg. 42 Safety
This page left intentionally blank.



Contents | Top of Page
file:///K|/ownersdocs/2007/2007_XC70/07xc70_01.htm (38 of 38)12/30/200\
6 5:51:26 PM

2007 Volvo XC70
2 0 0 7
VOLVO XC70
Instruments and controls

pg. 43 Instruments and controls
Instrument overview
44
Instrument panel
46
Indicator and warning symbols
47
Switches in the center console
52
Steering wheel adjustment
54
Lighting panel
55
Left-side steering wheel lever
57
Right-side steering wheel lever
58
Hazard warning flashers, rear window/sideview mirror
defroster
60
Trip computer
61
Cruise control
62
Parking brake, auxiliary socket/cigarette lighter
64
Power windows
65
Rearview mirror/sideview mirrors
67
Power moonroof (option)
70
pg. 44 Instruments and controls
Instrument overview
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (1 of 35)12/30/2006\
5:51:30 PM

2007 Volvo XC70
pg. 45 Instruments and controls
Instrument overview
Page
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (2 of 35)12/30/2006\
5:51:30 PM

2007 Volvo XC70

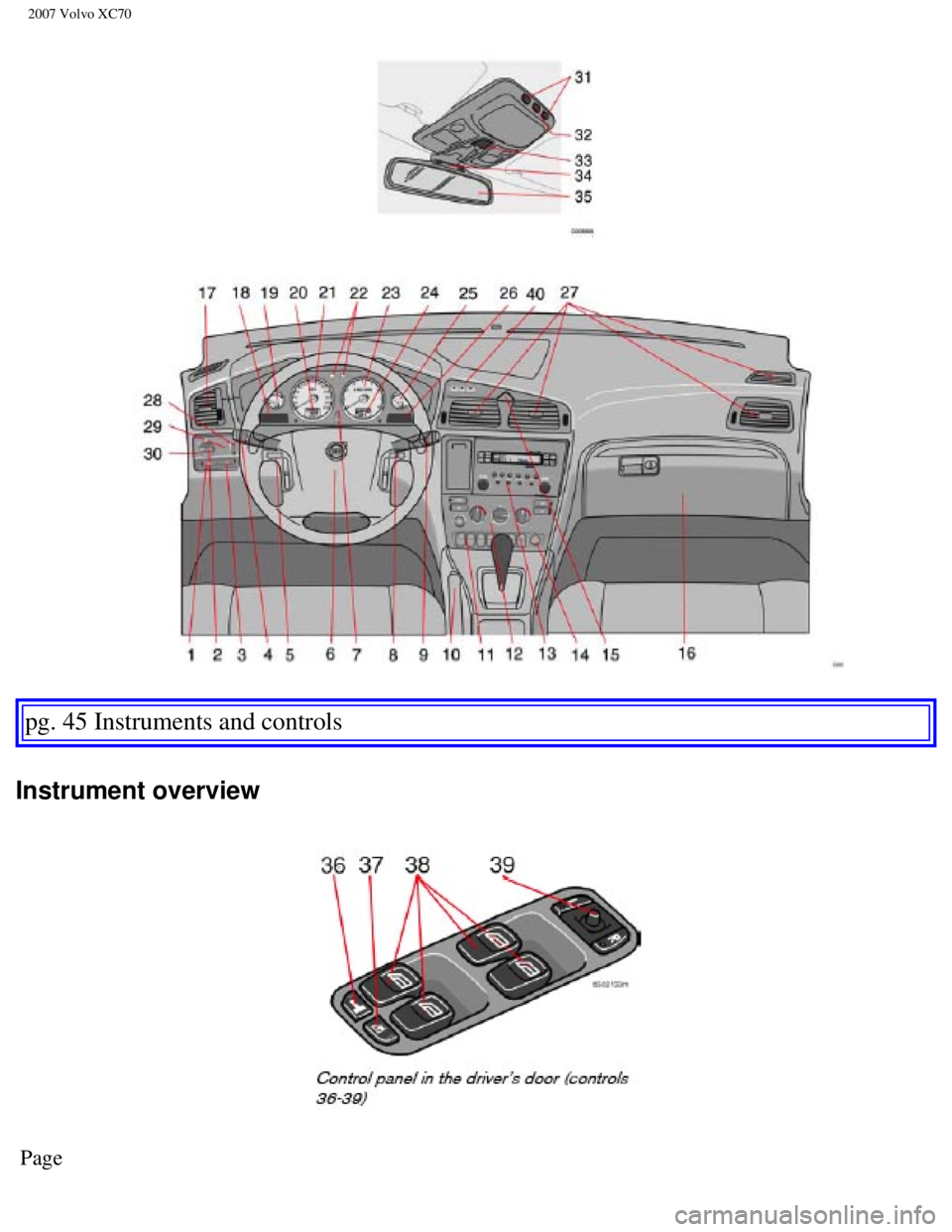

1. Front fog lights56
2. Headlights/Parking lights/switch for unlocking fuel filler door
55
3. Rear fog light
55
4. Turn signals/High/low beams
57
5. Cruise control
62
6. Horn
7. Instrument panel
46
8. Audio controls in steering wheel (option)
232
9. Windshield wipers
58
10. Parking brake (hand brake)
64
11. Center console switches
52
12. Climate control
77
13. Audio system
226
14. 12 V socket
52, 64
15. Hazard warning flashers
60
16. Glove compartment
92
17. Panel vents
75
18. Text window
46, 50
19. Temperature gauge
46
20. Odometer/Trip odometer/ Cruise control indicator
46
21. Speedometer
46
22. Turn signal indicators
46
23. Tachometer
46
24. Ambient temperature/Clock/ Selected gear indicator
46
25. Fuel gauge
46
26. Indicator and warning symbols
47
27. Panel vents
75
28. Instrument lighting
56
29. Not in use
30. Lighting panel
55
31. Reading lights
88
32. Interior lighting
88
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (3 of 35)12/30/2006\
5:51:30 PM

2007 Volvo XC70
33. Moonroof control 70
34. Seat belt reminder
12
35. Rearview mirror
67
36. Lock button, for all doors
114
37. Rear seat power window cut-out button
66
38. Controls, power windows
65
39. Controls, sideview mirrors
69
40. Four-C active chassis system (R-models only)
135
pg. 46 Instruments and controls
Instrument panel
1. Turn signal indicators - right/left
2. Text window
The text window displays information and warning messages.
3. Temperature gauge
The pointer should be approximately midway on the gauge when driving. Do not drive the vehicle if
the warning light is on. The text window will provide you with additional information.
If the engine temperature remains high, check coolant level - see
page 188.
4. Trip odometer
The trip odometers are used for measuring shorter distances. The right-h\
and digit gives tenth of a mile/
kilometer. Press the button for more than 2 seconds to reset. Change bet\
ween trip odometers 1 and 2
using one short press on the button.
5. Odometer
6. Speedometer
7. Warning symbol
8. High beam indicator
9. Tachometer
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (4 of 35)12/30/2006\
5:51:30 PM

2007 Volvo XC70
Indicates engine speed in thousands of revolutions per minute (rpm). D\
o not drive for long with the
needle in the red section. The engine has an built-in function preventin\
g excessively high engine speeds.
When this function operates, you may discern some pulsation, which in th\
at case is quite normal.
10. Gear and driving mode indicator
The currently selected driving mode is displayed here. If you use the op\
tional Geartronic function on the
automatic transmission, the currently selected gear will be displayed.
11. Ambient temperature gauge
This display indicates the air temperature outside your vehicle. A "snow\
flake" symbol in the text
window is displayed when the temperature is in the range of 23 - 36 °\
F (-5 - +2 °C).
Please note that this symbol does not indicate a fault with your vehicle\
. At low speeds or when the
vehicle is not moving, the temperature readings may be slightly higher t\
han the actual ambient
temperature.
12. Clock/set button
Turn the button to set the clock.
13. Fuel gauge
The fuel tank holds approximately:
Front wheel drive, non-turbo models - 18.5 US gal. (70 liters)
All turbo models - 18 US gal. (68 liters)
When the warning light in the gauge comes on, there are approximately 1.\
8 US gal. (8 liters) of fuel
remaining in the tank.
14. Indicator and warning symbols
pg. 47 Instruments and controls
Indicator and warning symbols
The indicator and warning symbols light up when you turn the ignition ke\
y to the driving position
(position II) before starting. This shows that the symbols are functio\
ning. When the engine starts, all
symbols go out. If the engine is not started within 5 seconds, all symbo\
ls except CHECK ENGINE and
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (5 of 35)12/30/2006\
5:51:30 PM

2007 Volvo XC70
go out. Certain symbols may not have their functions illustrated, depen\
ding on the vehicle's
equipment. The symbol for the parking brake goes out when the parking br\
ake is released.
Warning symbol
in center of the instrument panel
This symbol shines as a red or yellow light depending on the severity of\
the discovered fault.
Red symbol - Stop the vehicle as soon as possible in a suitable location and read \
the message shown in
the text window. The symbol and accompanying text will remain on until t\
he fault has been corrected.
Yellow symbol - Follow the instructions shown in the text window. The text can be era\
sed by pressing
the READ button (see
page 50), or will disappear automatically after two minutes.
When the message "TIME FOR REGULAR SERVICE" is displayed, the text can b\
e erased and the
yellow symbol light can be turned off by pressing the READ button. The t\
ext will disappear and the
symbol light will go out automatically after two minutes.
Seat belt reminder
This symbol lights up to indicate that the driver has not fastened his/h\
er seat belt.
Supplemental Restraint System SRS
If this light comes on while the vehicle is being driven, or remains on \
for longer than approximately 10
seconds after the vehicle has been started, the SRS system's diagnostic \
functions have detected a fault in
a seat belt lock or tensioner, a front airbag, side impact airbag, and/o\
r an inflatable curtain. Have the
system(s) inspected by a trained and qualified Volvo service technicia\
n as soon as possible.
pg. 48 Instruments and controls
Indicator and warning symbols
BRAKE Brake failure warning light If the light comes on while driving or brak\
ing, stop immediately,
open the hood and check the brake fluid level in the reservoir. See
page 189 for reservoir position and
page 193 for instructions.
Canadian models are equipped with this warning light
If the BRAKE and ABS warning lights come on at the same time, this could\
indicate a fault in the
brake system.
- Stop the vehicle in a suitable place and switch off the engine.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (6 of 35)12/30/2006\
5:51:30 PM
