VOLVO XC70 2007 Workshop Manual

2007 Volvo XC70
- Restart the engine.
- If both warning lights go off, no further action is required.
- If both lights are still on after the engine has been restarted, switc\
h off the engine again and check the
brake fluid level (see
page 189 for the location of the brake fluid reservoir).
- If the brake fluid level is above the MIN mark, drive carefully to an \
authorized Volvo retailer and have
the brake system inspected.
WARNING!
If the fluid level is below the MIN mark in the reservoir or if a "Brake\
failure - Service urgent"
message is displayed in the text window: DO NOT DRIVE. Have the vehicle \
towed to an authorized
Volvo retailer and have the brake system inspected.
PARK BRAKE Parking brake applied This light will be on when the parking brake (ha\
nd brake) is
applied. The parking brake lever is situated between the front seats. Se\
e also
page 64 for additional
information.
Canadian models are equipped with this symbol.
Oil pressure warning light If the light comes on while driving, stop the\
vehicle and then stop
the engine immediately and check the engine oil level. See
page 191. R-models are also equipped
with an oil level warning system. If the light stays on after restart, h\
ave the vehicle towed to the nearest
authorized Volvo retailer. After hard driving, the light may come on occ\
asionally when the engine is
idling. This is normal, provided it goes off when the engine speed is in\
creased.
Generator warning light
If the light comes on while the engine is running, have the charging sys\
tem checked.
Rear fog light
This light indicates that the fog light is on.
CHECK ENGINE Malfunction indicator light
On-Board Diagnostics II (OBDII): As you drive, a computer called "OBDI\
I" monitors your vehicle's
engine, transmission, electrical and emission systems. The CHECK ENGINE \
light will light up if the
computer senses a condition that potentially may need correcting. When t\
his happens, please have your
vehicle checked by a Volvo retailer as soon as possible.
A CHECK ENGINE light may have many causes. Sometimes, you may not notice\
a change in your
vehicle's behavior. Even so, an uncorrected condition could hurt fuel ec\
onomy, emission cleanliness, and
driveability. Extended driving without correcting the cause could even d\
amage other components in
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (7 of 35)12/30/2006\
5:51:30 PM

2007 Volvo XC70
your vehicle.
Canadian models are equipped with this warning light.
pg. 49 Instruments and controls
Indicator and warning symbols
Anti-lock brake system ABS
If the warning light comes on, there is a malfunction of the ABS system \
(the standard braking system
will still function). The vehicle should be driven to a Volvo retailer \
for inspection. See
page 137 for
additional information.
Stability Traction Control (STC)1 system or Dynamic Stability Traction Control (DSTC)
system
2
This indicator light will flash when STC or DSTC is actively working to \
stabilize the vehicle. See
page
139 for more detailed information.
Tire pressure monitoring light
See
page 162 for more information on this function.
Turn signal indicator - trailer (certain models)
If you are towing a trailer, this light will flash simultaneously with t\
he turn signals on the trailer. If the
light does not flash when signaling, neither the trailer's turn signals \
nor the vehicle's turn signals are
functioning.
1. Standard on all models except R models.
2. Standard on R models, option on all other models.
pg. 50 Instruments and controls
Indicator and warning symbols
Messages in the text window
When a warning light in the instrument panel comes on, a message is also\
displayed in the text window.
After you have read the message, you can erase it by pressing button A (\
see illustration).
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (8 of 35)12/30/2006\
5:51:30 PM

2007 Volvo XC70
NOTE: Certain messages cannot be erased until the condition has been correcte\
d. If a warning message
is displayed when e.g. you are using the trip computer, this message mus\
t be erased before you can
access the function of your choice. Press button A to erase the warning \
message.
You can scroll through the stored messages by pressing button A (see il\
lustration). The text window can
be cleared (the message will be returned to memory) by pressing button\
A again.
pg. 51 Instruments and controls
Indicator and warning symbols
STOP SAFELY Stop and switch off the engine - to help prevent serious risk
of damage.
STOP ENGINE Stop and switch off the engine - to help prevent serious risk
of damage.
SERVICE URGENT Take your vehicle to a trained and qualified Volvo service
technician for inspection immediately.
SEE MANUAL Refer to your owner's manual. For additional information,
please contact your Volvo retailer.
SERVICE REQUIRED Take your vehicle to an authorized Volvo retailer for
inspection at your convenience (but preferably before the
next scheduled maintenance service).
FIX NEXT SERVICE Have the system affected inspected at the next scheduled
maintenance service.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (9 of 35)12/30/2006\
5:51:30 PM

2007 Volvo XC70
TIME FOR REGULAR SERVICEThis message will be displayed at 7,500 mile (12,000 km)
intervals, after 750 hours of driving or after 12 months,
whichever occurs first, to remind the driver that the service
interval has been exceeded. The message will be displayed
for 2 minutes each time the vehicle is started until reset by
the servicing retailer.
OIL LEVEL LOW - FILL OIL
1 2Check the oil level and top up if necessary. See page 191.
OIL LEVEL LOW - STOP SAFELY
1 3Stop as soon as possible and switch off the engine, check the
oil level and top up if necessary. See
page 191.
OIL LEVEL LOW - STOP ENGINE
1 3Stop as soon as possible and switch off the engine, check the
oil level and top up if necessary. See
page 191.
OIL LEVEL LOW - SEE MANUAL
1 3Stop as soon as possible and switch off the engine, check the
oil level and top up if necessary. See
page 191.
STC/DSTC SPIN CONTROL OFF The stability system's spin control function has been turned
off. See
page 139 for details.
1. These messages apply to R-models only.
2. Yellow warning symbol, see
page 47.
3. Red warning symbol, see
page 47.
pg. 52 Instruments and controls

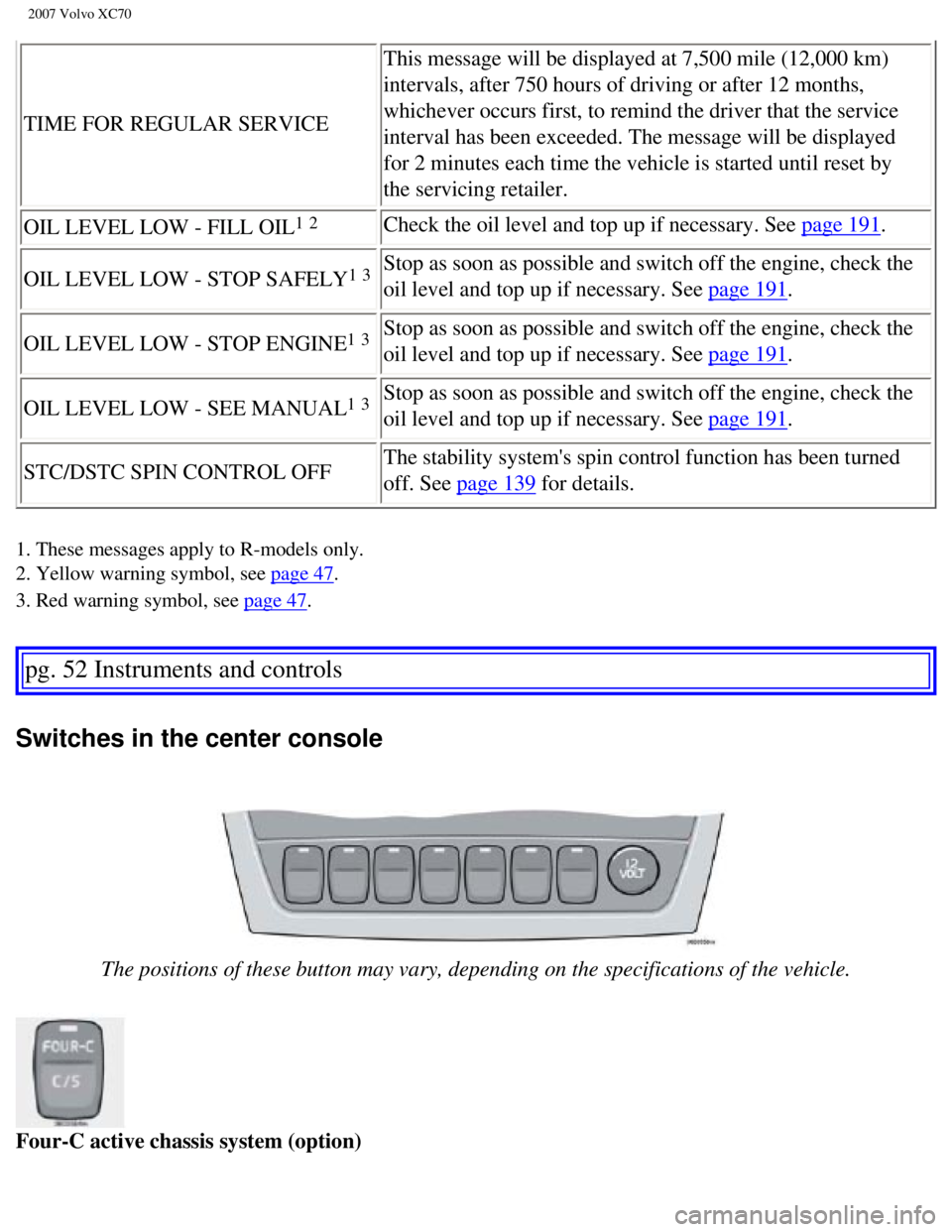

Switches in the center console

The positions of these button may vary, depending on the specifications \
of the vehicle.

Four-C active chassis system (option)
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (10 of 35)12/30/200\
6 5:51:30 PM

2007 Volvo XC70
Please see page 135 for information on adjusting the active chassis settings.

Dynamic Stability Traction Control (DSTC) button
This button is available on R-models only and is used to temporarily dea\
ctivate the Spin control and
Active Yaw Control functions. See
page 126 for more information. On non R-models, DSTC is
controlled via the menu control ring on the left steering wheel lever, s\
ee
page 125.
WARNING!
Please be aware that the vehicle's handling characteristics may be affec\
ted if the Spin Control
function is switched off.

Temporarily disconnecting the alarm sensors (option)
See
page 117 for more details.
12 volt socket
This 12 volt socket can be used to plug in certain accessories such as c\
ellular telephones, etc. The
ignition key must be in position 1 (or higher) for the auxiliary socke\
t to function.
NOTE: The auxiliary sockets can also be used for cigarette lighters, which ar\
e available at your Volvo
retailer

Front/rear park assist (option/accessory)
See
page 153 for more information on this function.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (11 of 35)12/30/200\
6 5:51:30 PM

2007 Volvo XC70

Power child safety locks (option)
See
page 115 for more information.
pg. 53 Instruments and controls
Switches in the center console

Active Bi-Xenon headlights (ABL) - option
The beams of ABL headlights adjust laterally to help light up a curve ac\
cording to movements of the
steering wheel when the vehicle is turning. This function is activated a\
utomatically when the engine is
started and can be deactivated/reactivated by pressing the button. The i\
ndicator light in the button is on
when the function is activated. See also
page 55.
pg. 54 Instruments and controls
Steering wheel adjustment
Both the height and the reach of the steering wheel can be adjusted to a\
comfortable position for the
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (12 of 35)12/30/200\
6 5:51:30 PM

2007 Volvo XC70
driver. Pull down the lever on the left of the steering column. Adjust t\
he steering wheel to a suitable
position and press the lever back into place to lock the steering wheel \
in the new position. Check that the
steering wheel is locked in the new position.
WARNING!
Never adjust the steering wheel while
driving.
pg. 55 Instruments and controls
Lighting panel
1. Headlight/parking light switch
2. Front fog lights
3. Rear fog light
4. Instrument panel lighting
5. Fuel filler door unlock button
Parking lights
The front and rear parking lights can be turned on even when the ignitio\
n is switched off.
- Turn switch 1 to position
.
The license plate lights also illuminate when the parking lights are swi\
tched on.
Headlights
- Turn the ignition key to position II.
- The low beam headlights (daytime running lights) illuminate automati\
cally, except when the light
switch (1) is in position
1.
See
page 57 for information on switching between high and low beams.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (13 of 35)12/30/200\
6 5:51:30 PM

2007 Volvo XC70
NOTE: Active Bi-Xenon headlights (option): Turn the headlight switch to pos\
ition 0 to activate a
daylight sensor, which automatically switches the low beams on or off, d\
epending on ambient light
conditions. When driving in daylight, the headlights will switch off and\
the daytime running lights will
come on. In darkness, the daytime running lights will switch off and the\
Active Bi-Xenon headlights
will switch on.
Active Bi-Xenon headlights (ABL) - option
When the ABL function is activated, the headlight beams adjust laterally\
to help light up a curve
according to movements of the steering wheel (see the right-pointing be\
am in the illustration above).
This function is activated automatically when the engine is started and \
can be deactivated/ reactivated by
pressing the ABL button (see
page 53).
1. On Canadian models, the daytime running lights will remain on with th\
e light switch in this position.
pg. 56 Instruments and controls
Lighting panel
Fog lights
Front fog lights (option)
The front fog lights can be used in combination with either the headligh\
ts or the parking lights.
- Turn the ignition key to position II.
- Press button 2 to turn on the front fog lights.
An indicator light in the button illuminates when the front fog lights a\
re on.
Rear fog light
The single rear fog light is located in the driver's side tail light clu\
ster.
The rear fog light will only function in combination with the high/low b\
eam headlights or the optional
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (14 of 35)12/30/200\
6 5:51:30 PM

2007 Volvo XC70
front fog lights.
- Turn the ignition key to position II.
- Press button 3 to turn on the rear fog light.
An indicator light in the button illuminates when the rear fog light is \
on.
NOTE: The rear fog light is considerably brighter than the normal tail lights\
and should be used only
when conditions such as fog, rain, snow, smoke or dust reduce visibility\
for other vehicles to less than
500 ft. (150 meters).
Instrument panel lighting
The instrument panel lighting illuminates when the ignition key is in po\
sition II and the light switch (1)
is in either position
or .
- Move the thumb wheel (4) up to increase brightness or down to decrea\
se brightness.
Unlocking the fuel filler door
Press button 5 when the vehicle is at a standstill to unlock the fuel fi\
ller door. Please note that the fuel
filler door will remain unlocked until the vehicle begins to move forwar\
d. An audible click will be heard
when the fuel filler door relocks.
NOTE: If the fuel filler door does not unlock after the button has been press\
ed, drive the vehicle at a
speed of at least 5 mph (8 km/h), stop the vehicle, and press the butt\
on again.
See the information to the right on unlocking the fuel filler door manua\
lly.
pg. 57 Instruments and controls
Left-side steering wheel lever
Lever positions
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (15 of 35)12/30/200\
6 5:51:30 PM

2007 Volvo XC70
1. Turn signals, lane change position
2. Turn signals, position for normal turns
3. High beam flash
4. Toggle between high and low beams, Home Safe lighting
Turn signals
When turning
Move the lever as far up or down as possible (to position 2) to start \
the turn signals. The turn signals will
be cancelled automatically by the movement of the steering wheel, or the\
lever can be returned to its
initial position by hand.
When changing lanes
The driver can automatically flash the turn signals 3 times by:
l Moving the turn signal lever up or down to position 1 and releasing it. \
l Moving the lever up or down to position 2 and immediately back to its or\
iginal position.
NOTE:
l This automatic flashing sequence can be interrupted by immediately movin\
g the lever in the opposite
direction.
l If the turn signal indicator flashes faster than normal, check for a bur\
ned-out turn signal bulb.
High/low beam headlights
Continuous high beams
- Turn the ignition key to position II.
- With the light switch (1) in position
, (see page 55) pull the turn signal lever toward the steering
wheel (position 4) to toggle between high and low beams (this also ap\
plies on models equipped with the
optional Active Bi-Xenon headlights).
High beam flash
- Turn the ignition key to position II.
- Pull the turn signal lever to position 3. The high beams will remain o\
n until the lever is released.
Home safe lighting
When you leave your vehicle at night, you can make use of the home safe \
lighting function to illuminate
the area in front of the vehicle.
- Remove the key from the ignition switch.
- Pull the direction indicator lever as far as possible towards the stee\
ring wheel (to position 4) and
release it.
- Exit the vehicle and lock the doors.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_02.htm (16 of 35)12/30/200\
6 5:51:30 PM
