VOLVO XC90 2006 Owners Manual

2006 VOLVO XC90
pg. 67 Interior

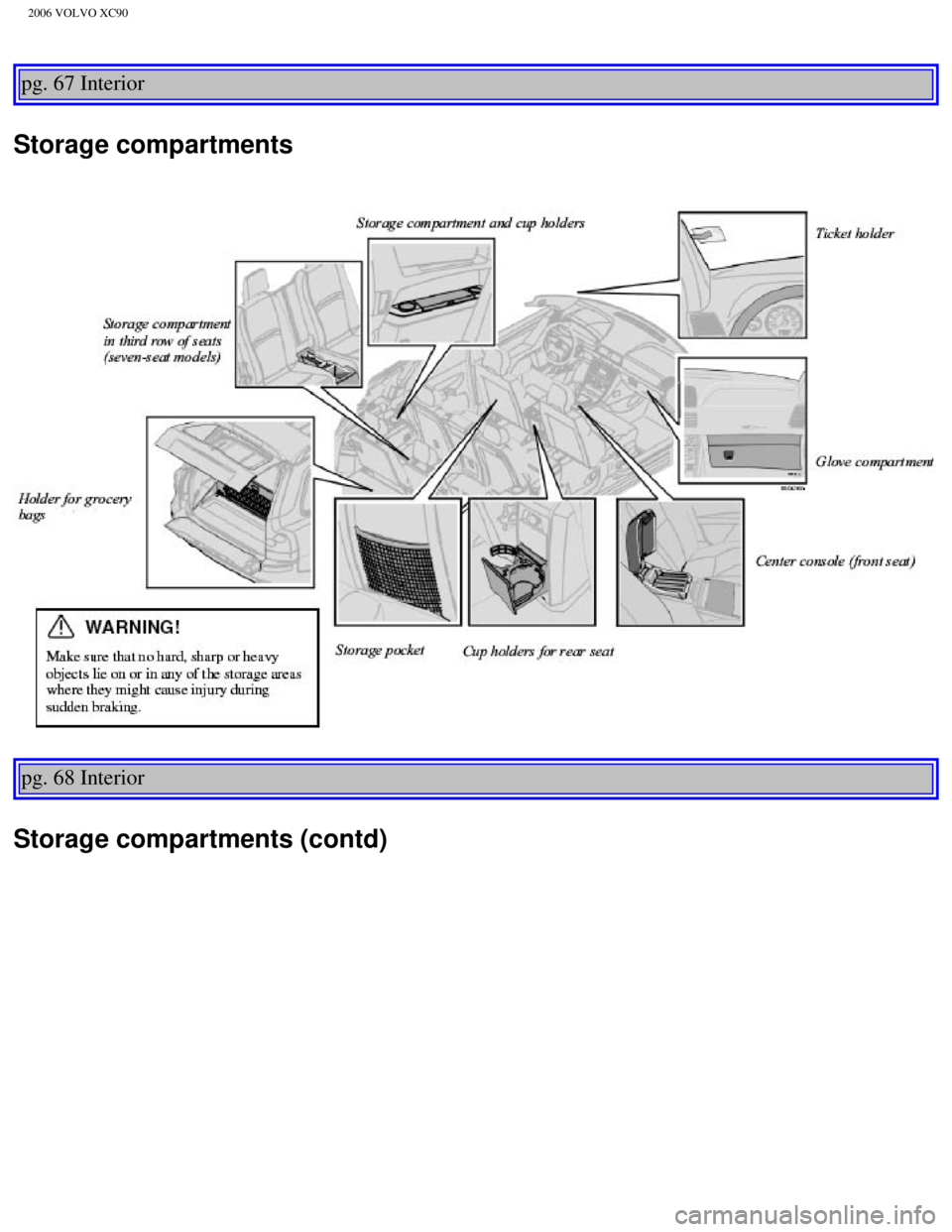

Storage compartments
pg. 68 Interior
Storage compartments (contd)
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (1 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
Storage compartment in the center console
To open the lid on the storage compartment, press the lower edge of the \
opening latch (see illustration above). This lid can
be folded back to form a small table area for rear seat passengers.
Lift the tray under the lid to expose the deep storage bin with slots fo\
r CD storage.
Cup holders for the front seats
Two cup holders are provided for the front seat occupants. Press lightly\
on the rear edge of the cover to open it.
Ashtray (accessory)
An ashtray insert is available from your Volvo retailer. This insert sli\
des into either of the cup holders.
Pen holder
There is a pen holder in the center console, in front of the gear select\
or.
pg. 69 Interior
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (2 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
Storage compartment in rear side of center console
Grasp the upper edge of cover and pull to open this compartment.
Ashtray (accessory)
An ashtray insert is available from your Volvo retailer.
Cup holders for the rear seats
l Grasp the lower edge of the panel to pull out the cup holders in the rea\
r side of the center console.
l The cup holder insert can be removed to provide space for a large plasti\
c bottle. Pull the insert straight up to remove it.
Press down to reinsert it.
Glove compartment
The glove compartment can be used to store things such as the owner's ma\
nual, maps, pens, etc.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (3 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
pg. 70 Interior
Storage compartments (contd)
Coat hanger
Use the coat hanger for light jackets, etc.`
Storage space between rear seats (seven-seat models) - option
This storage space provides compartments for pens or other small items. \
Rear side storage compartments and cup holders (seven-seat models)
Lift the lid to access the storage compartment.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (4 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
pg. 71 Interior
Securing cargo
Securing cargo
As a safety precaution, all cargo in your vehicle should be securely anc\
hored to keep it from being thrown forward in the
event of sudden braking, etc. The vehicle is equipped with eyelets in th\
e cargo space to which straps or other cargo
restraints can be attached.
WARNING!
The eyelets are not to be used as passenger restraints or as anchorages \
for child
restraints.
Consult your Volvo retailer about suitable accessories for this purpose.\

Remember that an object weighing 44 lbs (20 kg) produces a force of 2,\
200 lbs (1,000 kg) in a head-on collision at 30
mph (50 km/h)!
Keep the following in mind when loading the vehicle:
l The load carrying capacity of your vehicle is determined by factors such\
as the number of passengers, the amount of
cargo, the weight of any accessories that may be installed, etc. See the\
section "Vehicle loading" in the chapter "Wheel and
tires" for more detailed information.
l Load the cargo against the backrest.
l Load heavy cargo as low as possible.
l If no one is sitting in the outboard rear seat(s), reinforce the backr\
est by fastening the seat belts.
l Never load cargo above the backrest without a cargo net.
WARNING!
When the rear backrest(s) are folded down, the vehicle should not be l\
oaded to a level higher than 2 in. (5 cm) below the
upper edge of the rear side windows. Objects placed higher than this lev\
el could impede the function of the Inflatable
Curtain.
pg. 72 Interior
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (5 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
Nylon cargo net (option)
The Volvo XC90 can be equipped with a cargo net made of strong nylon fab\
ric.
This net can be installed in two places:
l Behind the rear seat backrests (the second row of seats in seven-seat m\
odels)
l Behind the front seat backrests if the rear seat backrests (the second \
row of seats in seven-seat models) have been folded
down.
If the vehicle is equipped with the cargo area cover, lift the cover out\
of the vehicle before installing the cargo net.
1. The upper and lower rods of the cargo net are hinged. Position the ro\
ds so that they are straight and lock in position.
2. Insert the end of the upper rod in one of the attachment brackets (s\
ee illustration above).
3. Insert the other end of the rod in the attachment bracket on the oppo\
site side of the vehicle.
4. Attach the lower straps to the eyelets on the floor if the net has be\
en installed in the rear attachment brackets.
Use the eyelets in the front seat rails if the net has been installed in\
the forward attachment brackets.
NOTE: On seven-seat models: When using the net in the rear attachment brackets\
, be sure it is installed in front of the side
armrests.
5. Adjust the straps to pull the net taut.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (6 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
Folding and storing the cargo net
Press the release buttons on the hinges (1 in the illustration above) \
and fold the net.
The cargo net can be stored under the floor of the cargo area on five-se\
at models.
WARNING!
Be sure the cargo net is properly inserted in the attachment brackets an\
d the straps are correctly attached to the eyelets
and pulled taut.
Do not use the net if it is damaged in any way.
When it is not in use, store the net so that it cannot be thrown forward\
in the event of sudden braking, etc.
pg. 73 Interior
Steel grid (accessory)
To install the grid:
Upper attachments
1. Lift in the grid through the tailgate or through one of the rear pass\
enger doors (in this case, fold down the rear seat
backrests/backrests in second row of seats in seven-seat models).
2. Insert one of the grid's upper attachments into an attachment bracket\
above one of the rear passenger doors (see
illustration above).
3. Push the grid's attachment into the forward position in the attachmen\
t bracket (see inset illustration above) to lock the
attachment in place.
4. Insert the grid's other upper attachment in the attachment bracket ab\
ove the opposite rear passenger door, and press the
attachment into the forward position in the attachment bracket to lock i\
t in place.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (7 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
Lower attachments
1. Insert the lower attachment bracket through the steel grid's lower mo\
unt from underneath.
2. Install the spring on the attachment bracket and tighten the knob.
3. Secure the attachment bracket hook in the lower cargo eyelet. Turn th\
e knob to tension the attachment bracket in the
cargo eyelet.
4. Repeat the operation on the opposite side.
5. Tighten both attachment brackets alternatively.
6. Place the protective caps on the threads above the knobs.
WARNING!
Seven-seat models:
- The backrests of the optional third row seats must be folded down when\
installing the steel grid.
- The steel grid is installed behind the second row of seats in seven-se\
at models. To avoid the risk of injury, no one
should be allowed to sit in the third row of seats when the steel grid i\
s in place in the vehicle.
pg. 74 Interior
Securing cargo (contd)
Cargo area cover (option)
Installing the cargo area cover:
Press the end pieces of the cargo area cover down in the holders.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (8 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
Pull out the cargo area cover and hook it in the holes in the rear cargo\
area pillars (see illustration above).
Removing the cargo area cover:
Press the end pieces of the cover inward. Pull up and lift out.
Grocery bag holder
1. Fold down the lower section of the tailgate.
2. Fold up the rear section of the cargo compartment floor.
3. Hang or secure your grocery bags by means of the straps or holders. \



Contents | Top of Page
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04b.htm (9 of 9)12/30/2006\
5:32:42 PM

2006 VOLVO XC90
2 0 0 6
VOLVO XC90

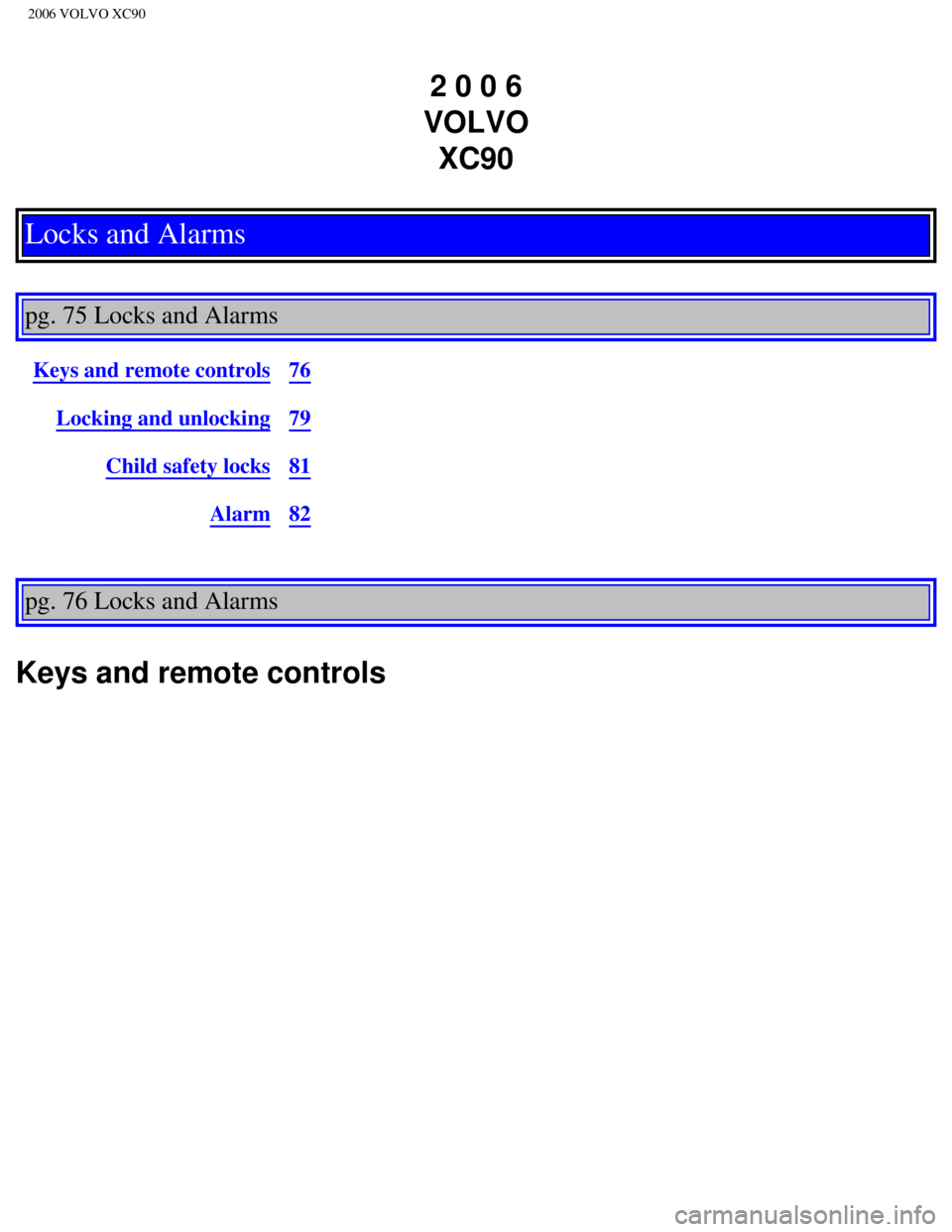

Locks and Alarms

pg. 75 Locks and Alarms
Keys and remote controls76
Locking and unlocking79
Child safety locks81
Alarm82
pg. 76 Locks and Alarms
