2006 VOLVO XC90
Manually adjusted front seats
1. Front-rear adjustment: lift the bar and move the seat to the position\
of your choice.
2. Raise/lower the front edge of the seat cushion (option): use the co\
ntrol to pump the front edge of the
cushion up or down.
3. Raise/lower seat height: pump the seat up or down.
4. Lumbar support: turn the control for firmer or softer lumbar support.\

5. Backrest tilt: turn the control to adjust the angle of the backrest. \
6. Control panel for optional power seat (see
page 60 for more information).
WARNING!
- Do not adjust the seat while driving. The seat should be adjusted so t\
hat the brake pedal can be
depressed fully. In addition, position the seat as far rearward as comfo\
rt and control allow.
- Check that the seat is securely locked into position after adjusting. \
pg. 59 Interior
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (2 of 11)12/30/200\
6 5:32:41 PM

2006 VOLVO XC90
Folding the backrests in the front seat
The front passenger seat backrest can be folded to a horizontal position\
to make room for a long load.
Fold the backrest as follows:
l Move the seat as far back as possible.
l Adjust the backrest to the upright position.
l Lift the catches on the rear of the backrest.
l Without releasing the catches, push the backrest forward.
l Move the seat as far forward as possible so that the head restraint slid\
es under the glove compartment.
WARNING!
Cover sharp edges on the load to help prevent injury to occupants. Secur\
e the load to help prevent
shifting during sudden stops.
pg. 60 Interior
Front seats (contd)
Power seat
Operation
Driver's seat: The seat can be adjusted if the ignition key is in position I, II or if\
the engine is running.
It can also be adjusted as follows with the ignition off:
l Within approximately 4 minutes after the driver's door has been unlocked\
from the outside and has
been opened and remains open.
l Within 40 seconds, if the driver's door has just been closed.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (3 of 11)12/30/200\
6 5:32:41 PM

2006 VOLVO XC90
l Within 40 seconds, if the driver's door has not been opened after the ig\
nition has been switched off.
Passenger seat: The seat can only be adjusted if the ignition key is in position I, II \
or if the engine is
running.
Seat adjustment
Adjust the power seat(s) with the two controls at the side of the seat\
as follows:
1 - Front edge of seat (raise/lower)
2 - Forward - rearward
3 - Rear edge of seat (raise/lower)
4 - Backrest tilt
Power seat adjustment controls
The power seats have an overload protector that activates if a seat is b\
locked by any object. If this
occurs, switch off the ignition (key in position 0) and wait about 20 \
seconds before operating the seat
again.
Emergency stop
If the seat accidentally begins to move, press any of the buttons to sto\
p the seat.
NOTE: Please refer to the following page for information on programming the me\
mory function in the
driver's seat.

Power seat adjustment controls
Remote keyless entry system and driver's seat
The remote control transmitter also controls the electrically operated d\
river's seat in the following way:
l Adjust the seat to your preferences.
l When you leave your vehicle, lock it using the remote control.
The position of the seat is now stored in the remote control.
Automatic seat adjustment
To move the seat to the position in which you left it:
1. Unlock the driver's door with the same remote control (the one used \
to lock the doors)
2. Open the driver's door within 2 minutes. The driver's seat will autom\
atically move to the position in
which you left it.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (4 of 11)12/30/200\
6 5:32:41 PM

2006 VOLVO XC90
NOTE:
l The seat will move to this position even if someone else has moved it to\
a different seating position
and locked the car with a different remote control.
l This feature will work in the same way with all of the remote control tr\
ansmitters (up to 3) that you
use with your vehicle.
l This feature will not function if your lock your vehicle with the key.
pg. 61 Interior
WARNING!
- Because the driver's seat can be adjusted with the ignition off, child\
ren should never be left
unattended in the vehicle.
- Movement of the seat can be STOPPED at any time by pressing any button\
on the power seat
control panel.
- Do not adjust the seat while driving.
- The seat should be adjusted so that the brake pedal can be depressed f\
ully. In addition, position the
seat as far rearward as comfort and control allow.
- The seat rails on the floor must not be obstructed in any way when the\
seat is in motion.
Programming the memory
Three different seating and door mirror positions can be stored in the d\
river seat's memory.
The following example explains how button 1 can be programmed.
Buttons 2 and 3 can be programmed in the same way.
To program (store) a seat position in button 1:
1. Move the seat to the desired position using the seat adjustment contr\
ols (see the previous page).
2. Press and hold down the MEM (memory) button.
3. With the MEM button depressed, press button 1 briefly to store the se\
at's current position.
To move the seat to the position that it was in when button 1 was progra\
mmed:
Press and hold down button 1 until the seat stops moving.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (5 of 11)12/30/200\
6 5:32:41 PM

2006 VOLVO XC90
As a safety precaution, the seat will stop automatically if the button i\
s released before the seat has
reached the preset position.
pg. 62 Interior
Rear seats
Entering the optional third row of seats
Tilting the outboard backrests in the second row of the seats:
Pull up the handle (1), hold it up, and tilt the backrest forward to m\
ove the seat.
Return the backrest to the upright position to slide the seat back to it\
s original position.
Forward/rearward seat adjustment
Lift the adjustment bar (2) to move the seat forward or rearward.
Removing the center console (seven-seat models only)
In order to make it possible to move the center seat in the second row o\
f seats as far forward as possible
(seven-seat models only), the rear section of the center console can b\
e removed.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (6 of 11)12/30/200\
6 5:32:41 PM

2006 VOLVO XC90
l Pull the handle (see illustration above) and lift out the console.
l To return the console to its original position, slide it back into posit\
ion until it clicks into place.

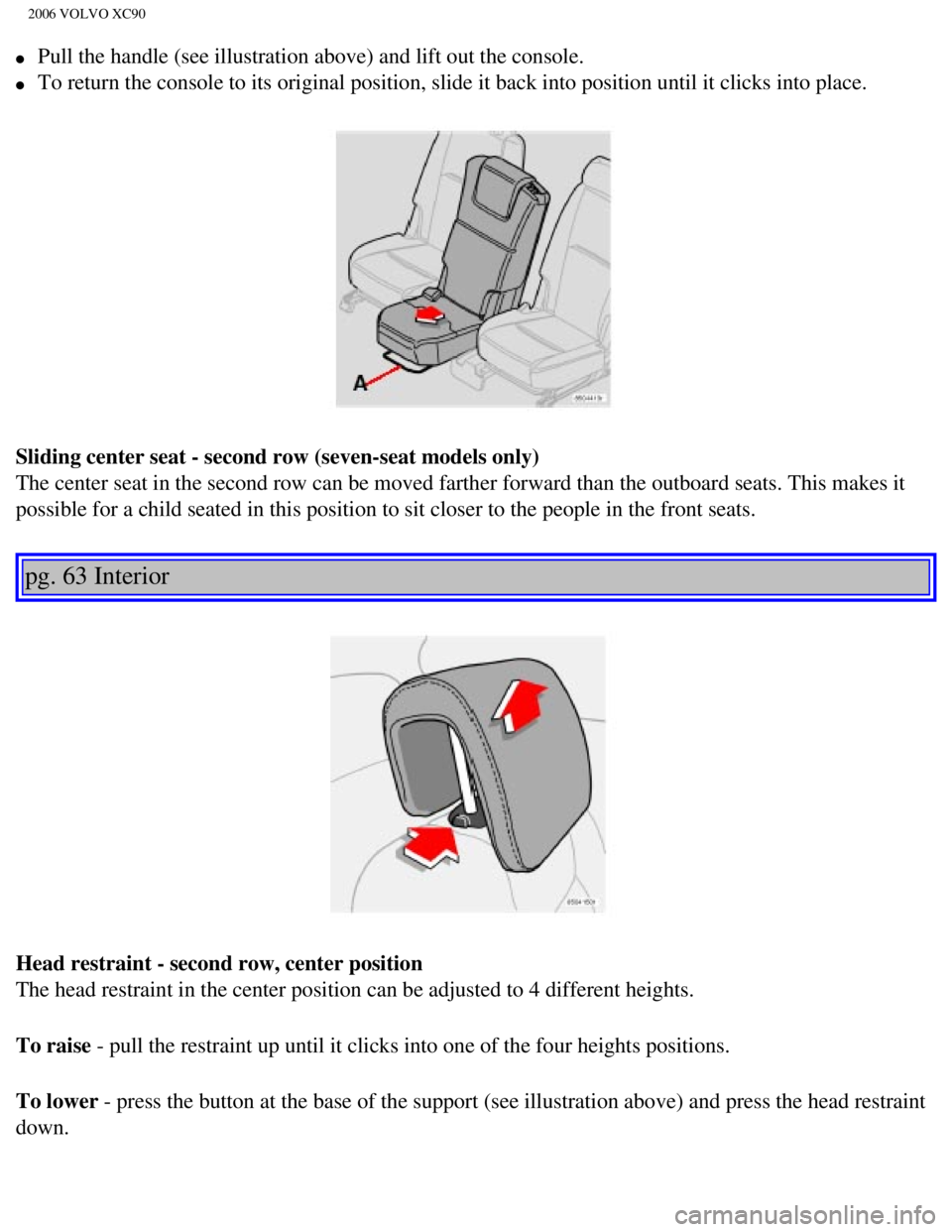

Sliding center seat - second row (seven-seat models only)
The center seat in the second row can be moved farther forward than the \
outboard seats. This makes it
possible for a child seated in this position to sit closer to the people\
in the front seats.
pg. 63 Interior
Head restraint - second row, center position
The head restraint in the center position can be adjusted to 4 different\
heights.
To raise - pull the restraint up until it clicks into one of the four heights po\
sitions.
To lower - press the button at the base of the support (see illustration above)\
and press the head restraint
down.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (7 of 11)12/30/200\
6 5:32:41 PM

2006 VOLVO XC90
WARNING!
- Please note that the lowest head restraint position is only intended f\
or use when the backrest is to be
folded down, or when the seat is not occupied.
- The head restraint is intended to help protect the head/neck in a coll\
ision. Ensure that it is properly
adjusted for the occupant of the seat.
pg. 64 Interior
Rear seats (contd)

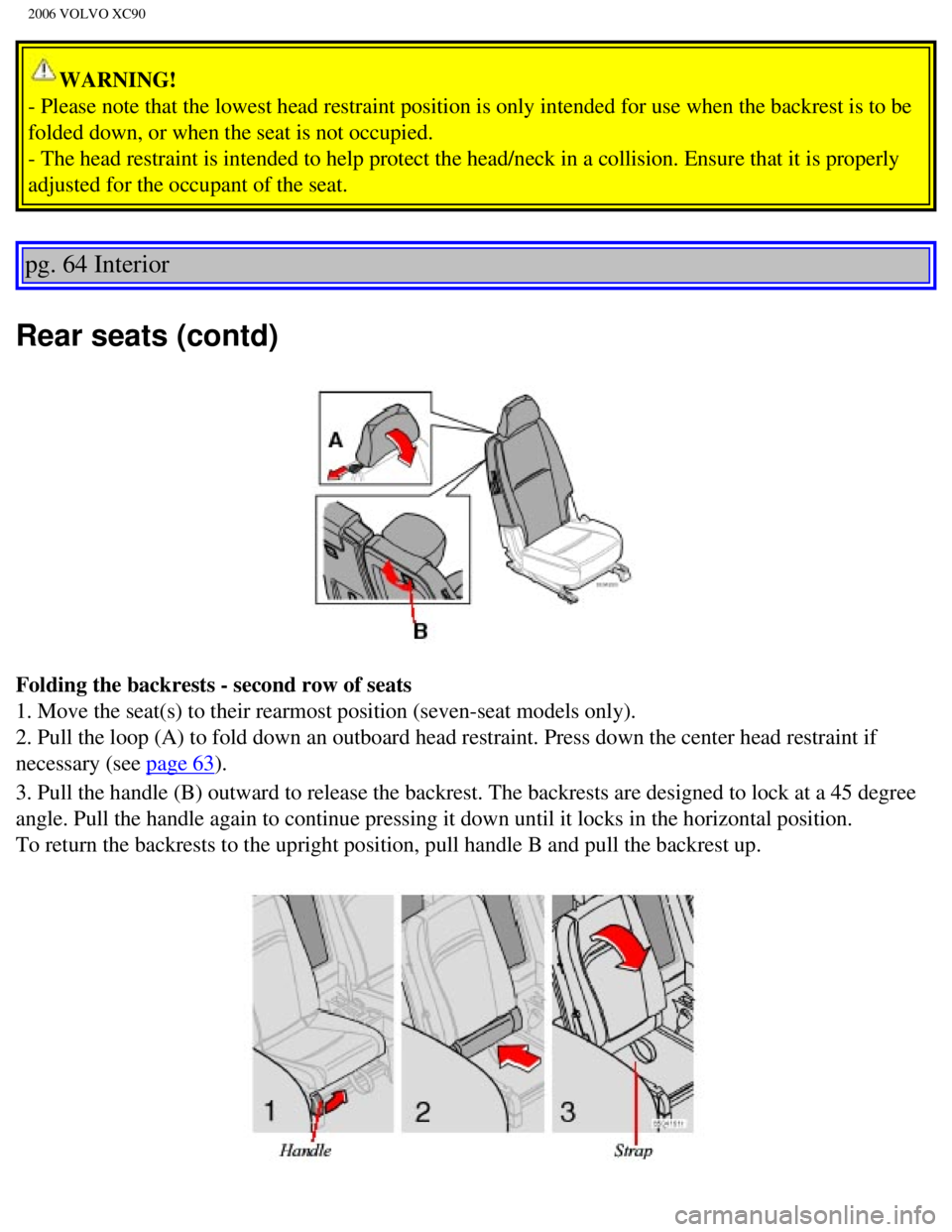

Folding the backrests - second row of seats
1. Move the seat(s) to their rearmost position (seven-seat models onl\
y).
2. Pull the loop (A) to fold down an outboard head restraint. Press do\
wn the center head restraint if
necessary (see
page 63).
3. Pull the handle (B) outward to release the backrest. The backrests \
are designed to lock at a 45 degree
angle. Pull the handle again to continue pressing it down until it locks\
in the horizontal position.
To return the backrests to the upright position, pull handle B and pull \
the backrest up.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (8 of 11)12/30/200\
6 5:32:41 PM

2006 VOLVO XC90
Folding the backrests - third row of seats (option)
Folding down the backrest
If necessary, fold in the load anchorage eyelets before folding down the\
backrests.
1. Move the seats in the second row forward, see
page 62.
2. Pull up the handle in illustration 1 above.
3. Push the seat cushion firmly rearward, under the backrest.
4. Fold down the backrests* (the head restraints fold down automaticall\
y) to the horizontal position.
Returning the backrest to the upright position
l Fold up the backrest to the upright position.
l Grasp the strap (see illustration 3 above) and pull the seat cushion o\
ut until it locks in place. This also
locks the backrest in the upright position.
* Please note that the head restraints in this row cannot be vertically \
adjusted.
pg. 65 Interior

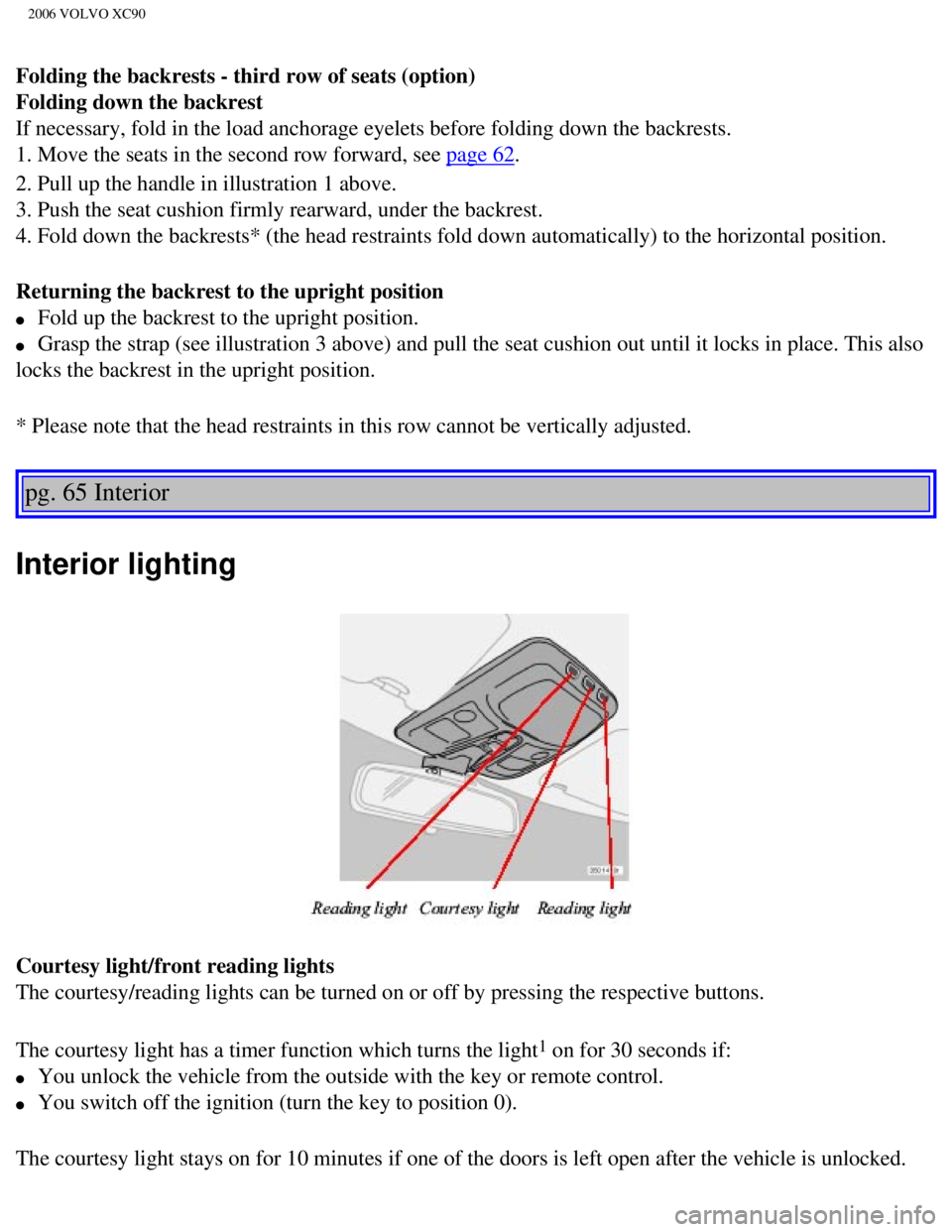

Interior lighting
Courtesy light/front reading lights
The courtesy/reading lights can be turned on or off by pressing the resp\
ective buttons.
The courtesy light has a timer function which turns the light
1 on for 30 seconds if:
l You unlock the vehicle from the outside with the key or remote control. \
l You switch off the ignition (turn the key to position 0).
The courtesy light stays on for 10 minutes if one of the doors is left o\
pen after the vehicle is unlocked.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (9 of 11)12/30/200\
6 5:32:41 PM

2006 VOLVO XC90
The courtesy light switches off if:
l The engine is started.
l The vehicle is locked from the outside with the key or remote control.
The courtesy light can be switched off or on in all situations by briefl\
y pressing the button.
When you switch the light on, it remains lit for 10 minutes.
You can disconnect the automatic function by pressing the courtesy light\
button for more than 3
seconds. Briefly pressing the courtesy light button again automatically \
reconnects the function.
The courtesy light timer periods can be changed. Contact your Volvo reta\
iler.

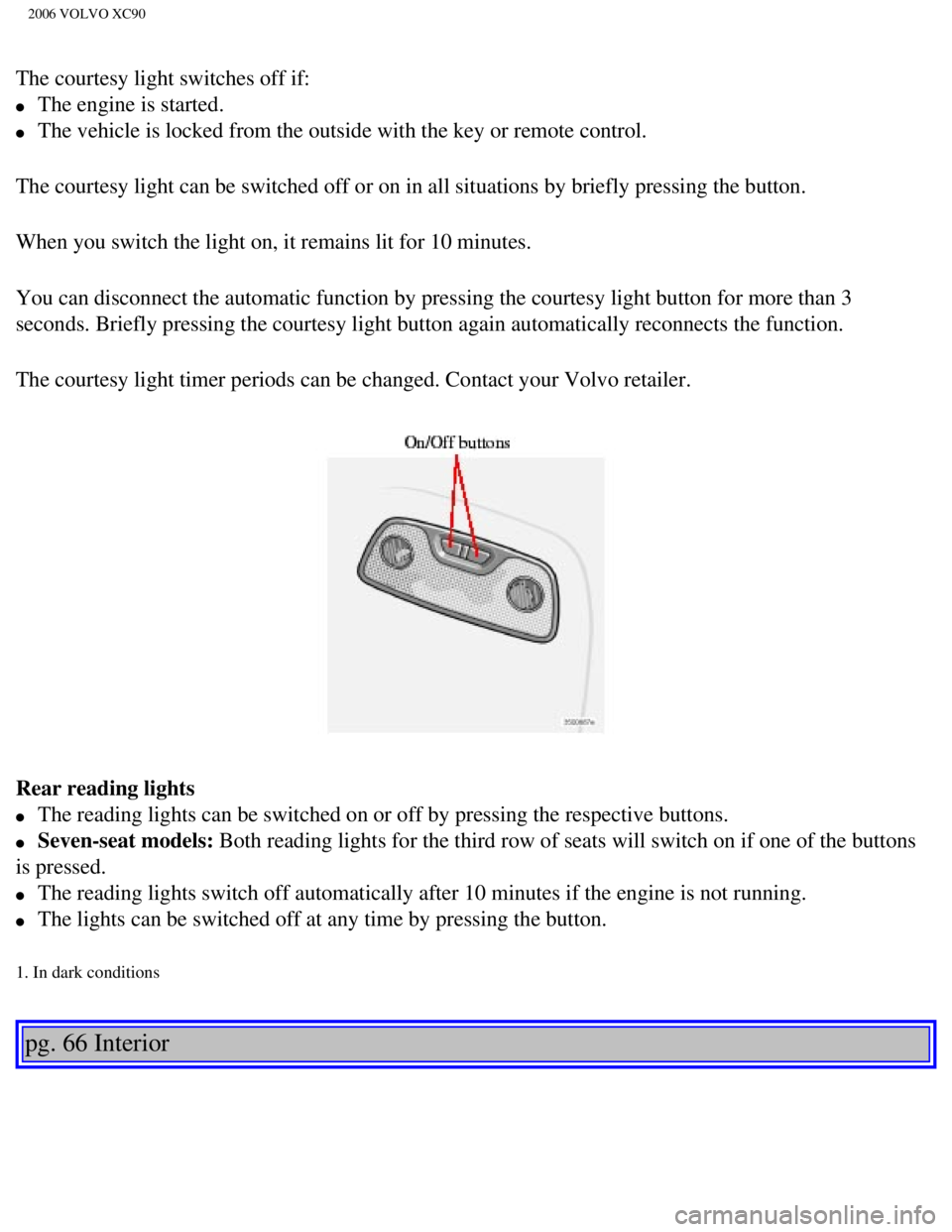

Rear reading lights
l The reading lights can be switched on or off by pressing the respective \
buttons.
l Seven-seat models: Both reading lights for the third row of seats will switch on if one of \
the buttons
is pressed.
l The reading lights switch off automatically after 10 minutes if the engi\
ne is not running.
l The lights can be switched off at any time by pressing the button.
1. In dark conditions
pg. 66 Interior
file:///K|/ownersdocs/2006/2006_XC90/06xc90_04a.htm (10 of 11)12/30/20\
06 5:32:41 PM

2006 VOLVO XC90

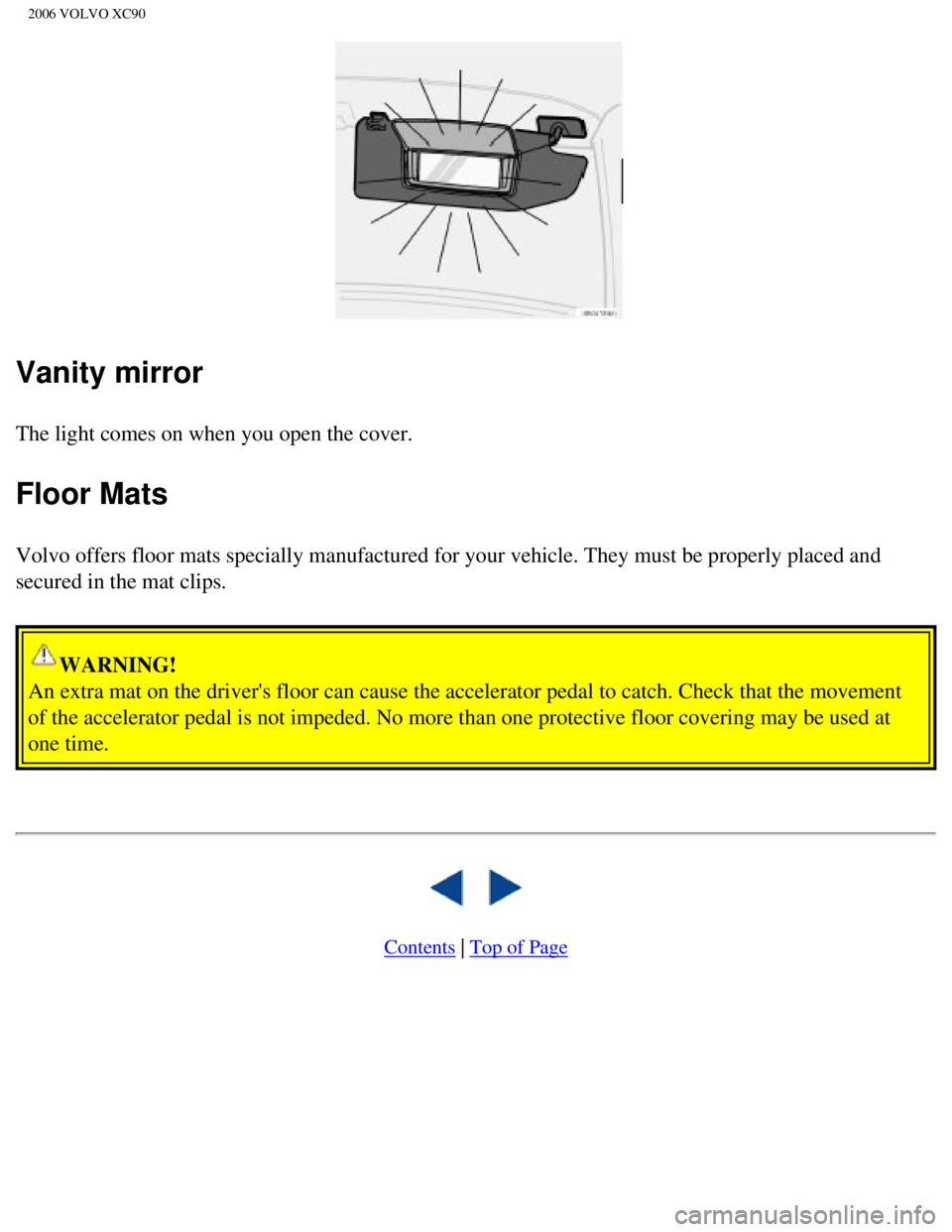

Vanity mirror
The light comes on when you open the cover.
Floor Mats
Volvo offers floor mats specially manufactured for your vehicle. They mu\
st be properly placed and
secured in the mat clips.
WARNING!
An extra mat on the driver's floor can cause the accelerator pedal to ca\
tch. Check that the movement
of the accelerator pedal is not impeded. No more than one protective flo\
or covering may be used at
one time.
