VOLVO XC90 2007 Owners Manual

2007 Volvo XC90
pg. 80 Climate control
Electronic climate control (ECC)
AUTO
This function automatically regulates the Electronic Climate Control sys\
tem so that the selected
temperatures are maintained. The blower, heating, air distribution (air\
flow), air conditioning, and
optional air quality sensor are controlled. If you prefer to manually set any of these functions, the remaining
functions will still be controlled automatically. Pressing the AUTO butt\
on overrides any settings that were
previously made manually.

Rear window and sideview mirror defrosters
This function defrosts/ de-ices the rear window and sideview mirrors.
The LED in the switch will light up to indicate that the heating functio\
n is engaged. See
page 61 for additional
information on this function.
Never use ice scrapers made of metal as they can easily scratch the mirr\
or surface.

Temperature
These controls are used to individually set the temperature for both sid\
es of the passenger compartment.
Please note that the compartment will not be heated or cooled faster by \
setting the temperature higher or lower
than necessary.
Set the control to the temperature you prefer.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_03.htm (5 of 8)12/30/2006 \
5:53:38 PM

2007 Volvo XC90

Defroster
This function defrosts/ de-ices the windshield and front side windows. T\
he LED in the switch will light up to
indicate that the defrost function is engaged.
l Blower speed increases automatically and the air conditioning will switc\
h on (if not already on and if the
passenger compartment blower is not turned off) to dehumidify the air i\
n the passenger compartment.
l Recirculation will not function while defrost is engaged.
The climate system will return to its previous settings when the defrost\
er function is switched off.

Blower control
1
Turn the control clockwise to increase or counterclockwise to decrease t\
he blower speed. Pressing the AUTO
switch will automatically regulate blower speed and override manual adju\
stment.
Turning the blower control counterclockwise until an orange LED comes on\
will turn both the blower and the air
conditioning off.

Blower control for rear climate system (option)
Turn the control to increase or decrease blower speed.
1. See also page 76.
pg. 81 Climate control
Electronic climate control (ECC)
Air distribution
Air flow to windows
Air through panel vents
Air through floor vents
Press AUTO to automatically regulate air flow or press any combination of the cont\
rols shown in the illustration
file:///K|/ownersdocs/2007/2007_XC90/07xc90_03.htm (6 of 8)12/30/2006 \
5:53:38 PM

2007 Volvo XC90
to manually adjust air flow. An LED in the switch will light up if an ai\
r flow control has been pressed.
Heated front seats (option)
- Press the switch once for maximum seat heating. Both LEDs in the switc\
h will be lit.
- Press the switch a second time for comfort heating. One LED in the swi\
tch will be lit.
- Press the switch a third time to turn the heating off completely. The \
LED will go off.
The seat heating for the passenger seat should be switched off when the \
seat is not occupied.
A/C - ON/OFF
Press the switch to turn the air conditioning on or off. The "ON" or "OF\
F" LED will light up to indicate if the
system is switched on or off. Other functions will still be regulated au\
tomatically (if the AUTO switch is on).
l The air conditioning functions only at temperatures above 32 °F (0 °\
C).
l While the Defroster function is selected, the air conditioning is tempor\
arily activated to dehumidify the air,
even if you have manually switched the air conditioning off. This will o\
nly function if the blower is not switched
off.
Recirculation
Press this switch to engage the recirculation function (air in the pass\
enger compartment recirculates - no fresh air
enters the compartment). The LED in the switch will light up to indicat\
e that the function is engaged.
l Use this function if the outside air is contaminated with exhaust gases,\
smoke, etc or to heat/cool the vehicle
quickly.
l Recirculation should not be used for more than 15 minutes. If your windo\
ws begin to fog or mist, make sure
that the recirculation function is switched off.
l Selecting Defroster automatically switches recirculation off.
l Timer mode activation: (Vehicles equipped with the Interior Air Quality\
system have no timer mode) Press and
hold the recirculation button for at least 3 seconds to activate a recir\
culation timer mode. The amber LED in the
recirculation button will flash 5 times to show that the timer mode is b\
eing activated. In timer mode, each time
the recirculation button is pressed, the climate control system will rec\
irculate the air in the passenger
compartment for 5-12 minutes, depending on the outside air temperature, \
and then revert back to fresh air.
l Timer mode deactivation: Press and hold the recirculation button for 3 s\
econds. The amber LED in the
recirculation button will illuminate steadily for 5 seconds to show a re\
turn to "normal" mode.
l In normal mode, when the recirculation button is pressed, the climate co\
ntrol
file:///K|/ownersdocs/2007/2007_XC90/07xc90_03.htm (7 of 8)12/30/2006 \
5:53:38 PM

2007 Volvo XC90
pg. 82 Climate control
Electronic climate control (ECC)
system will recirculate the air in the passenger compartment until the r\
ecirculation button is pressed again.
l Timer mode memory: If the vehicle is turned off while timer mode is acti\
ve, timer mode will still be active
when the vehicle is restarted.
Interior air quality sensor (option)
Some vehicles are equipped with a multi-filter and air quality sensor. T\
he filter separates gases and particles,
thereby reducing the amounts of odors and contaminants entering the vehi\
cle. The air quality sensor detects
increased levels of contaminants in the outside air. When the air qualit\
y sensor detects contaminated outside air,
the air intake closes and the air inside the passenger compartment is re\
circulated, i.e. no outside air enters the
vehicle. The filter also cleans recirculated passenger compartment air. \
When the ECC system is in the AUTO mode, the green LED will be on
.
Operation
Press
to operate the air quality sensor (normal setting).
or:
Select one of the following three functions by pressing
1, 2 or 3 times.
1. The AUT LED lights. The air quality sensor is now activated.
2. No LED lights. Recirculation is not activated unless needed to cool t\
he passenger compartment in a warm
climate.
3. The MAN LED lights. Recirculation is now activated.
Keep in mind the following:
l Make it a rule to have the air quality sensor activated at all times.
l Recirculation is limited in cold climates to avoid fogging.
l If window fogging occurs, you should deactivate the air quality sensor. \
l If fogging occurs, use the defroster functions for the windshield, side \
windows and rear window. See page 80.
l The filter should be changed at the intervals recommended in the service\
schedule. However, if the vehicle is
used in a severely contaminated environment, it may be necessary to chan\
ge the filter more frequently.



Contents | Top of Page
file:///K|/ownersdocs/2007/2007_XC90/07xc90_03.htm (8 of 8)12/30/2006 \
5:53:38 PM

2007 Volvo XC90
2 0 0 7
VOLVO XC90
Interior

pg. 83 Interior
Front seats
84
Rear seats
88
Interior lighting
91
Storage
compartments
93
Securing cargo
97
pg. 84 Interior
Front seats
Manually adjusted front seats
1. Front-rear adjustment: lift the bar and move the seat to the position\
of your choice.
2. Raise/lower the front edge of the seat cushion (option): use the co\
ntrol to pump the front edge of the
cushion up or down.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_04.htm (1 of 23)12/30/2006\
5:53:40 PM

2007 Volvo XC90
3. Raise/lower seat height: pump the seat up or down.
4. Lumbar support: turn the control for firmer or softer lumbar support.\

5. Backrest tilt: turn the control to adjust the angle of the backrest. \
6. Control panel for optional power seat (see
page 86 for more information).
WARNING!
l Do not adjust the seat while driving. The seat should be adjusted so tha\
t the brake pedal can be
depressed fully. In addition, position the seat as far rearward as comfo\
rt and control allow.
l Check that the seat is securely locked into position after adjusting.
pg. 85 Interior
Front seats

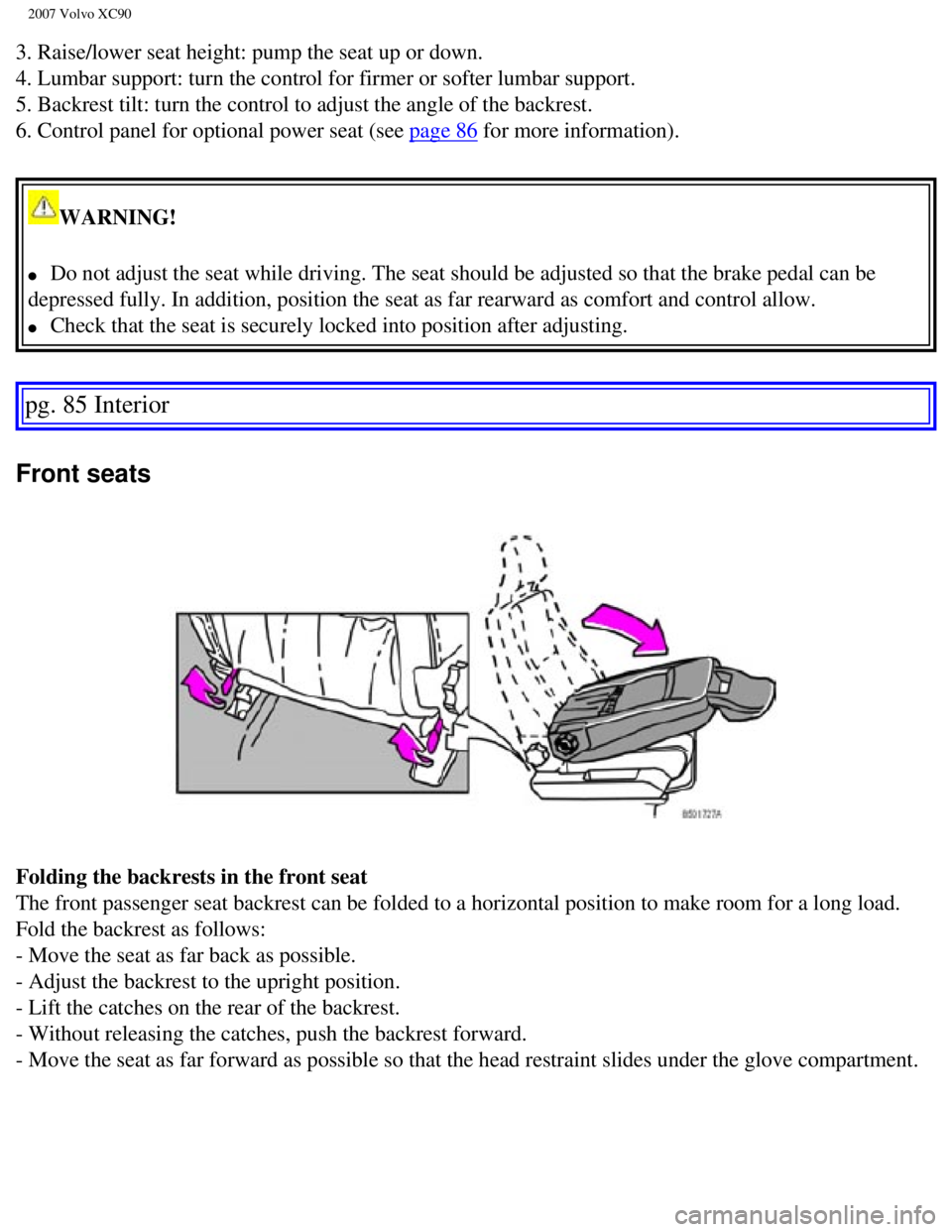

Folding the backrests in the front seat
The front passenger seat backrest can be folded to a horizontal position\
to make room for a long load.
Fold the backrest as follows:
- Move the seat as far back as possible.
- Adjust the backrest to the upright position.
- Lift the catches on the rear of the backrest.
- Without releasing the catches, push the backrest forward.
- Move the seat as far forward as possible so that the head restraint sl\
ides under the glove compartment.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_04.htm (2 of 23)12/30/2006\
5:53:40 PM

2007 Volvo XC90
WARNING!
Cover sharp edges on the load to help prevent injury to occupants. Secur\
e the load to help prevent
shifting during sudden stops.
pg. 86 Interior
Front seats
Power seat - (option on certain models)
Operation
Driver's seat: The seat can be adjusted if the ignition key is in position I, II or if\
the engine is running.
It can also be adjusted as follows with the ignition off:
l Within several minutes after the driver's door has been unlocked from th\
e outside, has been opened,
and remains open.
l Within a short period if the driver's door has just been closed.
l Within a short period if the driver's door has not been opened after the\
ignition has been switched off.
Passenger seat: The seat can only be adjusted if the ignition key is in position I, II o\
r if the engine is
running.

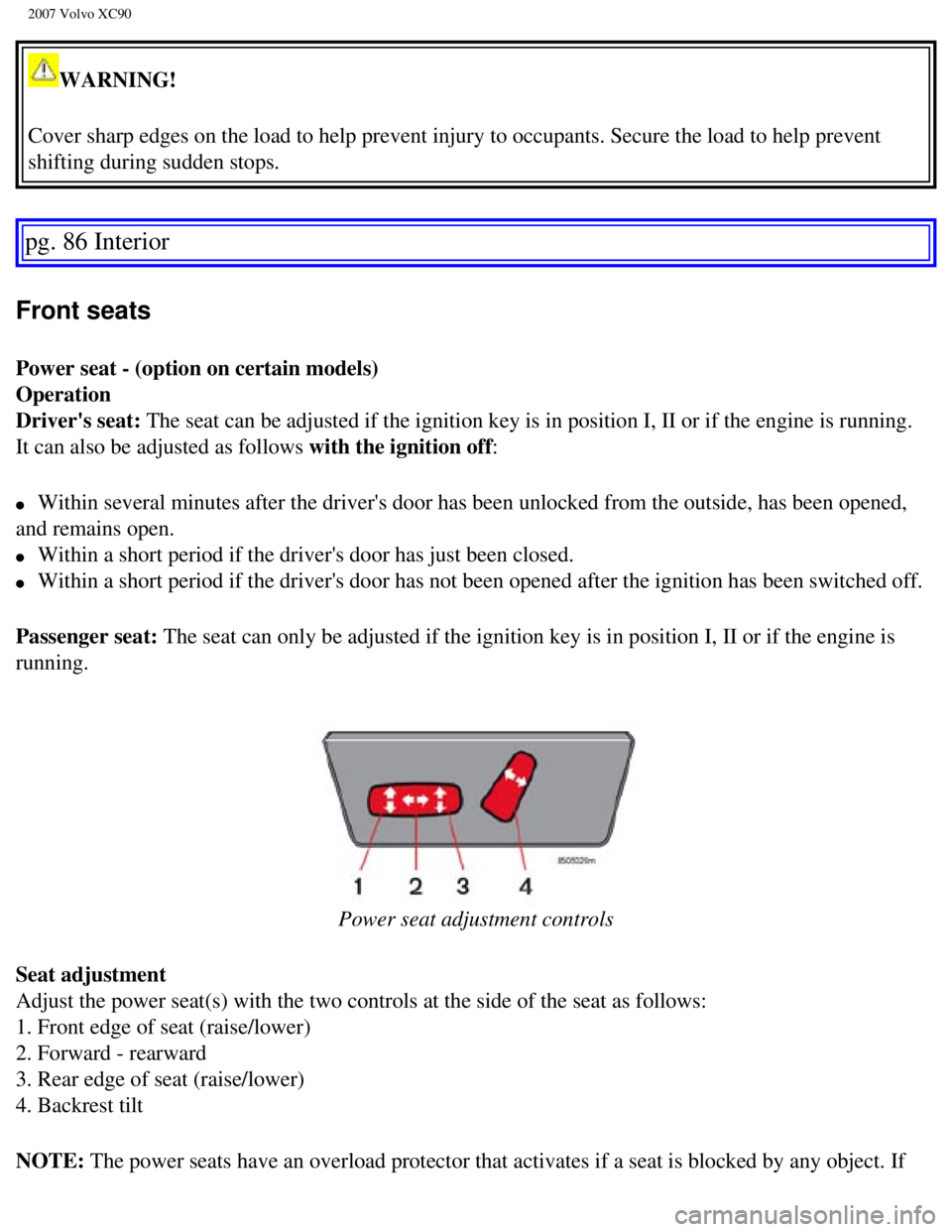

Power seat adjustment controls
Seat adjustment
Adjust the power seat(s) with the two controls at the side of the seat\
as follows:
1. Front edge of seat (raise/lower)
2. Forward - rearward
3. Rear edge of seat (raise/lower)
4. Backrest tilt
NOTE: The power seats have an overload protector that activates if a seat is \
blocked by any object. If
file:///K|/ownersdocs/2007/2007_XC90/07xc90_04.htm (3 of 23)12/30/2006\
5:53:40 PM

2007 Volvo XC90
this occurs, switch off the ignition (key in position 0) and wait for \
a short period before operating the
seat again.
Emergency stop
If the seat accidentally begins to move, press any of the buttons to sto\
p the seat.
NOTE: Please refer to the following page for information on programming the m\
emory function in the
driver's seat.
Remote keyless entry system and the driver's seat
The remote control transmitter also controls the position of the electri\
cally operated driver's seat in the
following way:
- Adjust the seat to your preferences.
- When you leave your vehicle, lock it using the remote control.
The position of the seat is now stored in the remote control.
Automatic seat adjustment
To move the seat to the position in which you left it:
- Unlock the driver's door with the same remote control (the one used t\
o lock the doors)
- Open the driver's door within 2 minutes.
The driver's seat will automatically move to the position in which you l\
eft it.
NOTE:
l The seat will move to this position even if someone else has moved it to\
a different seating position
and locked the vehicle with a different remote control.
pg. 87 Interior
Front seats
l This feature will work in the same way with all of the remote control tr\
ansmitters (up to 3) that you
use with your vehicle.
l This feature will not function if you lock your vehicle with the key.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_04.htm (4 of 23)12/30/2006\
5:53:40 PM

2007 Volvo XC90
WARNING!
l Because the driver's seat can be adjusted with the ignition off, childre\
n should never be left
unattended in the vehicle.
l Movement of the seat can be STOPPED at any time by pressing any button o\
n the power seat
control panel.
l Do not adjust the seat while driving.
l The seat should be adjusted so that the brake pedal can be depressed ful\
ly. In addition, position the
seat as far rearward as comfort and control allow.
l The seat rails on the floor must not be obstructed in any way when the s\
eat is in motion.
Programming the memory
Three different seating and door mirror positions can be stored in the d\
river seat's memory.
The following example explains how button 1 can be programmed. Buttons 2\
and 3 can be programmed
in the same way.
To program (store) a seat position in button 1:
- Move the seat to the desired position using the seat adjustment contro\
ls (see the previous page).
- Press and hold down the MEM (memory) button.
- With the MEM button depressed, press button 1 briefly to store the sea\
t's current position.
To move the seat to the position that it was in when button 1 was progra\
mmed:
Press and hold down button 1 until the seat stops moving.
As a safety precaution, the seat will stop automatically if the button i\
s released before the seat has
reached the preset position.
pg. 88 Interior
Rear seats
file:///K|/ownersdocs/2007/2007_XC90/07xc90_04.htm (5 of 23)12/30/2006\
5:53:40 PM

2007 Volvo XC90
Entering the optional third row of seats
Tilting the outboard backrests in the second row of seats:
l Pull up the handle (1), hold it up, and tilt the backrest forward to m\
ove the seat.
l Return the backrest to the upright position to slide the seat back to it\
s original position.
Forward/rearward seat adjustment
Lift the adjustment bar (2) to move the seat forward or rearward.
Removing the center console (seven-seat models only)1
In order to make it possible to move the center seat in the second row o\
f seats as far forward as possible
(seven-seat models only), the rear section of the center console can b\
e removed.
l Pull the handle (see illustration above) and lift out the console.
l To return the console to its original position, slide it back into posit\
ion until it clicks into place.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_04.htm (6 of 23)12/30/2006\
5:53:40 PM
