10 Audio
Radio functions
10
}}
259

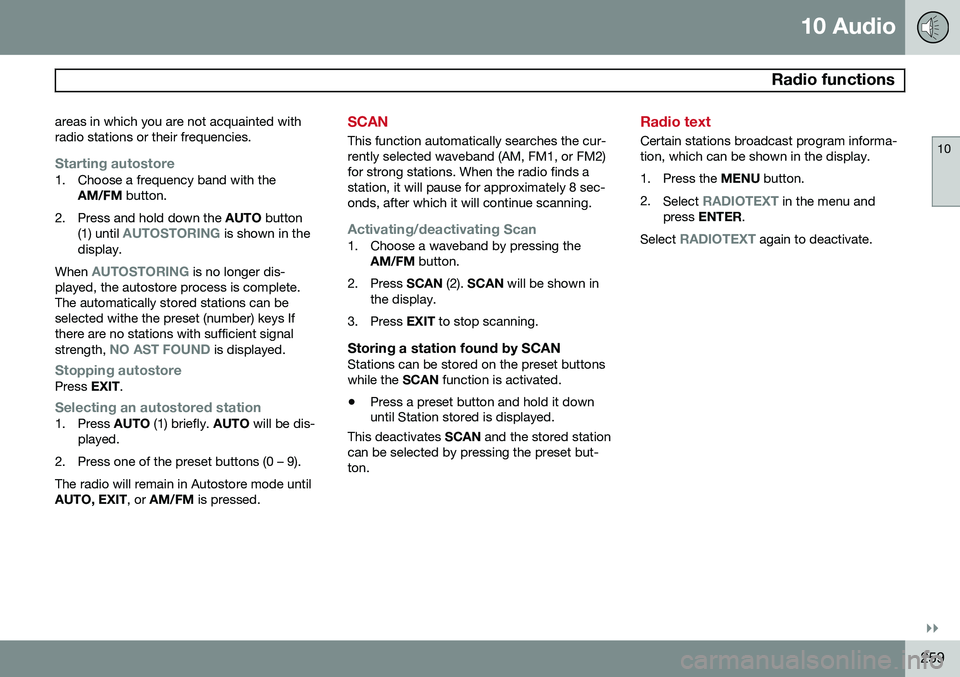

areas in which you are not acquainted with radio stations or their frequencies.
Starting autostore1. Choose a frequency band with the
AM/FM button.
2. Press and hold down the AUTO button
(1) until
AUTOSTORING is shown in the
display.
When
AUTOSTORING is no longer dis-
played, the autostore process is complete. The automatically stored stations can beselected withe the preset (number) keys Ifthere are no stations with sufficient signal strength,
NO AST FOUND is displayed.
Stopping autostorePress EXIT.
Selecting an autostored station1. Press AUTO (1) briefly. AUTO will be dis-
played.
2. Press one of the preset buttons (0 – 9). The radio will remain in Autostore mode until AUTO, EXIT , or AM/FM is pressed.
SCAN
This function automatically searches the cur- rently selected waveband (AM, FM1, or FM2)for strong stations. When the radio finds astation, it will pause for approximately 8 sec-onds, after which it will continue scanning.
Activating/deactivating Scan1. Choose a waveband by pressing the
AM/FM button.
2. Press SCAN (2). SCAN will be shown in
the display.
3. Press EXIT to stop scanning.
Storing a station found by SCANStations can be stored on the preset buttons while the SCAN function is activated.
• Press a preset button and hold it down until Station stored is displayed.
This deactivates SCAN and the stored station
can be selected by pressing the preset but- ton.
Radio text
Certain stations broadcast program informa- tion, which can be shown in the display.
1. Press the MENU button.
2. Select
RADIOTEXT in the menu and
press ENTER .
Select
RADIOTEXT again to deactivate.
Page 262 of 308
10 Audio
Radio functions
10
260

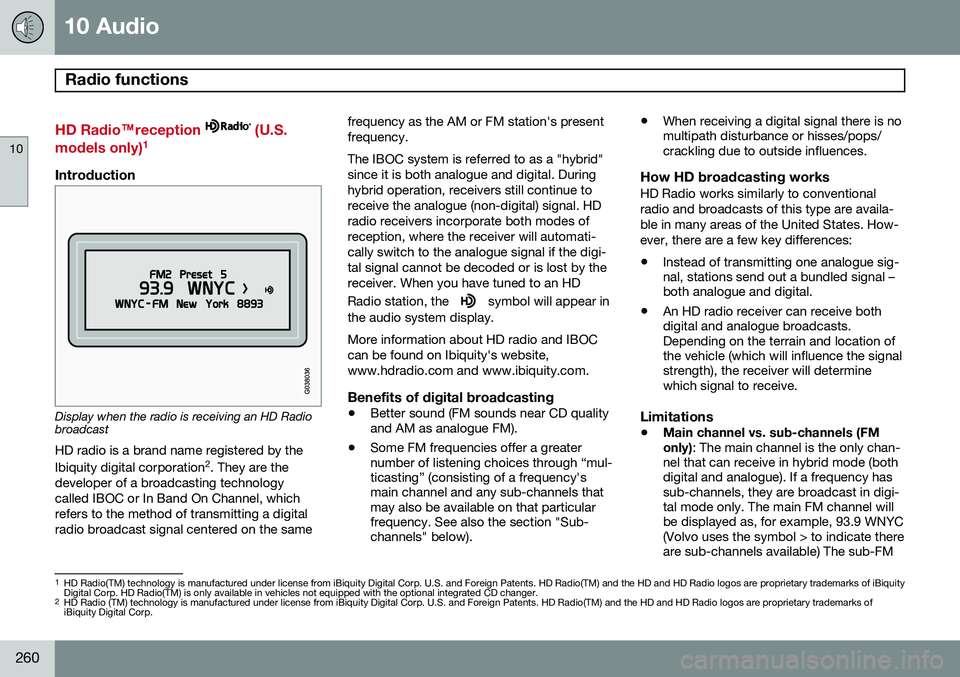

HD Radio™reception (U.S.
models only) 1
Introduction
Display when the radio is receiving an HD Radio broadcast HD radio is a brand name registered by the Ibiquity digital corporation
2
. They are the
developer of a broadcasting technology called IBOC or In Band On Channel, whichrefers to the method of transmitting a digitalradio broadcast signal centered on the same frequency as the AM or FM station's presentfrequency. The IBOC system is referred to as a "hybrid" since it is both analogue and digital. Duringhybrid operation, receivers still continue toreceive the analogue (non-digital) signal. HDradio receivers incorporate both modes ofreception, where the receiver will automati-cally switch to the analogue signal if the digi-tal signal cannot be decoded or is lost by thereceiver. When you have tuned to an HD Radio station, the
symbol will appear in
the audio system display. More information about HD radio and IBOC can be found on Ibiquity's website,www.hdradio.com and www.ibiquity.com.
Benefits of digital broadcasting
• Better sound (FM sounds near CD quality and AM as analogue FM).
• Some FM frequencies offer a greaternumber of listening choices through “mul-ticasting” (consisting of a frequency'smain channel and any sub-channels thatmay also be available on that particularfrequency. See also the section "Sub-channels" below). •
When receiving a digital signal there is nomultipath disturbance or hisses/pops/crackling due to outside influences.
How HD broadcasting worksHD Radio works similarly to conventional radio and broadcasts of this type are availa-ble in many areas of the United States. How-ever, there are a few key differences:
• Instead of transmitting one analogue sig- nal, stations send out a bundled signal –both analogue and digital.
• An HD radio receiver can receive bothdigital and analogue broadcasts.Depending on the terrain and location ofthe vehicle (which will influence the signalstrength), the receiver will determinewhich signal to receive.
Limitations
• Main channel vs. sub-channels (FM only)
: The main channel is the only chan-
nel that can receive in hybrid mode (both digital and analogue). If a frequency hassub-channels, they are broadcast in digi-tal mode only. The main FM channel willbe displayed as, for example, 93.9 WNYC(Volvo uses the symbol > to indicate thereare sub-channels available) The sub-FM
1 HD Radio(TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corp. HD Radio(TM) is only available in vehicles not equipped with the optional integrated CD changer.
2 HD Radio (TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks ofiBiquity Digital Corp.
Page 263 of 308

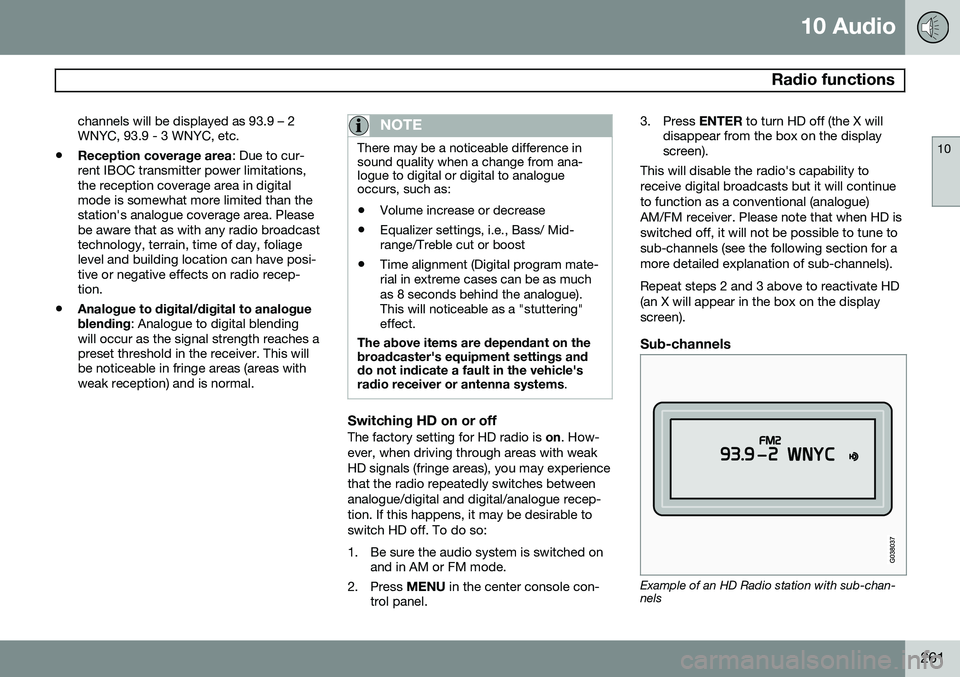

10 Audio
Radio functions
10
261
channels will be displayed as 93.9 – 2 WNYC, 93.9 - 3 WNYC, etc.
• Reception coverage area
: Due to cur-
rent IBOC transmitter power limitations,the reception coverage area in digitalmode is somewhat more limited than thestation's analogue coverage area. Pleasebe aware that as with any radio broadcasttechnology, terrain, time of day, foliagelevel and building location can have posi-tive or negative effects on radio recep-tion.
• Analogue to digital/digital to analogue blending
: Analogue to digital blending
will occur as the signal strength reaches a preset threshold in the receiver. This willbe noticeable in fringe areas (areas withweak reception) and is normal.
NOTE
There may be a noticeable difference in sound quality when a change from ana-logue to digital or digital to analogueoccurs, such as:
• Volume increase or decrease
• Equalizer settings, i.e., Bass/ Mid- range/Treble cut or boost
• Time alignment (Digital program mate-rial in extreme cases can be as muchas 8 seconds behind the analogue).This will noticeable as a "stuttering"effect.
The above items are dependant on the broadcaster's equipment settings and do not indicate a fault in the vehicle's radio receiver or antenna systems .
Switching HD on or offThe factory setting for HD radio is on. How-
ever, when driving through areas with weak HD signals (fringe areas), you may experiencethat the radio repeatedly switches betweenanalogue/digital and digital/analogue recep-tion. If this happens, it may be desirable toswitch HD off. To do so:
1. Be sure the audio system is switched on and in AM or FM mode.
2. Press MENU in the center console con-
trol panel. 3. Press
ENTER to turn HD off (the X will
disappear from the box on the display screen).
This will disable the radio's capability to receive digital broadcasts but it will continueto function as a conventional (analogue)AM/FM receiver. Please note that when HD isswitched off, it will not be possible to tune tosub-channels (see the following section for amore detailed explanation of sub-channels). Repeat steps 2 and 3 above to reactivate HD (an X will appear in the box on the displayscreen).
Sub-channels
Example of an HD Radio station with sub-chan- nels
Page 264 of 308
10 Audio
Radio functions
10
262

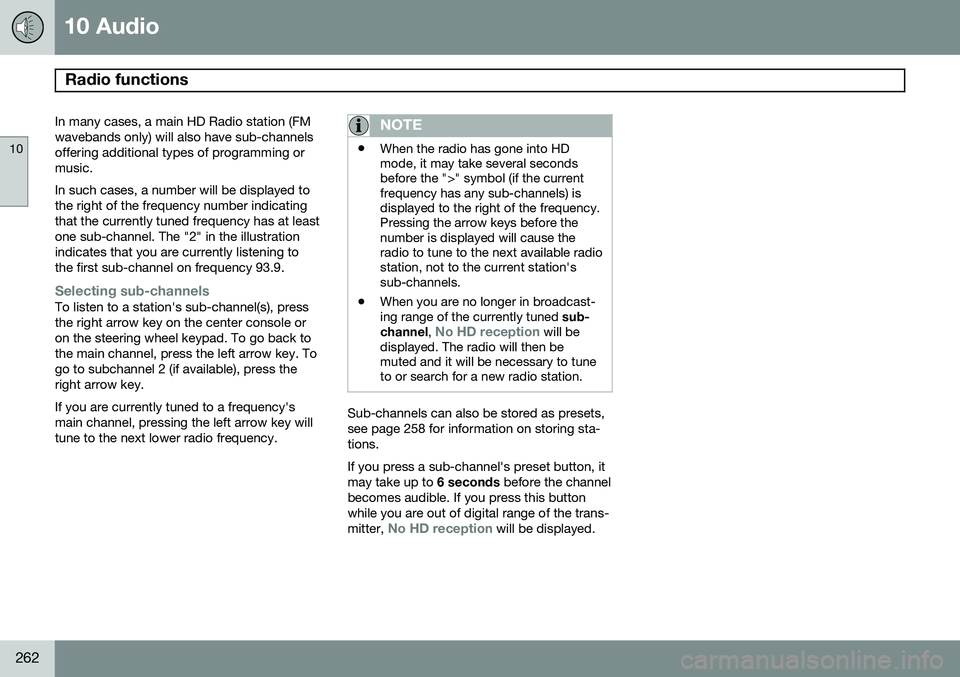

In many cases, a main HD Radio station (FM wavebands only) will also have sub-channelsoffering additional types of programming ormusic. In such cases, a number will be displayed to the right of the frequency number indicatingthat the currently tuned frequency has at leastone sub-channel. The "2" in the illustrationindicates that you are currently listening tothe first sub-channel on frequency 93.9.
Selecting sub-channelsTo listen to a station's sub-channel(s), press the right arrow key on the center console oron the steering wheel keypad. To go back tothe main channel, press the left arrow key. Togo to subchannel 2 (if available), press theright arrow key. If you are currently tuned to a frequency's main channel, pressing the left arrow key willtune to the next lower radio frequency.
NOTE
•When the radio has gone into HD mode, it may take several secondsbefore the ">" symbol (if the currentfrequency has any sub-channels) isdisplayed to the right of the frequency.Pressing the arrow keys before thenumber is displayed will cause theradio to tune to the next available radiostation, not to the current station'ssub-channels.
• When you are no longer in broadcast-ing range of the currently tuned
sub-
channel ,
No HD reception will be
displayed. The radio will then be muted and it will be necessary to tuneto or search for a new radio station.
Sub-channels can also be stored as presets, see page 258 for information on storing sta-tions. If you press a sub-channel's preset button, it may take up to 6 seconds before the channel
becomes audible. If you press this buttonwhile you are out of digital range of the trans- mitter,
No HD reception will be displayed.
Page 265 of 308
10 Audio
SiriusXM™ satellite radio
10
263

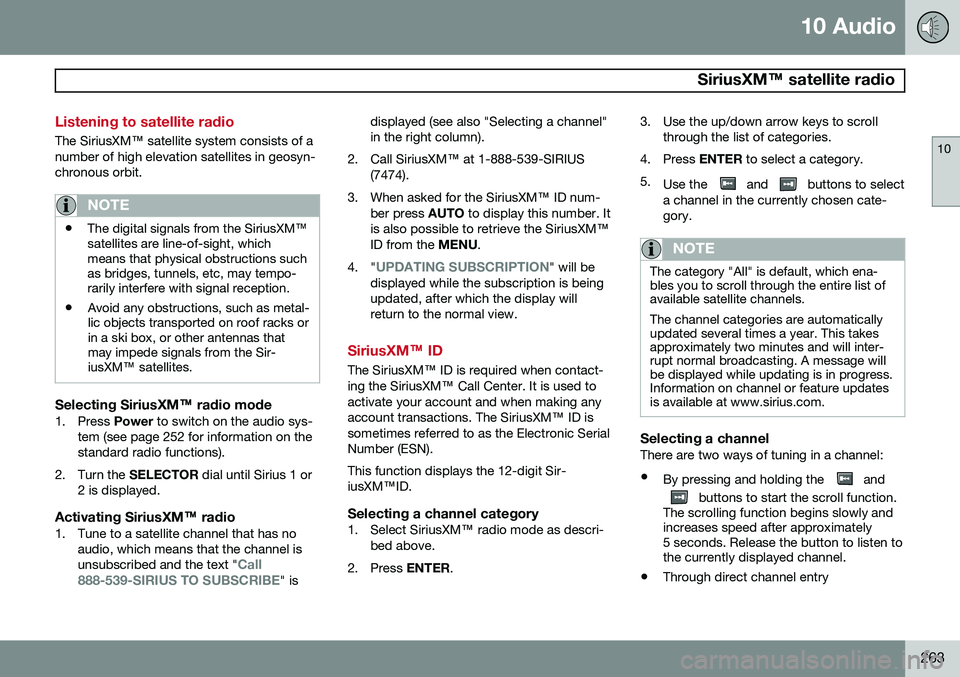

Listening to satellite radio
The SiriusXM ™ satellite system consists of a
number of high elevation satellites in geosyn- chronous orbit.
NOTE
• The digital signals from the SiriusXM
™
satellites are line-of-sight, which means that physical obstructions suchas bridges, tunnels, etc, may tempo-rarily interfere with signal reception.
• Avoid any obstructions, such as metal-lic objects transported on roof racks orin a ski box, or other antennas thatmay impede signals from the Sir-iusXM
™ satellites.
Selecting SiriusXM™ radio mode
1. Press Power to switch on the audio sys-
tem (see page 252 for information on the standard radio functions).
2. Turn the SELECTOR dial until Sirius 1 or
2 is displayed.
Activating SiriusXM ™ radio
1. Tune to a satellite channel that has no
audio, which means that the channel is unsubscribed and the text "
Call
888-539-SIRIUS TO SUBSCRIBE" is displayed (see also "Selecting a channel" in the right column).
2. Call SiriusXM ™ at 1-888-539-SIRIUS
(7474).
3. When asked for the SiriusXM ™ ID num-
ber press AUTO to display this number. It
is also possible to retrieve the SiriusXM ™
ID from the MENU.
4. "
UPDATING SUBSCRIPTION" will be
displayed while the subscription is being updated, after which the display willreturn to the normal view.
SiriusXM™ ID
The SiriusXM ™ ID is required when contact-
ing the SiriusXM ™ Call Center. It is used to
activate your account and when making any account transactions. The SiriusXM ™ ID is
sometimes referred to as the Electronic SerialNumber (ESN). This function displays the 12-digit Sir- iusXM ™ID.
Selecting a channel category1. Select SiriusXM ™ radio mode as descri-
bed above.
2. Press ENTER. 3. Use the up/down arrow keys to scroll
through the list of categories.
4. Press ENTER to select a category.
5. Use the
and buttons to select
a channel in the currently chosen cate- gory.
NOTE
The category "All" is default, which ena- bles you to scroll through the entire list ofavailable satellite channels. The channel categories are automatically updated several times a year. This takesapproximately two minutes and will inter-rupt normal broadcasting. A message willbe displayed while updating is in progress.Information on channel or feature updatesis available at www.sirius.com.
Selecting a channelThere are two ways of tuning in a channel:
• By pressing and holding the
and
buttons to start the scroll function.
The scrolling function begins slowly and increases speed after approximately5 seconds. Release the button to listen tothe currently displayed channel.
• Through direct channel entry
Page 266 of 308

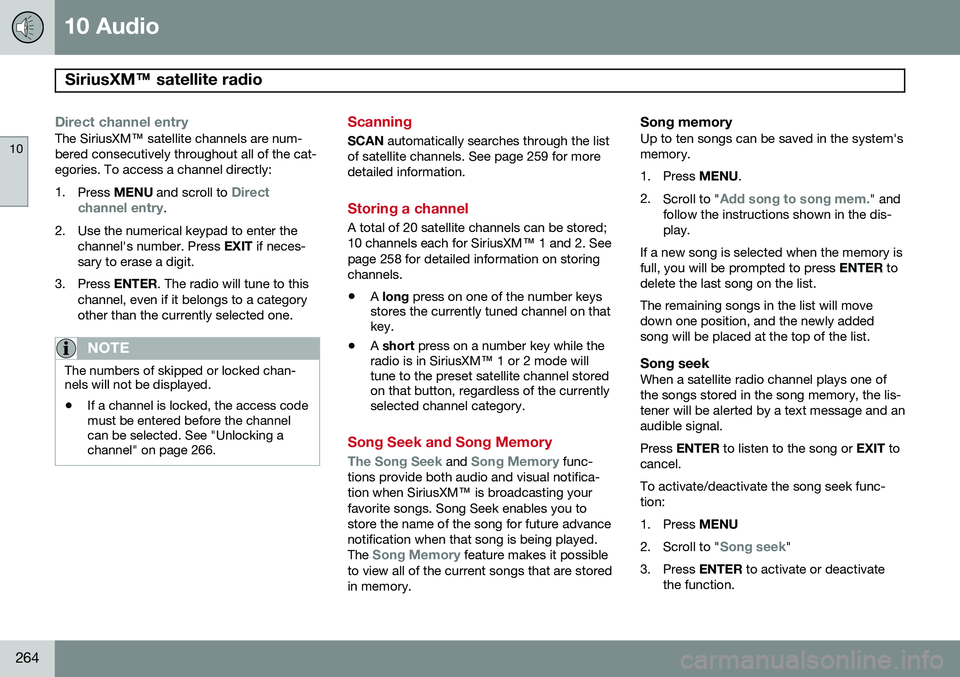

10 Audio
SiriusXM™ satellite radio
10
264
Direct channel entryThe SiriusXM ™ satellite channels are num-
bered consecutively throughout all of the cat- egories. To access a channel directly: 1. Press MENU and scroll to
Direct
channel entry.
2. Use the numerical keypad to enter the channel's number. Press EXIT if neces-
sary to erase a digit.
3. Press ENTER. The radio will tune to this
channel, even if it belongs to a category other than the currently selected one.
NOTE
The numbers of skipped or locked chan- nels will not be displayed.
• If a channel is locked, the access code must be entered before the channelcan be selected. See "Unlocking achannel" on page 266.
Scanning
SCAN
automatically searches through the list
of satellite channels. See page 259 for more detailed information.
Storing a channel
A total of 20 satellite channels can be stored; 10 channels each for SiriusXM ™ 1 and 2. See
page 258 for detailed information on storingchannels.
• A
long press on one of the number keys
stores the currently tuned channel on that key.
• A
short press on a number key while the
radio is in SiriusXM ™ 1 or 2 mode will
tune to the preset satellite channel storedon that button, regardless of the currentlyselected channel category.
Song Seek and Song Memory
The Song Seek and Song Memory func-
tions provide both audio and visual notifica- tion when SiriusXM ™ is broadcasting your
favorite songs. Song Seek enables you tostore the name of the song for future advancenotification when that song is being played. The
Song Memory feature makes it possible
to view all of the current songs that are stored in memory.
Song memoryUp to ten songs can be saved in the system'smemory.
1. Press MENU.
2. Scroll to "
Add song to song mem." and
follow the instructions shown in the dis- play.
If a new song is selected when the memory isfull, you will be prompted to press ENTER to
delete the last song on the list. The remaining songs in the list will move down one position, and the newly addedsong will be placed at the top of the list.
Song seekWhen a satellite radio channel plays one ofthe songs stored in the song memory, the lis-tener will be alerted by a text message and anaudible signal. Press ENTER to listen to the song or EXIT to
cancel.To activate/deactivate the song seek func- tion:
1. Press MENU
2. Scroll to "
Song seek"
3. Press ENTER to activate or deactivate
the function.
Page 267 of 308
10 Audio
SiriusXM™ satellite radio
10
265

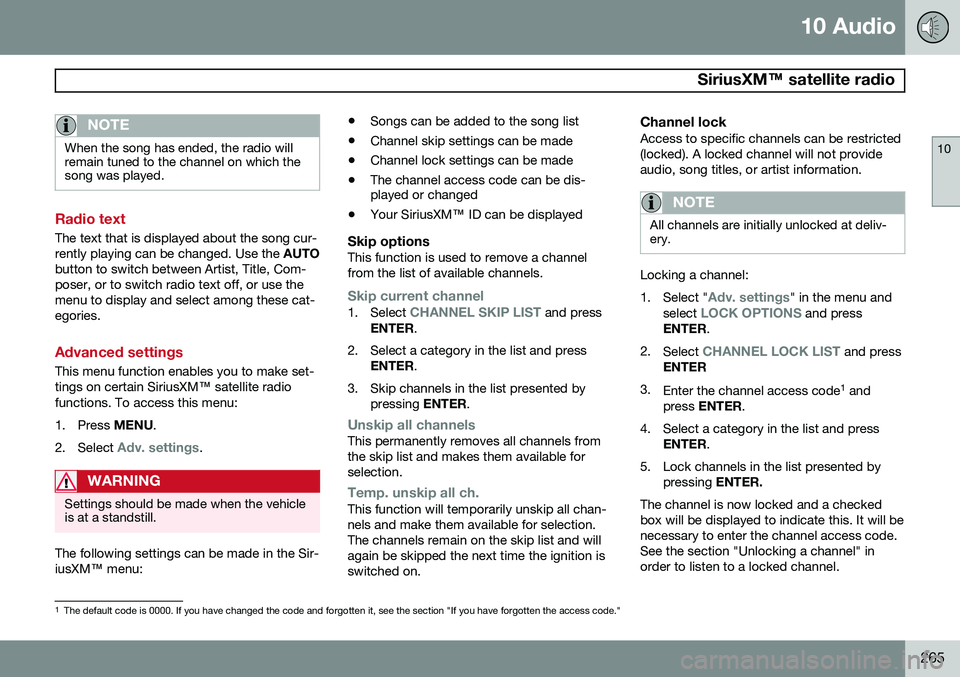

NOTE
When the song has ended, the radio will remain tuned to the channel on which thesong was played.
Radio text
The text that is displayed about the song cur- rently playing can be changed. Use the AUTO
button to switch between Artist, Title, Com-poser, or to switch radio text off, or use themenu to display and select among these cat-egories.
Advanced settings
This menu function enables you to make set- tings on certain SiriusXM ™ satellite radio
functions. To access this menu:
1. Press MENU.
2. Select
Adv. settings.
WARNING
Settings should be made when the vehicle is at a standstill.
The following settings can be made in the Sir- iusXM ™ menu: •
Songs can be added to the song list
• Channel skip settings can be made
• Channel lock settings can be made
• The channel access code can be dis- played or changed
• Your SiriusXM
™ ID can be displayed
Skip optionsThis function is used to remove a channel from the list of available channels.
Skip current channel1.
Select CHANNEL SKIP LIST and press
ENTER .
2. Select a category in the list and press ENTER .
3. Skip channels in the list presented by pressing ENTER.
Unskip all channelsThis permanently removes all channels from the skip list and makes them available forselection.
Temp. unskip all ch.This function will temporarily unskip all chan- nels and make them available for selection.The channels remain on the skip list and willagain be skipped the next time the ignition isswitched on.
Channel lockAccess to specific channels can be restricted(locked). A locked channel will not provideaudio, song titles, or artist information.
NOTE
All channels are initially unlocked at deliv- ery.
Locking a channel: 1.
Select "
Adv. settings" in the menu and
select LOCK OPTIONS and press
ENTER .
2. Select
CHANNEL LOCK LIST and press
ENTER
3. Enter the channel access code 1
and
press ENTER .
4. Select a category in the list and press ENTER .
5. Lock channels in the list presented by pressing ENTER.
The channel is now locked and a checked box will be displayed to indicate this. It will benecessary to enter the channel access code.See the section "Unlocking a channel" inorder to listen to a locked channel.
1 The default code is 0000. If you have changed the code and forgotten it, see the section "If you have forgotten the access code."
Page 268 of 308
10 Audio
SiriusXM™ satellite radio
10
266

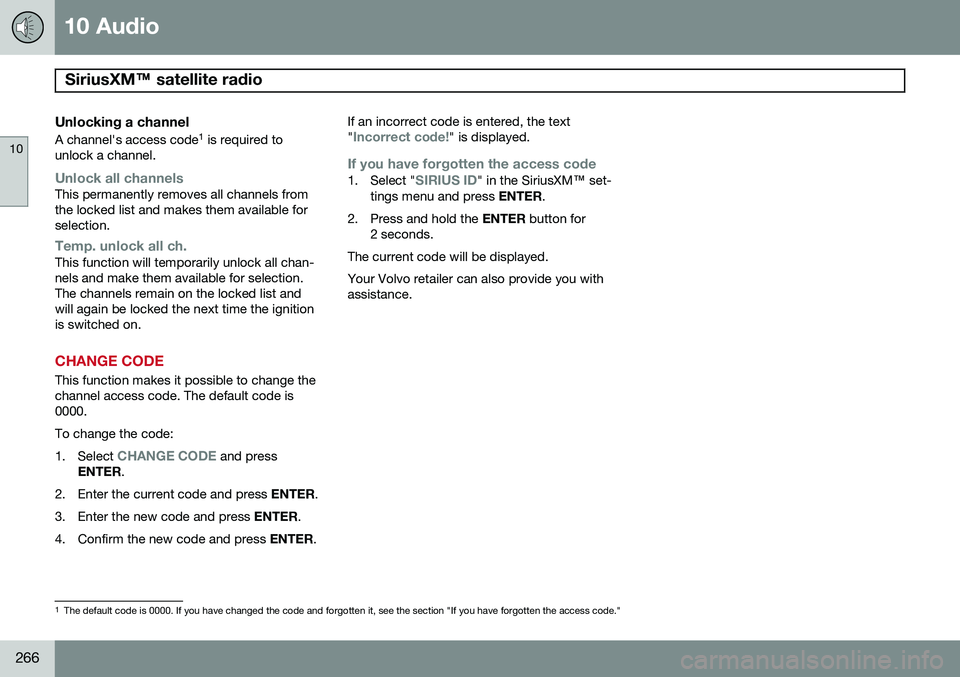

Unlocking a channel
A channel's access code 1
is required to
unlock a channel.
Unlock all channelsThis permanently removes all channels from the locked list and makes them available forselection.
Temp. unlock all ch.This function will temporarily unlock all chan- nels and make them available for selection.The channels remain on the locked list andwill again be locked the next time the ignitionis switched on.
CHANGE CODE
This function makes it possible to change the channel access code. The default code is0000. To change the code:1. Select
CHANGE CODE and press
ENTER .
2. Enter the current code and press ENTER.
3. Enter the new code and press ENTER.
4. Confirm the new code and press ENTER.If an incorrect code is entered, the text "
Incorrect code!" is displayed.
If you have forgotten the access code1.
Select "SIRIUS ID" in the SiriusXM ™ set-
tings menu and press ENTER.
2. Press and hold the ENTER button for
2 seconds.
The current code will be displayed. Your Volvo retailer can also provide you with assistance.
1 The default code is 0000. If you have changed the code and forgotten it, see the section "If you have forgotten the access code."
Page 269 of 308
10 Audio
Auxiliary equipment
10
* Option/accessory, for more information, see Introduction.267

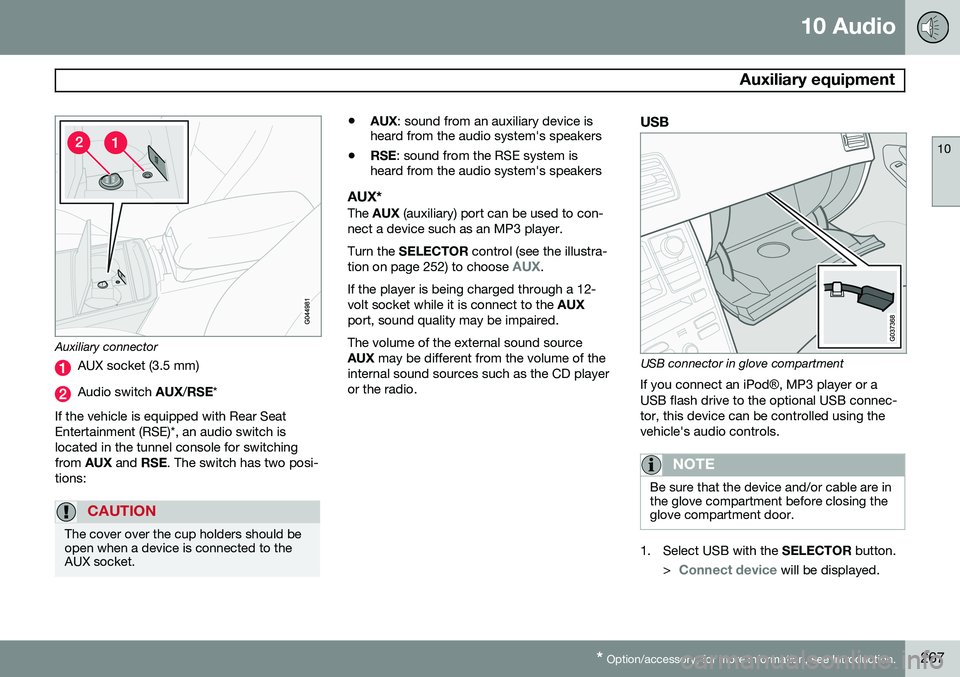

Auxiliary connector
AUX socket (3.5 mm)
Audio switch AUX/RSE *
If the vehicle is equipped with Rear Seat Entertainment (RSE)*, an audio switch islocated in the tunnel console for switchingfrom AUX and RSE. The switch has two posi-
tions:
CAUTION
The cover over the cup holders should be open when a device is connected to theAUX socket.
• AUX
: sound from an auxiliary device is
heard from the audio system's speakers
• RSE
: sound from the RSE system is
heard from the audio system's speakers
AUX*The AUX (auxiliary) port can be used to con-
nect a device such as an MP3 player. Turn the SELECTOR control (see the illustra-
tion on page 252) to choose
AUX.
If the player is being charged through a 12- volt socket while it is connect to the AUX
port, sound quality may be impaired. The volume of the external sound source AUX may be different from the volume of the
internal sound sources such as the CD player or the radio.
USB
USB connector in glove compartment
If you connect an iPod ®, MP3 player or a
USB flash drive to the optional USB connec- tor, this device can be controlled using thevehicle's audio controls.
NOTE
Be sure that the device and/or cable are in the glove compartment before closing theglove compartment door.
1. Select USB with the SELECTOR button.
>
Connect device will be displayed.
Page 270 of 308
10 Audio
Auxiliary equipment
10
268

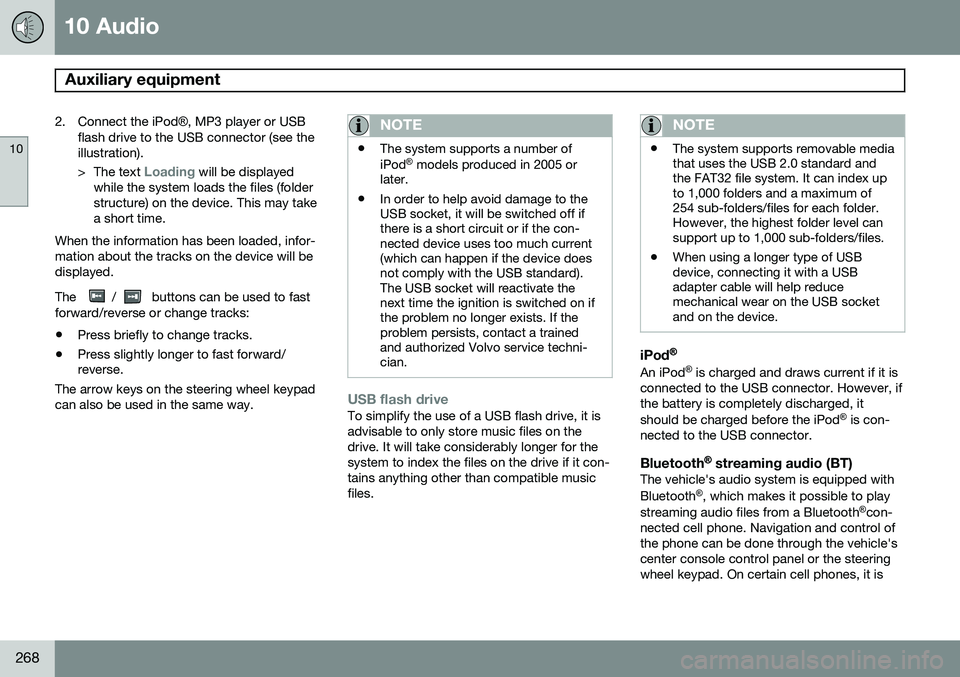

2. Connect the iPod®, MP3 player or USB
flash drive to the USB connector (see the illustration). > The text
Loading will be displayed
while the system loads the files (folder structure) on the device. This may takea short time.
When the information has been loaded, infor-mation about the tracks on the device will bedisplayed. The
/ buttons can be used to fast
forward/reverse or change tracks:
• Press briefly to change tracks.
• Press slightly longer to fast forward/ reverse.
The arrow keys on the steering wheel keypad can also be used in the same way.
NOTE
• The system supports a number of iPod ®
models produced in 2005 or
later.
• In order to help avoid damage to the USB socket, it will be switched off ifthere is a short circuit or if the con-nected device uses too much current(which can happen if the device doesnot comply with the USB standard).The USB socket will reactivate thenext time the ignition is switched on ifthe problem no longer exists. If theproblem persists, contact a trainedand authorized Volvo service techni-cian.
USB flash driveTo simplify the use of a USB flash drive, it is advisable to only store music files on thedrive. It will take considerably longer for thesystem to index the files on the drive if it con-tains anything other than compatible musicfiles.
NOTE
• The system supports removable media that uses the USB 2.0 standard andthe FAT32 file system. It can index upto 1,000 folders and a maximum of254 sub-folders/files for each folder.However, the highest folder level cansupport up to 1,000 sub-folders/files.
• When using a longer type of USBdevice, connecting it with a USBadapter cable will help reducemechanical wear on the USB socketand on the device.
iPod®
An iPod ®
is charged and draws current if it is
connected to the USB connector. However, if the battery is completely discharged, it should be charged before the iPod ®
is con-
nected to the USB connector.
Bluetooth ®
streaming audio (BT)The vehicle's audio system is equipped withBluetooth ®
, which makes it possible to play
streaming audio files from a Bluetooth ®
con-
nected cell phone. Navigation and control of the phone can be done through the vehicle'scenter console control panel or the steeringwheel keypad. On certain cell phones, it is
