11 Specifications
Suspension
11
289

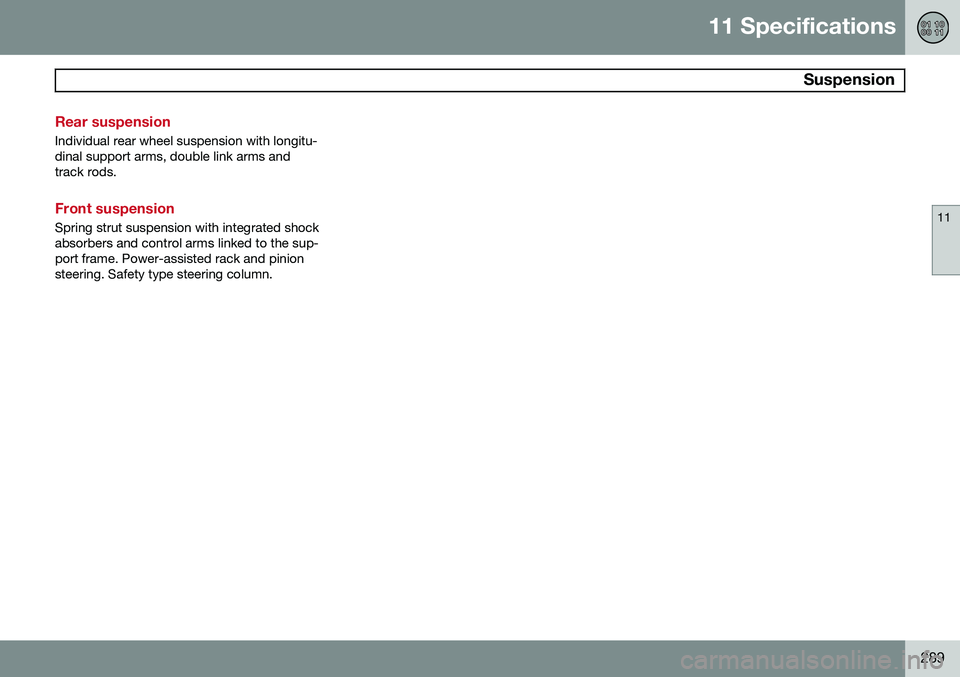

Rear suspension
Individual rear wheel suspension with longitu- dinal support arms, double link arms andtrack rods.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms linked to the sup-port frame. Power-assisted rack and pinionsteering. Safety type steering column.

11 Specifications
Engine oil
11
290
Oil specifications
Engine oil must meet the minimum ACEA A5/ B5 . Lower quality oils may not offer the samefuel economy, engine performance, or engineprotection.Refer to the warranty and Service Recordsinformation booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Volvo recommends Castrol.
Engine designationVolume
A
3.2 6-cyl. B6324S57.18 US qts (6.8 liters)
A
Including filter replacement.

11 Specifications
Engine specifications
11
291

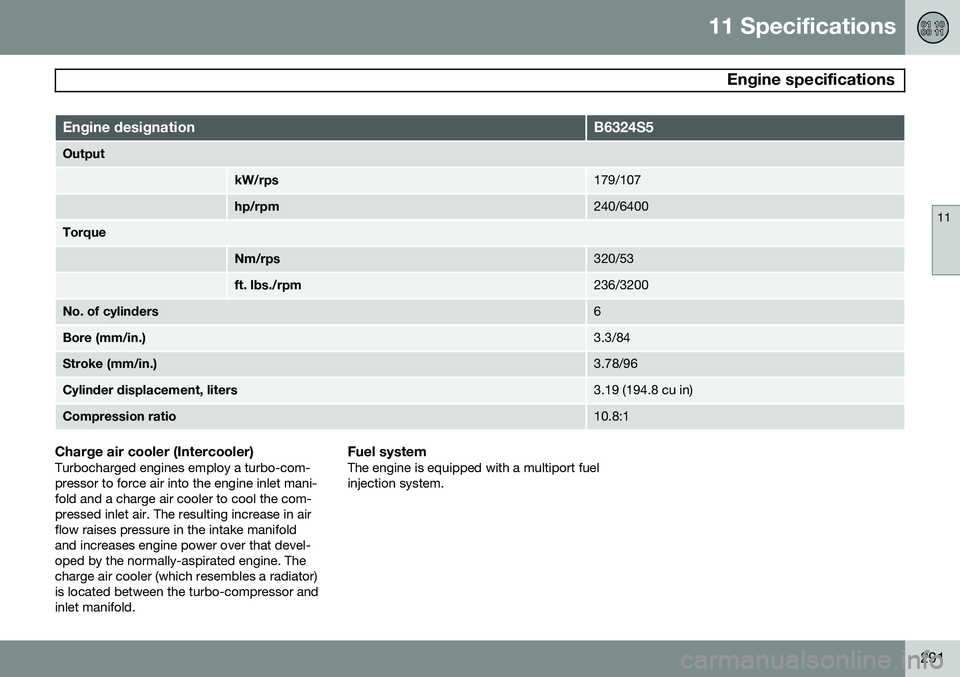

Engine designationB6324S5
Output
kW/rps179/107
hp/rpm240/6400
Torque
Nm/rps320/53
ft. lbs./rpm236/3200
No. of cylinders6
Bore (mm/in.)3.3/84
Stroke (mm/in.)3.78/96
Cylinder displacement, liters3.19 (194.8 cu in)
Compression ratio10.8:1
Charge air cooler (Intercooler)Turbocharged engines employ a turbo-com- pressor to force air into the engine inlet mani-fold and a charge air cooler to cool the com-pressed inlet air. The resulting increase in airflow raises pressure in the intake manifoldand increases engine power over that devel-oped by the normally-aspirated engine. Thecharge air cooler (which resembles a radiator)is located between the turbo-compressor andinlet manifold.Fuel systemThe engine is equipped with a multiport fuelinjection system.

11 Specifications
Electrical system
11
292

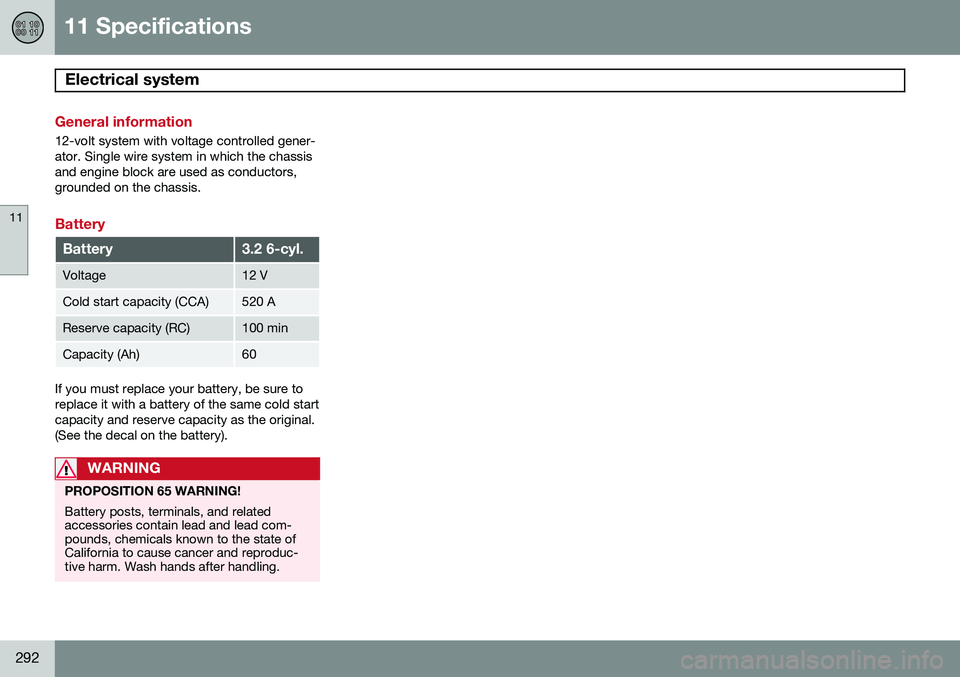

General information
12-volt system with voltage controlled gener- ator. Single wire system in which the chassisand engine block are used as conductors,grounded on the chassis.
Battery
Battery3.2 6-cyl.
Voltage12 V
Cold start capacity (CCA)520 A
Reserve capacity (RC)100 min
Capacity (Ah)60
If you must replace your battery, be sure to replace it with a battery of the same cold startcapacity and reserve capacity as the original.(See the decal on the battery).
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.

11 Specifications
Three-way catalytic converter
11
293

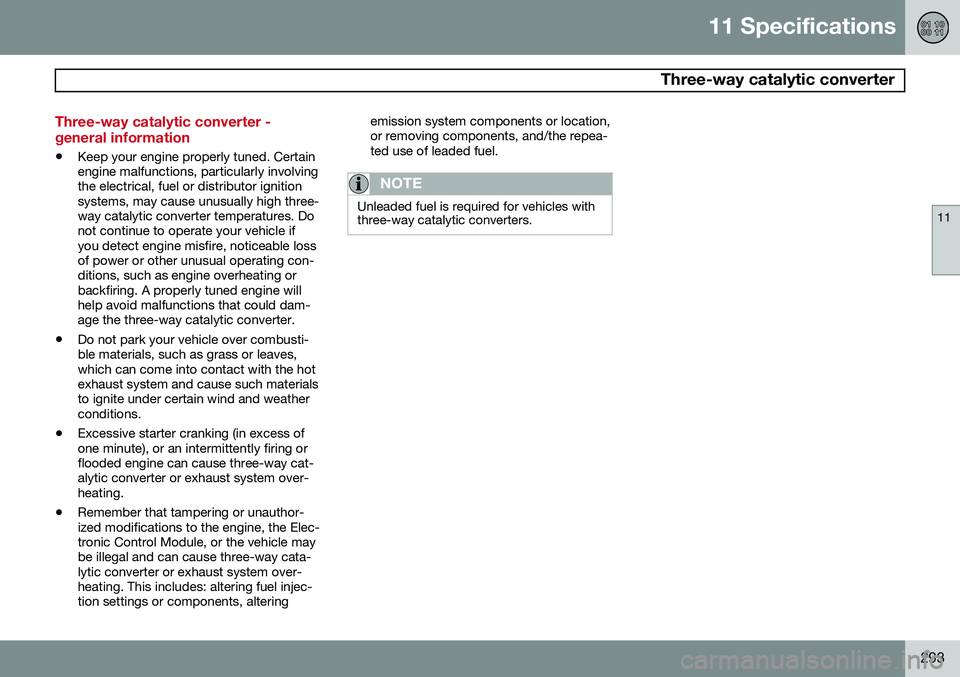

Three-way catalytic converter - general information
•Keep your engine properly tuned. Certain engine malfunctions, particularly involvingthe electrical, fuel or distributor ignitionsystems, may cause unusually high three-way catalytic converter temperatures. Donot continue to operate your vehicle ifyou detect engine misfire, noticeable lossof power or other unusual operating con-ditions, such as engine overheating orbackfiring. A properly tuned engine willhelp avoid malfunctions that could dam-age the three-way catalytic converter.
• Do not park your vehicle over combusti-ble materials, such as grass or leaves,which can come into contact with the hotexhaust system and cause such materialsto ignite under certain wind and weatherconditions.
• Excessive starter cranking (in excess ofone minute), or an intermittently firing orflooded engine can cause three-way cat-alytic converter or exhaust system over-heating.
• Remember that tampering or unauthor-ized modifications to the engine, the Elec-tronic Control Module, or the vehicle maybe illegal and can cause three-way cata-lytic converter or exhaust system over-heating. This includes: altering fuel injec-tion settings or components, altering emission system components or location,or removing components, and/the repea-ted use of leaded fuel.
NOTE
Unleaded fuel is required for vehicles with three-way catalytic converters.

11 Specifications
Overview of information and warning symbols
11
294
Introduction

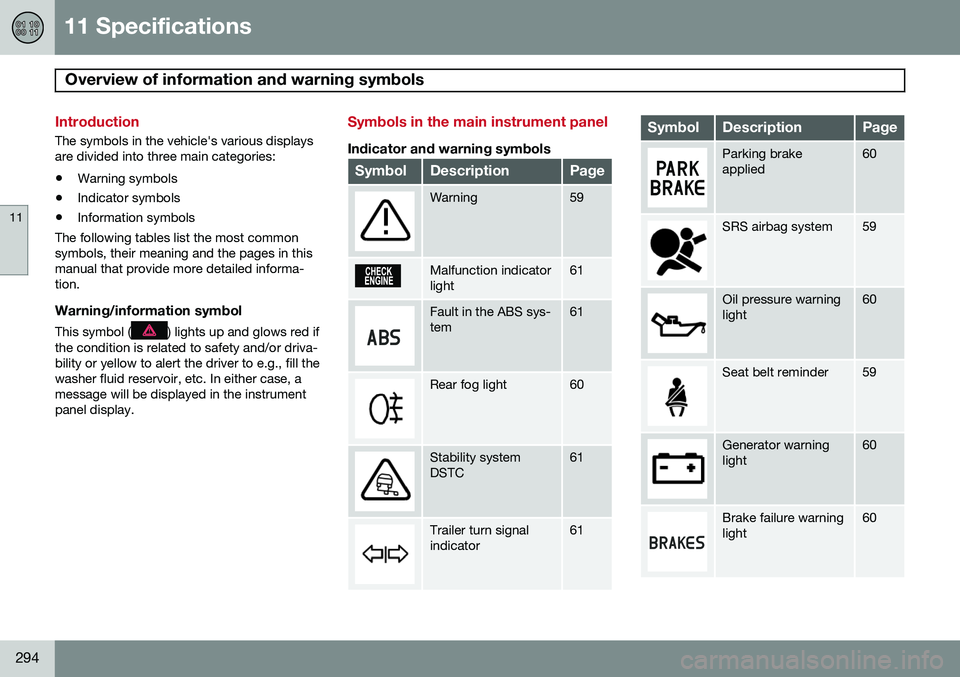

The symbols in the vehicle's various displays are divided into three main categories:• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
Warning/information symbol
This symbol () lights up and glows red if
the condition is related to safety and/or driva- bility or yellow to alert the driver to e.g., fill thewasher fluid reservoir, etc. In either case, amessage will be displayed in the instrumentpanel display.
Symbols in the main instrument panel
Indicator and warning symbols
SymbolDescriptionPage
Warning59
Malfunction indicator light61
Fault in the ABS sys- tem61
Rear fog light60
Stability system DSTC61
Trailer turn signal indicator61
SymbolDescriptionPage
Parking brake applied60
SRS airbag system59
Oil pressure warning light60
Seat belt reminder59
Generator warning light60
Brake failure warning light60

11 Specifications
Overview of information and warning symbols
11
295
SymbolDescriptionPage
High beam indicator58
Left turn signal58
Right turn signal58

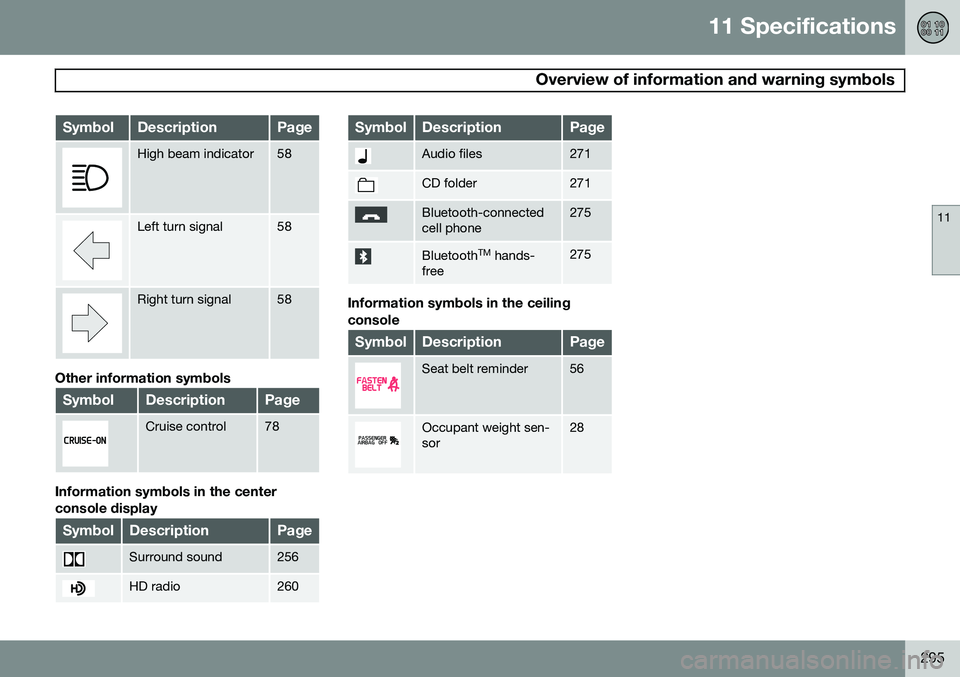

Other information symbols
SymbolDescriptionPage
Cruise control78
Information symbols in the center console display
SymbolDescriptionPage
Surround sound256
HD radio260
SymbolDescriptionPage
Audio files271
CD folder271
Bluetooth-connected cell phone275
BluetoothTM
hands-
free275
Information symbols in the ceiling console
SymbolDescriptionPage
Seat belt reminder56
Occupant weight sen- sor28

11 Specifications
Volvo programs
11
296

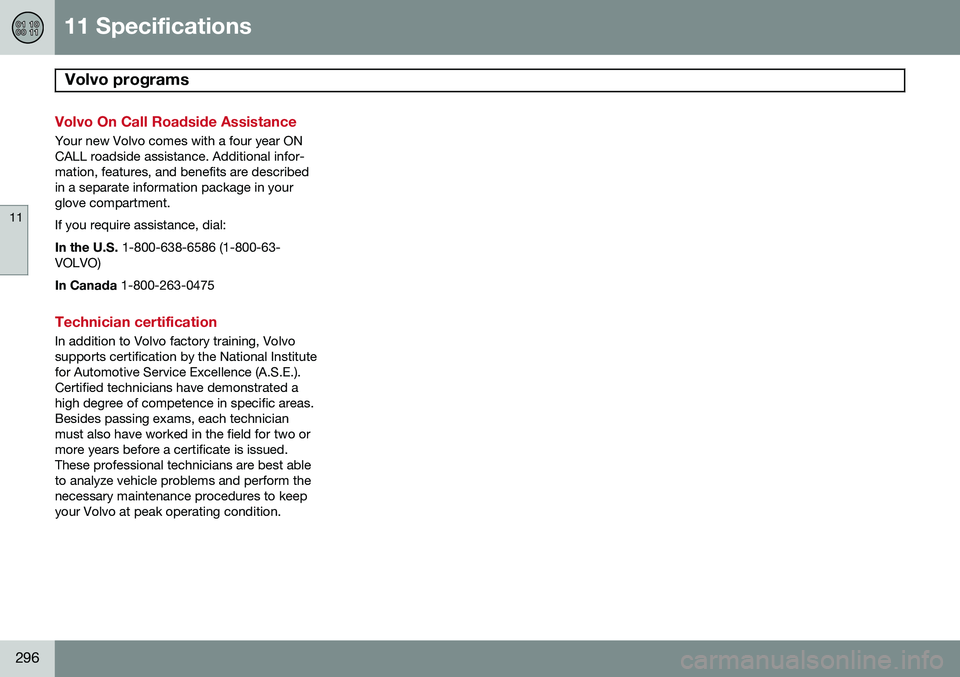

Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Additional infor-mation, features, and benefits are describedin a separate information package in yourglove compartment. If you require assistance, dial:In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institutefor Automotive Service Excellence (A.S.E.).Certified technicians have demonstrated ahigh degree of competence in specific areas.Besides passing exams, each technicianmust also have worked in the field for two ormore years before a certificate is issued.These professional technicians are best ableto analyze vehicle problems and perform thenecessary maintenance procedures to keepyour Volvo at peak operating condition.

11 Specifications

11
297

12 Index
12
298
1, 2, 3 ...

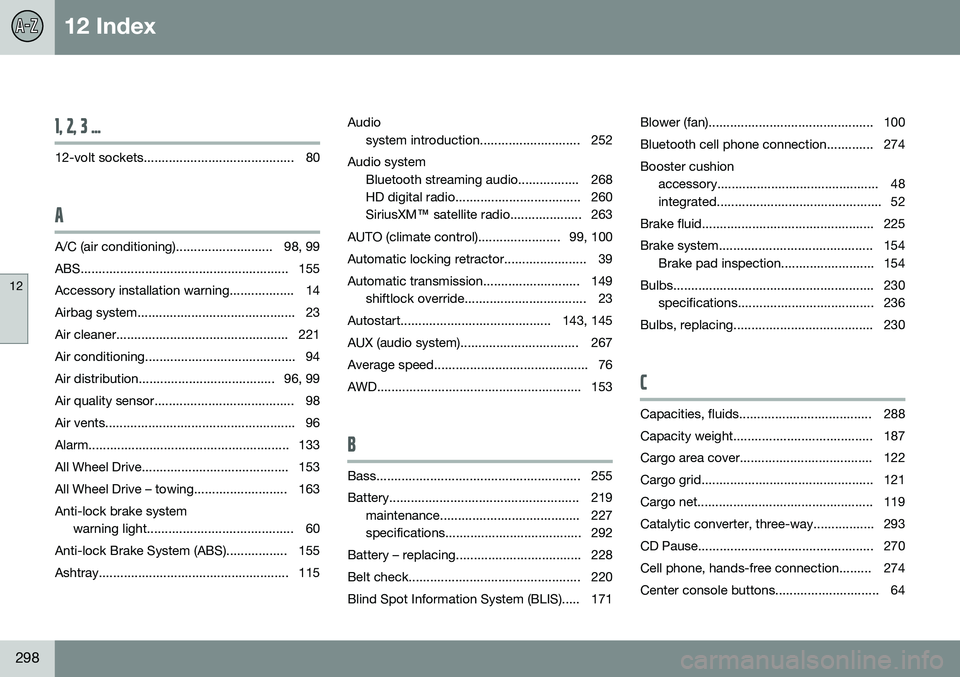

12-volt sockets.......................................... 80
