VOLVO XC90 2014 Owner´s Manual

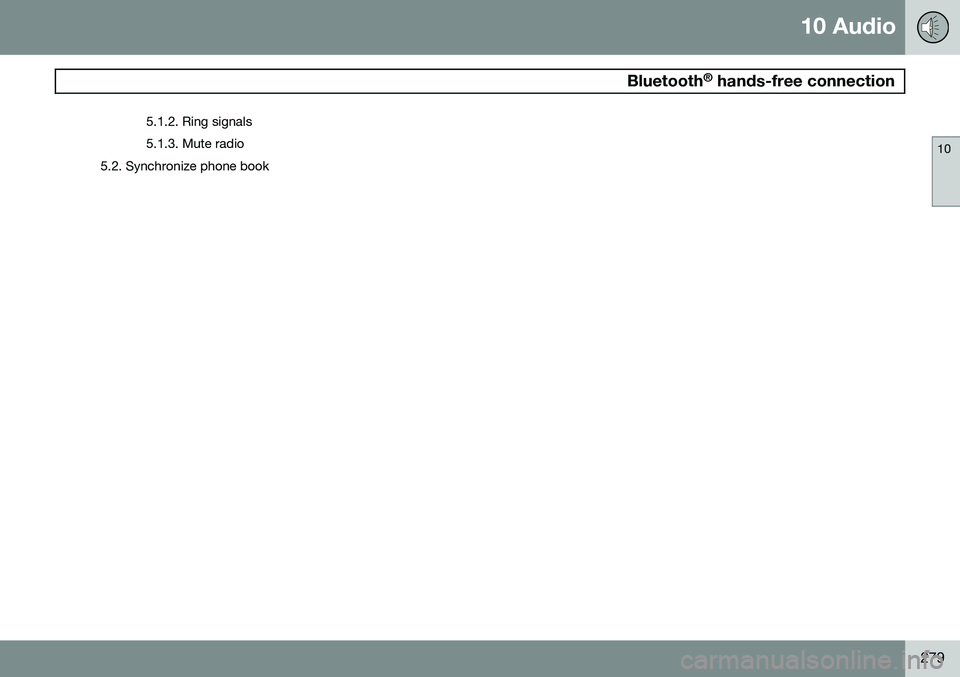

10 Audio
Bluetooth®
hands-free connection
10
279
5.1.2. Ring signals 5.1.3. Mute radio
5.2. Synchronize phone book

280

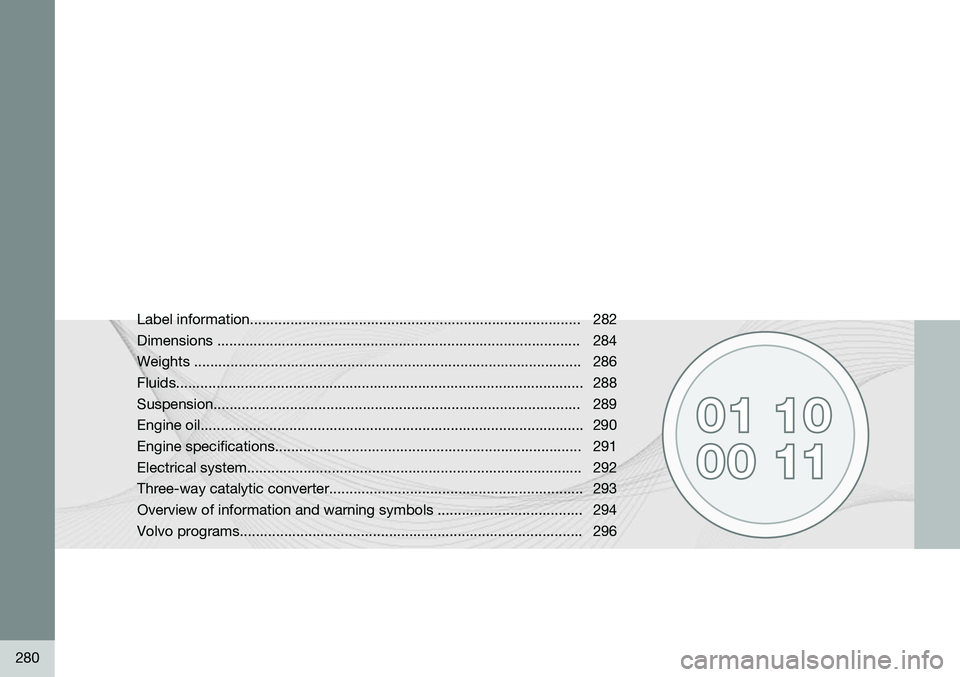

Label information.................................................................................. 282 Dimensions .......................................................................................... 284Weights ................................................................................................ 286Fluids..................................................................................................... 288Suspension........................................................................................... 289Engine oil............................................................................................... 290
Engine specifications............................................................................ 291
Electrical system...................................................................................292
Three-way catalytic converter............................................................... 293
Overview of information and warning symbols .................................... 294
Volvo programs..................................................................................... 296

S P E C I F I C A T I O N S

11 Specifications

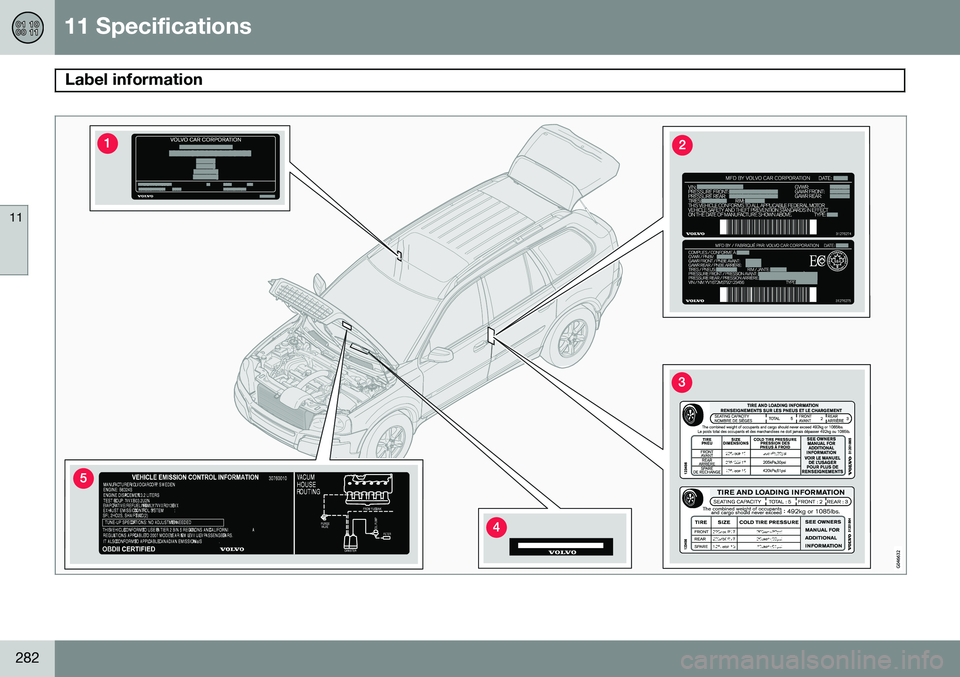

Label information
11
282

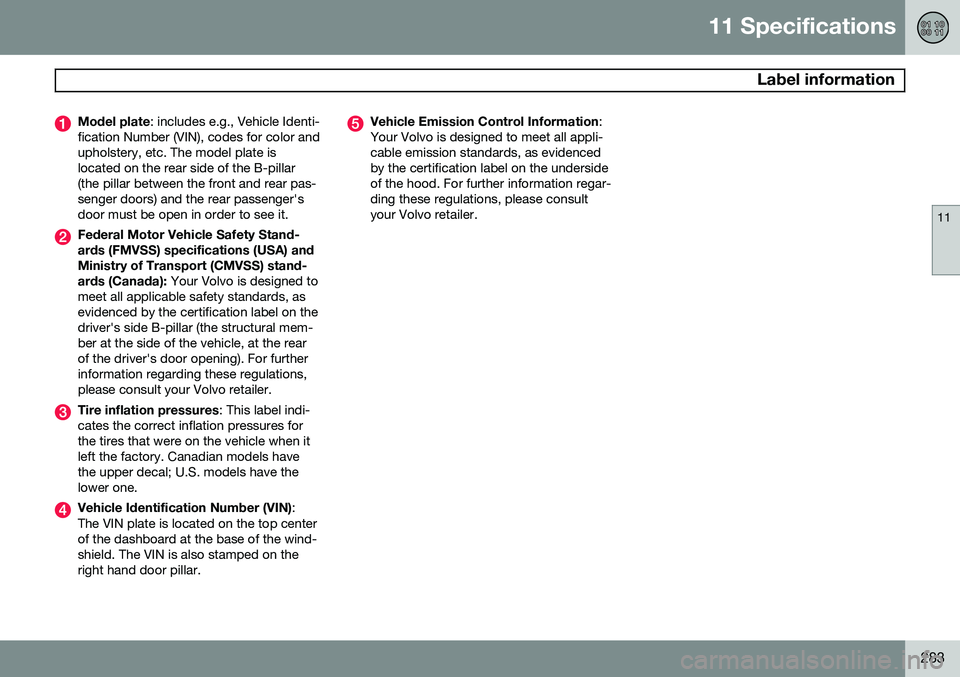

11 Specifications
Label information
11
283
Model plate: includes e.g., Vehicle Identi-
fication Number (VIN), codes for color and upholstery, etc. The model plate islocated on the rear side of the B-pillar(the pillar between the front and rear pas-senger doors) and the rear passenger'sdoor must be open in order to see it.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada): Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). For furtherinformation regarding these regulations,please consult your Volvo retailer.
Tire inflation pressures : This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory. Canadian models havethe upper decal; U.S. models have thelower one.
Vehicle Identification Number (VIN) :
The VIN plate is located on the top center of the dashboard at the base of the wind-shield. The VIN is also stamped on theright hand door pillar.
Vehicle Emission Control Information :
Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.

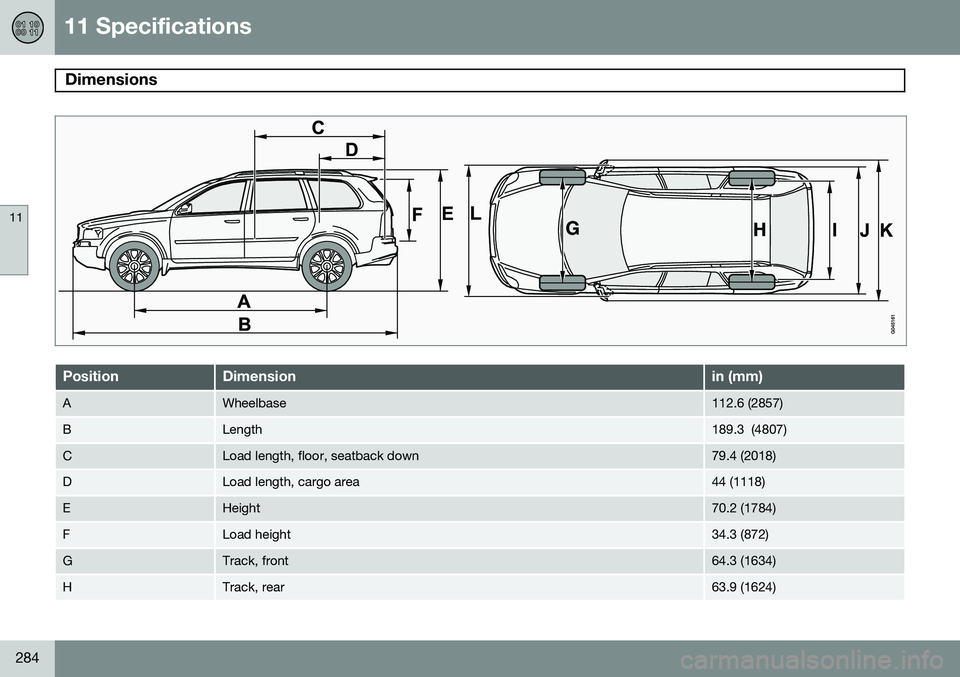

11 Specifications
Dimensions
11
284
PositionDimensionin (mm)
AWheelbase112.6 (2857)
BLength189.3 (4807)
CLoad length, floor, seatback down79.4 (2018)
DLoad length, cargo area44 (1118)
EHeight70.2 (1784)
FLoad height34.3 (872)
GTrack, front64.3 (1634)
HTrack, rear63.9 (1624)

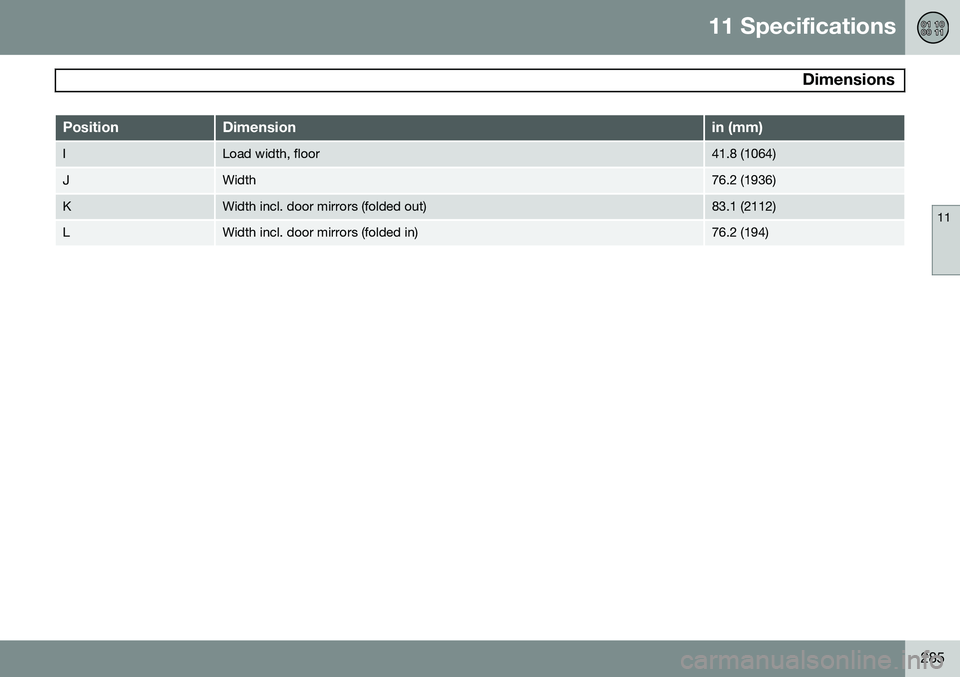

11 Specifications
Dimensions
11
285
PositionDimensionin (mm)
ILoad width, floor41.8 (1064)
JWidth76.2 (1936)
KWidth incl. door mirrors (folded out)83.1 (2112)
LWidth incl. door mirrors (folded in)76.2 (194)

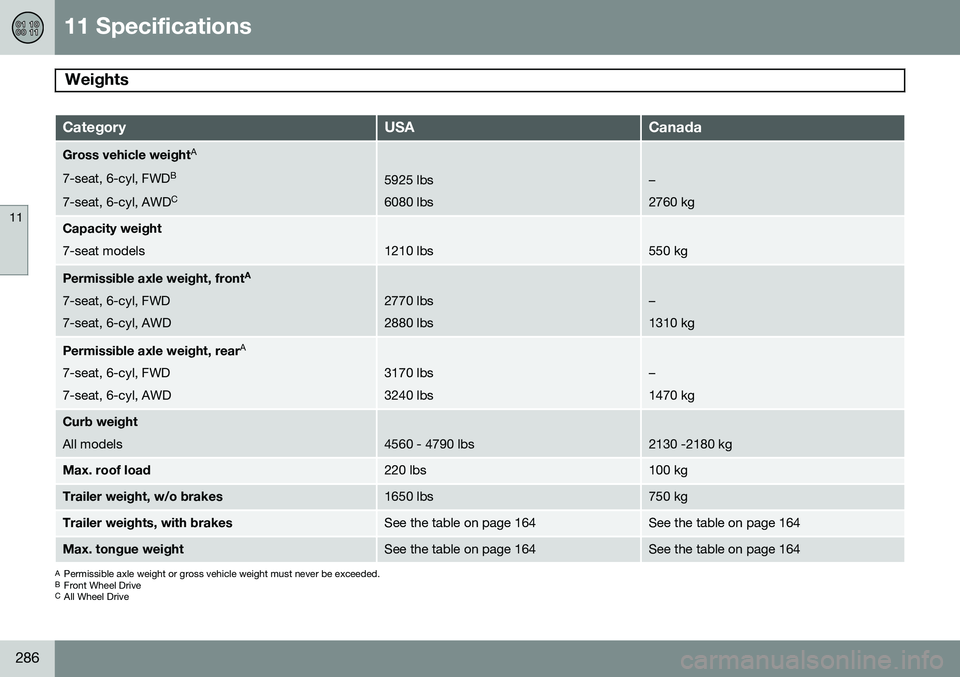

11 Specifications
Weights
11
286
CategoryUSACanada
Gross vehicle weightA
7-seat, 6-cyl, FWD B
7-seat, 6-cyl, AWD C
5925 lbs 6080 lbs– 2760 kg
Capacity weight 7-seat models
1210 lbs550 kg
Permissible axle weight, front A
7-seat, 6-cyl, FWD 7-seat, 6-cyl, AWD
2770 lbs 2880 lbs– 1310 kg
Permissible axle weight, rear A
7-seat, 6-cyl, FWD 7-seat, 6-cyl, AWD
3170 lbs 3240 lbs– 1470 kg
Curb weight All models
4560 - 4790 lbs2130 -2180 kg
Max. roof load220 lbs100 kg
Trailer weight, w/o brakes1650 lbs750 kg
Trailer weights, with brakesSee the table on page 164See the table on page 164
Max. tongue weightSee the table on page 164See the table on page 164
A Permissible axle weight or gross vehicle weight must never be exceeded.
B Front Wheel Drive
C All Wheel Drive

11 Specifications
Weights
11
287
CAUTION
The maximum permissible axle loads and/or the gross vehicle weight must notbe exceeded.
WARNING
When adding accessories, equipment, lug- gage and other cargo to your vehicle, thetotal capacity weight must not be excee-ded.

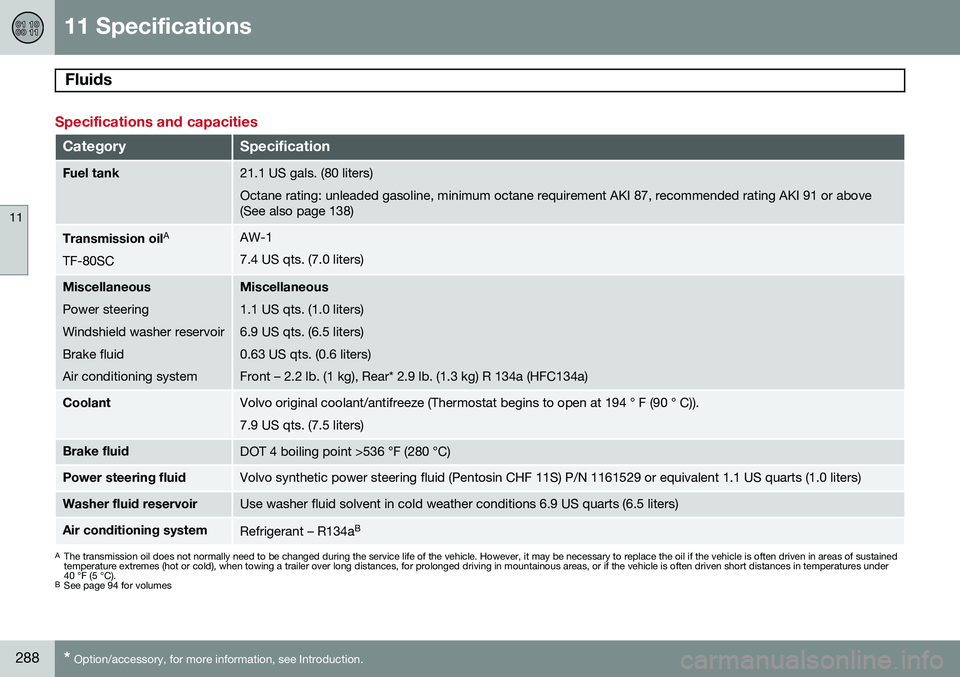

11 Specifications
Fluids
11
288* Option/accessory, for more information, see Introduction.
Specifications and capacities
CategorySpecification
Fuel tank21.1 US gals. (80 liters) Octane rating: unleaded gasoline, minimum octane requirement AKI 87, recommended rating AKI 91 or above (See also page 138)
Transmission oil A
TF-80SCAW-1 7.4 US qts. (7.0 liters)
Miscellaneous Power steering Windshield washer reservoirBrake fluidAir conditioning systemMiscellaneous 1.1 US qts. (1.0 liters) 6.9 US qts. (6.5 liters)0.63 US qts. (0.6 liters)Front – 2.2 lb. (1 kg), Rear* 2.9 lb. (1.3 kg) R 134a (HFC134a)
CoolantVolvo original coolant/antifreeze (Thermostat begins to open at 194 ° F (90 ° C)). 7.9 US qts. (7.5 liters)
Brake fluidDOT 4 boiling point >536 °F (280 °C)
Power steering fluidVolvo synthetic power steering fluid (Pentosin CHF 11S) P/N 1161529 or equivalent 1.1 US quarts (1.0 liters)
Washer fluid reservoirUse washer fluid solvent in cold weather conditions 6.9 US quarts (6.5 liters)
Air conditioning systemRefrigerant – R134a B
A
The transmission oil does not normally need to be changed during the service life of the vehicle. However, it may be necessary to replace the oil if the vehicle is often driven in areas of sustained temperature extremes (hot or cold), when towing a trailer over long distances, for prolonged driving in mountainous areas, or if the vehicle is often driven short distances in temperatures under40 °F (5 °C).
B See page 94 for volumes
