VOLVO XC90 TWIN ENGINE 2018 Owners Manual

DRIVER SUPPORT
329

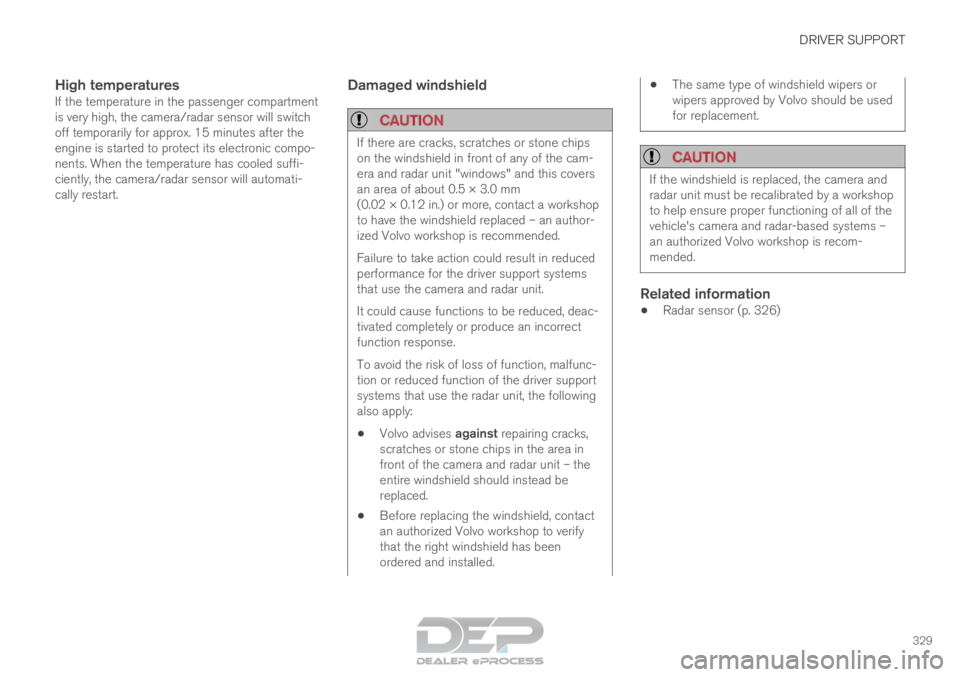

High temperaturesIf the temperature in the passenger compartment
is very high, the camera/radar sensor will switch
off temporarily for approx. 15 minutes after the
engine is started to protect its electronic compo-
nents. When the temperature has cooled suffi-
ciently, the camera/radar sensor will automati-
cally restart.Damaged windshield
CAUTIONIf there are cracks, scratches or stone chips
on the windshield in front of any of the cam-
era and radar unit "windows" and this covers
an area of about 0.5 × 3.0 mm
(0.02 × 0.12 in.) or more, contact a workshop
to have the windshield replaced – an author-
ized Volvo workshop is recommended.
Failure to take action could result in reduced
performance for the driver support systems
that use the camera and radar unit.
It could cause functions to be reduced, deac-
tivated completely or produce an incorrect
function response.
To avoid the risk of loss of function, malfunc-
tion or reduced function of the driver support
systems that use the radar unit, the following
also apply:
• Volvo advises against repairing cracks,
scratches or stone chips in the area in
front of the camera and radar unit – the
entire windshield should instead be
replaced.
• Before replacing the windshield, contact
an authorized Volvo workshop to verify
that the right windshield has been
ordered and installed. •
The same type of windshield wipers or
wipers approved by Volvo should be used
for replacement.
CAUTION If the windshield is replaced, the camera and
radar unit must be recalibrated by a workshop
to help ensure proper functioning of all of the
vehicle's camera and radar-based systems –
an authorized Volvo workshop is recom-
mended.
Related information
•
Radar sensor (p. 326)

DRIVER SUPPORT
330Recommended maintenance for the
radar sensor
In order for the camera/radar sensor to function
properly, the area of the windshield in front of the
unit must be kept free of dirt, ice, snow, etc. and
should be washed regularly with water and car
washing detergent.
NOTE
Dirt, ice and snow covering the camera and
radar unit reduce their function and can make
measurement impossible.
It could cause functions to be reduced, deac-
tivated completely or produce an incorrect
function response.
Related information
•
Radar sensor (p. 326) Radar sensor type approval
The type approval for the vehicle radar sensor in
the ACC 71
, PA 72
and BLIS 73
functions can be
read here.
ACC 71
, PA 72
and BLIS 73USA & Canada:
FCC ID: L2C0054TR IC: 3432A-0054TR
FCC ID: L2C0055TR IC: 3432A-0055TR
This device complies with Part 15 of the FCC
Rules and with Industry Canada license-exempt
RSS standard(s).
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Cet appareil est conforme aux CNR d

DRIVER SUPPORT
* Option/accessory.331
Camera
The camera is used by several driver support
systems to e.g. detect lane marker lines or road
signs. Note: This illustration is general and details may vary
depending on model.
The camera is used by the following functions:
• Adaptive Cruise Control*
• Pilot Assist*
• Lane Keeping Aid*
• Steering assistance at risk of collision
• City Safety
• Driver Alert Control*
• Road Sign Information*
• Active high beams*
Related information
•Camera limitations (p. 332)
• Recommended maintenance for the camera/
radar sensor (p. 335)

DRIVER SUPPORT
332Camera limitations
The camera used by several of the driver support
functions has certain limitations, which also
affect the functions using the camera.
Reduced visibilityThe camera has the same limitations as the
human eye. In other words, its “vision" is impaired
by adverse weather conditions such as heavy
snowfall/rain, dense fog, swirling dust/snow, etc.
These conditions may reduce the function of sys-
tems that depend on the camera or cause these
systems to temporarily stop functioning.
Strong sunlight, reflections from the road surface,
ice or snow covering the road, a dirty road sur-
face, or unclear lane marker lines may drastically
reduce the camera

DRIVER SUPPORT
}}}}
333 Cause
Action
The area of the windshield in front of the camera/radar sensor is
dirty or covered by ice or snow. Clean the windshield in front of the camera/radar sensor and remove dirt\
, ice and
snow.
Thick fog, heavy rain or snow is blocking the radar signals or the
camera's range of visibility. No action. Heavy precipitation may sometimes prevent the camera/radar se\
nsor from
functioning.
Water or snow is spraying/swirling up and blocking the radar signals
or the camera's range of visibility. No action. Very wet or snow-covered roads may sometimes prevent the came\
ra/
radar sensor from functioning.
There is dirt between the inside of the windshield and the camera/
radar sensor. Consult a workshop to have the area of the windshield on the inside of t\
he camera's
casing cleaned. An authorized Volvo workshop is recommended.
Bright sunlight No action. The camera/radar sensor will reset automatically when lightin\
g conditions
improve.
NOTEKeep the windshield in front of the camera
and radar unit clean.
High temperaturesIf the temperature in the passenger compartment
is very high, the camera/radar sensor will switch
off temporarily for approx. 15 minutes after the
engine is started to protect its electronic compo-
nents. When the temperature has cooled suffi-
ciently, the camera/radar sensor will automati-
cally restart.
Damaged windshield
CAUTION
If there are cracks, scratches or stone chips
on the windshield in front of any of the cam-
era and radar unit "windows" and this covers
an area of about 0.5 × 3.0 mm
(0.02 × 0.12 in.) or more, contact a workshop
to have the windshield replaced – an author-
ized Volvo workshop is recommended.
Failure to take action could result in reduced
performance for the driver support systems
that use the camera and radar unit. It could cause functions to be reduced, deac-
tivated completely or produce an incorrect
function response.
To avoid the risk of loss of function, malfunc-
tion or reduced function of the driver support
systems that use the radar unit, the following
also apply:
• Volvo advises against repairing cracks,
scratches or stone chips in the area in
front of the camera and radar unit – the
entire windshield should instead be
replaced.
• Before replacing the windshield, contact
an authorized Volvo workshop to verify

||DRIVER SUPPORT
334 that the right windshield has been
ordered and installed.
• The same type of windshield wipers or
wipers approved by Volvo should be used
for replacement.
CAUTION If the windshield is replaced, the camera and
radar unit must be recalibrated by a workshop
to help ensure proper functioning of all of the
vehicle's camera and radar-based systems –
an authorized Volvo workshop is recom-
mended.
Related information
•
Camera (p. 331)

DRIVER SUPPORT
}}
335
Recommended maintenance for the
camera/radar sensor
In order for the camera/radar sensor to function
properly, the area of the windshield in front of the
unit must be kept free of dirt, ice, snow, etc. and
should be washed regularly with water and car
washing detergent.
NOTE
Dirt, ice and snow covering the camera and
radar unit reduce their function and can make
measurement impossible.
It could cause functions to be reduced, deac-
tivated completely or produce an incorrect
function response.
Related information
•
Camera (p. 331) City Safety™
City Safety can alert the driver with light, sound
and pulsations in the brake pedal to help the
driver detect pedestrians, cyclists, large animals
and vehicles that appear suddenly – the vehicle
will then attempt to automatically brake if the
driver does not act within a reasonable amount
of time. Location of the camera and radar sensor
75
.
City Safety can help prevent a collision or lower
the vehicle's speed at the point of impact.
City Safety is an aid intended to assist the driver
if a collision with a pedestrian, large animal,
cyclist or vehicle is imminent.
City Safety can help the driver avoid a collision
when e.g. driving in stop-and-go traffic, when changes in the traffic ahead and driver distraction
could lead to an incident.
The function assists the driver by automatically
applying the brakes if there is an imminent risk of
a collision and the driver does not react in time by
braking and/or steering away.
City Safety activates a brief, forceful braking in an
attempt to stop your vehicle immediately behind
the vehicle or object ahead.
City Safety is activated in situations in which the
driver should have applied the brakes much ear-
lier, which means that the system will not be able
to assist the driver in all situations.
City Safety is designed to be activated as late as
possible to help avoid unnecessary intervention.
Normally, the occupants of the vehicle will not be
aware of City Safety except when the system
intervenes when a collision is imminent.
75
Note: This illustration is general and details may vary depending on mod\
el.

||DRIVER SUPPORT
336
WARNING
•
The City Safety function is supplementary
driver support intended to help improve
driving safety – it cannot handle all situa-
tions in all traffic, weather and road condi-
tions.
• The City Safety auto-brake function can
prevent a collision or reduce collision
speed, but to ensure full brake perform-
ance the driver should always depress the
brake pedal – even when the car auto-
brakes.
• The warning and steering assistance are
only activated if there is a high risk of col-
lision – you must therefore never wait for
the collision warning or City Safety to
intervene.
• Warnings and brake interventions for
pedestrians and cyclists are disengaged
at vehicle speeds over 80 km/h
(50 mph).
• City Safety does not activate auto-braking
intervention during heavy acceleration.
• City Safety is not a substitute for the driv-
er's attention and judgment. The driver is
always responsible for ensuring the vehi-
cle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions. •
The driver is advised to read all sections
in the Owner's Manual that relate to City
Safety to learn about factors such as its
limitations and what the driver should be
aware of before using the system (see
the list of links for all subsections).
Related information
•City Safety parameters and sub-functions
(p. 336)
• Setting a warning distance for City Safety
(p. 338)
• Detecting obstacles with City Safety (p. 339)
• City Safety in crossing traffic (p. 341)
• Limitations of City Safety in crossing traffic
(p. 342)
• City Safety and delayed evasive maneuvers
(p. 343)
• City Safety limitations (p. 344)
• City Safety messages (p. 346) City Safety parameters and sub-
functions
City Safety can help avoid a collision with a vehi-
cle, cyclist or large animal ahead by reducing the
vehicle's speed using its automatic braking func-
tion.
If the difference in speed is greater than the
speeds specified below, the City Safety auto-
brake function cannot prevent a collision, but it
can help mitigate its effects.
Vehicles
City Safety can help prevent a collision with a
vehicle ahead by reducing your vehicle's speed
by up to 60 km/h (37 mph).
Cyclists
City Safety can help prevent a collision with a
cyclist ahead by reducing your vehicle's speed by
up to 50 km/h (30 mph).
Pedestrians
City Safety can help prevent a collision with a
pedestrian ahead by reducing your vehicle's
speed by up to 45 km/h (28 mph).

DRIVER SUPPORT
}}
337
Large animals
If there is a risk of colliding with a large animal,
City Safety can help reduce your vehicle's speed
by up to 15 km/h (9 mph).
The braking function for large animals is primarily
intended to mitigate the force of a collision at
higher speeds. Braking is most effective at
speeds above 70 km/h (43 mph) and less effec-
tive at lower speeds.
City Safety sub-functions Function overview
76
. Audio-visual collision warning
Camera/radar sensor distance monitoring City Safety carries out three steps in the follow-
ing order:
1.

Collision warning
2. Brake assistance
3. Auto-brake
Descriptions of what happens in these three
steps are provided below.
1 - Collision warning
The driver is first alerted to the risk of an immi-
nent collision.
City Safety can detect pedestrians, cyclists or
vehicles that are stationary, are moving in the
same direction as your vehicle and are ahead of
your vehicle. City Safety can also detect pedes-
trians, cyclists or large animals that are crossing
the road in front of your vehicle.
If there is a risk of a collision with a pedestrian,
large animal, cyclist or another vehicle, or with a
vehicle described in the section "City Safety in
crossing traffic", the driver will be alerted with
light, sound and pulsations in the brake pedal. At
lower speeds, during hard braking or if the accel-
erator pedal is pressed, the brake pedal pulsation
warning will not be given. The intensity of the
brake pedal pulsations varies according to the
vehicle's speed.
2 - Brake assistance
If the risk of a collision increases after the colli-
sion warning, brake support will be activated.
If the system determines that the pressure the
driver is exerting on the brake pedal is insufficient
to prevent the collision, brake support will
increase pressure. 76
Note: This illustration is general and details may vary depending on mod\
el.

||DRIVER SUPPORT
338
3 - Auto-brake
The automatic braking function is activated at the
last moment.
If the driver has not taken evasive action by this
stage and a collision is imminent, the automatic
braking function will be triggered. This occurs
whether or not the driver is pressing the brake
pedal. Full braking force will be applied to reduce
the speed at impact or reduced braking effect will
be applied if this is sufficient to avoid the colli-
sion.
The seat belt tensioners may be activated along
with the automatic braking function. See "Seat
belt tensioners" for more information.
In certain situations, auto-braking may begin with
a limited braking force before applying full brak-
ing force.
If City Safety has prevented a collision, the vehi-
cle will be kept at a standstill until the driver
takes action. If the vehicle has slowed to avoid
colliding with a slower-moving vehicle ahead, your
speed will be reduced to that vehicle's speed.
Auto-braking can always be cancelled if the
driver presses hard on the accelerator pedal.
NOTE
When City Safety activates the brakes, the
brake lights come on. When City Safety applies the brakes, a text mes-
sage will appear in the instrument panel to notify
the driver that the function is/was activated.
WARNING
City Safety may not be used to change how
the driver operates the vehicle. The driver
must not only rely on City Safety to brake the
vehicle.
Related information
•
City Safety™ (p. 335) Setting a warning distance for City
Safety
City Safety is always active, but the function's
warning distance can be adjusted.
NOTE The City Safety function cannot be deacti-
vated. It is activated automatically each time
the engine/electric motor is started.
The alert distance determines the sensitivity of
the system and regulates the distance at which
the light, sound and brake pulsations will be acti-
vated.
To select warning distance:
1.

Select Settings My Car IntelliSafe
in
the center display's Top view.
2. Under City Safety Warning, tap Late,
Normal or Early to set the desired warning distance.
If the driver feels that the Early setting is giving
too many warnings or finds them irritating, the
Normal or Late warning distance settings can
be selected instead.
If the driver feels that the warnings are too fre-
quent and distracting, the warning distance can
be reduced. This will reduce the total number of
warnings, but it will also result in City Safety pro-
viding warnings at a later stage.
