VOLVO XC90 TWIN ENGINE 2019 Owners Manual

DISPLAYS AND VOICE CONTROL
}}
109
Center display overview
Many of the vehicle's functions can be con-
trolled from the center display. The center dis-
play and its possibilities are presented below.

||DISPLAYS AND VOICE CONTROL
* Option/accessory.
110 Three of the center display's basic views. Swipe to the right/left to\
access Function or App view
5
. Function view ‒ vehicle functions that can be
activated or deactivated with one tap. Certain functions, called "trigger functions", open
windows with settings options. One example
is the
Camera
. Settings for the head-up dis-
play* are also started from Function view, but 5
In right-hand drive vehicles, these views are mirror images of the ones \
shown here.

DISPLAYS AND VOICE CONTROL

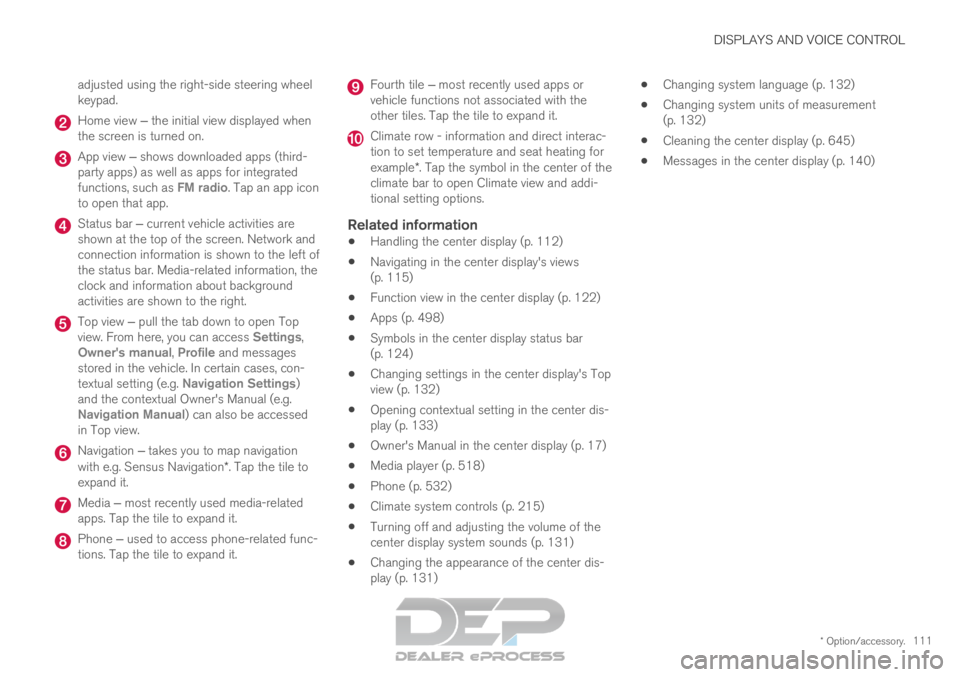

* Option/accessory.111
adjusted using the right-side steering wheel
keypad.
Home view ‒ the initial view displayed when
the screen is turned on. App view ‒ shows downloaded apps (third-
party apps) as well as apps for integrated
functions, such as FM radio
. Tap an app icon
to open that app. Status bar ‒ current vehicle activities are
shown at the top of the screen. Network and
connection information is shown to the left of
the status bar. Media-related information, the
clock and information about background
activities are shown to the right. Top view ‒ pull the tab down to open Top
view. From here, you can access Settings
,
Owner's manual, Profile and messages
stored in the vehicle. In certain cases, con-
textual setting (e.g. Navigation Settings
)
and the contextual Owner's Manual (e.g.
Navigation Manual) can also be accessed
in Top view. Navigation ‒ takes you to map navigation
with e.g. Sensus Navigation*. Tap the tile to
expand it. Media ‒ most recently used media-related
apps. Tap the tile to expand it. Phone ‒ used to access phone-related func-
tions. Tap the tile to expand it. Fourth tile ‒ most recently used apps or
vehicle functions not associated with the
other tiles. Tap the tile to expand it. Climate row - information and direct interac-
tion to set temperature and seat heating for
example*. Tap the symbol in the center of the
climate bar to open Climate view and addi-
tional setting options.
Related information
Handling the center display (p. 112)
Navigating in the center display's views
(p. 115)
Function view in the center display (p. 122)
Apps (p. 498)
Symbols in the center display status bar
(p. 124)
Changing settings in the center display's Top
view (p. 132)
Opening contextual setting in the center dis-
play (p. 133)
Owner's Manual in the center display (p. 17)
Media player (p. 518)
Phone (p. 532)
Climate system controls (p. 215)
Turning off and adjusting the volume of the
center display system sounds (p. 131)
Changing the appearance of the center dis-
play (p. 131)
Changing system language (p. 132)
Changing system units of measurement
(p. 132)
Cleaning the center display (p. 645)
Messages in the center display (p. 140)

DISPLAYS AND VOICE CONTROL
112Handling the center display
Many of the vehicle's functions and features can
be controlled and adjusted from the center dis-
play. The center display is a touchscreen that
reacts to taps and other gestures.
Using the center display's touchscreenThe touchscreen reacts differently depending on
whether the user taps, drags or swipes the
screen. It is possible to e.g. move between differ- ent views, mark objects, scroll in a list and move
apps by touching the screen in various ways.
An infrared light curtain just above the surface of
the screen enables the screen to detect when a
finger is directly in front of the screen. This tech-
nology makes it possible to use the screen even
while wearing gloves.
Two people can interact with the screen at the
same time, e.g. to adjust climate system settings
for both the driver and passenger sides.
CAUTION Do not use sharp objects on the screen as
this could cause scratches.
The following table presents the various proce-
dures for using the screen:
Procedure
Gesture Result Tap once.
Marks an object, confirms a selection or activates a function.
Double-tap.
Zooms in on a digital object, such as a map.
Press and hold. Grabs hold of an object so it can be moved. Can be used to move apps or \
points on a map. Press and hold your finger on the screen and drag the object to the desired position. Tap once with two
fingers.
Zooms out from a digital object, such as a map.

DISPLAYS AND VOICE CONTROL
}}
113 Procedure
Gesture Result Drag
Moves between screen views or scrolls in a list, text or a view. Press a\
nd hold to drag apps or points on a map.
Drag horizontally or vertically over the screen. Swipe
Moves between screen views or scrolls in a list, text or a view. Drag ho\
rizontally or vertically over the screen.
Note that touching the upper part of the screen could cause Top view to \
open. Stretch
Zooms in. Pinch
Zooms out.

||DISPLAYS AND VOICE CONTROL
114
Returning to Home view from another
view
1. Briefly press the home button below the cen-
ter display.
> The most recent Home view mode will bedisplayed.
2. Press briefly again. > All of the Home view's tiles will return tostandard mode.
NOTE In Home view's standard mode – short press
on the Home button. An animation describing
access to the various views is shown on the
screen.
Scrolling in lists, articles or viewsA scroll indicator is displayed on the screen when
it is possible to scroll up or down in the view.
Swipe down/up anywhere in the view. The scroll indicator will be shown in the center display
when it is possible to scroll in the view.
Using the center display controls
Temperature control.
Digital controls are available for many of the vehi-
cle's functions. For example, to set the tempera-
ture:
drag the control to the desired temperature,
tap
+ or
− to raise or lower the temperature
by degrees, or
tap the desired temperature on the control.
Related information
Activating and deactivating the center display
(p. 115)
Moving apps and buttons in the center dis-
play (p. 124)
Using the center display keyboard (p. 126)

DISPLAYS AND VOICE CONTROL
}}
* Option/accessory. 115
Activating and deactivating the
center display
The center display can be dimmed and reactiva-
ted using the home button under the screen. Center display's home button.
When the home button is used, the screen will go
dark and the touchscreen no longer reacts to
touch. The climate bar will remain visible. All func-
tions connected to the screen continue to oper-
ate, such as climate, audio, guiding* and apps.
The center display screen can be cleaned when
the display is dimmed. The dimming function can
also be used to darken the screen so it is not a
distraction while driving. 1.

Press and hold the button beneath the
screen.
> The screen will go dark (the climate bar will remain visible). All functions con-
nected to the screen continue to operate.
2. To reactivate the screen, briefly press the Home button.
> The view that was displayed before thescreen was turned off will be displayed
again.
NOTE The screen cannot be turned off when a
prompt to perform an action is being dis-
played on the screen.
NOTE
The center display is turned off automatically
when the engine is off and the driver's door is
opened.
Related information

Cleaning the center display (p. 645)
Changing the appearance of the center dis-
play (p. 131)
Center display overview (p. 109) Navigating in the center display's
views
There are five different basic views in the center
display: Home view, Top view, Climate view, App
view and Function view. The screen is automati-
cally activated when the driver's door is opened.
Home viewHome view is the view displayed when the screen
is activated. It consists of four tiles: Navigation,
Media, Phone and a fourth tile.
An app or vehicle function selected from the App
or Function views will start in the respective tile in
Home view. For example, FM radio will start in
the
Media tile.
The fourth tile contains the most recently used
app or vehicle function that is not related to the
other three tiles.
The tiles display brief information about the
respective apps.
NOTE When the vehicle is started, information on
the current status of apps will be displayed in
the respective tile in Home view.

||DISPLAYS AND VOICE CONTROL
* Option/accessory.
116
NOTE In Home view's standard mode – short press
on the Home button. An animation describing
access to the various views is shown on the
screen.
NOTE
When the vehicle is moving:
Certain functions (e.g. using the center
display's keyboard) may be deactivated.
Certain texts (e.g. those generated by
apps) will be shortened to three rows.
Tap the
Read out button to have the
entire message read aloud.
The message will be shortened to one
row. Tap the
Read out button to have
the entire message read aloud.
Status barCurrent vehicle activities are shown at the top of
the screen in the status bar. Network and con-
nection information is shown to the left of the
status bar. Media-related information, the clock
and information about background activities are
shown to the right.
Top view Top view when expanded.
There is a tab in the center of the status bar at
the top of the screen. Open Top view by tapping
the tab or by dragging/swiping from the top of
the screen downward.
Top view always provides access to:
Settings
Owner's manual
Profile
The vehicle's stored messages.
In certain cases, Top view provides access to:
Contextual setting (e.g. Navigation
Settings ). Change settings directly in Top view when an app (e.g. navigation) is being
used.
Contextual Owner's Manual (e.g.
Navigation
Manual). Access articles in the digital
Owner's Manual related to the content
shown on the screen, directly in Top view.
To exit Top view, tap the screen outside Top view,
press the Home button or tap the screen at the
bottom of Top view and swipe upward. The views
behind will become visible again and can be
used.
NOTE The top view is not available at start-up/shut-
down or when a message is being shown on
the screen. Similarly, it is not available when
the climate view is shown.
Climate viewThe climate bar is always visible at the bottom of
the screen. The most common climate settings
can be made directly there, such as setting tem-
perature and seat heating*.
Tap the symbol in the center of the cli-
mate bar to open Climate view and
access additional climate system set-
tings. Tap the symbol to close Climate view
and return to a previous view.

DISPLAYS AND VOICE CONTROL
}}
* Option/accessory. 117
App viewApp view showing the vehicle's apps.
Swipe the screen from right to left 6
to access
App view from Home view. This view displays
downloaded apps (third-party apps) as well as
apps for integrated functions, such as FM radio.
Brief information will be displayed directly in App
view for certain apps, such as unread text mes-
sages for Messages. Tap an app to open it. It will then be opened in its
associated tile, e.g.
Media.
Depending on the number of apps, it is possible
to scroll down in the App view. This is done by
sweeping/dragging from the bottom upwards.
To return to Home view, swipe the screen from
left to right 6
or press the Home button.Function view Function view with buttons for various vehicle functions.
Swipe the screen from left to right 6
to access
Function view from Home view. From Function
view, you can activate or deactivate various vehi-
cle functions such as BLIS*, Lane Keeping Aid*
and Park Assist*. 6
Applies for left-hand drive vehicles. For right-hand drive vehicles, swi\
pe in the other direction.

||DISPLAYS AND VOICE CONTROL
118
If there are many functions, you can also scroll
downward through the view. This is done by
sweeping/dragging from the bottom upwards.
Unlike in App view, where you tap an app to open
it, in Function view, tapping a function activates or
deactivates it. Certain functions (trigger func-
tions) open in their own window when tapped.
To return to Home view, swipe the screen from
right to left
6
or press the Home button.
Related information
Handling tiles in the center display (p. 119)
Symbols in the center display status bar
(p. 124)
Changing settings in the center display's Top
view (p. 132)
Opening contextual setting in the center dis-
play (p. 133)
Owner's Manual in the center display (p. 17)
Driver profiles (p. 136)
Climate system controls (p. 215)
Apps (p. 498)
Function view in the center display (p. 122)
Center display overview (p. 109) 6
Applies for left-hand drive vehicles. For right-hand drive vehicles, swi\
pe in the other direction.
