VOLVO XC90 TWIN ENGINE 2019 Owners Manual

KEY, LOCKS AND ALARM
* Option/accessory.269
Related information
Setting a maximum height for the power tail-
gate* (p. 269)
Foot movement tailgate operation* (p. 270)

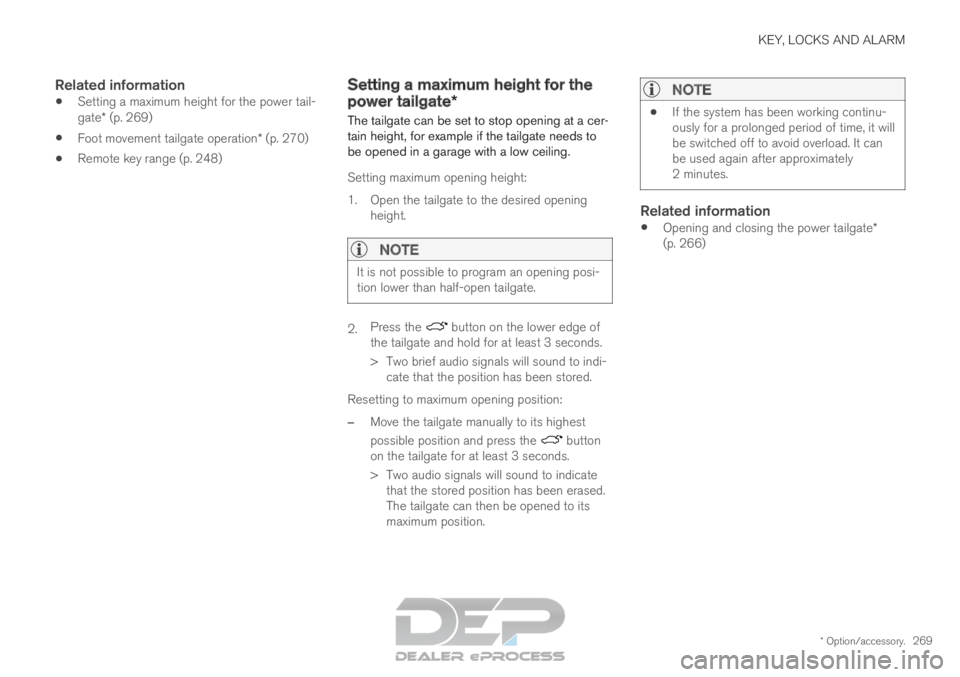

Remote key range (p. 248) Setting a maximum height for the
power tailgate*
The tailgate can be set to stop opening at a cer-
tain height, for example if the tailgate needs to
be opened in a garage with a low ceiling.
Setting maximum opening height:
1.
Open the tailgate to the desired opening
height.
NOTE It is not possible to program an opening posi-
tion lower than half-open tailgate.
2.
Press the button on the lower edge of
the tailgate and hold for at least 3 seconds.
>

Two brief audio signals will sound to indi-
cate that the position has been stored.
Resetting to maximum opening position:
– Move the tailgate manually to its highest
possible position and press the button
on the tailgate for at least 3 seconds.
>

Two audio signals will sound to indicate
that the stored position has been erased.
The tailgate can then be opened to its
maximum position.
NOTE
If the system has been working continu-
ously for a prolonged period of time, it will
be switched off to avoid overload. It can
be used again after approximately
2 minutes.
Related information

Opening and closing the power tailgate*
(p. 266)

KEY, LOCKS AND ALARM
* Option/accessory.
270 Foot movement tailgate operation*
To make it easier to operate the tailgate when
your hands are full, it can be opened and closed
by moving your foot in a forward kicking motion
under the rear bumper. The sensor is located to the left of center under the rear
bumper
18
.
One of the vehicle's remote keys must be within
range behind the vehicle (approx. 1 meter (3
feet)) for opening and closing to be possible. This
applies even if the vehicle is unlocked in order to
prevent the trunk lid from inadvertently opening
e.g. at a car wash.
Foot movement operation Kicking motion within the sensor's activation area.
–
Make one slow forward kicking motion with
your foot under the left section of the rear
bumper. Take a step back. Do not touch the
bumper.
>

A brief audible signal will be heard when
opening or closing is activated - the tail-
gate will open/close.
If the tailgate is open, it will close 19
when
the foot motion sensor is activated.
If several opening attempts have been made
without the remote key in range behind the vehi-
cle, foot movement operation will not be available
for a short period of time. Do not keep your foot under the vehicle in a kick-
ing motion. This may prevent activation.
Interrupting opening or closing with a foot
movement
– Make one slow forward kicking motion while
the tailgate is opening or closing to stop its
movement.
The remote key does not need to be within range
of the vehicle to interrupt opening or closing.
If the tailgate stops near the closed position, it
will open the next time it is activated.
NOTE There is a risk of reduced or lost function if
there are large amounts of snow, ice, dirt, etc.
on the rear bumper. Make sure to keep the
bumper clean.
NOTE
Please note that the system could be inadver-
tently activated in a car wash or similar if the
remote key is within range.
Vehicle with skid plate accessory*If the vehicle is equipped with skid plate, the sen-
sor is located towards the left corner of the
bumper.
18
If the vehicle is equipped with skid plate*, the sensor is located towards the left corner of the bumper.
19 Applies to vehicles with power tailgate*.

KEY, LOCKS AND ALARM
* Option/accessory.271To activate opening and closing using a foot
movement on a vehicle with skid plate, make a
kicking motion from the side of the vehicle. One
of the vehicle's remote keys must be within range
(approx. 1 meter (3 feet)) for opening and closing
to be possible.
Kicking motion within the sensor's activation area.
Related information

Keyless and touch-sensitive surfaces*
(p. 258)
Opening and closing the power tailgate*
(p. 266)
Remote key range (p. 248) Private Locking
The tailgate and the glove compartment can be
locked using the private locking function to pre-
vent them from being opened, e.g. when the
vehicle is left at a workshop or with a valet.
The function button for private
locking is located in the center
display's Function view.
Depending on the current sta-
tus of the lock, Private
Locking Unlocked or Private Locking Locked will be dis-
played.
Related information
Activating and deactivating private locking
(p. 272)

KEY, LOCKS AND ALARM
* Option/accessory.
272 Activating and deactivating private
locking
Private locking is activated using the function
button in the center display and a PIN code.
NOTE For the valet lock function to be activated the
car must be in at least ignition mode I.
Entering security code before initial useThe first time the function is used, a security
code must be selected. This code can then be
used to deactivate private locking if the selected
PIN code has been lost or forgotten. The security
code functions as a PUK (security) code for all
PIN codes used for private locking.
Save the security code in a safe place.
To create a security code:
1. Tap the button for private locking in Function
view. > A pop-up window will appear. 2.
Enter your security code.
> The security code is saved. The private locking function is now ready for activa-
tion.
If the system has been reset, the above proce-
dure will need to be repeated.
Activating private locking1. Tap the button for private locking in Function view. > A pop-up window will appear.
2.

Enter the code you would like to use to
unlock the glove compartment and the tail-
gate and tap Confirm.
>

The glove compartment and tailgate will
lock. A green indicator light will illuminate
next to the button in Function view to con-
firm locked status.
Deactivating private locking1. Tap the button for private locking in Function view. > A pop-up window will appear.
2.

Enter the code used for locking and tap
Confirm.
>

The glove compartment and tailgate will
unlock. The green indicator light next to
the button in Function view will go out to
confirm unlocked status.
NOTE If you have forgotten or lost your PIN code or
if the PIN code has been entered incorrectly
more than three times, the security code can
be used to deactivate private locking.
NOTE
If private locking is activated and the vehicle
is unlocked using Volvo On Call* or the Volvo
On Call* app, private locking will be deacti-
vated automatically.

KEY, LOCKS AND ALARM
}}
273
Related information
Private Locking (p. 271) Alarm
The alarm emits sound and light signals if any-
one without a valid remote key attempts to break
into the vehicle or interferes with the start battery
or alarm siren.
When armed, the alarm will be triggered if:
the hood, tailgate or any door is opened.
a battery cable is disconnected.
the alarm siren is disconnected.
Alarm signalsThe following occurs if the alarm is triggered:
A siren will sound for 30 seconds or until the
alarm is turned off.
All turn signals will flash for 5 minutes or
until the alarm is turned off.
If the reason the alarm was triggered is not recti-
fied, the alarm cycle will repeat up to 10 times 20
.
Alarm indicator A red indicator light on the dashboard shows the
status of the alarm:
Indicator off - the alarm is disarmed.
Indicator flashes once every two seconds -
the alarm is armed.
The indicator flashes quickly after the alarm
has been disabled for up to 30 seconds or
until the ignition is put in I mode – the alarm
has been triggered. 20
Certain markets only.

||KEY, LOCKS AND ALARM
* Option/accessory.
274

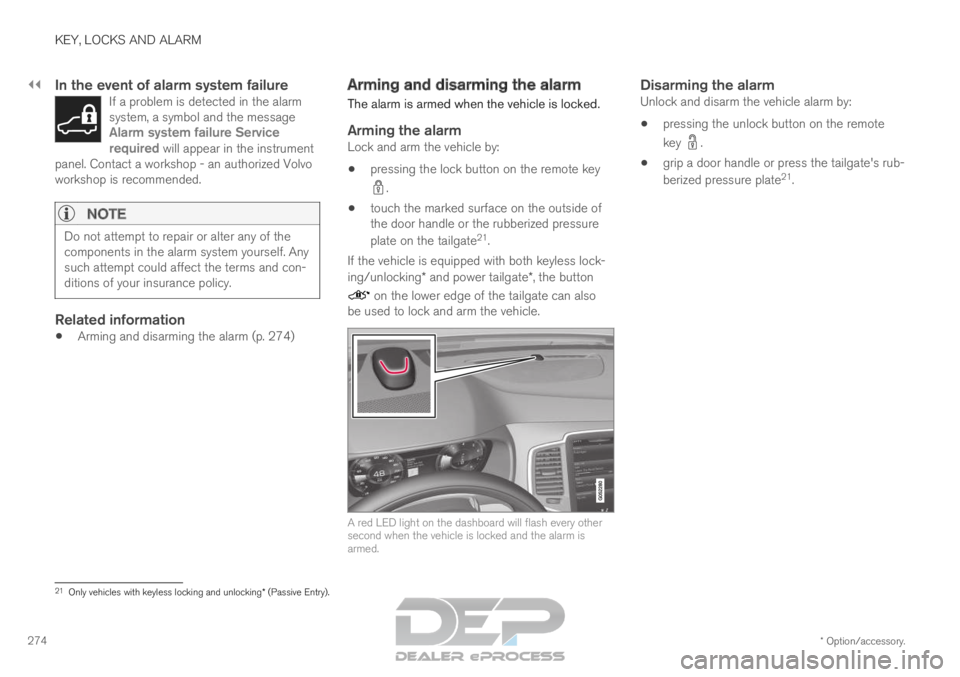

In the event of alarm system failureIf a problem is detected in the alarm
system, a symbol and the message
Alarm system failure Service
required will appear in the instrument
panel. Contact a workshop - an authorized Volvo
workshop is recommended.
NOTE Do not attempt to repair or alter any of the
components in the alarm system yourself. Any
such attempt could affect the terms and con-
ditions of your insurance policy.
Related information

Arming and disarming the alarm (p. 274) Arming and disarming the alarm
The alarm is armed when the vehicle is locked.
Arming the alarmLock and arm the vehicle by:
pressing the lock button on the remote key .
touch the marked surface on the outside of
the door handle or the rubberized pressure
plate on the tailgate 21
.
If the vehicle is equipped with both keyless lock-
ing/unlocking* and power tailgate*, the button on the lower edge of the tailgate can also
be used to lock and arm the vehicle. A red LED light on the dashboard will flash every other
second when the vehicle is locked and the alarm is
armed.
Disarming the alarmUnlock and disarm the vehicle alarm by:
pressing the unlock button on the remote
key .
grip a door handle or press the tailgate's rub-
berized pressure plate 21
. 21
Only vehicles with keyless locking and unlocking* (Passive Entry).

KEY, LOCKS AND ALARM
275
Disarming the alarm without a functioning
remote key
The vehicle can be unlocked and disarmed even
if the remote key is not functioning, e.g. if the
battery is discharged.
1. Open the driver's door using the detachablekey blade.
> This will trigger the alarm. Location of the backup key reader in the cup holder.
2. Place the remote key on the key symbol in
the backup reader in the tunnel console's
cup holder.
3.

Turn the start knob clockwise and release.
> The alarm will be disarmed.
Turning off a triggered alarm
– Press the unlock button on the remote key
or put the ignition into mode I by turning the
start knob clockwise and then releasing it.
NOTE
Remember that the alarm is armed when
the vehicle is locked.
The alarm will be triggered if any of the
doors is opened from the inside.
Automatically arming and disarming the
alarm
Automatically arming the alarm helps prevent
inadvertently leaving the vehicle without alarm
protection.
If the vehicle is unlocked using the remote key
(and the alarm is disarmed) but none of the
doors or tailgate are opened within two minutes,
the alarm will be automatically rearmed. The vehi-
cle will also re-lock.
On some markets, the alarm will be automatically
armed following a slight delay after the driver's
door has been opened and closed without being
locked.
To change this setting:
1.
Tap Settings in the center display's Top
view.
2.

Tap My Car Locking
.
3. Select Passive Arming Deactivation to
temporarily deactivate the function.
Related information
Alarm (p. 273)

D R I V E R S U P P O R T

DRIVER SUPPORT
* Option/accessory.
278 Driver support systems
The vehicle is equipped with a number of driver
support systems that can provide the driver with
active or passive assistance in various situations.
The systems can, for example, help the driver:
maintain a set speed
maintain a set time interval to the vehicle
ahead
help prevent a collision by warning the driver
and applying the brakes
park the vehicle.
Some of the systems are standard and others are
options. This also varies from market to market.
Related information
Speed-dependent steering wheel resistance
(p. 278)
Electronic Stability Control (p. 279)
Stability system Roll Stability Control
(p. 279)
Speed limiter (p. 283)
Automatic Speed Limiter (p. 287)
Cruise control (p. 291)
Distance Alert* (p. 296)
Adaptive Cruise Control* (p. 300)
Pilot Assist (p. 316)
Radar sensor (p. 332)
Camera (p. 337)
City Safety™ (p. 341)
Rear Collision Warning (p. 354)
BLIS* (p. 355)
Cross Traffic Alert* (p. 360)
Road Sign Information* (p. 364)
Driver Alert Control (p. 370)
Lane Keeping Aid (p. 372)
Steering assistance at risk of collision
(p. 380)
Park Assist* (p. 390)
Park Assist Camera* (p. 396)
Park Assist Pilot* (p. 406) Speed-dependent steering wheel
resistance
Speed-dependent power steering increases the
steering wheel resistance in pace with the vehi-
cle's speed to give the driver an enhanced feel-
ing of control and stability.
Steering may feel stiffer on highways. When
parking and at low speeds, it will be easier to
move the steering wheel.
NOTE In some situations, the power steering may
become too hot and require temporary cool-
ing – during such time the power steering will
work at reduced output and the steering
wheel may feel more difficult to move.
In parallel with the temporarily reduced steer-
ing assistance, the driver display shows a
message as well as a STEERING WHEEL
symbol.
WARNING
While the power steering is working at
reduced power, the driver support functions
and systems with steering assistance are not
available.
In such a situation, the driver display shows
the
Power steering failure message, com-
bined with a STEERING WHEEL symbol.
