AUDIO, MEDIA AND INTERNET
507
HD Radio™ limitations (p. 508)
Opening contextual setting in the center dis-
play (p. 133) HD Radio
™ sub-channels
In many cases, a main HD Radio station (FM
wavebands only) will also have sub-channels
offering additional types of programming or
music.
Sub-channels Example of an HD Radio station with sub-channels
If any sub-channels are available, they will listed
below the main channel on the screen. In this
example, WILD-FM HD2 is a sub-channel.
Selecting sub-channels
To listen to a station's sub-channel(s), tap the
station on the screen or press the forward/back
arrow keys on the right-side steering wheel key-
pad or below the screen.
Sub-channels can also be saved as radio favor-
ites. If you tap a sub-channel favorite, it may take up
to 6 seconds before the channel becomes audi-
ble. If you tap a station while you are out of digital
range of the transmitter, No reception will be
displayed.
Related information
HD Radio™ (p. 505)
Activating and deactivating the HD Radio™
(p. 506)
Changing waveband and radio station
(p. 502)
Searching for a radio station (p. 503)
HD Radio
™
limitations (p. 508)
Page 510 of 697
AUDIO, MEDIA AND INTERNET
* Option/accessory.
508 HD Radio™
limitations
Limitations
Main channel vs. sub-channels (FM only):
The main channel is the only channel that
can receive in hybrid mode (both digital and
analog). If a frequency has sub-channels,
they are broadcast in digital mode only. The
main FM channel will be displayed as, for
example, "WRIF-FM HD1". The sub-FM
channels will be displayed as"WRIF-FM
HD2", "WRIF-FM HD3", etc.
Reception coverage area: Due to current
IBOC transmitter power limitations, the
reception coverage area in digital mode is
somewhat more limited than the station's
analog coverage area. Be aware that, like all
radio transmission technology, terrain, time of
day, vegetation and buildings can have a
positive or negative effect on radio reception.
Analog to digital/digital to analog blend-
ing: Analog to digital blending will occur as
the signal strength reaches a preset thresh-
old in the receiver. This will be noticeable in
fringe areas (areas with weak reception) and
is normal.
NOTE There may be a noticeable difference in
sound quality when a change from analogue
to digital or digital to analogue occurs, such
as:
Volume increase or decrease
Equalizer settings, i.e., Bass/ Midrange/
Treble cut or boost
Time alignment (Digital program material
in extreme cases can be as much as 8
seconds behind the analogue). This will
noticeable as a "stuttering" effect.
The above items are dependant on the
broadcaster's equipment settings and do
not indicate a fault in the vehicle's radio
receiver or antenna systems.
Related information
HD Radio™ (p. 505)
Activating and deactivating the HD Radio™
(p. 506)
HD Radio
™
sub-channels (p. 507) SiriusXM
®
Satellite radio*
The SiriusXM ®
Satellite system broadcasts from
of a number of high elevation satellites in geo-
synchronous orbit.
Listening to satellite radioThe digital signals from the satellites are line-of-
sight, which means that physical obstructions
such as bridges, tunnels, etc, may temporarily
interfere with signal reception.
Avoid any obstructions, such as metallic objects
transported on roof racks or in a ski box, or other
antennas that may impede signals from the
SiriusXM ®
satellites.
Selecting SiriusXM ®
Satellite radio
mode
1. From the center display's Home view, swipe from right to left to come to App view. 2.
Tap the SiriusXM ®
Satellite radio icon.
Page 511 of 697
AUDIO, MEDIA AND INTERNET
}}

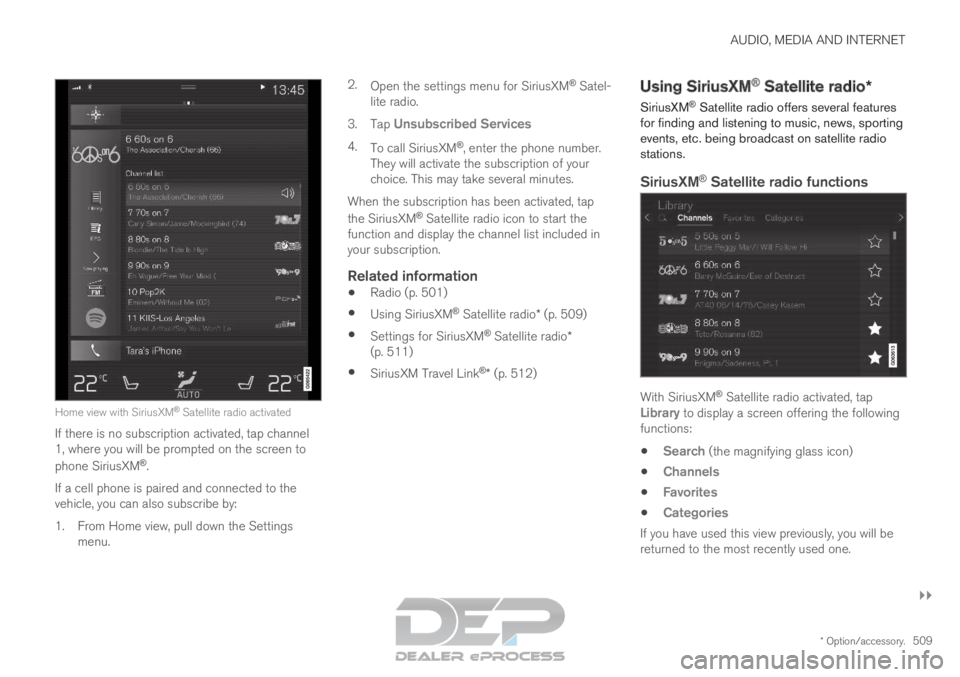

* Option/accessory. 509Home view with SiriusXM
®
Satellite radio activated
If there is no subscription activated, tap channel
1, where you will be prompted on the screen to
phone SiriusXM ®
.
If a cell phone is paired and connected to the
vehicle, you can also subscribe by:
1.
From Home view, pull down the Settings
menu. 2.
Open the settings menu for SiriusXM ®
Satel-
lite radio.
3. Tap Unsubscribed Services
4. To call SiriusXM ®
, enter the phone number.
They will activate the subscription of your
choice. This may take several minutes.
When the subscription has been activated, tap
the SiriusXM ®
Satellite radio icon to start the
function and display the channel list included in
your subscription.
Related information
Radio (p. 501)
Using SiriusXM ®
Satellite radio* (p. 509)
Settings for SiriusXM ®
Satellite radio*
(p. 511)
SiriusXM Travel Link ®
* (p. 512) Using SiriusXM
®
Satellite radio*
SiriusXM ®
Satellite radio offers several features
for finding and listening to music, news, sporting
events, etc. being broadcast on satellite radio
stations.
SiriusXM ®
Satellite radio functions With SiriusXM
®
Satellite radio activated, tap
Library to display a screen offering the following
functions:
Search (the magnifying glass icon)
Channels
Favorites
Categories
If you have used this view previously, you will be
returned to the most recently used one.
Page 512 of 697
||AUDIO, MEDIA AND INTERNET
* Option/accessory.
510
Search
Tap the magnifying glass to display a screen
where you can enter text using the center dis-
play's keyboard or by writing in the free-text field
to search for e.g., a station number, an artist,
song title, etc.
Channels
Tap to display a complete list of the channels
included in your subscription. Tap a channel
name to listen. If a subscription to a channel has
expired, its name will be grayed-out on the
screen.
For quick access to a channel that you often lis-
ten to, tap the star to the right of the channel's
name. It will then be added to your list of favor-
ites.
Favorites
Tap to display the channels that you have added
to this list. Tap a channel name to listen.
Categories/Genres
Tap to display the categories available. Tap a cat-
egory or genre name to display the channels that
it contains and then tap a channel to listen.
If you have activated alerts (see the “Alerts” sec-
tion below) and an alert is activated for an artist,
song or team, temporary virtual categories will
also be created and displayed. The channels cur-
rently broadcasting the song, artist or broadcast-
ing a program with the selected team will be lis-
ted in a virtual category.
EPG (Electronic Program Guide)On the center display's Home view, tap EPG for
information about e.g., when a program is being
broadcast and its name, description, artist, etc. If
no information is currently available,
No
information will be displayed.
AlertsIf this feature has been selected under SiriusXM
Settings, the Alerts button will be displayed on
the Home view.
To add e.g. an artist's name, song title or a sports
team to the list of alerts:
1.
Tune to a channel that is broadcasting a
song, game, etc., of your choice.
2. Tap the Alerts button.
3.
A pop-up window will be displayed showing a
list of alerts (nothing will be displayed if the
selected channel does not support the alert
function).
4. Select one of the alternatives in list (only one can be selected at a time).
5. The song/artist/team will now be added to the list of alerts. Favorite sports teams can
also be added to the list using “Game Alert”
in the SiriusXM satellite radio settings.
> When your choice is being broadcast on achannel, you will be informed by a pop-up.
iTunes taggingFrom the center display's Top view, tap SiriusXM
Settings. Tap the iTunes Tagging menu. Tap
the
iTunes Tagging box to activate/deactivate
this function and tap Close to return to Home
view. Tap Tags List to display a list of all tagged
songs.
If the function is activated, the iTunes tag button will be displayed in Home view. If a song is played
that you would like to buy in the iTunes store, tap
this button while the song is playing to tag it. If a
song with
iTunes Tagging information is availa-
ble, the button will be selectable. Tap the button
to tag the song. If you would like to buy a tagged
song via iTunes, Tap the iTunes tag button.
To buy a song in iTunes, begin by connecting an
iPhone/iPod/iPad to the USB port in the tunnel
console. The iTunes tagging list will automatically
be transferred to the device and removed from
the list in the vehicle. If the device is connected
when a song is tagged, the data will automatically
be saved in the device. To purchase the song,
consult the iTunes support page.
Related information
SiriusXM ®
Satellite radio* (p. 508)
Entering characters, letters and words by
hand in the center display (p. 129)
Settings for SiriusXM ®
Satellite radio*
(p. 511)
Page 513 of 697
AUDIO, MEDIA AND INTERNET
}}
* Option/accessory. 511
Settings for SiriusXM ®
Satellite radio*
(p. 511)
Connecting a device via the USB port
(p. 525) Settings for SiriusXM
®
Satellite
radio*
There are numerous settings that can be made
to enhance your SiriusXM ®
Satellite radio listen-
ing experience.
Settings
Drag down the top view and tap on Settings Media SiriusXM
. The following alternatives
will be displayed:
Traffic Jump
Tap to display a list of cities from which you can
choose to get traffic/weather information (or
Traffic jump off to deactivate the feature). Tap
to select a city (JUMP will be displayed on the Home screen next to
Library). Tap Back to
return to the list of settings or Close to return to
the Home screen. From the Home screen, tap JUMP to activate the
function. When traffic/weather information is
available from the selected city, the radio will
automatically tune to the channel providing the
information. When the information/announce-
ment is finished, the radio will automatically
return to the channel that you were previously lis-
tening to.
During an announcement, tap JUMP to interrupt
the message and return to the station that you
were currently listening to.
Alert Notifications
Tap the box to activate/deactivate. When acti-
vated, you will be notified if a song, artist, etc. that
you have selected is playing. You will be asked if
you want to listen.
Alert Notifications Sound
Opt to receive an audible alert when one of your
selected choices is being played.
Sort Channels
Select how to sort your channels list.
iTunes Tagging
Tap to display a menu with the options: iTunes
Tagging and Tags List. With this feature acti-
vated, songs can be tagged for later purchase
from the iTunes store.
Page 514 of 697
||AUDIO, MEDIA AND INTERNET
* Option/accessory.
512
Game Alerts
Tap to display a list of sports.
Tap a sport to display a list of teams and tap a
box on the right side of the screen to select a
team as a favorite. An alert will then be provided
when information about the team is being broad-
cast.
Tap Confirm below the list to return to the list of
sports.
Tap Back to return to the list of settings or
Close to return to the main screen.
Unsubscribed Services
If you have a SiriusXM ®
Satellite radio subscrip-
tion, any channels not included in the subscrip-
tion will be listed here. Call SiriusXM™ to sub-
scribe. The phone number will be shown on the
screen. If a cell phone is paired and connected to
the vehicle, tap the phone number to make the
call.
Skipped Stations
Tap to display a list of channels that you would
like to skip (hide). Hide channels from the chan-
nel list by tapping the boxes to the right of the
screen. Skipped (hidden) channels will not be
shown in the channel list. However, a channel
previously selected as a favorite will still be dis-
played in the list of favorites, even it has been
added to the skip list.
Skipped Categories
Tap to display a list of categories. Tap a category
to skip (hide) it. It will not be displayed in the list
of categories.
Related information
SiriusXM ®
Satellite radio* (p. 508)
Using SiriusXM ®
Satellite radio* (p. 509) SiriusXM Travel Link
®
*
SiriusXM Travel Link is a feature offered by
SiriusXM ®
Satellite radio* that can provide infor-
mation about e.g., weather forecasts, weather
alerts, service stations, sports, etc. in the vicinity
of the vehicle.
Starting SiriusXM Travel Link
NOTE SiriusXM Travel Link services are only availa-
ble in vehicles equipped with the Sensus
Navigation system.
From the center display's App view, tap Travel
Link to activate the feature. A disclaimer text will
be displayed. Tap
OK to display a list of SiriusXM
Travel Link services:
Alerts
Fuel
Sports
Weather
Favorites
In order to use one or more of these services, the
user has to subscribe to the ones desired.
To subscribe to a SiriusXM Travel Link service:
1.
Open the center display's Top view.
2. Tap Settings.
Page 515 of 697
AUDIO, MEDIA AND INTERNET
* Option/accessory.513
3.
Press SiriusXM Travel Link and
Subscription Status.
>
To subscribe, call the phone number listed
on the screen.
Any services not subscribed will be grayed out
and contain the text Service not subscribed.
When the services have been activated (subscri-
bed), tap the one of your choice to start it.
The following applies for all of the SiriusXM
Travel Link services:
Pressing the
Back button will take you back
to the previous screen
Pressing the
Close button will take you to
the SiriusXM Travel Link home screen.NOTE If the Close button is used to return to the
SiriusXM Travel Link home screen, the fol-
lowing applies (the Weather service is used here as an example):
If you have already used the Weather
function, tapping
Weather again in the
SiriusXM Travel Link home screen
before using any other SiriusXM
Travel Link service will return you to the point where you left the Weather service.
If another
SiriusXM Travel Link service
is used (e.g.,
Fuel, Sports, etc.) before
you return to the Weather service, you
will be returned to the default Weather view (in this case,
Local).
The same principle applies to all of the
SiriusXM Travel Link services.
FavoritesMany SiriusXM Travel Link selections can be
saved for easy access as favorites by tapping the
"star" icon next to the selection where applicable.
To display a list of your favorites, tap the Favorites application in the SiriusXM Travel Link
home screen.
Related information
SiriusXM ®
Satellite radio* (p. 508)
SiriusXM Travel Link ®
* - Fuel (p. 516)
SiriusXM Travel Link ®
* - Sports (p. 517)
SiriusXM Travel Link ®
* - Weather (p. 514)
SiriusXM Travel Link ®
* - Notifications
(p. 515)
Page 516 of 697
AUDIO, MEDIA AND INTERNET
* Option/accessory.
514 SiriusXM Travel Link
®
* - Weather
This SiriusXM Travel Link service provides
weather-related information near the vehicle, at a
local ski resort, etc.
From the SiriusXM Travel Link home screen, to
display weather-related information:
– Tap the Weather button to display this
screen.
At the top of the screen, the following categories
will be displayed:
Search (the magnifying glass icon)
Local
Ski condition
Areas
Favorites
Tap the category of your choice.
SearchTap the magnifying glass icon. If the function is
supported in the current context, a keyboard will
appear on the screen. Enter the text of your
choice and tap Search for detailed information
from the SiriusXM Travel Link database.
Local 4Information from the closest weather station will
be displayed and the following alternatives are
available:
Map view
Today
5 days
Map view
Tap the map to display it in full-screen mode. Tap
Back to return to the original map view.
Tap Map options to display the following alter- natives.
Weather radar
Storm attributes
Surface features
Tropical storm tracks
Winds
Tap the relevant box to the right of the option to
select/deselect it. Tap Done to confirm and
return to the previous screen or Cancel.
Today
Tap to see the current temperature, or the tem-
perature in 3/6 hours.
Tap Back to return to the Local screen or Close
to return to the SiriusXM Travel Link home
screen.
5 days
Tap to see weather information for the coming 5
days.
Tap
Back to return to the Local screen or Close
to return to the SiriusXM Travel Link home
screen.
Ski conditionTap to display a list of ski areas in the vicinity of
the vehicle. Tap a name in the list for information
such as if the ski area is open/closed, tempera-
ture, wind conditions, snow conditions, the num-
ber of lifts that are in operation, etc.
Weather locations
Ski location
Tap Map view to display a map and a weather
legend.
Tap Map options to display the following alter-
natives.
Weather radar
Storm attributes
Surface features
Tropical storm tracks
Winds
Tap the relevant box to the right of the option to
select/deselect it. Tap Done to confirm and
return to the previous screen or Cancel.
4 This is the weather default unless another alternative has been selected\
.
Page 517 of 697
AUDIO, MEDIA AND INTERNET
* Option/accessory.515
AreasTap Areas to display a list of areas/locations in
states from the SiriusXM Travel Link database.
Scroll to a state and tap to display:
Weather locations: tap arrow to the right to
display a list of towns. Scroll to desired town
and tap for detailed weather information. You
can choose Map view, today, 5 days or Favor-
ites (star)
Ski locations: tap arrow at right to display
local ski areas. Tap an area for detailed info.
For information about storing a location, state,
town, etc. as a favorite, see the heading "Favor-
ites" in the article "SiriusXM Travel Link."
Related information
SiriusXM Travel Link ®
* (p. 512)
SiriusXM Travel Link ®
* - Fuel (p. 516)
SiriusXM Travel Link ®
* - Sports (p. 517)
SiriusXM Travel Link ®
* - Notifications
(p. 515) SiriusXM Travel Link
®
* -
Notifications
This SiriusXM Travel Link service provides notifi-
cations of potential weather problems or other
emergency situations in the vicinity of the vehi-
cle.
From the SiriusXM Travel Link home screen, to
show notifications:
– Tap the
Alerts button to display this screen.
If any notifications are currently available, a
message will appear at the top of the screen.
They can also be listed from the
Settings
menu in the center display's Top view.
If no notifications are available, No active
alerts will be displayed.
Types of notifications
To select the types of notifications to be dis-
played:
1. From the Alerts screen, tap the Select
alerts button at the bottom of the screen.
2.
This displays the types of notifications that
can be displayed. Tap the box to the right of
each type of notification to select/deselect it.
3. Tap Done when you have made your selec-
tions. You will return to the Alerts screen.
Information about a notification
If any notifications have been displayed on the
screen, tap one for more detailed information (i.e., the location of the weather problem on a map
and a description of the situation).
If a phone number is available in a notification, a
Call button will be displayed. Tap this button for additional information.
Related information
SiriusXM Travel Link ®
* (p. 512)
SiriusXM Travel Link ®
* - Fuel (p. 516)
SiriusXM Travel Link ®
* - Sports (p. 517)
SiriusXM Travel Link ®
* - Weather (p. 514)
Page 518 of 697
AUDIO, MEDIA AND INTERNET
* Option/accessory.
516 SiriusXM Travel Link
®
* - Fuel 5
This SiriusXM Travel Link service provides infor-
mation and guidance to service stations near the
vehicle providing the type of fuel that you prefer/
require for your vehicle.
From the SiriusXM Travel Link home screen, to
show fuel information:
– Tap the Fuel button to display the main fuel
screen.
The following categories are shown:
Search (the magnifying glass icon)
Nearby
Recommended
Favorites
Brands
Tap one of the alternatives to display its screen.
NOTE In each of the categories listed, tapping the
Select fuel type button near the bottom of
the screen opens a sub-view where you can
specify the type of fuel preferred/required
(Regular, Midrange, Premium, Diesel,
Electric 120V, etc.) Tap Done to return to
the previous screen.
SearchTap the magnifying glass icon. If the function is
supported in the current context, a keyboard will
appear on the screen. Enter the text of your
choice and tap Search for detailed information if
available.
NearbyTap for a list of service stations in the vicinity of
the vehicle, with the nearest station at the top of
the list.
The following information will be provided where
available:
For vehicles using gasoline, the price infor-
mation for regular gasoline (unless another
grade/type of fuel has been selected in
Select fuel type)
For electric vehicles/hybrids, information
about charging stations, showing the total
number of charging ports and the number of
ports currently not in use
the distance to the station
a star icon to set the service station as a
favorite
Tap the name of a service station to display more
detailed information.
For guidance to the service station, tap the Start
navigation or Add as waypoint buttons. See the Sensus Navigation* supplement for additional
information about using the navigation system.
RecommendedTap for a list of service stations near the vehicle,
displayed according to the price of regular gaso-
line (unless another grade/type of fuel has been
selected in Select fuel type) or of stations
offering the greatest number of available charg-
ing ports for electric vehicles/hybrids. The station
offering the lowest price/most available charging
ports will be displayed at the top of the list. Tap
the name of a service station to display more
detailed information.
FavoritesTap for a list of service stations that have been
stored as favorites. Tap the name of a service
station to display more detailed information.
In addition to the
Select fuel type button at the
bottom of the screen, tap the Edit button to
delete individual stations from the list or tap
Delete to clear the list. Tap Done to return to
the previous screen.
Brands1. Tap Brands to display a list of service sta-
tion brands in the area. 5
This service is not available in Canada.
