buttons VOLVO XC90 TWIN ENGINE 2019 Owner's Guide

KEY, LOCKS AND ALARM
* Option/accessory.
242 Lock indication
When the vehicle is locked or unlocked, the turn
signals will flash to indicate that the vehicle has
been locked or unlocked correctly.
Exterior confirmationLocking
The turn signals will flash once and the door
mirrors will fold in 1
to confirm the vehicle is
locked.
Unlocking
The turn signals will flash twice and the door
mirrors will fold out 1
to confirm the vehicle is
unlocked.
All doors, tailgate and hood must be closed for
confirmation to be given. If only the driver's door
is closed when the vehicle is locked 2
, the vehicle
will be locked but the turn signals will only flash
to indicate locking when all doors and the hood
and tailgate have been closed.
Lock and alarm indicator The locks and alarm indicator on the dashboard will dis-
play the status of the locking system.
A long flash indicates that the vehicle is locked.
When the vehicle is locked, this will be indicated
by short, pulsing flashes.
Other indicators
The home safe lighting and approach lighting
functions also indicate when the vehicle is locked
or unlocked.
Lock button indicators
Front door Lock buttons with indicator lights in front door.
Illuminated indicator lights in both front door lock
buttons indicate that all doors are locked. If any
door is opened, the lights in both doors will go
out. 1
Only vehicles with power folding mirrors.
2 Does not apply to vehicles equipped with keyless locking/unlocking (Pas\
sive Entry*).

||KEY, LOCKS AND ALARM
* Option/accessory.
244 The keyless system for locking/unlocking the
doors and tailgate (Passive Entry*) is available as
an option. This system has a range in a semicircle
with a radius of approximately 1.5 meter (5 feet)
out from the driver's door and approx. 1 meter
(3 feet) out from the tailgate.
With keyless start in combination with keyless
locking and unlocking, the remote key can be
located anywhere in the passenger compartment
or cargo compartment in order to start the
engine.
Each remote key supplied with the vehicle can be
linked to a driver profile with unique settings for
the vehicle. When a key with a specific profile is
used, the vehicle settings are adjusted according
to that profile.
Buttonless key, Key TagFor vehicles equipped with keyless locking and
unlocking*, a smaller, lighter and button-less key
(Key Tag 4
) is also provided. It works the same
way as the regular remote key as regard keyless
start and keyless locking and unlocking. The key
is waterproof up to a depth of approx. 10 meters
(30 feet) for up to 60 minutes. It does not have a
detachable key blade and its battery cannot be
replaced.
Remote key buttons The remote key has four buttons, one on the left side
and three on the right
3
. Locking - Press once to lock the doors,
tailgate and fuel filler door and arm the
alarm.
Press and hold to close all windows. Unlocking - Press once to unlock the
doors and tailgate and disarm the alarm.
Press and hold to open all windows at the
same time. This total airing function can be
used to e.g. quickly air out the vehicle in hot
weather. Tailgate - Unlock and disarm the tailgate
only. On vehicles equipped with the power
tailgate*, press and hold to automatically
open the tailgate. Press and hold to close an open tailgate (an audible warning signal will
be given). Panic alarm - Used to attract attention in
emergency situations. Press and hold the
button for at least 3 seconds or press twice
within 3 seconds to activate the turn signals
and horn. To deactivate, wait at least 5 sec-
onds and press the button again. If no action
is taken, the panic alarm will deactivate auto-
matically after 3 minutes.
WARNING If anyone is left in the vehicle, make sure that
power to the power windows and panoramic
roof* is cut off by always taking the remote
key with you when you leave the vehicle. 4
Även kallad sportnyckel.
3 The illustration is generic - details may vary according to vehicle mode\
l.

KEY, LOCKS AND ALARM
* Option/accessory.
246 Locking and unlocking using the
remote key
All doors and tailgate can be locked and
unlocked simultaneously using the buttons on
the remote key.
Locking with remote key Remote key
5
.
– Press the button on the remote key to
lock.
To activate the locking sequence, the driver's
door must be closed 6
. If any of the other doors or
the tailgate are open, they will be locked and the
alarm will be armed once they are closed.
NOTE Be aware of the risk of locking the remote
key in the vehicle.
If the remote key or Key Tag is left in the
vehicle, it will be deactivated when the
vehicle is locked and the alarm set using
another valid key. The deactivated key will
be reactivated when the vehicle is
unlocked.
If the remote key or Red Key is left in the
vehicle, it will be deactivated even if the
vehicle is locked using Volvo On Call, and
will be reactivated when the vehicle is
unlocked using Volvo On Call or by
pressing the unlock button on the key.
Locking when the tailgate is open
NOTE If the vehicle is locked and the tailgate is still
open, make sure that the remote key is not
left in the cargo compartment when the tail-
gate is closed and the entire vehicle is
locked
7
.
Unlocking with remote key
– Press the button on the remote key to
unlock.
Automatic relocking
If none of the doors or tailgate are opened within
two minutes after being unlocked, they will auto-
matically relock. This function reduces the risk of
inadvertently leaving the vehicle unlocked.
Remote key not working
NOTE Move closer to the vehicle and try to unlock it
again.
If the remote key is not working to lock or unlock
the vehicle, its battery may be discharged. Use
the detachable key blade to lock/unlock the driv-
er's door instead.
Related information

Settings for remote and inside door unlock
(p. 247)
Unlocking the tailgate using the remote key
(p. 247)
Remote key (p. 243) 5
The illustration is generic - details may vary according to vehicle mode\
l.
6 If the vehicle is equipped with keyless locking/unlocking, all side door\
s must be closed.
7 If the vehicle is equipped with keyless locking/unlocking and the key is\
detected inside the vehicle, the tailgate will not lock when it is clos\
ed.*

KEY, LOCKS AND ALARM
}}
* Option/accessory. 249
Related information
Remote key (p. 243)
Antenna locations for the start and lock sys-
tem (p. 262)
Keyless and touch-sensitive surfaces*
(p. 258) Replacing the remote key's battery
The battery in the remote key must be replaced
when it is discharged.
NOTE All batteries have a limited service life and
must eventually be replaced (does not apply
for Key Tag). The battery's service life varies
depending on how often the vehicle/key is
used.
The remote key battery should be replaced if:
the information symbol illuminates and
the message Vehicle key bat. low
See Owner's manual is displayed in
the instrument panel and/or
the locks do not react after several attempts
to lock or unlock the vehicle using the
remote key within approx. 20 meter (65 feet)
from the vehicle.
NOTE Move closer to the vehicle and try to unlock it
again. The battery in the smaller key without buttons
9
(the Key Tag) cannot be replaced. A new key can
be ordered from an authorized Volvo workshop.
CAUTION An end-of-life Key Tag must be turned in to
an authorized Volvo workshop. The key must
be deleted from the vehicle because it can
still be used to start the vehicle via backup
start.
9
This key is provided with vehicles equipped with keyless locking/unlocki\
ng (Passive Entry*).

KEY, LOCKS AND ALARM
* Option/accessory.
262 Antenna locations for the start and
lock system
The vehicle is equipped with a keyless start and
lock system 13
that uses a number of integrated
antennas positioned throughout the vehicle. Location of the antennas.
Under the cup holder in the front section of
the tunnel console
In the upper front section of the left-side rear
door
14 In the upper front section of the right-side
rear door
14 In the center of the rear seat backrest
14
WARNING Individuals with an implanted pacemaker
should not allow the pacemaker to come
closer than 22 cm (9 in.) to the Keyless sys-
tem antennas. The aim of this is to prevent
disturbances between the pacemaker and the
Keyless system.
Related information

Keyless and touch-sensitive surfaces*
(p. 258)
Remote key range (p. 248) Locking and unlocking from inside
the vehicle
The doors and tailgate can be locked and
unlocked from inside the vehicle using the cen-
tral lock buttons in the front doors. The lock but-
tons in the rear doors* can be used to lock/
unlock that particular door.
Central locking Button with indicator light for locking and unlocking in
front door.
Unlocking using the front door buttons
–
Press the button to unlock all side doors
and the tailgate. 13
The keyless lock system only applies to vehicles equipped with keyless l\
ocking and unlocking (Passive Entry*).
14 Only in vehicles equipped with keyless locking and unlocking (Passive E\
ntry*).

KEY, LOCKS AND ALARM
* Option/accessory.263
Alternative unlocking methodAlternative unlocking method using side door opening
handle
15
.
– Pull either of the side door inside opening
handles and release.
>

Depending on the remote key settings,
either all doors will be unlocked or just the
selected door will be unlocked and
opened.
To change this setting, tap SettingsMy Car Locking Remote and
Interior Unlock in the Top view of the
center display.
Locking using the front door buttons
– Press the button (both front doors must
be closed).
>
All doors and the tailgate will lock.
Locking using the rear door button* Button with indicator light for locking/unlocking in rear
door.
The lock buttons in the rear doors only lock/
unlock that particular door.
Unlocking the rear door1. Pull the opening handle to unlock the rear door.
2. Pull the opening handle again to open the rear door 16
.
Related information
Settings for remote and inside door unlock
(p. 247)
Unlocking the tailgate from inside the vehicle
(p. 264)
Activating and deactivating child safety locks
(p. 264) 15
The illustration is generic - details may vary according to vehicle mode\
l.
16 Provided the child safety lock is not activated.

DRIVER SUPPORT
283

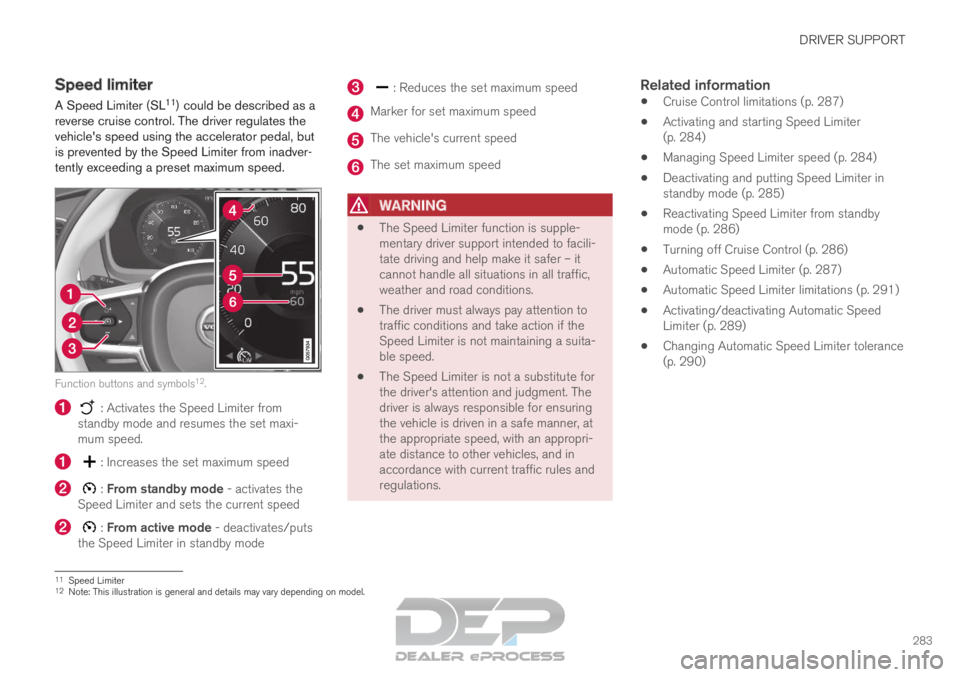

Speed limiter
A Speed Limiter (SL 11
) could be described as a
reverse cruise control. The driver regulates the
vehicle's speed using the accelerator pedal, but
is prevented by the Speed Limiter from inadver-
tently exceeding a preset maximum speed. Function buttons and symbols
12
. : Activates the Speed Limiter from
standby mode and resumes the set maxi-
mum speed. : Increases the set maximum speed
: From standby mode - activates the
Speed Limiter and sets the current speed : From active mode - deactivates/puts
the Speed Limiter in standby mode : Reduces the set maximum speed
Marker for set maximum speed
The vehicle's current speed
The set maximum speed
WARNING

The Speed Limiter function is supple-
mentary driver support intended to facili-
tate driving and help make it safer – it
cannot handle all situations in all traffic,
weather and road conditions.
The driver must always pay attention to
traffic conditions and take action if the
Speed Limiter is not maintaining a suita-
ble speed.
The Speed Limiter is not a substitute for
the driver's attention and judgment. The
driver is always responsible for ensuring
the vehicle is driven in a safe manner, at
the appropriate speed, with an appropri-
ate distance to other vehicles, and in
accordance with current traffic rules and
regulations.
Related information
Cruise Control limitations (p. 287)
Activating and starting Speed Limiter
(p. 284)
Managing Speed Limiter speed (p. 284)
Deactivating and putting Speed Limiter in
standby mode (p. 285)
Reactivating Speed Limiter from standby
mode (p. 286)
Turning off Cruise Control (p. 286)
Automatic Speed Limiter (p. 287)
Automatic Speed Limiter limitations (p. 291)
Activating/deactivating Automatic Speed
Limiter (p. 289)
Changing Automatic Speed Limiter tolerance
(p. 290) 11
Speed Limiter
12 Note: This illustration is general and details may vary depending on mod\
el.

DRIVER SUPPORT

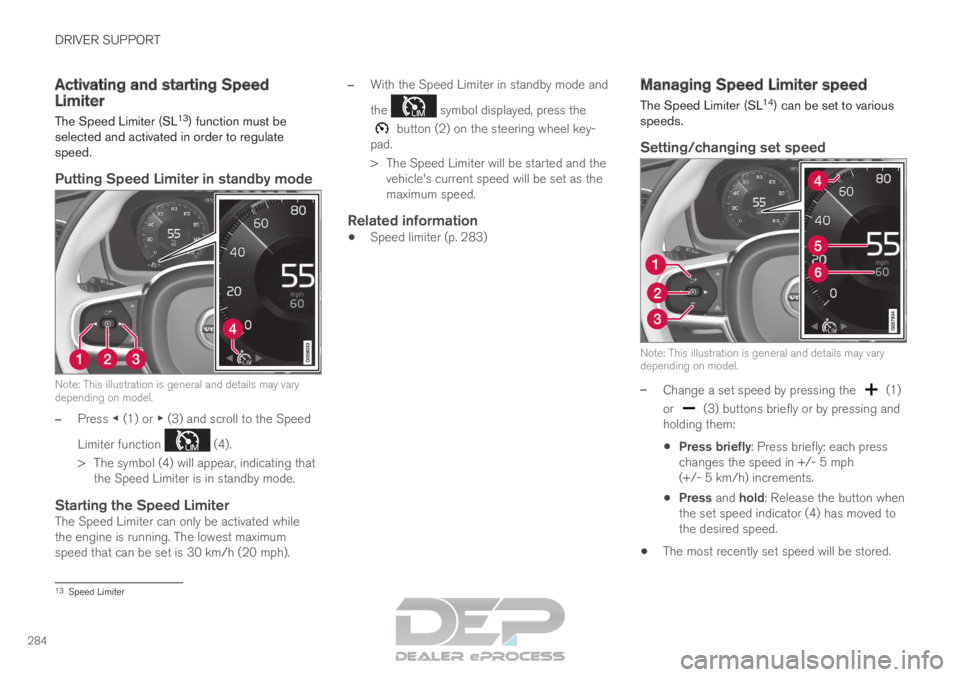

284Activating and starting Speed
Limiter
The Speed Limiter (SL 13
) function must be
selected and activated in order to regulate
speed.
Putting Speed Limiter in standby mode Note: This illustration is general and details may vary
depending on model.
–
Press ◀ (1) or ▶ (3) and scroll to the Speed
Limiter function (4).
>

The symbol (4) will appear, indicating that
the Speed Limiter is in standby mode.
Starting the Speed LimiterThe Speed Limiter can only be activated while
the engine is running. The lowest maximum
speed that can be set is 30 km/h (20 mph). –
With the Speed Limiter in standby mode and
the symbol displayed, press the
button (2) on the steering wheel key-
pad.
>

The Speed Limiter will be started and the
vehicle's current speed will be set as the
maximum speed.
Related information
Speed limiter (p. 283) Managing Speed Limiter speed
The Speed Limiter (SL
14
) can be set to various
speeds.
Setting/changing set speed Note: This illustration is general and details may vary
depending on model.
–
Change a set speed by pressing the (1)
or (3) buttons briefly or by pressing and
holding them:
Press briefly: Press briefly: each press
changes the speed in +/- 5 mph
(+/- 5 km/h) increments.
Press and hold: Release the button when
the set speed indicator (4) has moved to
the desired speed.
The most recently set speed will be stored. 13
Speed Limiter

DRIVER SUPPORT

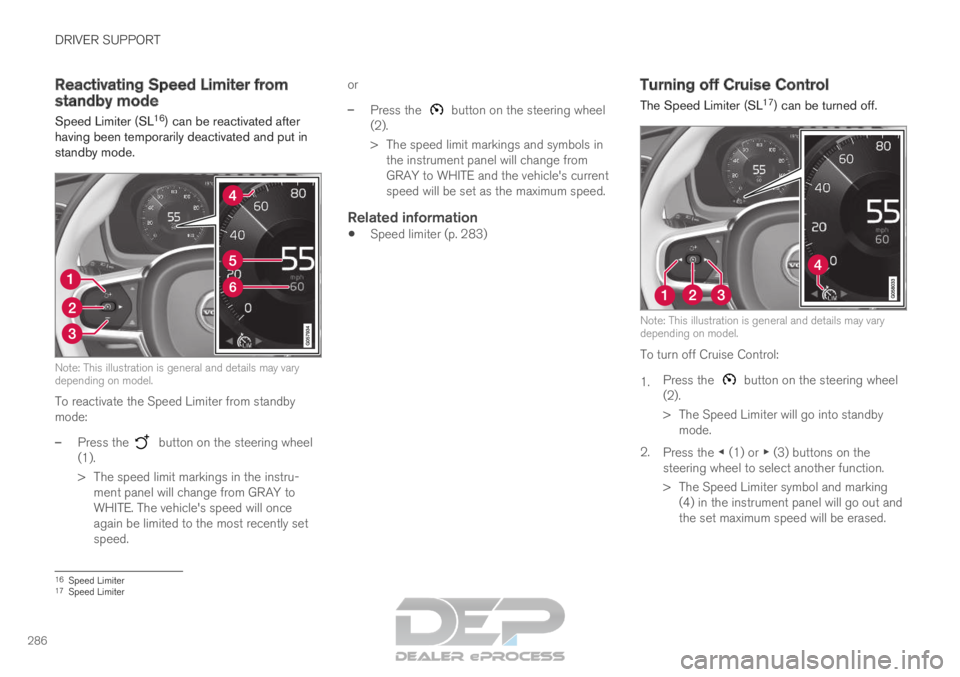

286Reactivating Speed Limiter from
standby mode
Speed Limiter (SL 16
) can be reactivated after
having been temporarily deactivated and put in
standby mode. Note: This illustration is general and details may vary
depending on model.
To reactivate the Speed Limiter from standby
mode:
–
Press the button on the steering wheel
(1).
>

The speed limit markings in the instru-
ment panel will change from GRAY to
WHITE. The vehicle's speed will once
again be limited to the most recently set
speed. or
– Press the button on the steering wheel
(2).
>

The speed limit markings and symbols in
the instrument panel will change from
GRAY to WHITE and the vehicle's current
speed will be set as the maximum speed.
Related information
Speed limiter (p. 283) Turning off Cruise Control
The Speed Limiter (SL 17
) can be turned off. Note: This illustration is general and details may vary
depending on model.
To turn off Cruise Control:
1.
Press the button on the steering wheel
(2).
>

The Speed Limiter will go into standby
mode.
2. Press the ◀ (1) or ▶ (3) buttons on the
steering wheel to select another function.
> The Speed Limiter symbol and marking (4) in the instrument panel will go out and
the set maximum speed will be erased. 16
Speed Limiter
17 Speed Limiter

DRIVER SUPPORT
* Option/accessory.
290 Changing Automatic Speed Limiter
tolerance
The Automatic Speed Limiter (ASL) can be set
to different tolerance levels.
It is also possible to allow the vehicle to drive
above or below the posted speed limit. For exam-
ple, if the vehicle is following a current posted
speed limit of 70 km/h (43 mph), the driver can
instead allow the vehicle to maintain a speed of
75 km/h (47 mph).
Function buttons and symbols
20
. –
Tap the (1) button on the steering
wheel keypad until 70 km/h (43 mph) has
been changed to 75 km/h (47 mph) in the
center of the speedometer (4).
>

The vehicle will then use the selected tol-
erance of 5 km/h (4 mph) as long as the
posted speed limit the vehicle passes is
70 km/h (43 mph).
This tolerance level will be followed until
the vehicle passes a sign with a lower or
higher speed. The vehicle will then adjust
to the new speed limit and the set toler-
ance will be deleted from the system's
memory.
If Road Sign Information* 21
is activated,
the posted speed limit will also be indi-
cated by a RED marking on the speedom-
eter.
The set tolerance can be adjusted in the same
way as for the Speed Limiter's speed.
NOTE The highest possible selectable tolerance is
+/- 10 km/h (5 mph).
Related information

Speed limiter (p. 283)
Automatic Speed Limiter (p. 287)
Activating/deactivating Road Sign Informa-
tion (p. 365) 20
Note: This illustration is general and details may vary depending on mod\
el.
21 Road Sign Information (RSI)
