VOLVO XC90 TWIN ENGINE 2020 Owners Manual

LOADING, STORAGE AND PASSENGER COMPARTMENT
}}
589

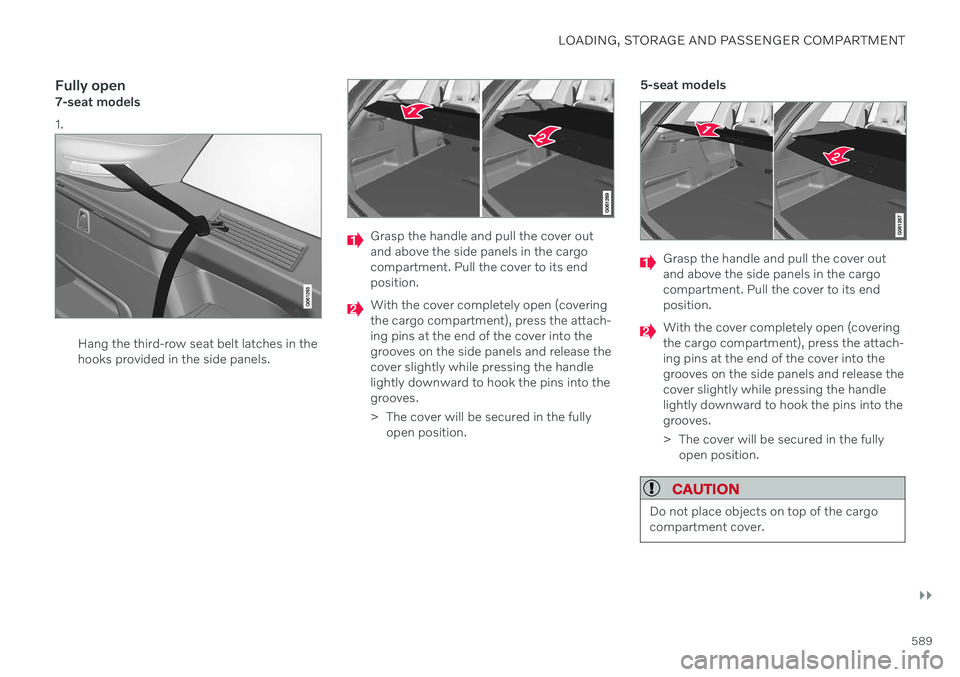

Fully open7-seat models 1.
Hang the third-row seat belt latches in the hooks provided in the side panels.
Grasp the handle and pull the cover out and above the side panels in the cargocompartment. Pull the cover to its endposition.
With the cover completely open (covering the cargo compartment), press the attach-ing pins at the end of the cover into thegrooves on the side panels and release thecover slightly while pressing the handlelightly downward to hook the pins into thegrooves.
> The cover will be secured in the fullyopen position. 5-seat models
Grasp the handle and pull the cover out and above the side panels in the cargocompartment. Pull the cover to its endposition.
With the cover completely open (covering the cargo compartment), press the attach-ing pins at the end of the cover into thegrooves on the side panels and release thecover slightly while pressing the handlelightly downward to hook the pins into thegrooves.
> The cover will be secured in the fully
open position.
CAUTION
Do not place objects on top of the cargo compartment cover.

||
LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.
590
WARNING
In 7-seat models - never have a cargo com- partment cover mounted when there arepassengers in the rear seats. This couldlead to serious injury in the event of a colli-sion.
Loading mode
From the fully retracted position - grasp the handle and pull the cover up and overthe side panels in the cargo compartment.Pull to the end position and press theattaching pins at the end of the cover intothe grooves in the side panels of the vehi-cle. (If the cover is already fully open, seenext section.)
From the fully open position - grasp the handle and press the cover's attachingpins down into the grooves in the sidepanels and then release.
> Retract the cover until it stops in the
partially retracted position. If your hands are full:
In the fully open position, push the cover's handle slightly upward with e.g. yourelbow. >
The cover will retract until it stops in
the partially retracted position.
To fully open the cover from the partially retracted position:
1. Grasp the handle and pull the cover out as far as possible.
2. Let the cover retract slightly and press the handle slightly downward.
> The cover will be secured in the fullyopen position.
Retracting the cover
1. From the fully opened position:
Lift the cover's handle and pull it rearward to release the cover's attaching pins fromthe grooves. Let the cover retract. From the partially retracted position: Grasp the handle and pull the cover out of the groves to the fully open position. Liftthe handle and pull it rearward to releasethe cover's attaching pins from thegrooves. Let the cover retract.
2. Let the cover retract with its attaching pins above the side panels until it stops inthe fully retracted position.
Related information
Installing and removing the cargo com- partment cover
* (p. 588)

LOADING, STORAGE AND PASSENGER COMPARTMENT
}}
* Option/accessory.591
Installing and removing the steel cargo grid*
The steel cargo grid prevents loads or pets in the cargo compartment from being thrownforward into the passenger compartmentduring hard braking.
For safety reasons, the steel grid must always be installed and secured correctly.
WARNING
Under no circumstances may a person be in the cargo compartment when the vehi-cle is moving. Heavy braking or a collisioncould lead to serious injury.
The steel grid consists of the grid itself and two separate mounting brackets. Each of the mounting brackets has a screw cover and twoplastic sleeves for the grid.
WARNING
The steel cargo grid may only be used in the rear position described here. The ceil-ing attachment points behind the frontseats are not intended to anchor the steelgrid.
WARNING
For safety reasons, the third-row seats
4
must be folded down when the steel cargo grid is mounted in the vehicle.
CAUTION
The steel cargo grid and the cargo com- partment cover cannot be mounted at thesame time.
Installation1. Fold down the rear seats and lift in the steel grid through one of the rear doors or the tailgate. The curved (convex) side ofthe grid should face toward the cargocompartment and the hooks on each sideof the grid should face upward. Themounting brackets and plastic sleeves arenot needed in this step. 2.
Press one of the grid's hooks into the larger hole in the ceiling attachment point(1). Grasp the grid near the hook and pull/push it into the smaller hole (2).
> The hook is now secured in the attach-
ment point.
3. Repeat step 2 above to secure the other hook in the attachment point on the oppo- site side.
WARNING
Make sure the cargo grid's hooks are securely attached in the ceiling attachmentpoints to help ensure the grid does notcome loose.
47-seat models only.

||
LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.

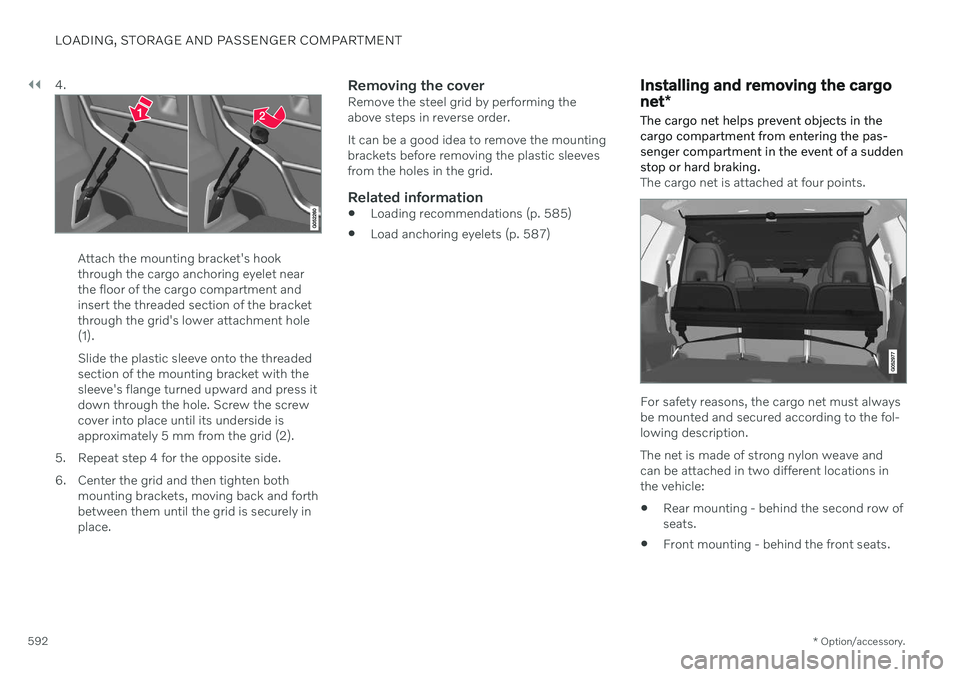

592 4.
Attach the mounting bracket's hook through the cargo anchoring eyelet nearthe floor of the cargo compartment andinsert the threaded section of the bracketthrough the grid's lower attachment hole(1). Slide the plastic sleeve onto the threaded section of the mounting bracket with thesleeve's flange turned upward and press itdown through the hole. Screw the screwcover into place until its underside isapproximately 5 mm from the grid (2).
5. Repeat step 4 for the opposite side.
6. Center the grid and then tighten both mounting brackets, moving back and forth between them until the grid is securely inplace.
Removing the coverRemove the steel grid by performing theabove steps in reverse order. It can be a good idea to remove the mounting brackets before removing the plastic sleevesfrom the holes in the grid.
Related information
Loading recommendations (p. 585)
Load anchoring eyelets (p. 587)
Installing and removing the cargo net
*
The cargo net helps prevent objects in the cargo compartment from entering the pas-senger compartment in the event of a suddenstop or hard braking.
The cargo net is attached at four points.
For safety reasons, the cargo net must always be mounted and secured according to the fol-lowing description. The net is made of strong nylon weave and can be attached in two different locations inthe vehicle:
Rear mounting - behind the second row ofseats.
Front mounting - behind the front seats.

LOADING, STORAGE AND PASSENGER COMPARTMENT
}}
593

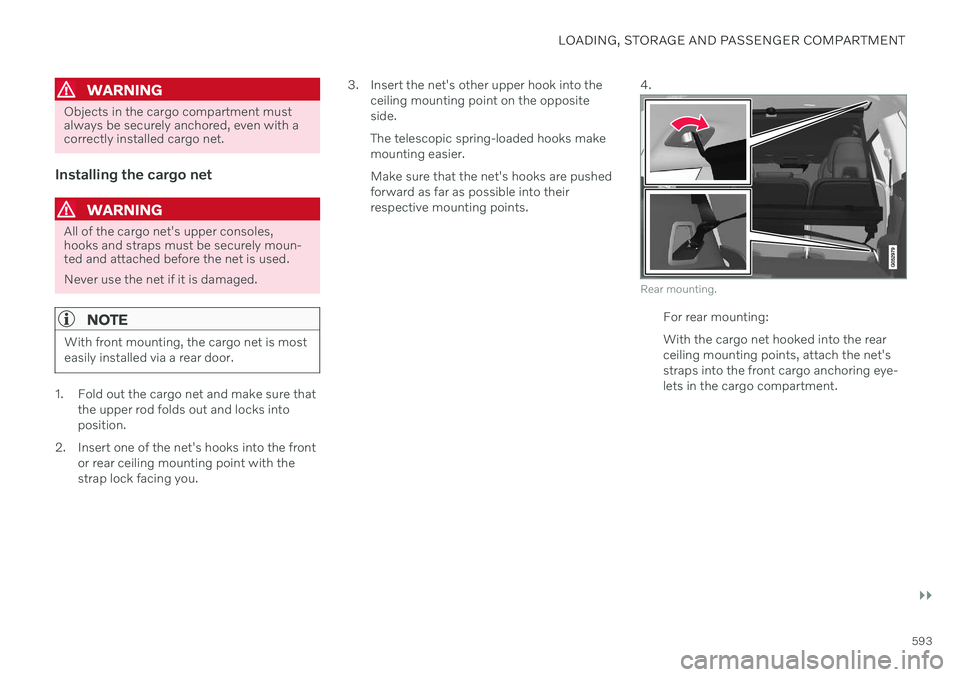

WARNING
Objects in the cargo compartment must always be securely anchored, even with acorrectly installed cargo net.
Installing the cargo net
WARNING
All of the cargo net's upper consoles, hooks and straps must be securely moun-ted and attached before the net is used. Never use the net if it is damaged.
NOTE
With front mounting, the cargo net is most easily installed via a rear door.
1. Fold out the cargo net and make sure thatthe upper rod folds out and locks into position.
2. Insert one of the net's hooks into the front or rear ceiling mounting point with thestrap lock facing you. 3. Insert the net's other upper hook into the
ceiling mounting point on the oppositeside. The telescopic spring-loaded hooks make mounting easier. Make sure that the net's hooks are pushed forward as far as possible into theirrespective mounting points. 4.
Rear mounting.
For rear mounting: With the cargo net hooked into the rear ceiling mounting points, attach the net'sstraps into the front cargo anchoring eye-lets in the cargo compartment.

||
LOADING, STORAGE AND PASSENGER COMPARTMENT
594
Front mounting.
For front mounting: With the cargo net mounted in the front ceiling mounting points, hook the strapsinto the outer eyelets on the front seat railsbehind the seats. Attaching the net is eas-ier if the seat backrests are upright and theseats are moved slightly forward. Move the seat or backrest only until it touches the net. Moving it with too muchforce or applying too much pressure to thenet could lead to damage.
CAUTION
If a seat or backrest is pressed with too much force back against the cargo net, thenet and its ceiling brackets could be dam-aged.
5. Pull the straps until the cargo net is taut.
Removing the cargo netThe cargo net can be easily removed and folded up.
1. Loosen the cargo net by pressing the but-ton on the strap locks on each side and pulling to allow some slack.
2. Press in the catches and release both of the strap hooks.
3. Unhook the upper hooks and remove the net from the ceiling mounting points.
4. Press the red button on the rod so that it can be folded. Fold and roll up the net.Store the net in its case.
Related information
Loading recommendations (p. 585)
Load anchoring eyelets (p. 587)

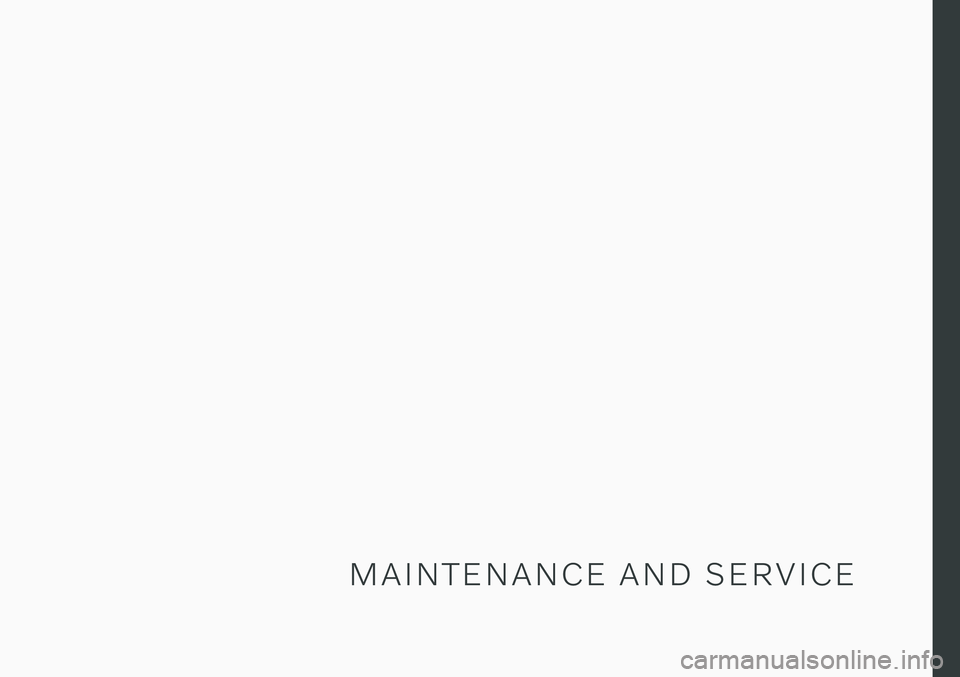

M A I N T E N A N C E A N D S E R V I C E

MAINTENANCE AND SERVICE
596
Volvo's service program To keep the vehicle as safe and reliable as possible, follow the Volvo service schedulespecified in the Warranty and MaintenanceRecords Information booklet.
WARNING
California Proposition 65 Operating, servicing and maintaining a pas- senger vehicle can expose you to chemi-cals including engine exhaust, carbon mon-oxide, phthalates, and lead, which areknown to the State of California to causecancer and birth defects or other reproduc-tive harm. To minimize exposure, avoidbreathing exhaust, do not idle the engineexcept as necessary, service your vehicle ina well ventilated area and wear gloves orwash your hands frequently when servicingyour vehicle. For more information go towww.P65Warnings.ca.gov/passenger-vehicle.
Volvo recommends having an authorized Volvo workshop perform service and mainte-nance. Volvo workshops have the staff, serviceliterature and special tools that can providethe highest quality of service.
CAUTION
To ensure the Volvo warranty is not invali- dated, check and follow the Warranty andService Records Information booklet.
Service and repairsService the vehicle regularly. Follow Volvo's recommended service intervals. Detailed inspection and repairs may only be performed by an authorized workshop.
WARNING
Do not make any repairs on this vehicle yourself. Electrical cables and/or compo-nents that have come loose may only becorrected by an authorized workshop – anauthorized Volvo workshop is recom-mended.
IntroductionThe maintenance services contain several checks that require special instruments andtools and therefore must be performed by aqualified technician. To keep your Volvo in topcondition, specify time-tested and provenGenuine Volvo Parts and Accessories.
The Federal Clean Air Act - U.S.
The Federal Clean Air Act requires vehicle manufacturers to furnish written instructionsto the ultimate purchaser to assure the properservicing and function of the components thatcontrol emissions. These services, which arelisted in the "Warranty and Service RecordsInformation" booklet, are not covered by thewarranty. You will be required to pay for laborand material used.
Maintenance
Your Volvo passed several major inspections before it was delivered to you, in accordancewith Volvo specifications. The maintenanceprocedures outlined in the Warranty and Serv-ice Records Information booklet, many ofwhich will positively affect your vehicle's emis-sions, should be performed as indicated. It isrecommended that receipts for vehicle emis-sion maintenance be retained in case ques-tions arise concerning maintenance. Inspec-tion and maintenance should also be per-formed anytime a malfunction is observed orsuspected.

MAINTENANCE AND SERVICE
}}
597
Applicable warranties - U.S./Canada
In accordance with applicable U.S. and Cana- dian regulations, the following list of warran-ties is provided. New Vehicle Limited Warranty
Parts and Accessories Limited Warranty
Corrosion Protection Limited Warranty
Seat Belt and Supplemental Restraint Systems Limited Warranty
Emission Design and Defect Warranty
Emission Performance Warranty
These are federal warranties; other warrantiesare provided as required by state/provinciallaw. Refer to your separate Warranty andService Records Information booklet fordetailed information concerning each of thewarranties.
Periodic maintenance helps minimize emissions
NOTE
Refer to your Service and Warranty Booklet for a comprehensive serviceand maintenance schedule up to240,000 km (150,000 miles). Thisprogram contains inspections and ser-vices necessary for the proper functionof your vehicle and includes compo-nents that affect vehicle emissions.
The Warranty and Service RecordsInformation booklet also containsdetailed information concerning thewarranties that apply to your vehicle.
On-board Diagnostic SystemOBD II is part of your vehicle's computerized engine management system. It stores diag-nostic information about your vehicle's emis-sion controls. It can light the Check Enginelight (MIL) if it detects an emission control"fault." A "fault" is a component or systemthat is not performing within an expectedrange. A fault may be permanent or temporary.OBD II will store a message about any fault.
Emission inspection readiness
How do states use
OBD II for emission
inspections?
Many states connect a computer directly to a vehicle's OBD II system. The inspector canthen read "faults." In some states, this type ofinspection has replaced the tailpipe emissiontest.
How can my vehicle fail OBD II emission
inspection?
Your vehicle can fail OBD II emission inspec- tion for any of the following reasons: If your Check Engine (MIL) light is lit, your vehicle may fail inspection.
If your vehicle's Check Engine light was lit,but went out without any action on yourpart, OBD II will still have a recorded fault.Your vehicle may pass or fail, dependingon the inspection practices in your area.
If you had recent service that required dis-connecting the battery, OBD II diagnosticinformation may be incomplete and "notready" for inspection. A vehicle that is notready may fail inspection.

||
MAINTENANCE AND SERVICE
598
How can I prepare for my next OBD II
emission inspection?
If your Check Engine (MIL) light is lit or was lit but went out without service, haveyour vehicle diagnosed and, if necessary,serviced by a qualified Volvo technician.
If you recently had service for a lit CheckEngine light, or if you had service thatrequired disconnecting the battery, aperiod of driving is necessary to bring theOBD II system to "ready" for inspection.Two half-hour trips of mixed stop-and-go/highway driving are typically needed toallow OBD II to reach readiness. YourVolvo retailer can provide you with moreinformation on planning a trip.
Maintain your vehicle in accordance withyour vehicle's maintenance schedule.
Owner maintenancePeriodic maintenance requirements and inter-vals are described in your vehicle's Warrantyand Service Records Information booklet. The following points can be carried out between the normally scheduled maintenance services.
Each time the vehicle is refueled:
Check the engine oil level.
Clean the windshield, windshield wipers, headlights, and taillights.
Monthly:
Check cold tire pressure in all tires. Inspect the tires for wear.
Check that engine coolant and other fluidlevels are between the indicated "min"and "max" markings.
Clean interior glass surfaces with a glasscleaner and soft paper towels.
Wipe driver information displays with asoft cloth.
Visually inspect battery terminals for cor-rosion. Corrosion may indicate a loose ter-minal connector, or a battery near the endof its useful service life. Consult your Volvoretailer for additional information.
As needed:
Wash the vehicle, including the undercarriage, to reduce wear that can be caused by abuildup of dirt, and corrosion that can becaused by salt residues. Clean leaves and twigs from air intake vents at the base of the windshield, and from other pla-ces where they may collect.
NOTE
Complete service information for qualified technicians is available online for purchaseor subscription at www.volvotechinfo.com.
Related information
Vehicle status (p. 601)
Scheduling service and repairs (p. 601)
Connecting equipment to the vehicle's data link connector (p. 39)
Technician certification (p. 40)
Climate control system service (p. 605)
Maintenance of the brake system (p. 420)
Engine compartment overview (p. 607)
