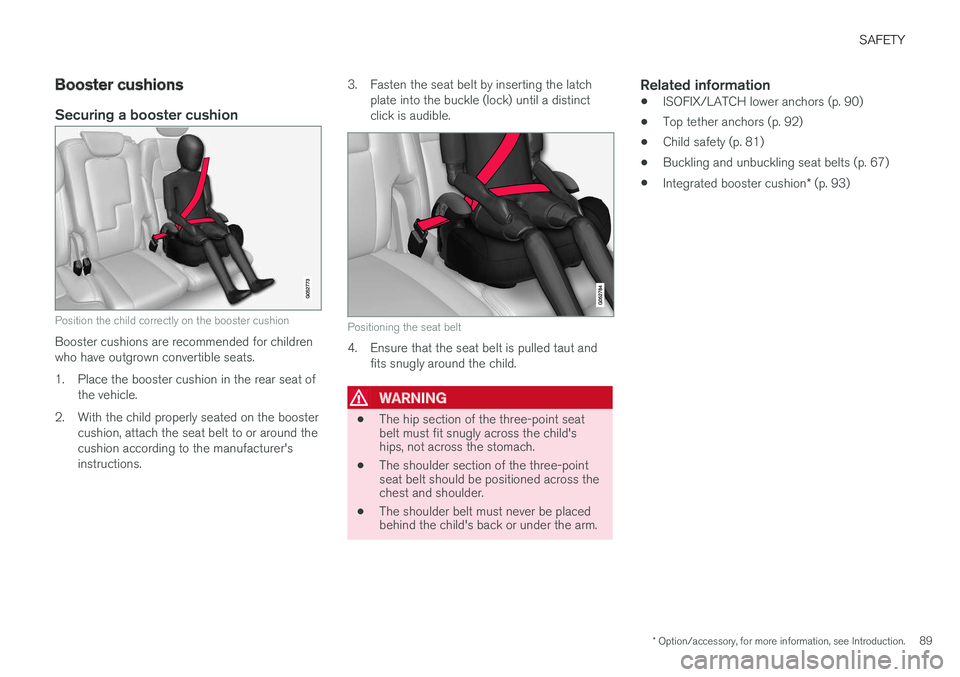

Booster cushions

Securing a booster cushion
Position the child correctly on the booster cushion
Booster cushions are recommended for childrenwho have outgrown convertible seats.
1.Place the booster cushion in the rear seat ofthe vehicle.
2. With the child properly seated on the boostercushion, attach the seat belt to or around thecushion according to the manufacturer'sinstructions.
3. Fasten the seat belt by inserting the latchplate into the buckle (lock) until a distinctclick is audible.
Positioning the seat belt
4. Ensure that the seat belt is pulled taut andfits snugly around the child.

WARNING
•The hip section of the three-point seatbelt must fit snugly across the child'ships, not across the stomach.
•The shoulder section of the three-pointseat belt should be positioned across thechest and shoulder.
•The shoulder belt must never be placedbehind the child's back or under the arm.
Related information
•ISOFIX/LATCH lower anchors (p. 90)
•Top tether anchors (p. 92)
•Child safety (p. 81)
•Buckling and unbuckling seat belts (p. 67)
•Integrated booster cushion* (p. 93)

SAFETY
90
ISOFIX/LATCH lower anchors

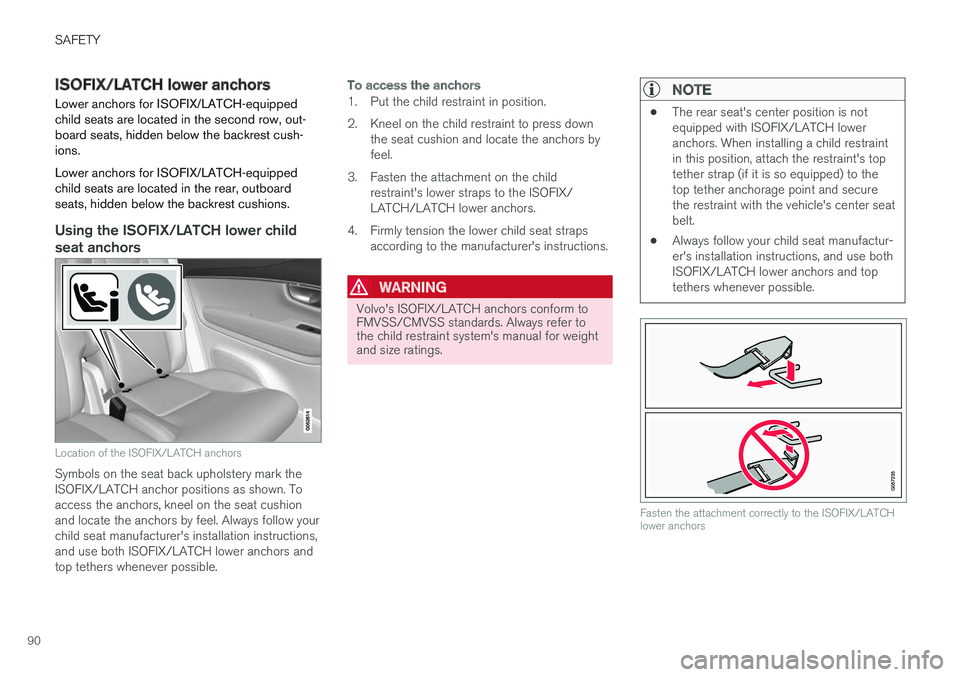

Lower anchors for ISOFIX/LATCH-equippedchild seats are located in the second row, out-board seats, hidden below the backrest cush-ions.
Lower anchors for ISOFIX/LATCH-equippedchild seats are located in the rear, outboardseats, hidden below the backrest cushions.

Using the ISOFIX/LATCH lower child
seat anchors
Location of the ISOFIX/LATCH anchors
Symbols on the seat back upholstery mark theISOFIX/LATCH anchor positions as shown. Toaccess the anchors, kneel on the seat cushionand locate the anchors by feel. Always follow yourchild seat manufacturer's installation instructions,and use both ISOFIX/LATCH lower anchors andtop tethers whenever possible.
To access the anchors
1. Put the child restraint in position.
2. Kneel on the child restraint to press downthe seat cushion and locate the anchors byfeel.
3. Fasten the attachment on the childrestraint's lower straps to the ISOFIX/LATCH/LATCH lower anchors.
4. Firmly tension the lower child seat strapsaccording to the manufacturer's instructions.

WARNING
Volvo's ISOFIX/LATCH anchors conform toFMVSS/CMVSS standards. Always refer tothe child restraint system's manual for weightand size ratings.
NOTE
•The rear seat's center position is notequipped with ISOFIX/LATCH loweranchors. When installing a child restraintin this position, attach the restraint's toptether strap (if it is so equipped) to thetop tether anchorage point and securethe restraint with the vehicle's center seatbelt.
•Always follow your child seat manufactur-er's installation instructions, and use bothISOFIX/LATCH lower anchors and toptethers whenever possible.
Fasten the attachment correctly to the ISOFIX/LATCHlower anchors

SAFETY
}}
91

WARNING
•Be sure to fasten the attachment cor-rectly to the anchor (see the illustration).If the attachment is not correctly fas-tened, the child restraint may not beproperly secured in the event of a colli-sion.
•The ISOFIX/LATCH lower child restraintanchors are only intended for use withchild seats positioned in the outboardseating positions. These anchors are notcertified for use with any child restraintthat is positioned in the center seatingposition. When securing a child restraintin the center seating position, use onlythe vehicle's center seat belt.

Related information
•Top tether anchors (p. 92)
Lower child seat attachment points1
The vehicle is equipped with lower attachmentpoints for child seats in the second row of seats.
The lower attachment points are intended for usewith rear-facing child restraints.
Always follow the child restraint manufacturer'sinstallation instructions when attaching a childrestraint to these attachment points.
Location
Attachment points in the front seat
Attachment points in the second row of seats
The attachment points in the second row of seatsare in the rear section of the front seat's floorrails.

WARNING
A child seat should never be used in the frontpassenger seat of any vehicle with a frontpassenger airbag – not even if the "Passen-ger airbag off" symbol near the rear-view mir-ror is illuminated (on vehicles equipped withOccupant Weight Sensor). If the severity of anaccident were to cause the airbag to inflate,this could lead to serious injury or death to achild seated in this position.
1Not available in all markets

||
SAFETY
92

Related information
•Child restraints (p. 83)
•ISOFIX/LATCH lower anchors (p. 90)
•Occupant weight sensor (p. 74)
Top tether anchors
Your Volvo is equipped with child restraint toptether anchorages for all three seating positionsin the rear seat. They are located on the rearside of the backrests.

Child restraint anchorages
Top tether anchors and symbols on the rear side of thesecond row backrests. There is no symbol for the centeranchor position.

Securing a child seat
1. Place the child restraint on the rear seat.
2. Route the top tether strap under the headrestraint and attach it to the anchor.
3. Attach lower tether straps to the lower ISO-FIX/LATCH anchors. If the child restraint isnot equipped with lower tether straps, or therestraint is used in the center seating posi-tion, follow instructions for securing a childrestraint using the Automatic LockingRetractor seat belt.
–Firmly tension all straps.
Refer also to the child seat manufacturer'sinstructions for information on securing the childseat.
NOTE
On models equipped with the optional cargoarea cover, this cover should be removedbefore a child seat is attached to the childrestraint anchors.

WARNING
•Always refer to the recommendationsmade by the child restraint manufacturer.
•Volvo recommends that the top tetheranchors be used when installing a for-ward-facing child restraint.
•Never route a top tether strap over thetop of the head restraint. The strapshould be routed beneath the headrestraint.
•Child restraint anchorages are designedto withstand only those loads imposed by

SAFETY
}}
* Option/accessory, for more information, see Introduction.93
correctly fitted child restraints. Under nocircumstances are they to be used foradult seat belts or harnesses. The ancho-rages are not able to withstand excessiveforces on them in the event of collision iffull harness seat belts or adult seat beltsare installed to them. An adult who uses abelt anchored in a child restraint anchor-age runs a great risk of suffering severeinjuries should a collision occur.
•Do not install rear speakers that requirethe removal of the top tether anchors orinterfere with the proper use of the toptether strap.

Related information
•Child safety (p. 81)
•Child restraints (p. 83)
Integrated booster cushion*
Volvo's optional integrated booster cushion islocated in the rear seat's center position and isdesigned to raise the child higher so that theshoulder strap crosses over the child's collar-bone, not over the neck.
Integrated booster cushion 2
This booster cushion has been speciallydesigned to help safeguard children in the rearseat. It should be stowed (folded down into theseat cushion) when not in use. When using anintegrated booster cushion, the child must besecured with the vehicle's three-point seat belt.
If using a booster cushion does not result inproper positioning of the shoulder strap, then thechild should be placed in a properly secured childrestraint. The shoulder belt must never be placedbehind the child's back or under the arm.
Use only with children who weigh between 33and 80 pounds (15 – 36 kg) and whose height isbetween 38 and 54 inch (97 – 137 cm).
In Canada: 18 kg (40 lbs) is the minimumweight requirement for a child using boosterseats according to the Canadian regulationCMVSS 213.4
Correct seating position: the shoulder belt is across thecollarbone

2
Canada only: This cushion may be referred to as a built-in booster cushion.

||
SAFETY
* Option/accessory, for more information, see Introduction.94

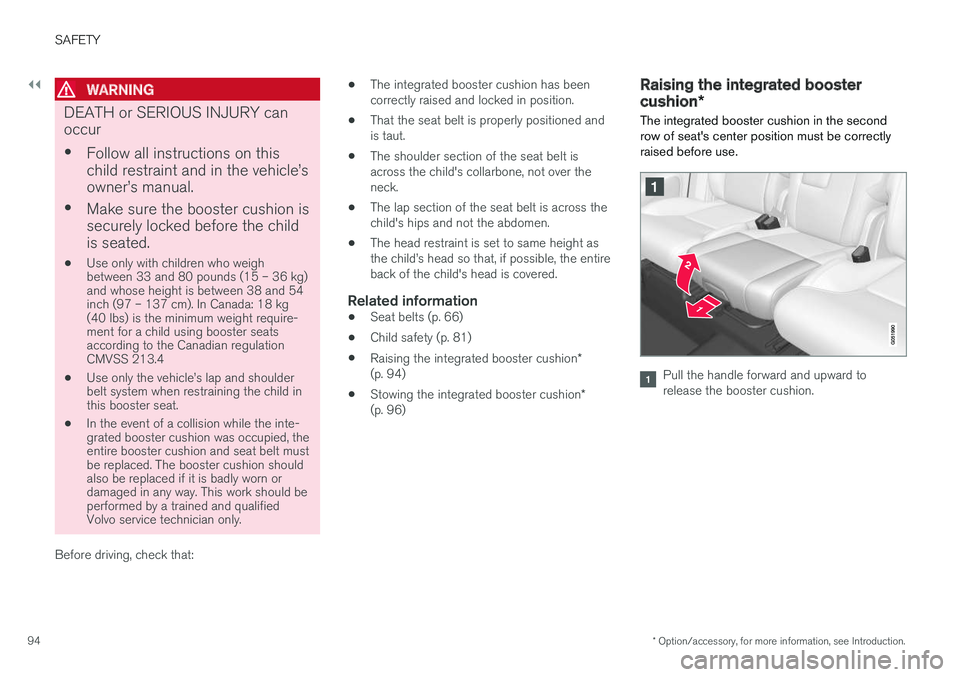

WARNING
DEATH or SERIOUS INJURY can
occur
•Follow all instructions on this
child restraint and in the vehicle

SAFETY
* Option/accessory, for more information, see Introduction.95

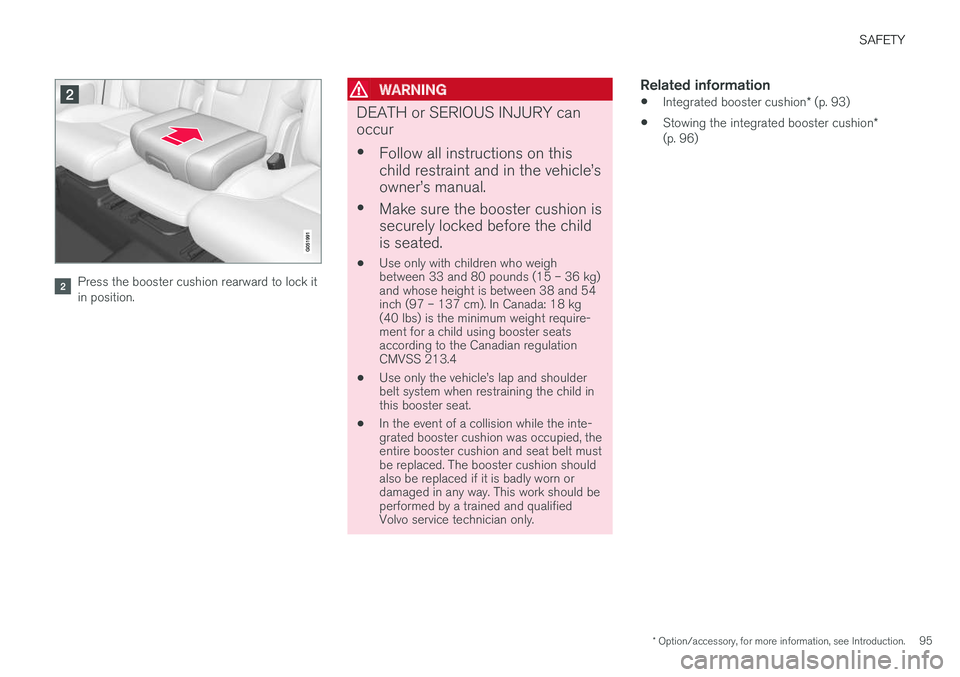

Press the booster cushion rearward to lock itin position.

WARNING
DEATH or SERIOUS INJURY can
occur
•Follow all instructions on this
child restraint and in the vehicle

SAFETY
* Option/accessory, for more information, see Introduction.96

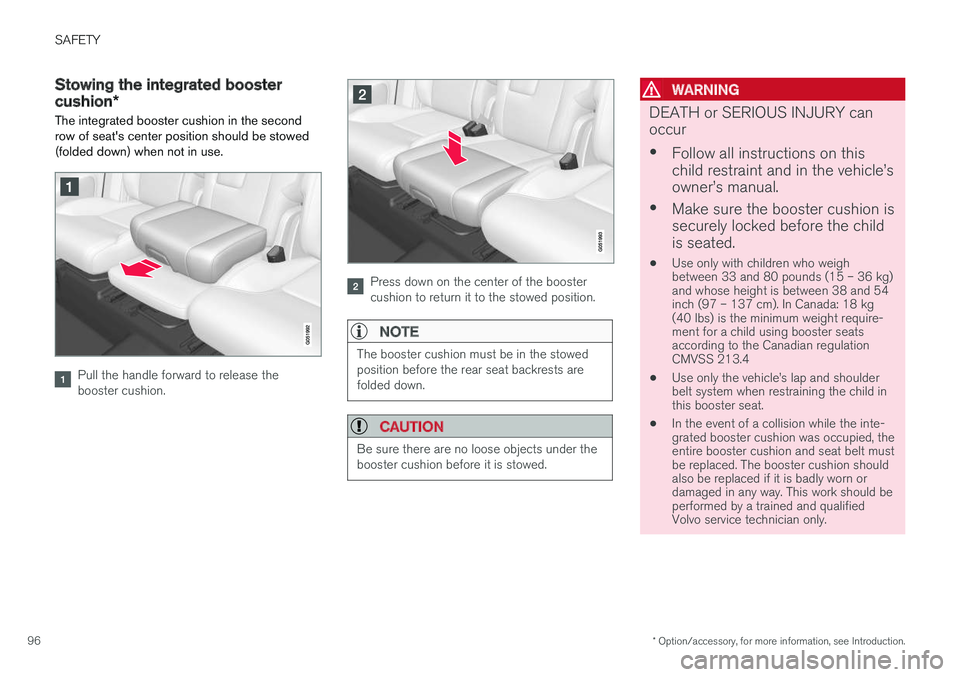

Stowing the integrated booster
cushion*
The integrated booster cushion in the secondrow of seat's center position should be stowed(folded down) when not in use.
Pull the handle forward to release thebooster cushion.
Press down on the center of the boostercushion to return it to the stowed position.

NOTE
The booster cushion must be in the stowedposition before the rear seat backrests arefolded down.

CAUTION
Be sure there are no loose objects under thebooster cushion before it is stowed.
WARNING
DEATH or SERIOUS INJURY can
occur
•Follow all instructions on this
child restraint and in the vehicle

SAFETY
* Option/accessory, for more information, see Introduction.97

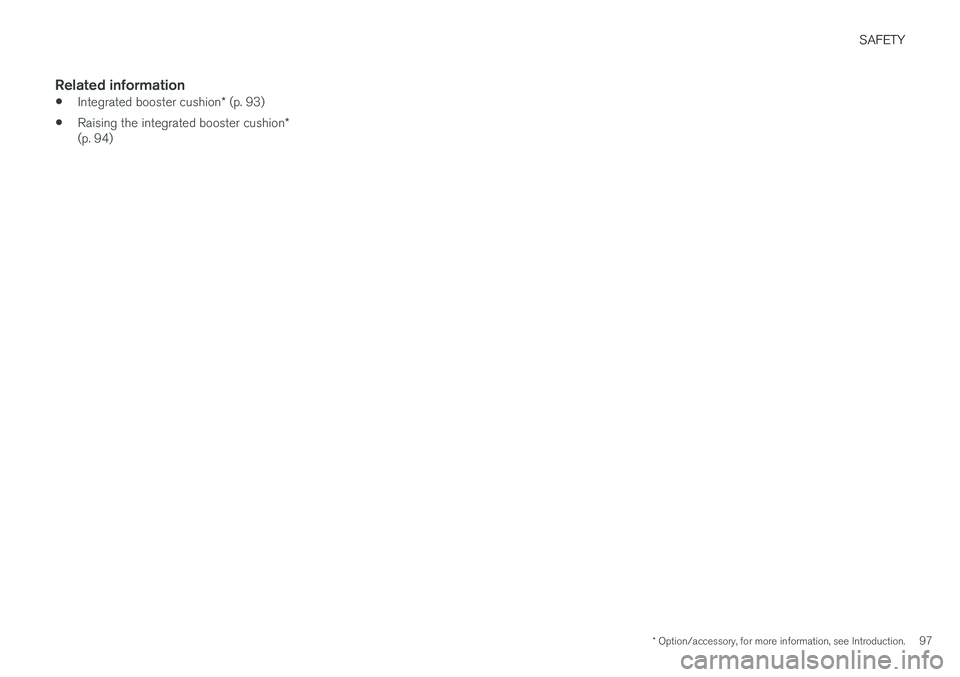

Related information
•Integrated booster cushion* (p. 93)
•Raising the integrated booster cushion*(p. 94)
