VOLVO XC90 TWIN ENGINE HYBRID 2017 Owners Manual
Manufacturer: VOLVO, Model Year: 2017, Model line: XC90 TWIN ENGINE HYBRID, Model: VOLVO XC90 TWIN ENGINE HYBRID 2017Pages: 584, PDF Size: 14.2 MB
Page 341 of 584
DRIVER SUPPORT
}}
* Option/accessory, for more information, see Introduction.339
Blind Spot Information (BLIS)*
Blind Spot Information is a system designed toalert the driver to the presence of other vehiclesmoving in the same direction as your vehicle onroads with several lanes.
Blind Spot Information is a driving aid intendedto:
•detect other vehicles in your door mirrors'"blind area"
•detect vehicles that are about to pass yourvehicle or are approaching your vehiclequickly from behind in the left and/or rightlanes
WARNING
•Blind Spot Information is an informationsystem, NOT a warning or safety systemand does not function in all situations.
•Blind Spot Information does not eliminatethe need for you to visually confirm theconditions around you, and the need foryou to turn your head and shoulders tomake sure that you can safely changelanes or back up.
•As the driver, you have full responsibilityfor changing lanes/backing up in a safemanner.
Overview
Blind Spot Information indicators
Indicator light
BLIS button in the center display's Functionview to activate/deactivate the function
The indicator light illuminates on the side of thevehicle where the system has detected anothervehicle. If your vehicle is passed on both sides atthe same time, both lights will illuminate.
Principle for Blind Spot Information: Zone 1. Blind area,Zone 2. Area for approaching/passing vehicles
Blind Spot Information functions when your vehi-cle is moving at speeds above approx. 6 mph(10 km/h).
Blind Spot Information is designed to react to:
•vehicles that are passing your vehicle
•other vehicles that are rapidly approachingyour vehicle
When Blind Spot Information detects a vehicle inzone 1 or a fast-approaching vehicle in zone 2,the indicator light in the respective door mirrorwill glow steadily.
If the driver then uses the turn signal on the sideon which the warning is given, the indicator lightwill begin flashing and become brighter.
Page 342 of 584
||
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.340
WARNING
•Blind Spot Information does not functionin sharp curves.
•Blind Spot Information does not functionwhen your vehicle is backing up.
Related information
•Blind Spot Information (BLIS)* On/Off(p. 340)
•Blind Spot Information (BLIS)* limitations(p. 341)
•Cross Traffic Alert (CTA)* (p. 341)
Blind Spot Information (BLIS)*On/Off
The Blind Spot Information function can be acti-vated/deactivated.
Blind Spot Information indicators
Indicator light
Blind Spot Information symbol
Blind Spot Information can be activated/deacti-vated in the center display's Function view.
–In Function view, tap BLIS.
>When Blind Spot Information is activated/deactivated, the indicator light in the but-ton will be green/gray.
If BLIS is activated when the engine is started,the indicator lights in the door mirrors will flashonce.
If BLIS is deactivated when the engine isswitched off, it will remain off the next time theengine is started and the indicator lights in thedoor mirrors will not illuminate.
Related information
•Blind Spot Information (BLIS)* (p. 339)
Page 343 of 584
DRIVER SUPPORT
}}
* Option/accessory, for more information, see Introduction.341
Blind Spot Information (BLIS)*limitations
Blind Spot Information functionality may bereduced in certain situations.
•Dirt, ice and snow on the sensors mayreduce functionality and prevent the systemfrom providing warnings.
•Do not attach any objects, tape, decals, etc.,on the surface of the sensors.
•BLIS is deactivated if a trailer is attached tothe vehicle's electrical system.
Maintenance
The BLIS/CTA6 sensors are located on theinside of the rear fenders/bumper.
Keep the highlighted area clean (on both sides of thevehicle)
For the system to function optimally, the areaover and around the sensors must be kept clean.
CAUTION
Repairs to the BLIS/CTA systems and/orrepainting the rear bumper should only bedone by a trained and qualified Volvo servicetechnician.
Related information
•Blind Spot Information (BLIS)* On/Off(p. 340)
•Blind Spot Information (BLIS)* (p. 339)
•Cross Traffic Alert (CTA)* (p. 341)
Cross Traffic Alert (CTA)*
Cross Traffic Alert (CTA) is a supplementary partof Blind Spot Information and is intended todetect vehicles crossing behind your vehiclewhile you are backing up.
When does Cross Traffic Alert function
Principle for CTA
CTA supplements BLIS by warning the driver ofcrossing traffic behind your vehicle, for example,when backing out of a parking space.
It is primarily designed to detect another vehiclebut in certain cases may also detect pedestriansor smaller objects such as bicycles.
CTA is only activated when the vehicle is rollingrearward or backing up and is activated automati-cally when the gear selector is put in reverse.
6Cross Traffic Alert*
Page 344 of 584
||
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.342
•An audible signal indicates that CTA hasdetected something that is approaching fromthe side. The signal will come from either theleft or right infotainment system speakers,depending on which the side of your vehiclethe approaching vehicle/ object has beendetected.
•A warning is indicated using the Park Assist*system's graphic in the instrument panel.
•An icon is also shown in the Park AssistCamera's* Top view.
Related information
•Activating/deactivating Cross Traffic Alert(CTA)* (p. 342)
•Blind Spot Information (BLIS)* with CrossTraffic Alert (CTA)* symbols and messages(p. 345)
•Cross Traffic Alert (CTA)* limitations (p. 343)
Activating/deactivating Cross Traffic
Alert (CTA)*
Cross Traffic Alert (CTA) can be activated/deac-tivated separately from Blind Spot Information(BLIS).
CTA is activated/deactivated inthe center display's Functionview.
–Tap Cross Traffic Alert in Function view.
>CTA activates/deactivates.
•Green indicator light: CTA is activated
•Grey indicator light: CTA is deactivated
CTA is activated when the engine is started.
WARNING
•BLIS and CTA are information systems,NOT warning or safety systems and donot function in all situations.
•BLIS and CTA do not eliminate the needfor you to visually confirm the conditionsaround you, and the need for you to turnyour head and shoulders to make surethat you can safely change lanes or backup.
•As the driver, you have full responsibilityfor changing lanes/backing up in a safemanner.
Related information
•Cross Traffic Alert (CTA)* (p. 341)
•Blind Spot Information (BLIS)* On/Off(p. 340)
Page 345 of 584
DRIVER SUPPORT
}}
* Option/accessory, for more information, see Introduction.343
Cross Traffic Alert (CTA)* limitations
CTA functionality may be reduced in certain sit-uations.
Limitations
CTA has limitations in certain situations, forexample, the CTA sensors cannot "see" throughother parked vehicles or obstructions.
The following are several examples where CTA's"field of vision" may initially be limited andapproaching vehicles cannot be detected untilthey are too close:
The vehicle is pulled far into a parking space
In angled parking spaces, CTA may be "blind" on oneside
CTA's blind area
CTA's "field of vision"
However, as you back your vehicle out of a park-ing space, CTA's "field of vision" expands.
Examples of other limitations include:
•Dirt, ice or snow obstructing the sensors mayreduce the system's function or make itimpossible to detect other vehicles orobjects.
•CTA is deactivated if a trailer's wiring is con-nected to the vehicle's electrical system.
Maintenance
The CTA sensors are located on the inside of therear fenders/bumper.
Keep the highlighted area clean (on both sides of thevehicle)
For the system to function optimally, the areaover and around the sensors must be kept clean.
Do not attach any objects, tape, decals, etc., onthe surface of the sensors.
CAUTION
Repairs to the BLIS/CTA systems and/orrepainting the rear bumper should only bedone by a trained and qualified Volvo servicetechnician.
Related information
•Cross Traffic Alert (CTA)* (p. 341)
•Activating/deactivating Cross Traffic Alert(CTA)* (p. 342)

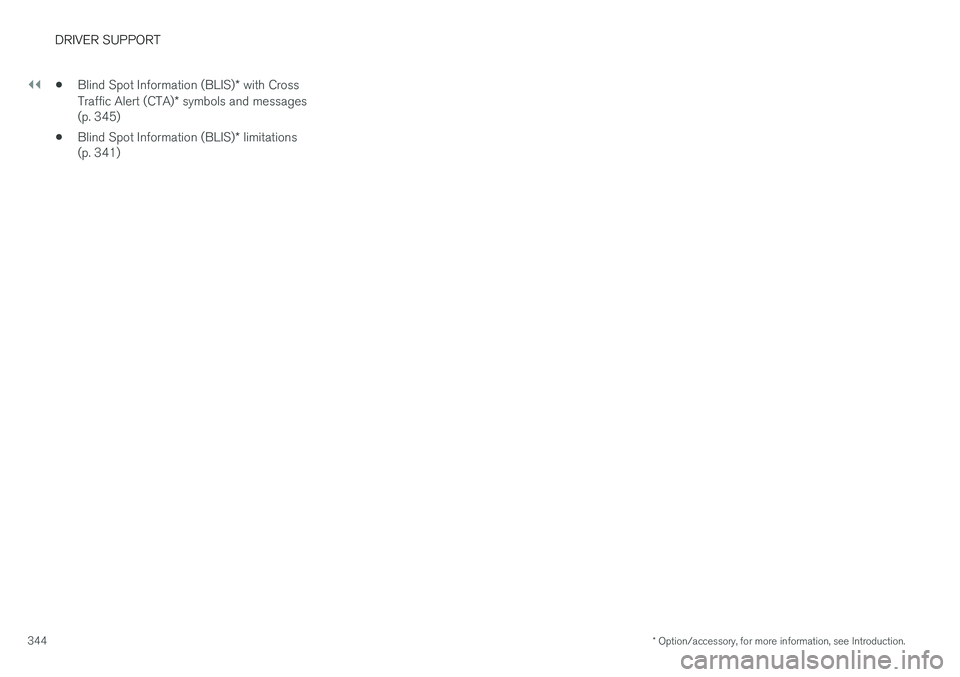

Page 346 of 584
||
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.344
•Blind Spot Information (BLIS)* with CrossTraffic Alert (CTA)* symbols and messages(p. 345)
•Blind Spot Information (BLIS)* limitations(p. 341)
Page 347 of 584
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.345
Blind Spot Information (BLIS)* with
Cross Traffic Alert (CTA)* symbolsand messages
In situations where Blind Spot Informationand/or Cross Traffic Alert are not functioning
properly or if the function is interrupted, a sym-bol and a text message may be displayed in theinstrument panel. Follow the instructions provi-ded.
The following table lists several symbols and messages:
MessageExplanation
Blind spot sensor
Service required
The system is not functioning properly. Contact a trained and qualified Volvo service technician
Blind spot system off
Trailer attached
BLIS and CTA have been deactivated because a trailer has been connected to teh vehicle's electrical system.
A text message can be erased by briefly pressingthe O button on the right-side steering wheelkeypad. If the message recurs, contact a trainedand authorized Volvo service technician orretailer.
Related information
•Cross Traffic Alert (CTA)* (p. 341)
•Blind Spot Information (BLIS)* (p. 339)
Page 348 of 584
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.346
Road Sign Information (RSI)*
RSI is a feature that helps the driver see roadsigns showing the posted speed limit.
Examples of readable road signs
If the vehicle passes a sign showing the speedlimit, this will be displayed in the instrument paneland the head-up display*.
NOTE
If the vehicle is equipped with the SensusNavigation system, speed-related informationis provided by this system in the followinginstances:
•In cases where the speed limit is givenindirectly (e.g., when driving on highwaysor other major roads).
•If a previously read speed limit sign is nolonger considered valid and no new signhas been passed.
If a third-party navigation system is beingused, RSI has no support for speed-relatedinformation.
WARNING
RSI does not function in all situations and isonly intended to provide supplementary infor-mation.
The driver is always responsible for operatingthe vehicle safely.
Related information
•Road Sign Information (RSI)* operation(p. 346)
•Road Sign Information (RSI)* limitations(p. 348)
•Speed limiter (SL)* (p. 267)
•Head-up display (HUD)* (p. 122)
Road Sign Information (RSI)*operation
Speed limit information
Speed limit information
When RSI registers a road sign showing thespeed limit, this sign is displayed as a symbol onthe instrument panel.
Settings
RSI settings can be made in the center display'sTop view.
Go to: SettingsMy CarIntelliSafeRoad Sign Information.
Page 349 of 584
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.347
Activating/deactivating RSI
RSI can be activated/deacti-vated in the center display'sfunction view.
–Tap the Road Sign Information button inFunction view.
>When RSI is activated, the indicator lightin the button will be green. The indicatorlight will be gray when the function isdeactivated.
Activating/deactivating the speed warning
function
The driver can be alerted if the current speedlimit is being exceeded (the symbol for the cur-rent speed limit will begin to flash). This functioncan be activated or deactivated and the limit for awarning can be set.
1.Tap Settings in the center display's Topview.
2.Tap My CarIntelliSafeRoad SignInformation.
3.Tap Speed Limit Warning to activate/deac-tivate this function.
>If the function is activated, a speed selec-tor will be displayed.
4. Select the limit at which the speed warning isto be given by pressing the up/down arrows.
Please be aware that the set warning limitwill not be used when a speed camera sym-bol is displayed in the instrument panel.
Activating/deactivating the audible alert
The audible alert can be activated/deactivatedand the limit for a warning can be set.
1.Tap Settings in the center display's Topview.
2.Tap My CarIntelliSafeRoad SignInformation.
3.Tap Audio Warning to activate/deactivatethis function.
Speed camera alert
Speed camera warning in the instrument panel (genericillustration)
If the Sensus navigation systemin your vehicle is being used,the driver can be alerted if thevehicle is exceeding a detectedspeed limit and is approachinga speed camera.
Related information
•Road Sign Information (RSI)* (p. 346)
•Road Sign Information (RSI)* limitations(p. 348)
Page 350 of 584
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.348
Road Sign Information (RSI)*limitations
The RSI function may be limited in certain situa-tions.
RSI may have difficulty reading signs that are:
•Faded
•Located in a curve
•Twisted or damaged
•Positioned high above the road
•Obstructed (by bushes, etc.)
•Partially covered by snow, ice, etc.
•If the digital maps used by the SensusNavigation system* are not up-to-date or do
not contain speed information7.
The camera used by RSI has certain limitations.See the article "Camera limitations" for additionalinformation.
NOTE
RSI may perceive certain types of bicycleholders (with wiring attached to the trailerelectrical socket) as a trailer, which may resultin faulty speed limit information to the driver.
Related information
•Road Sign Information (RSI)* (p. 346)
•Road Sign Information (RSI)* operation(p. 346)
•Camera limitations (p. 323)
Driver Alert Control (DAC)
DAC is intended to alert the driver if his/her driv-ing becomes erratic due to e.g., distraction orfatigue.
DAC is designed to help detect a slowly chang-ing driving pattern. It is primarily intended to beused on main roads and is not meant for use incity traffic.
The function activates initially when the vehicle'sspeed first exceeds 40 mph (65 km/h) andremains active as long the speed remains aboveapprox. 38 mph (60 km/h)
A camera monitors the traffic lane's side markerlines and compares the direction of the road withthe driver
