YAMAHA AEROX50 2014 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-5

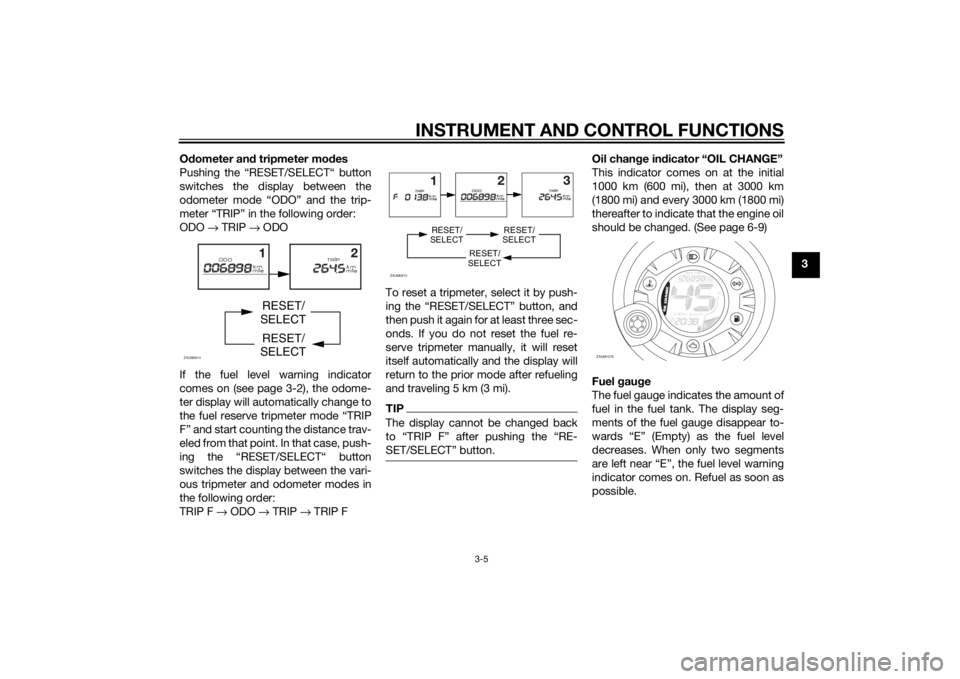

3 Odometer and tripmeter modes
Pushing the “RESET/SELECT“ button
switches the display between the
odometer mode “ODO” and the trip-
meter “TRIP” in the following order:
ODO → TRIP → ODO
If the fuel level warning indicator
comes on (see page 3-2), the odome-
ter display will automatically change to
the fuel reserve tripmeter mode “TRIP
F” and start counting the distance trav-
eled from that point. In that case, push-
ing the “RESET/SELECT“ button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
TRIP F → ODO → TRIP → TRIP FTo reset a tripmeter, select it by push-
ing the “RESET/SELECT” button, and
then push it again for at least three sec-
onds. If you do not reset the fuel re-
serve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
TIPThe display cannot be changed back

SET/SELECTŽ button.
Oil change indicator “OIL CHANGE”
This indicator comes on at the initial
1000 km (600 mi), then at 3000 km
(1800 mi) and every 3000 km (1800 mi)
thereafter to indicate that the engine oil
should be changed. (See page 6-9)
Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel gauge disappear to-
wards “E” (Empty) as the fuel level
decreases. When only two segments
are left near “E”, the fuel level warning
indicator comes on. Refuel as soon as
possible.
ZAUM0914
RESET/
SELECT
RESET/
SELECT
ZAUM0915
RESET/
SELECT
RESET/
SELECT
RESET/
SELECT
ZAUM1078
O
IL
CHAN
GE
U1GBE0E0.book Page 5 Wednesday, June 26, 2013 4:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3

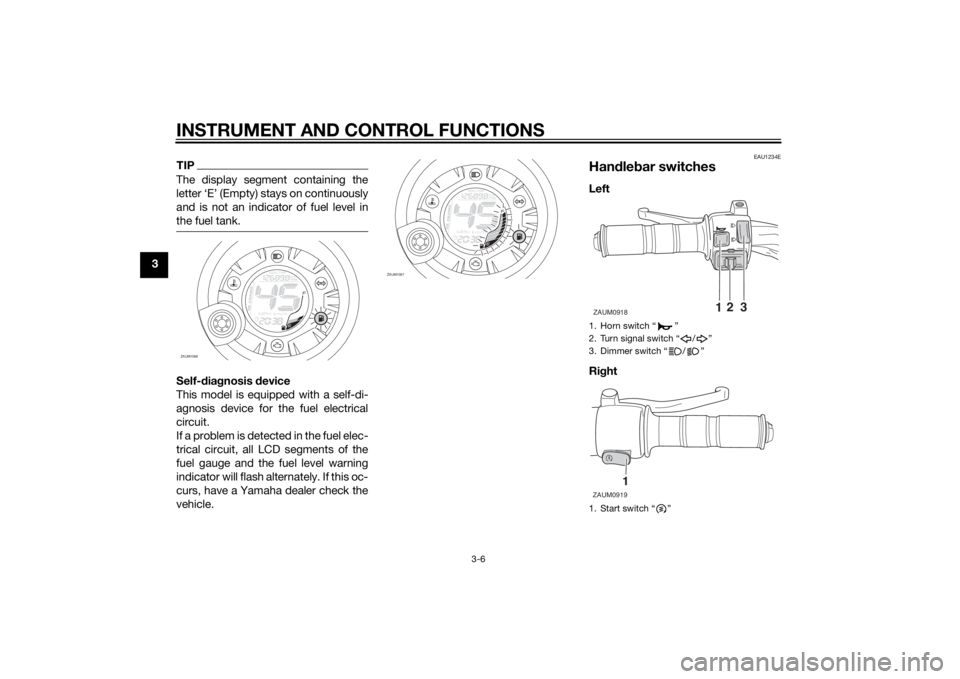

TIPThe display segment containing the
letter ‘E’ (Empty) stays on continuously
and is not an indicator of fuel level in
the fuel tank.Self-diagnosis device
This model is equipped with a self-di-
agnosis device for the fuel electrical
circuit.
If a problem is detected in the fuel elec-
trical circuit, all LCD segments of the
fuel gauge and the fuel level warning
indicator will flash alternately. If this oc-
curs, have a Yamaha dealer check the
vehicle.
EAU1234E
Handlebar switchesLeft
Right
ZAUM1066
O
IL
CHAN
GE
ZAUM1067
O
IL
CHAN
GE
1. Horn switch “ ”
2. Turn signal switch “ / ”
3. Dimmer switch “ / ”
1. Start switch “ ”ZAUM0918
12
3
1
ZAUM0919
U1GBE0E0.book Page 6 Wednesday, June 26, 2013 4:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAUM1133
Start switch “ ”
Push this switch while applying the
front or rear brake to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU12902
Front brake leverThe front brake lever is located on the
right side of the handlebar. To apply
the front brake, pull this lever toward
the throttle grip.
EAU12952
Rear brake leverThe rear brake lever is located on the
left side of the handlebar. To apply the
rear brake, pull this lever toward the
handlebar grip.
1. Front brake lever
1
ZAUM0791
1. Rear brake lever
1
ZAUM0085
U1GBE0E0.book Page 7 Wednesday, June 26, 2013 4:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAUM3261

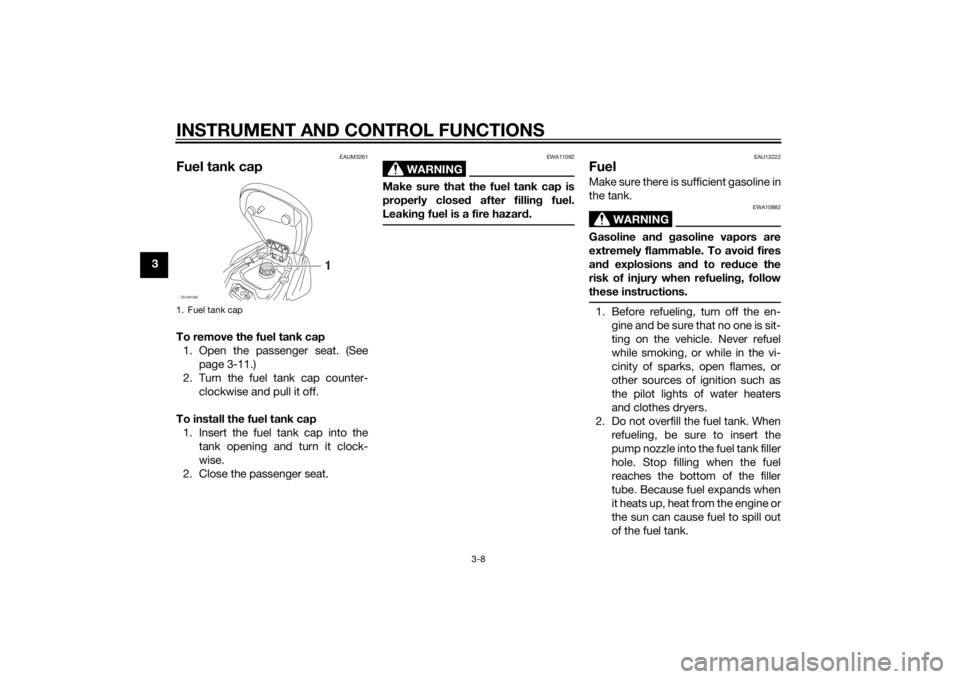

Fuel tank capTo remove the fuel tank cap
1. Open the passenger seat. (See
page 3-11.)
2. Turn the fuel tank cap counter-
clockwise and pull it off.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening and turn it clock-
wise.
2. Close the passenger seat.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
1. Fuel tank capZAUM1068
1
U1GBE0E0.book Page 8 Wednesday, June 26, 2013 4:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
3. Wipe up any spilled fuel immedi- ately. NOTICE: Immediately
wipe off spilled fuel with a clean,
dry, soft cloth, since fuel may
deteriorate painted surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gasoline
by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi- ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU54601
NOTICE
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use premium unleaded gas-
oline with a research octane number of
95 or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand. Use of unleaded fuel will extend
spark plug life and reduce mainte-
nance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
1. Fuel tank filler tube
2. Maximum fuel levelZAUM0923
1
2
Recommended fuel: Premium unleaded gasoline (Gaso-
hol (E10) acceptable)
Fuel tank capacity:
6.0 L (1.59 US gal, 1.32 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
1.0 L (0.26 US gal, 0.22 Imp.gal)
U1GBE0E0.book Page 9 Monday, July 15, 2013 11:45 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
Make sure that the exhaust sys-
tem has cooled down before
doing any maintenance work.
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10702
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
EAUM3140
KickstarterIf the engine fails to start by pushing
the start switch, try to start it by using
the kickstarter. To start the engine,
push the kickstarter down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully.1. Kickstarter leverZAUM1069
1
U1GBE0E0.book Page 10 Wednesday, June 26, 2013 4:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAUM2831

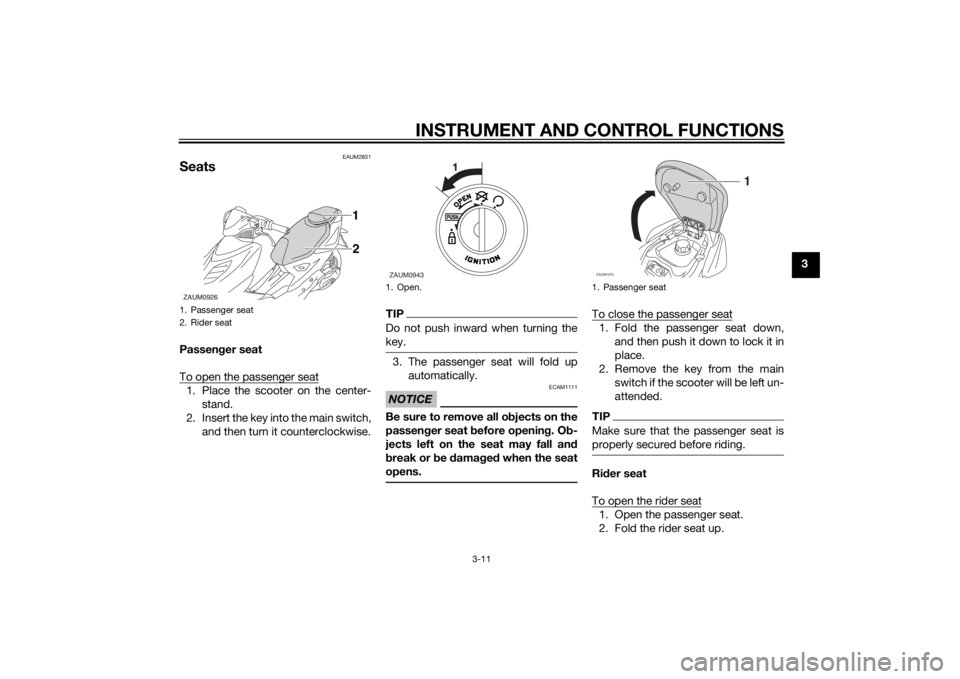

SeatsPassenger seat
To open the passenger seat1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise.
TIPDo not push inward when turning the
key.3. The passenger seat will fold up
automatically.NOTICE
ECAM1111
Be sure to remove all objects on the
passenger seat before opening. Ob-
jects left on the seat may fall and
break or be damaged when the seat
opens.
To close the passenger seat1. Fold the passenger seat down,
and then push it down to lock it in
place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.TIPMake sure that the passenger seat is
properly secured before riding.Rider seat
To open the rider seat1. Open the passenger seat.
2. Fold the rider seat up.
1. Passenger seat
2. Rider seatZAUM0926
2 1
1. Open.ZAUM0943
1. Passenger seatZAUM1070
1
U1GBE0E0.book Page 11 Wednesday, June 26, 2013 4:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
To close the rider seat
1. Fold the rider seat down.
2. Close the passenger seat.TIPMake sure that the rider seat is proper-
ly secured before riding.
EAUM2801
Storage compartmentThere is a storage compartment under
the rider seat. (See page 3-11.)
WARNING
EWA10962
Do not exceed the load limit of 3
kg (7 lb) for the storage com-
partment.
Do not exceed the maximum
load of 182 kg (401 lb) for the ve-
hicle.NOTICE
ECA10082
Keep the following points in mind
when using the storage compart-
ment.Since the storage compartment
accumulates heat when ex-
posed to the sun and/or the en-
gine heat, do not store anything
susceptible to heat, consum-
ables or flammable items inside
it.
To avoid humidity from spread-
ing through the storage com-
partment, wrap wet articles in a
plastic bag before storing them
in the compartment.
Since the storage compartment
may get wet while the scooter is
being washed, wrap any articles
stored in the compartment in a
plastic bag.
Do not keep anything valuable
or breakable in the storage
compartment.
To store a helmet in the storage com-
partment, place the helmet with the
front facing forward.TIPSome helmets cannot be stored in
the storage compartment be-
cause of their size or shape.
1. Rider seatZAUM0925
1
1. Storage compartmentZAUM0927
1
U1GBE0E0.book Page 12 Wednesday, June 26, 2013 4:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3 Do not leave your scooter unat-
tended with the seat open.
U1GBE0E0.book Page 13 Wednesday, June 26, 2013 4:04 PM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15598
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.3-8
Engine oil• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.6-9
Final transmission oil• Check vehicle for oil leakage. 6-11
Coolant• Check coolant level in reservoir.
• If necessary, add recommended coolant to specified level.
• Check cooling system for leakage.6-12
Front brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage.6-17, 6-18, 6-18
U1GBE0E0.book Page 1 Wednesday, June 26, 2013 4:04 PM
