Page 121 of 132

YAMAHA BLASTER 200 2007  Owners Manual
9-1
1
2
3
4
5
6
7
89
10
11

EBU25860

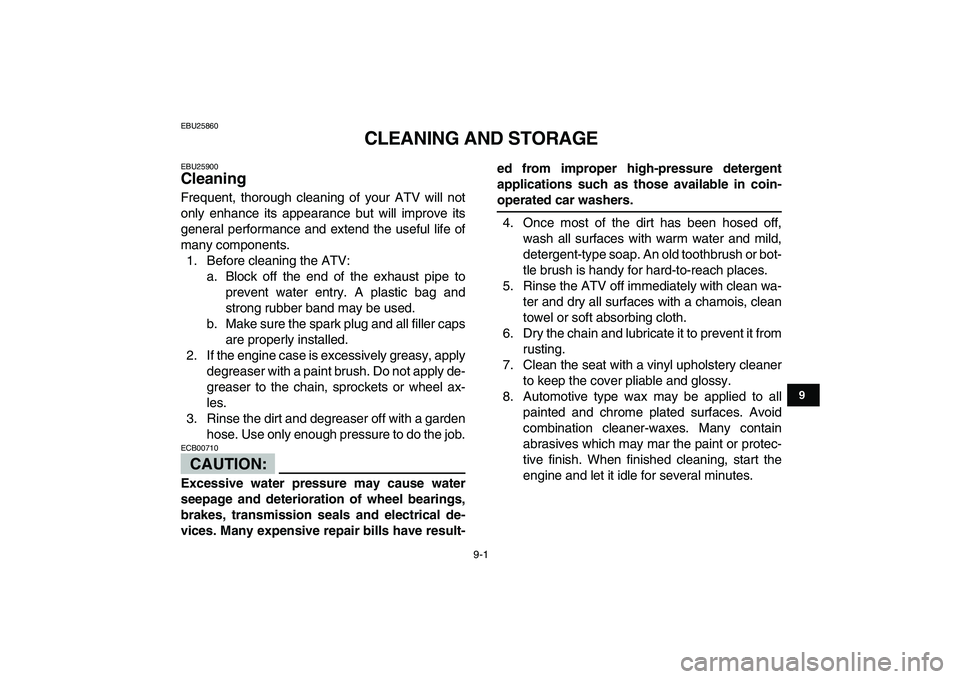

CLEANING AND STORAGE
EBU25900
Cleaning
Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performan

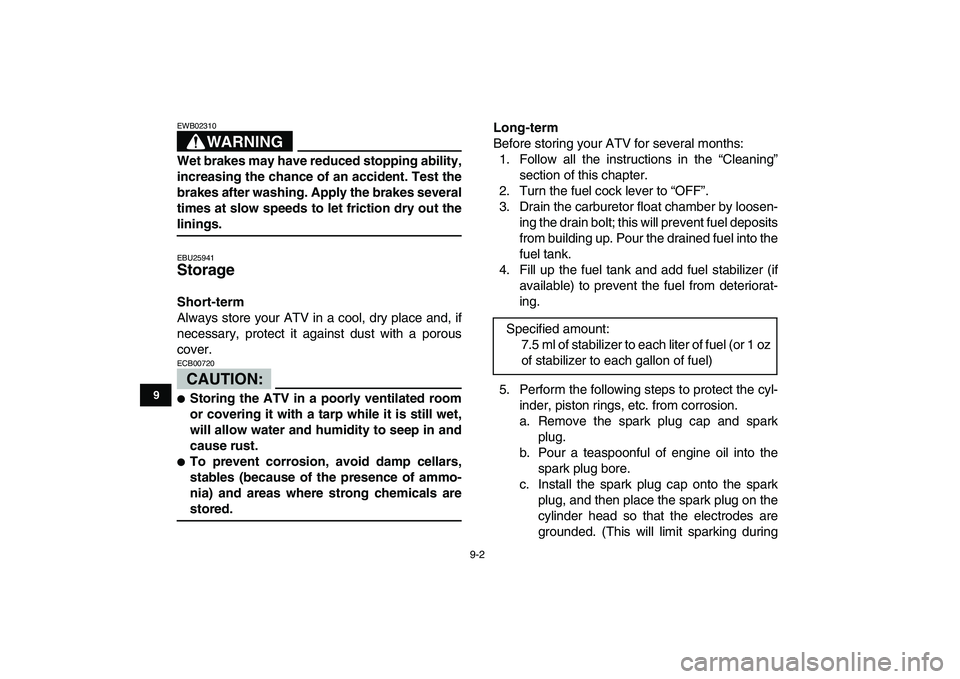

Page 122 of 132

YAMAHA BLASTER 200 2007  Owners Manual
9-2
1
2
3
4
5
6
7
89
10
11
WARNING

EWB02310
Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at

Page 123 of 132

YAMAHA BLASTER 200 2007  Owners Manual
9-3
1
2
3
4
5
6
7
89
10
11

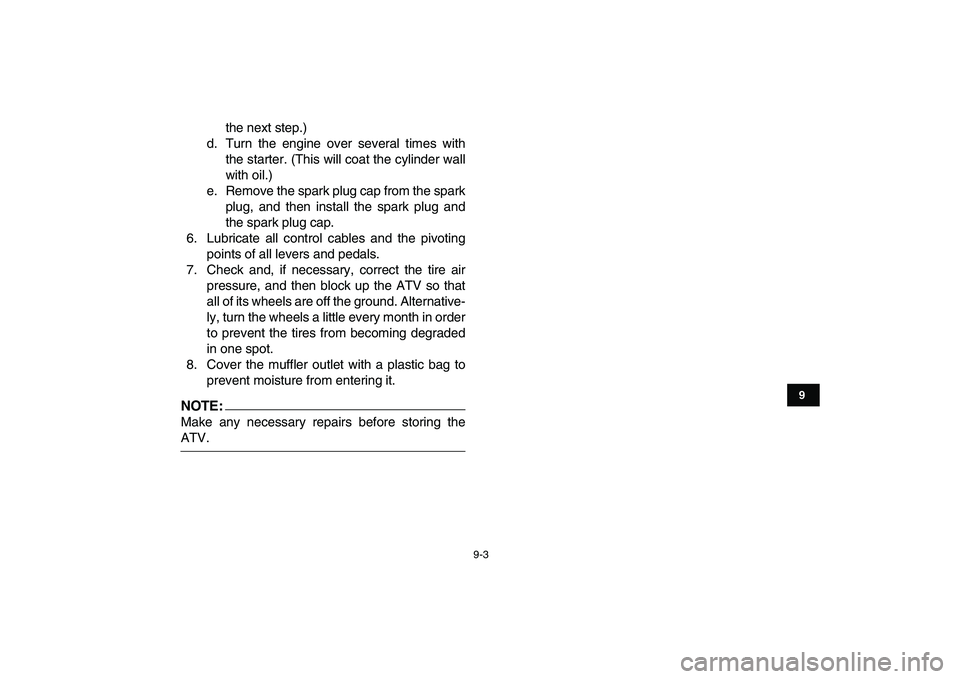

the next step.)
d. Turn the engine over several times with
the starter. (This will coat the cylinder wall
with oil.)
e. Remove the spark plug cap from the spark
plug, a

Page 124 of 132

YAMAHA BLASTER 200 2007  Owners Manual
10-1
1
2
3
4
5
6
7
8
910
11

EBU25960

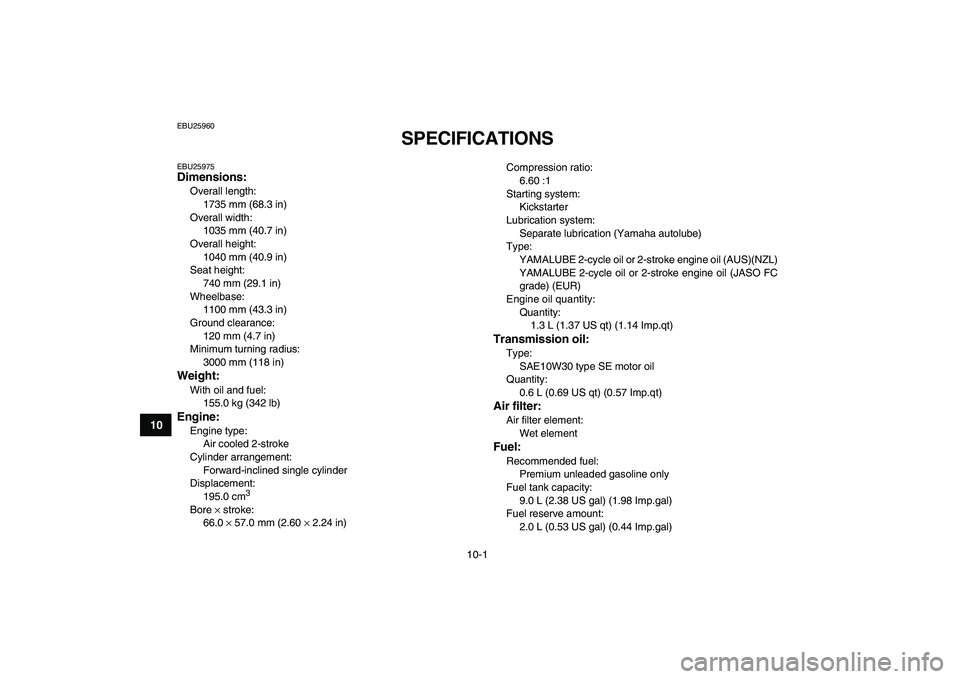

SPECIFICATIONS
EBU25975
Dimensions:
Overall length:
1735 mm (68.3 in)
Overall width:
1035 mm (40.7 in)
Overall height:
1040 mm (40.9 in)
Seat height:

Page 125 of 132

YAMAHA BLASTER 200 2007  Owners Manual
10-2
1
2
3
4
5
6
7
8
910
11

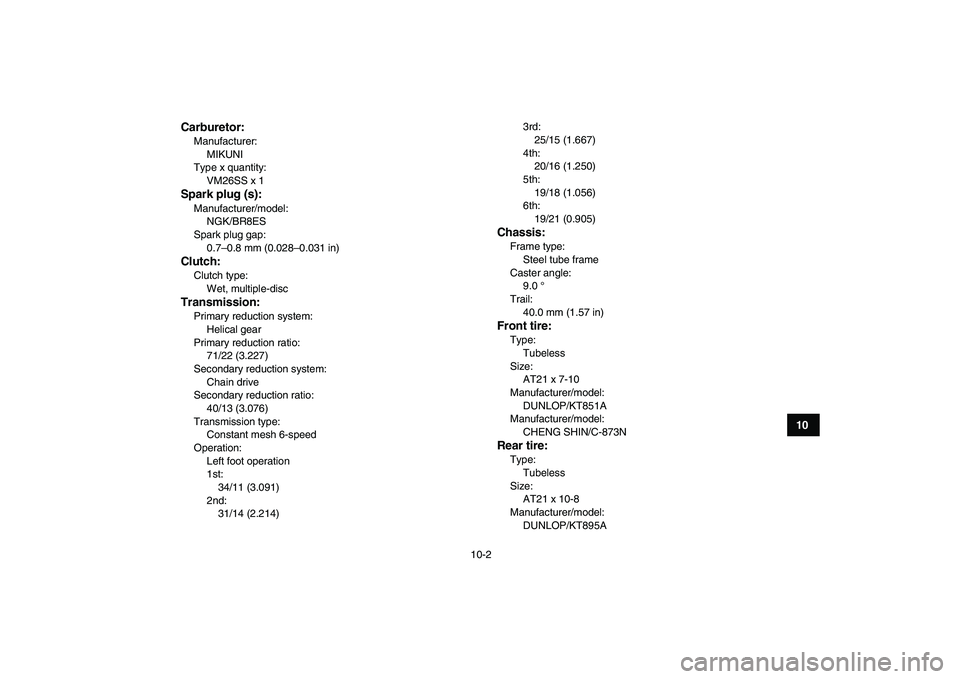

Carburetor:

Manufacturer:
MIKUNI
Type x quantity:
VM26SS x 1
Spark plug (s):
Manufacturer/model:
NGK/BR8ES
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutc

Page 126 of 132

YAMAHA BLASTER 200 2007  Owners Manual
10-3
1
2
3
4
5
6
7
8
910
11

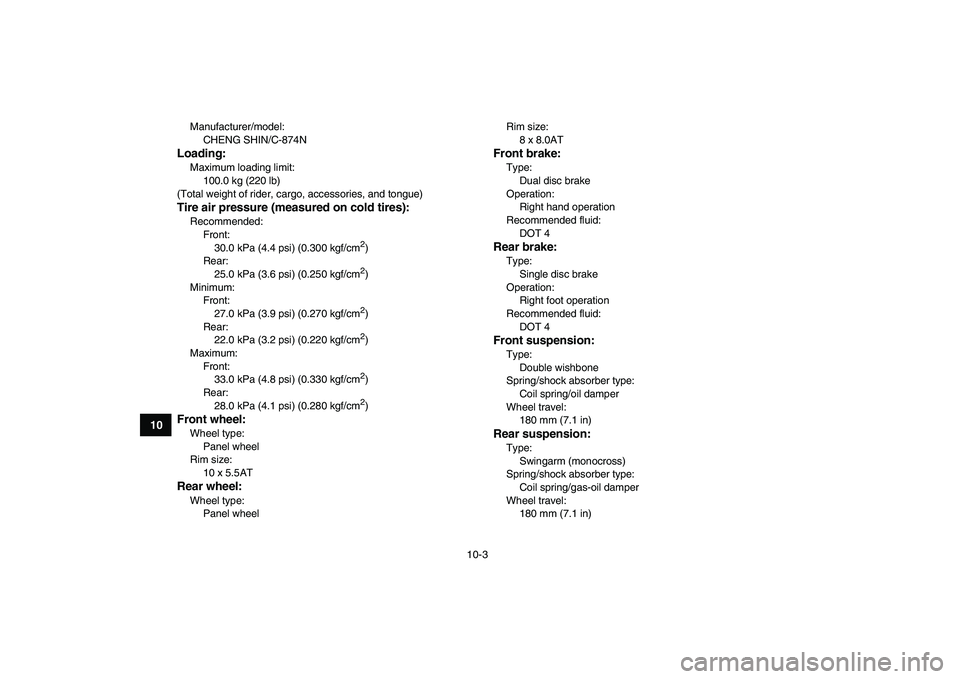

Manufacturer/model:
CHENG SHIN/C-874N
Loading:
Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)
Tire air pressure

Page 127 of 132

YAMAHA BLASTER 200 2007  Owners Manual
10-4
1
2
3
4
5
6
7
8
910
11

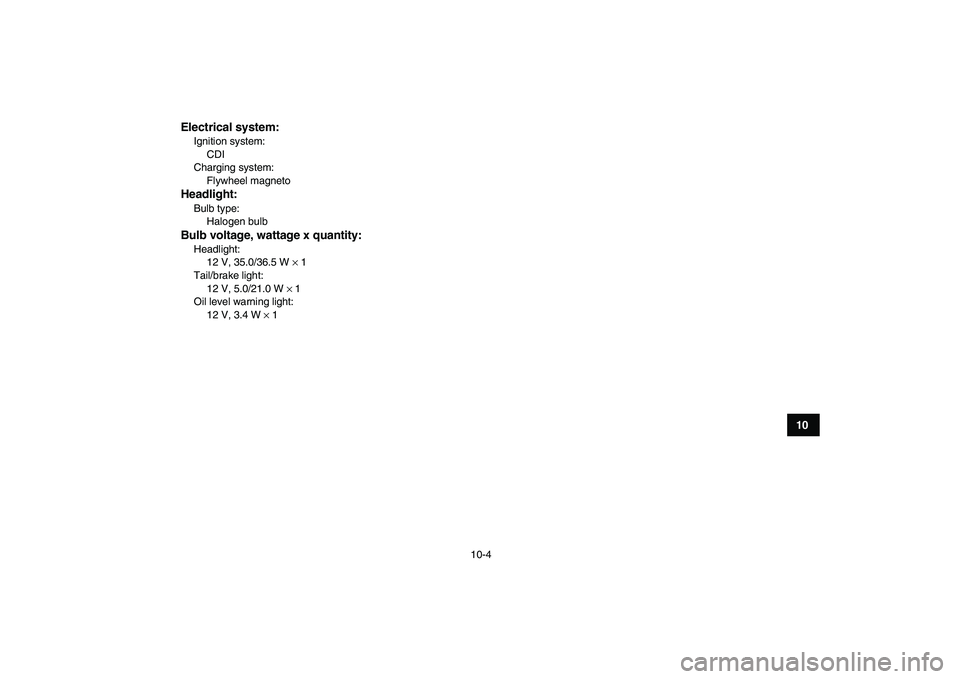

Electrical system:

Ignition system:
CDI
Charging system:
Flywheel magneto
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:
Headlight:
12 V,

Page 128 of 132

YAMAHA BLASTER 200 2007  Owners Manual
11-1
1
2
3
4
5
6
7
8
9
1011

EBU26000

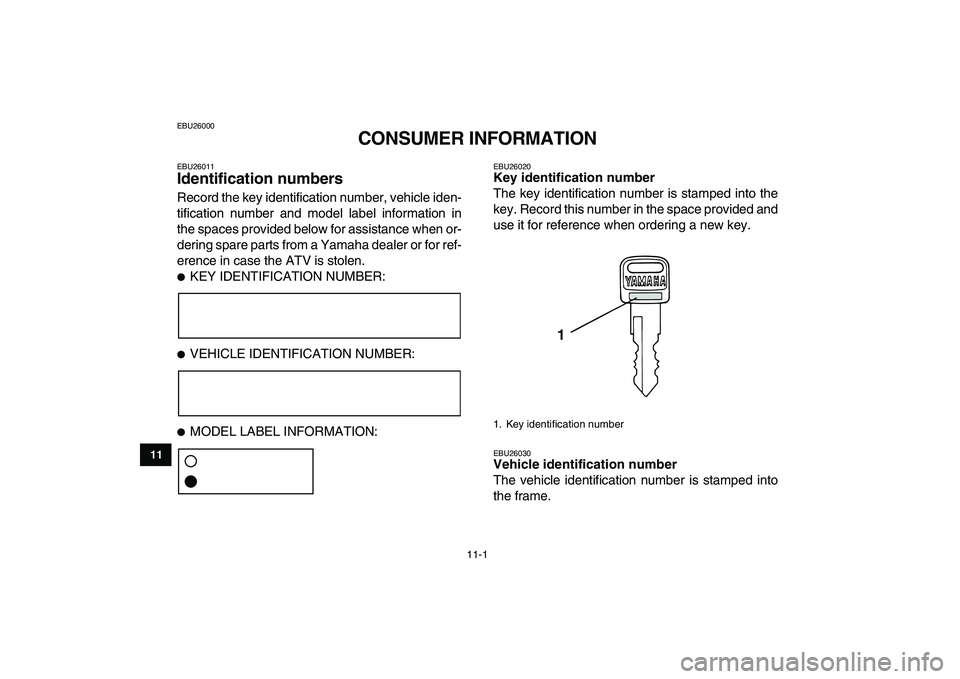

CONSUMER INFORMATION
EBU26011
Identification numbers
Record the key identification number, vehicle iden-
tification number and model label information in

Page 129 of 132

YAMAHA BLASTER 200 2007  Owners Manual
11-2
1
2
3
4
5
6
7
8
9
1011

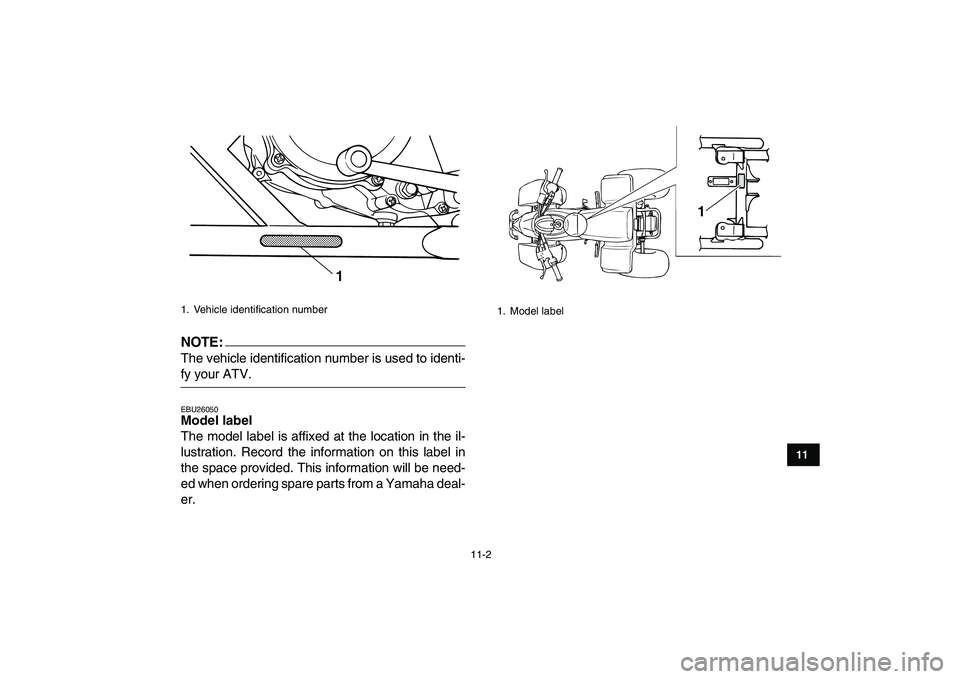

NOTE:

The vehicle identification number is used to identi-
fy your ATV.
EBU26050
Model label
The model label is affixed at the location in the il-
lustration. Rec

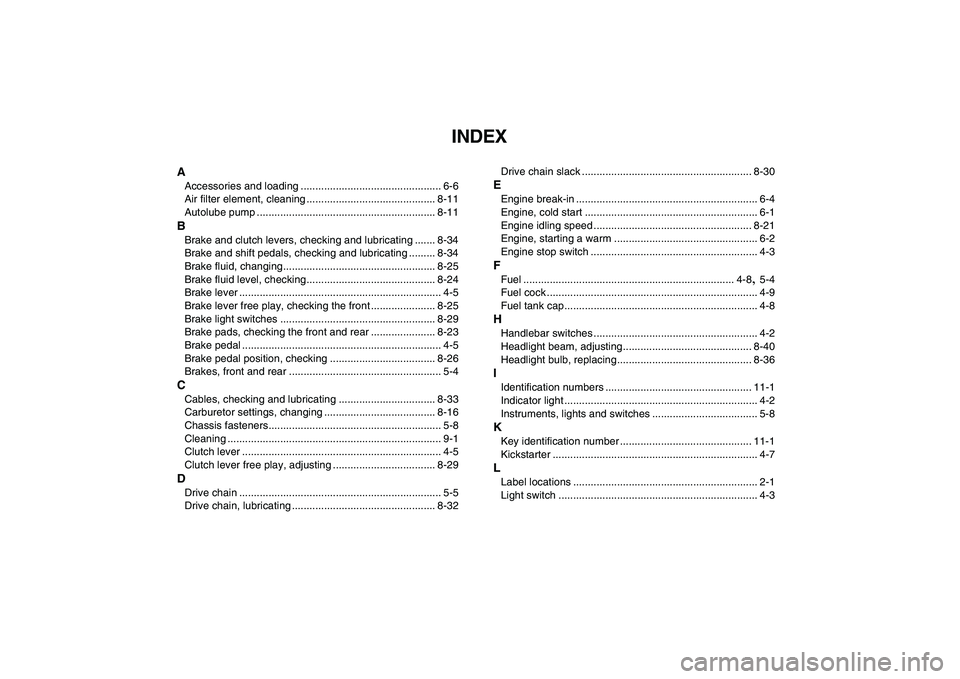

Page 130 of 132

YAMAHA BLASTER 200 2007  Owners Manual
INDEX
A
Accessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-11
Autolube pump ..................
