Page 81 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-6
1
2
3
4
5
6
78
9
10
11

EBU23070
NOTE:


The air filter needs more frequent service if you are riding in unusually wet or dusty areas.

Hydraulic brake service

Regularly check and, i

Page 82 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-7
1
2
3
4
5
6
78
9
10
11

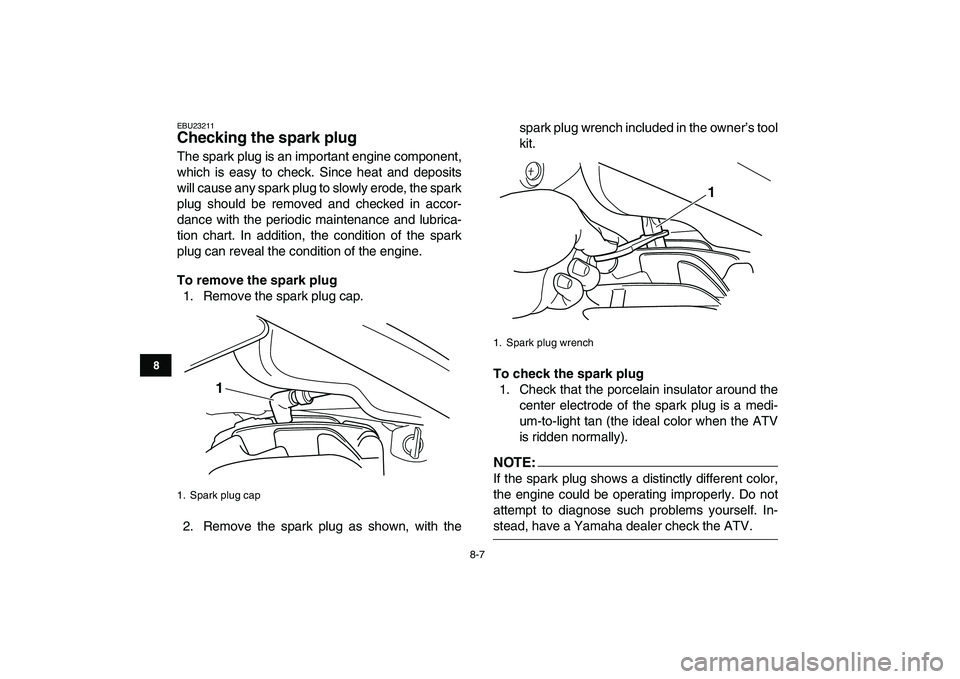

EBU23211
Checking the spark plug
The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly

Page 83 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-8
1
2
3
4
5
6
78
9
10
11

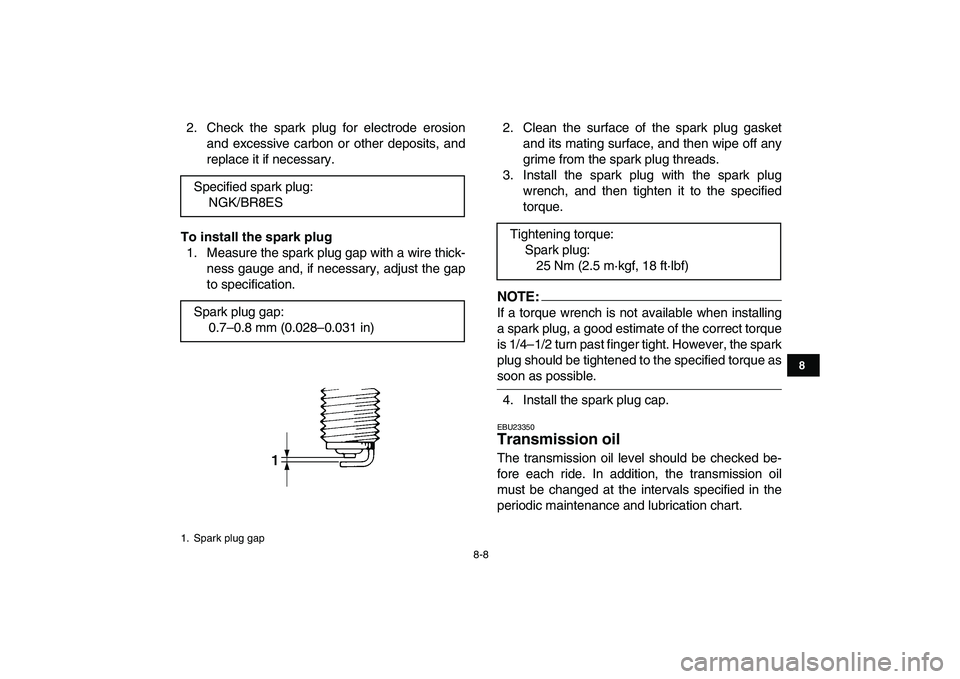

2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
To install the spark plug
1. Measure the spark plug

Page 84 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-9
1
2
3
4
5
6
78
9
10
11

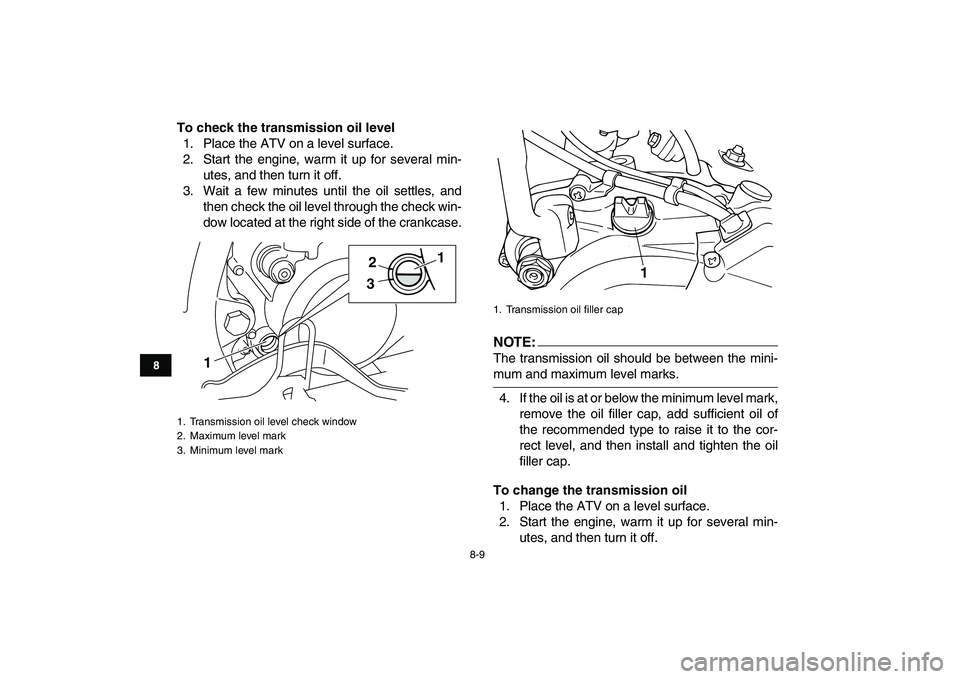

To check the transmission oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Wait a few min

Page 85 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-10
1
2
3
4
5
6
78
9
10
11

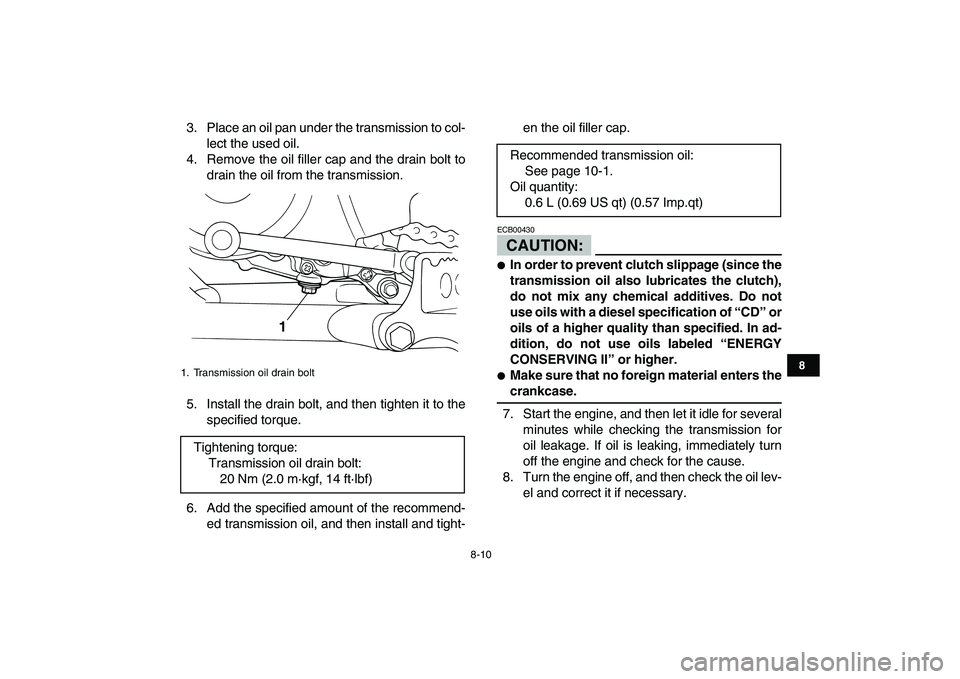

3. Place an oil pan under the transmission to col-
lect the used oil.
4. Remove the oil filler cap and the drain bolt to
drain the oil from the transmission.
5. Instal

Page 86 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-11
1
2
3
4
5
6
78
9
10
11

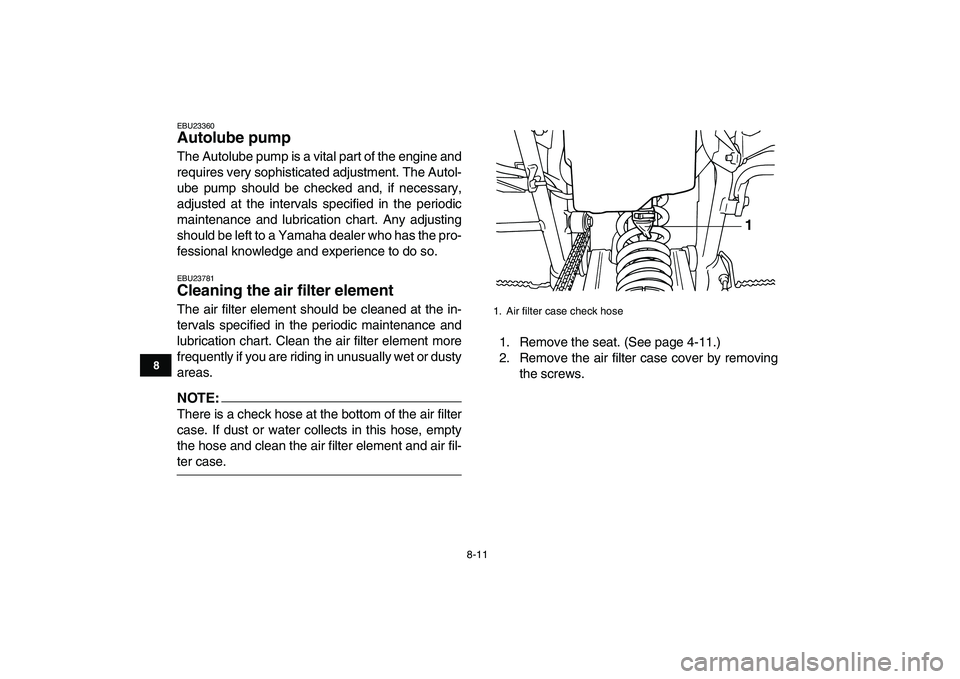

EBU23360
Autolube pump
The Autolube pump is a vital part of the engine and
requires very sophisticated adjustment. The Autol-
ube pump should be checked and, if nec

Page 87 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-12
1
2
3
4
5
6
78
9
10
11

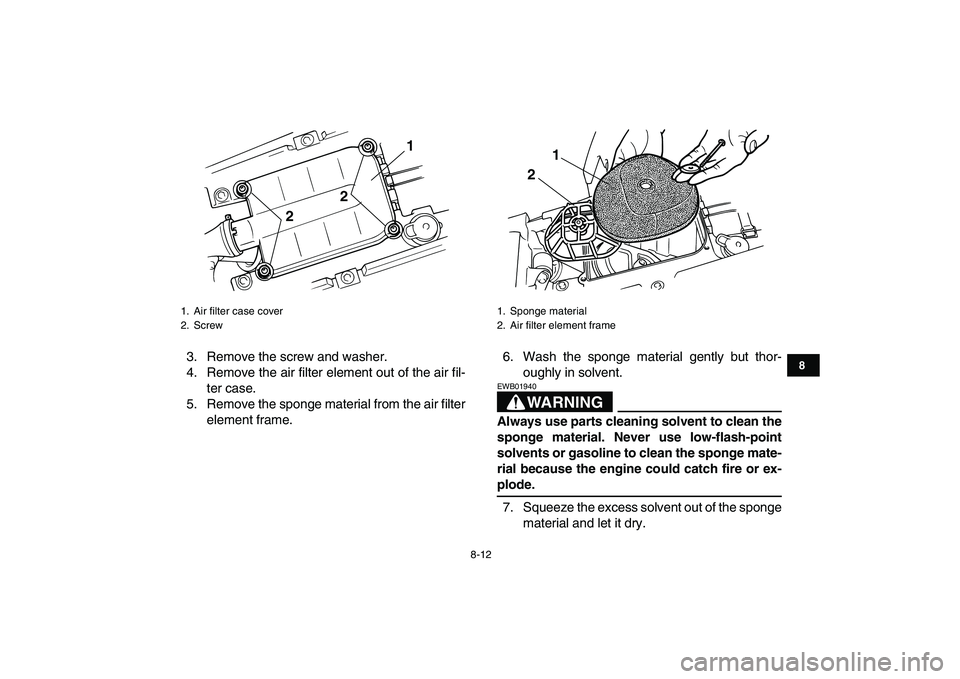

3. Remove the screw and washer.
4. Remove the air filter element out of the air fil-
ter case.
5. Remove the sponge material from the air filter
element frame.6. Wash

Page 88 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-13
1
2
3
4
5
6
78
9
10
11
CAUTION:

ECB00440
Do not twist the sponge material when squeez-
ing it.
8. Check the sponge material and replace it if
damaged.
9. Apply a quality foam air filter

Page 89 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-14
1
2
3
4
5
6
78
9
10
11

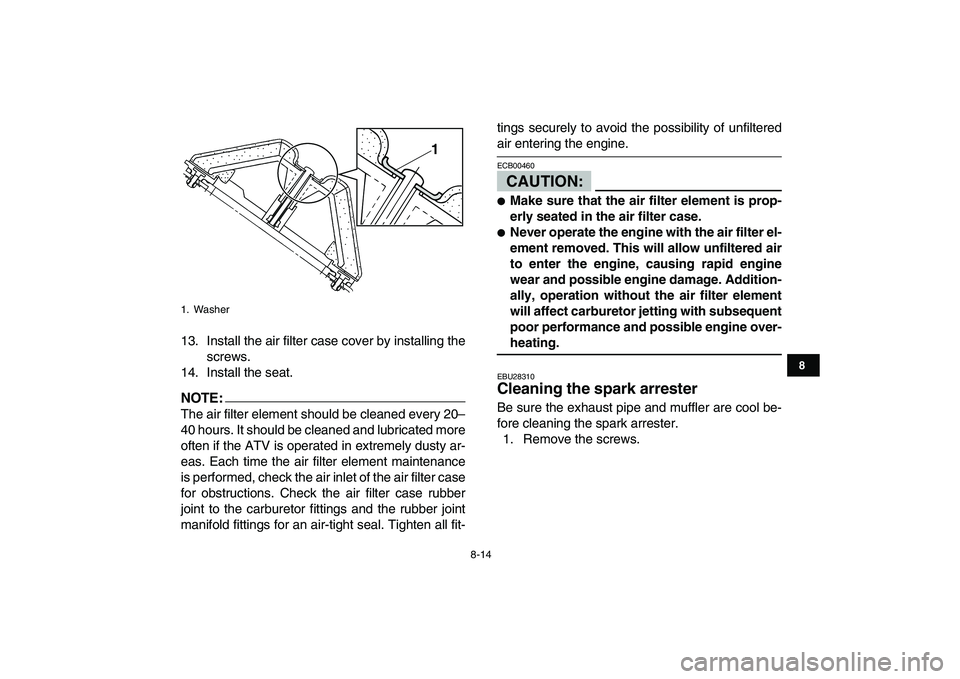

13. Install the air filter case cover by installing the
screws.
14. Install the seat.
NOTE:

The air filter element should be cleaned every 20–
40 hours. It should

Page 90 of 132

YAMAHA BLASTER 200 2007 Manual Online
8-15
1
2
3
4
5
6
78
9
10
11

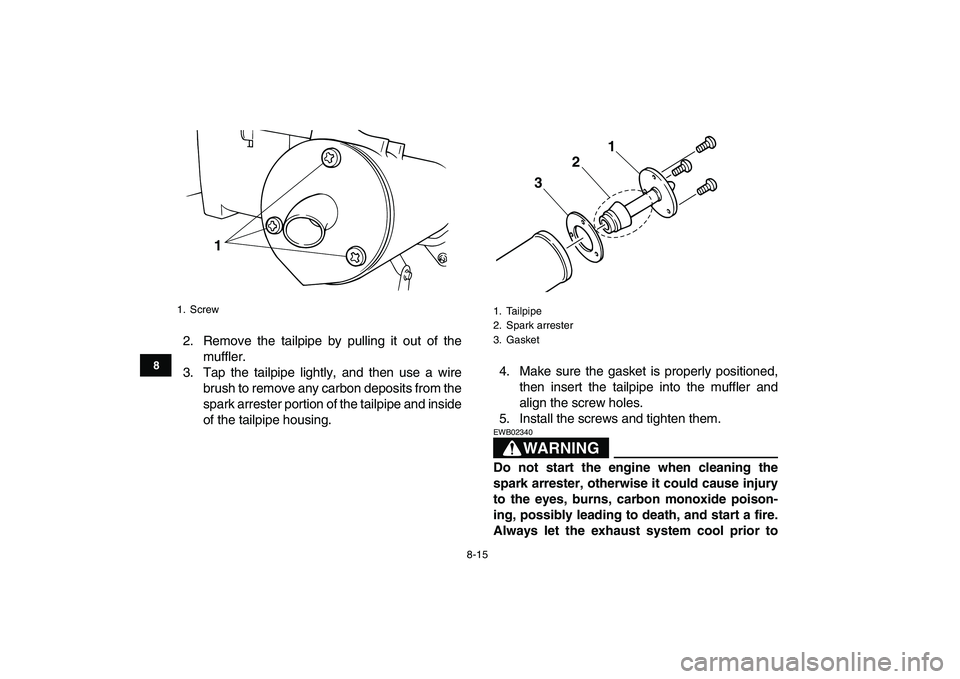

2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester p
