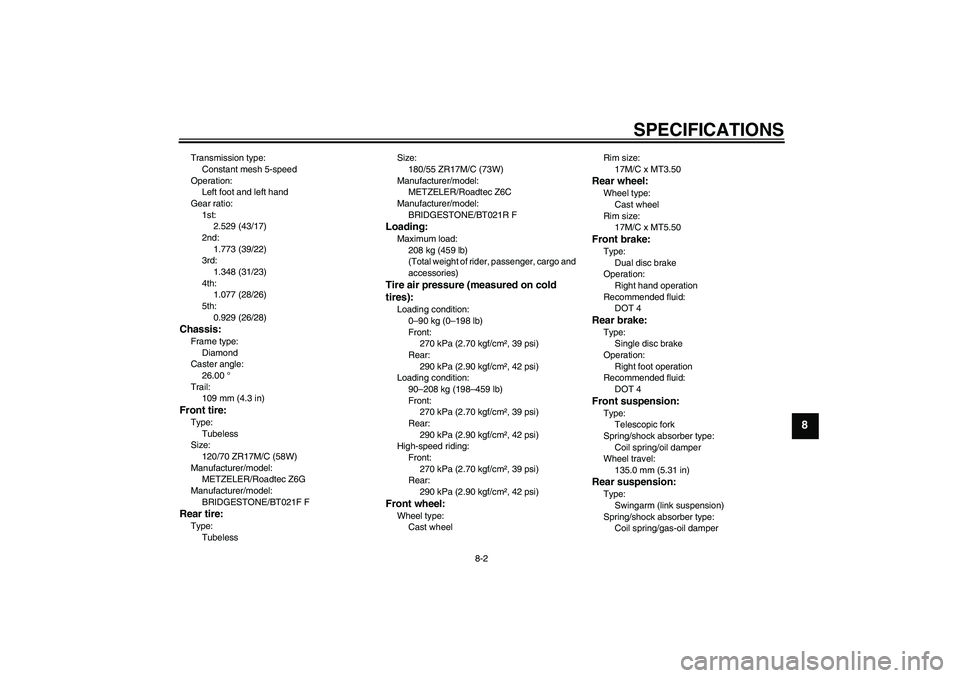

SPECIFICATIONS
8-2
8
Transmission type:
Constant mesh 5-speed
Operation:
Left foot and left hand
Gear ratio:
1st:
2.529 (43/17)
2nd:
1.773 (39/22)
3rd:
1.348 (31/23)
4th:
1.077 (28/26)
5th:
0.929 (26/28)Chassis:Frame type:
Diamond
Caster angle:
26.00 °
Trail:
109 mm (4.3 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
METZELER/Roadtec Z6G
Manufacturer/model:
BRIDGESTONE/BT021F FRear tire:Type:
TubelessSize:
180/55 ZR17M/C (73W)
Manufacturer/model:
METZELER/Roadtec Z6C
Manufacturer/model:
BRIDGESTONE/BT021R F
Loading:Maximum load:
208 kg (459 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
270 kPa (2.70 kgf/cm², 39 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
Loading condition:
90–208 kg (198–459 lb)
Front:
270 kPa (2.70 kgf/cm², 39 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding:
Front:
270 kPa (2.70 kgf/cm², 39 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:
Cast wheelRim size:
17M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
135.0 mm (5.31 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
U1DAE1E0.book Page 2 Tuesday, August 24, 2010 5:28 PM

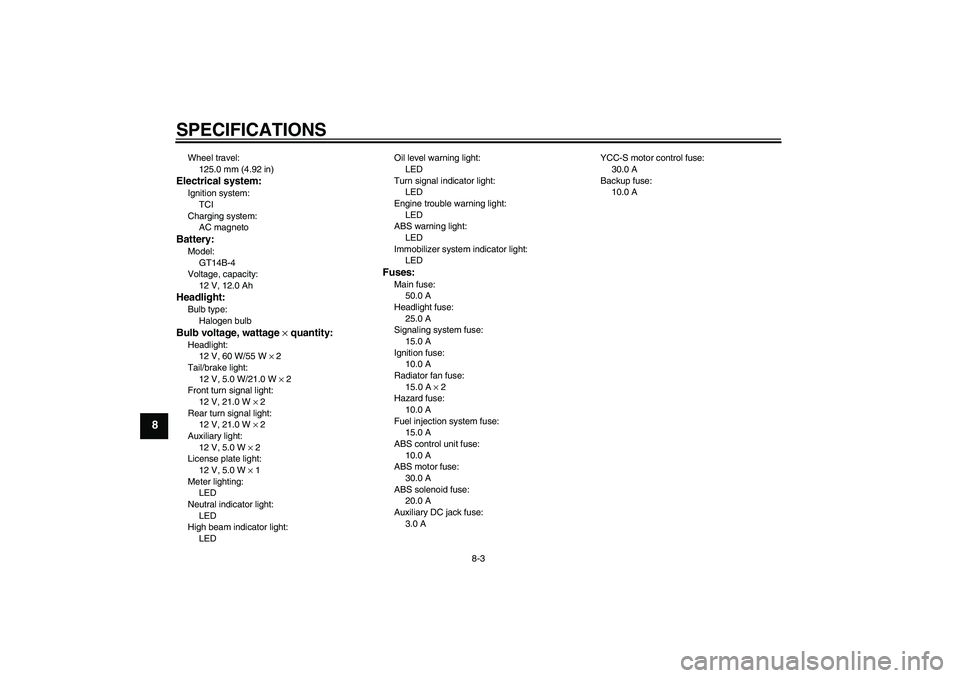

SPECIFICATIONS
8-3
8
Wheel travel:
125.0 mm (4.92 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LEDOil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
Auxiliary DC jack fuse:
3.0 AYCC-S motor control fuse:
30.0 A
Backup fuse:
10.0 A
U1DAE1E0.book Page 3 Tuesday, August 24, 2010 5:28 PM

CONSUMER INFORMATION
9-1
9

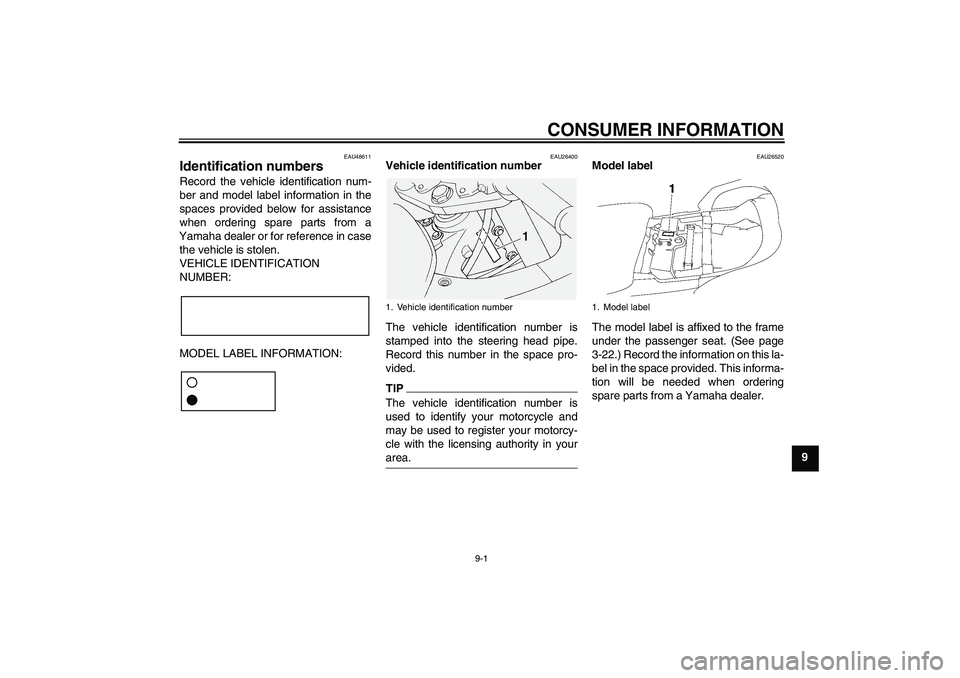

EAU48611
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26520
Model label
The model label is affixed to the frame
under the passenger seat. (See page
3-22.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U1DAE1E0.book Page 1 Tuesday, August 24, 2010 5:28 PM

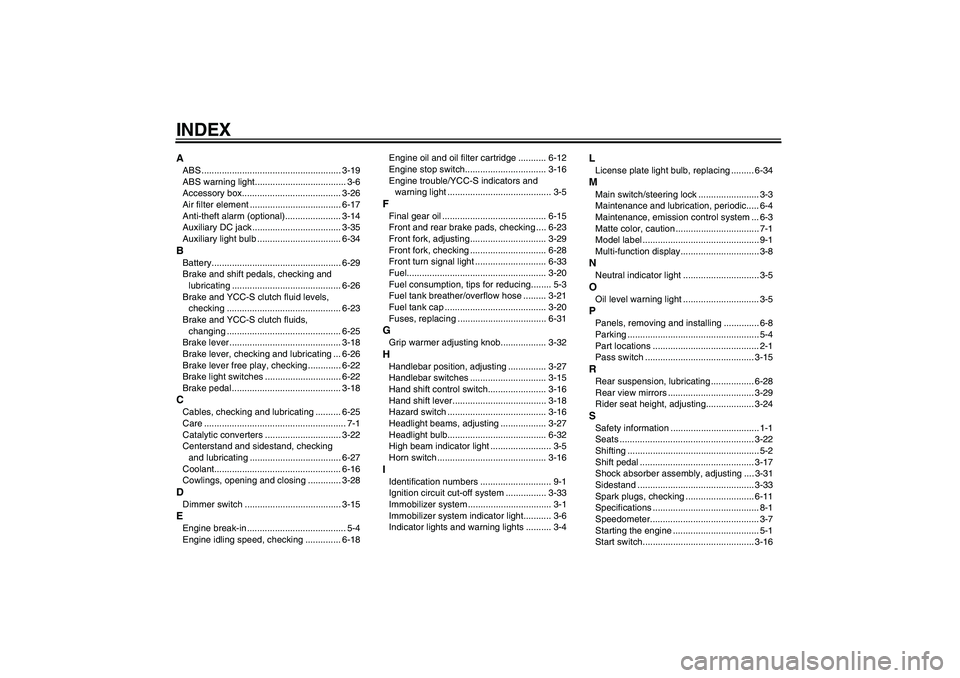

INDEXAABS ....................................................... 3-19
ABS warning light.................................... 3-6
Accessory box....................................... 3-26
Air filter element .................................... 6-17
Anti-theft alarm (optional)...................... 3-14
Auxiliary DC jack ................................... 3-35
Auxiliary light bulb ................................. 6-34BBattery................................................... 6-29
Brake and shift pedals, checking and
lubricating ........................................... 6-26
Brake and YCC-S clutch fluid levels,
checking ............................................. 6-23
Brake and YCC-S clutch fluids,
changing ............................................. 6-25
Brake lever ............................................ 3-18
Brake lever, checking and lubricating ... 6-26
Brake lever free play, checking ............. 6-22
Brake light switches .............................. 6-22
Brake pedal ........................................... 3-18CCables, checking and lubricating .......... 6-25
Care ........................................................ 7-1
Catalytic converters .............................. 3-22
Centerstand and sidestand, checking
and lubricating .................................... 6-27
Coolant.................................................. 6-16
Cowlings, opening and closing ............. 3-28DDimmer switch ...................................... 3-15EEngine break-in ....................................... 5-4
Engine idling speed, checking .............. 6-18Engine oil and oil filter cartridge ........... 6-12
Engine stop switch................................ 3-16
Engine trouble/YCC-S indicators and
warning light ......................................... 3-5
FFinal gear oil ......................................... 6-15
Front and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-29
Front fork, checking .............................. 6-28
Front turn signal light ............................ 6-33
Fuel....................................................... 3-20
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather/overflow hose ......... 3-21
Fuel tank cap ........................................ 3-20
Fuses, replacing ................................... 6-31GGrip warmer adjusting knob.................. 3-32HHandlebar position, adjusting ............... 3-27
Handlebar switches .............................. 3-15
Hand shift control switch....................... 3-16
Hand shift lever..................................... 3-18
Hazard switch ....................................... 3-16
Headlight beams, adjusting .................. 3-27
Headlight bulb....................................... 6-32
High beam indicator light ........................ 3-5
Horn switch ........................................... 3-16IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-33
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-6
Indicator lights and warning lights .......... 3-4
LLicense plate light bulb, replacing ......... 6-34MMain switch/steering lock ........................ 3-3
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution ................................. 7-1
Model label .............................................. 9-1
Multi-function display............................... 3-8NNeutral indicator light .............................. 3-5OOil level warning light .............................. 3-5PPanels, removing and installing .............. 6-8
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-15RRear suspension, lubricating ................. 6-28
Rear view mirrors .................................. 3-29
Rider seat height, adjusting................... 3-24SSafety information ................................... 1-1
Seats ..................................................... 3-22
Shifting .................................................... 5-2
Shift pedal ............................................. 3-17
Shock absorber assembly, adjusting .... 3-31
Sidestand .............................................. 3-33
Spark plugs, checking ........................... 6-11
Specifications .......................................... 8-1
Speedometer........................................... 3-7
Starting the engine .................................. 5-1
Start switch............................................ 3-16
U1DAE1E0.book Page 1 Tuesday, August 24, 2010 5:28 PM

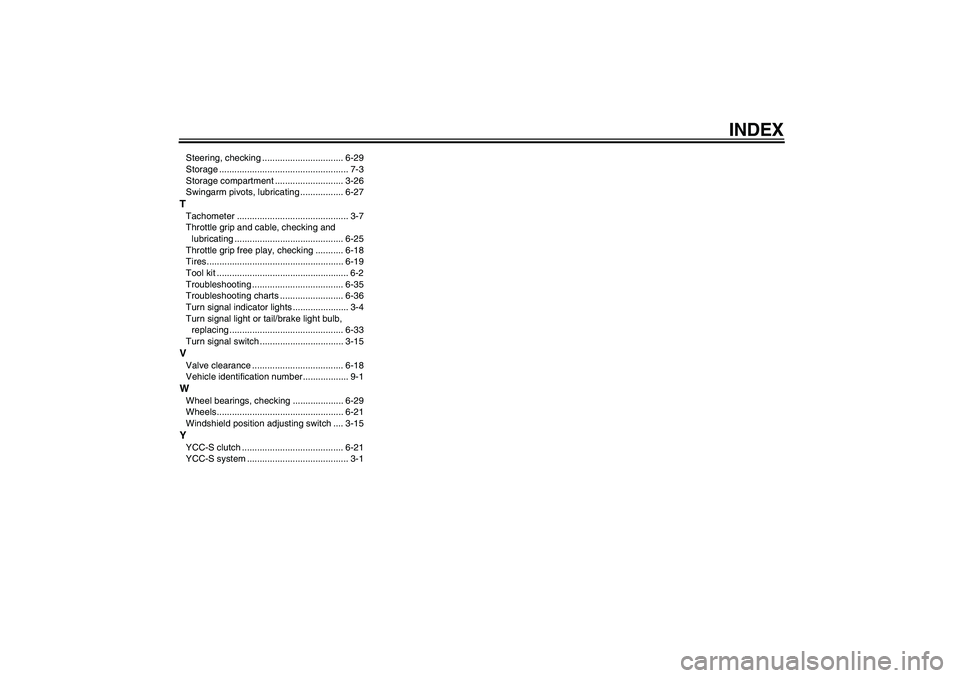

INDEX
Steering, checking ................................ 6-29
Storage ................................................... 7-3
Storage compartment ........................... 3-26
Swingarm pivots, lubricating ................. 6-27TTachometer ............................................ 3-7
Throttle grip and cable, checking and
lubricating ........................................... 6-25
Throttle grip free play, checking ........... 6-18
Tires...................................................... 6-19
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-35
Troubleshooting charts ......................... 6-36
Turn signal indicator lights ...................... 3-4
Turn signal light or tail/brake light bulb,
replacing ............................................. 6-33
Turn signal switch ................................. 3-15VValve clearance .................................... 6-18
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-29
Wheels.................................................. 6-21
Windshield position adjusting switch .... 3-15YYCC-S clutch ........................................ 6-21
YCC-S system ........................................ 3-1
