INTRODUCTION
EAU10102
Welcome to the Yamaha world of motorcycling!
As the owner of the FJR1300AS, you are benefiting from Yamaha’s vast experience and newest technology regarding the
design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your FJR1300AS. The Owner’s Manual
does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most cur-
rent product information available at the time of printing, there may be minor discrepancies between your motorcycle and this
manual. If there is any question concerning this manual, please consult a Yamaha dealer.
WARNING
EWA10031
Please read this manual carefully and completely before operating this motorcycle.
U1DAE1E0.book Page 1 Tuesday, August 24, 2010 5:28 PM

IMPORTANT MANUAL INFORMATION
EAU10132
Particularly important information is distinguished in this manual by the following notations:
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
U1DAE1E0.book Page 1 Tuesday, August 24, 2010 5:28 PM

IMPORTANT MANUAL INFORMATION
EAU10200
FJR1300AS
OWN ER’S MANUAL
©2010 by Yamaha Motor Co., Ltd.
1st edition, July 2010
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
U1DAE1E0.book Page 2 Tuesday, August 24, 2010 5:28 PM

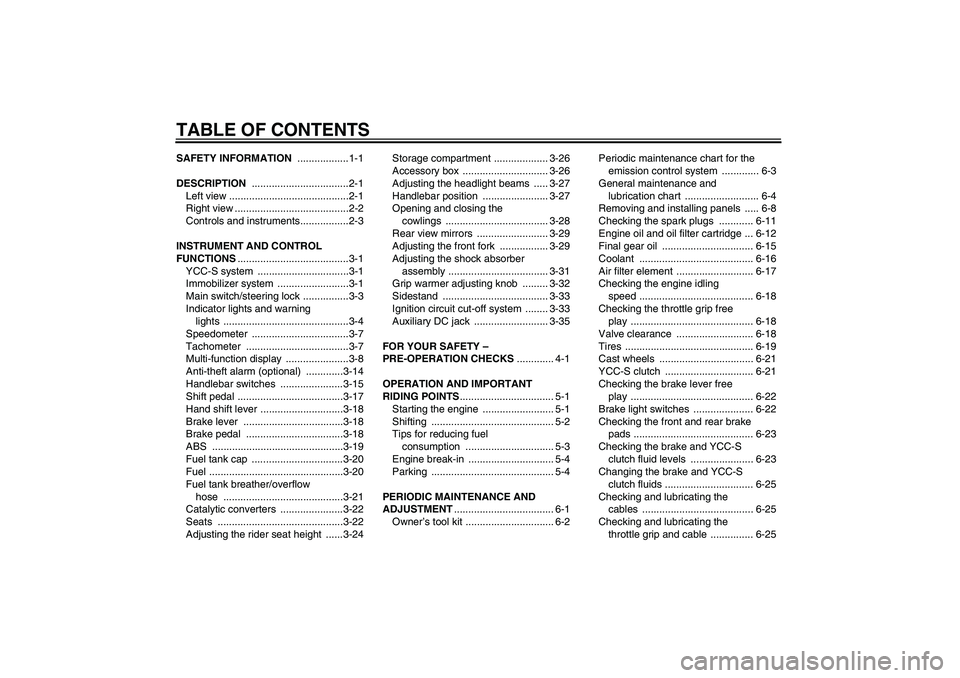

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
YCC-S system ................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-3
Indicator lights and warning
lights ............................................3-4
Speedometer ..................................3-7
Tachometer ....................................3-7
Multi-function display ......................3-8
Anti-theft alarm (optional) .............3-14
Handlebar switches ......................3-15
Shift pedal .....................................3-17
Hand shift lever .............................3-18
Brake lever ...................................3-18
Brake pedal ..................................3-18
ABS ..............................................3-19
Fuel tank cap ................................3-20
Fuel ...............................................3-20
Fuel tank breather/overflow
hose ..........................................3-21
Catalytic converters ......................3-22
Seats ............................................3-22
Adjusting the rider seat height ......3-24Storage compartment ................... 3-26
Accessory box .............................. 3-26
Adjusting the headlight beams ..... 3-27
Handlebar position ....................... 3-27
Opening and closing the
cowlings .................................... 3-28
Rear view mirrors ......................... 3-29
Adjusting the front fork ................. 3-29
Adjusting the shock absorber
assembly ................................... 3-31
Grip warmer adjusting knob ......... 3-32
Sidestand ..................................... 3-33
Ignition circuit cut-off system ........ 3-33
Auxiliary DC jack .......................... 3-35
FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-2Periodic maintenance chart for the
emission control system ............. 6-3
General maintenance and
lubrication chart .......................... 6-4
Removing and installing panels ..... 6-8
Checking the spark plugs ............ 6-11
Engine oil and oil filter cartridge ... 6-12
Final gear oil ................................ 6-15
Coolant ........................................ 6-16
Air filter element ........................... 6-17
Checking the engine idling
speed ........................................ 6-18
Checking the throttle grip free
play ........................................... 6-18
Valve clearance ........................... 6-18
Tires ............................................. 6-19
Cast wheels ................................. 6-21
YCC-S clutch ............................... 6-21
Checking the brake lever free
play ........................................... 6-22
Brake light switches ..................... 6-22
Checking the front and rear brake
pads .......................................... 6-23
Checking the brake and YCC-S
clutch fluid levels ...................... 6-23
Changing the brake and YCC-S
clutch fluids ............................... 6-25
Checking and lubricating the
cables ....................................... 6-25
Checking and lubricating the
throttle grip and cable ............... 6-25U1DAE1E0.book Page 1 Tuesday, August 24, 2010 5:28 PM

TABLE OF CONTENTS

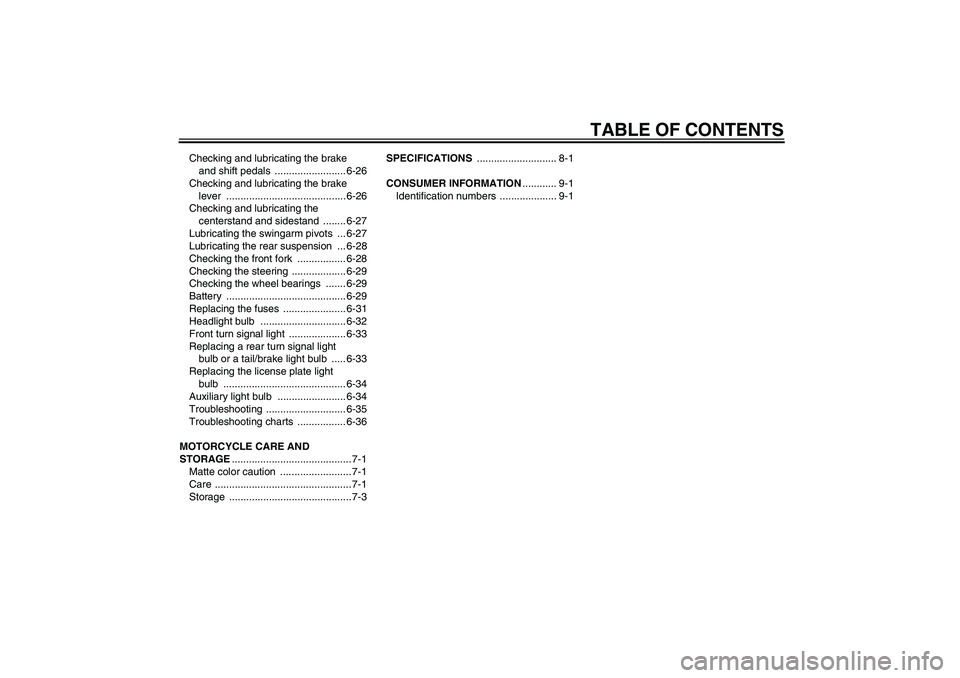

Checking and lubricating the brake
and shift pedals ......................... 6-26
Checking and lubricating the brake
lever .......................................... 6-26
Checking and lubricating the
centerstand and sidestand ........ 6-27
Lubricating the swingarm pivots ... 6-27
Lubricating the rear suspension ... 6-28
Checking the front fork ................. 6-28
Checking the steering ................... 6-29
Checking the wheel bearings ....... 6-29
Battery .......................................... 6-29
Replacing the fuses ...................... 6-31
Headlight bulb .............................. 6-32
Front turn signal light .................... 6-33
Replacing a rear turn signal light
bulb or a tail/brake light bulb ..... 6-33
Replacing the license plate light
bulb ........................................... 6-34
Auxiliary light bulb ........................ 6-34
Troubleshooting ............................ 6-35
Troubleshooting charts ................. 6-36
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3SPECIFICATIONS ............................ 8-1
CONSUMER INFORMATION............ 9-1
Identification numbers .................... 9-1
U1DAE1E0.book Page 2 Tuesday, August 24, 2010 5:28 PM

1-1
1
SAFETY INFORMATION
EAU10287
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:

Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.


Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.


Obtain qualified training in safe
and proper riding techniques.


Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 4-1
for a list of pre-operation checks.


This motorcycle is designed to car-
ry the operator and a passenger.


The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
Wear a brightly colored jacket.
Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.


Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent motorcycle license.
Make sure that you are qualified
and that you only lend your mo-
torcycle to other qualified opera-
tors.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
We recommend that you prac-
tice riding your motorcycle
where there is no traffic until you
have become thoroughly famil-
iar with the motorcycle and all of
its controls.


Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
U1DAE1E0.book Page 1 Tuesday, August 24, 2010 5:28 PM

SAFETY INFORMATION
1-2
1 due to excessive speed or under-
cornering (insufficient lean angle
for the speed).
Always obey the speed limit and
never travel faster than warrant-
ed by road and traffic conditions.
Always signal before turning or
changing lanes. Make sure that
other motorists can see you.


The posture of the operator and
passenger is important for proper
control.
The operator should keep both
hands on the handlebar and
both feet on the operator foot-
rests during operation to main-
tain control of the motorcycle.
The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.
Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.


Never ride under the influence of
alcohol or other drugs.


This motorcycle is designed for on-
road use only. It is not suitable for
off-road use.
Protective Apparel
The majority of fatalities from motorcy-
cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the preven-
tion or reduction of head injuries.


Always wear an approved helmet.


Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.


The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.


Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.


Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or af-
ter operation and can cause burns.


A passenger should also observe
the above precautions.
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing car-
bon monoxide can cause headaches,
dizziness, drowsiness, nausea, confu-
sion, and eventually death.
Carbon Monoxide is a colorless, odor-
less, tasteless gas which may be
present even if you do not see or smell
any engine exhaust. Deadly levels of
carbon monoxide can collect rapidly
and you can quickly be overcome and
unable to save yourself. Also, deadly
levels of carbon monoxide can linger
for hours or days in enclosed or poorly
ventilated areas. If you experience any
symptoms of carbon monoxide poison-
ing, leave the area immediately, get
fresh air, and SEEK MEDICAL TREAT-
MENT.


Do not run engine indoors. Even if
you try to ventilate engine exhaust
with fans or open windows and
doors, carbon monoxide can rap-
idly reach dangerous levels.
U1DAE1E0.book Page 2 Tuesday, August 24, 2010 5:28 PM

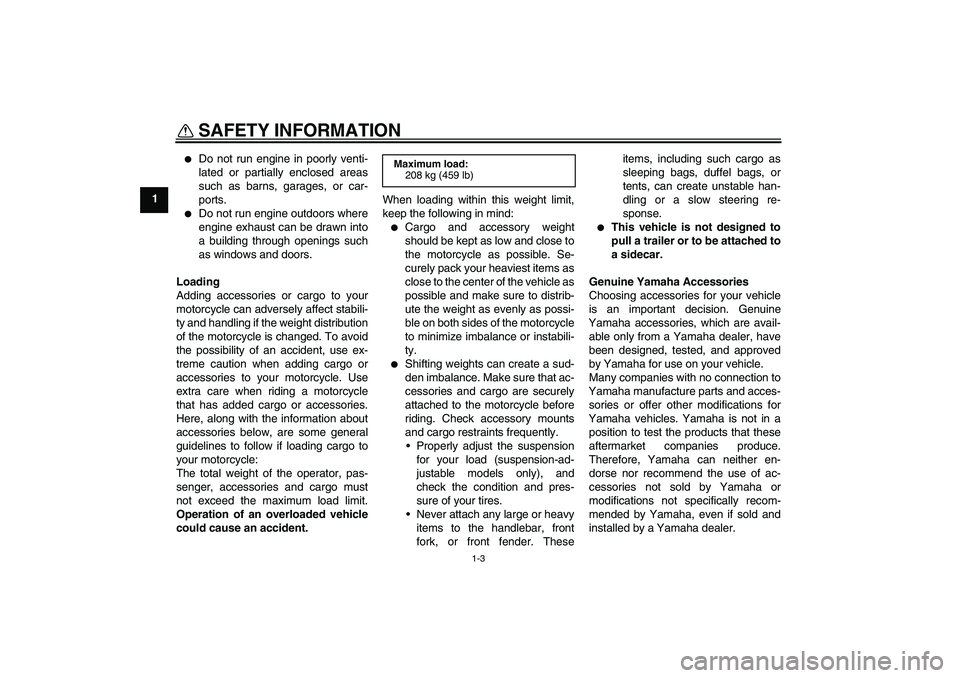

SAFETY INFORMATION
1-3
1


Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.


Do not run engine outdoors where
engine exhaust can be drawn into
a building through openings such
as windows and doors.
Loading
Adding accessories or cargo to your
motorcycle can adversely affect stabili-
ty and handling if the weight distribution
of the motorcycle is changed. To avoid
the possibility of an accident, use ex-
treme caution when adding cargo or
accessories to your motorcycle. Use
extra care when riding a motorcycle
that has added cargo or accessories.
Here, along with the information about
accessories below, are some general
guidelines to follow if loading cargo to
your motorcycle:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.When loading within this weight limit,
keep the following in mind:


Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Se-
curely pack your heaviest items as
close to the center of the vehicle as
possible and make sure to distrib-
ute the weight as evenly as possi-
ble on both sides of the motorcycle
to minimize imbalance or instabili-
ty.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.
Properly adjust the suspension
for your load (suspension-ad-
justable models only), and
check the condition and pres-
sure of your tires.
Never attach any large or heavy
items to the handlebar, front
fork, or front fender. Theseitems, including such cargo as
sleeping bags, duffel bags, or
tents, can create unstable han-
dling or a slow steering re-
sponse.


This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Maximum load:
208 kg (459 lb)
U1DAE1E0.book Page 3 Tuesday, August 24, 2010 5:28 PM
