YAMAHA FJR1300AS 2011 Service Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-26
3
EAU50850

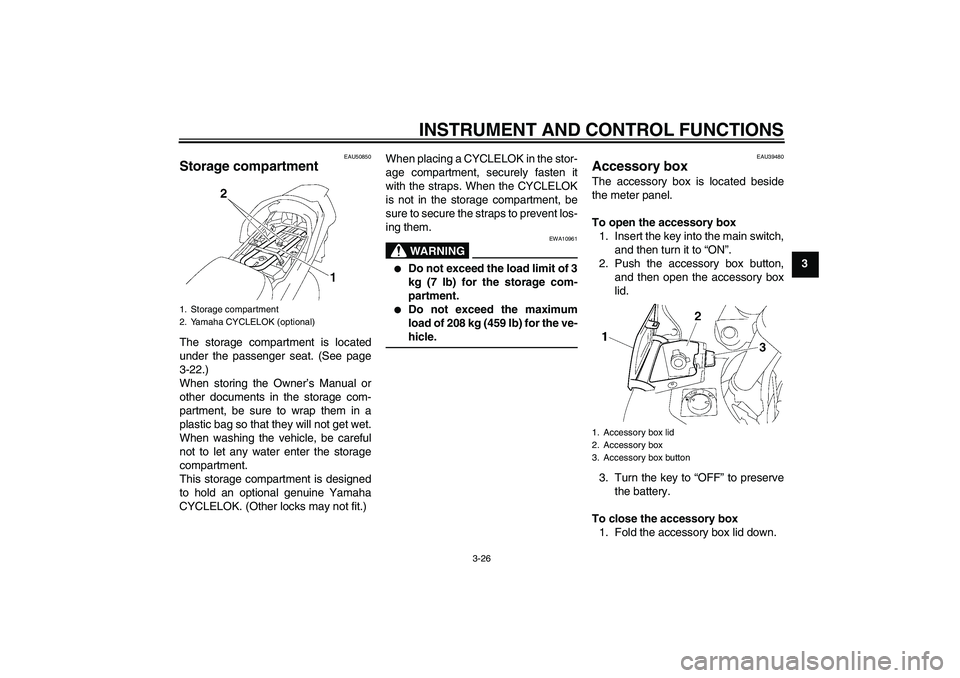

Storage compartment The storage compartment is located
under the passenger seat. (See page
3-22.)
When storing the Owner’s Manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
When washing the vehicle, be careful
not to let any water enter the storage
compartment.
This storage compartment is designed
to hold an optional genuine Yamaha
CYCLELOK. (Other locks may not fit.)When placing a CYCLELOK in the stor-
age compartment, securely fasten it
with the straps. When the CYCLELOK
is not in the storage compartment, be
sure to secure the straps to prevent los-
ing them.
WARNING
EWA10961


Do not exceed the load limit of 3
kg (7 lb) for the storage com-
partment.


Do not exceed the maximum
load of 208 kg (459 lb) for the ve-
hicle.
EAU39480
Accessory box The accessory box is located beside
the meter panel.
To open the accessory box
1. Insert the key into the main switch,
and then turn it to “ON”.
2. Push the accessory box button,
and then open the accessory box
lid.
3. Turn the key to “OFF” to preserve
the battery.
To close the accessory box
1. Fold the accessory box lid down.
1. Storage compartment
2. Yamaha CYCLELOK (optional)
1. Accessory box lid
2. Accessory box
3. Accessory box button
U1DAE1E0.book Page 26 Tuesday, August 24, 2010 5:28 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-27

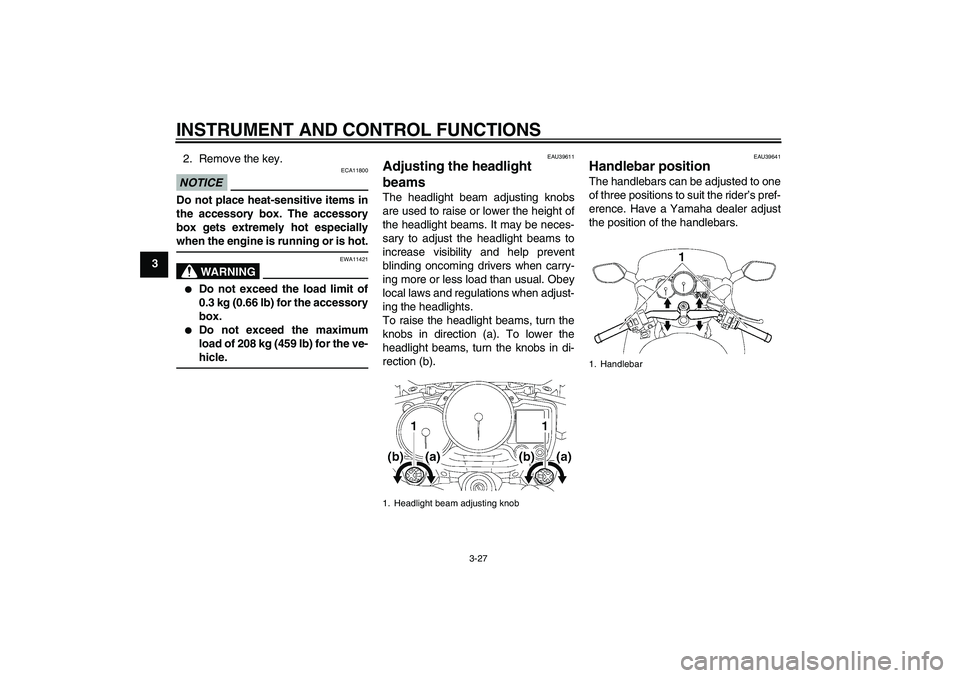

32. Remove the key.
NOTICE
ECA11800
Do not place heat-sensitive items in
the accessory box. The accessory
box gets extremely hot especially
when the engine is running or is hot.
WARNING
EWA11421


Do not exceed the load limit of
0.3 kg (0.66 lb) for the accessory
box.


Do not exceed the maximum
load of 208 kg (459 lb) for the ve-
hicle.
EAU39611
Adjusting the headlight
beams The headlight beam adjusting knobs
are used to raise or lower the height of
the headlight beams. It may be neces-
sary to adjust the headlight beams to
increase visibility and help prevent
blinding oncoming drivers when carry-
ing more or less load than usual. Obey
local laws and regulations when adjust-
ing the headlights.
To raise the headlight beams, turn the
knobs in direction (a). To lower the
headlight beams, turn the knobs in di-
rection (b).
EAU39641
Handlebar position The handlebars can be adjusted to one
of three positions to suit the rider’s pref-
erence. Have a Yamaha dealer adjust
the position of the handlebars.
1. Headlight beam adjusting knob
1. Handlebar
U1DAE1E0.book Page 27 Tuesday, August 24, 2010 5:28 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-28
3
EAU39621

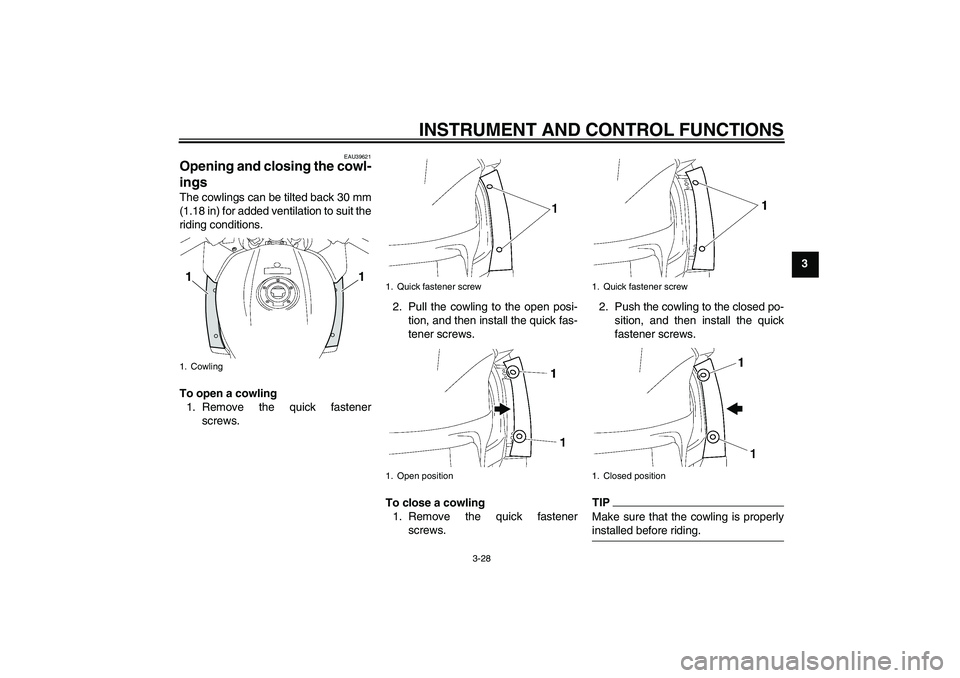

Opening and closing the cowl-
ings The cowlings can be tilted back 30 mm
(1.18 in) for added ventilation to suit the
riding conditions.
To open a cowling
1. Remove the quick fastener
screws.2. Pull the cowling to the open posi-
tion, and then install the quick fas-
tener screws.
To close a cowling
1. Remove the quick fastener
screws.2. Push the cowling to the closed po-
sition, and then install the quick
fastener screws.
TIPMake sure that the cowling is properly
installed before riding.
1. Cowling1
1
1. Quick fastener screw
1. Open position
1. Quick fastener screw
1. Closed position
U1DAE1E0.book Page 28 Tuesday, August 24, 2010 5:28 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-29
3
EAU39671

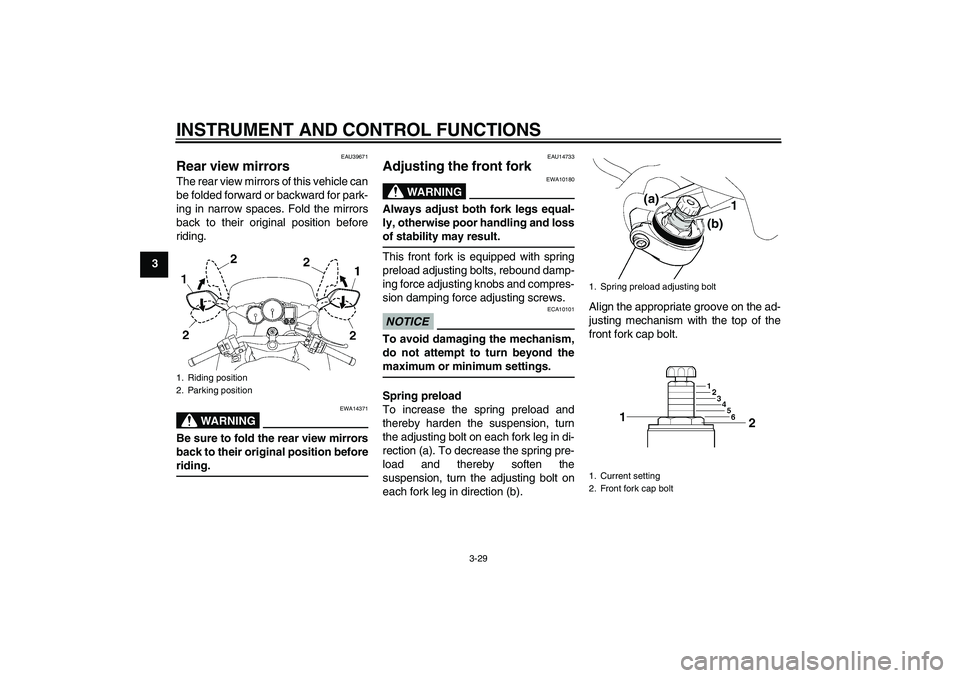

Rear view mirrors The rear view mirrors of this vehicle can
be folded forward or backward for park-
ing in narrow spaces. Fold the mirrors
back to their original position before
riding.
WARNING
EWA14371
Be sure to fold the rear view mirrors
back to their original position before
riding.
EAU14733
Adjusting the front fork
WARNING
EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and loss
of stability may result.This front fork is equipped with spring
preload adjusting bolts, rebound damp-
ing force adjusting knobs and compres-
sion damping force adjusting screws.NOTICE
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.Spring preload
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection (a). To decrease the spring pre-
load and thereby soften the
suspension, turn the adjusting bolt on
each fork leg in direction (b).Align the appropriate groove on the ad-
justing mechanism with the top of the
front fork cap bolt.
1. Riding position
2. Parking position
1. Spring preload adjusting bolt
1. Current setting
2. Front fork cap bolt
(b) (a)
1
U1DAE1E0.book Page 29 Tuesday, August 24, 2010 5:28 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-30
3

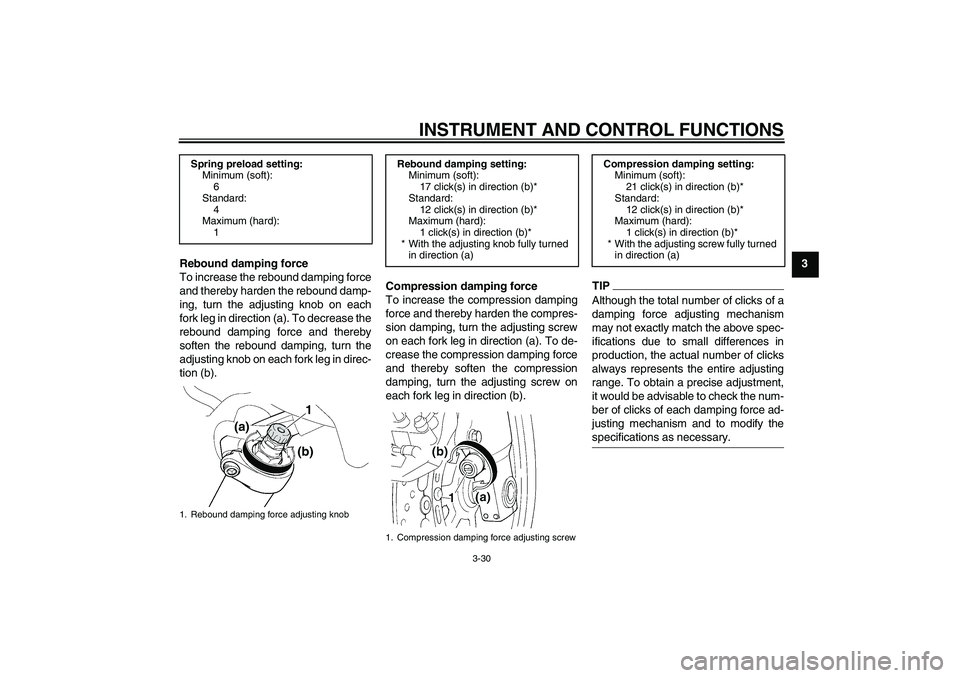

Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting knob on each
fork leg in direction (a). To decrease the
rebound damping force and thereby
soften the rebound damping, turn the
adjusting knob on each fork leg in direc-
tion (b).Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting screw
on each fork leg in direction (a). To de-
crease the compression damping force
and thereby soften the compression
damping, turn the adjusting screw on
each fork leg in direction (b).
TIPAlthough the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify the
specifications as necessary.
Spring preload setting:
Minimum (soft):
6
Standard:
4
Maximum (hard):
11. Rebound damping force adjusting knob
(b) (a)1
Rebound damping setting:
Minimum (soft):
17 click(s) in direction (b)*
Standard:
12 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting knob fully turned
in direction (a)
1. Compression damping force adjusting screw
Compression damping setting:
Minimum (soft):
21 click(s) in direction (b)*
Standard:
12 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
U1DAE1E0.book Page 30 Tuesday, August 24, 2010 5:28 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-31
3
EAU14916

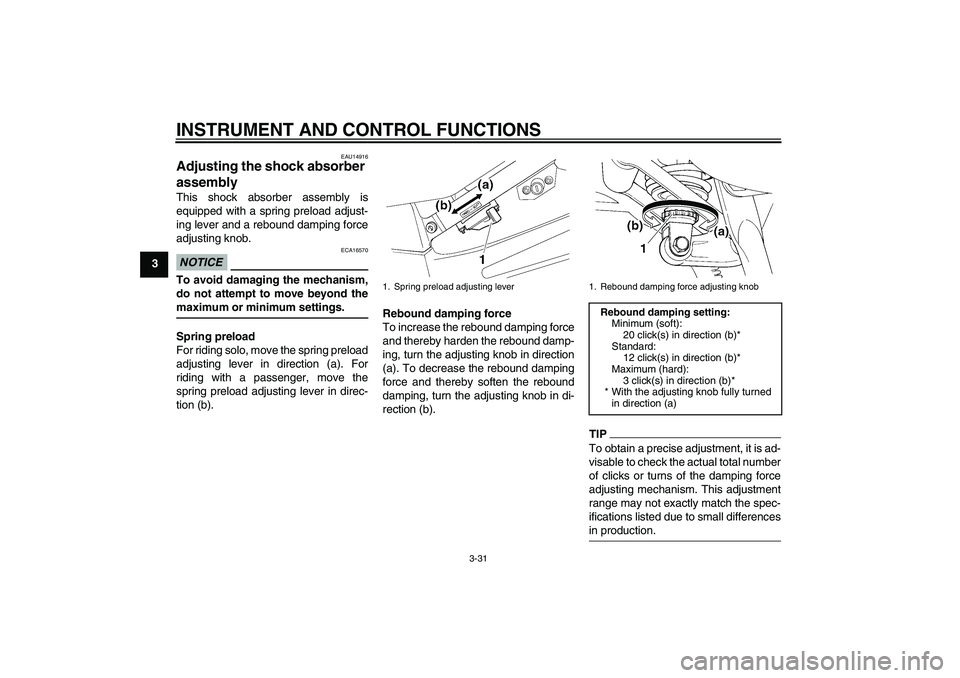

Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing lever and a rebound damping force
adjusting knob.NOTICE
ECA16570
To avoid damaging the mechanism,
do not attempt to move beyond the
maximum or minimum settings.Spring preload
For riding solo, move the spring preload
adjusting lever in direction (a). For
riding with a passenger, move the
spring preload adjusting lever in direc-
tion (b).Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting knob in direction
(a). To decrease the rebound damping
force and thereby soften the rebound
damping, turn the adjusting knob in di-
rection (b).
TIPTo obtain a precise adjustment, it is ad-
visable to check the actual total number
of clicks or turns of the damping force
adjusting mechanism. This adjustment
range may not exactly match the spec-
ifications listed due to small differences
in production.
1. Spring preload adjusting lever
1. Rebound damping force adjusting knobRebound damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
12 click(s) in direction (b)*
Maximum (hard):
3 click(s) in direction (b)*
* With the adjusting knob fully turned
in direction (a)
U1DAE1E0.book Page 31 Tuesday, August 24, 2010 5:28 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-32
3
WARNING
EWA10221
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.

Do not tamper with or attempt to
open the cylinder assembly.


Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.


Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.


Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
EAU40502
Grip warmer adjusting knob
WARNING
EWA14510
Do not turn the grip warmer knob
while the vehicle is moving.NOTICE
ECA15520


Be sure to wear gloves when us-
ing the grip warmers.


If the ambient temperature is 20
°C (68 °F) or higher, do not set
the grip warmer adjusting knob
to the “HI” position.


If the handlebar grip or throttle
grip becomes worn or damaged,
stop using the grip warmers and
replace the grips.
This vehicle is equipped with grip
warmers, which can only be used when
the engine is running.
Use the grip warmer adjusting knob, lo-
cated near the accessory box, to adjust
the grip warmer temperature.The grip warmer adjusting knob can be
set between the “LO” and “HI” posi-
tions. To raise the temperature, turn the
knob in direction (a). To lower the tem-
perature, turn the knob in direction (b).
Align the“” mark on the knob with
“OFF” to turn the grip warmers off.
TIPWhen the vehicle is stopped or travel-
ing at extremely low speeds (e.g., in
traffic jams), the grip warmer tempera-
ture is lower than when traveling at
higher speeds.1.“LO” position
2.“OFF” position
3.“” mark
4. Grip warmer adjusting knob
5.“HI” position
U1DAE1E0.book Page 32 Tuesday, August 24, 2010 5:28 PM

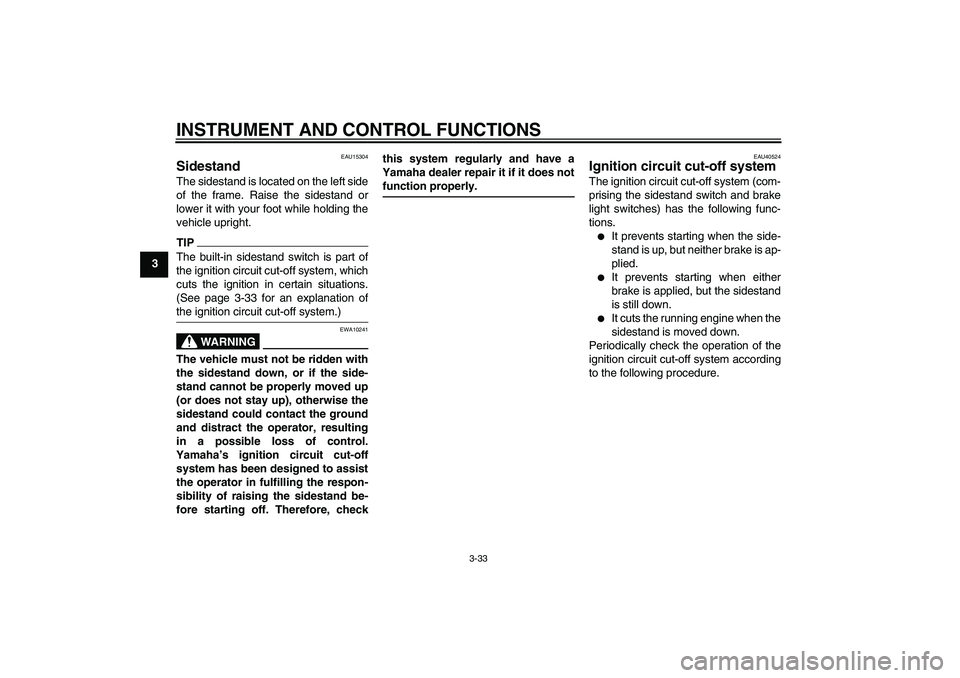

INSTRUMENT AND CONTROL FUNCTIONS
3-33
3
EAU15304
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See page 3-33 for an explanation of
the ignition circuit cut-off system.)
WARNING
EWA10241
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, checkthis system regularly and have a
Yamaha dealer repair it if it does not
function properly.
EAU40524

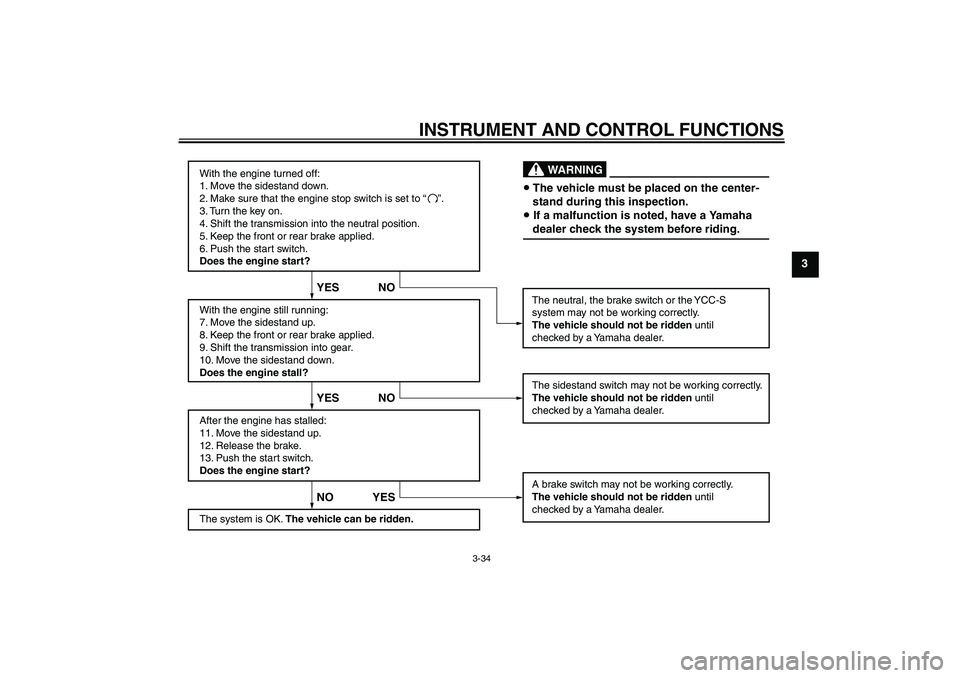

Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch and brake
light switches) has the following func-
tions.

It prevents starting when the side-
stand is up, but neither brake is ap-
plied.


It prevents starting when either
brake is applied, but the sidestand
is still down.


It cuts the running engine when the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
U1DAE1E0.book Page 33 Tuesday, August 24, 2010 5:28 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-34
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Keep the front or rear brake applied.
6. Push the start switch.
Does the engine start?
With the engine still running:
7. Move the sidestand up.
8. Keep the front or rear brake applied.
9. Shift the transmission into gear.
10. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
11. Move the sidestand up.
12. Release the brake.
13. Push the start switch.
Does the engine start?
The system is OK. The vehicle can be ridden.
NO YES YES NO YES NO
The neutral, the brake switch or the YCC-S
system may not be working correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.
A brake switch may not be working correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.The sidestand switch may not be working correctly.
The vehicle should not be ridden until
checked by a Yamaha dealer.• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U1DAE1E0.book Page 34 Tuesday, August 24, 2010 5:28 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-35
3
EAU39655

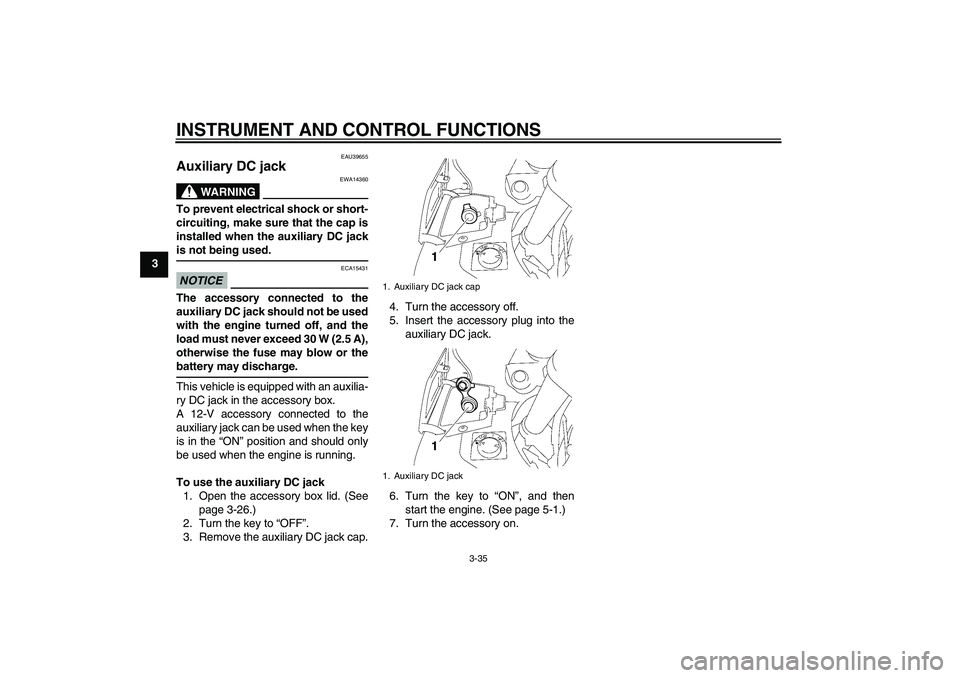

Auxiliary DC jack
WARNING
EWA14360
To prevent electrical shock or short-
circuiting, make sure that the cap is
installed when the auxiliary DC jack
is not being used.NOTICE
ECA15431
The accessory connected to the
auxiliary DC jack should not be used
with the engine turned off, and the
load must never exceed 30 W (2.5 A),
otherwise the fuse may blow or the
battery may discharge.This vehicle is equipped with an auxilia-
ry DC jack in the accessory box.
A 12-V accessory connected to the
auxiliary jack can be used when the key
is in the “ON” position and should only
be used when the engine is running.
To use the auxiliary DC jack
1. Open the accessory box lid. (See
page 3-26.)
2. Turn the key to “OFF”.
3. Remove the auxiliary DC jack cap.4. Turn the accessory off.
5. Insert the accessory plug into the
auxiliary DC jack.
6. Turn the key to “ON”, and then
start the engine. (See page 5-1.)
7. Turn the accessory on.
1. Auxiliary DC jack cap
1. Auxiliary DC jack
U1DAE1E0.book Page 35 Tuesday, August 24, 2010 5:28 PM
