Maintenance and care
84
CAUTION:
ECJ00190
If oil is leaking or the oil pressure warning
indicator comes on when the engine is
running, immediately shut the engine off
and have a Yamaha dealer check the wa-
tercraft. Continuing to operate the engine
under such conditions could cause severe
engine damage.

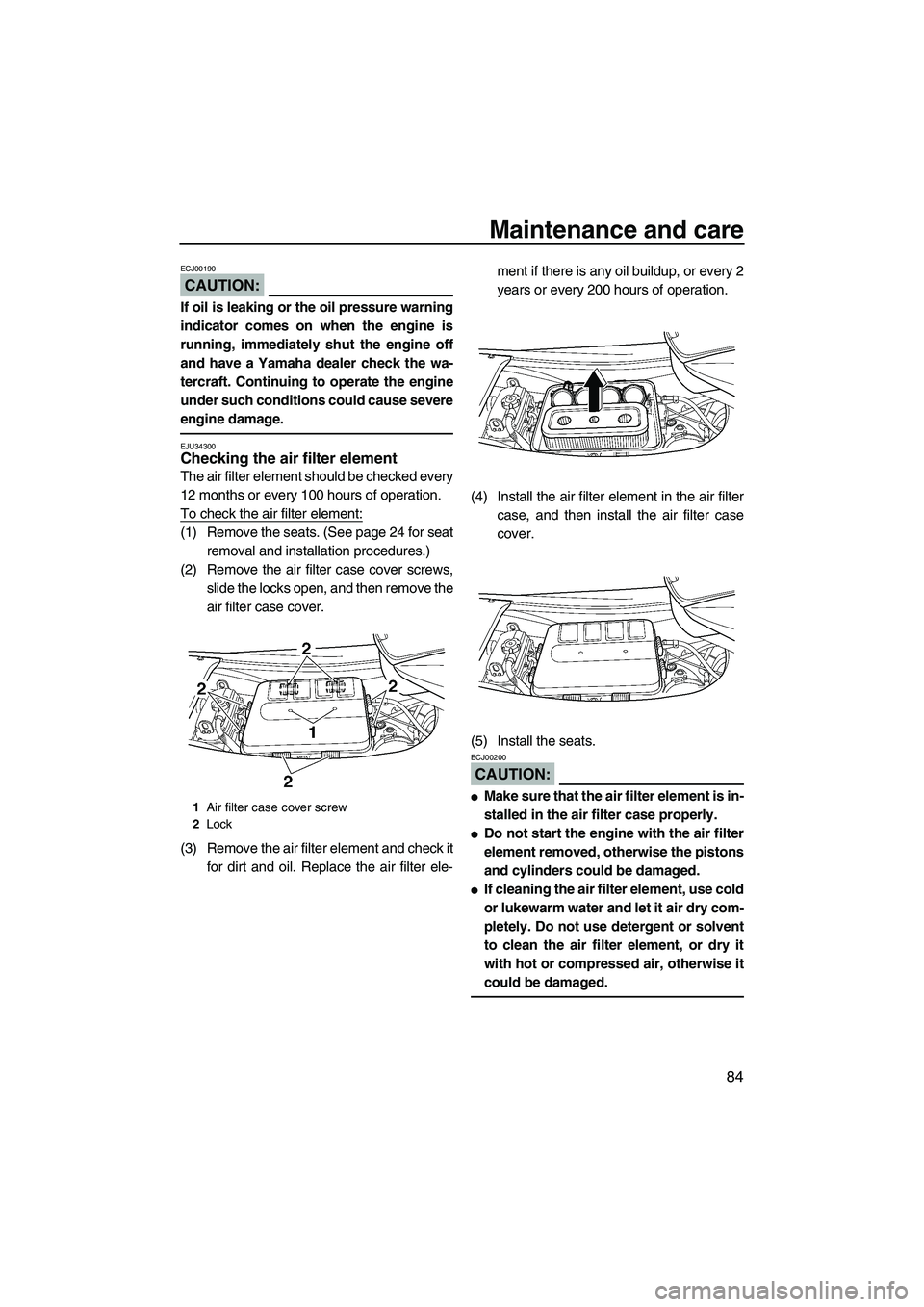

EJU34300Checking the air filter element
The air filter element should be checked every
12 months or every 100 hours of operation.
To check the air filter element:
(1) Remove the seats. (See page 24 for seat
removal and installation procedures.)
(2) Remove the air filter case cover screws,
slide the locks open, and then remove the
air filter case cover.
(3) Remove the air filter element and check it
for dirt and oil. Replace the air filter ele-ment if there is any oil buildup, or every 2
years or every 200 hours of operation.
(4) Install the air filter element in the air filter
case, and then install the air filter case
cover.
(5) Install the seats.
CAUTION:
ECJ00200

Make sure that the air filter element is in-
stalled in the air filter case properly.

Do not start the engine with the air filter
element removed, otherwise the pistons
and cylinders could be damaged.

If cleaning the air filter element, use cold
or lukewarm water and let it air dry com-
pletely. Do not use detergent or solvent
to clean the air filter element, or dry it
with hot or compressed air, otherwise it
could be damaged.
1Air filter case cover screw
2Lock
UF1X71E0.book Page 84 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
85

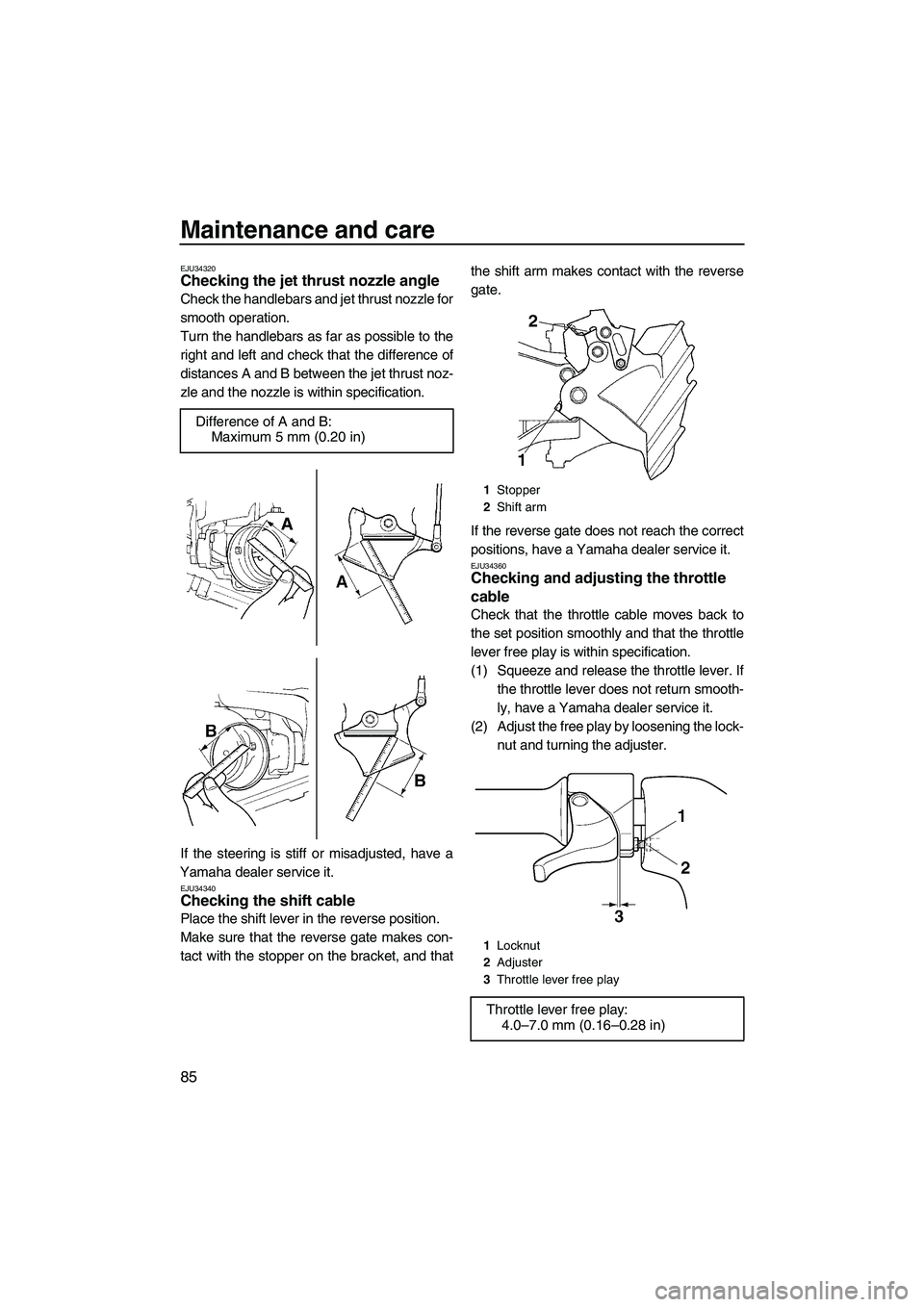

EJU34320Checking the jet thrust nozzle angle
Check the handlebars and jet thrust nozzle for
smooth operation.
Turn the handlebars as far as possible to the
right and left and check that the difference of
distances A and B between the jet thrust noz-
zle and the nozzle is within specification.
If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU34340Checking the shift cable
Place the shift lever in the reverse position.
Make sure that the reverse gate makes con-
tact with the stopper on the bracket, and thatthe shift arm makes contact with the reverse
gate.
If the reverse gate does not reach the correct
positions, have a Yamaha dealer service it.
EJU34360Checking and adjusting the throttle
cable
Check that the throttle cable moves back to
the set position smoothly and that the throttle
lever free play is within specification.
(1) Squeeze and release the throttle lever. If
the throttle lever does not return smooth-
ly, have a Yamaha dealer service it.
(2) Adjust the free play by loosening the lock-
nut and turning the adjuster. Difference of A and B:
Maximum 5 mm (0.20 in)
1Stopper
2Shift arm
1Locknut
2Adjuster
3Throttle lever free play
Throttle lever free play:
4.0–7.0 mm (0.16–0.28 in)
UF1X71E0.book Page 85 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
86
EJU34381Cleaning and adjusting the spark
plugs
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if
one spark plug has a distinctly different color,
the engine could require servicing. Do not at-
tempt to diagnose any problems yourself.
Have a Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon
and other deposits are excessive, replace the
spark plug with the specified plug.
To remove a spark plug:
(1) Remove the air filter case cover and air
filter element. (See page 84 for air filter
element removal and installation proce-
dures.)
(2) Remove the spark plug cap.
CAUTION:
ECJ00210
Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler could be damaged. The spark
plug cap may be difficult to remove be-
cause the rubber seal on the end of the
cap fits tightly. To remove the spark plug
cap, simply twist it back and forth while
pulling it up; to install it, twist it back and
forth while pushing it down.
(3) Remove the spark plug.
Measure the spark plug gap with a wire
thickness gauge. Replace the spark plugor adjust the gap to specification if neces-
sary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.
(3) Install the spark plug, and then tighten it
to the specified torque.
(4) Install the spark plug cap.
NOTE:

Wipe off any water on the spark plug or in-
side the spark plug cap before installing the
cap. Push the spark plug cap down until it is
securely installed.

If a torque wrench is not available when you
are installing a spark plug, a good estimate
of the correct torque is 1/4 turn to 1/2 turn
past finger tight using the spark plug
wrench included in the tool kit. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
Specified spark plug:
CR9EB
1Spark plug gap
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Spark plug tightening torque:
12.5 Nm (9.2 ft-lb) (1.27 kgf-m)
UF1X71E0.book Page 86 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
87
WARNING
EWJ00350
Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks to
escape, which could result in a fire or ex-
plosion.
(5) Install the air filter element in the air filter
case, and then install the air filter case
cover.

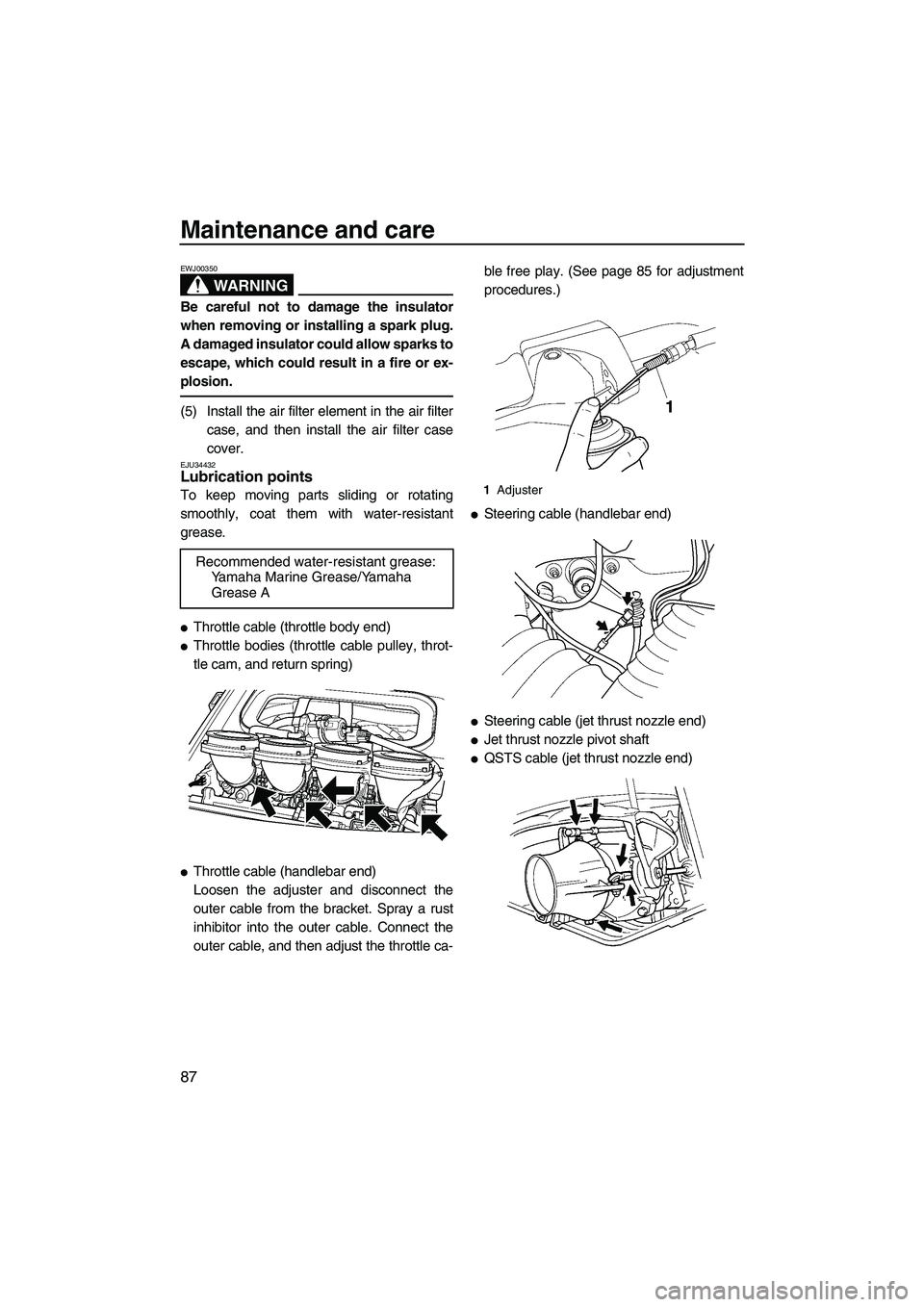

EJU34432Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.

Throttle cable (throttle body end)

Throttle bodies (throttle cable pulley, throt-
tle cam, and return spring)

Throttle cable (handlebar end)
Loosen the adjuster and disconnect the
outer cable from the bracket. Spray a rust
inhibitor into the outer cable. Connect the
outer cable, and then adjust the throttle ca-ble free play. (See page 85 for adjustment
procedures.)

Steering cable (handlebar end)

Steering cable (jet thrust nozzle end)

Jet thrust nozzle pivot shaft

QSTS cable (jet thrust nozzle end) Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
1Adjuster
UF1X71E0.book Page 87 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
88

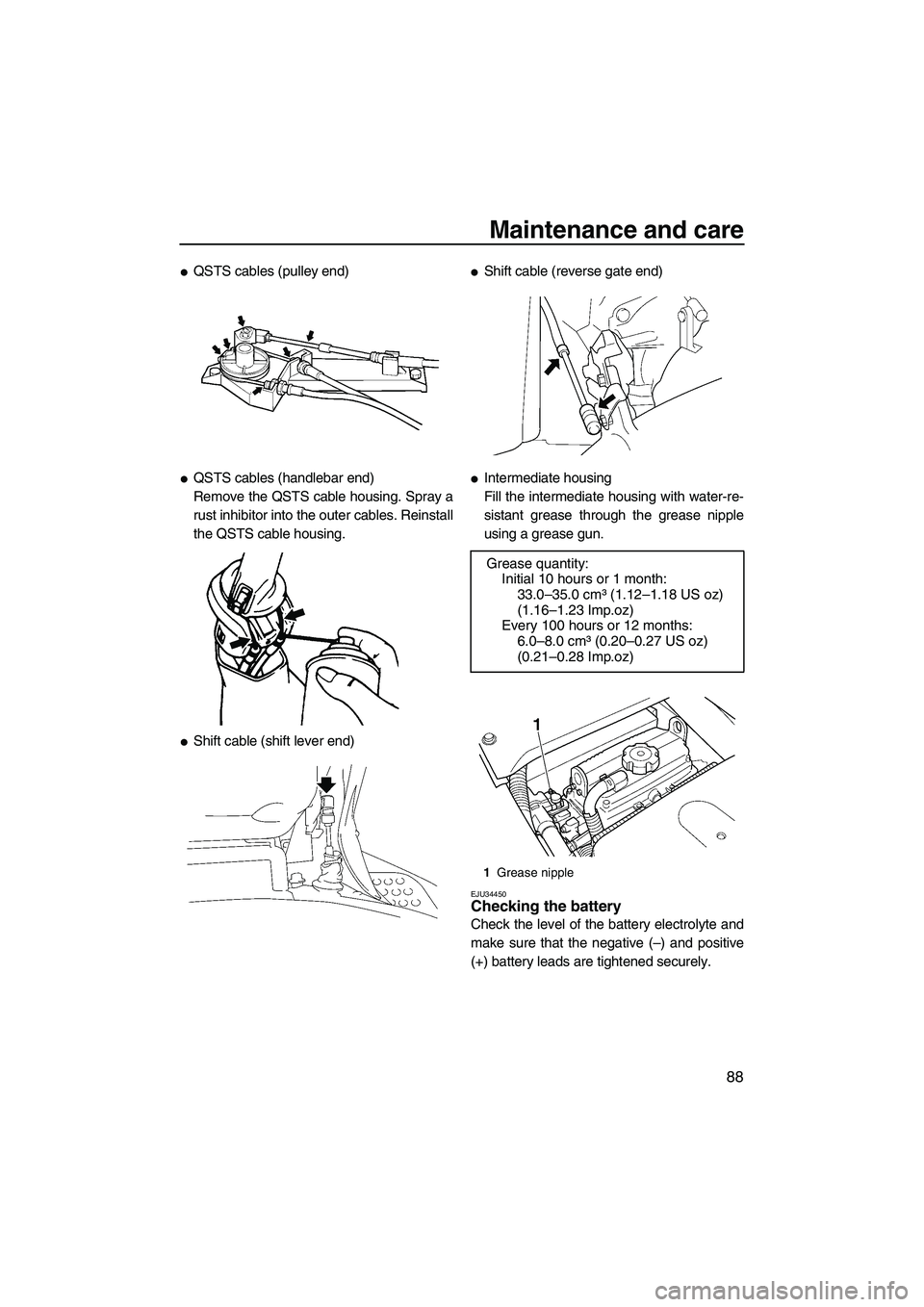

QSTS cables (pulley end)

QSTS cables (handlebar end)
Remove the QSTS cable housing. Spray a
rust inhibitor into the outer cables. Reinstall
the QSTS cable housing.

Shift cable (shift lever end)

Shift cable (reverse gate end)

Intermediate housing
Fill the intermediate housing with water-re-
sistant grease through the grease nipple
using a grease gun.
EJU34450Checking the battery
Check the level of the battery electrolyte and
make sure that the negative (–) and positive
(+) battery leads are tightened securely.
Grease quantity:
Initial 10 hours or 1 month:
33.0–35.0 cm³ (1.12–1.18 US oz)
(1.16–1.23 Imp.oz)
Every 100 hours or 12 months:
6.0–8.0 cm³ (0.20–0.27 US oz)
(0.21–0.28 Imp.oz)
1Grease nipple
UF1X71E0.book Page 88 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
89
WARNING
EWJ00790
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten
egg, or vegetable oil. Call a physician im-
mediately.
Eyes: Flush with water for 15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flames, cigarettes, etc., well away.
If using or charging the battery in an en-
closed space, make sure that it is well ven-
tilated. Always shield your eyes when
working near batteries.
KEEP OUT OF THE REACH OF CHILDREN.
CAUTION:
ECJ00230

Be careful not to place the battery on its
side.

Be sure to remove the battery from the
battery compartment when adding elec-
trolyte or charging the battery.
To replenish the battery:
(1) Make sure that the electrolyte level is be-
tween the maximum and minimum level
marks.
(2) Refill the battery with distilled water if
necessary.
CAUTION:
ECJ00240
Normal tap water contains minerals that
are harmful to a battery. Use only distilled
water for replenishing the battery.
To recharge the battery:
CAUTION:
ECJ00250
Do not attempt to charge a battery hastily.
Battery life could be shortened.
It is recommended to have a Yamaha dealer
charge the battery. If you charge the battery
yourself, carefully read the battery charger in-
structions before charging and follow the
points below.
(1) Remove all of the battery caps.
(2) If the electrolyte level is low, add distilled
water to raise it to the specified level.
(3) Set the charging rate to 1.9 ampere and
charge the battery slowly until the explo-
sive gases are discharged vigorously
from the battery cells.
1Maximum level mark
2Minimum level mark
UF1X71E0.book Page 89 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
90
To install the battery:
(1) Place the battery in the battery compart-
ment and connect the battery leads to the
battery terminals.
(2) Connect the breather hose to the battery.
(3) Secure the battery in place.
WARNING
EWJ00400
Be sure to connect the breather hose to
the battery. Fire or explosion could result
if the breather hose is damaged, obstruct-
ed, or not connected properly.
CAUTION:
ECJ00260
After installation, make sure that the bat-
tery leads are properly connected to the
battery terminals.

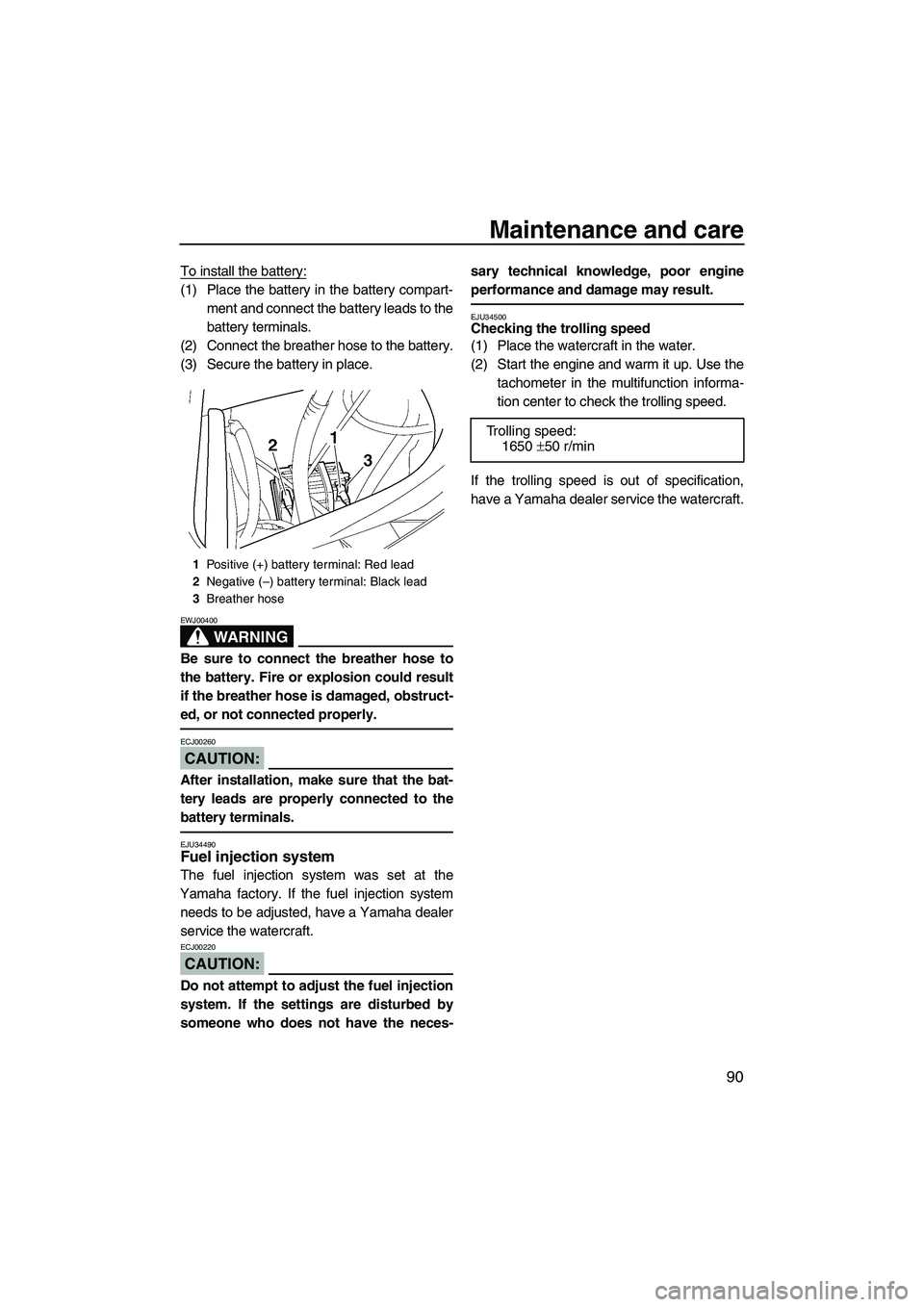

EJU34490Fuel injection system
The fuel injection system was set at the
Yamaha factory. If the fuel injection system
needs to be adjusted, have a Yamaha dealer
service the watercraft.
CAUTION:
ECJ00220
Do not attempt to adjust the fuel injection
system. If the settings are disturbed by
someone who does not have the neces-sary technical knowledge, poor engine
performance and damage may result.
EJU34500Checking the trolling speed
(1) Place the watercraft in the water.
(2) Start the engine and warm it up. Use the
tachometer in the multifunction informa-
tion center to check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer service the watercraft.
1Positive (+) battery terminal: Red lead
2Negative (–) battery terminal: Black lead
3Breather hose
Trolling speed:
1650 ±50 r/min
UF1X71E0.book Page 90 Tuesday, September 26, 2006 9:52 AM

Specifications
91

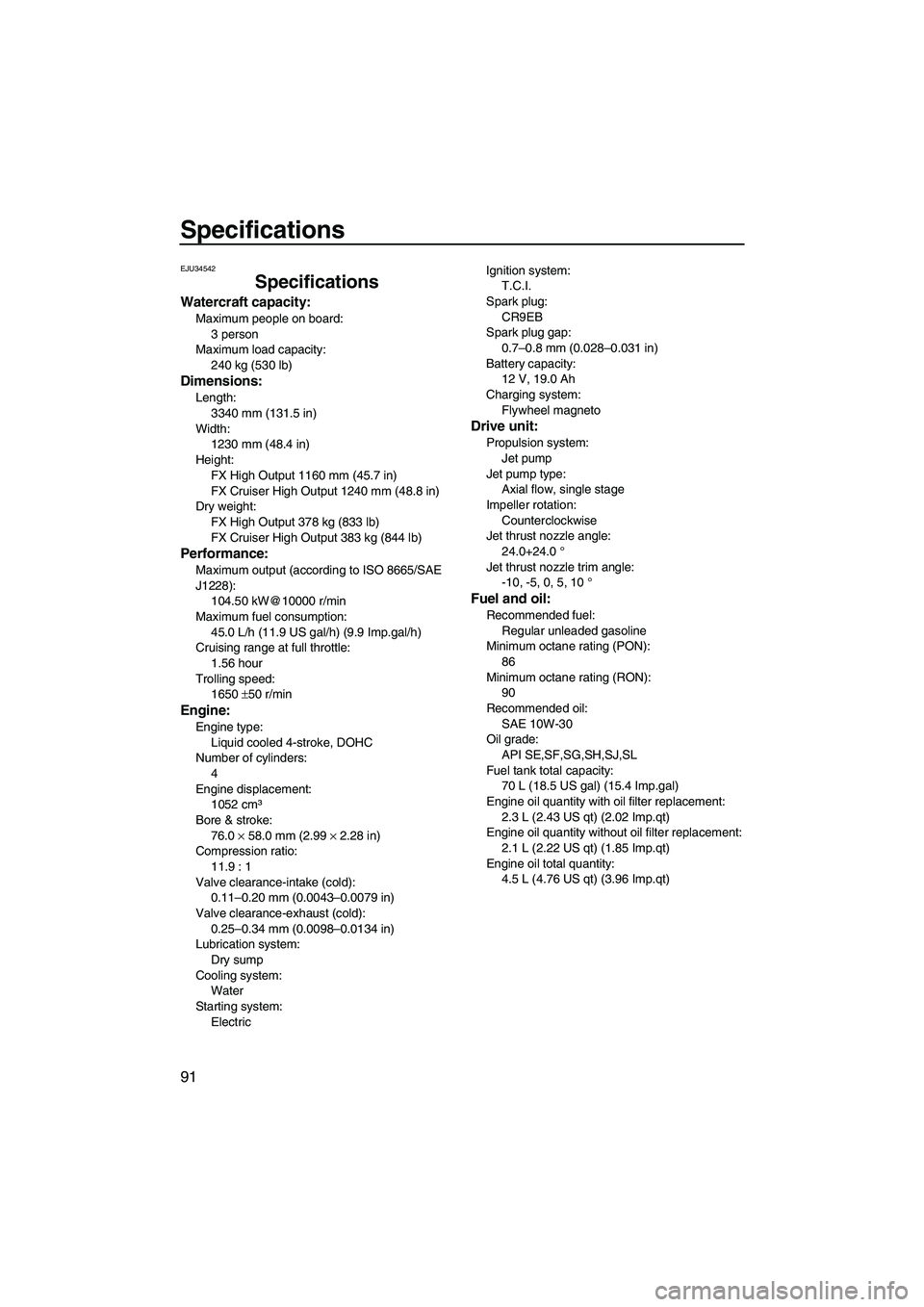

EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions:
Length:
3340 mm (131.5 in)
Width:
1230 mm (48.4 in)
Height:
FX High Output 1160 mm (45.7 in)
FX Cruiser High Output 1240 mm (48.8 in)
Dry weight:
FX High Output 378 kg (833 lb)
FX Cruiser High Output 383 kg (844 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
104.50 kW@10000 r/min
Maximum fuel consumption:
45.0 L/h (11.9 US gal/h) (9.9 Imp.gal/h)
Cruising range at full throttle:
1.56 hour
Trolling speed:
1650 ±50 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1052 cm³
Bore & stroke:
76.0 × 58.0 mm (2.99 × 2.28 in)
Compression ratio:
11.9 : 1
Valve clearance-intake (cold):
0.11–0.20 mm (0.0043–0.0079 in)
Valve clearance-exhaust (cold):
0.25–0.34 mm (0.0098–0.0134 in)
Lubrication system:
Dry sump
Cooling system:
Water
Starting system:
ElectricIgnition system:
T.C.I.
Spark plug:
CR9EB
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Battery capacity:
12 V, 19.0 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Jet thrust nozzle trim angle:
-10, -5, 0, 5, 10 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended oil:
SAE 10W-30
Oil grade:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
70 L (18.5 US gal) (15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
2.3 L (2.43 US qt) (2.02 Imp.qt)
Engine oil quantity without oil filter replacement:
2.1 L (2.22 US qt) (1.85 Imp.qt)
Engine oil total quantity:
4.5 L (4.76 US qt) (3.96 Imp.qt)
UF1X71E0.book Page 91 Tuesday, September 26, 2006 9:52 AM

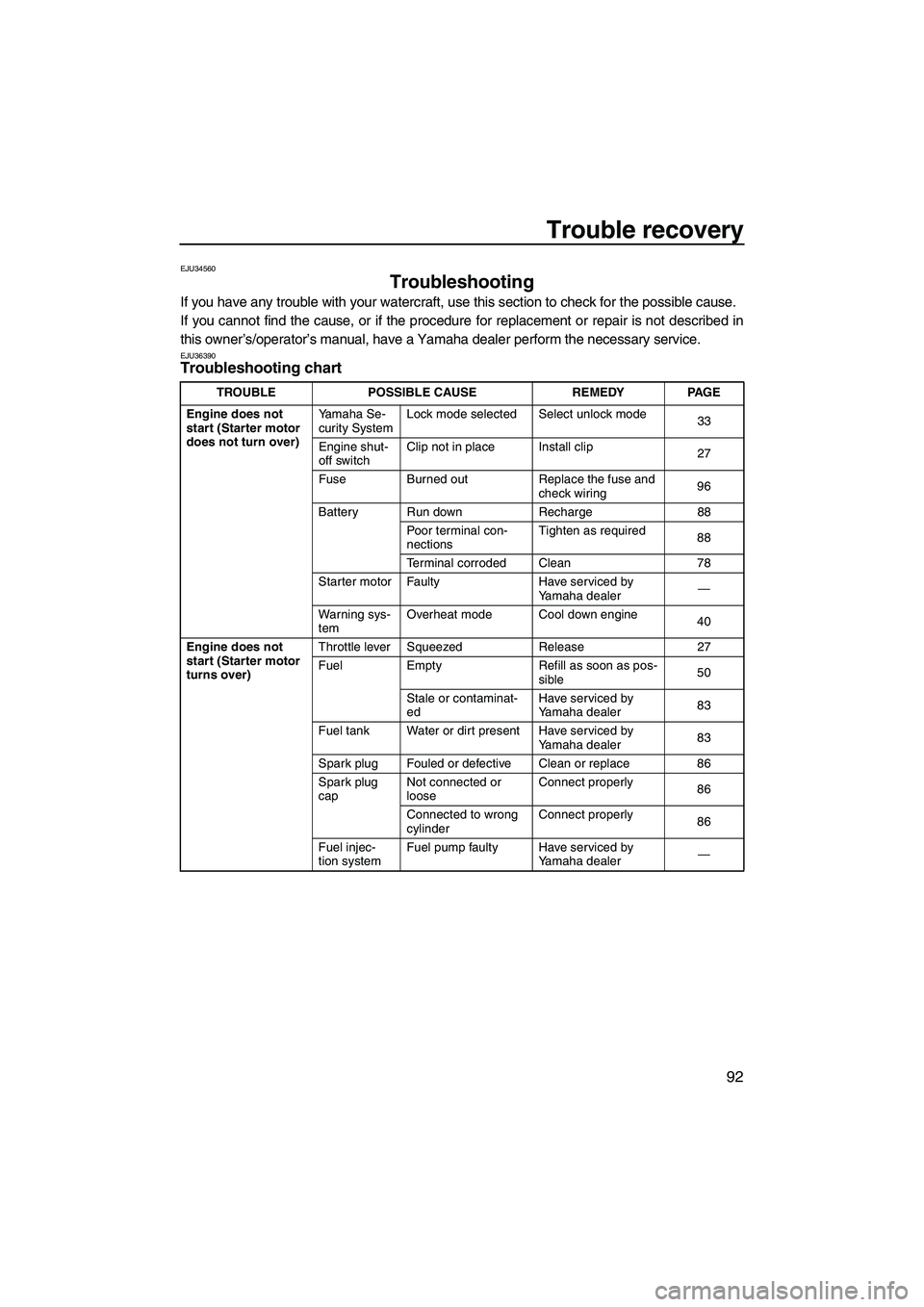

Trouble recovery
92
EJU34560
Troubleshooting
If you have any trouble with your watercraft, use this section to check for the possible cause.
If you cannot find the cause, or if the procedure for replacement or repair is not described in
this owner’s/operator’s manual, have a Yamaha dealer perform the necessary service.
EJU36390Troubleshooting chart
TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
start (Starter motor
does not turn over)Yamaha Se-
curity SystemLock mode selected Select unlock mode
33
Engine shut-
off switchClip not in place Install clip
27
Fuse Burned out Replace the fuse and
check wiring96
Battery Run down Recharge 88
Poor terminal con-
nectionsTighten as required
88
Terminal corroded Clean 78
Starter motor Faulty Have serviced by
Yamaha dealer—
Warning sys-
temOverheat mode Cool down engine
40
Engine does not
start (Starter motor
turns over)Throttle lever Squeezed Release 27
Fuel Empty Refill as soon as pos-
sible50
Stale or contaminat-
edHave serviced by
Yamaha dealer83
Fuel tank Water or dirt present Have serviced by
Yamaha dealer83
Spark plug Fouled or defective Clean or replace 86
Spark plug
capNot connected or
looseConnect properly
86
Connected to wrong
cylinderConnect properly
86
Fuel injec-
tion systemFuel pump faulty Have serviced by
Yamaha dealer—
UF1X71E0.book Page 92 Tuesday, September 26, 2006 9:52 AM

Trouble recovery
93
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible50
Stale or contaminat-
edHave serviced by
Yamaha dealer83
Fuel tank Water or dirt present Have serviced by
Yamaha dealer83
Spark plug Fouled or defective Replace 86
Incorrect heat range Replace 86
Gap incorrect Adjust 86
Spark plug
capLoose Connect properly 86
Cracked, torn, or
damagedReplace
—
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel injec-
tion systemFaulty or clogged in-
jectorsHave serviced by
Yamaha dealer—
Warning light or in-
dicator blinksFuel level Empty Refill as soon as pos-
sible50
Engine over-
heatedJet intake clogged Clean
94
Exhaust gas
temperatureGas temperature is
too highCool down engine
41
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer41
Watercraft slow or
loses powerCavitation Jet intake clogged Clean 94
Impeller damaged or
wornHave serviced by
Yamaha dealer94
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine40
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
40
Spark plug Fouled or defective Replace 86
Incorrect heat range Replace 86
Gap incorrect Adjust 86
Spark plug
capsLoose Connect properly
86
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer83
Air filter Clogged Clean or replace 84
Oil buildup Replace 84 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF1X71E0.book Page 93 Tuesday, September 26, 2006 9:52 AM
