YAMAHA FX HO 2007 Repair Manual

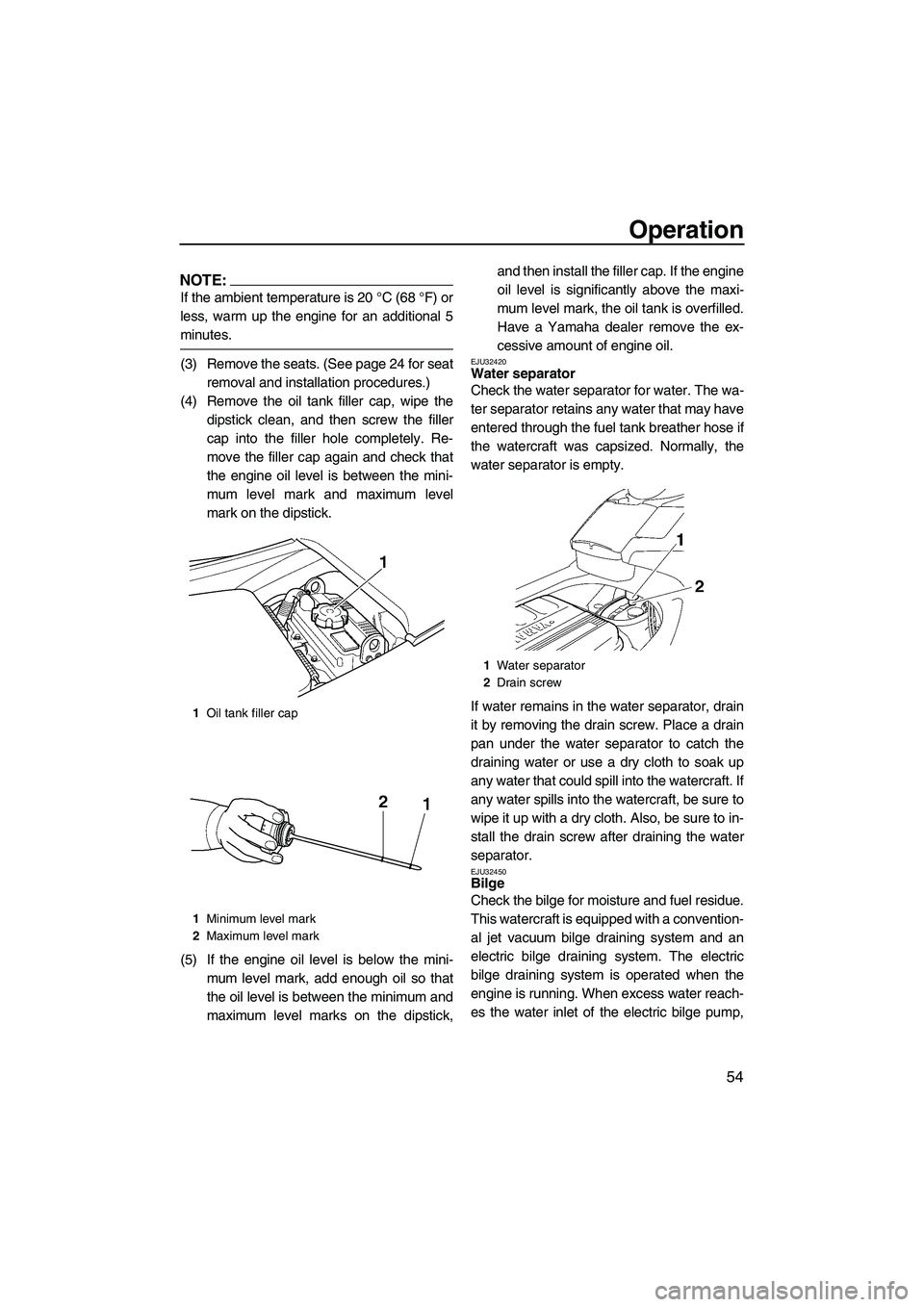

Operation
54
NOTE:
If the ambient temperature is 20 °C (68 °F) or
less, warm up the engine for an additional 5
minutes.
(3) Remove the seats. (See page 24 for seat
removal and installation procedures.)
(4) Remove the oil tank filler cap, wipe the
dipstick clean, and then screw the filler
cap into the filler hole completely. Re-
move the filler cap again and check that
the engine oil level is between the mini-
mum level mark and maximum level
mark on the dipstick.
(5) If the engine oil level is below the mini-
mum level mark, add enough oil so that
the oil level is between the minimum and
maximum level marks on the dipstick,and then install the filler cap. If the engine
oil level is significantly above the maxi-
mum level mark, the oil tank is overfilled.
Have a Yamaha dealer remove the ex-
cessive amount of engine oil.EJU32420Water separator
Check the water separator for water. The wa-
ter separator retains any water that may have
entered through the fuel tank breather hose if
the watercraft was capsized. Normally, the
water separator is empty.
If water remains in the water separator, drain
it by removing the drain screw. Place a drain
pan under the water separator to catch the
draining water or use a dry cloth to soak up
any water that could spill into the watercraft. If
any water spills into the watercraft, be sure to
wipe it up with a dry cloth. Also, be sure to in-
stall the drain screw after draining the water
separator.
EJU32450Bilge
Check the bilge for moisture and fuel residue.
This watercraft is equipped with a convention-
al jet vacuum bilge draining system and an
electric bilge draining system. The electric
bilge draining system is operated when the
engine is running. When excess water reach-
es the water inlet of the electric bilge pump,
1Oil tank filler cap
1Minimum level mark
2Maximum level mark
1Water separator
2Drain screw
UF1X71E0.book Page 54 Tuesday, September 26, 2006 9:52 AM

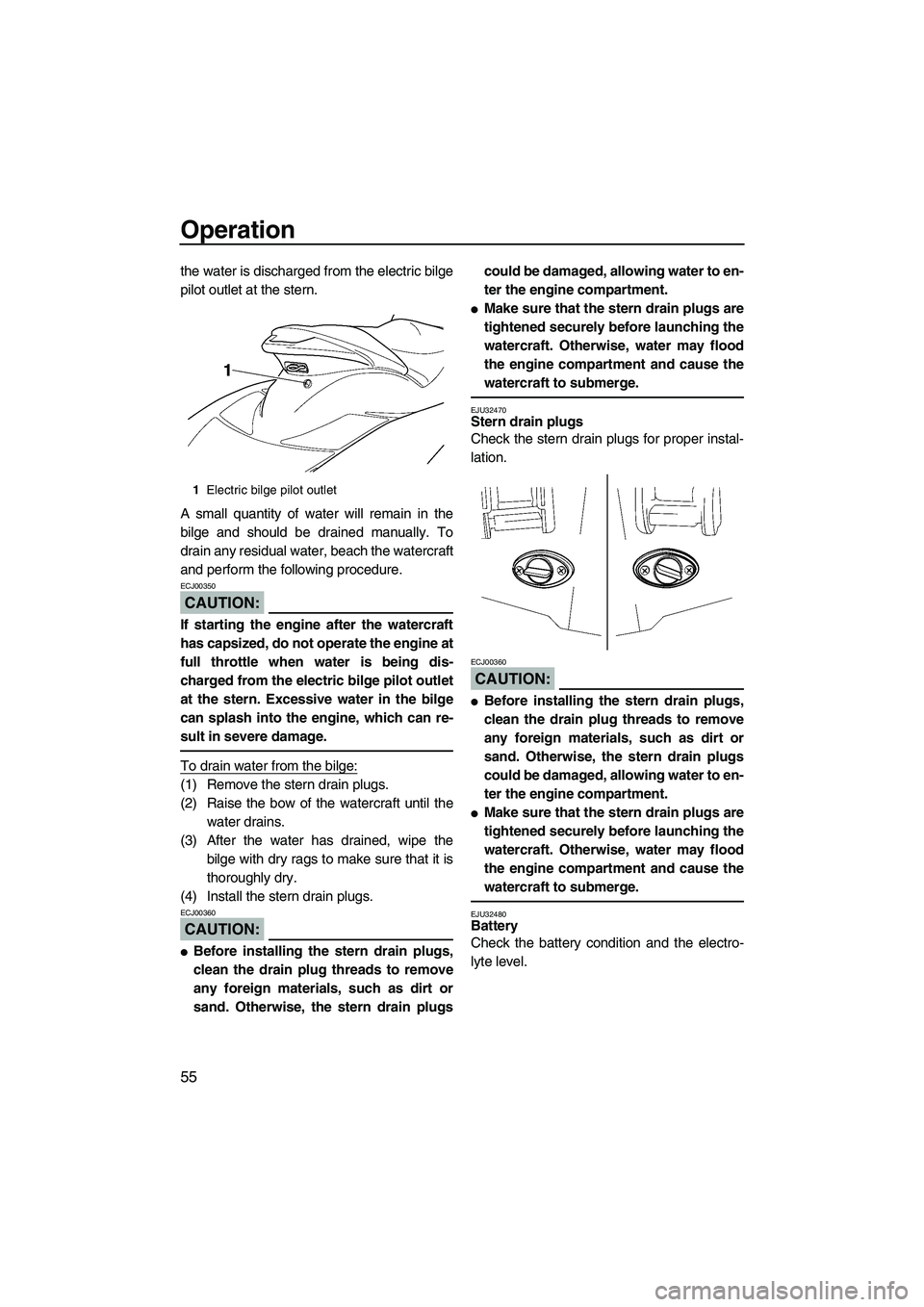

Operation
55
the water is discharged from the electric bilge
pilot outlet at the stern.
A small quantity of water will remain in the
bilge and should be drained manually. To
drain any residual water, beach the watercraft
and perform the following procedure.
CAUTION:
ECJ00350
If starting the engine after the watercraft
has capsized, do not operate the engine at
full throttle when water is being dis-
charged from the electric bilge pilot outlet
at the stern. Excessive water in the bilge
can splash into the engine, which can re-
sult in severe damage.
To drain water from the bilge:
(1) Remove the stern drain plugs.
(2) Raise the bow of the watercraft until the
water drains.
(3) After the water has drained, wipe the
bilge with dry rags to make sure that it is
thoroughly dry.
(4) Install the stern drain plugs.
CAUTION:
ECJ00360

Before installing the stern drain plugs,
clean the drain plug threads to remove
any foreign materials, such as dirt or
sand. Otherwise, the stern drain plugscould be damaged, allowing water to en-
ter the engine compartment.

Make sure that the stern drain plugs are
tightened securely before launching the
watercraft. Otherwise, water may flood
the engine compartment and cause the
watercraft to submerge.
EJU32470Stern drain plugs
Check the stern drain plugs for proper instal-
lation.
CAUTION:
ECJ00360

Before installing the stern drain plugs,
clean the drain plug threads to remove
any foreign materials, such as dirt or
sand. Otherwise, the stern drain plugs
could be damaged, allowing water to en-
ter the engine compartment.

Make sure that the stern drain plugs are
tightened securely before launching the
watercraft. Otherwise, water may flood
the engine compartment and cause the
watercraft to submerge.
EJU32480Battery
Check the battery condition and the electro-
lyte level.
1Electric bilge pilot outlet
UF1X71E0.book Page 55 Tuesday, September 26, 2006 9:52 AM

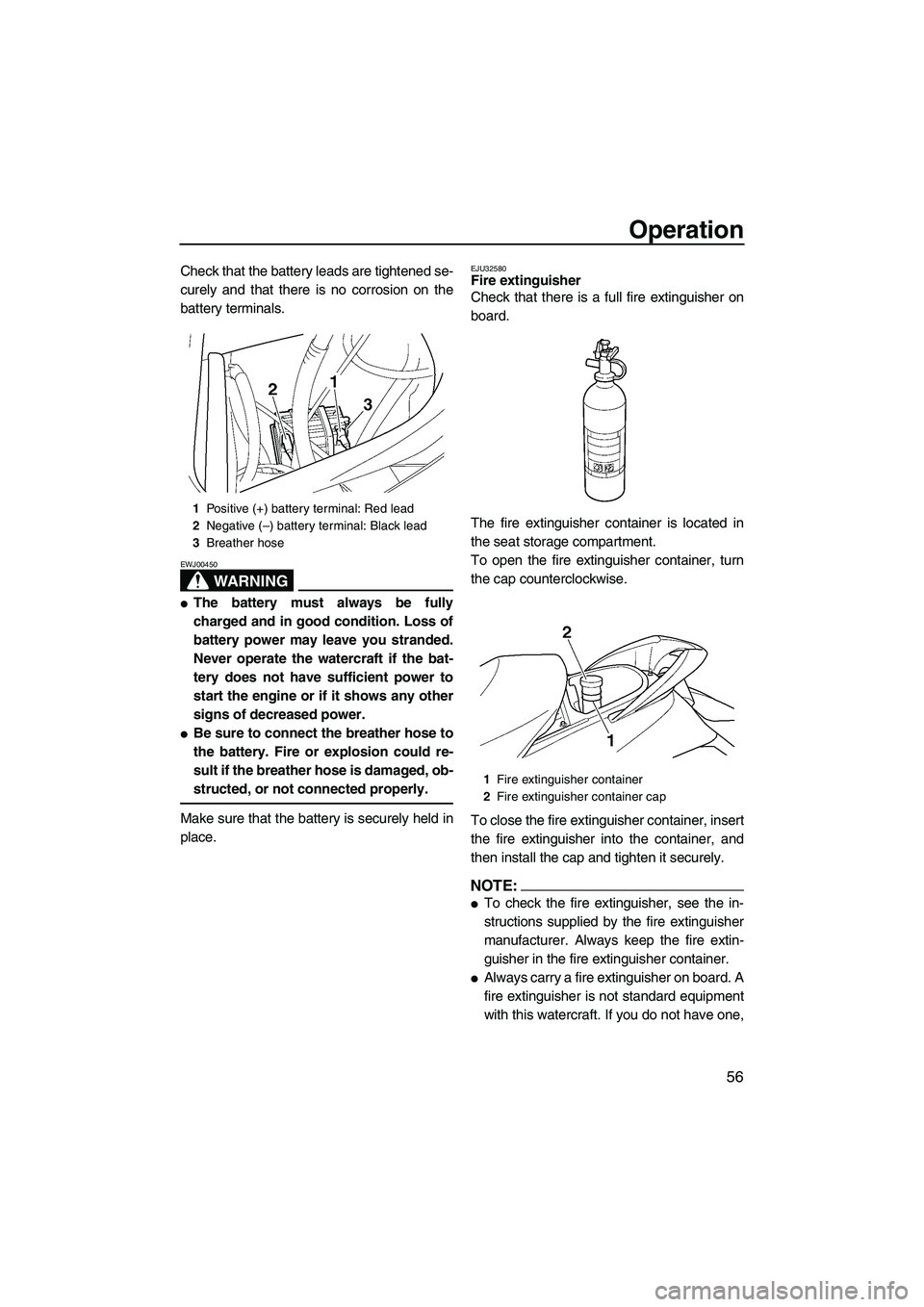

Operation
56
Check that the battery leads are tightened se-
curely and that there is no corrosion on the
battery terminals.
WARNING
EWJ00450

The battery must always be fully
charged and in good condition. Loss of
battery power may leave you stranded.
Never operate the watercraft if the bat-
tery does not have sufficient power to
start the engine or if it shows any other
signs of decreased power.

Be sure to connect the breather hose to
the battery. Fire or explosion could re-
sult if the breather hose is damaged, ob-
structed, or not connected properly.
Make sure that the battery is securely held in
place.
EJU32580Fire extinguisher
Check that there is a full fire extinguisher on
board.
The fire extinguisher container is located in
the seat storage compartment.
To open the fire extinguisher container, turn
the cap counterclockwise.
To close the fire extinguisher container, insert
the fire extinguisher into the container, and
then install the cap and tighten it securely.
NOTE:

To check the fire extinguisher, see the in-
structions supplied by the fire extinguisher
manufacturer. Always keep the fire extin-
guisher in the fire extinguisher container.

Always carry a fire extinguisher on board. A
fire extinguisher is not standard equipment
with this watercraft. If you do not have one,
1Positive (+) battery terminal: Red lead
2Negative (–) battery terminal: Black lead
3Breather hose
1Fire extinguisher container
2Fire extinguisher container cap
UF1X71E0.book Page 56 Tuesday, September 26, 2006 9:52 AM

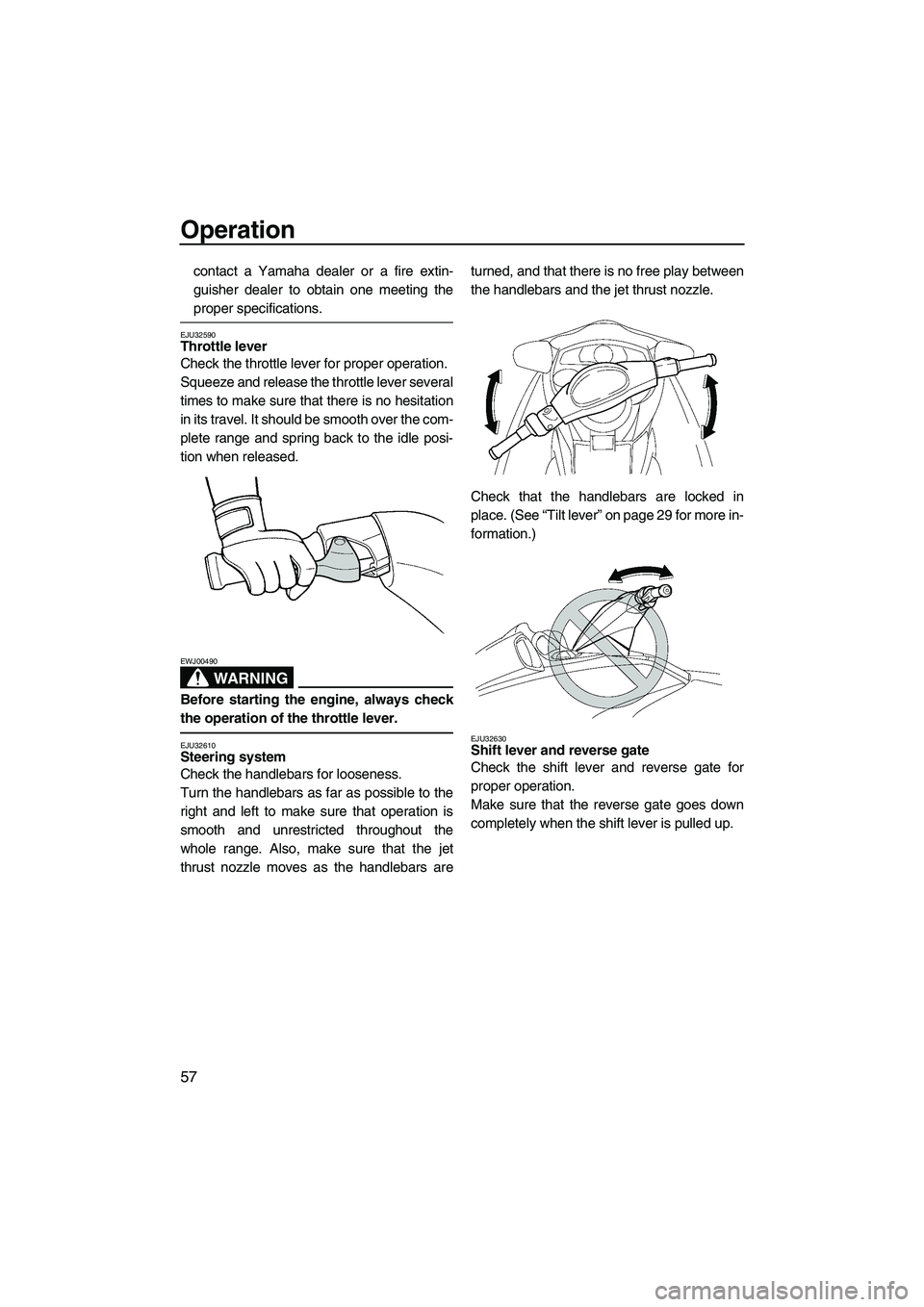

Operation
57
contact a Yamaha dealer or a fire extin-
guisher dealer to obtain one meeting the
proper specifications.
EJU32590Throttle lever
Check the throttle lever for proper operation.
Squeeze and release the throttle lever several
times to make sure that there is no hesitation
in its travel. It should be smooth over the com-
plete range and spring back to the idle posi-
tion when released.
WARNING
EWJ00490
Before starting the engine, always check
the operation of the throttle lever.
EJU32610Steering system
Check the handlebars for looseness.
Turn the handlebars as far as possible to the
right and left to make sure that operation is
smooth and unrestricted throughout the
whole range. Also, make sure that the jet
thrust nozzle moves as the handlebars areturned, and that there is no free play between
the handlebars and the jet thrust nozzle.
Check that the handlebars are locked in
place. (See “Tilt lever” on page 29 for more in-
formation.)
EJU32630Shift lever and reverse gate
Check the shift lever and reverse gate for
proper operation.
Make sure that the reverse gate goes down
completely when the shift lever is pulled up.
UF1X71E0.book Page 57 Tuesday, September 26, 2006 9:52 AM

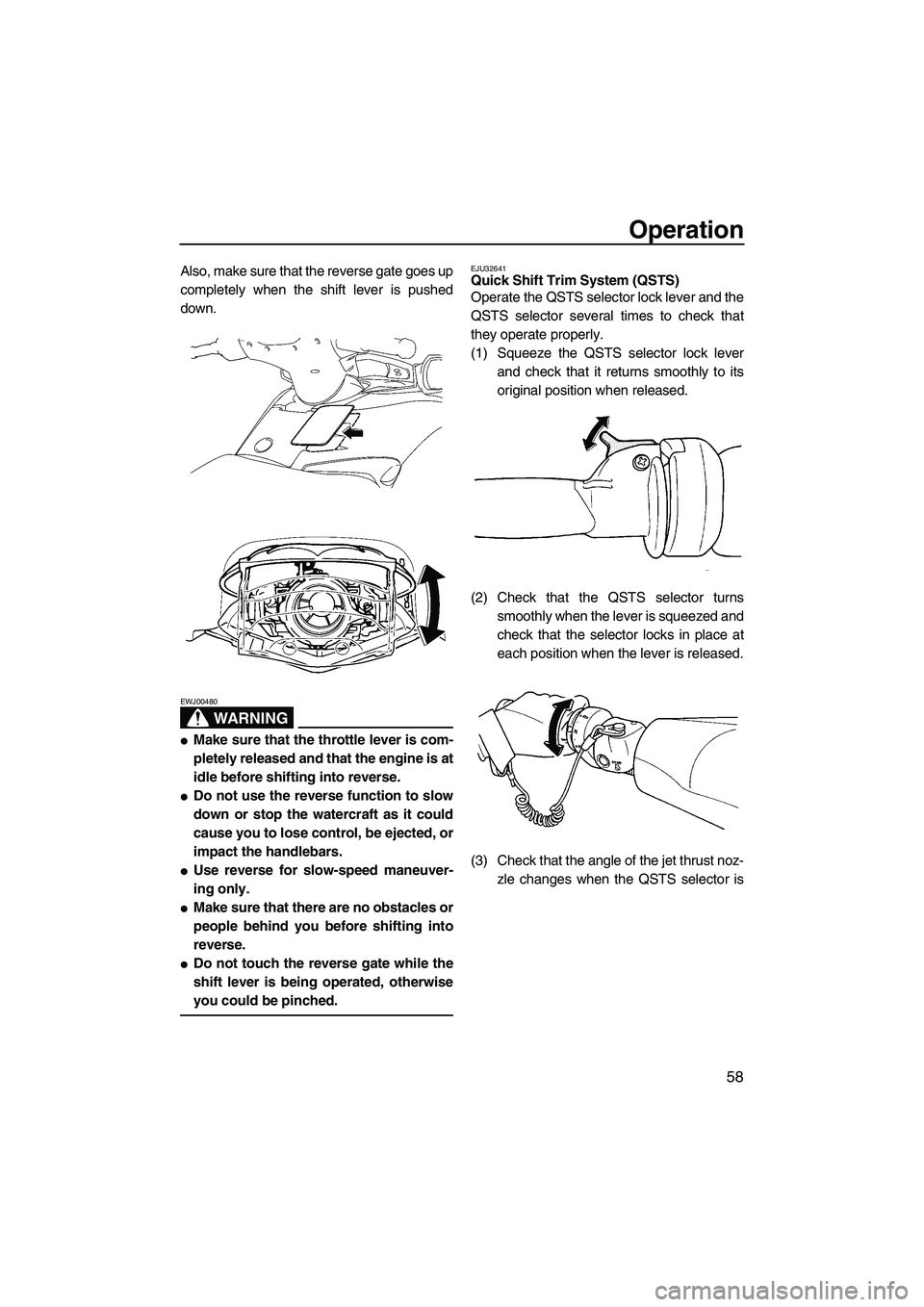

Operation
58
Also, make sure that the reverse gate goes up
completely when the shift lever is pushed
down.
WARNING
EWJ00480

Make sure that the throttle lever is com-
pletely released and that the engine is at
idle before shifting into reverse.

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars.

Use reverse for slow-speed maneuver-
ing only.

Make sure that there are no obstacles or
people behind you before shifting into
reverse.

Do not touch the reverse gate while the
shift lever is being operated, otherwise
you could be pinched.
EJU32641Quick Shift Trim System (QSTS)
Operate the QSTS selector lock lever and the
QSTS selector several times to check that
they operate properly.
(1) Squeeze the QSTS selector lock lever
and check that it returns smoothly to its
original position when released.
(2) Check that the QSTS selector turns
smoothly when the lever is squeezed and
check that the selector locks in place at
each position when the lever is released.
(3) Check that the angle of the jet thrust noz-
zle changes when the QSTS selector is
UF1X71E0.book Page 58 Tuesday, September 26, 2006 9:52 AM

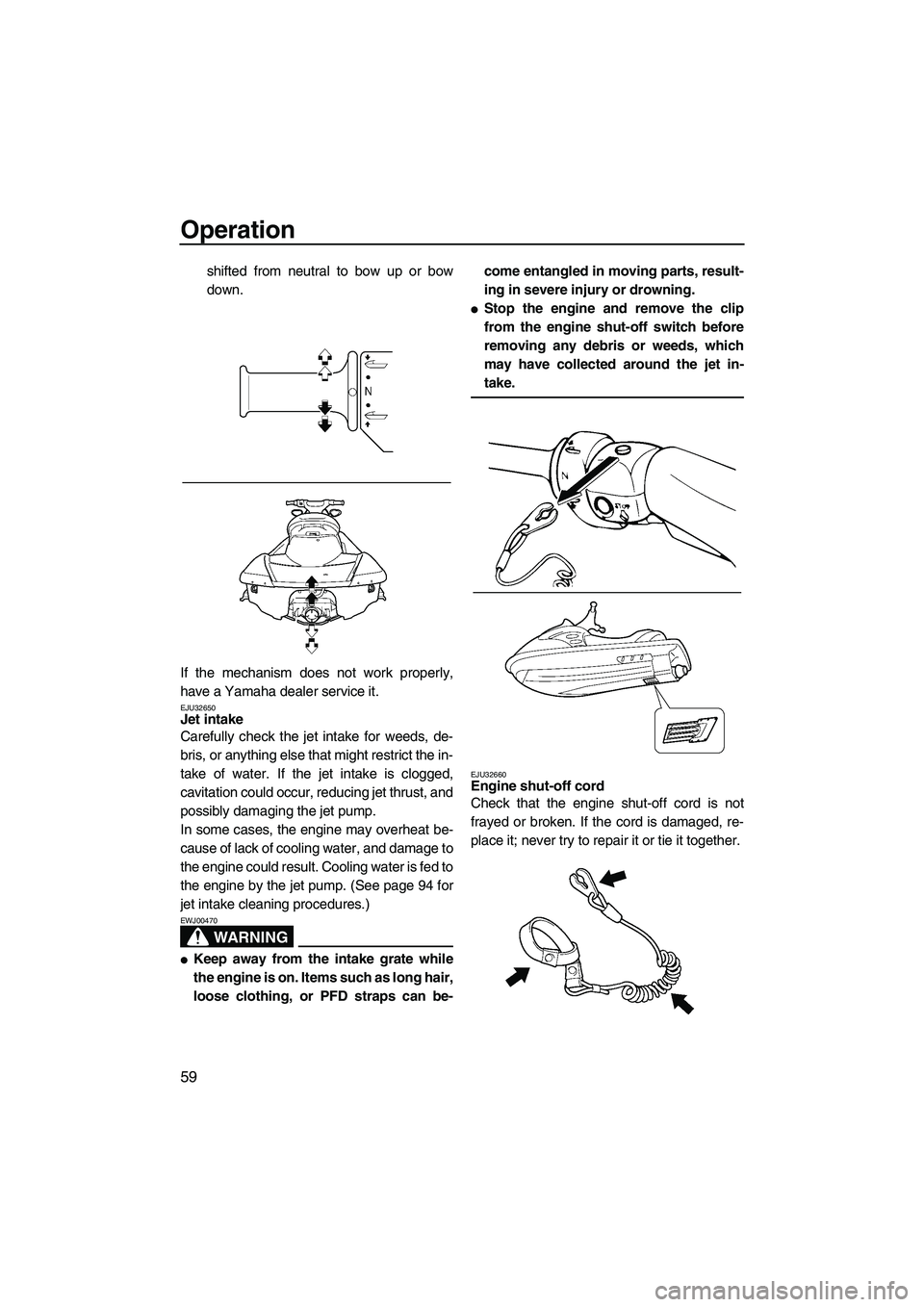

Operation
59
shifted from neutral to bow up or bow
down.
If the mechanism does not work properly,
have a Yamaha dealer service it.
EJU32650Jet intake
Carefully check the jet intake for weeds, de-
bris, or anything else that might restrict the in-
take of water. If the jet intake is clogged,
cavitation could occur, reducing jet thrust, and
possibly damaging the jet pump.
In some cases, the engine may overheat be-
cause of lack of cooling water, and damage to
the engine could result. Cooling water is fed to
the engine by the jet pump. (See page 94 for
jet intake cleaning procedures.)
WARNING
EWJ00470

Keep away from the intake grate while
the engine is on. Items such as long hair,
loose clothing, or PFD straps can be-come entangled in moving parts, result-
ing in severe injury or drowning.

Stop the engine and remove the clip
from the engine shut-off switch before
removing any debris or weeds, which
may have collected around the jet in-
take.
EJU32660Engine shut-off cord
Check that the engine shut-off cord is not
frayed or broken. If the cord is damaged, re-
place it; never try to repair it or tie it together.
UF1X71E0.book Page 59 Tuesday, September 26, 2006 9:52 AM

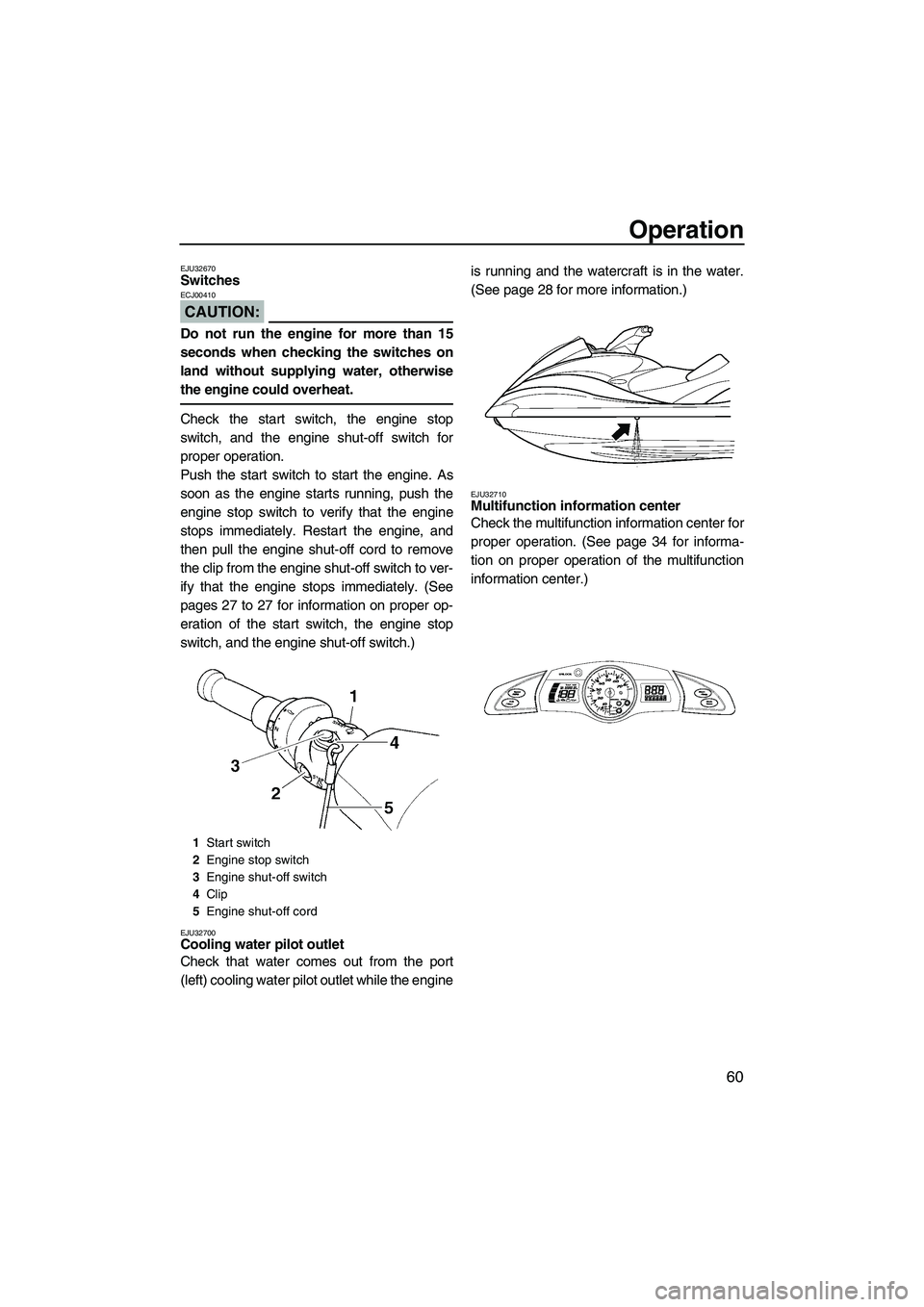

Operation
60
EJU32670Switches
CAUTION:
ECJ00410
Do not run the engine for more than 15
seconds when checking the switches on
land without supplying water, otherwise
the engine could overheat.
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch to start the engine. As
soon as the engine starts running, push the
engine stop switch to verify that the engine
stops immediately. Restart the engine, and
then pull the engine shut-off cord to remove
the clip from the engine shut-off switch to ver-
ify that the engine stops immediately. (See
pages 27 to 27 for information on proper op-
eration of the start switch, the engine stop
switch, and the engine shut-off switch.)
EJU32700Cooling water pilot outlet
Check that water comes out from the port
(left) cooling water pilot outlet while the engineis running and the watercraft is in the water.
(See page 28 for more information.)
EJU32710Multifunction information center
Check the multifunction information center for
proper operation. (See page 34 for informa-
tion on proper operation of the multifunction
information center.)
1Start switch
2Engine stop switch
3Engine shut-off switch
4Clip
5Engine shut-off cord
UF1X71E0.book Page 60 Tuesday, September 26, 2006 9:52 AM

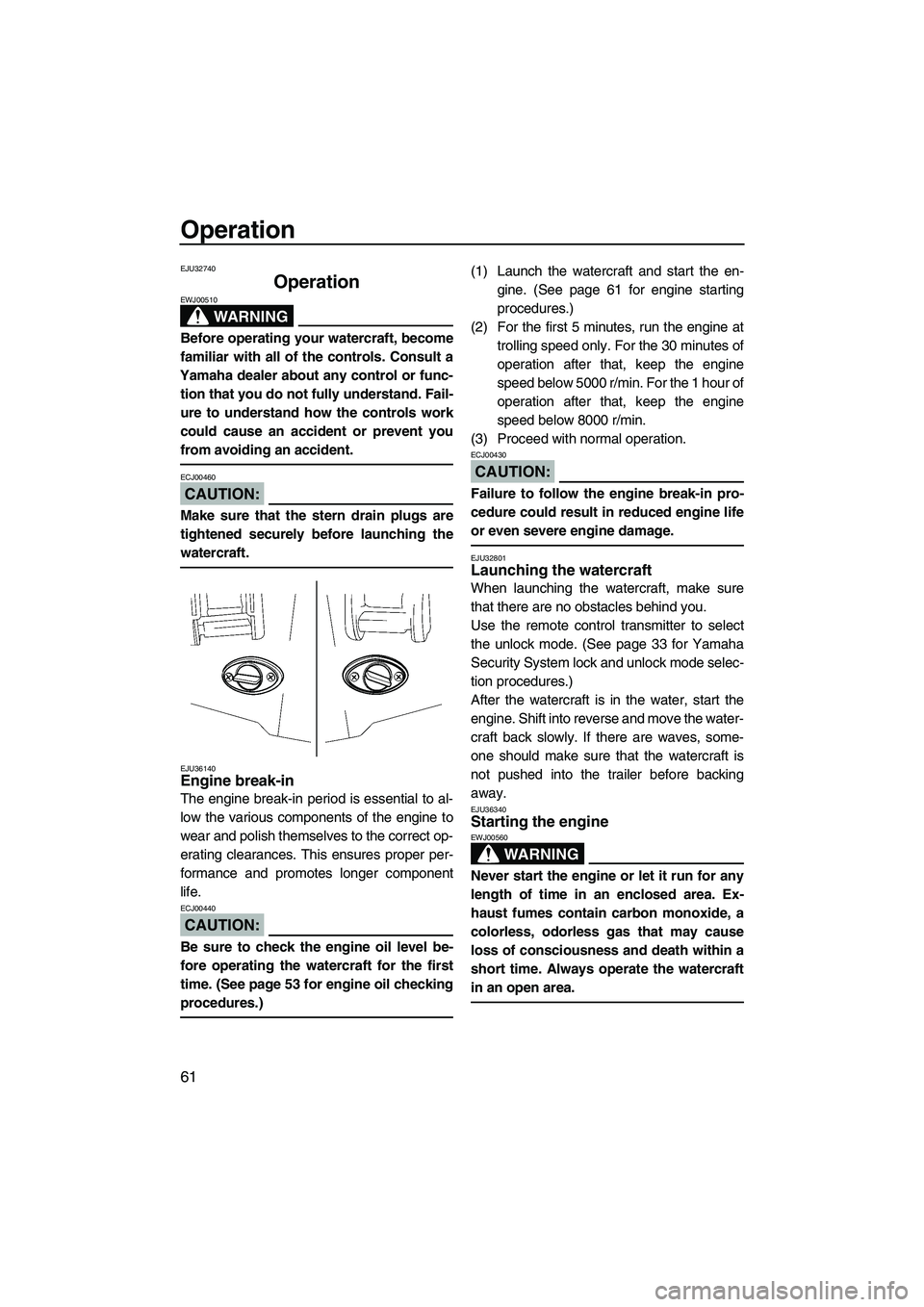

Operation
61
EJU32740
Operation
WARNING
EWJ00510
Before operating your watercraft, become
familiar with all of the controls. Consult a
Yamaha dealer about any control or func-
tion that you do not fully understand. Fail-
ure to understand how the controls work
could cause an accident or prevent you
from avoiding an accident.
CAUTION:
ECJ00460
Make sure that the stern drain plugs are
tightened securely before launching the
watercraft.
EJU36140Engine break-in
The engine break-in period is essential to al-
low the various components of the engine to
wear and polish themselves to the correct op-
erating clearances. This ensures proper per-
formance and promotes longer component
life.
CAUTION:
ECJ00440
Be sure to check the engine oil level be-
fore operating the watercraft for the first
time. (See page 53 for engine oil checking
procedures.)
(1) Launch the watercraft and start the en-
gine. (See page 61 for engine starting
procedures.)
(2) For the first 5 minutes, run the engine at
trolling speed only. For the 30 minutes of
operation after that, keep the engine
speed below 5000 r/min. For the 1 hour of
operation after that, keep the engine
speed below 8000 r/min.
(3) Proceed with normal operation.
CAUTION:
ECJ00430
Failure to follow the engine break-in pro-
cedure could result in reduced engine life
or even severe engine damage.
EJU32801Launching the watercraft
When launching the watercraft, make sure
that there are no obstacles behind you.
Use the remote control transmitter to select
the unlock mode. (See page 33 for Yamaha
Security System lock and unlock mode selec-
tion procedures.)
After the watercraft is in the water, start the
engine. Shift into reverse and move the water-
craft back slowly. If there are waves, some-
one should make sure that the watercraft is
not pushed into the trailer before backing
away.
EJU36340Starting the engine
WARNING
EWJ00560
Never start the engine or let it run for any
length of time in an enclosed area. Ex-
haust fumes contain carbon monoxide, a
colorless, odorless gas that may cause
loss of consciousness and death within a
short time. Always operate the watercraft
in an open area.
UF1X71E0.book Page 61 Tuesday, September 26, 2006 9:52 AM

Operation
62

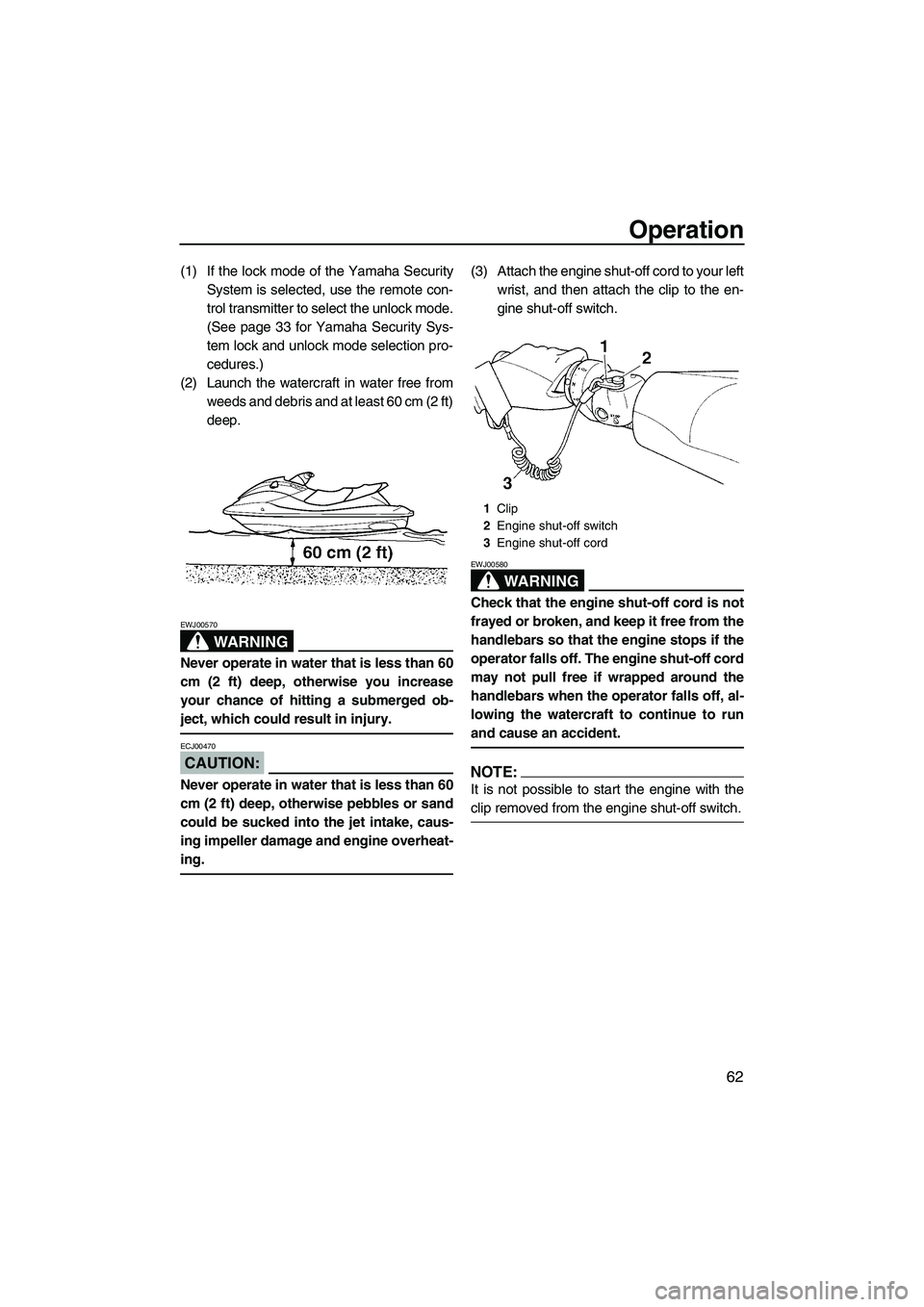

(1) If the lock mode of the Yamaha Security
System is selected, use the remote con-
trol transmitter to select the unlock mode.
(See page 33 for Yamaha Security Sys-
tem lock and unlock mode selection pro-
cedures.)
(2) Launch the watercraft in water free from
weeds and debris and at least 60 cm (2 ft)
deep.
WARNING
EWJ00570
Never operate in water that is less than 60
cm (2 ft) deep, otherwise you increase
your chance of hitting a submerged ob-
ject, which could result in injury.
CAUTION:
ECJ00470
Never operate in water that is less than 60
cm (2 ft) deep, otherwise pebbles or sand
could be sucked into the jet intake, caus-
ing impeller damage and engine overheat-
ing.
(3) Attach the engine shut-off cord to your left
wrist, and then attach the clip to the en-
gine shut-off switch.
WARNING
EWJ00580
Check that the engine shut-off cord is not
frayed or broken, and keep it free from the
handlebars so that the engine stops if the
operator falls off. The engine shut-off cord
may not pull free if wrapped around the
handlebars when the operator falls off, al-
lowing the watercraft to continue to run
and cause an accident.
NOTE:
It is not possible to start the engine with the
clip removed from the engine shut-off switch.
1Clip
2Engine shut-off switch
3Engine shut-off cord
UF1X71E0.book Page 62 Tuesday, September 26, 2006 9:52 AM

Operation
63

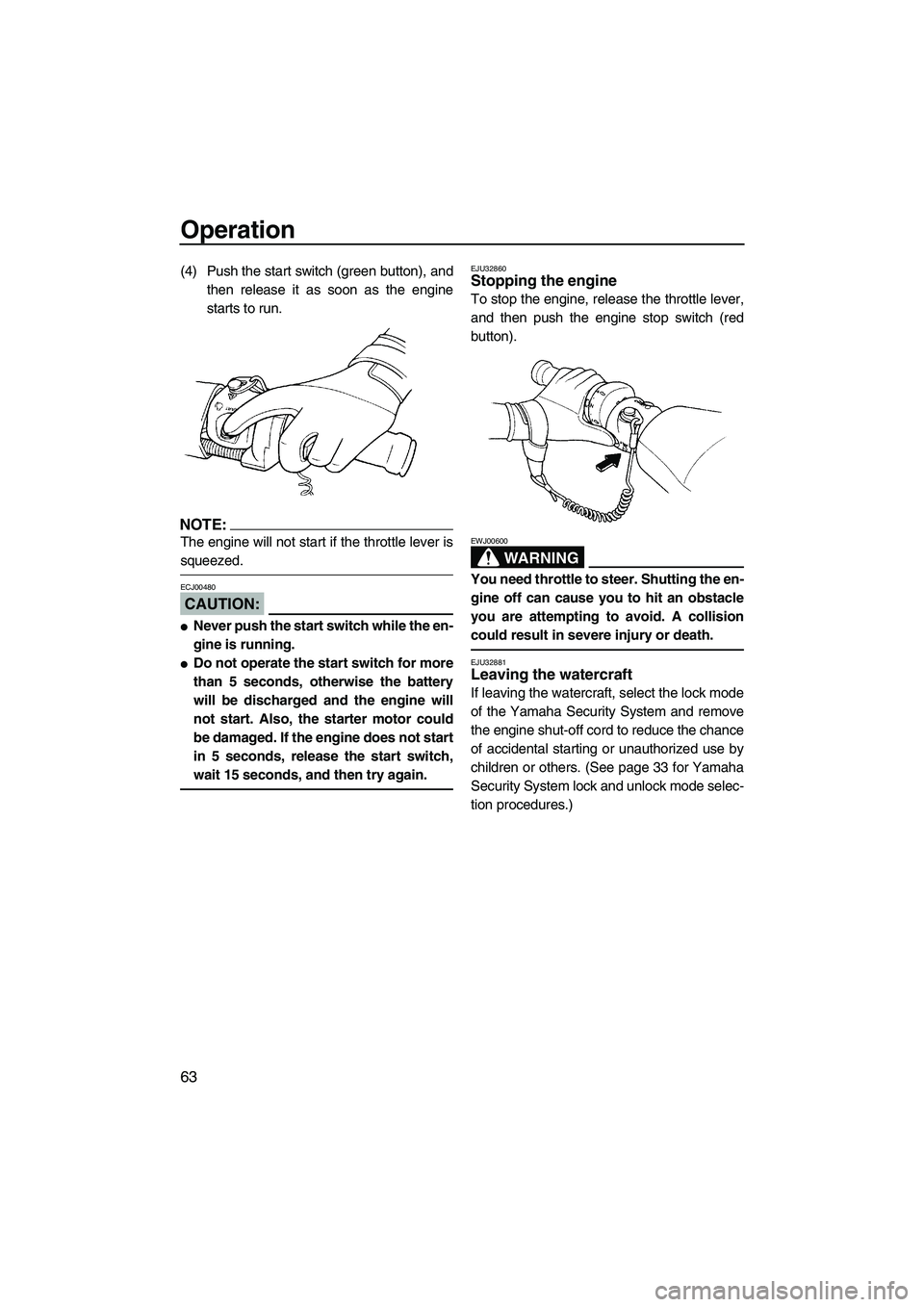

(4) Push the start switch (green button), and
then release it as soon as the engine
starts to run.
NOTE:
The engine will not start if the throttle lever is
squeezed.
CAUTION:
ECJ00480

Never push the start switch while the en-
gine is running.

Do not operate the start switch for more
than 5 seconds, otherwise the battery
will be discharged and the engine will
not start. Also, the starter motor could
be damaged. If the engine does not start
in 5 seconds, release the start switch,
wait 15 seconds, and then try again.
EJU32860Stopping the engine
To stop the engine, release the throttle lever,
and then push the engine stop switch (red
button).
WARNING
EWJ00600
You need throttle to steer. Shutting the en-
gine off can cause you to hit an obstacle
you are attempting to avoid. A collision
could result in severe injury or death.
EJU32881Leaving the watercraft
If leaving the watercraft, select the lock mode
of the Yamaha Security System and remove
the engine shut-off cord to reduce the chance
of accidental starting or unauthorized use by
children or others. (See page 33 for Yamaha
Security System lock and unlock mode selec-
tion procedures.)
UF1X71E0.book Page 63 Tuesday, September 26, 2006 9:52 AM
