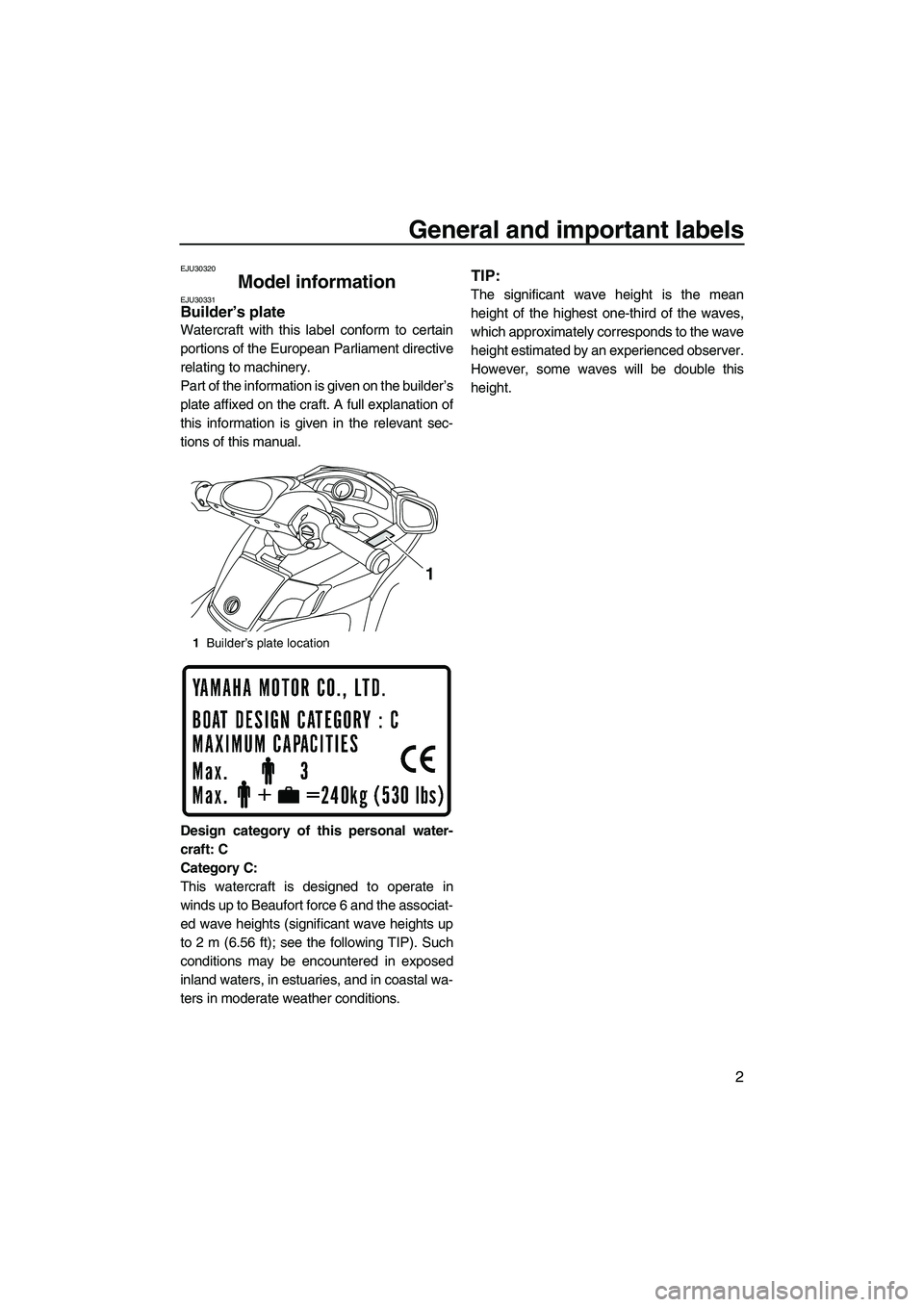

General and important labels
2
EJU30320
Model information EJU30331Builder’s plate
Watercraft with this label conform to certain
portions of the European Parliament directive
relating to machinery.
Part of the information is given on the builder’s
plate affixed on the craft. A full explanation of
this information is given in the relevant sec-
tions of this manual.
Design category of this personal water-
craft: C
Category C:
This watercraft is designed to operate in
winds up to Beaufort force 6 and the associat-
ed wave heights (significant wave heights up
to 2 m (6.56 ft); see the following TIP). Such
conditions may be encountered in exposed
inland waters, in estuaries, and in coastal wa-
ters in moderate weather conditions.
TIP:
The significant wave height is the mean
height of the highest one-third of the waves,
which approximately corresponds to the wave
height estimated by an experienced observer.
However, some waves will be double this
height.
1Builder’s plate location
1
UF2H70E0.book Page 2 Thursday, January 15, 2009 10:49 AM

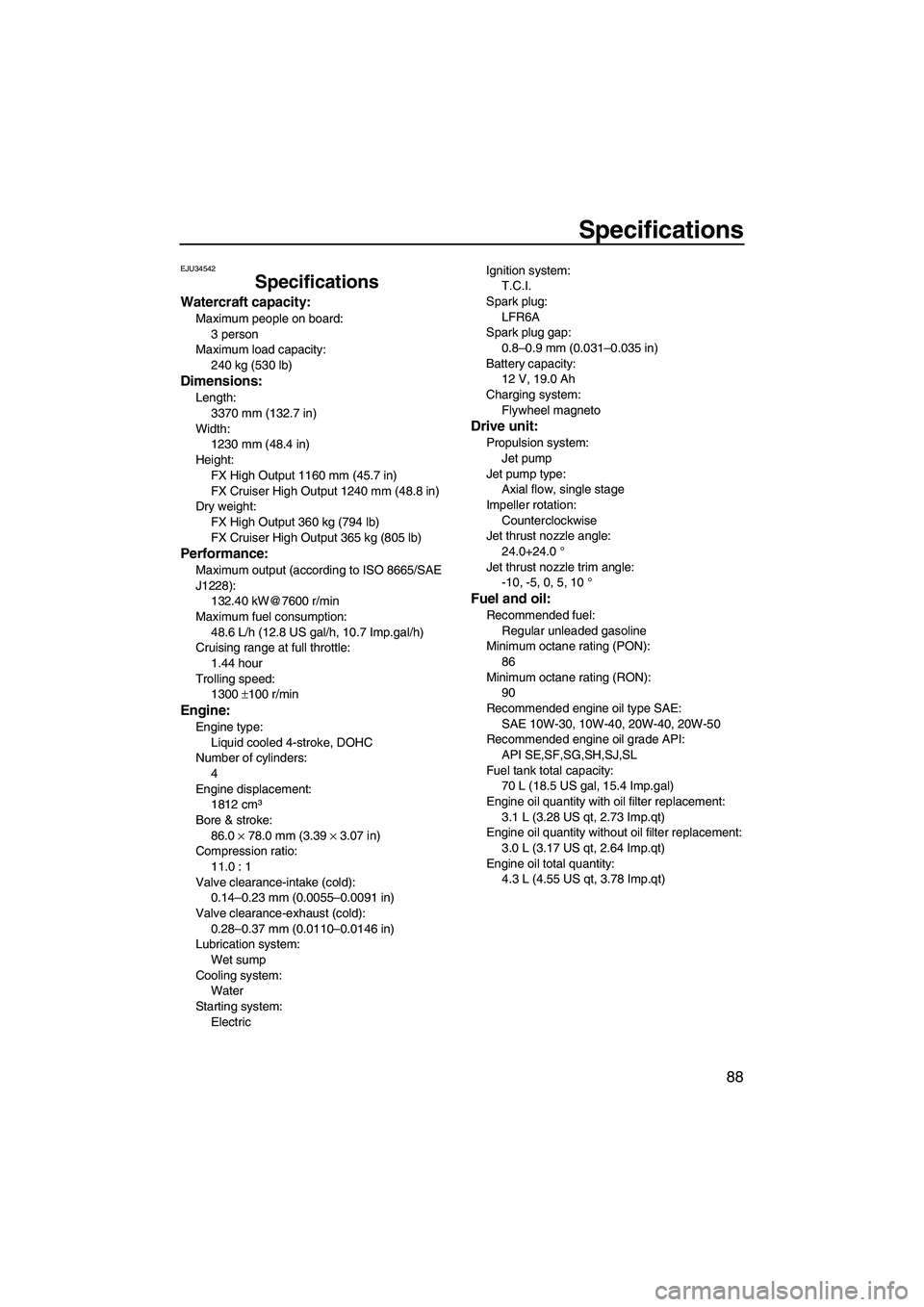

Specifications
88
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions:
Length:
3370 mm (132.7 in)
Width:
1230 mm (48.4 in)
Height:
FX High Output 1160 mm (45.7 in)
FX Cruiser High Output 1240 mm (48.8 in)
Dry weight:
FX High Output 360 kg (794 lb)
FX Cruiser High Output 365 kg (805 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
132.40 kW@7600 r/min
Maximum fuel consumption:
48.6 L/h (12.8 US gal/h, 10.7 Imp.gal/h)
Cruising range at full throttle:
1.44 hour
Trolling speed:
1300 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1812 cm³
Bore & stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio:
11.0 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system:
Wet sump
Cooling system:
Water
Starting system:
ElectricIgnition system:
T.C.I.
Spark plug:
LFR6A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity:
12 V, 19.0 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Jet thrust nozzle trim angle:
-10, -5, 0, 5, 10 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.1 L (3.28 US qt, 2.73 Imp.qt)
Engine oil quantity without oil filter replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Engine oil total quantity:
4.3 L (4.55 US qt, 3.78 Imp.qt)
