YAMAHA FX HO CRUISER 2009 Owners Manual

Read this manual carefully
before operating this watercraft.
OWNER’S/OPERATOR’S MANUAL
2009 WaveRunner
FX High Output
FX Cruiser High Output
F2H-F8199-70-E0
UF2H70E0.book Page 1 Thursday, January 15, 2009 10:49 AM

Read this manual carefully before operating this watercraft. This manual
should stay with the WaveRunner if it is sold.
UF2H70E0.book Page 1 Thursday, January 15, 2009 10:49 AM

Important manual information
EJU37590
Name of Notified Body for exhaust emission assessment: Luxcontrol SA
Address: 1, avenue des Terres Rouges BP 349
Town: Esch-sur-Alzette Post Code:L-4004
Country: Luxembourg ID Number:0882
ECtype-examination Certificate number (if applicable):LC*2003/44*10030
Revision No:
Name of PWC manufacturer:
YAMAHA MOTOR CO., LTD.
Address: 2500 Shingai
Town:Post Code:438-8501 Iwata, Shizuoka
Country:Japan
Name of Authorized Representative (if applicable):
YAMAHA MOTOR EUROPE N.V.
Address: Koolhovenlaan 101
Town:Schiphol-Rijk Post Code:1119 NC
Country:The Netherlands
Name of Notified Body for noise emission assessment: Luxcontrol SA
Address:1, avenue des Terres Rouges BP 349
Town:Esch-sur-Alzette Post Code: L-4004
Country:Luxembourg ID Number:0882

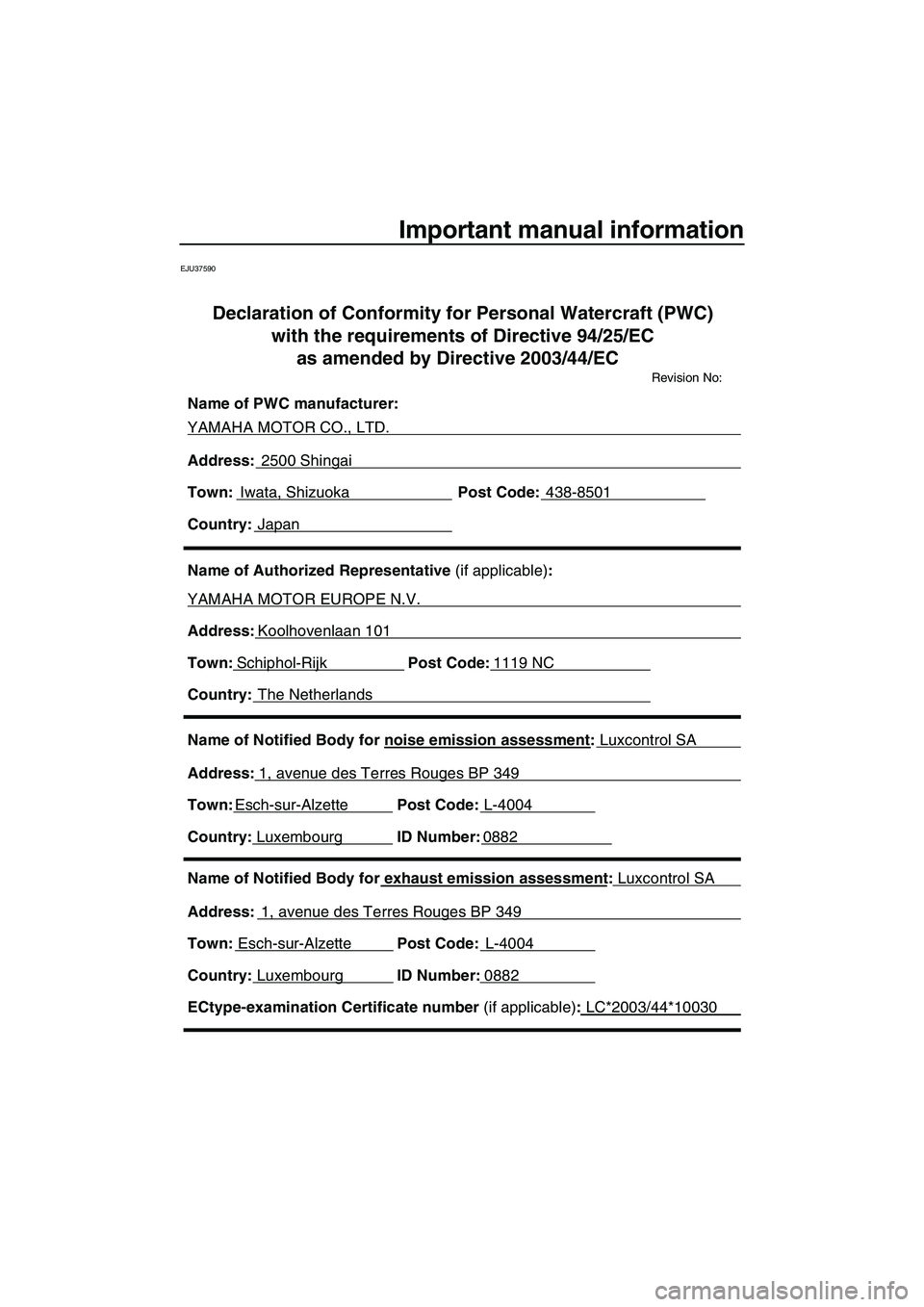

Declaration of Conformity for Personal Watercraft (PWC)
with the requirements of Directive 94/25/EC
as amended by Directive 2003/44/EC
UF2H70E0.book Page 1 Thursday, January 15, 2009 10:49 AM

Important manual information
This declaration of conformity is issued under the sole responsibility of the PWC
manufacturer. I declare on behalf of the PWC manufacturer that the craft model and
engine(s) mentioned above comply with all applicable essential requirements in the way
specified and are in conformity with the type for which above mentioned EC type-
examination certificate(s) has(have) been issued.
Name / title:S. Hayakawa / President of YAMAHA MOTOR EUROPE N.V.
(identification of the person empowered to sign on behalf
of the PWC manufacturer or his authorized representative)
Signature: (or an equivalent marking)
Date and place of issue: 1st / March / 2009, Schiphol-Rijk, The Netherlands

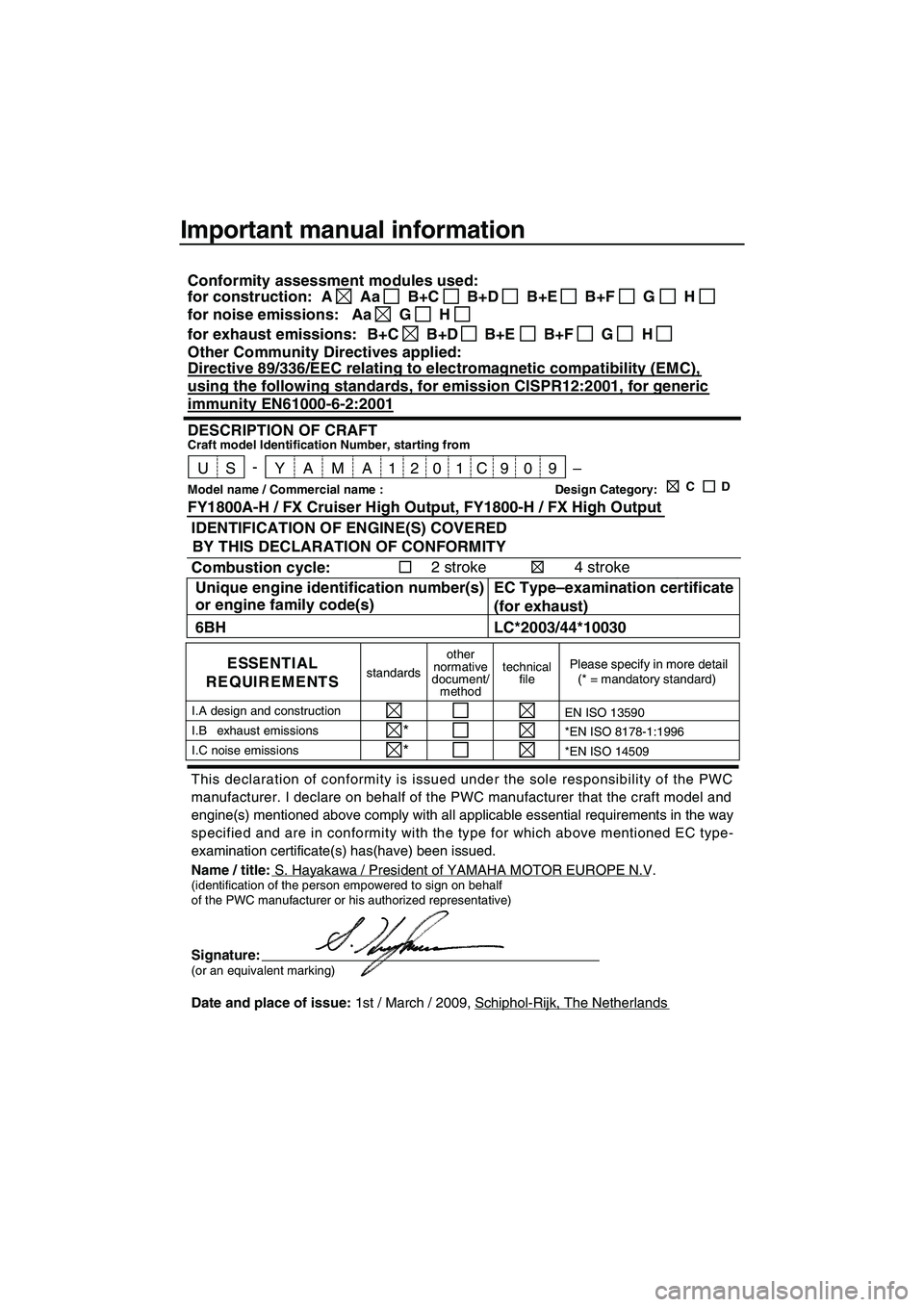

IDENTIFICATION OF ENGINE(S) COVERED
BY THIS DECLARATION OF CONFORMITY
Combustion cycle: 2 stroke 4 stroke
Unique engine identification number(s)
or engine family code(s) EC Type–examination certificate
(for exhaust)
6BH LC*2003/44*10030
ESSENTIAL
REQUIREMENTSstandards other
normative
document/
methodtechnical
filePlease specify in more detail
(* = mandatory standard)
I.A design and constructionEN ISO 13590
I.B exhaust emissions **EN ISO 8178-1:1996
I.C noise emissions **EN ISO 14509
Conformity assessment modules used:
for construction: A
Aa B+C B+D B+E B+F G H
for noise emissions: Aa G H
for exhaust emissions: B+E B+D B+C B+F G H
Other Community Directives applied:
Directive 89/336/EEC relating to electromagnetic compatibility (EMC),
using the following standards, for emission CISPR12:2001, for generic
immunity EN61000-6-2:2001
DESCRIPTION OF CRAFT Craft model Identification Number, starting from
FY1800A-H / FX Cruiser High Output, FY1800-H / FX High Output
Model name / Commercial name : Design Category: C D
U S Y A M 0 1C9A12 9–0-
UF2H70E0.book Page 2 Thursday, January 15, 2009 10:49 AM

Important manual information
EJU30191

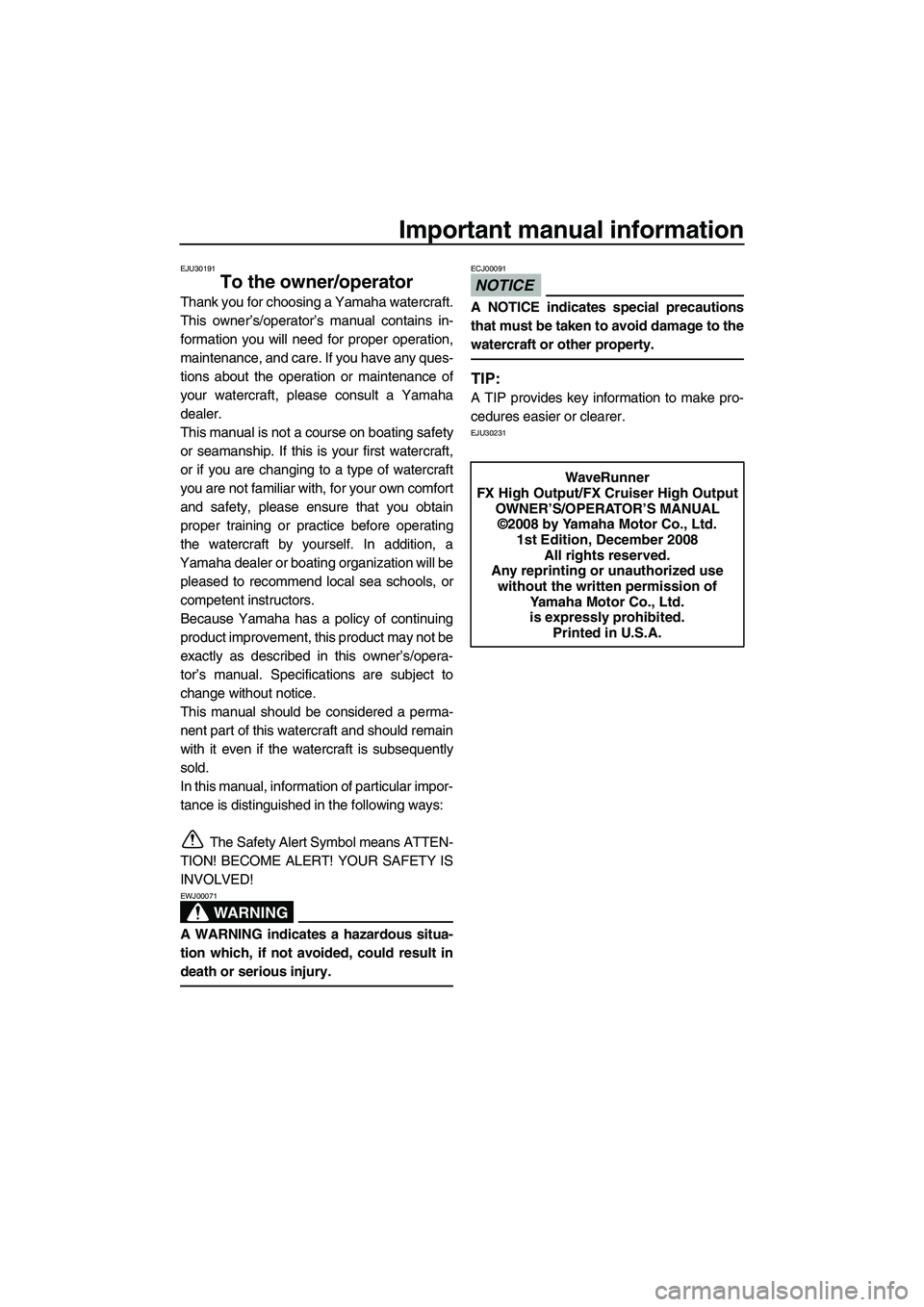

To the owner/operator
Thank you for choosing a Yamaha watercraft.
This owner’s/operator’s manual contains in-
formation you will need for proper operation,
maintenance, and care. If you have any ques-
tions about the operation or maintenance of
your watercraft, please consult a Yamaha
dealer.
This manual is not a course on boating safety
or seamanship. If this is your first watercraft,
or if you are changing to a type of watercraft
you are not familiar with, for your own comfort
and safety, please ensure that you obtain
proper training or practice before operating
the watercraft by yourself. In addition, a
Yamaha dealer or boating organization will be
pleased to recommend local sea schools, or
competent instructors.
Because Yamaha has a policy of continuing
product improvement, this product may not be
exactly as described in this owner’s/opera-
tor’s manual. Specifications are subject to
change without notice.
This manual should be considered a perma-
nent part of this watercraft and should remain
with it even if the watercraft is subsequently
sold.
In this manual, information of particular impor-
tance is distinguished in the following ways:
The Safety Alert Symbol means ATTEN-
TION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
WARNING
EWJ00071
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECJ00091
A NOTICE indicates special precautions
that must be taken to avoid damage to the
watercraft or other property.
TIP:
A TIP provides key information to make pro-
cedures easier or clearer.
EJU30231
WaveRunner
FX High Output/FX Cruiser High Output
OWNER’S/OPERATOR’S MANUAL
©2008 by Yamaha Motor Co., Ltd.
1st Edition, December 2008
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in U.S.A.
UF2H70E0.book Page 3 Thursday, January 15, 2009 10:49 AM

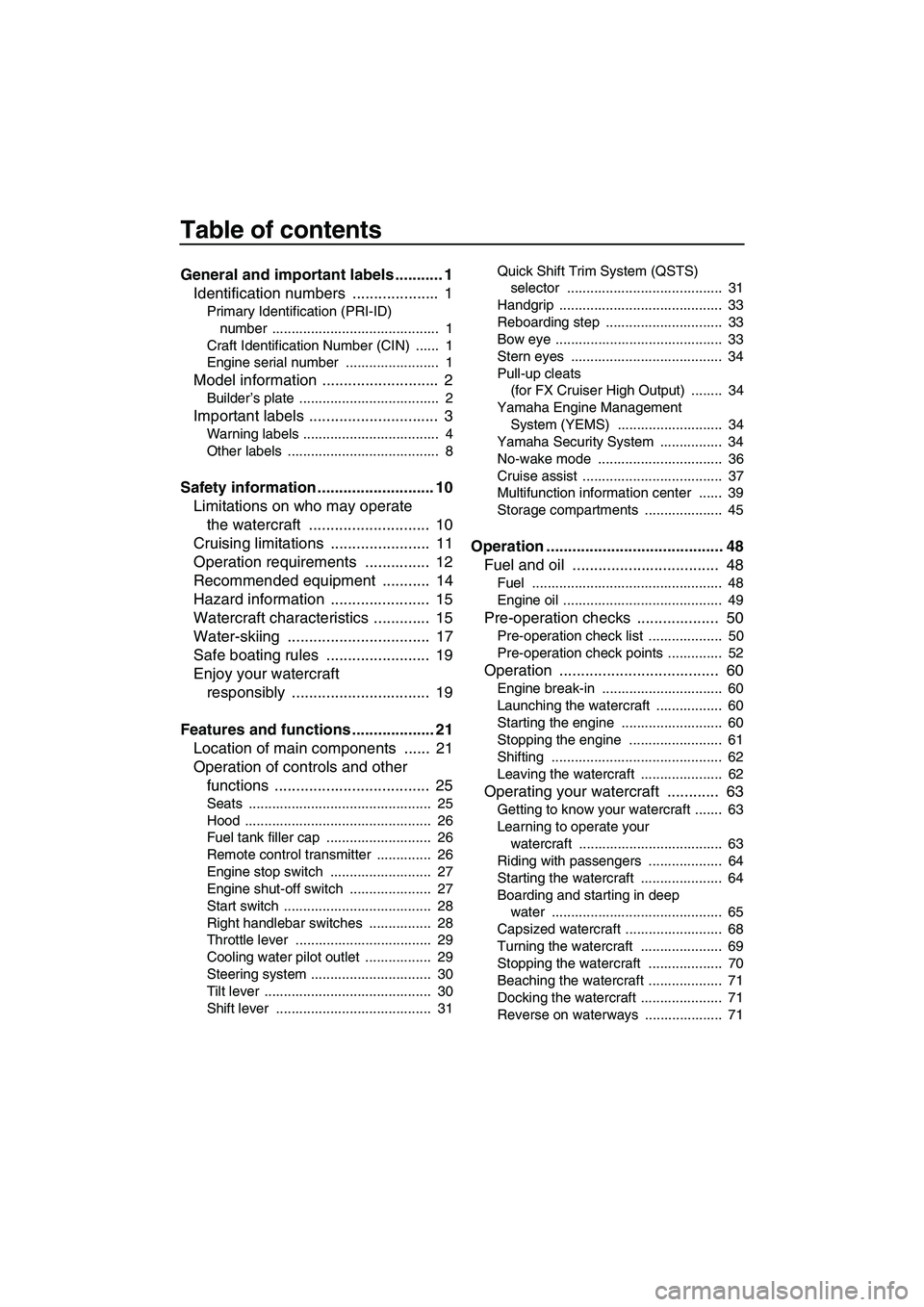

Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number ........................................... 1
Craft Identification Number (CIN) ...... 1
Engine serial number ........................ 1
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 3
Warning labels ................................... 4
Other labels ....................................... 8
Safety information ........................... 10
Limitations on who may operate
the watercraft ............................ 10
Cruising limitations ....................... 11
Operation requirements ............... 12
Recommended equipment ........... 14
Hazard information ....................... 15
Watercraft characteristics ............. 15
Water-skiing ................................. 17
Safe boating rules ........................ 19
Enjoy your watercraft
responsibly ................................ 19
Features and functions ................... 21
Location of main components ...... 21
Operation of controls and other
functions .................................... 25
Seats ............................................... 25
Hood ................................................ 26
Fuel tank filler cap ........................... 26
Remote control transmitter .............. 26
Engine stop switch .......................... 27
Engine shut-off switch ..................... 27
Start switch ...................................... 28
Right handlebar switches ................ 28
Throttle lever ................................... 29
Cooling water pilot outlet ................. 29
Steering system ............................... 30
Tilt lever ........................................... 30
Shift lever ........................................ 31Quick Shift Trim System (QSTS)
selector ........................................ 31
Handgrip .......................................... 33
Reboarding step .............................. 33
Bow eye ........................................... 33
Stern eyes ....................................... 34
Pull-up cleats
(for FX Cruiser High Output) ........ 34
Yamaha Engine Management
System (YEMS) ........................... 34
Yamaha Security System ................ 34
No-wake mode ................................ 36
Cruise assist .................................... 37
Multifunction information center ...... 39
Storage compartments .................... 45
Operation ......................................... 48
Fuel and oil .................................. 48
Fuel ................................................. 48
Engine oil ......................................... 49
Pre-operation checks ................... 50
Pre-operation check list ................... 50
Pre-operation check points .............. 52
Operation ..................................... 60
Engine break-in ............................... 60
Launching the watercraft ................. 60
Starting the engine .......................... 60
Stopping the engine ........................ 61
Shifting ............................................ 62
Leaving the watercraft ..................... 62
Operating your watercraft ............ 63
Getting to know your watercraft ....... 63
Learning to operate your
watercraft ..................................... 63
Riding with passengers ................... 64
Starting the watercraft ..................... 64
Boarding and starting in deep
water ............................................ 65
Capsized watercraft ......................... 68
Turning the watercraft ..................... 69
Stopping the watercraft ................... 70
Beaching the watercraft ................... 71
Docking the watercraft ..................... 71
Reverse on waterways .................... 71
UF2H70E0.book Page 1 Thursday, January 15, 2009 10:49 AM

Table of contents
Operating in weeded areas ............. 72
Post-operation care ...................... 72
Transporting ................................. 73

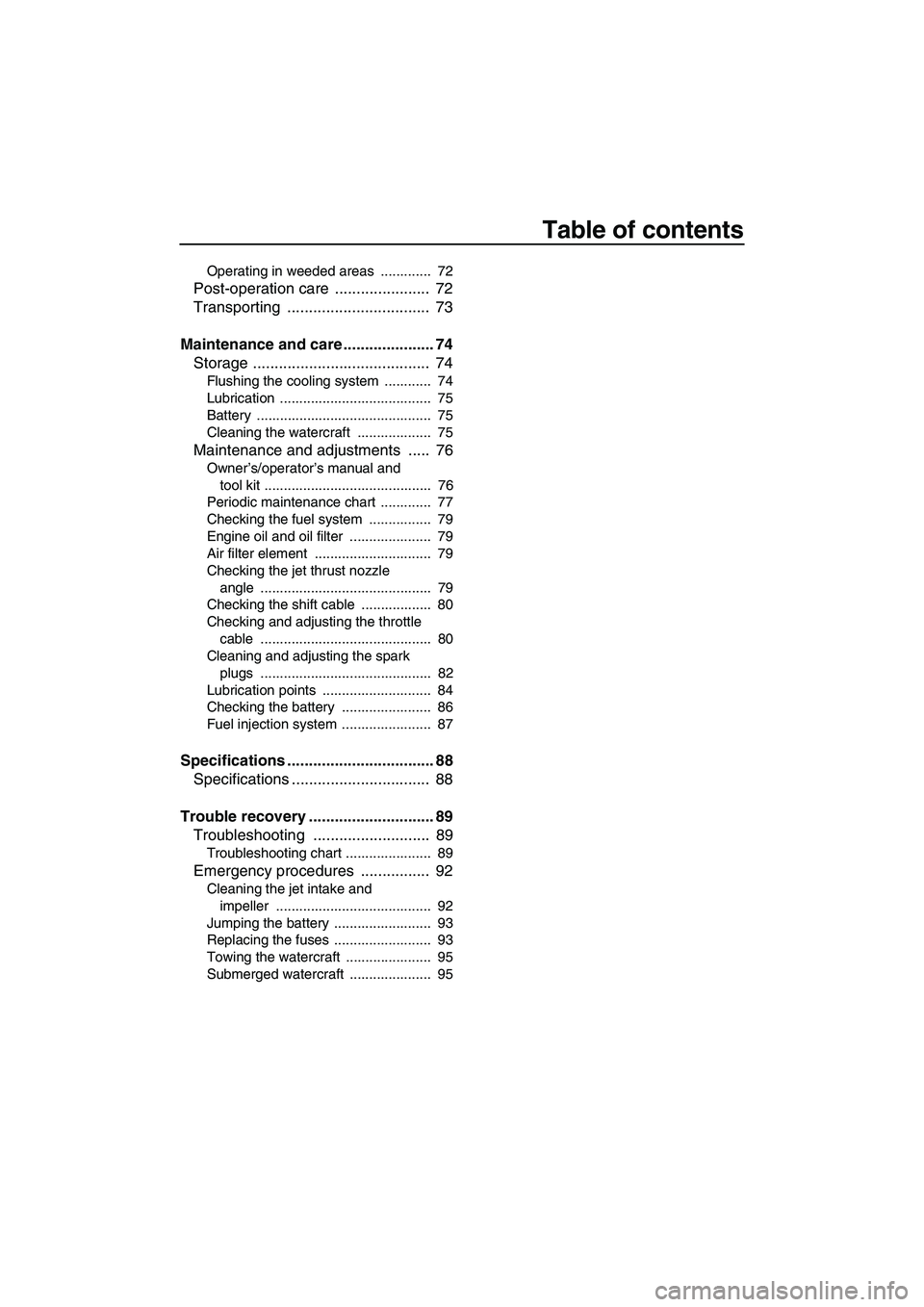

Maintenance and care ..................... 74
Storage ......................................... 74
Flushing the cooling system ............ 74
Lubrication ....................................... 75
Battery ............................................. 75
Cleaning the watercraft ................... 75
Maintenance and adjustments ..... 76
Owner’s/operator’s manual and
tool kit ........................................... 76
Periodic maintenance chart ............. 77
Checking the fuel system ................ 79
Engine oil and oil filter ..................... 79
Air filter element .............................. 79
Checking the jet thrust nozzle
angle ............................................ 79
Checking the shift cable .................. 80
Checking and adjusting the throttle
cable ............................................ 80
Cleaning and adjusting the spark
plugs ............................................ 82
Lubrication points ............................ 84
Checking the battery ....................... 86
Fuel injection system ....................... 87
Specifications .................................. 88
Specifications ................................ 88
Trouble recovery ............................. 89
Troubleshooting ........................... 89
Troubleshooting chart ...................... 89
Emergency procedures ................ 92
Cleaning the jet intake and
impeller ........................................ 92
Jumping the battery ......................... 93
Replacing the fuses ......................... 93
Towing the watercraft ...................... 95
Submerged watercraft ..................... 95
UF2H70E0.book Page 2 Thursday, January 15, 2009 10:49 AM

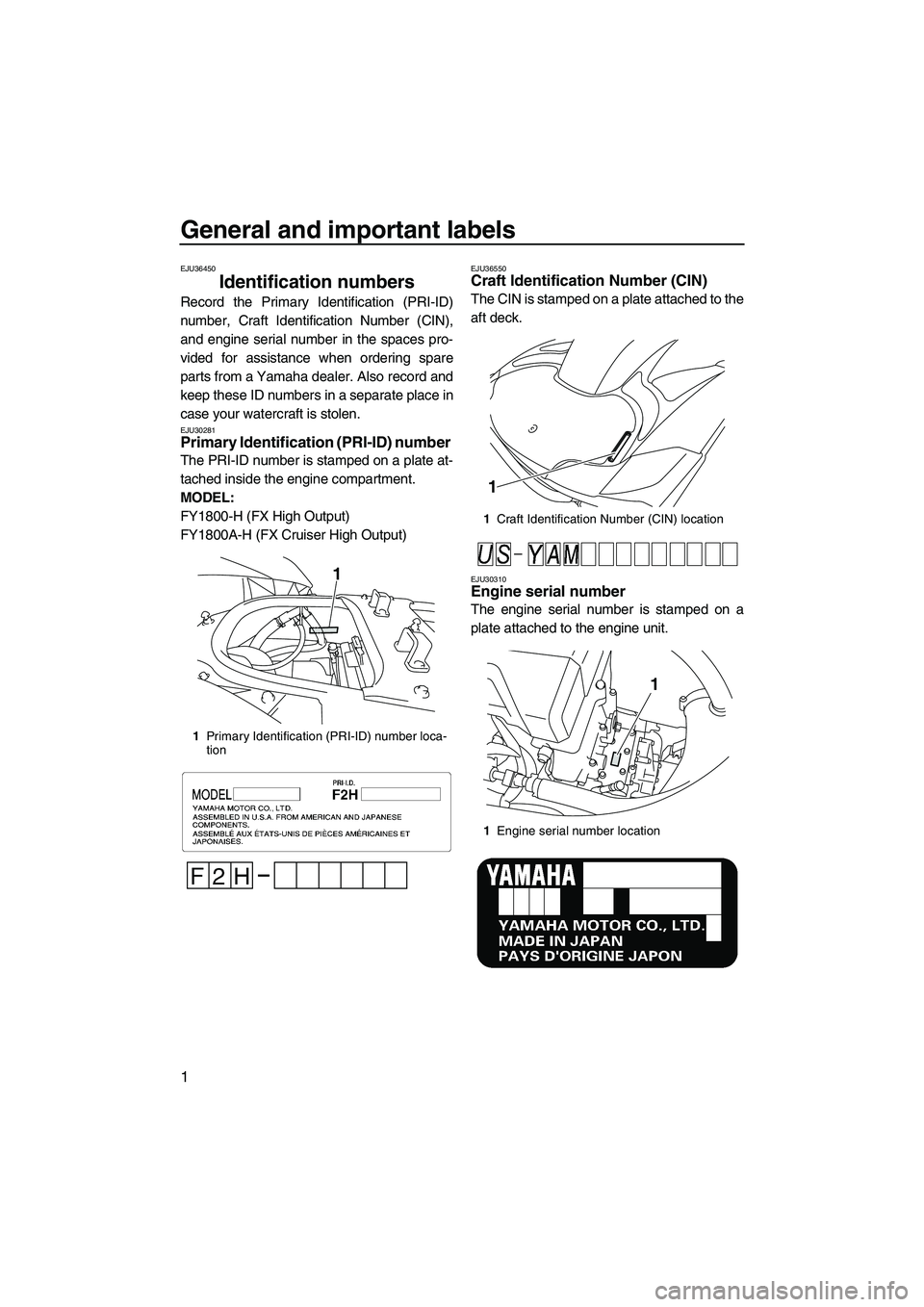

General and important labels
1
EJU36450
Identification numbers
Record the Primary Identification (PRI-ID)
number, Craft Identification Number (CIN),
and engine serial number in the spaces pro-
vided for assistance when ordering spare
parts from a Yamaha dealer. Also record and
keep these ID numbers in a separate place in
case your watercraft is stolen.
EJU30281Primary Identification (PRI-ID) number
The PRI-ID number is stamped on a plate at-
tached inside the engine compartment.
MODEL:
FY1800-H (FX High Output)
FY1800A-H (FX Cruiser High Output)
EJU36550Craft Identification Number (CIN)
The CIN is stamped on a plate attached to the
aft deck.
EJU30310Engine serial number
The engine serial number is stamped on a
plate attached to the engine unit.
1Primary Identification (PRI-ID) number loca-
tion
1
1Craft Identification Number (CIN) location
1Engine serial number location
1
1
UF2H70E0.book Page 1 Thursday, January 15, 2009 10:49 AM

General and important labels
2
EJU30320
Model information EJU30331Builder’s plate
Watercraft with this label conform to certain
portions of the European Parliament directive
relating to machinery.
Part of the information is given on the builder’s
plate affixed on the craft. A full explanation of
this information is given in the relevant sec-
tions of this manual.
Design category of this personal water-
craft: C
Category C:
This watercraft is designed to operate in
winds up to Beaufort force 6 and the associat-
ed wave heights (significant wave heights up
to 2 m (6.56 ft); see the following TIP). Such
conditions may be encountered in exposed
inland waters, in estuaries, and in coastal wa-
ters in moderate weather conditions.
TIP:
The significant wave height is the mean
height of the highest one-third of the waves,
which approximately corresponds to the wave
height estimated by an experienced observer.
However, some waves will be double this
height.
1Builder’s plate location
1
UF2H70E0.book Page 2 Thursday, January 15, 2009 10:49 AM

General and important labels
3
EJU30451
Important labels
Read the following labels before operating this watercraft. If you need any additional informa-
tion, contact a Yamaha dealer.
15
1387121
6
4
914216
3
511
10
UF2H70E0.book Page 3 Thursday, January 15, 2009 10:49 AM
